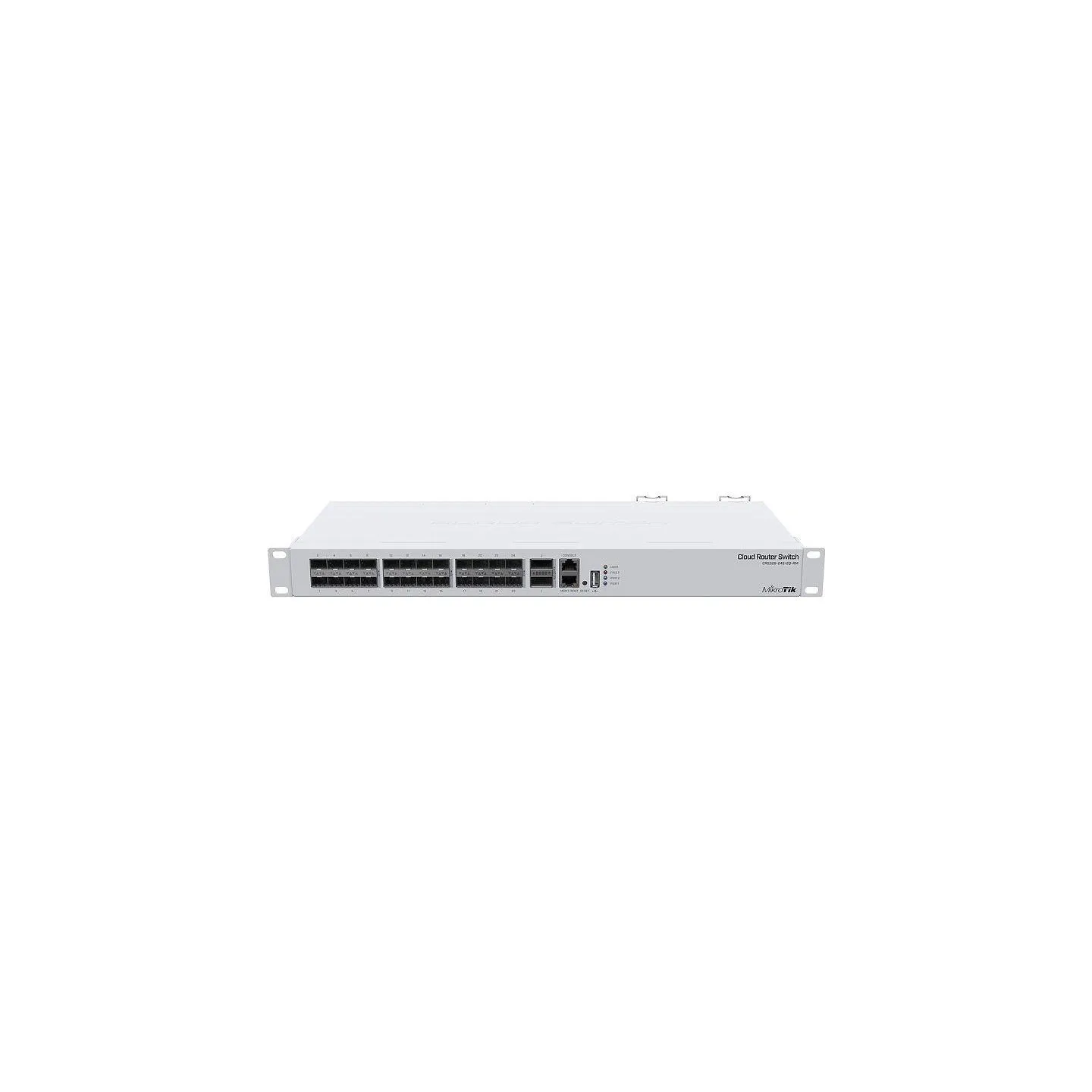

Mikrotik Switch|MIKROTIK|Rack|1x10Base-T / 100Base-TX|24xSFP+|2xQSFP+|1xRJ45|CRS326-24S+2Q+RM
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Manufacturer Website:
https://mikrotik.com/product/crs326_24s_2q_rm#fndtn-specifications
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.065
- Unit Box Length
- 0.49
- Unit Box Width
- 0.275
- Switch layer
- L3
- Switch type
- Managed
- Console port
- RJ-45
- Power connector
- AC-in jack
- QSFP+ module slots quantity
- 2
- SFP+ module slots quantity
- 24
- USB 2.0 ports quantity
- 1
- 10G support
- Yes
- Forwarding rate
- 252 Mpps
- Switching capacity
- 640 Gbit/s
- Throughput
- 320 Mpps
- Form factor
- 1U
- LED indicators
- Yes
- Product colour
- White
- Rack mounting
- Yes
- Reset button
- Yes
- Built-in processor
- Yes
- Flash memory
- 16 MB
- Internal memory
- 64 MB
- Memory type
- RAM
- Processor frequency
- 650 MHz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 69 W
- Redundant power supply (RPS) support
- Yes
- Power over Ethernet (PoE)
- No
- Operating temperature (T-T)
- -20 - 60 °C
- Depth
- 183 mm
- Height
- 44 mm
- Width
- 443 mm
- Cables included
- AC
- Rack mount kit
- Yes
- Harmonized System (HS) code
- 85176990
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.003773 cubm
- Unit Calculated Weight
- 2.75 kg
