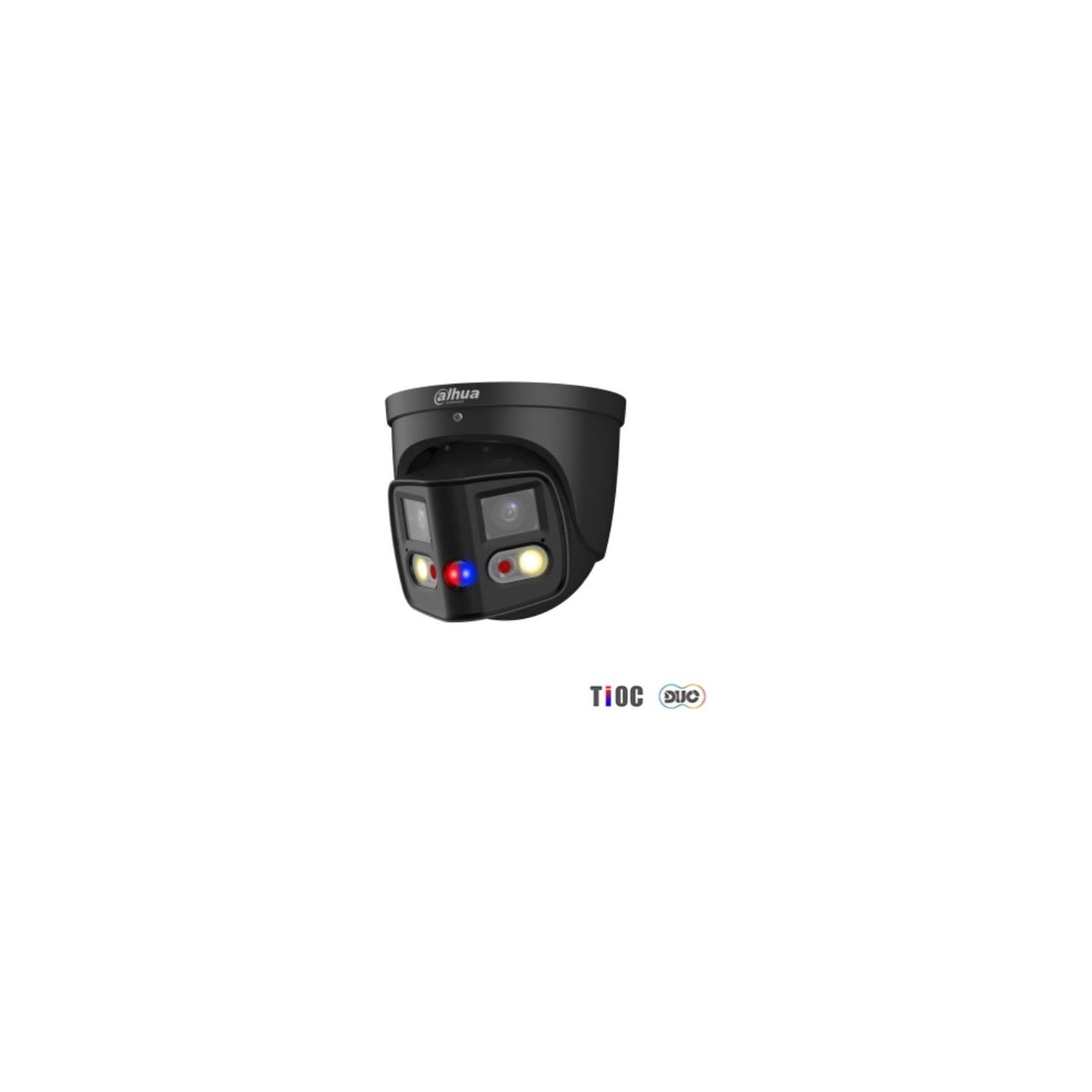

Dahua NET CAMERA 8MP EYEBALL/PDW3849-A180E2ASPV0280BB DAHUA
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input.
> Field of View: 180°
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-PDW3849-A180-AS-PV
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.167
- Unit Box Length
- 0.172
- Unit Box Width
- 0.168
- Form factor
- Eyeball
- Product colour
- Black
- Connectivity technology
- Wired
- Adjustment shutter speed
- Auto/Manual
- Camera shutter speed
- 1/3 s–1/100,000 s s
- Number of effective pixels (H x V)
- 4096 (H) × 1860 (V) pixels
- Number of sensors
- 2
- Optical sensor size
- Dual 1/2.7" "
- Sensor type
- CMOS
- Fixed focal length
- 2.8 mm
- LED type
- IR
- Total megapixels
- 8 MP
- Built-in microphone
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 1
- Alarm output channels
- 1
- Operating temperature (T-T)
- –40 °C to +60 °C °C
- Diameter
- 122 mm
- Weight
- 990 g
- Width
- 135.2 mm
- Audio input
- 1
- Audio output
- 1
- Lens mount interface
- M12
- Suitable for outdoor use
- Yes
- Model
- PDW3849-A180E2ASPV0280B-B
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.006257 cubm
- Unit Calculated Weight
- 1.24 kg
