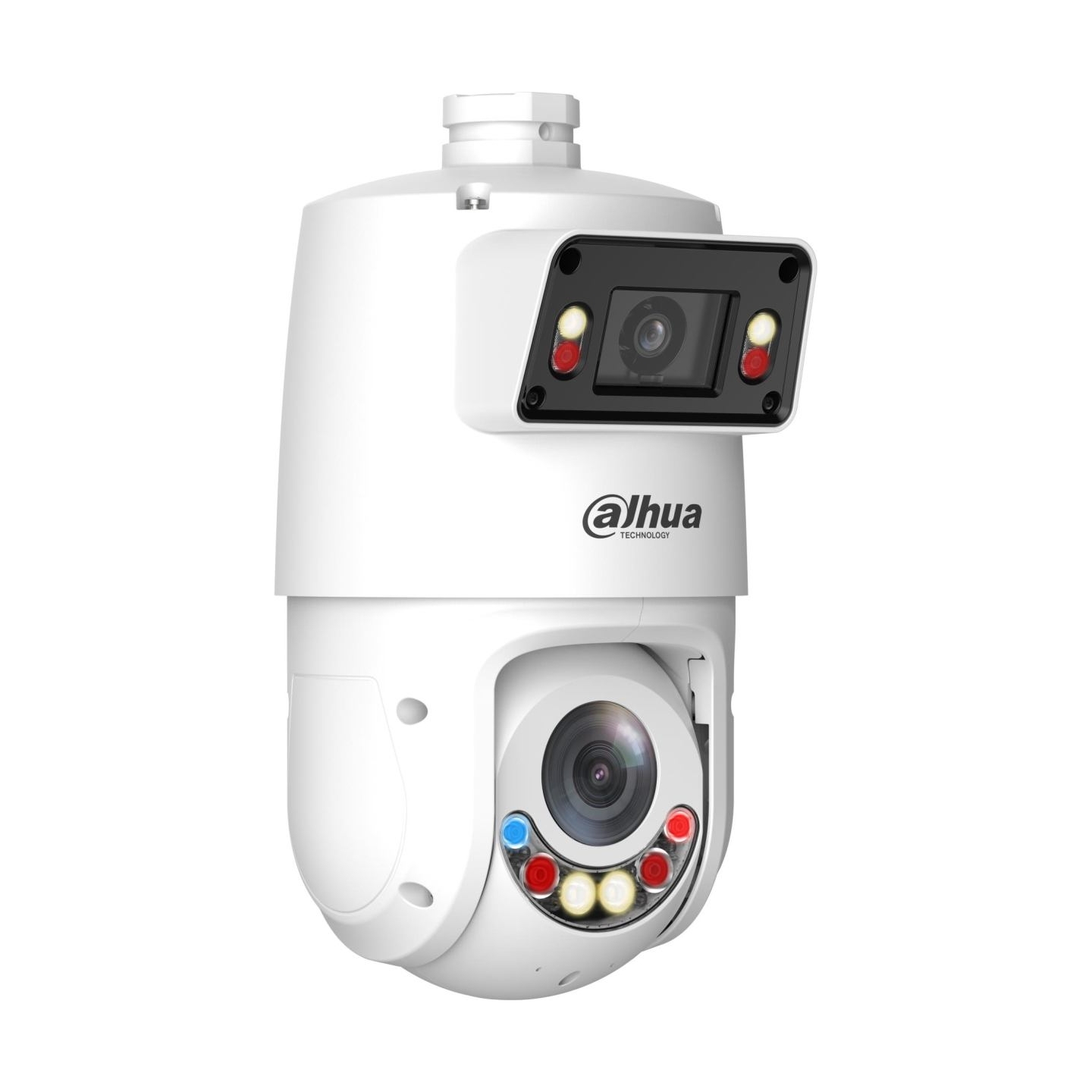

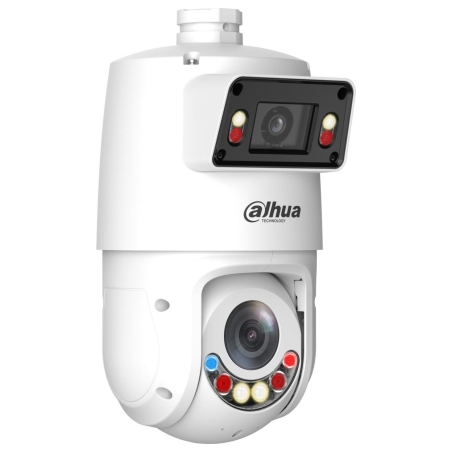

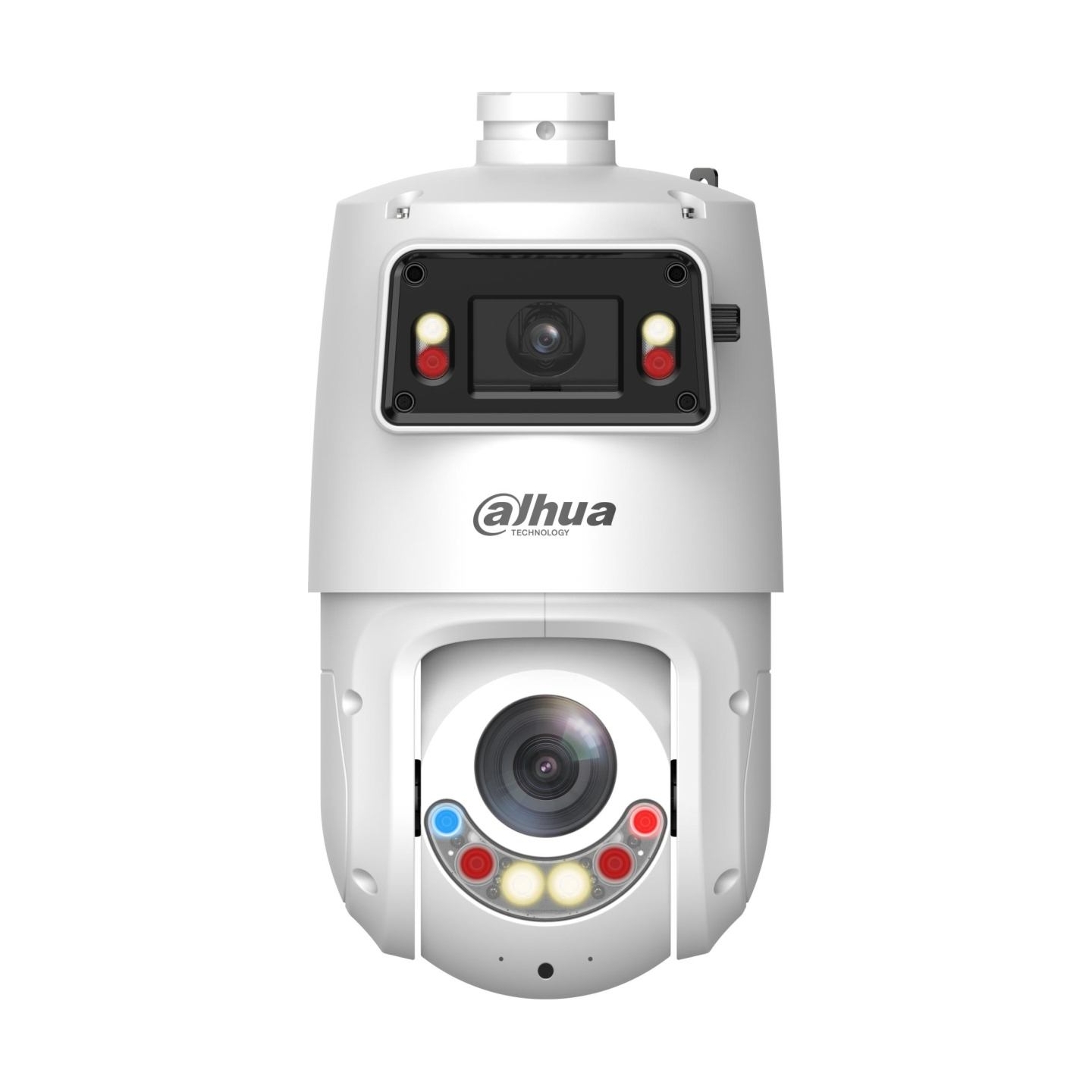

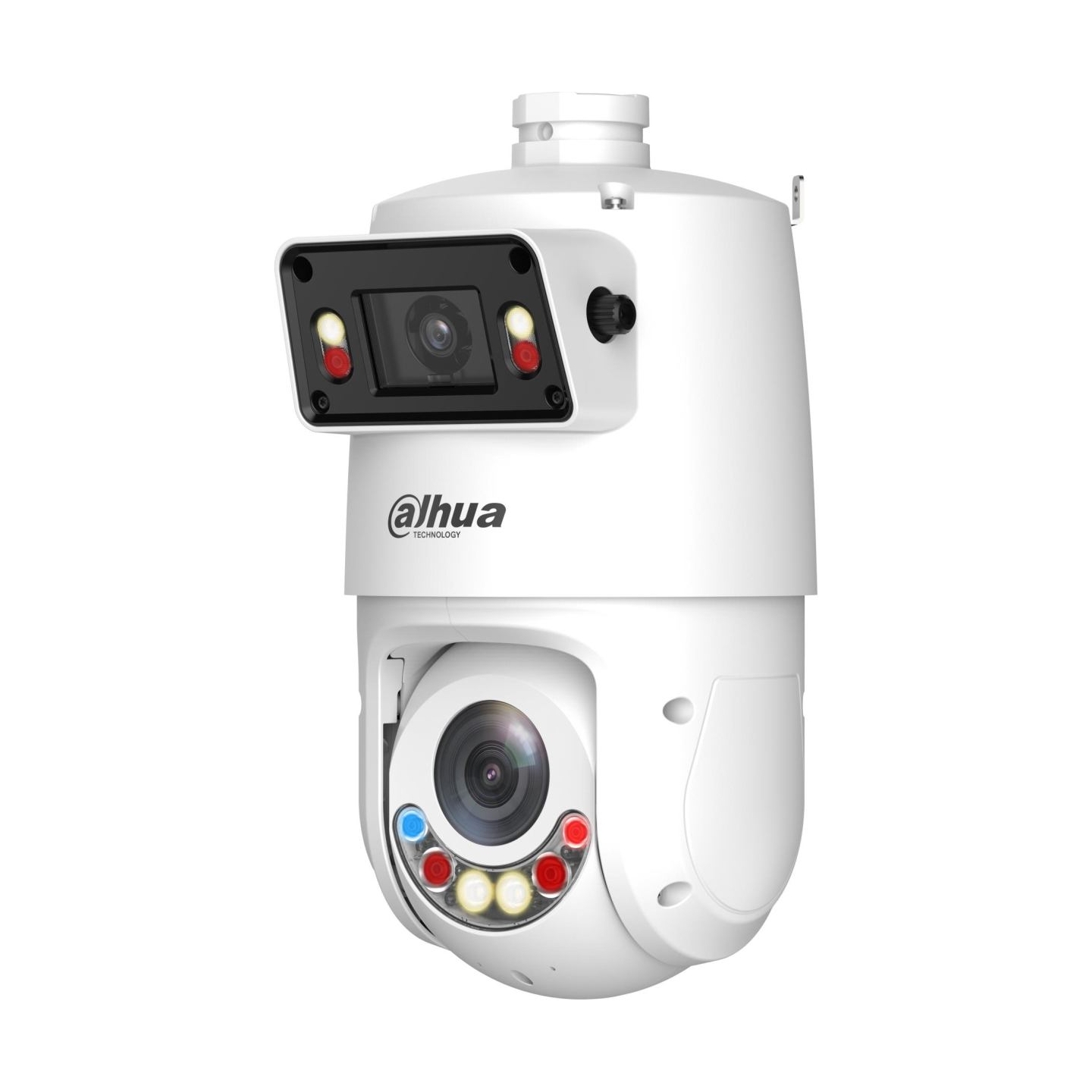

Dahua NET CAMERA 4+4MP IR PTZ DOME/SDT4E425-4F-GB-A-PV1-S2 DAHUA
Ceiling/Wall/Pole
White
IP code IP66
IP security camera
Wired
Placement Indoor & outdoor
PTZ control Yes
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Alarm input/output Yes
Built-in light Yes
Minimum illumination 0.001 lx
Pan range 0 - 360 °
White balance Auto/Manual/Natural/Outdoor/Sodium lamp/Street lamp/Indoor
Optical sensor size 1/2.8 "
Sensor type CMOS
Zoom capability Yes
Identify distance 10 m
Night vision Yes
Night vision distance 100 m
Total megapixels 4 MP
Frame rate 30 fps
Noise reduction Yes
Image stabilizer Yes
Built-in microphone Yes
Ethernet LAN Yes
Card reader integrated Yes
Power source type DC,PoE
Weight 3.41 kg
1xNumber of cameras
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/X-Spans-Series/Distribution/SDT4E425-4F-GB-A-PV1-S2=S2
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.497
- Unit Box Length
- 0.257
- Unit Box Width
- 0.243
- International Protection (IP) code
- IP66
- Mounting type
- Ceiling/Wall/Pole
- Product colour
- White
- Alarm input/output
- Yes
- Auto patrol mode
- Yes
- Auto-tracking
- Yes
- Built-in light
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- Placement supported
- Indoor & outdoor
- Preset points
- Yes
- PTZ control
- Yes
- PTZ modes
- 5 Pattern/5 Scan/8 Tour
- Tour recording
- Yes
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Auto flip
- Yes
- Camera pan control
- Yes
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 120 °
- Lens viewing angle, horizontal
- 101 °
- Lens viewing angle, vertical
- 53 °
- Minimum illumination
- 0.001 lx
- Number of Privacy masking areas
- 24
- Pan range
- 0 - 360 °
- Tilt angle range
- -15 - 90 °
- White balance
- Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
- Optical sensor size
- 1/2.8 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Auto focus
- Yes
- Detect distance
- 100 m
- Focus
- Manual
- Identify distance
- 10 m
- Observe distance
- 40 m
- Optical zoom
- 25 x
- Recognize distance
- 20 m
- Zoom capability
- Yes
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 100 m
- Back Light Compensation (BLC)
- Yes
- Bit rate control
- Constant Bit Rate (CBR),Variable Bit Rate (VBR)
- Digital Wide Dynamic Range (DWDR)
- Yes
- Frame rate
- 30 fps
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Image stabilizer
- Yes
- Maximum resolution
- 2560 x 1440 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 2D noise reduction,3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Total megapixels
- 4 MP
- Video compression formats
- H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG
- Video recording
- Yes
- Video streaming
- Yes
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.722.1/G.726/G.729/MPEG-2/PCM
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Audio system
- 2-way
- Built-in microphone
- Yes
- Built-in speaker(s)
- Yes
- Number of microphones
- 2
- Signal-to-Noise Ratio (SNR)
- 55 dB
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.1x/IEEE 802.3at
- Number of users
- 20 user(s)
- Quality of Service (QoS) support
- Yes
- Streaming method
- Multicast/Unicast
- Supported network protocols
- HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- RAM capacity
- 2048 MB
- ROM capacity
- 4096 MB
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 2
- Alarm output channels
- 1
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Intrusion/Missing object/Tripwire
- Network access storage (NAS)
- Yes
- Video motion detection
- Yes
- DC output current
- 3 A
- DC output voltage
- 12
- Power consumption (max)
- 25 W
- Power consumption (typical)
- 14 W
- Power source type
- DC,PoE
- Operating temperature (T-T)
- -40 - 65 °C
- Mobile operating systems supported
- Android/iOS
- Height
- 304.6 mm
- Length
- 160 mm
- Weight
- 3410 g
- Width
- 184.4 mm
- Compliance certificates
- CE
- Manual
- Yes
- Number of cameras
- 1
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.03721 cubm
- Unit Calculated Weight
- 5.5 kg
