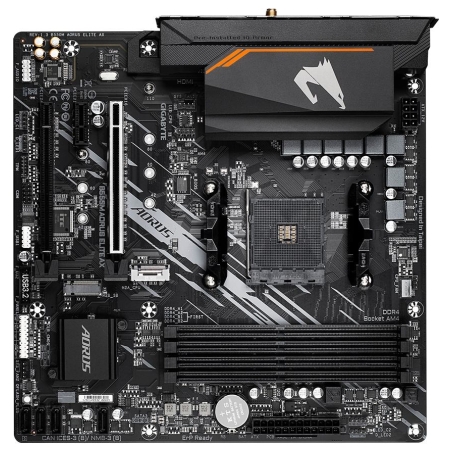

Gigabyte Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slo
Gigabyte Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slo

Gigabyte Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slo

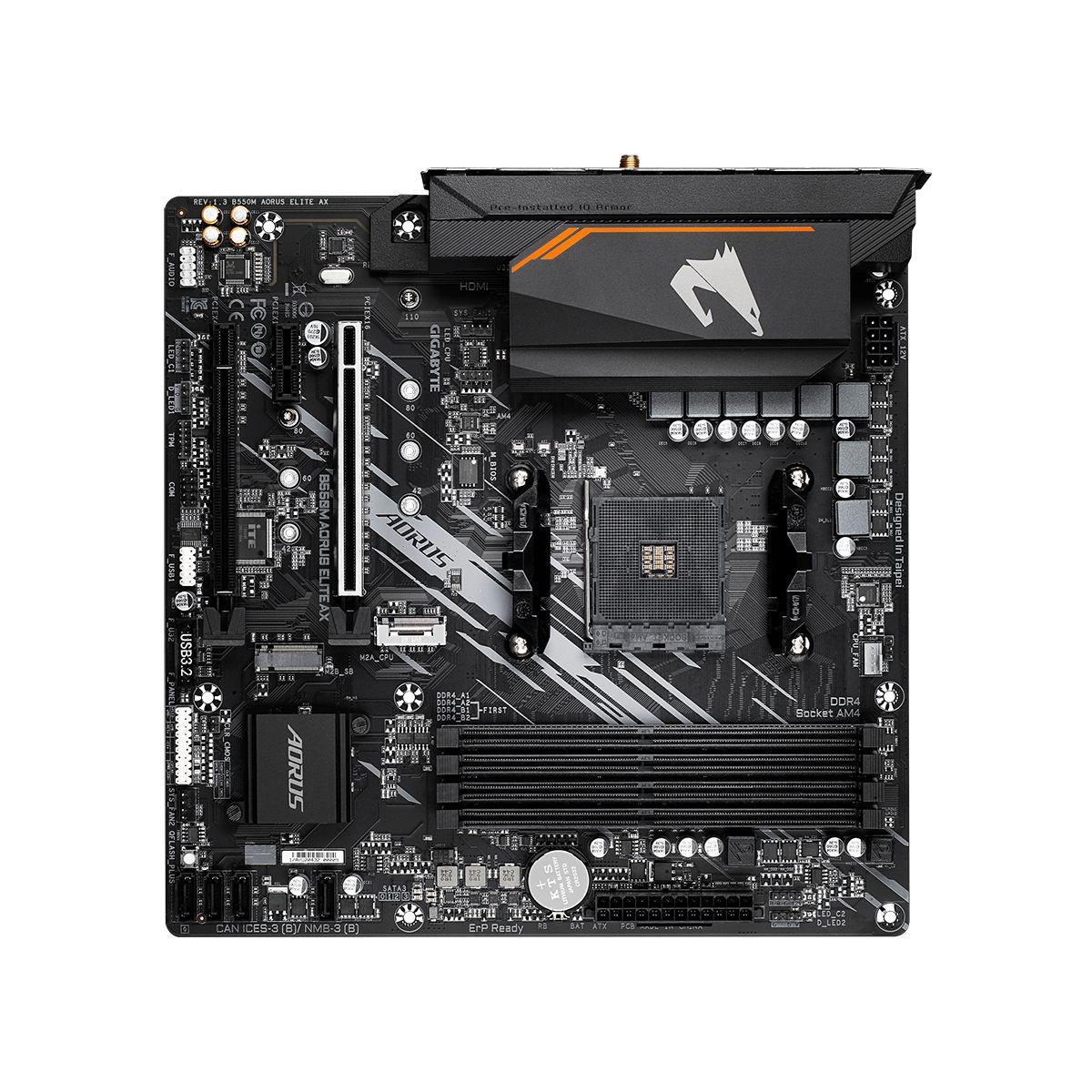

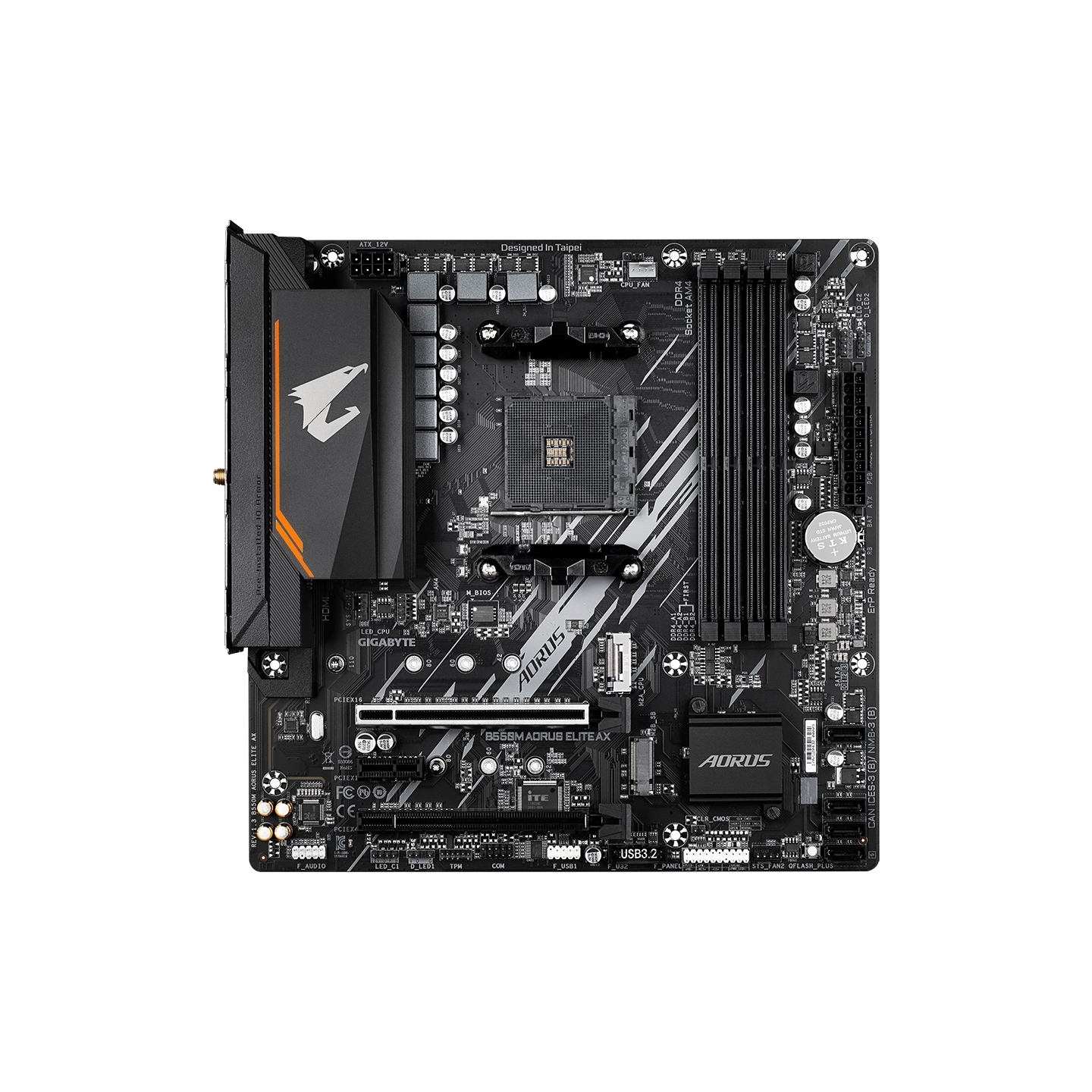

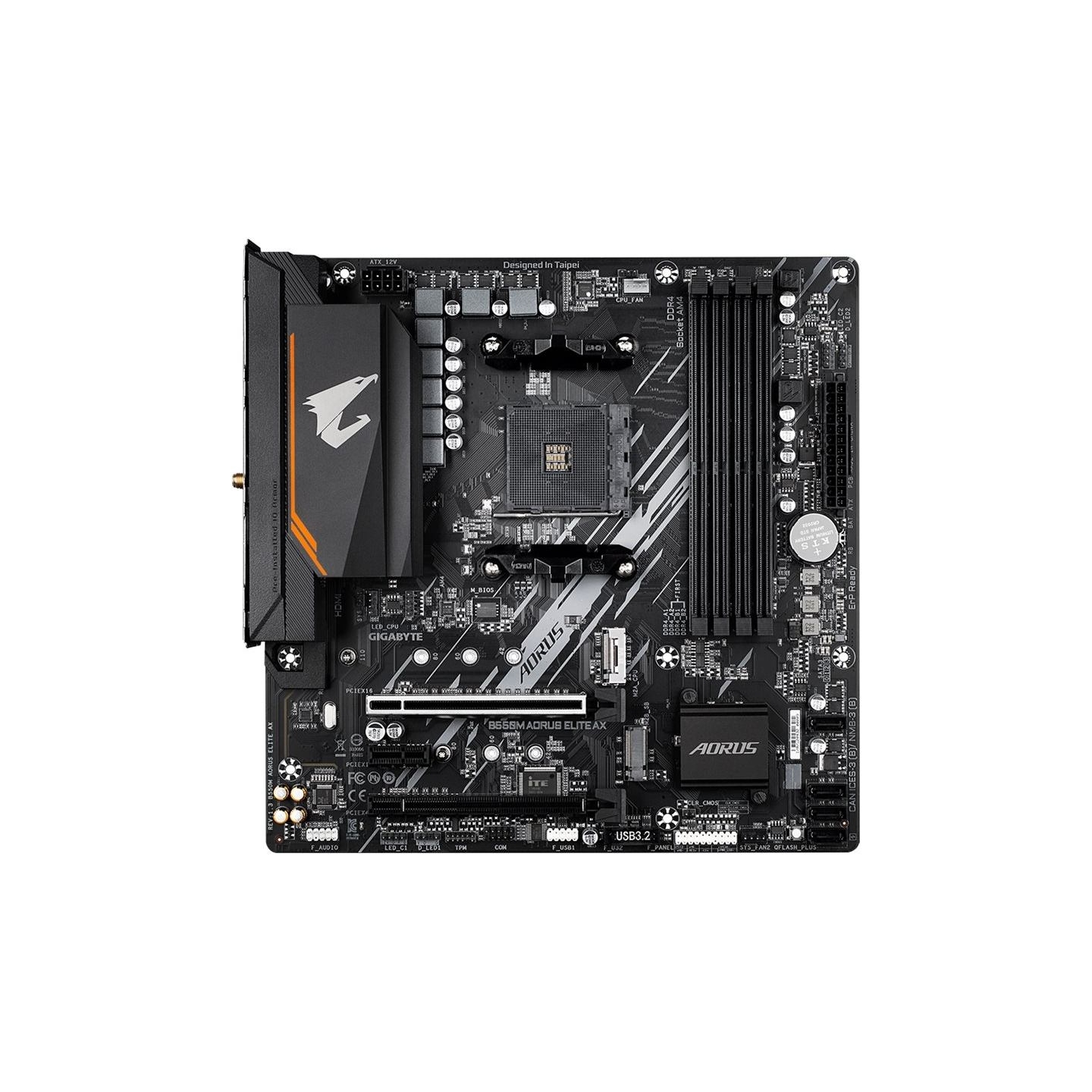

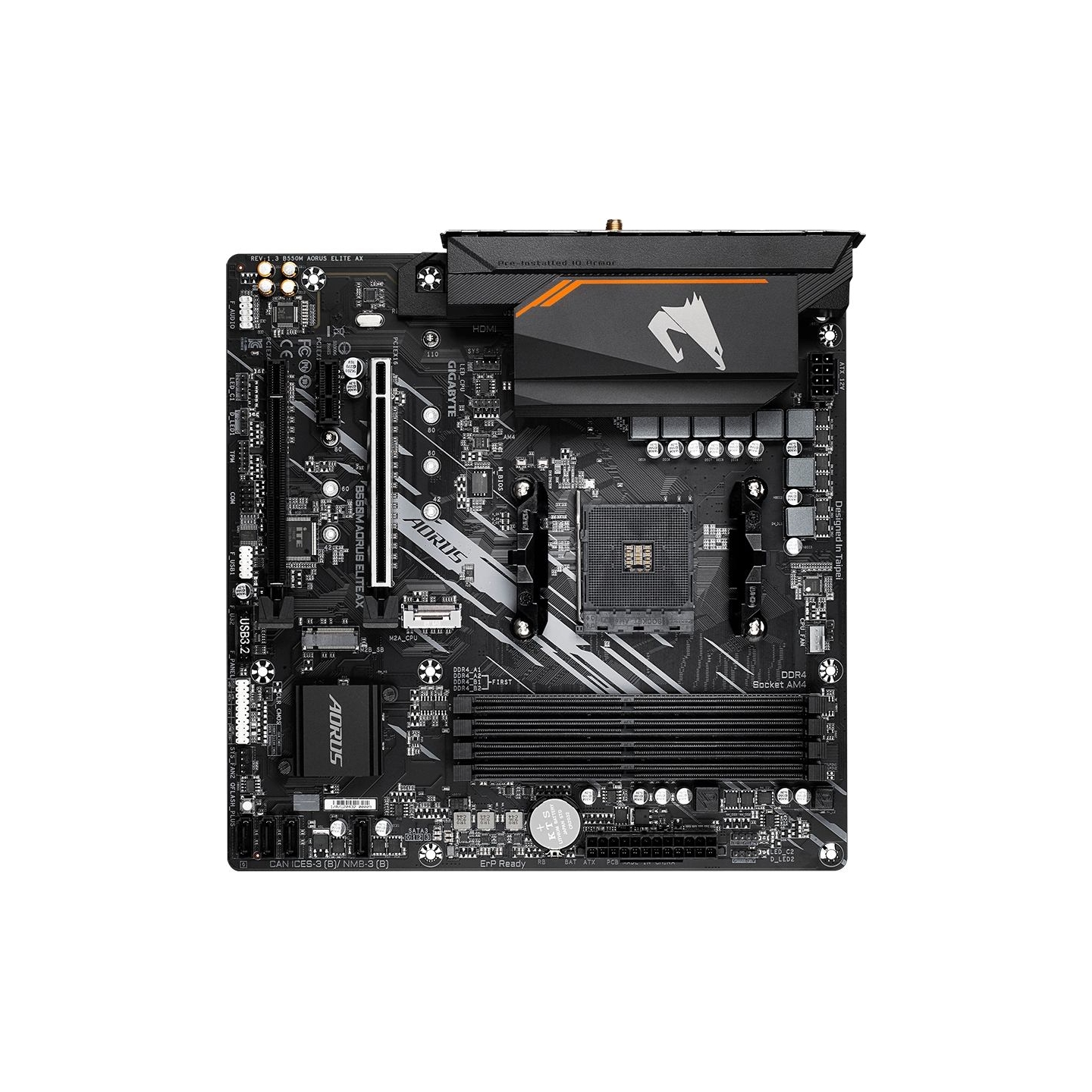

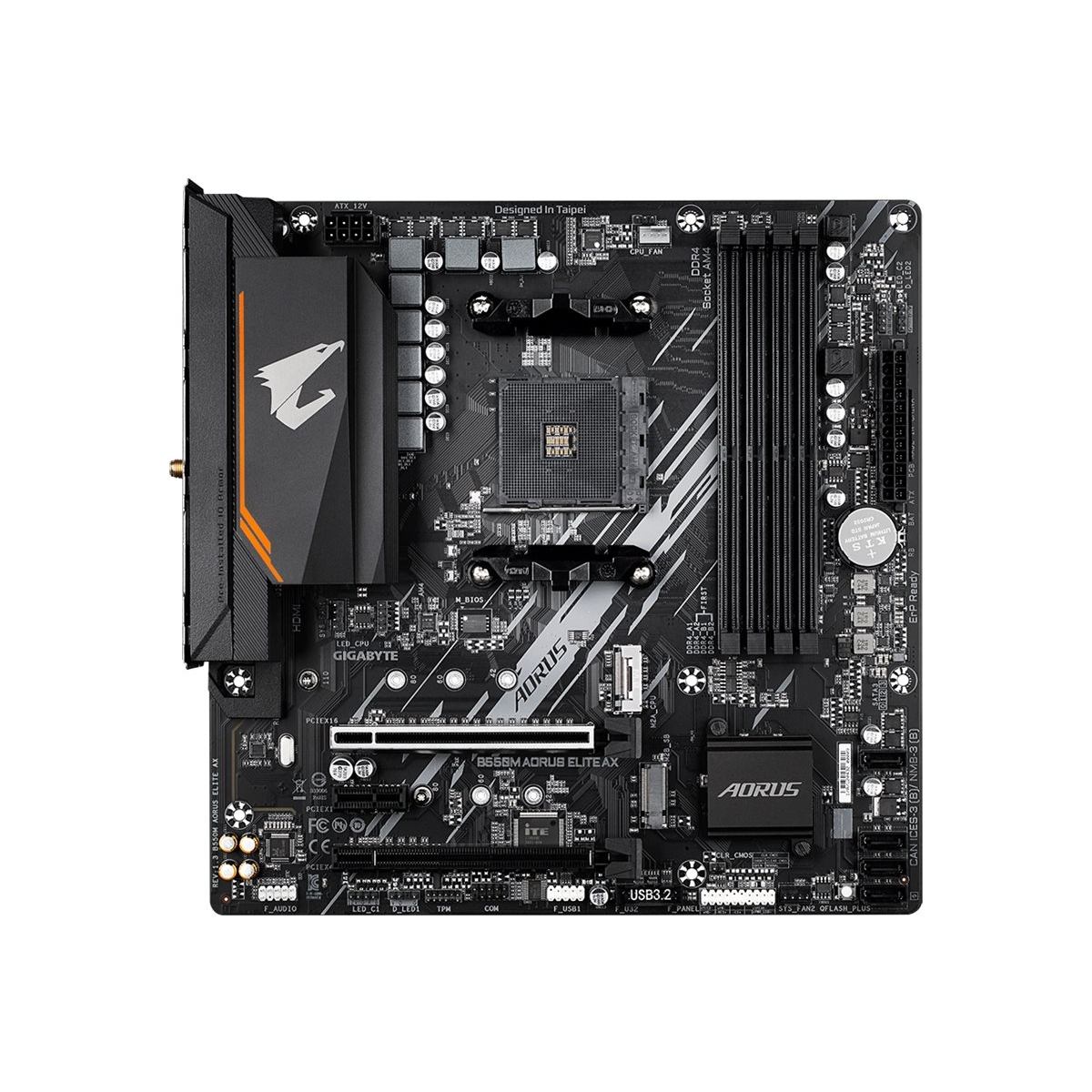

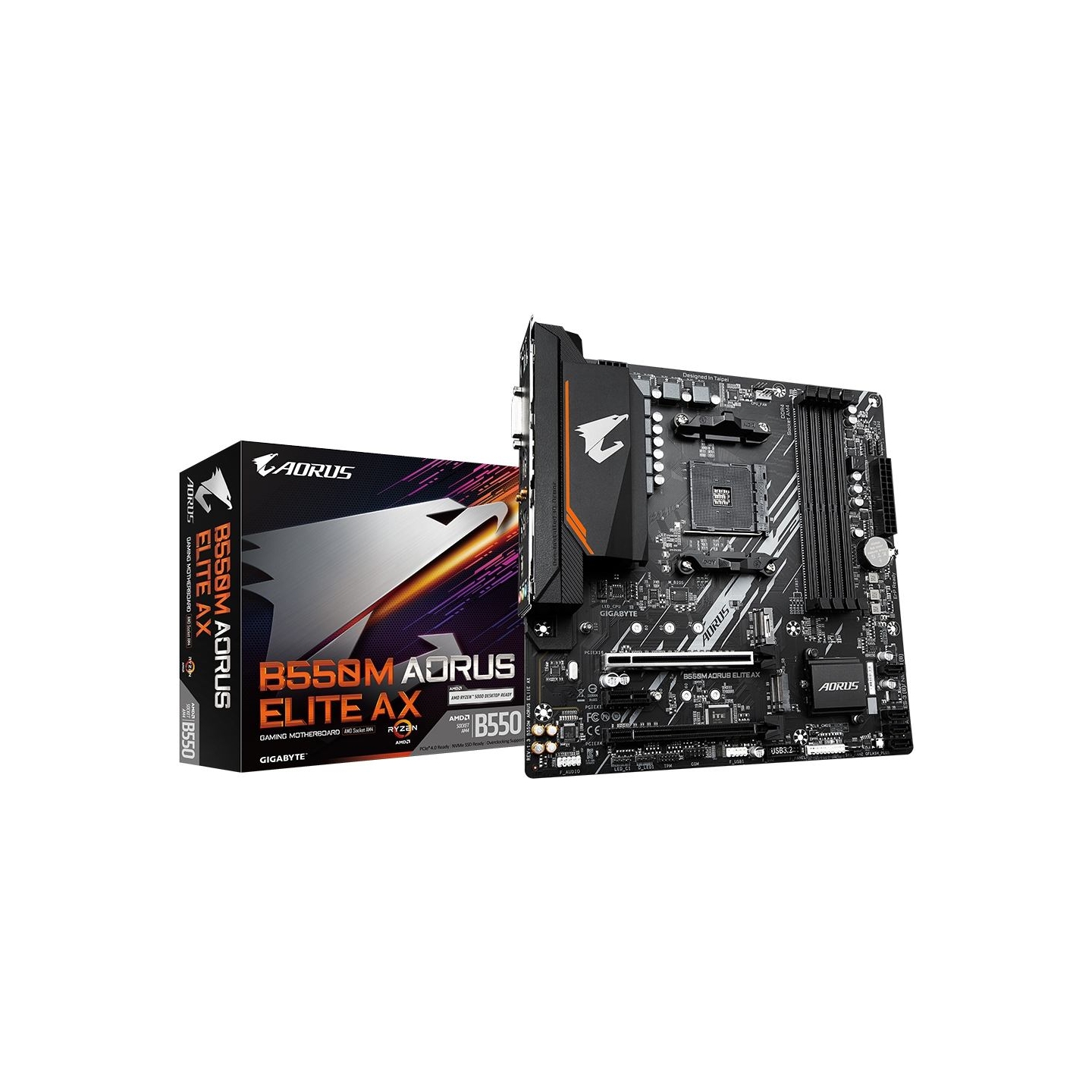

SKU B550M AORUS ELITE AX (REV. 1.4) Category Mainboards
Price: €122.90
Tax included
Add to Cart
Share on

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.4
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design



Manufacturer Website:
https://www.gigabyte.com/

Category Code
MBA
CnCode
84733020
Unit Box Height
0.07
Unit Box Length
0.27
Unit Box Width
0.265
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Cooling type
Passive
Motherboard chipset
AMD B550
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
PC health monitoring
Fan/Temperature/Voltage
Power source type
ATX
Product colour
Brown
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Compatible processor series
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Maximum number of SMP processors
1
Processor manufacturer
AMD
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
128 GB
Maximum internal memory per slot
32 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory types
DDR4-SDRAM
Unbuffered memory
Yes
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
5
Number of SATA III connectors
4
Number of water pump connectors
2
RGB LED pin header
Yes
Serial port headers
1
TPM connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

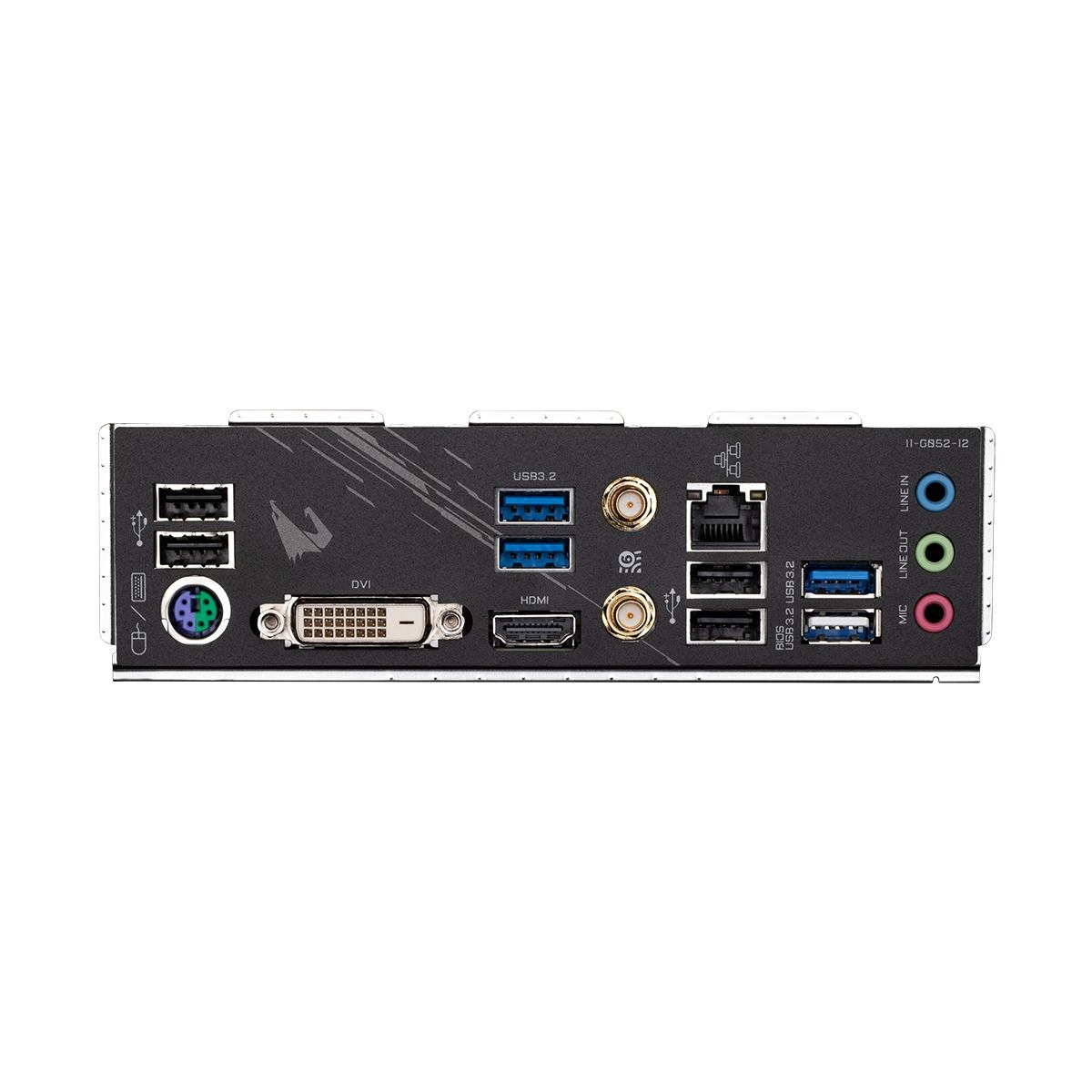

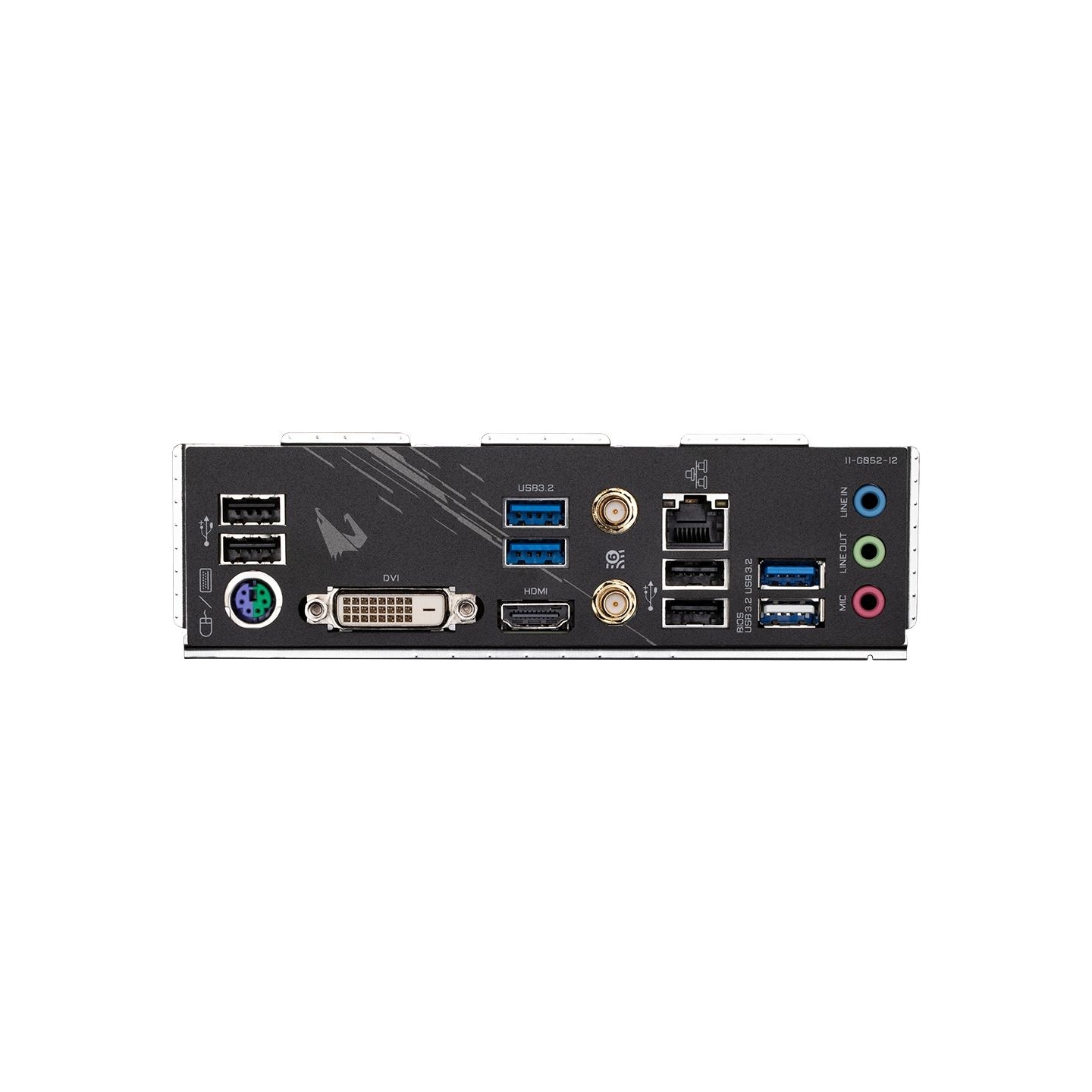

DVI-D ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
WiFi-AP antenna jack
2
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8111H
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Realtek RTL8852CE
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
ACPI version
5.0
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Country of origin
China
Package depth
265 mm
Package height
65 mm
Package weight
1273 g
Package width
265 mm
Depth
244 mm
Width
244 mm
Antenna included
Yes
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Screws included
Yes
Warranty period
3 year(s)
Model
B550M AORUS ELITE AX (REV. 1.4)
Units per Shipping Box
10
Unit Calculated Volume
0.006165 cubm
Unit Calculated Weight
1.26 kg
