Mikrotik Router Chateau LTE12 D53G-5HacD2HnD-TC&EG120K-EA
Remove the bottleneck in your mobile internet setup
Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:
- Faster speeds in crowded areas
- More stable connections in remote locations
- Wider coverage across multiple LTE bands
New and improved LTE connectivity
- Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
- Dual-band Wi-Fi for seamless performance across all devices
- Now with B32 support for improved LTE performance in supported regions!
Built for homes and businesses

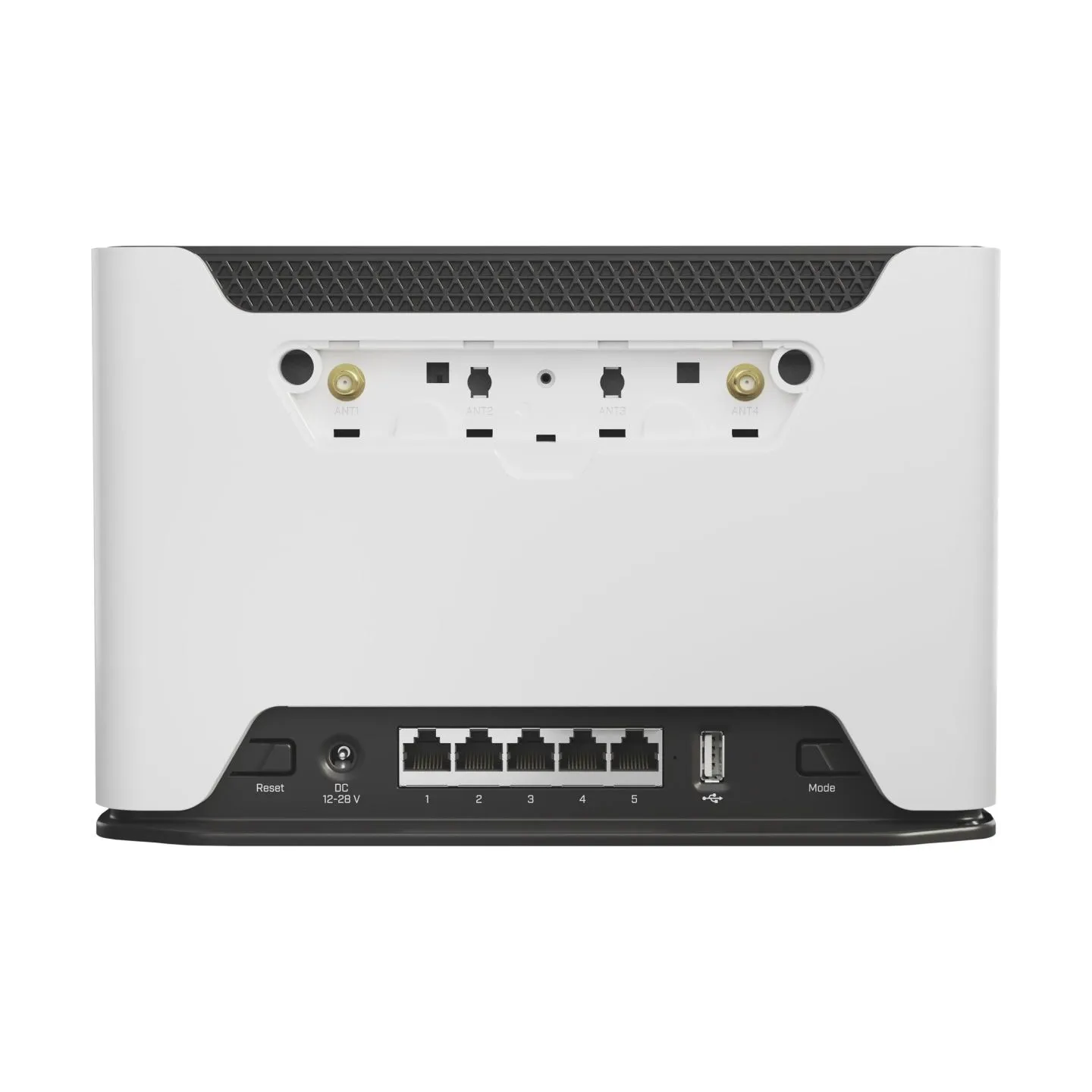

- 5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
- Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
- External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
- RouterOS for advanced security, VPNs, and full network control.
Manufacturer Website:
https://mikrotik.com/product/chateau_lte12_2025#fndtn-downloads
- Category Code
- WRO
- CnCode
- 85176200
- Unit Box Height
- 0.06
- Unit Box Length
- 0.33
- Unit Box Width
- 0.16
- Top Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (first band)
- 300 Mbit/s
- WLAN data transfer rate (max)
- 866 Mbit/s
- WLAN data transfer rate (second band)
- 866 Mbit/s
- 3G/4G USB modem compatibility
- Yes
- DSL WAN
- No
- Ethernet WAN
- No
- SIM card slot
- Yes
- WAN connection type
- RJ-45,USB
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- Ethernet LAN interface type
- Gigabit Ethernet
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- 3G
- Yes
- 4G
- Yes
- Mobile network generation
- 4G
- SIM card type
- MicroSIM
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- USB 2.0 ports quantity
- 1
- USB port
- Yes
- MIMO
- Yes
- MU-MIMO technology
- Yes
- Number of data streams
- 4x4
- Reset button
- Yes
- Web-based management
- Yes
- WPS push button
- Yes
- Product colour
- Black/White
- Product type
- Tabletop router
- Antenna connector type
- SMA
- Antenna design
- Internal & external
- Built-in processor
- Yes
- Flash memory
- 32 MB
- Internal memory
- 256 MB
- Operating system installed
- RouterOS
- Processor cores
- 4
- Processor frequency
- 448 MHz
- Processor manufacturer
- Qualcomm
- Processor model
- Qualcomm Atheros IPQ4019

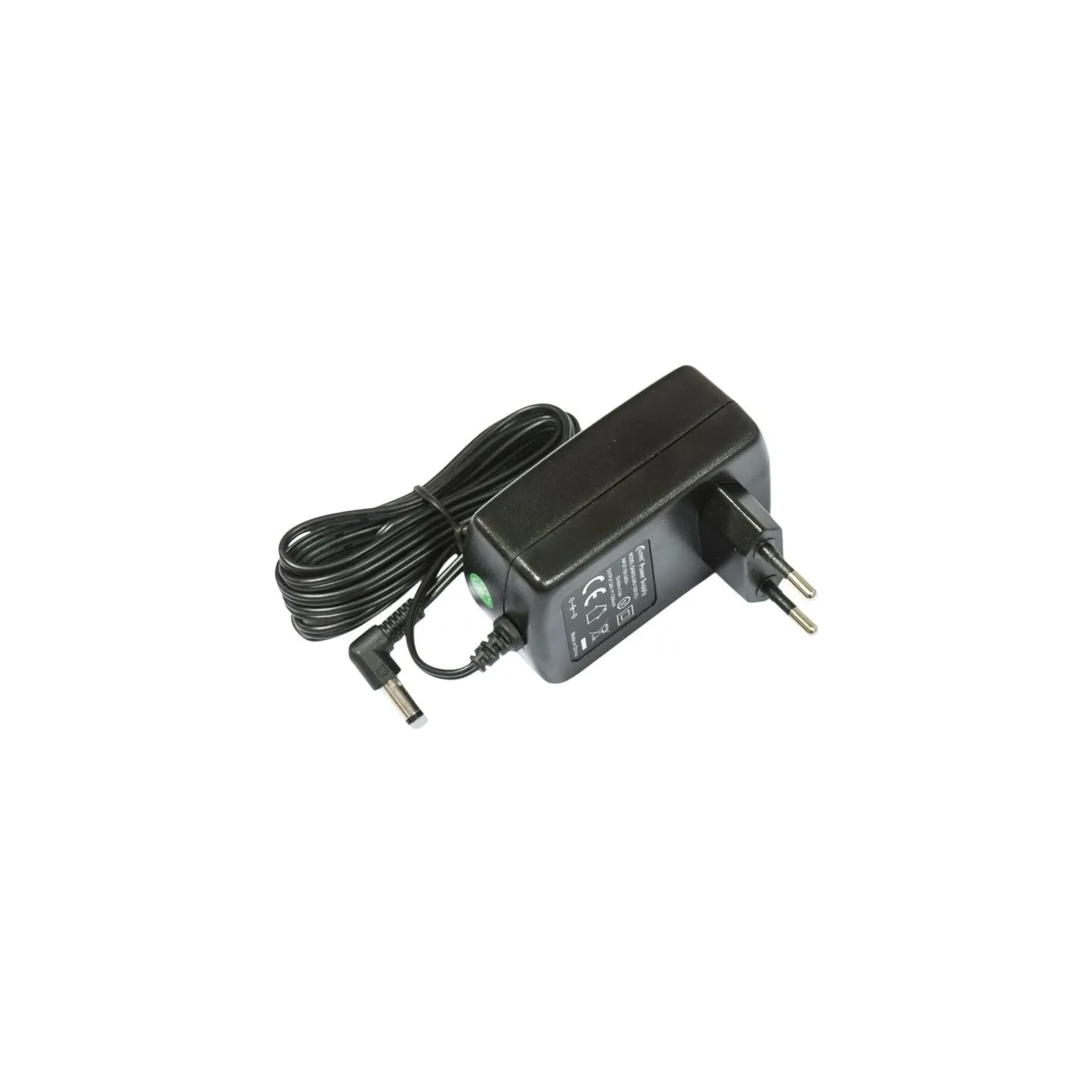

- External power adapter
- Yes
- Output voltage
- 12 - 28 V
- Power consumption (typical)
- 18 W
- Power source type
- DC
- Operating temperature (T-T)
- -20 - 70 °C
- Depth
- 44 mm
- Height
- 156 mm
- Width
- 240 mm
- Model
- D53G-5HacD2HnD-TC&EG120K-EA
- Model name
- CHATEAU LTE12
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.003672 cubm
- Unit Calculated Weight
- 0.95 kg
