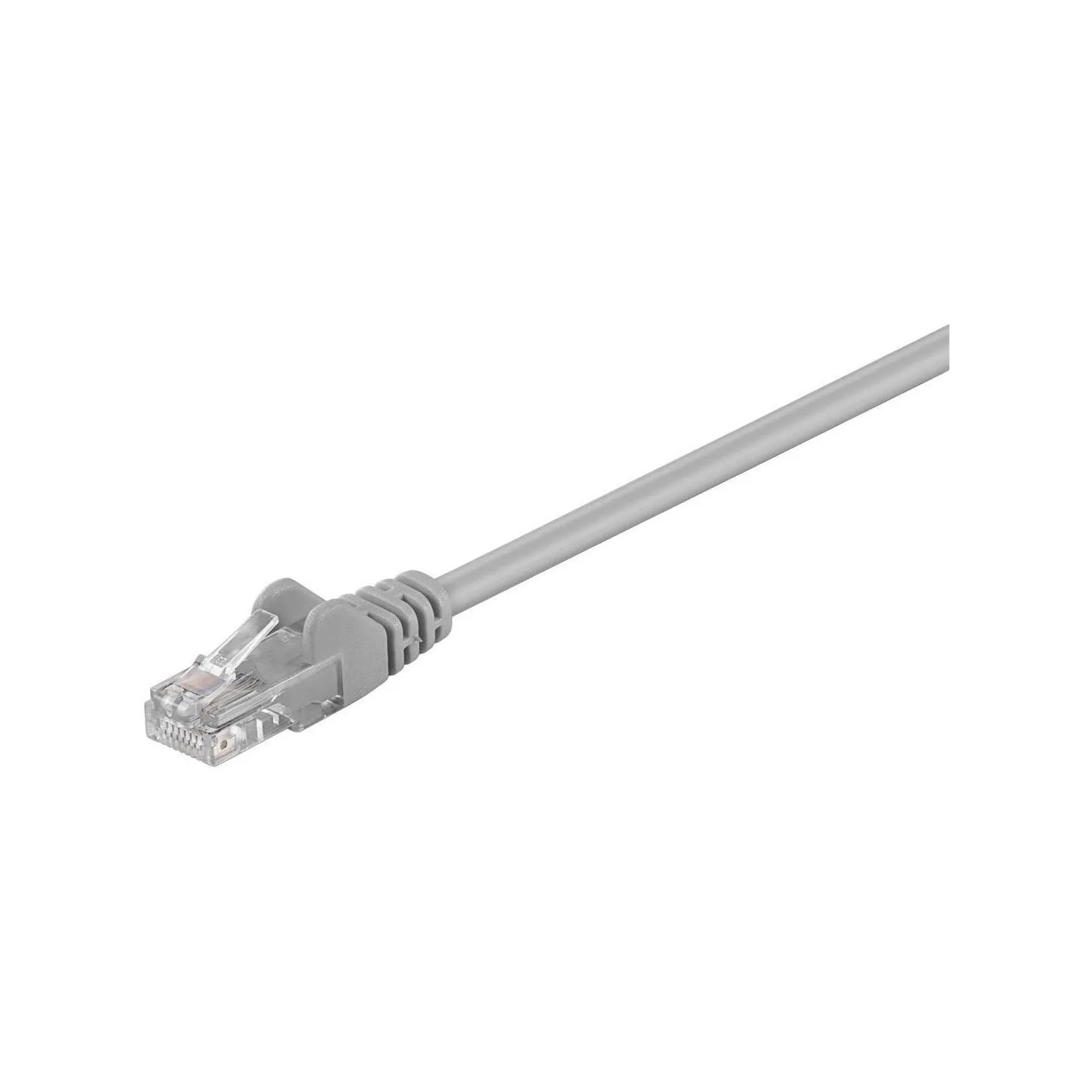

Goobay | CAT 5e patch cable, U/UTP | 68387 | Grey RJ45 male (8P8C) | RJ45 male (8P8C)
CCA copper mixture unshielded LAN/network cable to connect network components with 2 x RJ45 connectors with length indication on the slimline strain relief with latch protection pair-sequence acc. to EIA/TIA 568B suitable for Gigabit (10/100/1000 Mbit) network Technical specifications Connections Connection, type RJ45 male (8P8C) Connection 2, type RJ45 male (8P8C) Latch protection both sides Connection, shielding no Cable Cable type round cable Specification CAT 5e Shielding class U/UTP AWG 28/7 (stranded) Cable sheath diameter (approx.) 4.5 mm Inner conductor material CCA (copper-clad aluminium) Cable length 7.5 m Material cable sheath PVC Kink protection both sides Signal transmission max. bandwidth 100 MHz
More information: utp-grey?sAction=Index (external link)
- Gross depth (mm)
- 200.00 mm
- Gross height (mm)
- 20.00 mm
- Gross weight
- 0.033 kg
- Gross width (mm)
- 200.00 mm
- Net weight
- 0.03 kg
- Packing quantity
- 1.00 pc(s)
- PET
- 3.00 g
- Tare weight (kg)
- 0.003 kg
- Volume (m3)
- 0.00 m³
- Type
- Cat 5E, U/UTP
- Cable length
- 7.5 m
- Colour of product
- Grey
- Connector 2
- RJ45 male (8P8C)
- Connector 1
- RJ45 male (8P8C)
- Producer product name
- 68387
- Producer product family
- CAT 5e patch cable, U/UTP
- Embeeded battery
- No
- WEEE tax
- Yes
- Palette Qty
- 1080 pc(s)
- Producer
- Goobay
- WEE classification
- CL109:6:2017-04-01
- Warranty
- 24 month(s)
