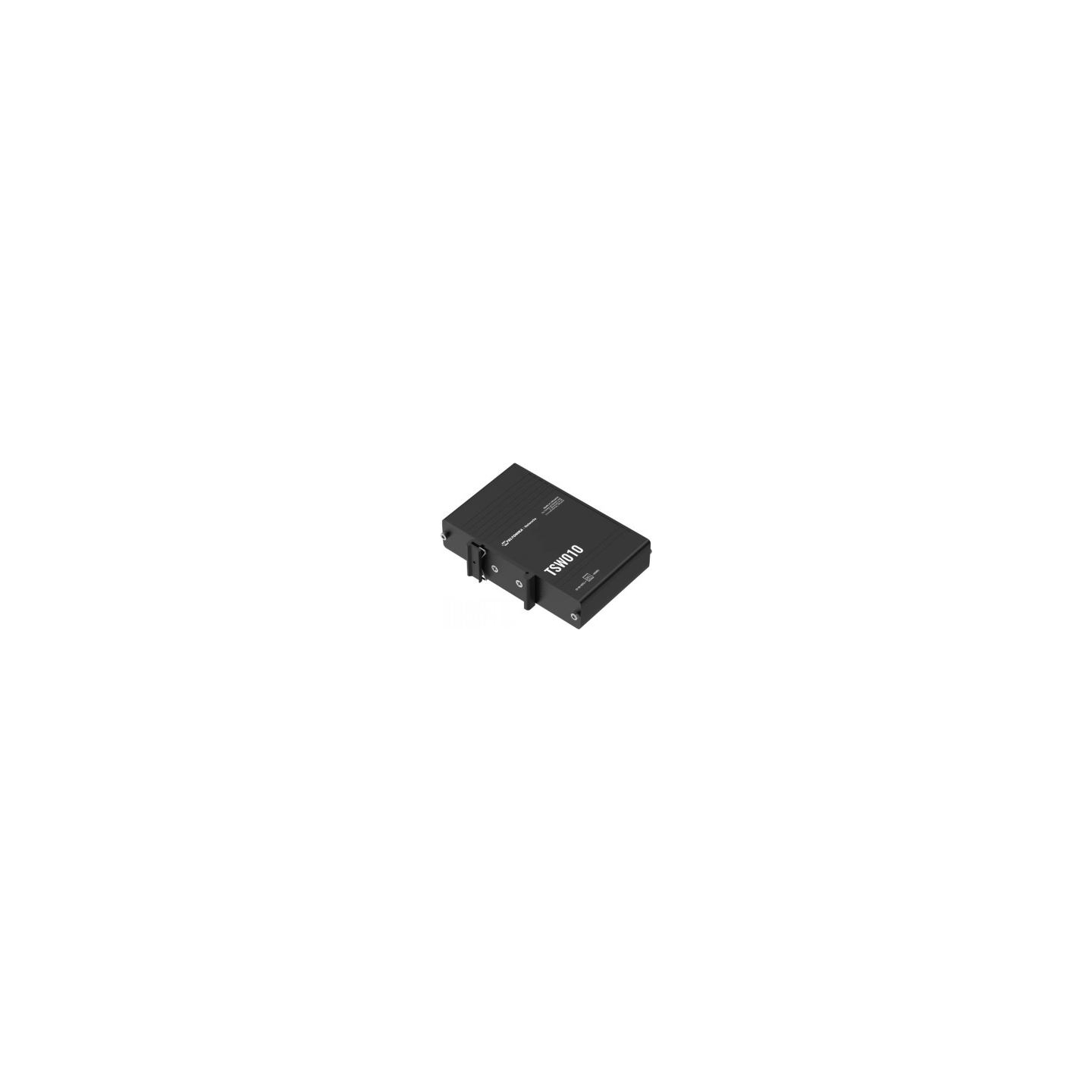

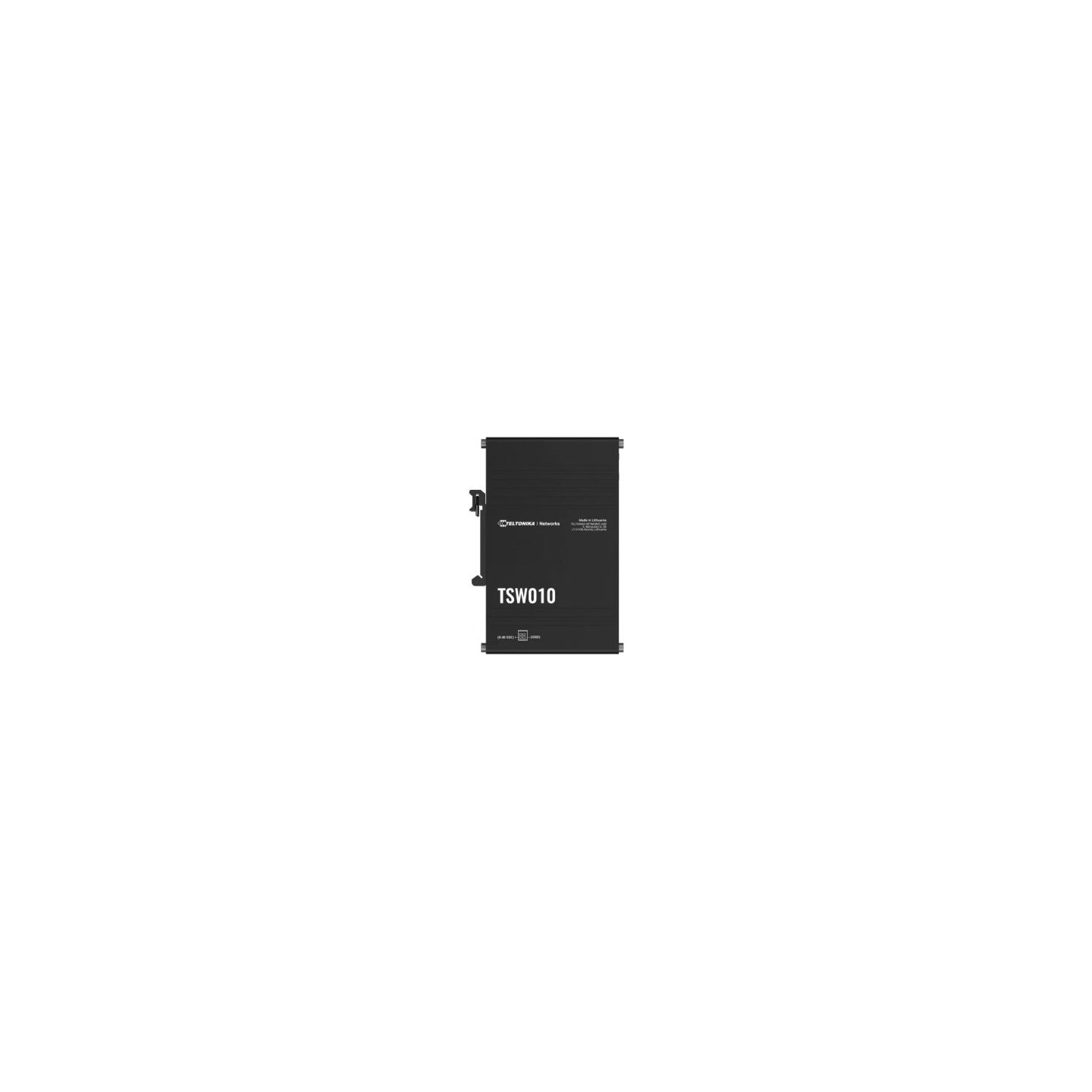

TSW010 DIN RAIL SWITCH
TSW010 offers the most affordable way to extend network
connectivity to multiple Ethernet devices.

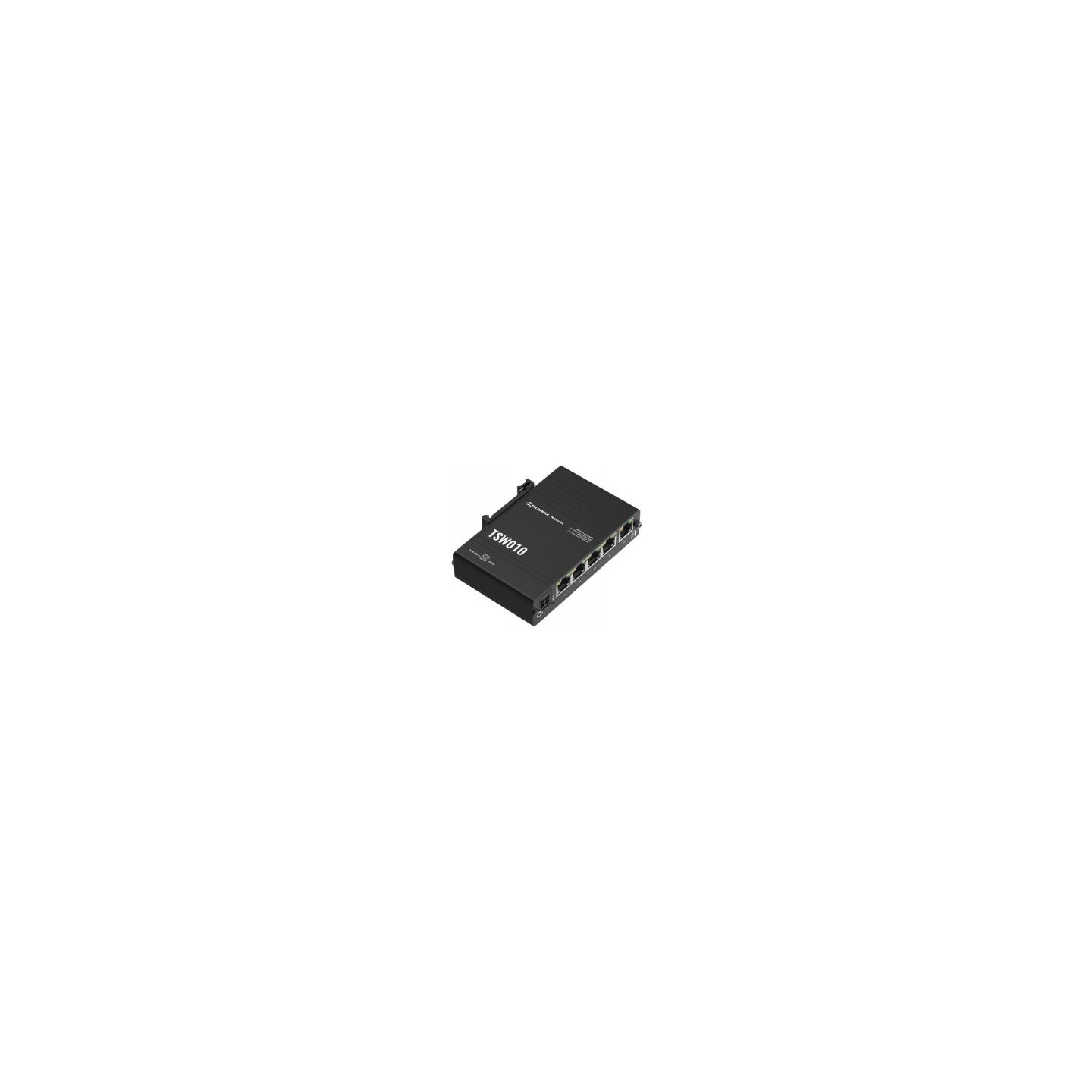

Five 10/100 Ethernet ports ensure stable and reliable
connectivity, sufficient for most industrial applications
where high throughput is not required.
Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional
solutions.

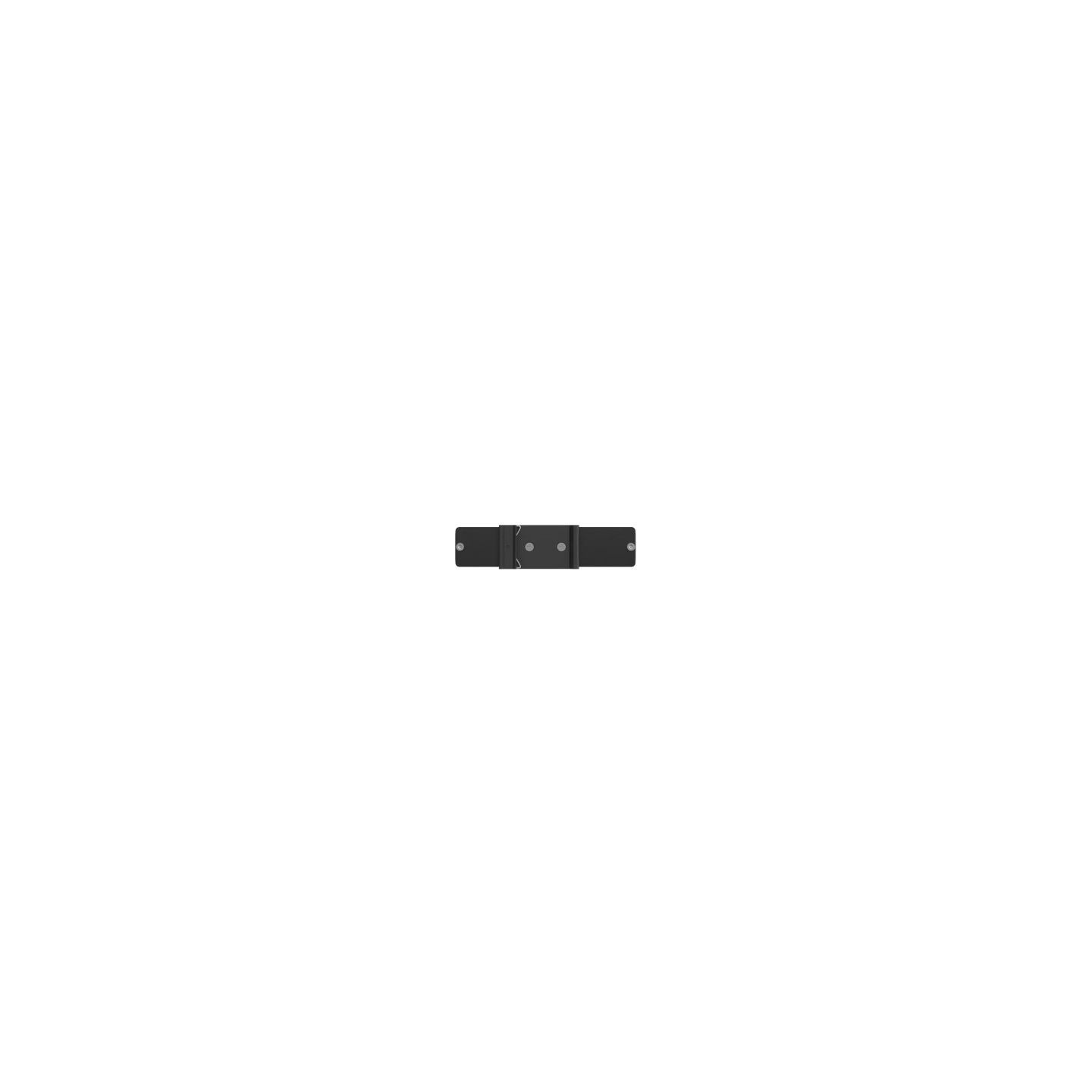

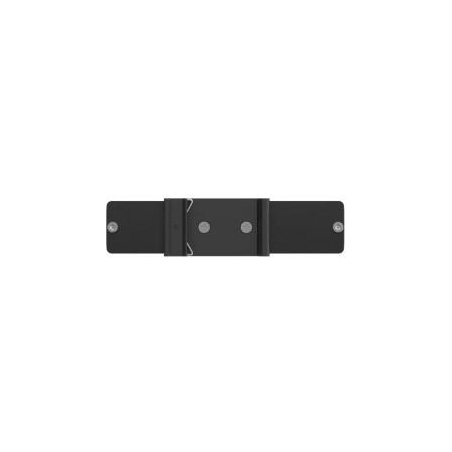

Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.
- MAC address table, entries
- 2K
- Dimensions W x D x H, mm
- 113.1 x 80.5 x 27.4
- Weight, g
- 146.5
- Ethernet LAN (RJ-45) ports quantity
- 5
- IP classification
- IP30
- Bandwidth, Gbit/s
- 1
- Green certifications
- REACH
- Green certifications
- RoHS compliant
- Green certifications
- WEEE
- Auto MDI/MDI-X
- Yes
- Jumbo Frames support
- 9216 bytes
- Power over Ethernet (PoE) Support
- No
- Operating temperature range (T-T), °C
- - 40 - 75
- Networking standards
- 802.3i, 802.3u, 802.3x, 802.3az
- Ethernet LAN data transfer rates, Mbit/s
- 10/100
- Ports quantity
- 5
