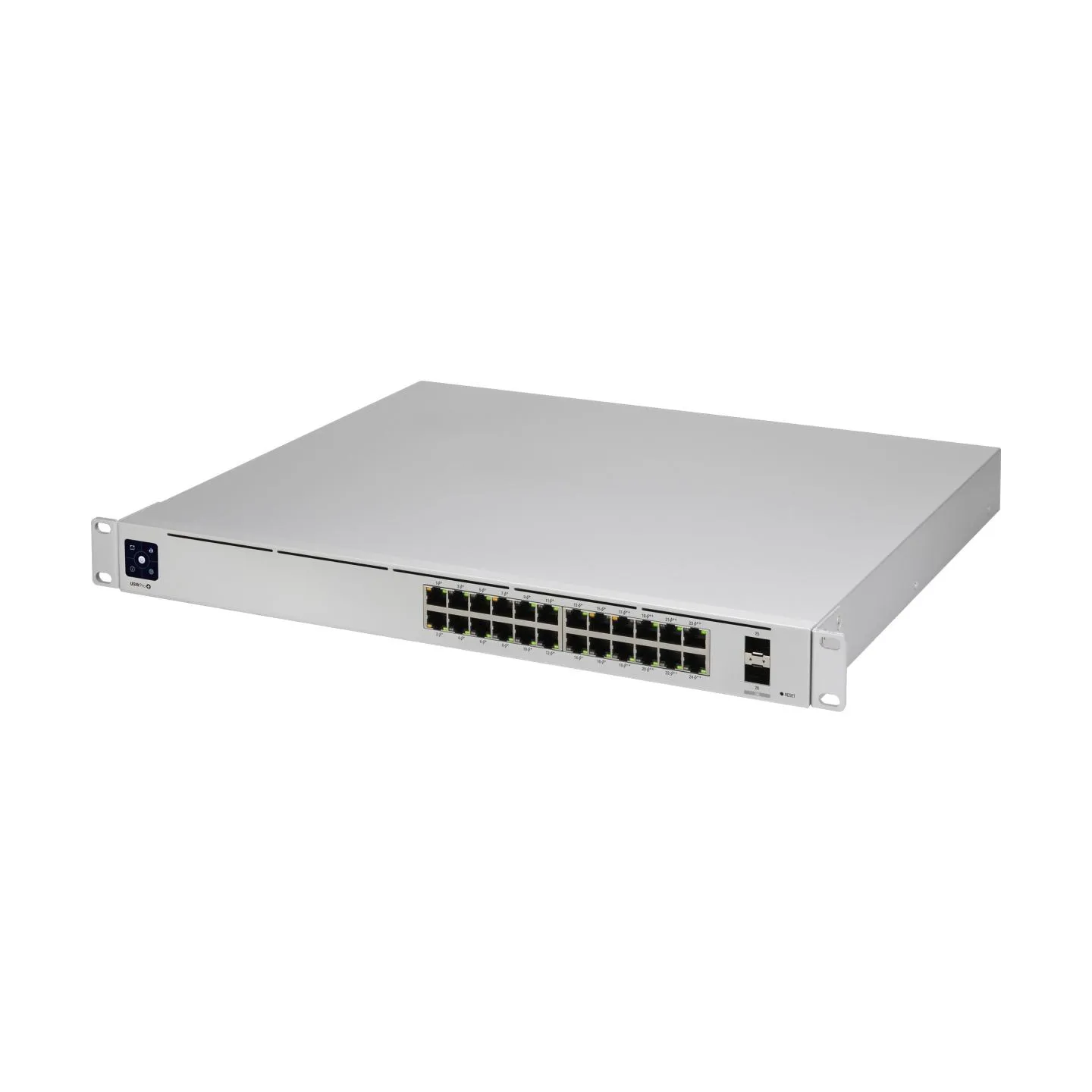

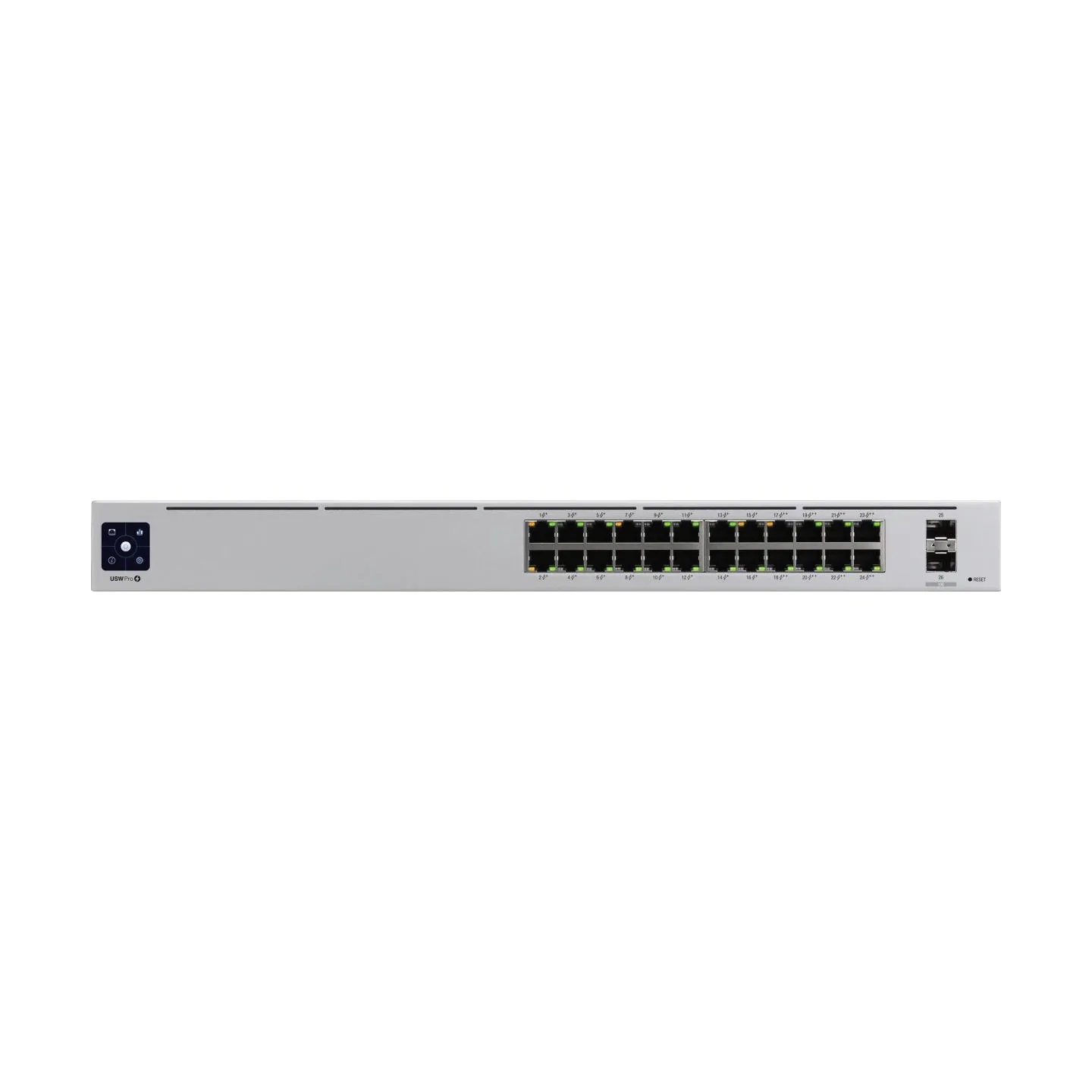

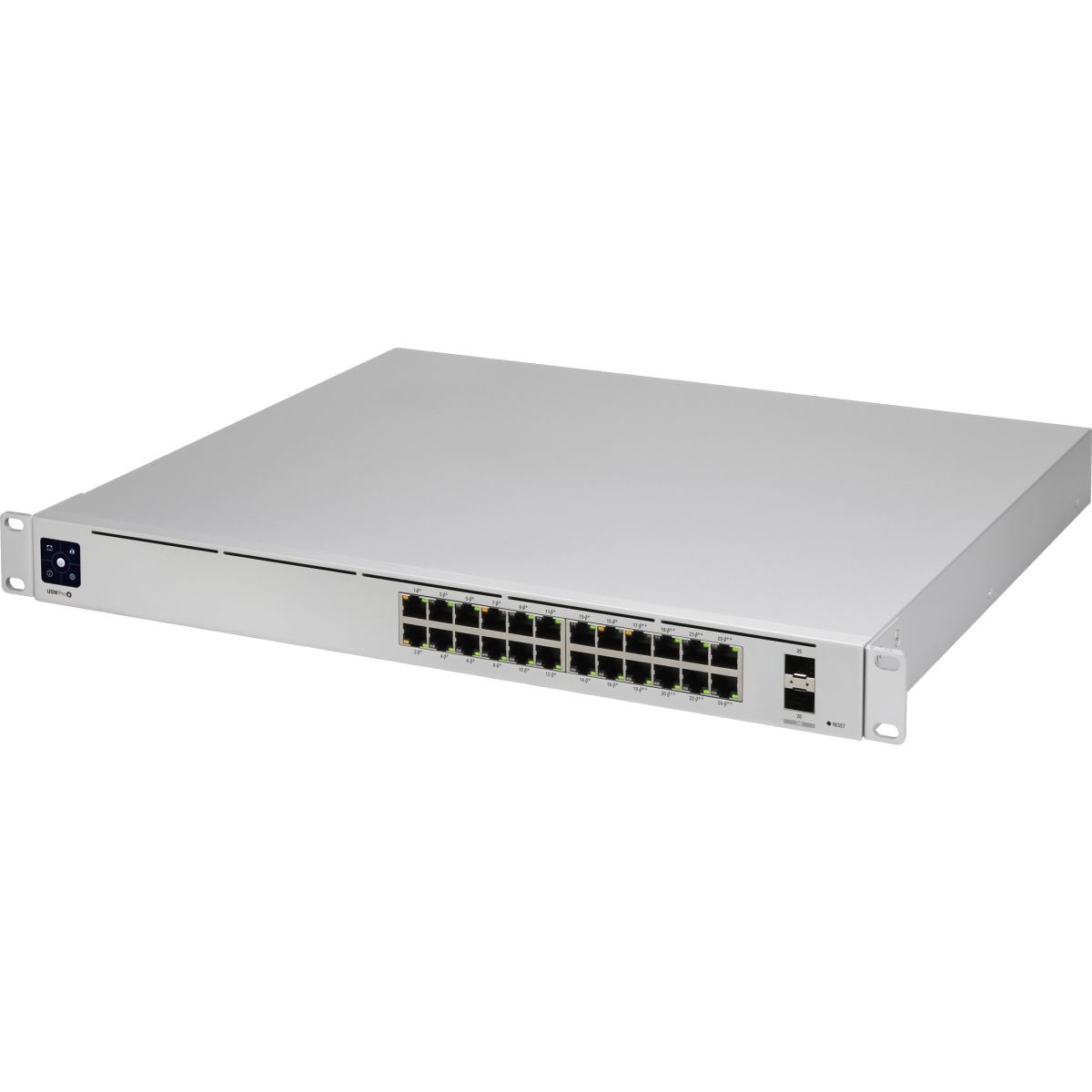

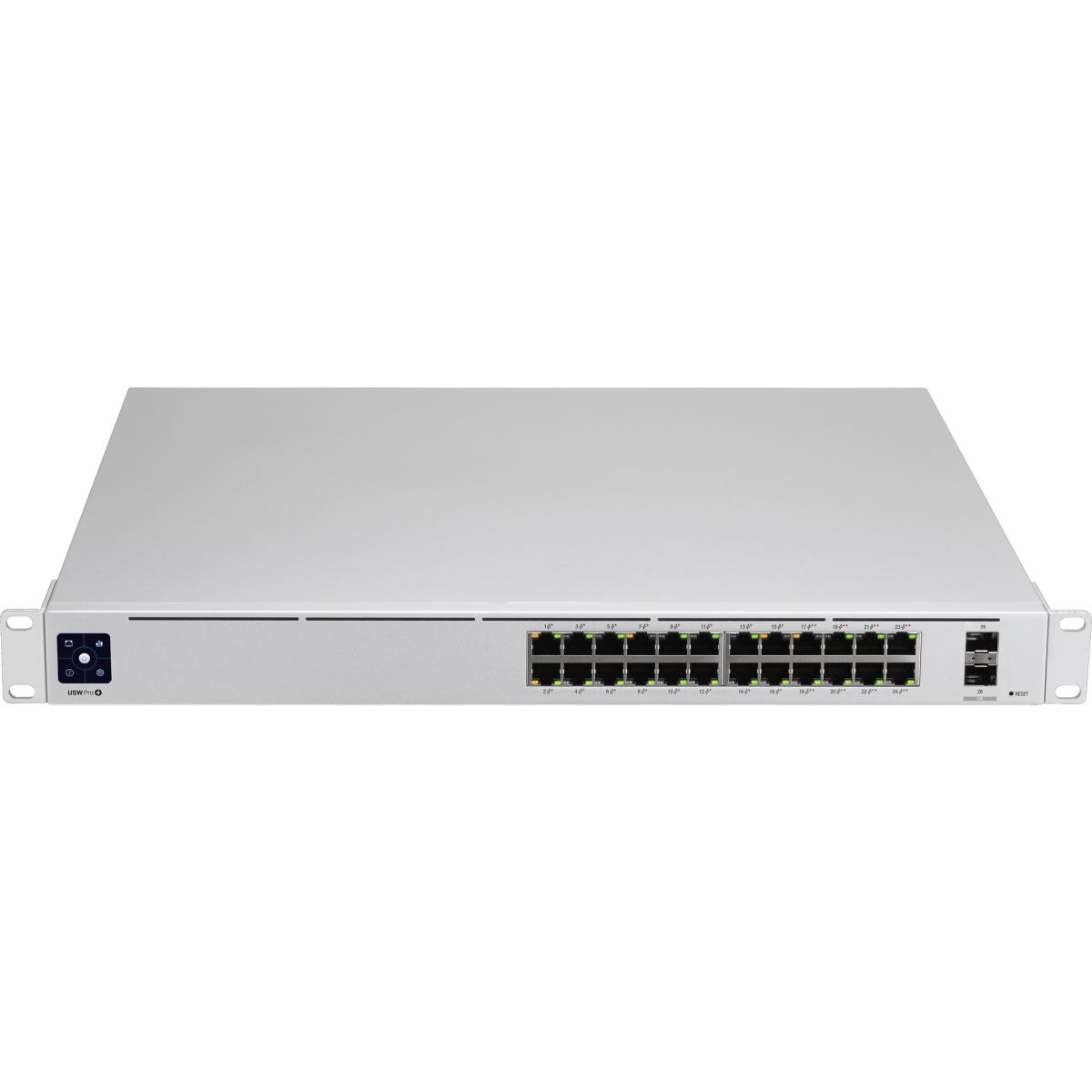

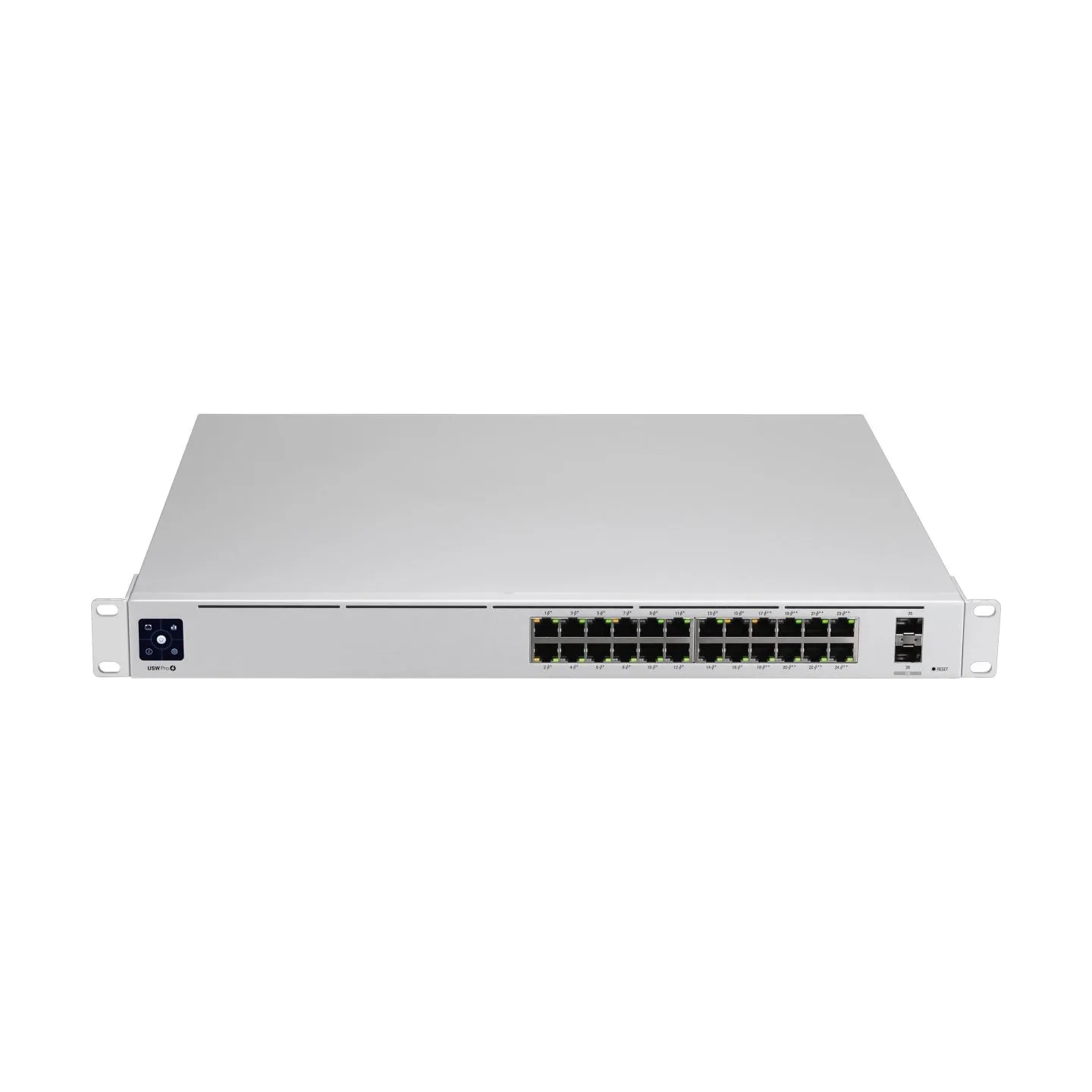

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Manufacturer Website:
https://switch.ui.com/gen2/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.38
- Unit Box Length
- 0.51
- Unit Box Width
- 0.125
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2/L3
- Switch type
- Managed
- System event log
- Yes
- Web-based management
- Yes

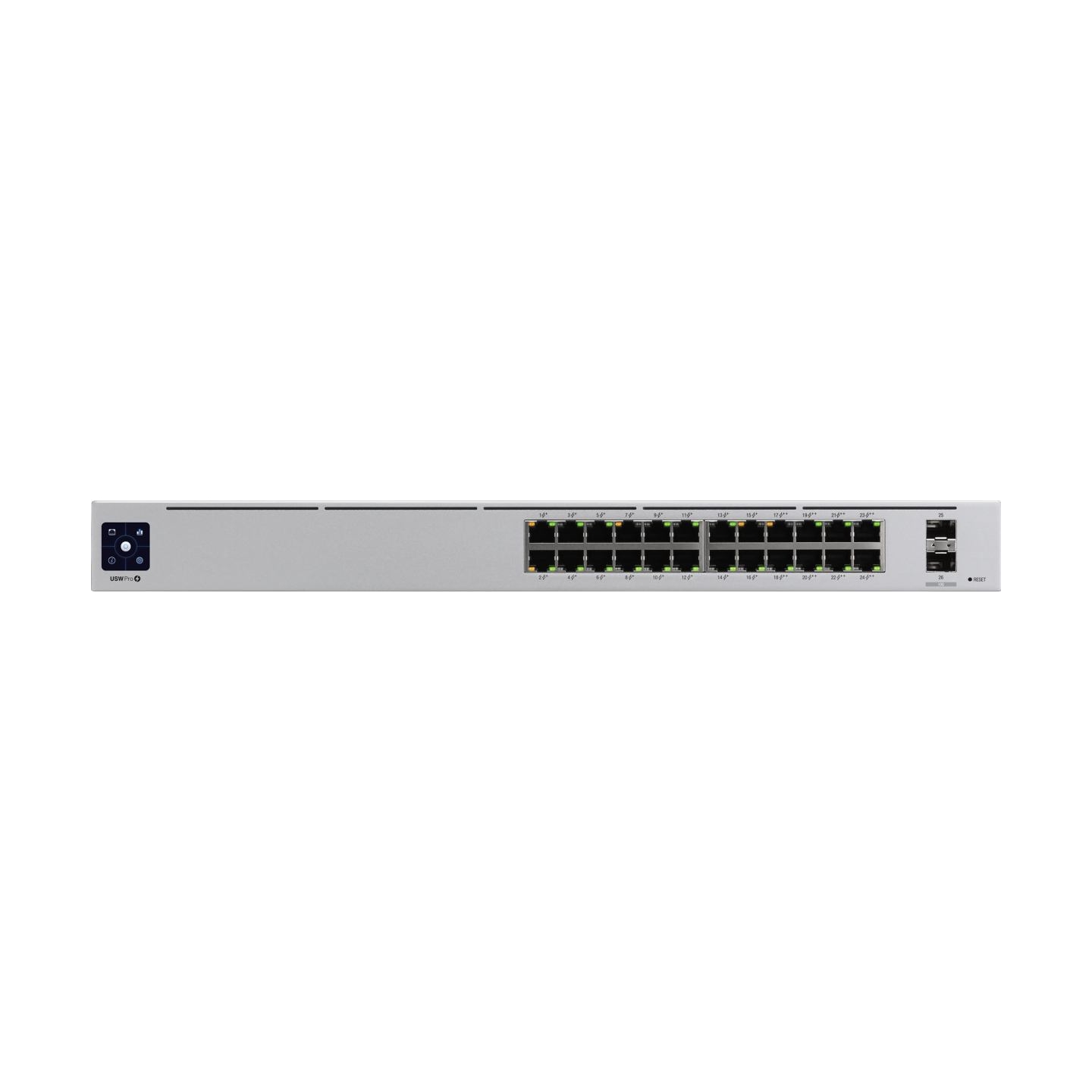

- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)

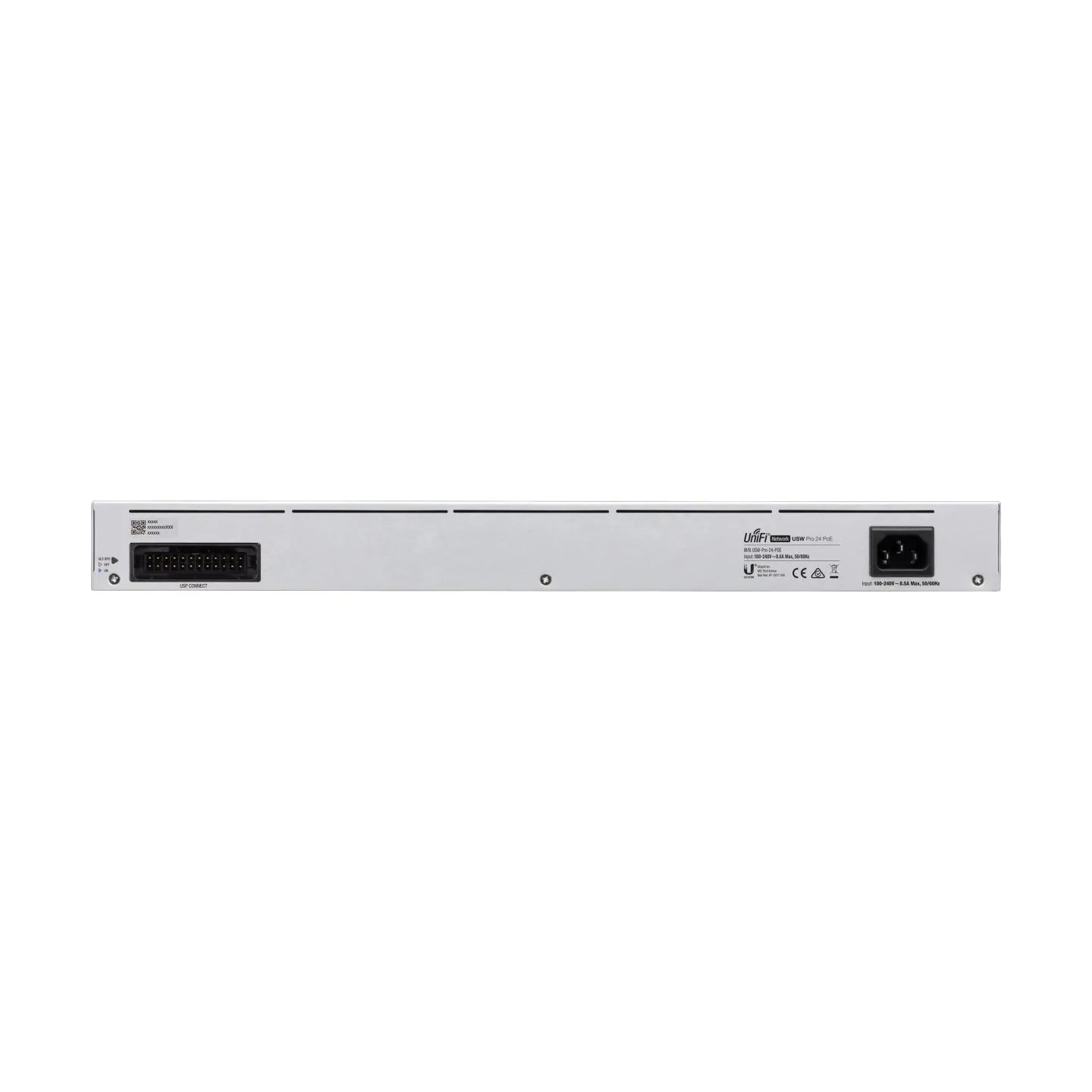

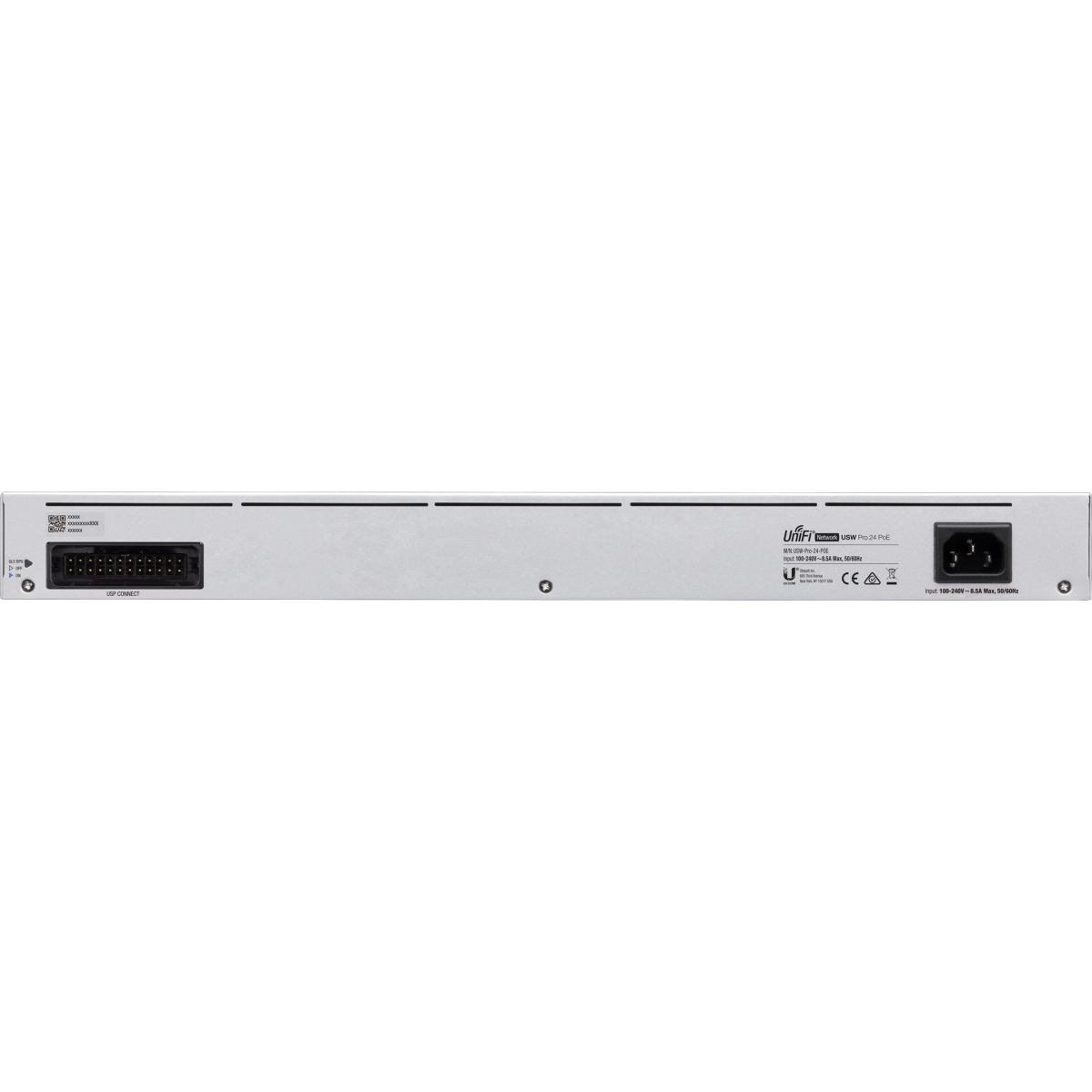

- Power connector
- AC-in jack
- SFP+ module slots quantity
- 2
- 10G support
- Yes
- Broadcast storm control
- Yes
- Flow control support
- Yes
- Full duplex
- Yes
- IPv4 routes
- 64
- Link aggregation
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Number of VLANs
- 1000
- Port mirroring
- Yes
- Rate limiting
- Yes
- VLAN support
- Yes
- Forwarding rate
- 65.472 Mpps
- Jumbo frames support
- Yes
- MAC address table
- 16000 entries
- Packet buffer memory
- 2 MB
- Static route
- Yes
- Switching capacity
- 88 Gbit/s
- Throughput
- 44000 Mpps
- Authentication type
- IEEE 802.1x,RADIUS
- DHCP features
- DHCP relay/DHCP server/DHCP snooping
- IGMP snooping
- Yes
- Display type
- LCM
- Form factor
- 1U
- LED indicators
- Activity/Link/PoE/Speed/System
- Product colour
- Silver
- Rack mounting
- Yes
- Reset button
- Yes
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Number of power supply units
- 1
- Power consumption (max)
- 450 W
- Power source
- AC
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) power per port
- 64 W
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 8
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 400 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Depth
- 285.4 mm
- Height
- 43.7 mm
- Weight
- 4300 g
- Width
- 442.4 mm
- Certification
- CE, FCC, IC
- Harmonized System (HS) code
- 85176990

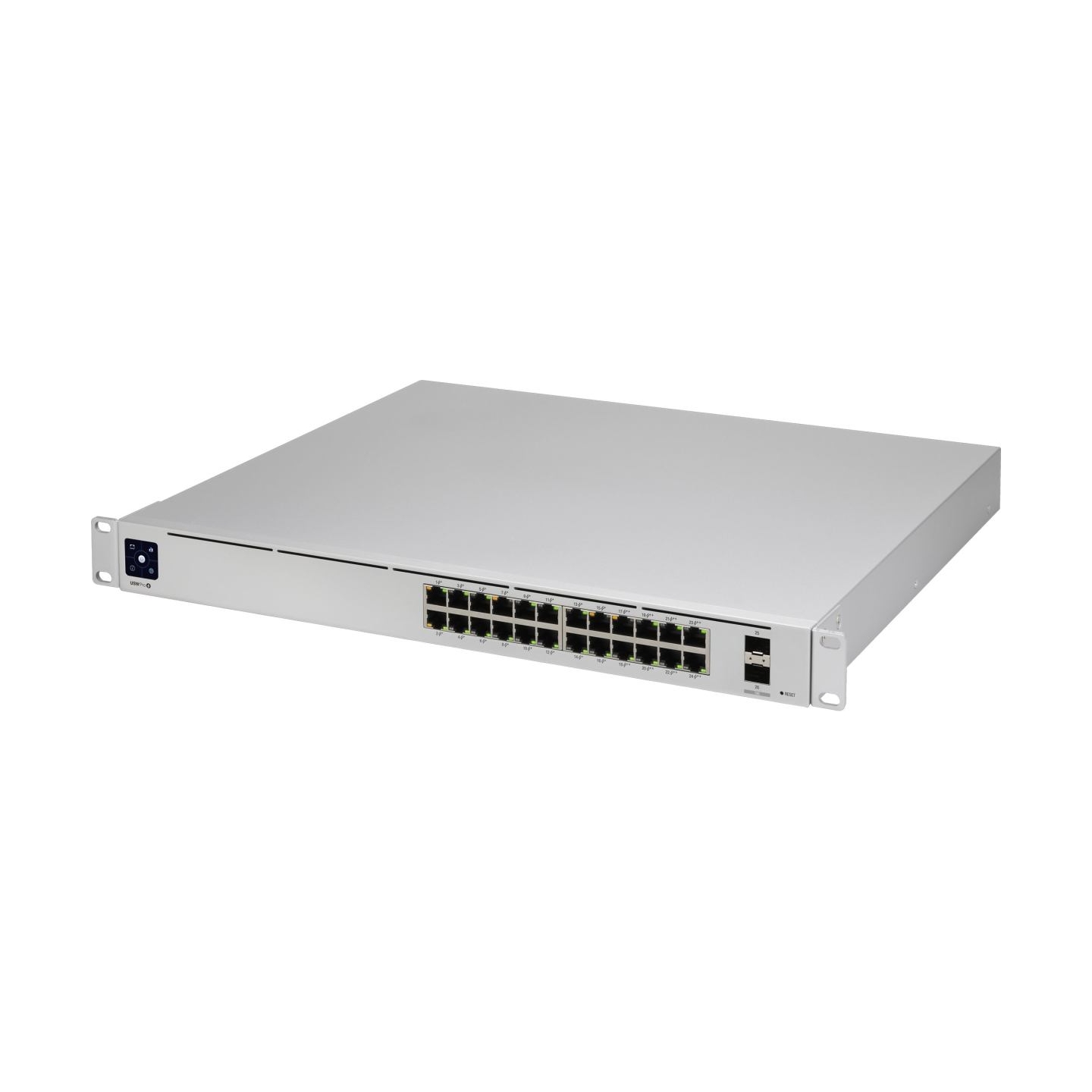

- Model name
- USW-Pro-24-PoE
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.03005 cubm
- Unit Calculated Weight
- 6.5 kg
