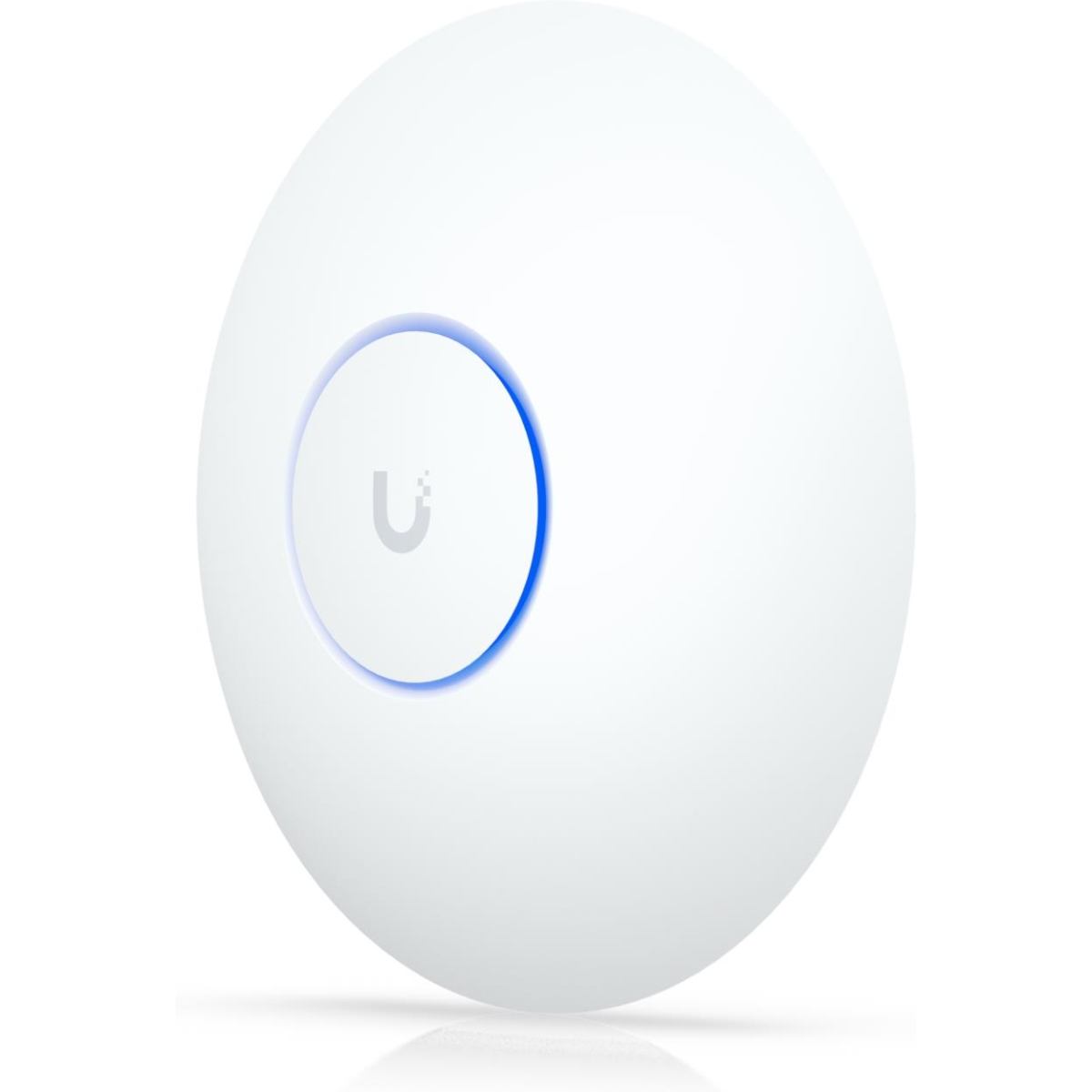

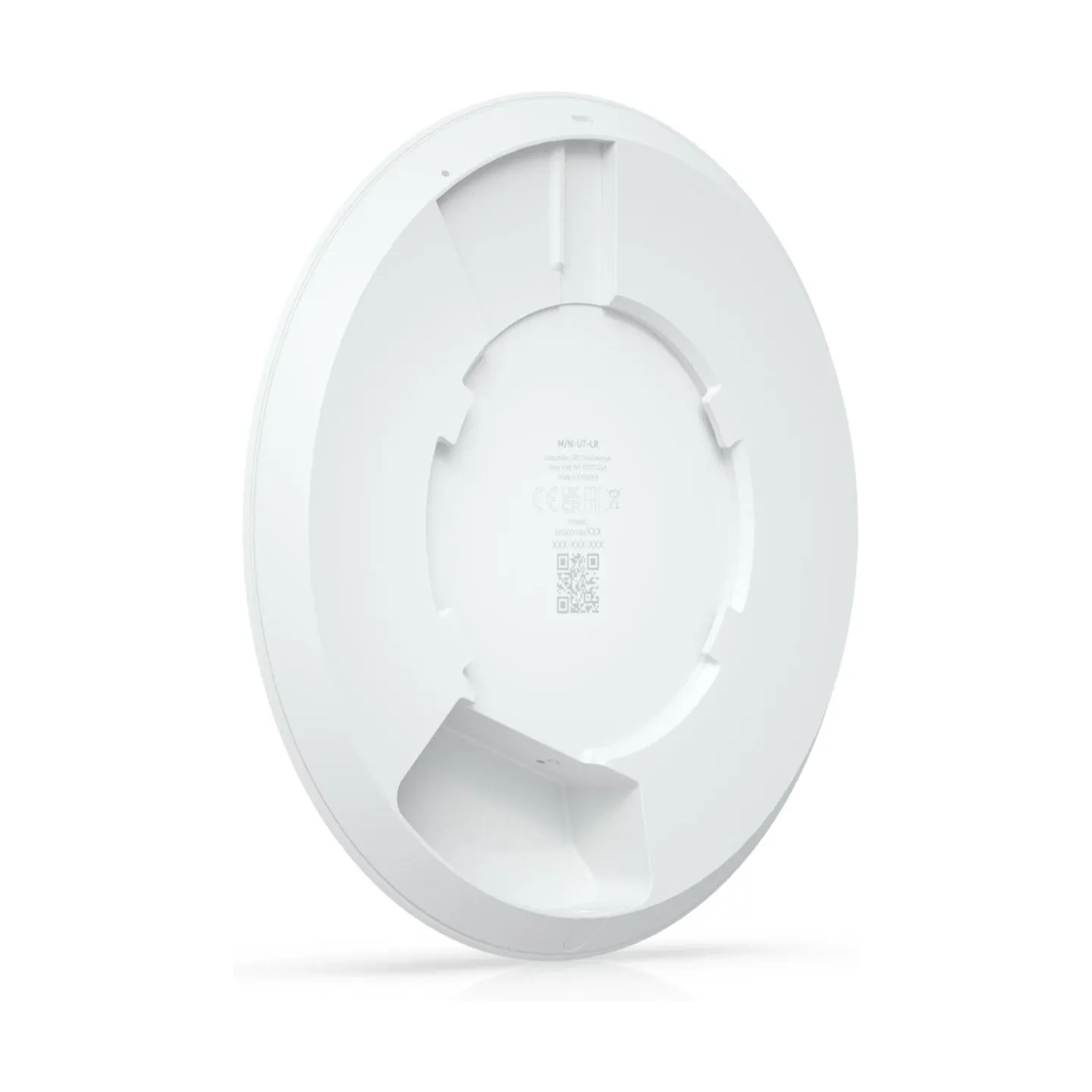

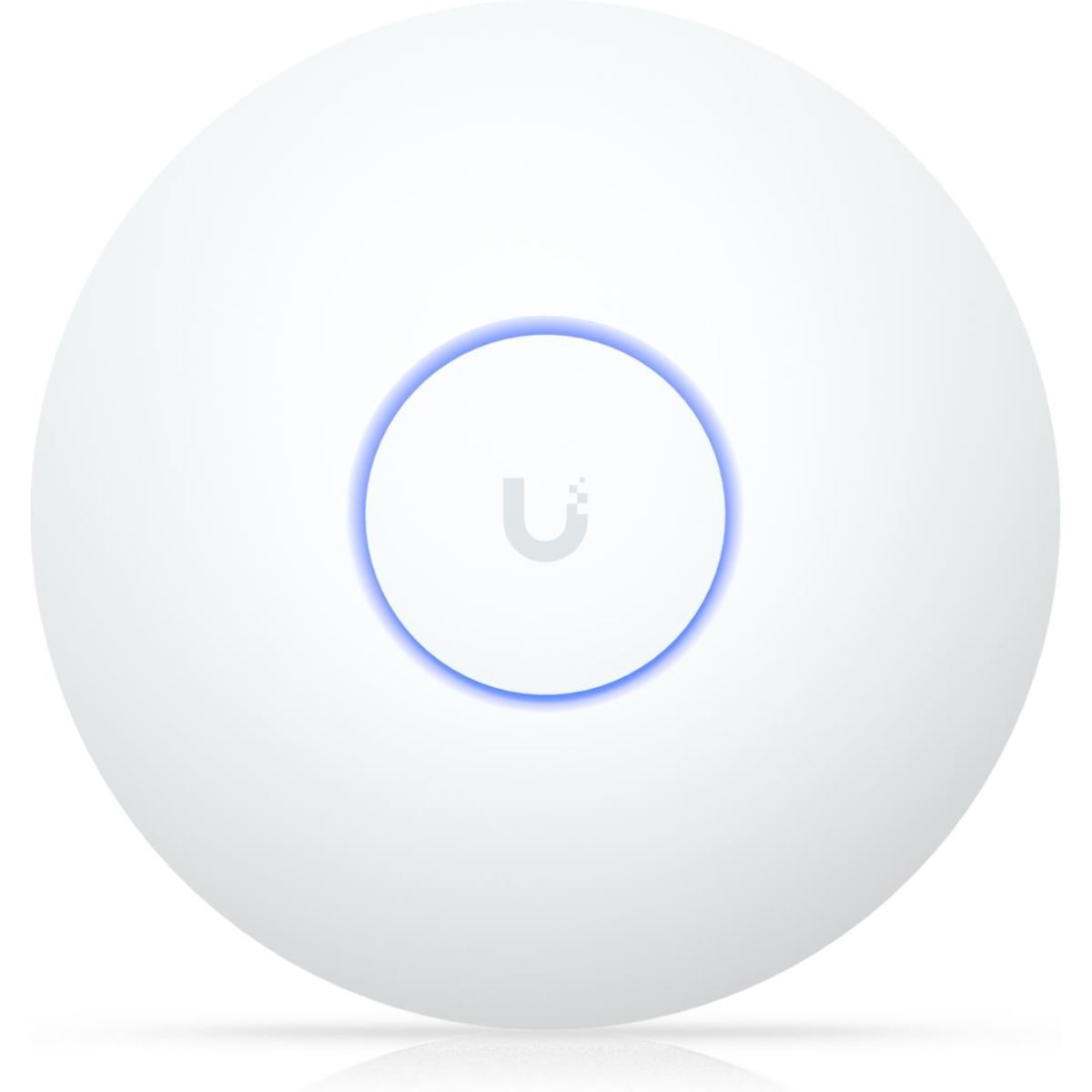

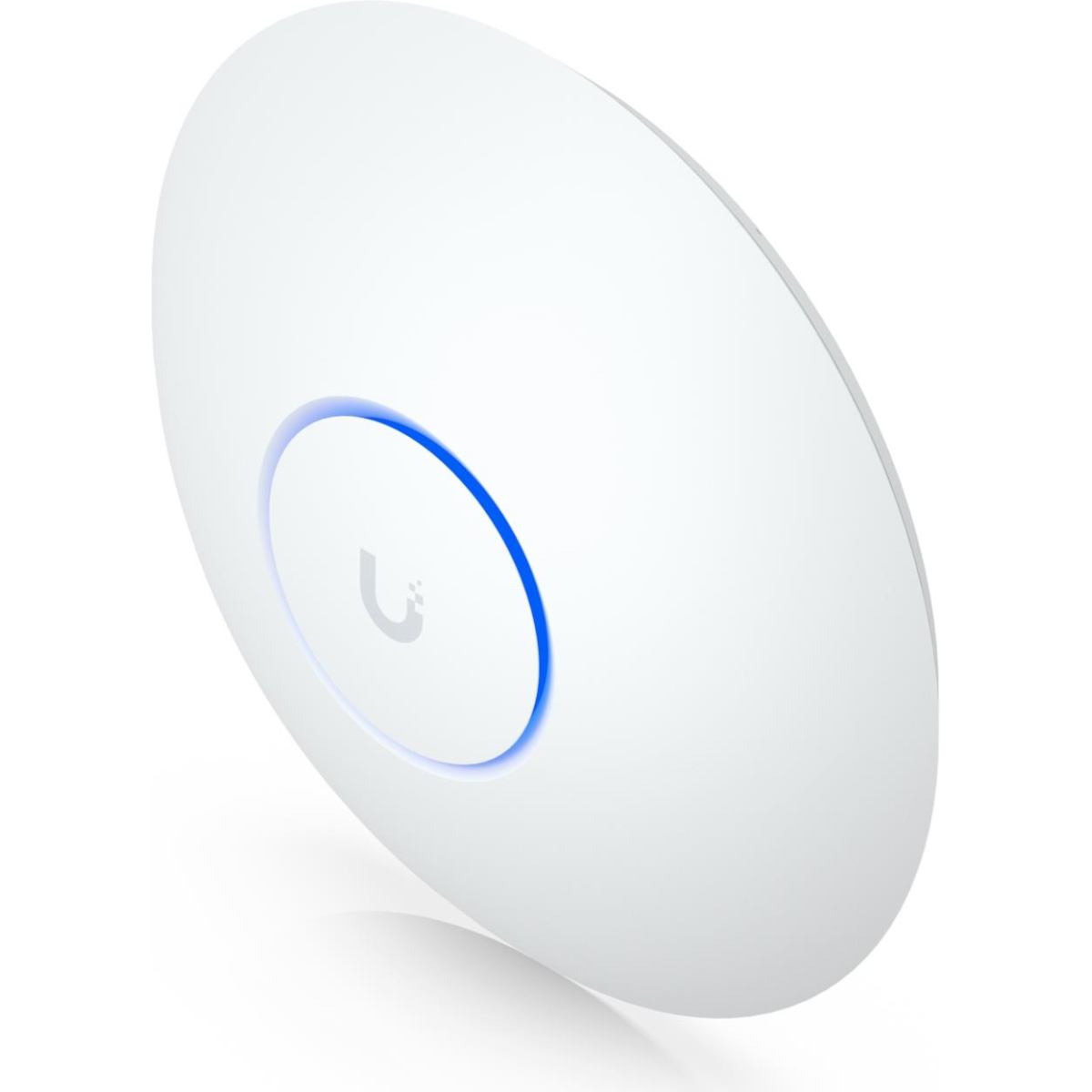

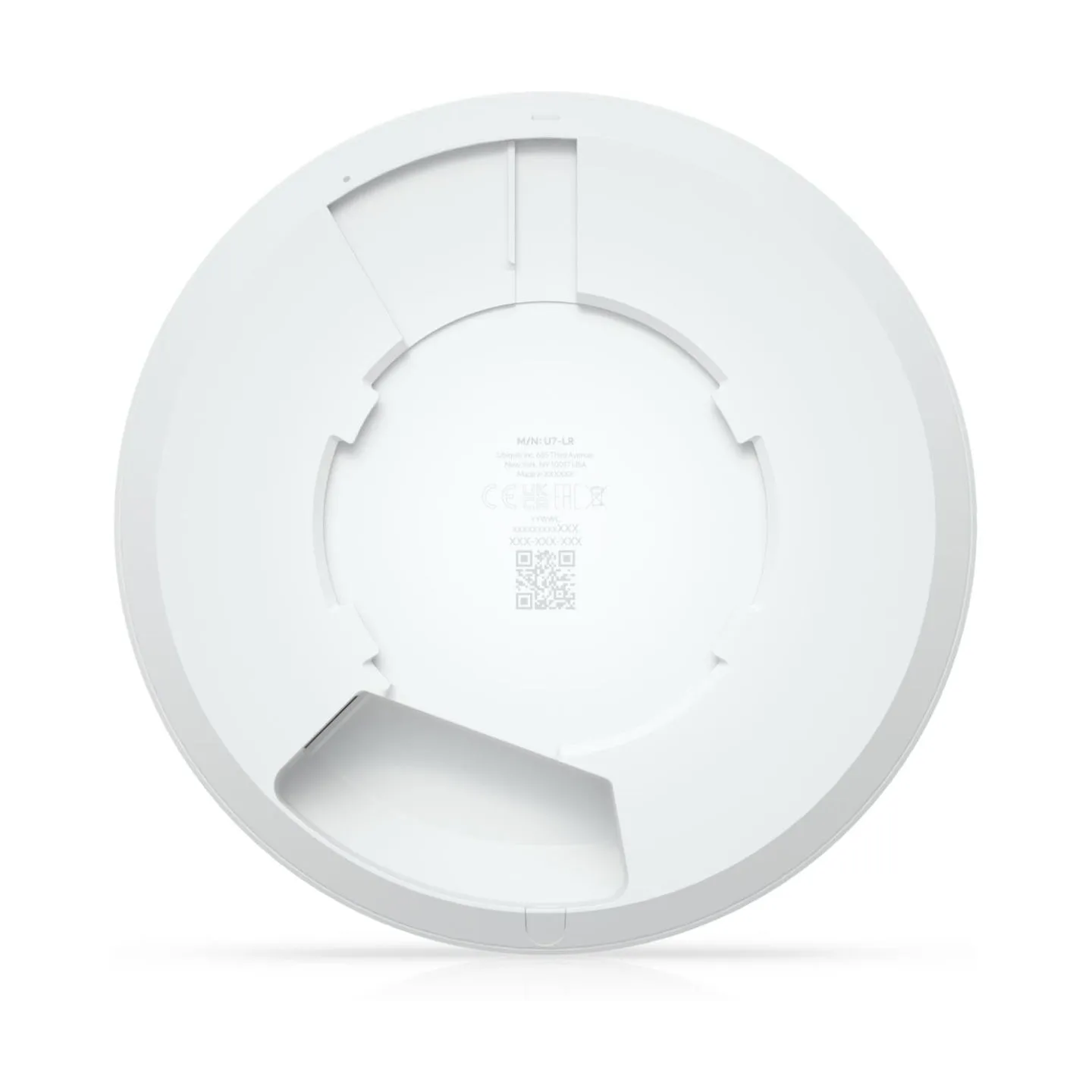

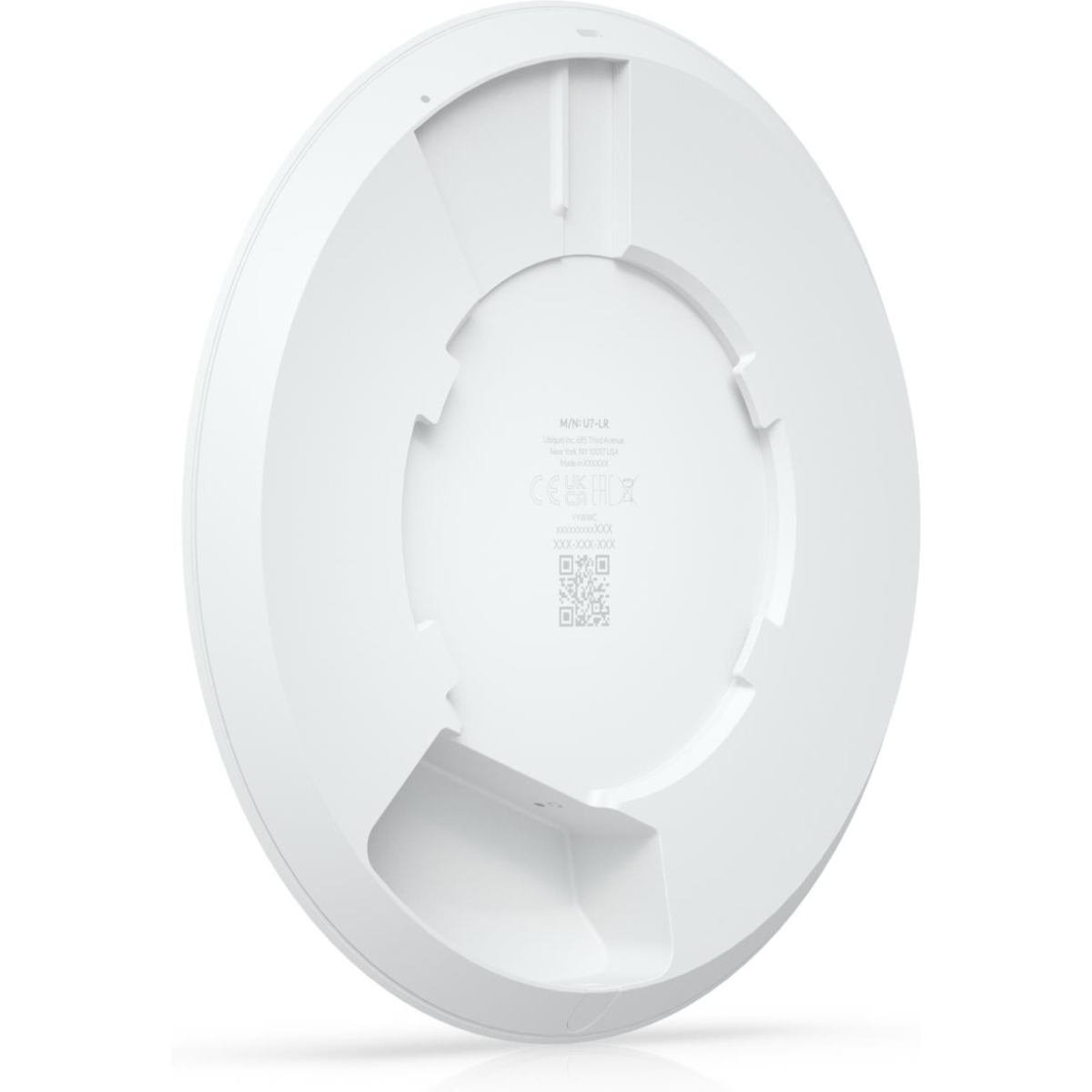

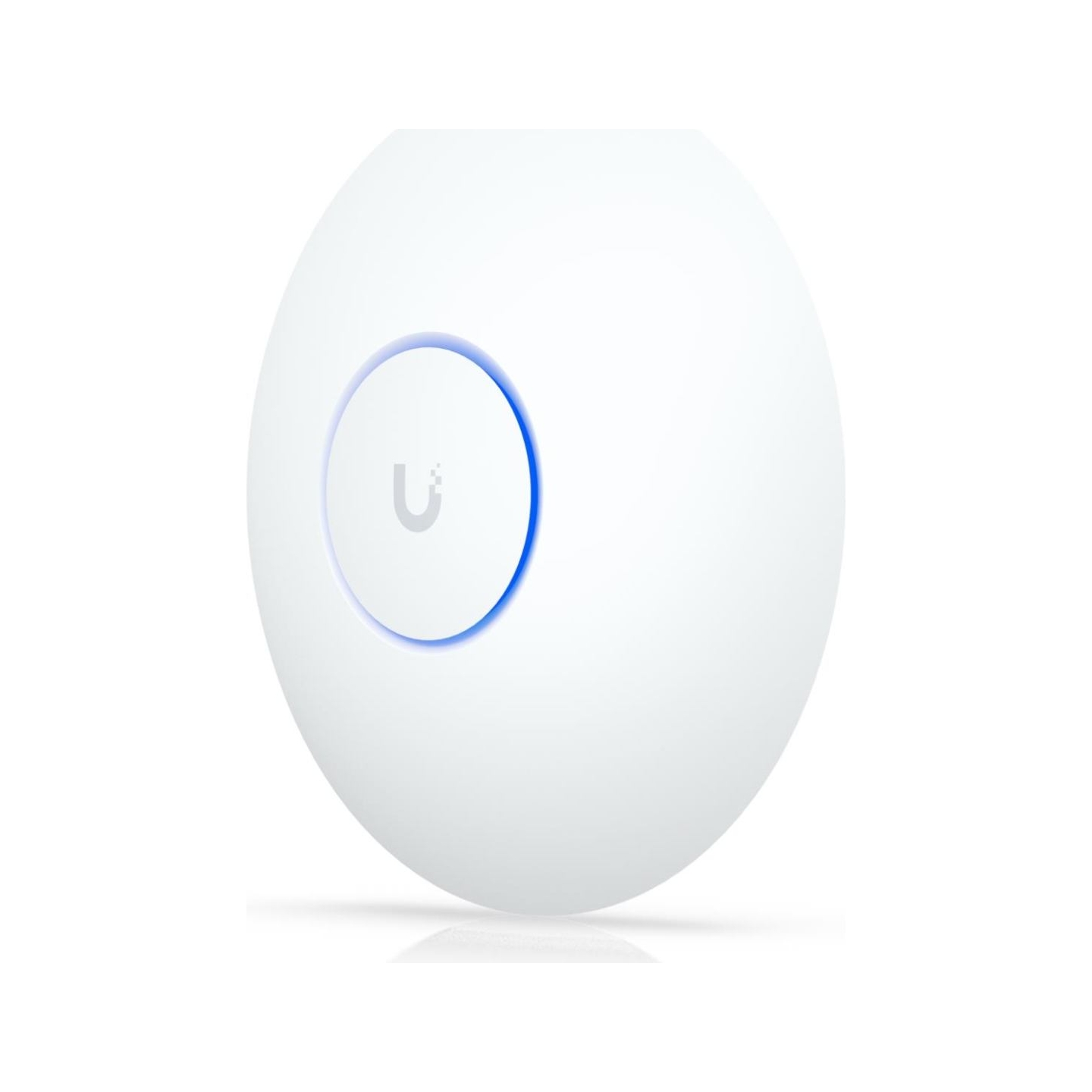

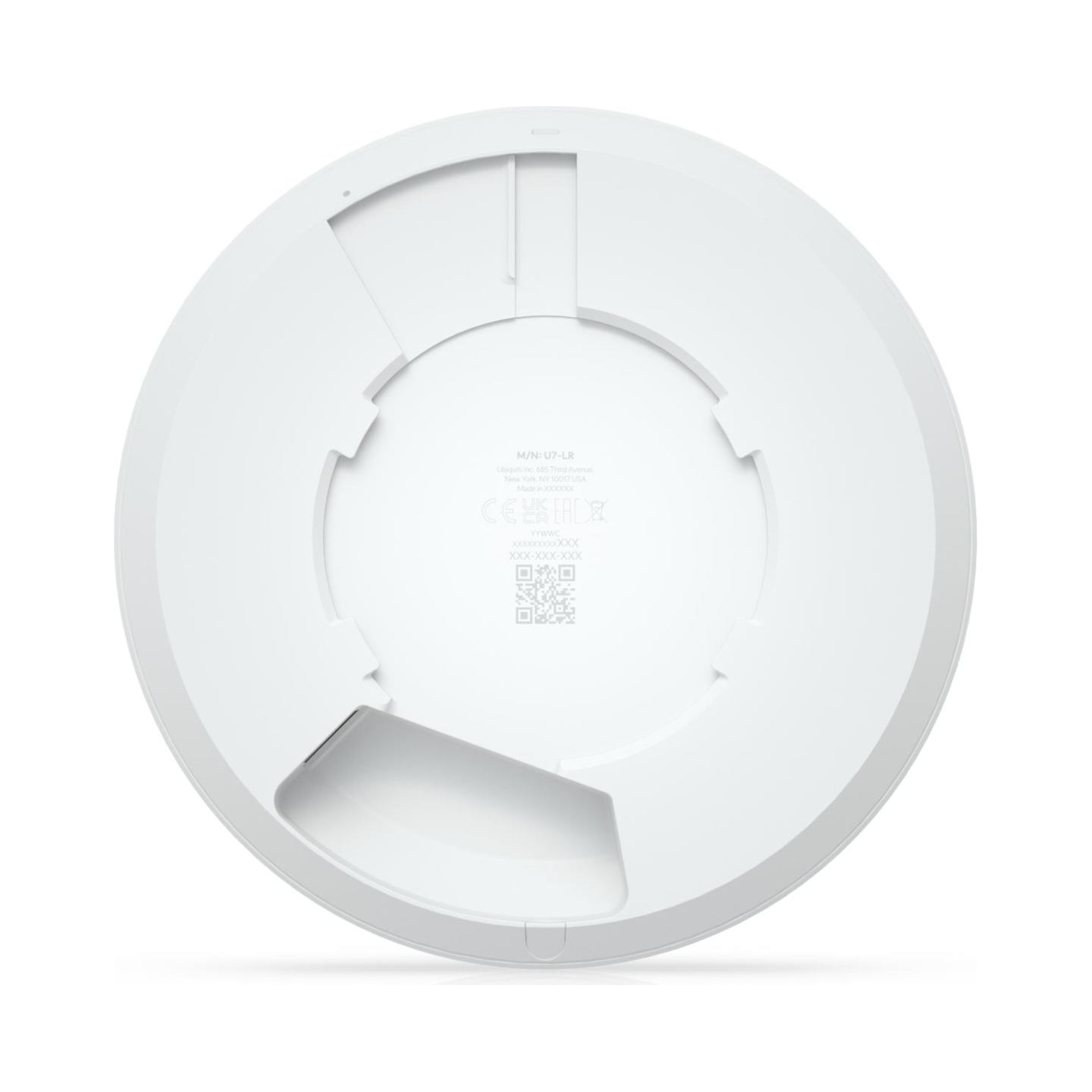

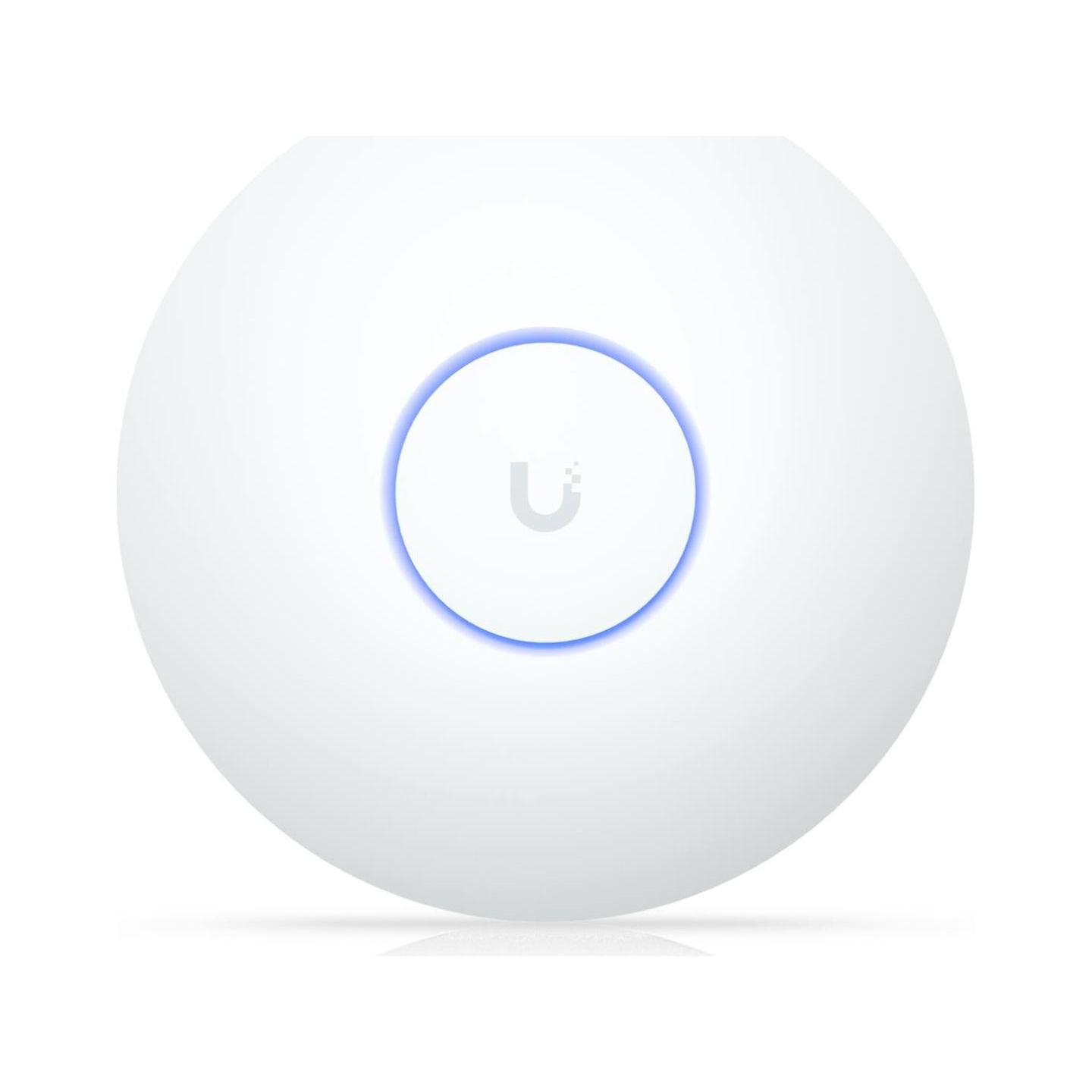

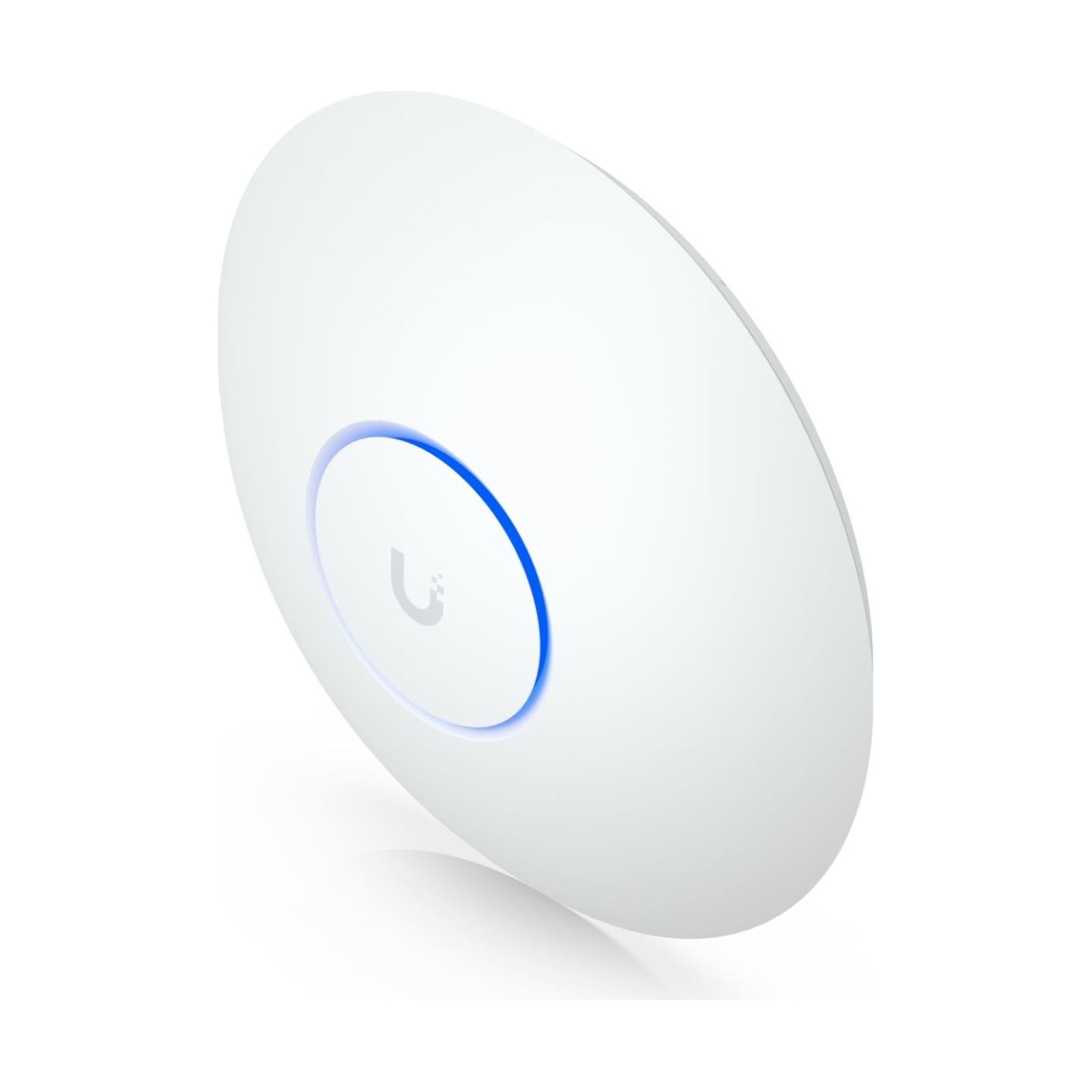

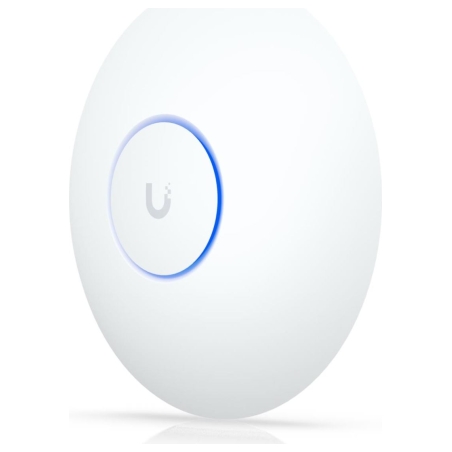

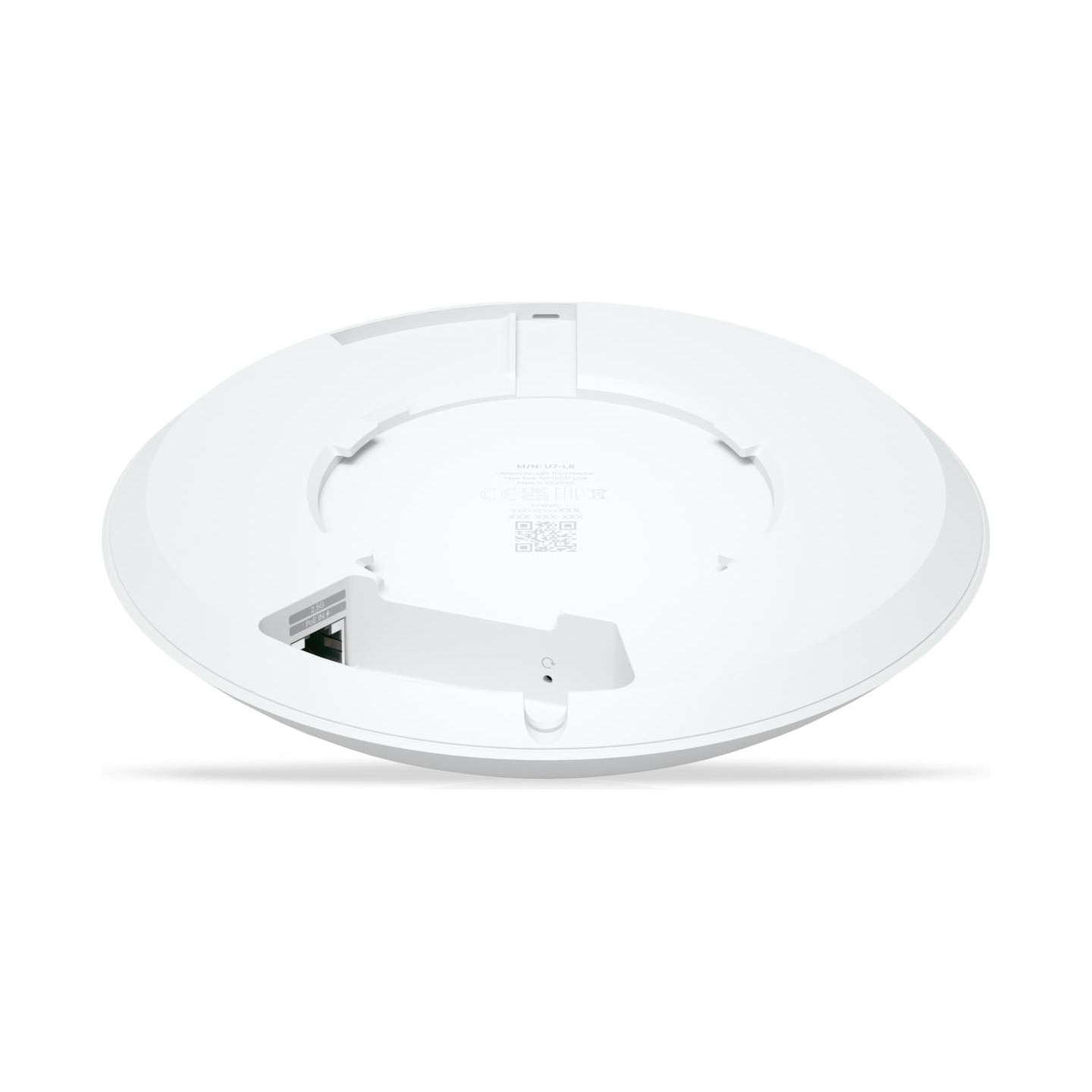

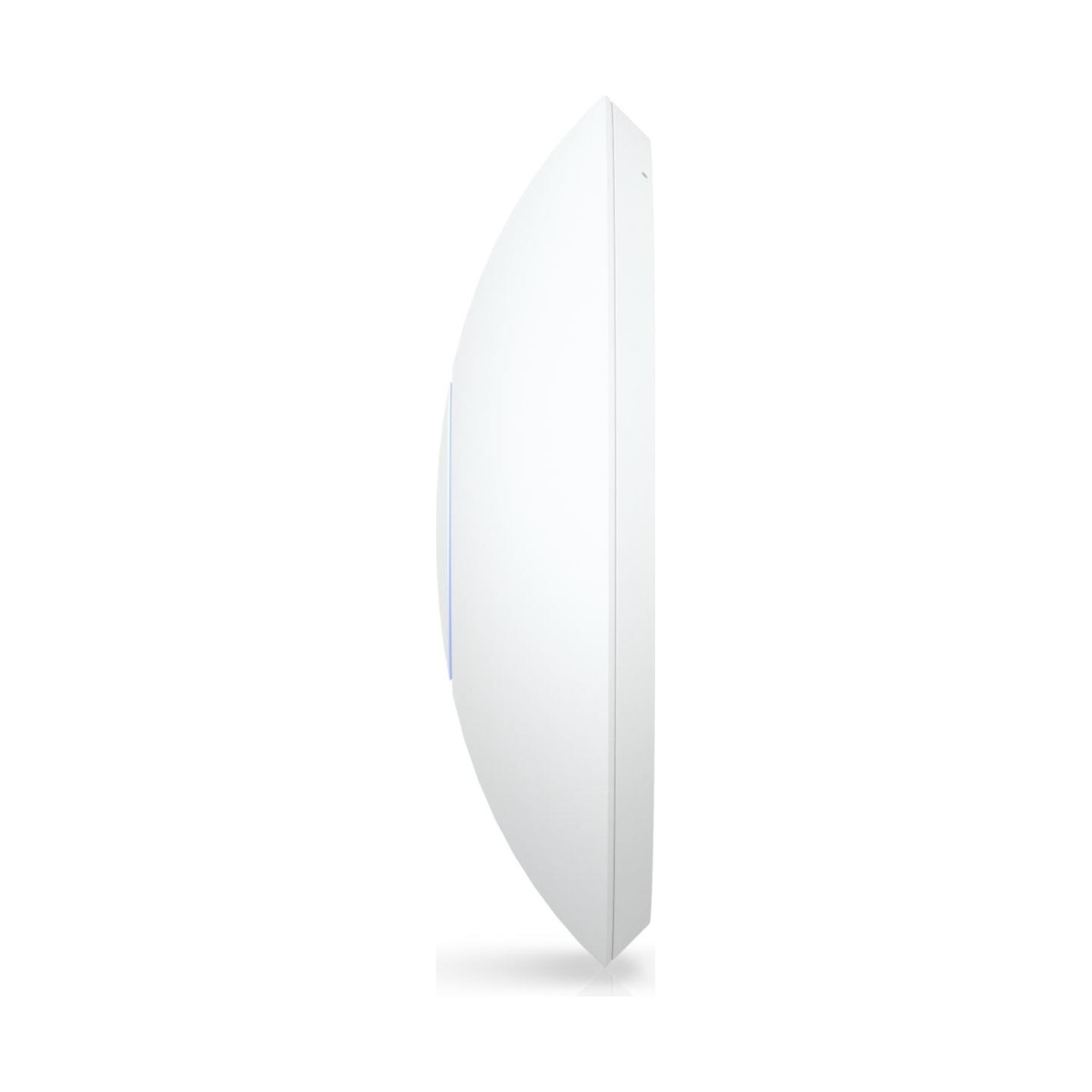

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Manufacturer Website:
https://eu.store.ui.com/eu/en/category/wifi-flagship/products/u7-lr
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.51
- Unit Box Length
- 0.485
- Unit Box Width
- 0.0247
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Band steering
- Yes
- Coverage area
- 160 m²
- Ethernet LAN data rates
- 1000/2500 Mbit/s
- Fast roaming
- Yes
- Fit AP mode features
- Hotspot 2.0
- Frequency band
- 2.4 - 5 GHz
- Maximum data transfer rate
- 7300 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 688 Mbit/s
- Maximum data transfer rate (5 GHz)
- 4300 Mbit/s
- Maximum Tx power (2.4 GHz)
- 26 dBmW
- Maximum Tx power (5 GHz)
- 27 dBmW
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Networking standards
- IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v
- Number of users
- 300 user(s)
- Rate limiting
- Yes
- Spatial streams
- 5
- VLAN support
- Yes
- Wireless meshing
- Yes
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Security algorithms
- PPSK/TLS
- Access point management
- Wi-Fi schedule

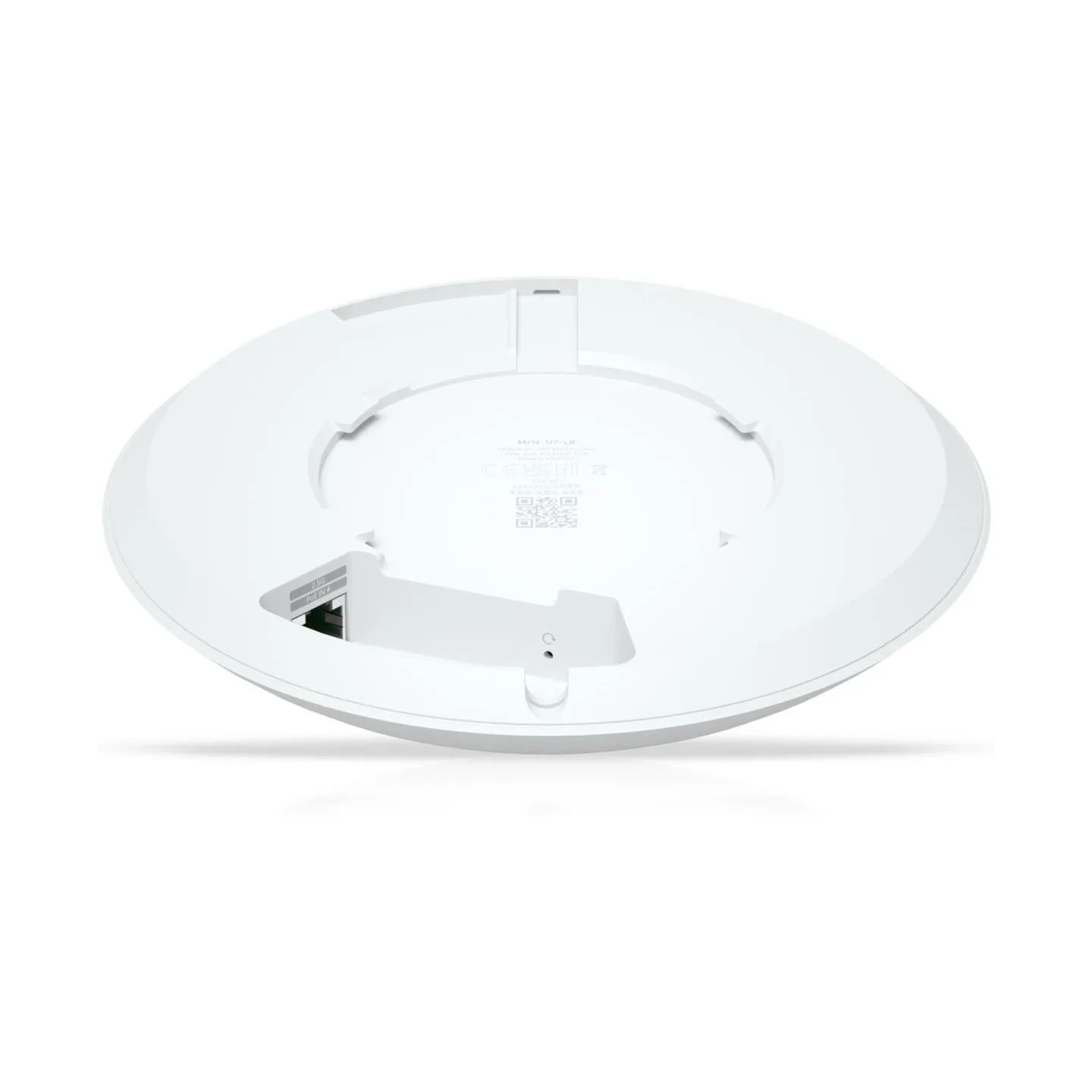

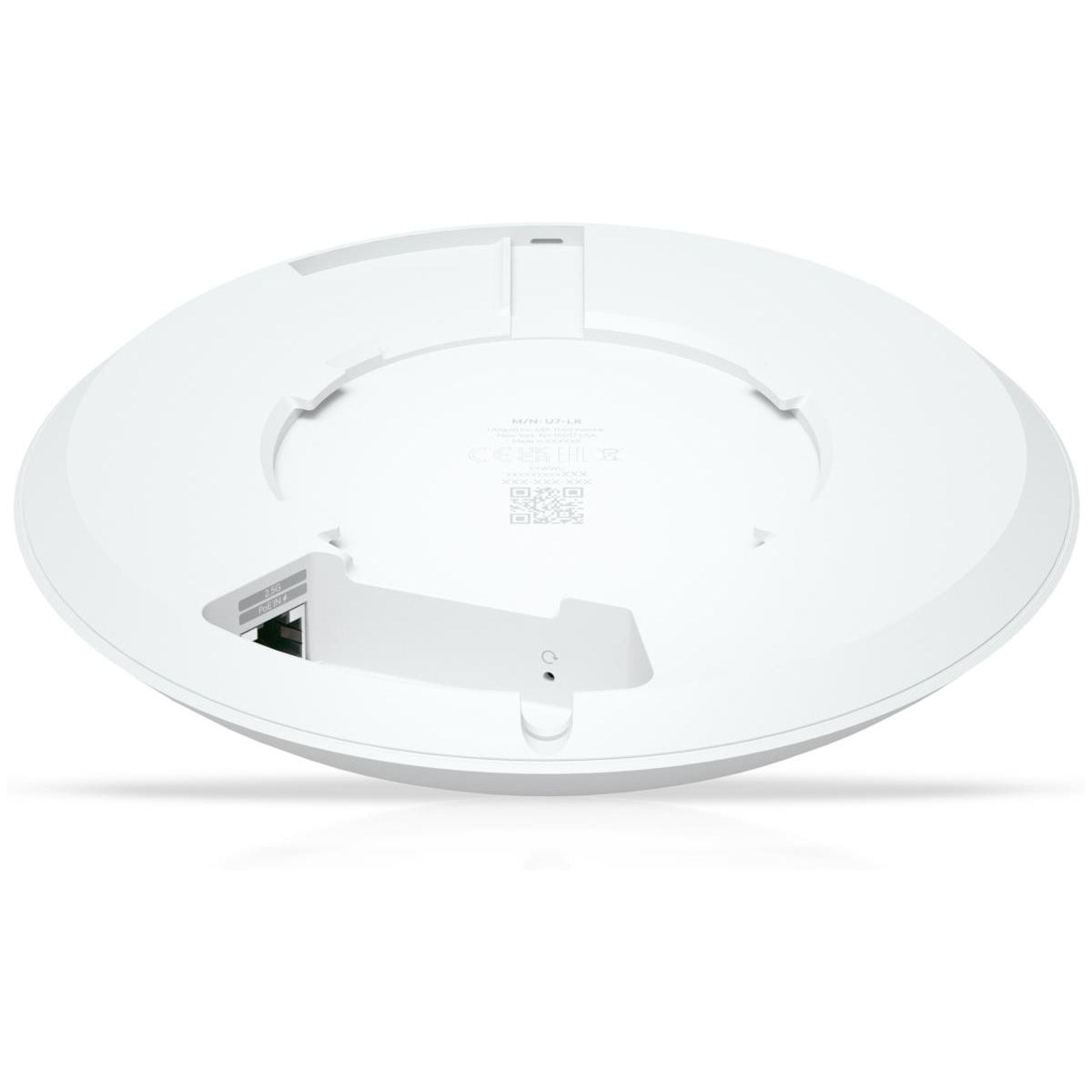

- Ethernet LAN (RJ-45) ports
- 1
- DC voltage range
- 42.5 - 57 V
- Power consumption (max)
- 14 W
- Power over Ethernet (PoE)
- Yes
- Housing material
- Aluminium,Polycarbonate (PC)
- LED indicators
- Yes
- Placement
- Ceiling,Wall
- Product colour
- White
- Reset button
- Yes
- Antenna gain level (max)
- 6 dBi
- Antenna type
- Internal
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
- Depth
- 175.7 mm
- Height
- 43 mm
- Weight
- 448 g
- Width
- 175.7 mm

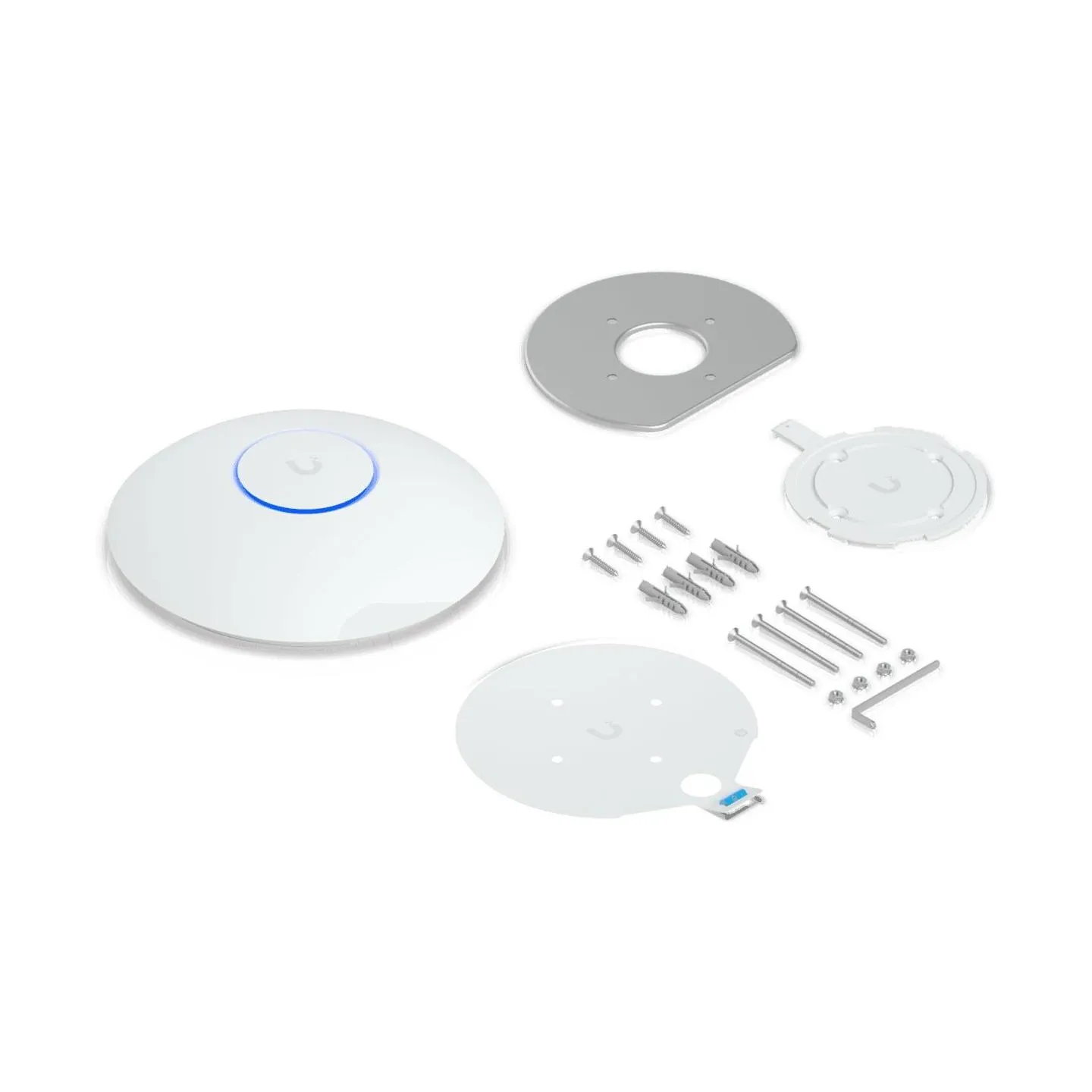

- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -30 - 50 °C
- Model
- U7-LR
- Model name
- U7 Long-Range
- Units per Shipping Box
- 16
- Unit Calculated Volume
- 0.006106 cubm
- Unit Calculated Weight
- 0.959 kg
