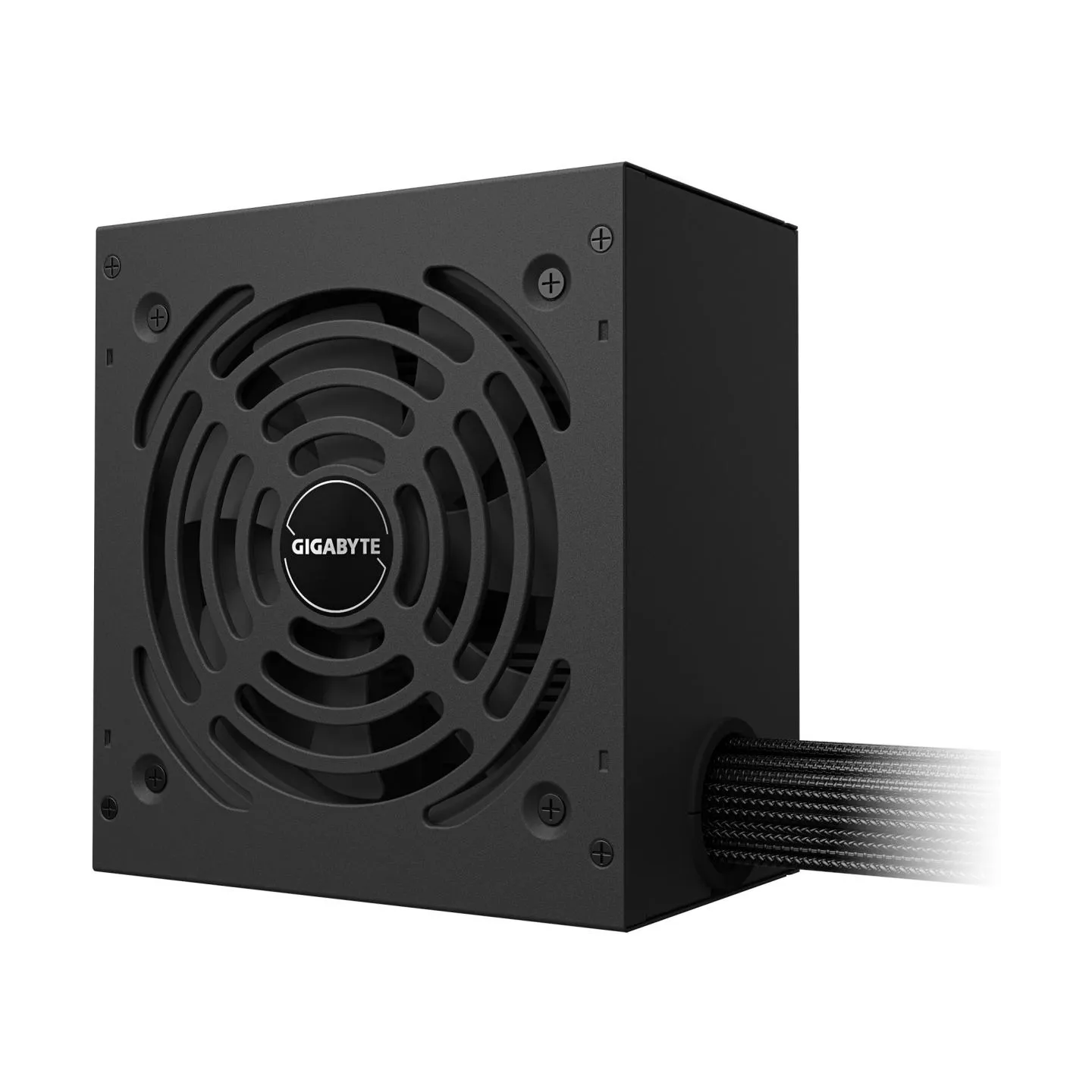

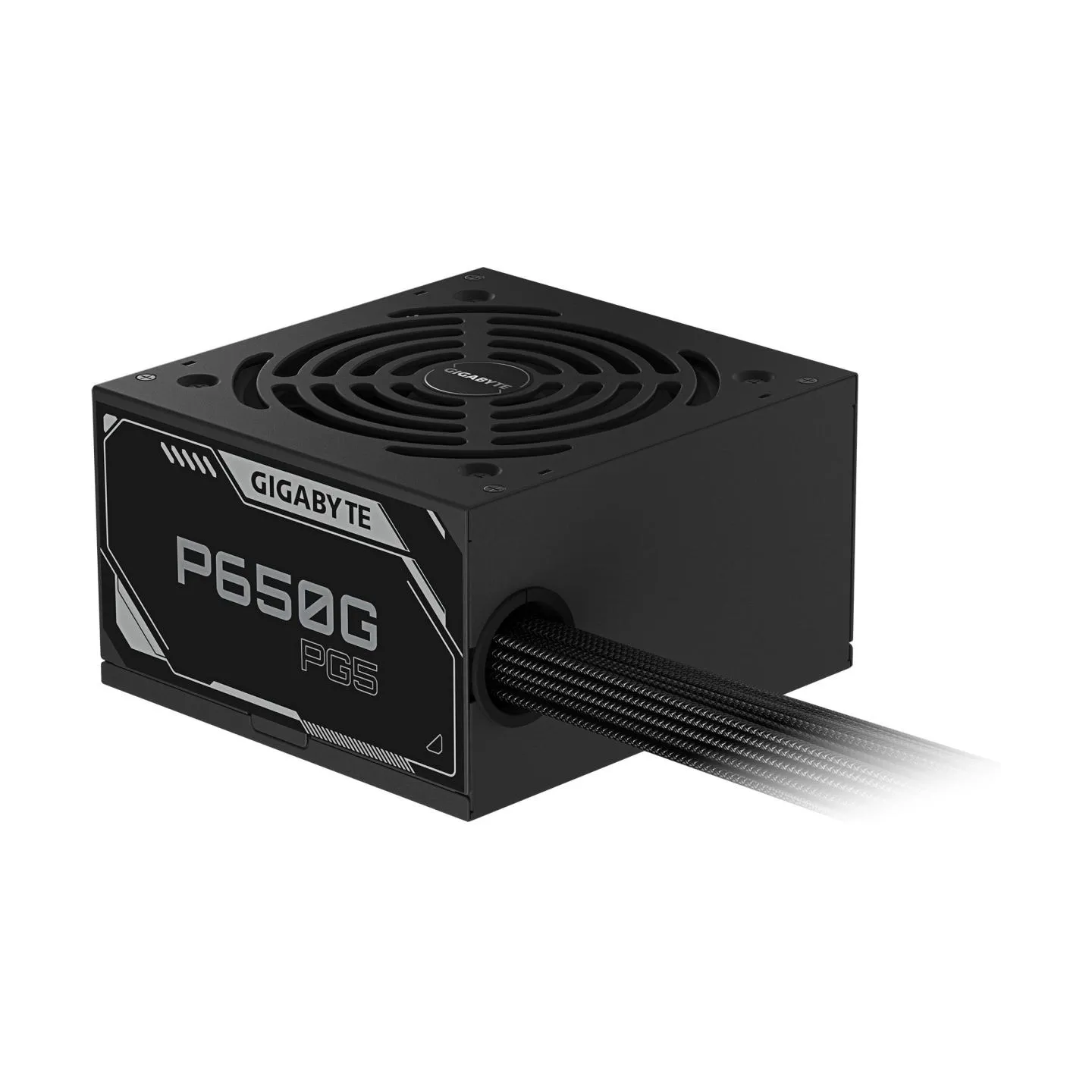

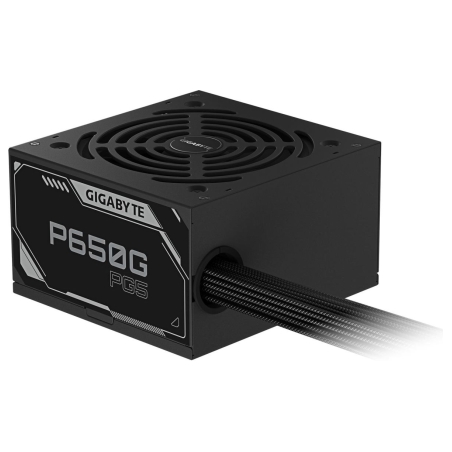

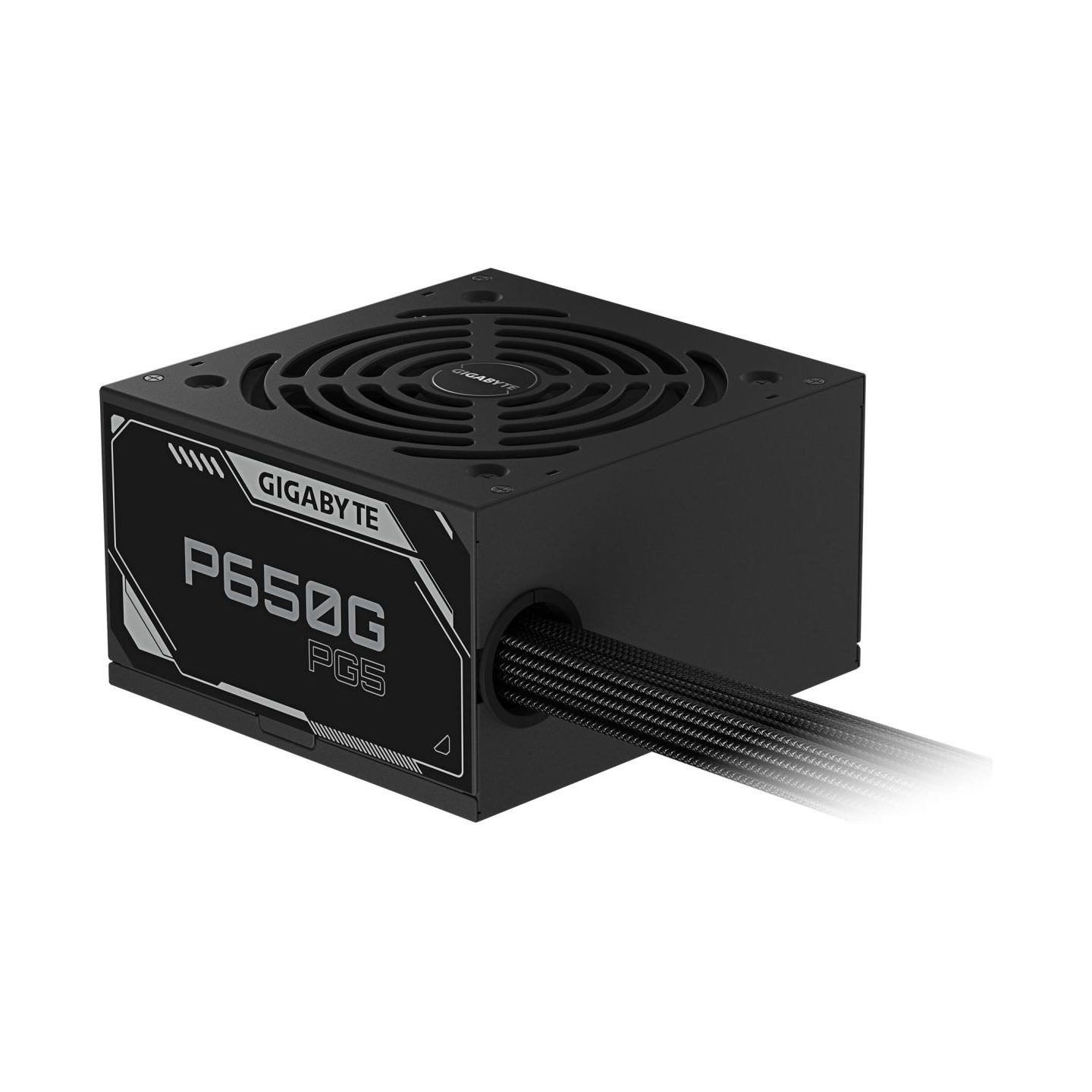

Gigabyte Power supply P650G 650W PG5 120mm hydraulic fan ATX
Price:
€60.48
Tax included
Share on
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Main Japanese capacitors

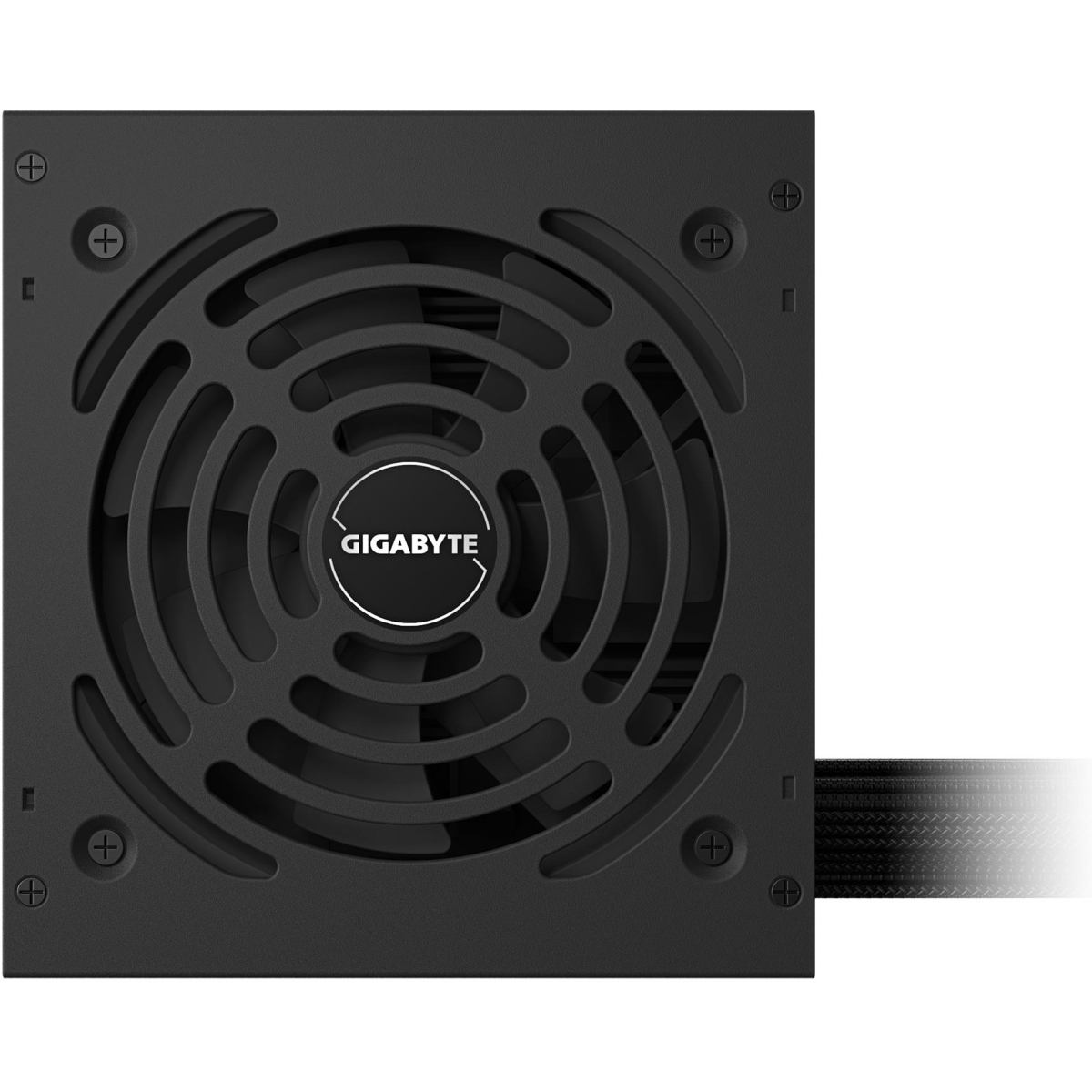

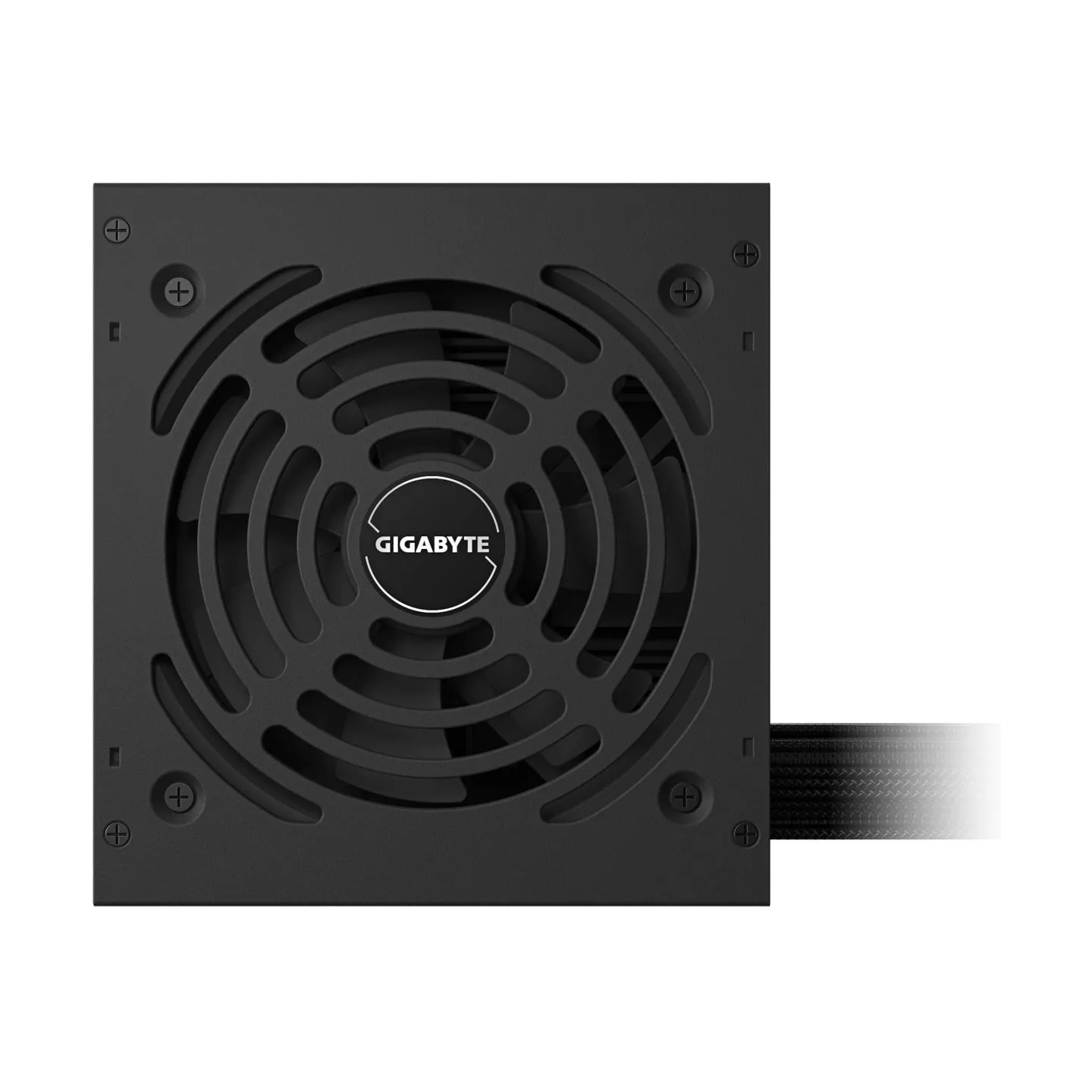

- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.12
- Unit Box Length
- 0.26
- Unit Box Width
- 0.215

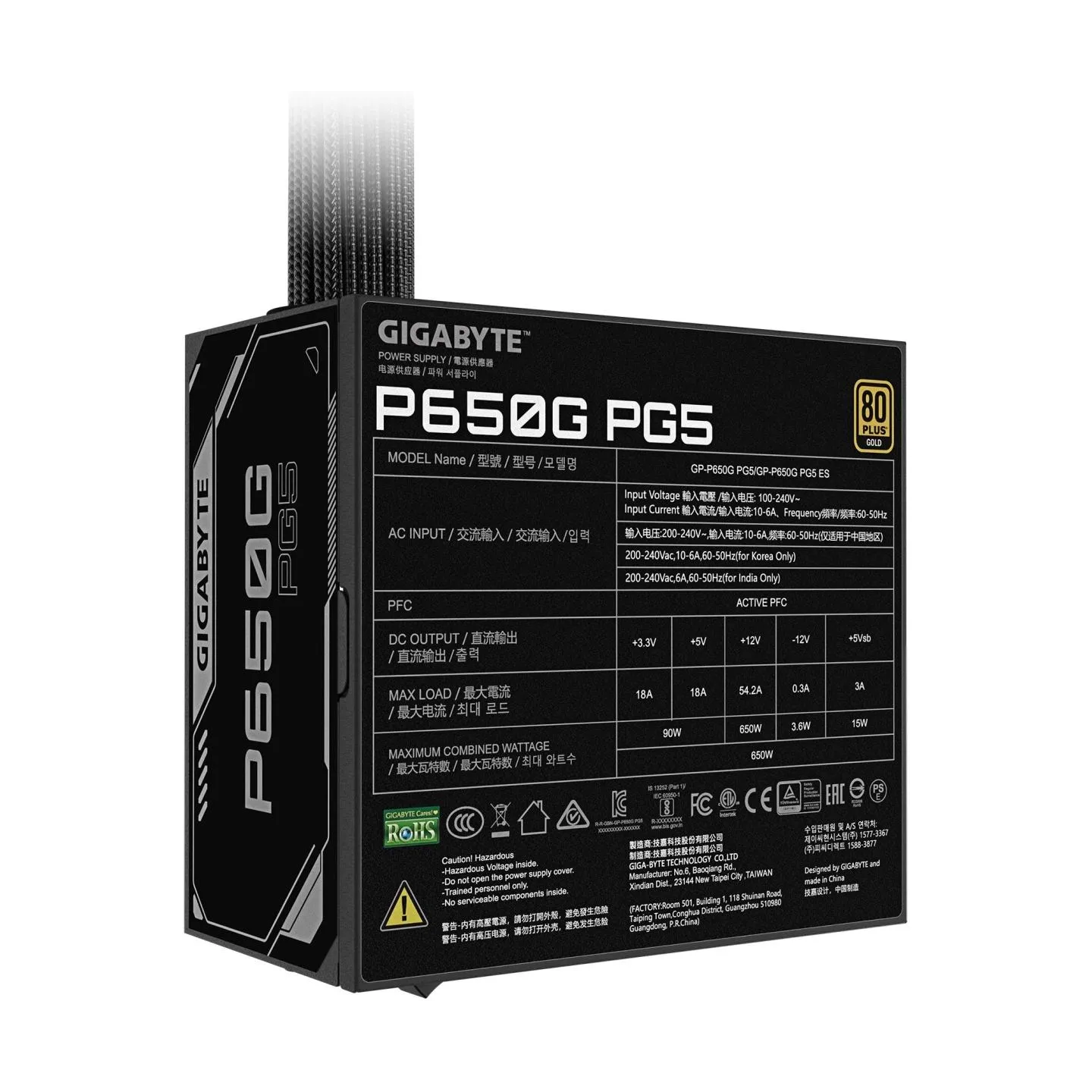

- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+12V)
- 650 W
- Combined power (+3.3V)
- 90 W
- Combined power (+5V)
- 650 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Input current
- 10 - 6 A
- Max output current (+12V)
- 54.2 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 18 A
- Max output current (+5Vsb)
- 18 A
- Max output current (-12V)
- 0.3 A
- Maximum input current (@110V)
- 10 A
- Maximum input current (@220V)
- 6 A
- Power Factor Correction (PFC) type
- Active
- Power Good signal delay range
- 100 - 150 ms
- Power protection features
- Over power/Overcharge/Short circuit/Under voltage
- Total power
- 650 W
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Non-Modular
- CPU P4 connector (4-pin)
- 1
- CPU power cable length
- 600 mm
- CPU power connector (4+4 pin)
- Yes
- Floppy disk drive connector
- Yes
- Motherboard power cable length
- 600 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power cable length
- 500 mm
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power cable length
- 150 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- SATA power cable length
- 120/500 mm
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- HYB
- Mean time between failures (MTBF)
- 100000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)

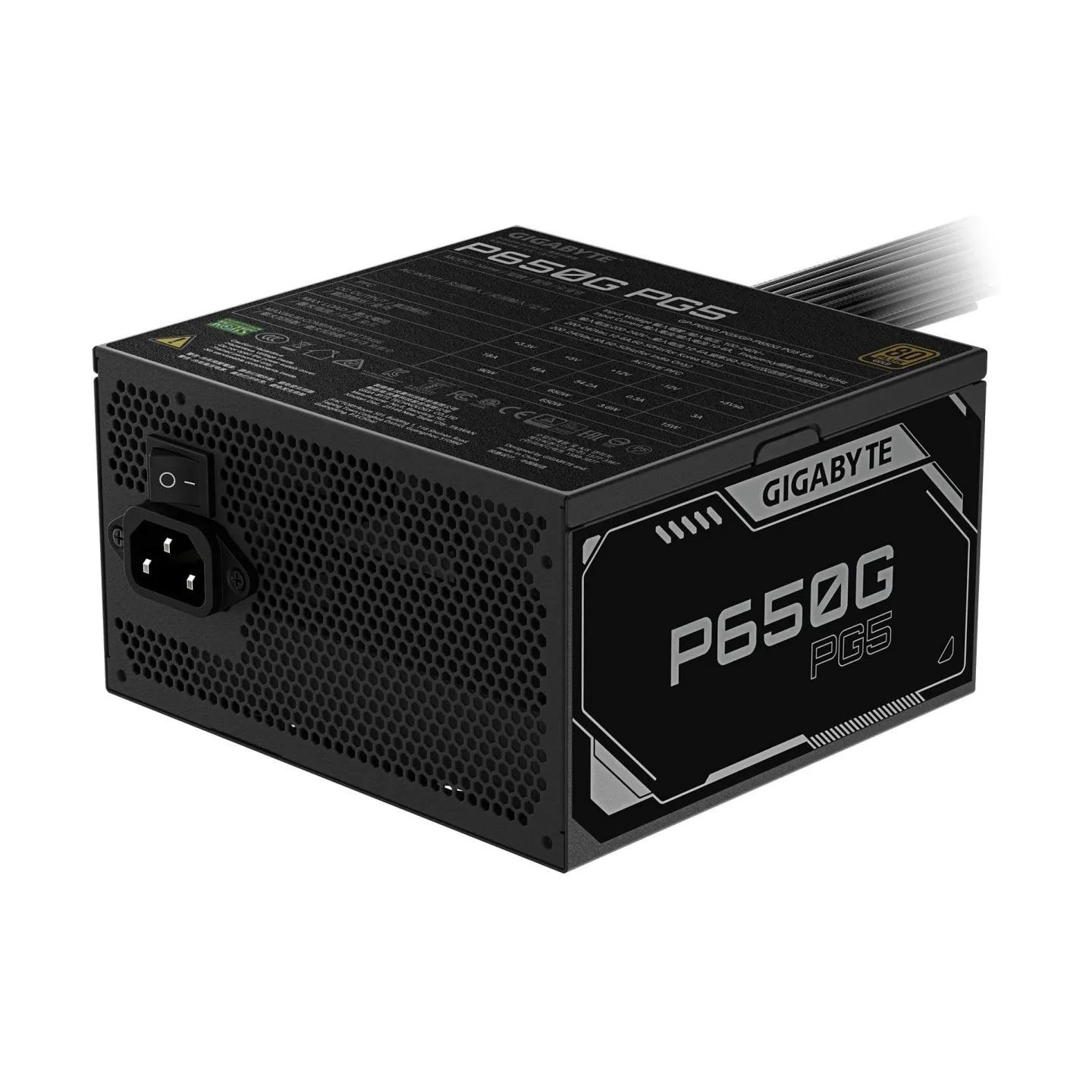

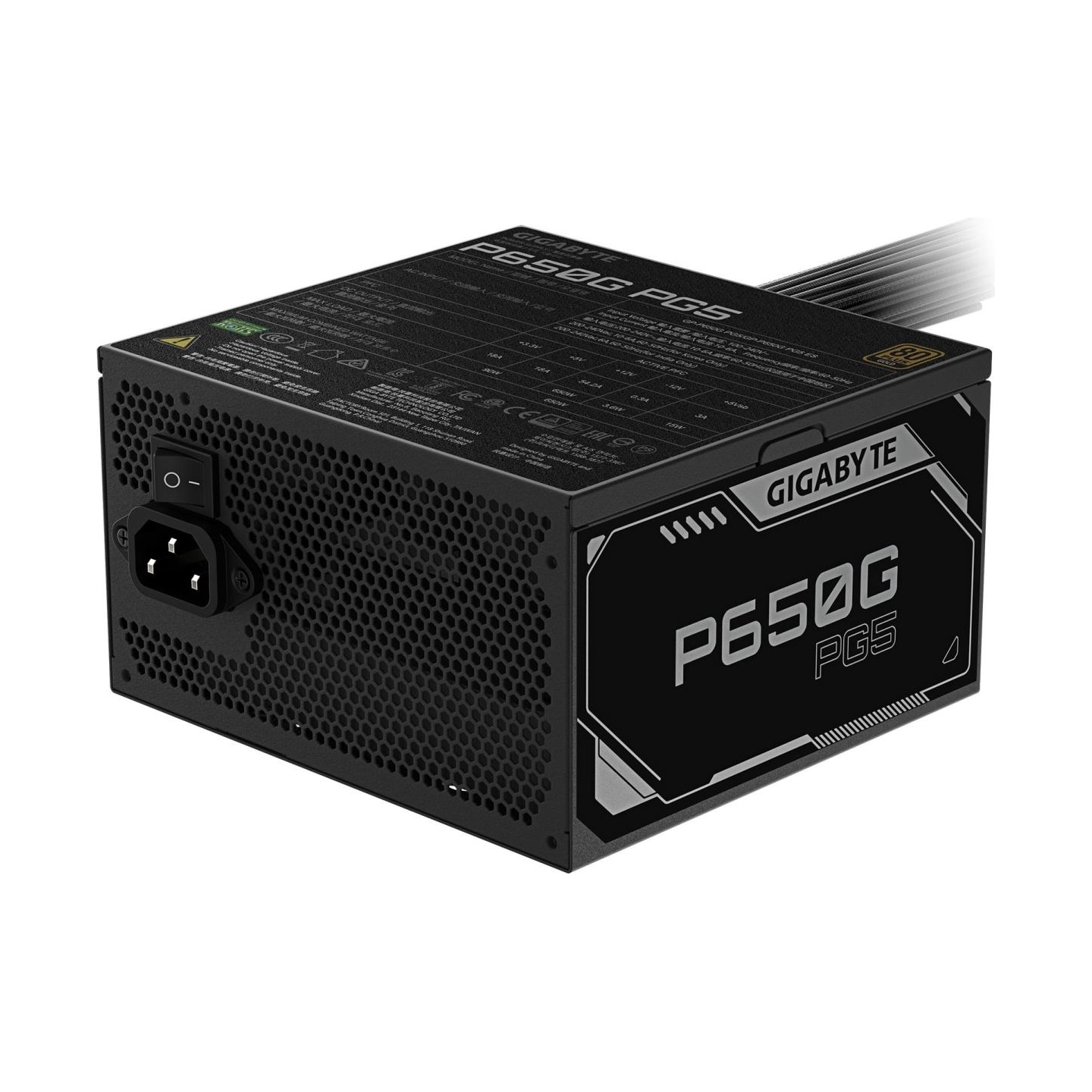

- On/off switch
- Yes
- Product colour
- Black
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 1760 g
- Width
- 140 mm
- Package depth
- 110 mm
- Package height
- 180 mm
- Package type
- Box
- Package weight
- 1920 g
- Package width
- 260 mm
- Warranty period
- 5 year(s)
- Model name
- GP-P650G PG5
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.007986 cubm
- Unit Calculated Weight
- 2.15 kg
