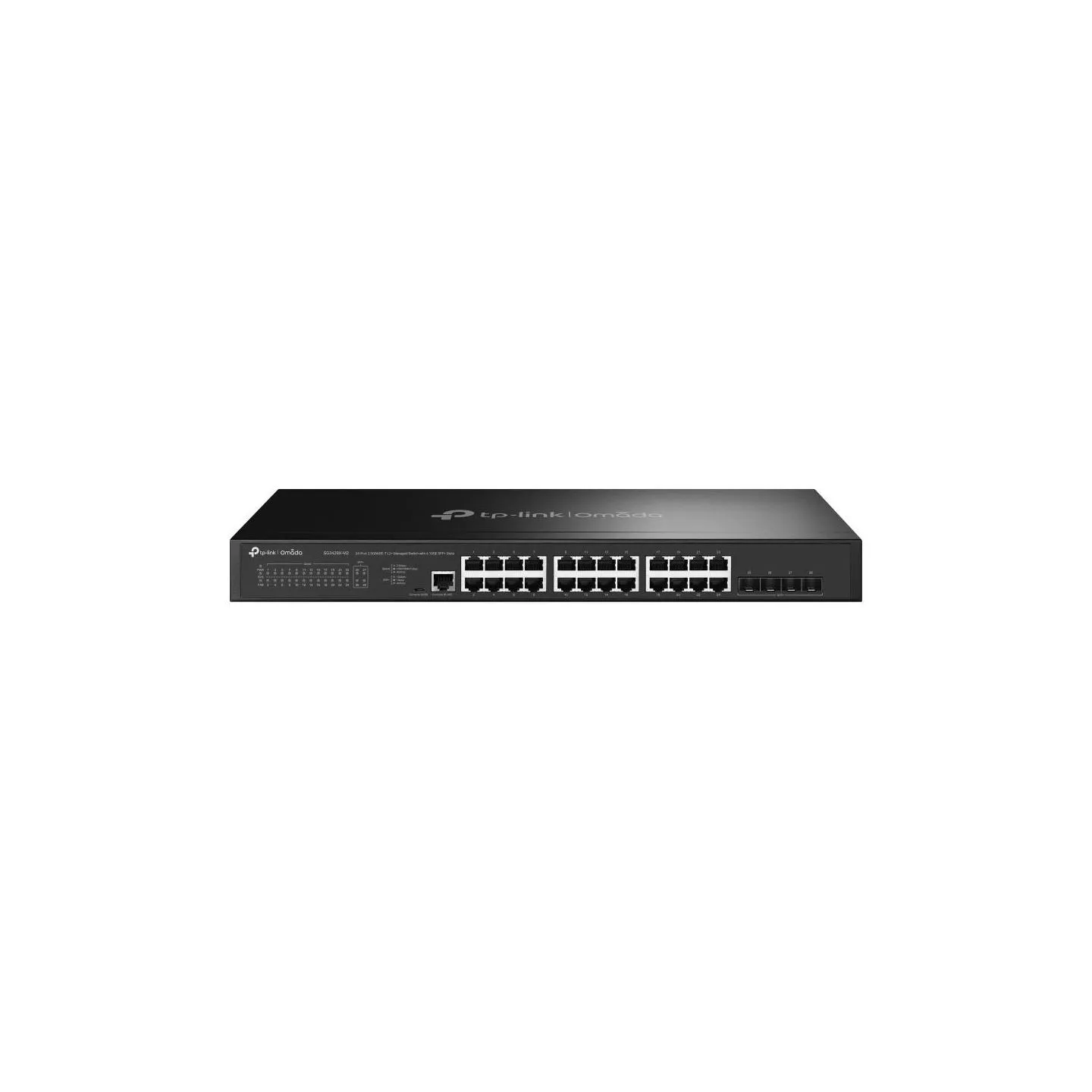

Tp-Link Switch|TP-LINK|Omada|TL-SG3428X-M2|Type L2+|4xSFP+|1xConsole|1|TL-SG3428X-M2

SKU TL-SG3428X-M2 Category Switches
Price: €502.54
Tax included
Share on

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 24× 2.5 Gbps RJ45 ports
  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 200 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design



Manufacturer Website:
https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428x-m2/#specifications

Category Code
SWI
CnCode
85176200
Unit Box Height
0.255
Unit Box Length
0.53
Unit Box Width
0.085
ARP inspection
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Switch type
Managed
System event log
Yes
Web-based management
Yes
2.5G Ethernet (copper) ports quantity
24
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
SFP+ module slots quantity
4
10G support
Yes
Active link detection
Yes
Broadcast storm control
Yes
Flow control support
Yes
Head-of-line (HOL) blocking
Yes
IPv4 routes
48
IPv6 routes
48
Link aggregation
Yes
Networking standards
IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3bz/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Policy-based routing
Yes
Port mirroring
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Virtual LAN features
Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN support
Yes
Forwarding rate
148.8 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
32000 entries
Number of static routes
48
Packet buffer memory
16 MB
Static route
Yes
Store-and-forward
Yes
Switching capacity
200 Gbit/s
Access Control List (ACL)
Yes
Authentication
Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type
AAA,RADIUS,TACACS+
BPDU filtering/protection
Yes
DHCP features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Loop protection
Yes
SSH/SSL support
Yes
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
IPv4 FIB entries
100
IPv6 FIB entries
100
Management protocols
SNMP v1/v2c/v3, SNTP
Form factor
1U
LED indicators
Yes
Number of fans
1 fan(s)
Product colour
Black
Rack mounting
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
45.1 W
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
No
Heat dissipation
154.38 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
180 mm
Height
44 mm
Width
440 mm
Cables included
LAN (RJ-45)
Quick start guide
Yes
Certification
CE, FCC, RoHS
Compliance certificates
CE/Federal Communications Commission (FCC)/RoHS
Series
Omada
Model name
TL-SG3428X-M2
Units per Shipping Box
1
Unit Calculated Volume
0.01149 cubm
Unit Calculated Weight
3.06 kg
Category Switches Brand TP-LINK EAN13 4897098689745 In stock 29 Items
