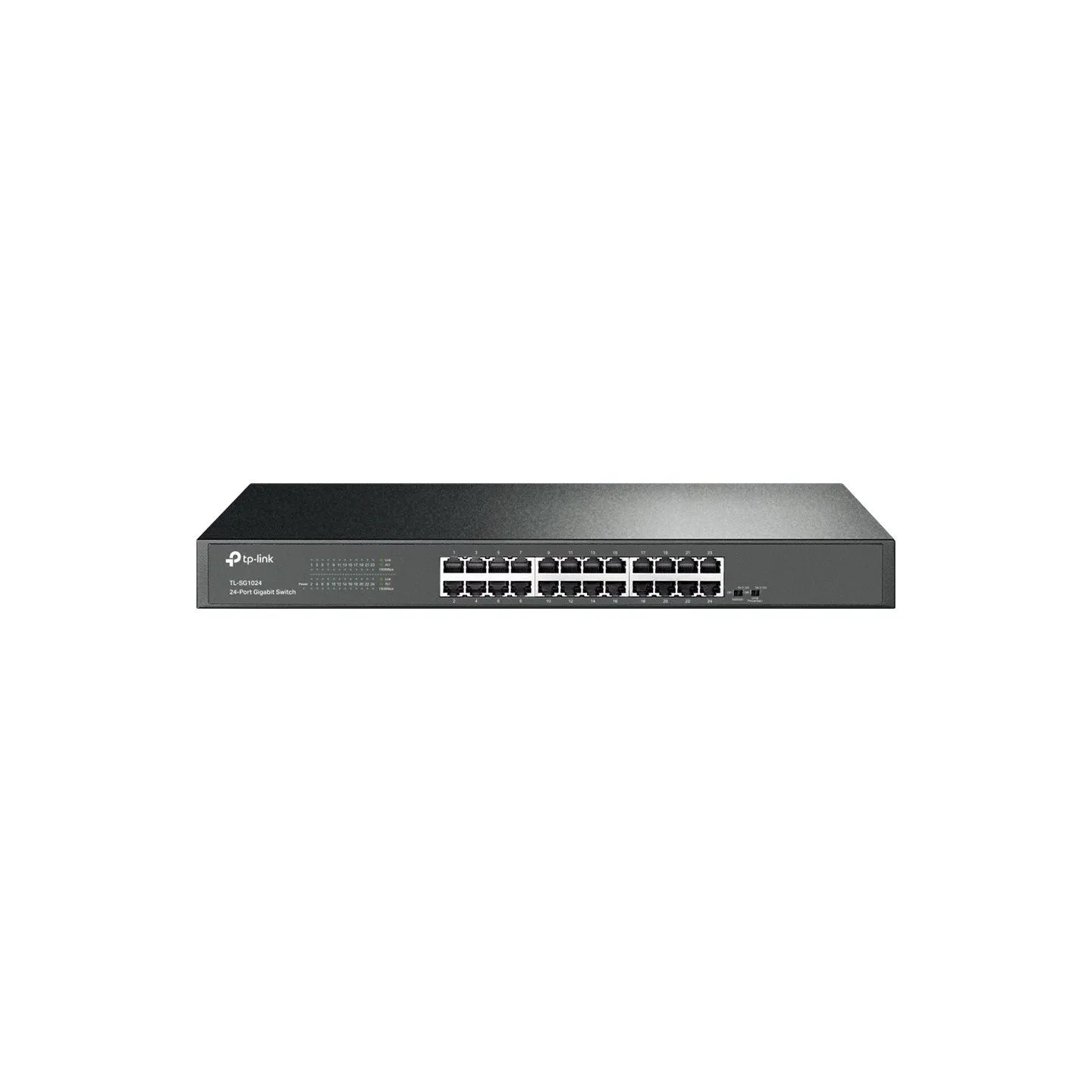

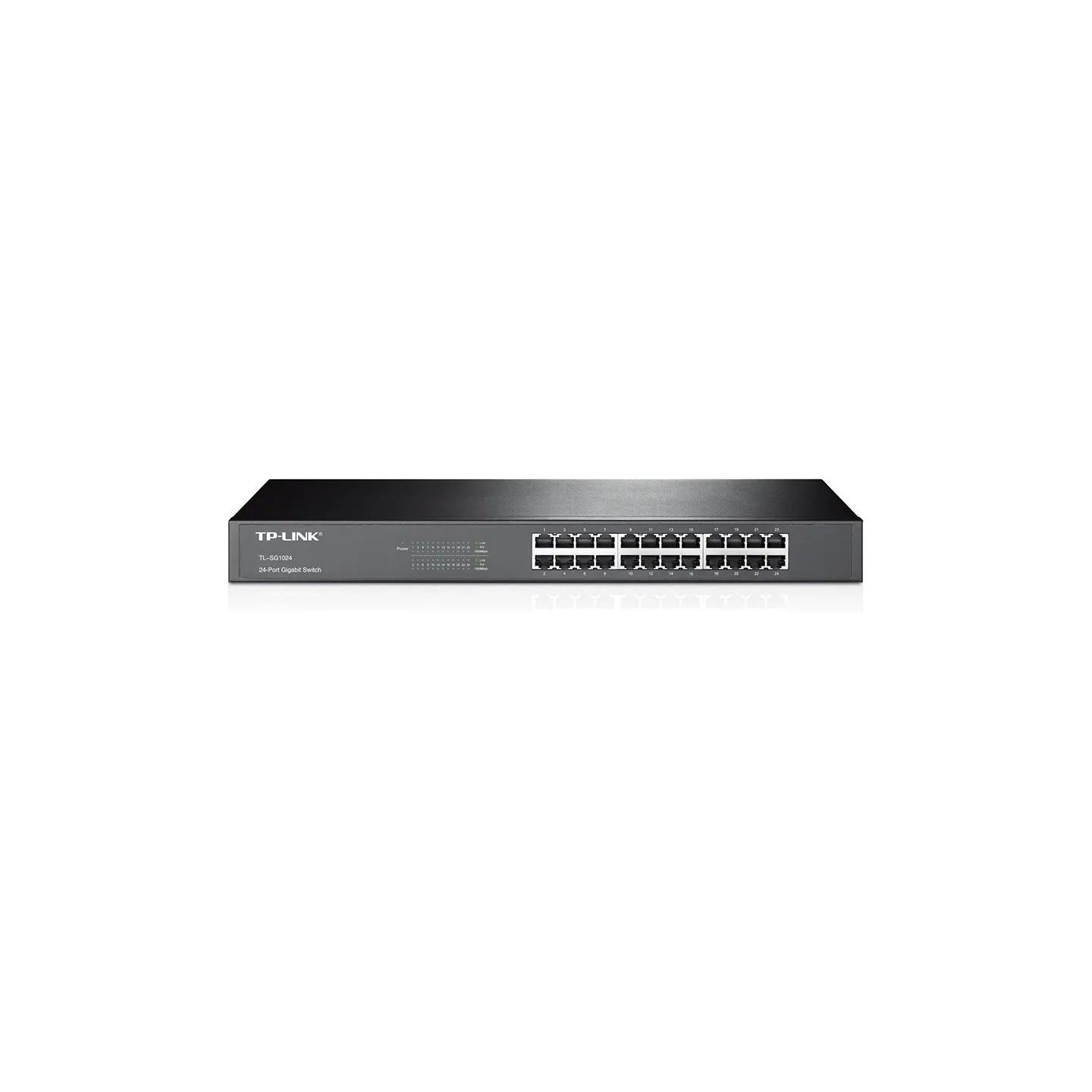

Tp-Link SG1024 switch L2 24x1GbE Desktop/Rack

SKU TL-SG1024 Category Switches
Price: €89.06
Tax included
Last items in stock
Share on

What This Product Does
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

  • 24 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case



Manufacturer Website:
https://www.tp-link.com/products/productDetails.asp?class=&content=spe&pmodel=TL-SG1024

Category Code
SWI
CnCode
85176200
Unit Box Height
0.25
Unit Box Length
0.53
Unit Box Width
0.08
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
1000BASE-T/100BASE-TX/10BASE-T
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Networking standards
IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate
35.7 Mpps
Jumbo frames
10000
Jumbo frames support
Yes
MAC address table
8000 entries
Maximum data transfer rate
1 Gbit/s
Store-and-forward
Yes
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
48 Gbit/s
Supported network protocols
CSMA/CD, TCP/IP
Form factor
1U
LED indicators
Yes
Product colour
Black
Rack mounting
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
13.62 W
Power source
AC
Power supply included
Yes
Bandwidth
48 Gbit/s
Connectivity LEDs
Y
Connectivity technology
Wired
Dimensions (W x D x H) (imperial)
17.3 x 7.1 x 1.7 "
Heat dissipation
46.44 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
32 - 104 °F
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
180 mm
Height
44 mm
Width
440 mm
Cables included
AC
Rack mount kit
Yes
User guide
Yes
Package depth
528 mm
Package height
80 mm
Package weight
2130 g
Package width
250 mm
Certification
FCC, CE, ROHS
Units per Shipping Box
1
Unit Calculated Volume
0.0106 cubm
Unit Calculated Weight
2.52 kg
Category Switches Brand TP-LINK EAN13 6935364020101 In stock 1 Item
