Tp-Link Omada 6-Port Gigabit Industrial

Name: Tp-Link Omada 6-Port Gigabit Industrial
Brand: TP-LINK
SKU: IES206GPP
Price: 218.5 EUR
Availability: InStock

SKU IES206GPP Category Switches

€218.50

Tax included

Last items in stock

Share on

Industrial-Grade Protection Built for Harsh Environments

Enhanced Networking Stability and Security

Easy Operation and Maintenance with Omada’s Free Cloud Management

4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
120W Power Budget* with up to 60W for PoE++ Port
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App

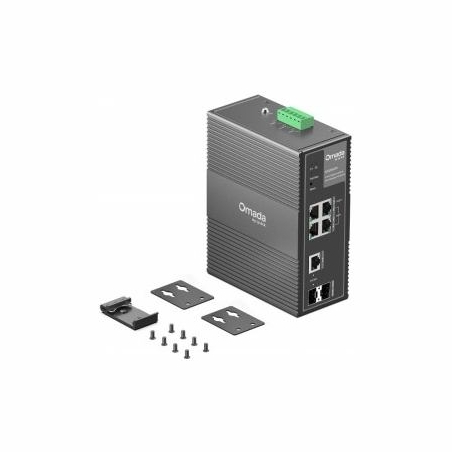

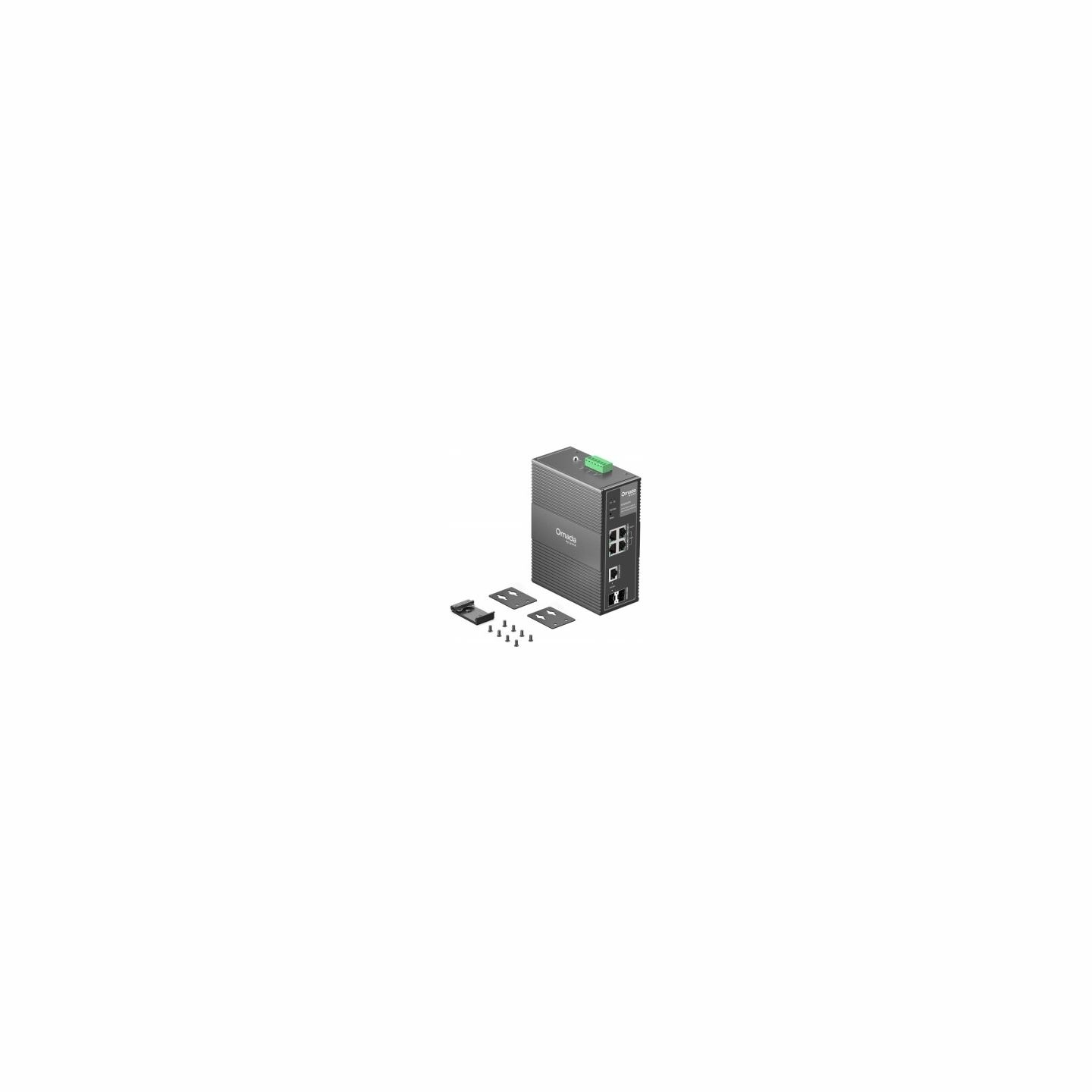

Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Manufacturer Website:
https://www.omadanetworks.com/nordic/business-networking/omada-switch-industrial/ies206gpp/

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.1
Unit Box Length: 0.19
Unit Box Width: 0.2
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
SFP module slots quantity: 1
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3x
Port mirroring: Yes
Spanning tree protocol: Yes
Forwarding rate: 8.93 Mpps
Jumbo frames: 15000
Jumbo frames support: Yes
MAC address table: 8000 entries
Store-and-forward: Yes
Switching capacity: 12 Gbit/s
DHCP features: DHCP client
IGMP snooping: Yes
Multicast support: Yes
DIN rail mounting: Yes
Product colour: Black
Rack mounting: Yes
Wall mountable: Yes
Fanless: Yes
DC input voltage: 12 - 57 V
Power source: DC/PoE
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: PoE+/PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Power over Ethernet plus (PoE+) ports quantity: 3
Total Power over Ethernet (PoE) budget: 120 W
Operating relative humidity (H-H): 5 - 95 %
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 95 %
Storage temperature (T-T): -40 - 85 °C
Depth: 120 mm
Height: 60 mm
Width: 155 mm
Quick start guide: Yes
Certification: FCC, CE, ROHS
Model: IES206GPP
Units per Shipping Box: 4
Unit Calculated Volume: 0.00473 cubm
Unit Calculated Weight: 1.4875 kg
