Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
- 16 10/100/1000Mbps RJ45 POE+ Ports Switch
- PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
- Port Priority is able to guarantee the quality of sensitive application like video monitor
- Intelligent power management can protect the switch from overload
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Manufacturer Website:
https://www.tp-link.com/ae/business-networking/easy-smart-switch/tl-sg1218mpe/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.08
- Unit Box Length
- 0.53
- Unit Box Width
- 0.25
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 16
- SFP module slots quantity
- 2
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Broadcast storm control
- Yes
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Flow control support
- Yes
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
- Number of VLANs
- 32
- Port mirroring
- Yes
- Rate limiting
- Yes
- Virtual LAN features
- Port-based VLAN
- VLAN support
- Yes
- Fiber ethernet cabling technology
- 1000BASE-X
- Forwarding rate
- 23.8 Mpps
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Number of queues
- 4
- Packet buffer memory
- 4.1 MB
- Store-and-forward
- Yes
- Switching capacity
- 36 Gbit/s
- IGMP snooping
- Yes
- Loop protection
- Yes
- Security algorithms
- SNMP/SNMPv2/SNMPv3
- Form factor
- 1U
- Number of fans
- 2 fan(s)
- Product colour
- Black
- Rack mounting
- Yes
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 217.22 W
- Power source
- AC
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 192 W
- Heat dissipation
- 741.15 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 180 mm
- Height
- 44 mm
- Width
- 440 mm
- Cables included
- AC
- Rack mount kit
- Yes
- User guide
- Yes
- Package depth
- 528 mm
- Package height
- 80 mm
- Package weight
- 2910 g
- Package width
- 250 mm
- Certification
- CE, FCC, RoHS
- Harmonized System (HS) code
- 85176990
- Model name

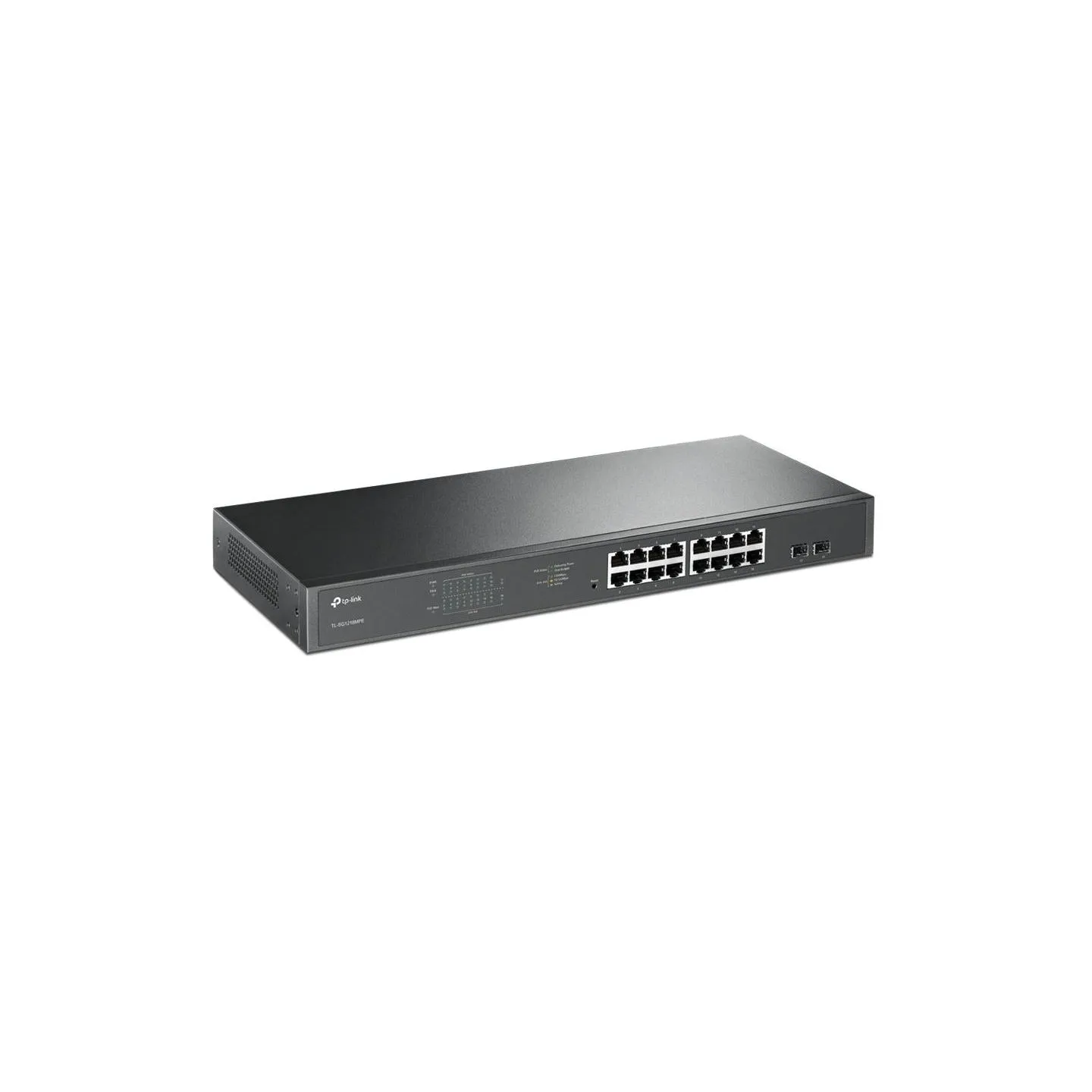

- JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.0106 cubm
- Unit Calculated Weight
- 3.11 kg
