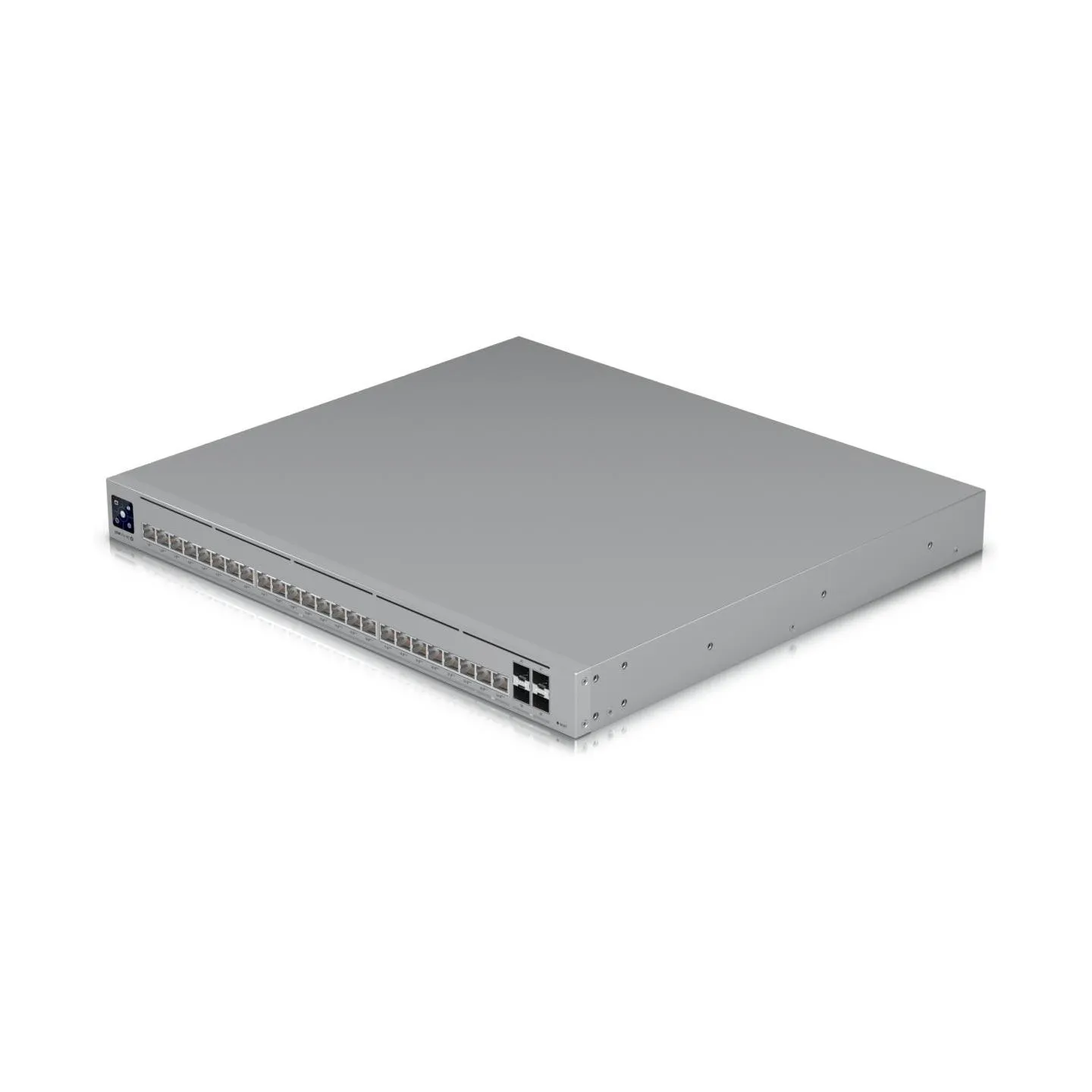

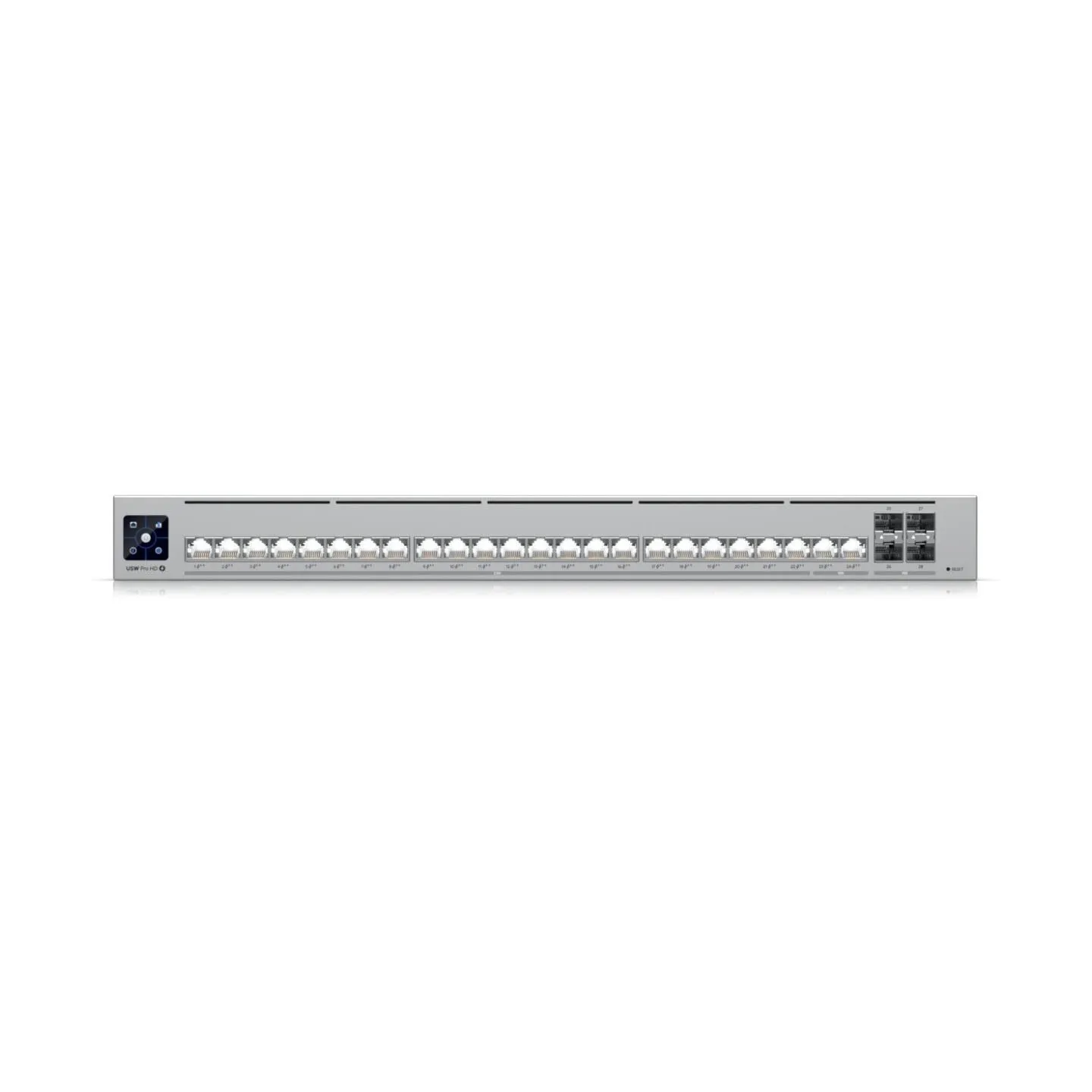

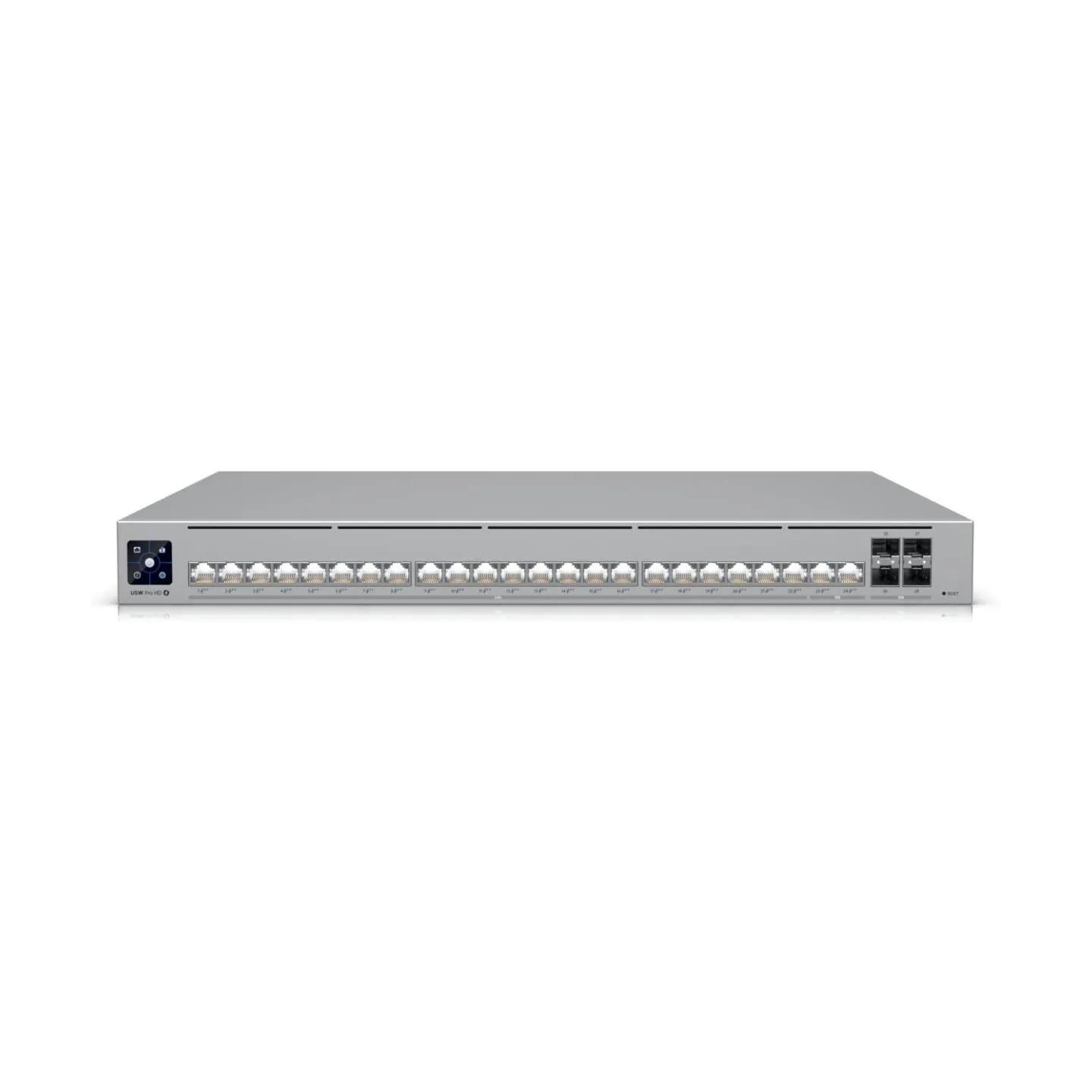

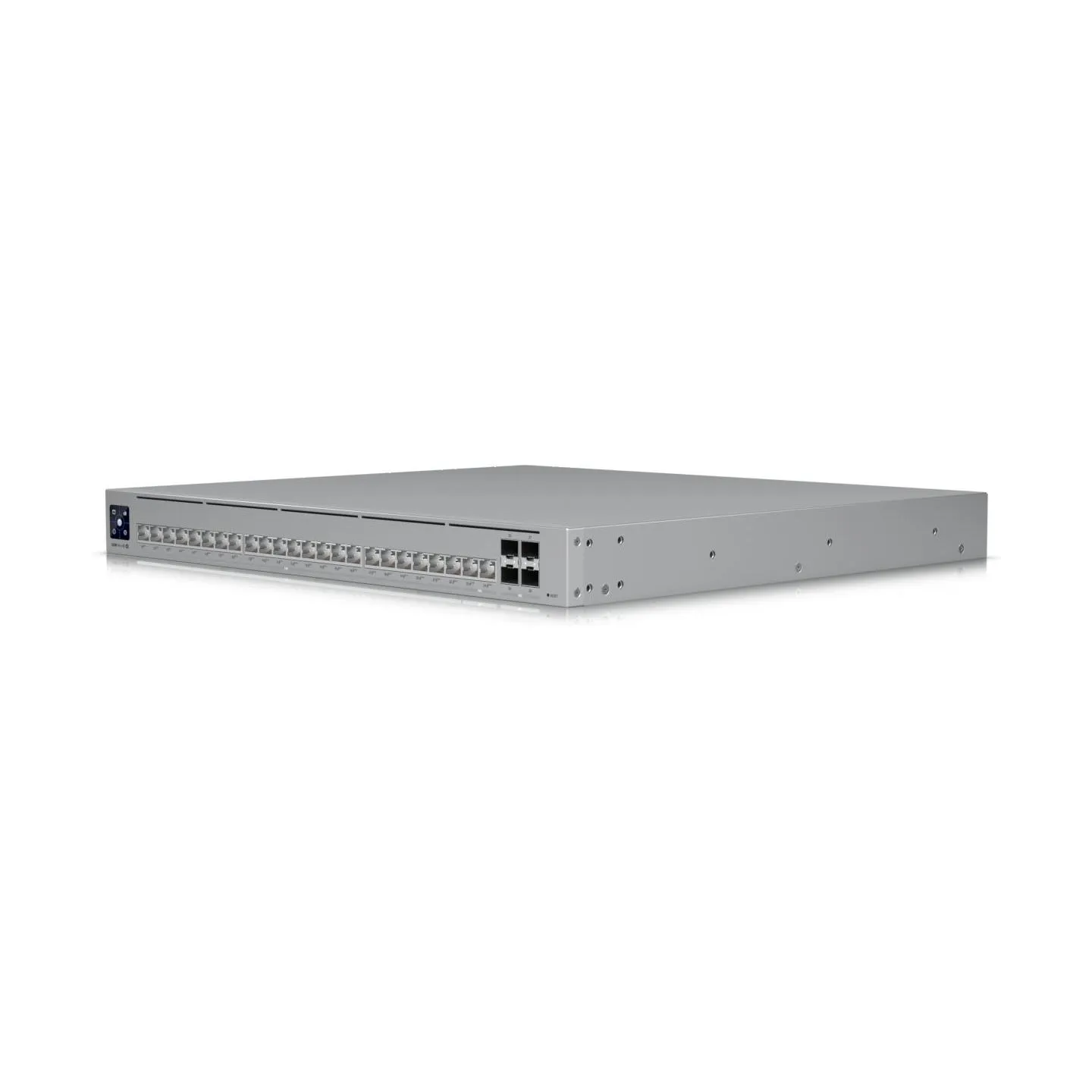

Ubiquiti USW-Pro-HD-24-PoE

Name: Ubiquiti USW-Pro-HD-24-PoE
Brand: UBIQUITI
SKU: USW-PRO-HD-24-POE
Price: 1144.23 EUR
Availability: InStock

SKU USW-PRO-HD-24-POE Category Switche

€1,144.23

Tax included

Last items in stock

Share on

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE PoE++ ports
(4) 10G SFP+ ports
DC power backup ready**
600W total PoE availability

Manufacturer Website:
https://eu.store.ui.com/eu/en/products/usw-pro-hd-24-poe

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.52
Unit Box Length: 0.54
Unit Box Width: 0.12
Quality of Service (QoS) support: Yes
Switch layer: L2/L3
Switch type: Managed
10G Ethernet (copper) ports quantity: 2
2.5G Ethernet (copper) ports quantity: 22
Basic switching RJ-45 Ethernet ports quantity: 22
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Power connector: AC/DC
SFP+ module slots quantity: 4
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
IPv4 routes: 12000
Networking standards: IEEE 802.1x
Number of VLANs: 1000
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN
VLAN support: Yes
Forwarding rate: 171 Mpps
Jumbo frames support: Yes
MAC address table: 32000 entries
Packet buffer memory: 2 MB
Static route: Yes
Switching capacity: 230 Gbit/s
Throughput: 115 Gbit/s
DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCP snooping
IGMP snooping: Yes
Loop protection: Yes
Multicast support: Yes
Display type: LCM
Form factor: 1U
Housing material: SGCC
LED indicators: Link/Speed/Status
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
Stackable: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 60 W
Power source: AC/DC/PoE
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet 4PPoE (PoE++) ports quantity: 24
Total Power over Ethernet (PoE) budget: 600 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 40 °C
Depth: 400 mm
Height: 44 mm
Weight: 6200 g
Width: 442.4 mm

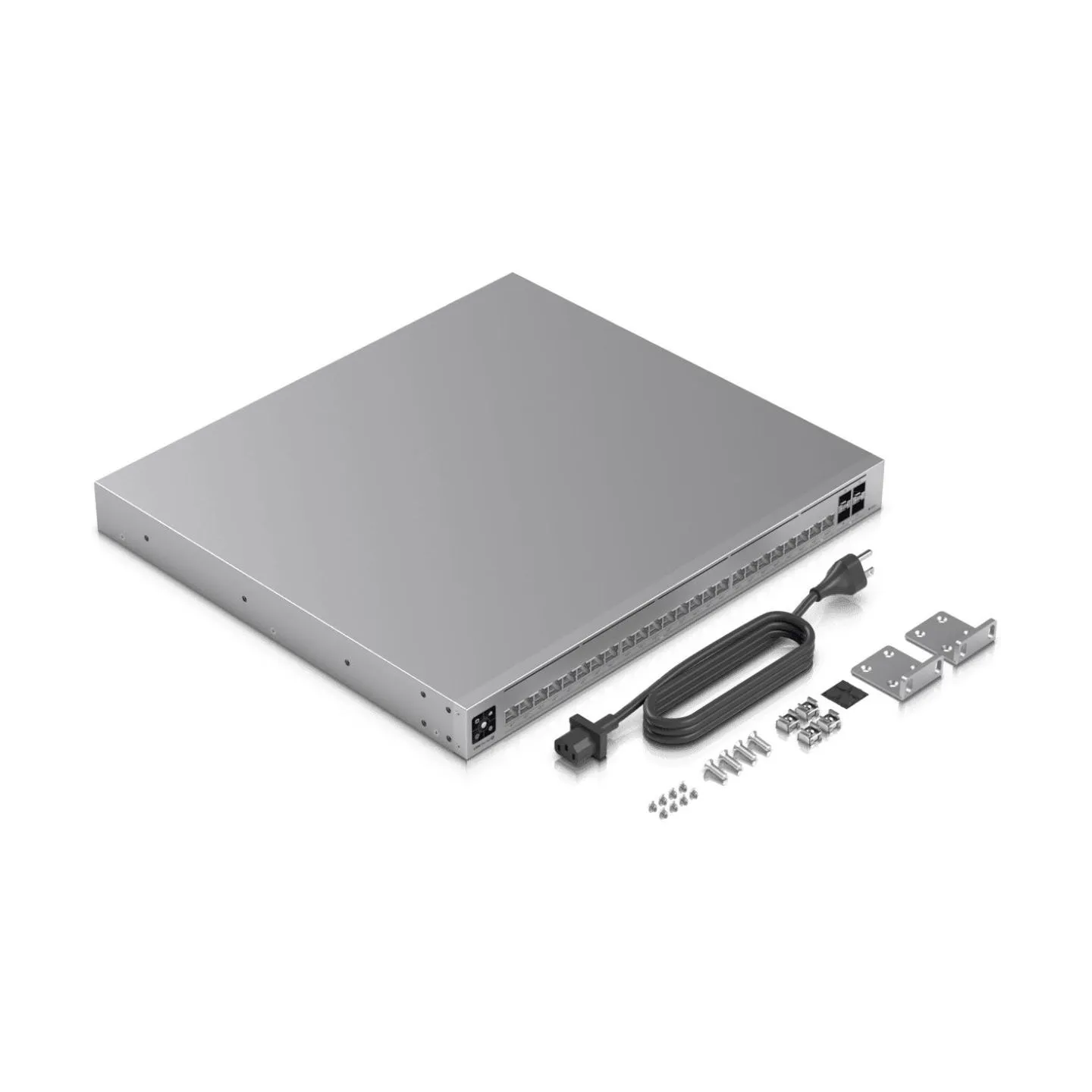

Cables included: Power
Rack mount kit: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model: USW-PRO-HD-24-POE
Units per Shipping Box: 2
Unit Calculated Volume: 0.04008 cubm
Unit Calculated Weight: 8.38 kg

Category Switche Brand UBIQUITI EAN13 810084696606 In stock 1 Item
