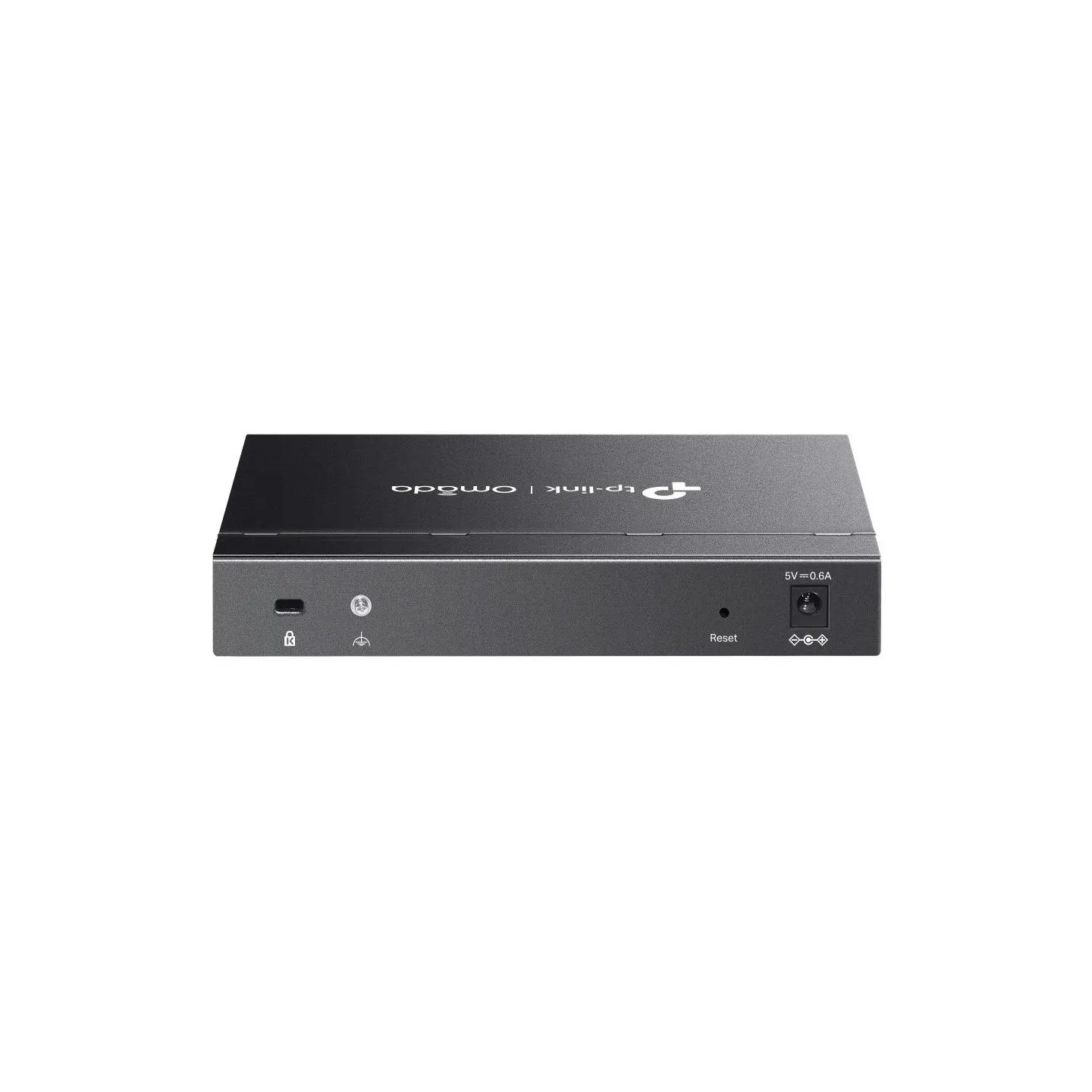

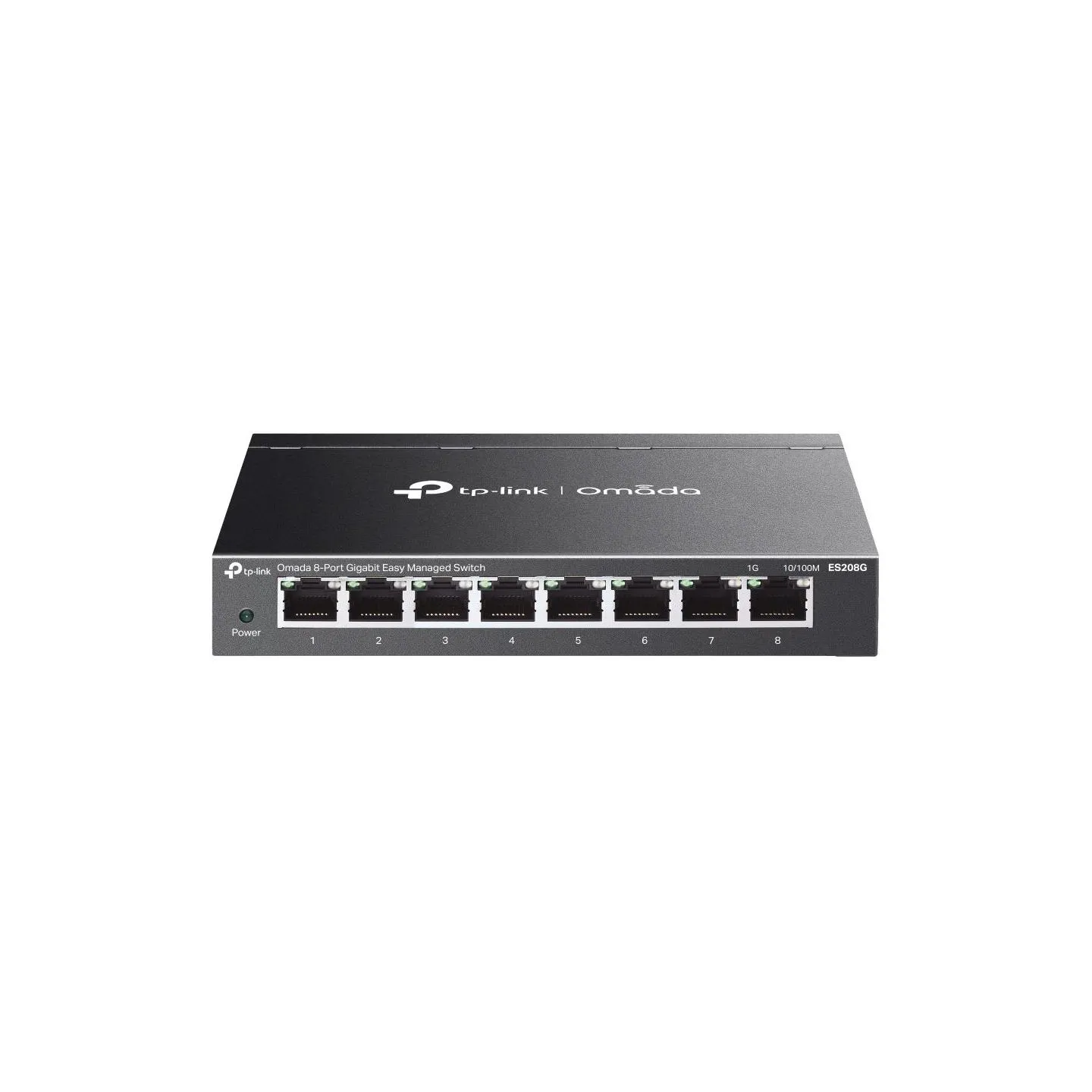

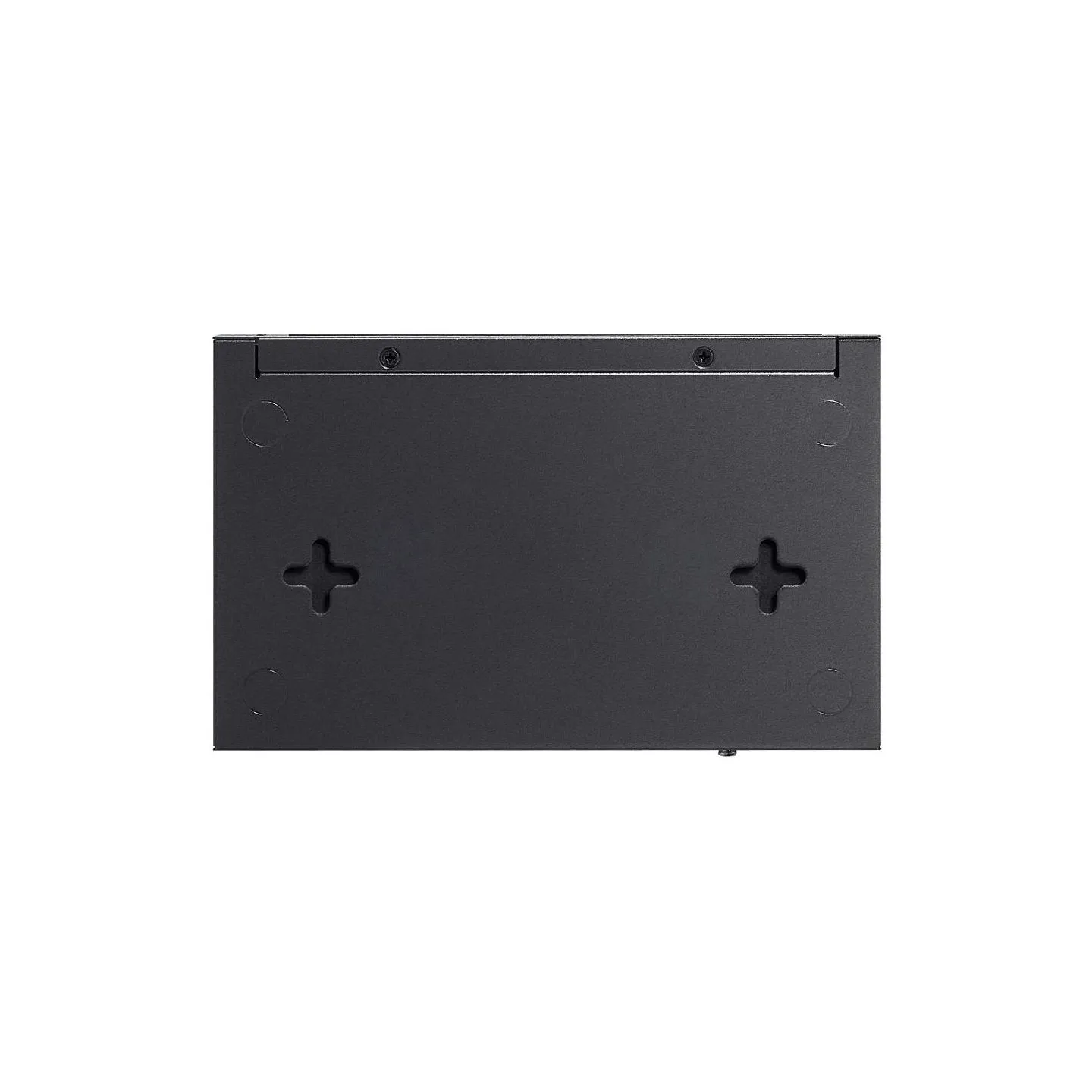

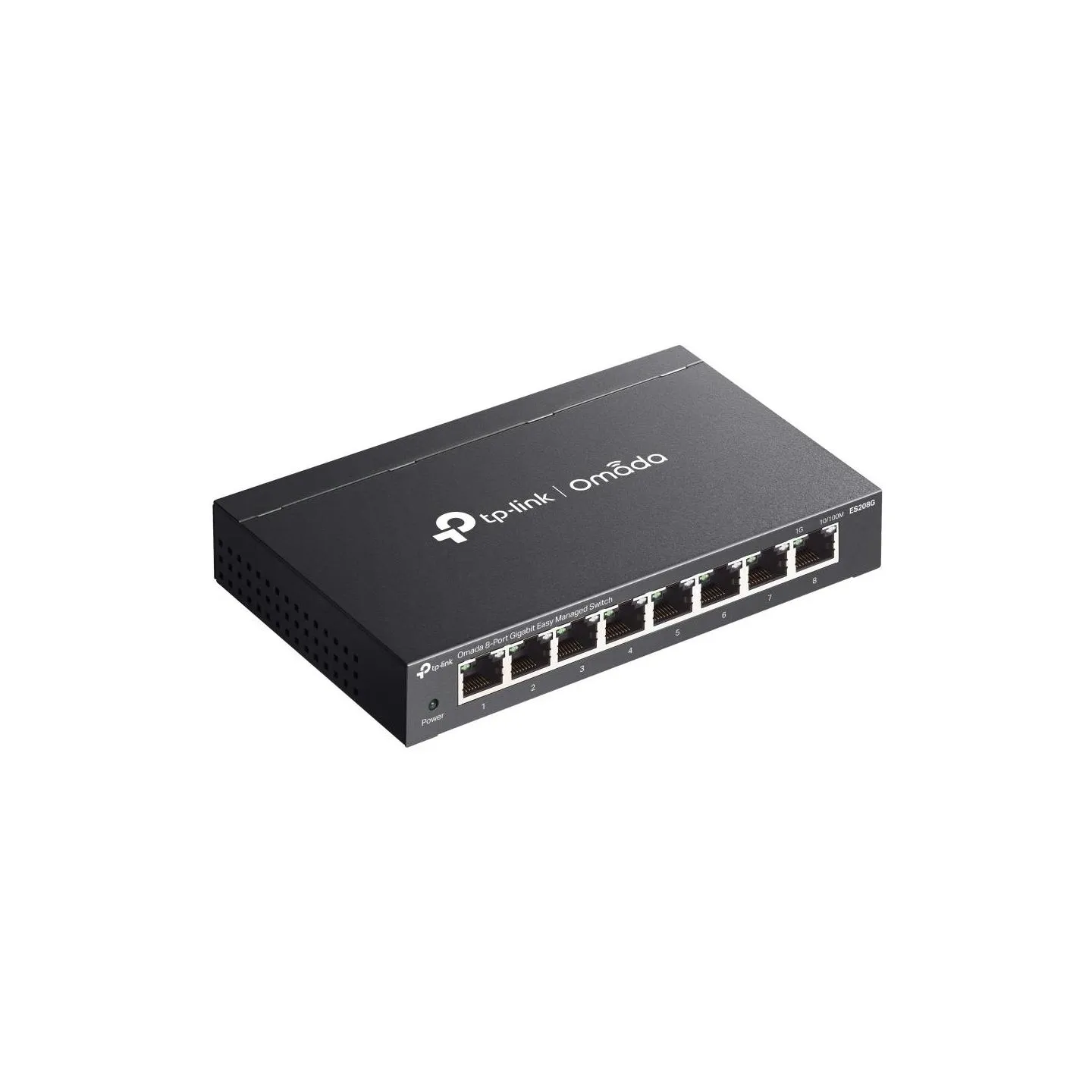

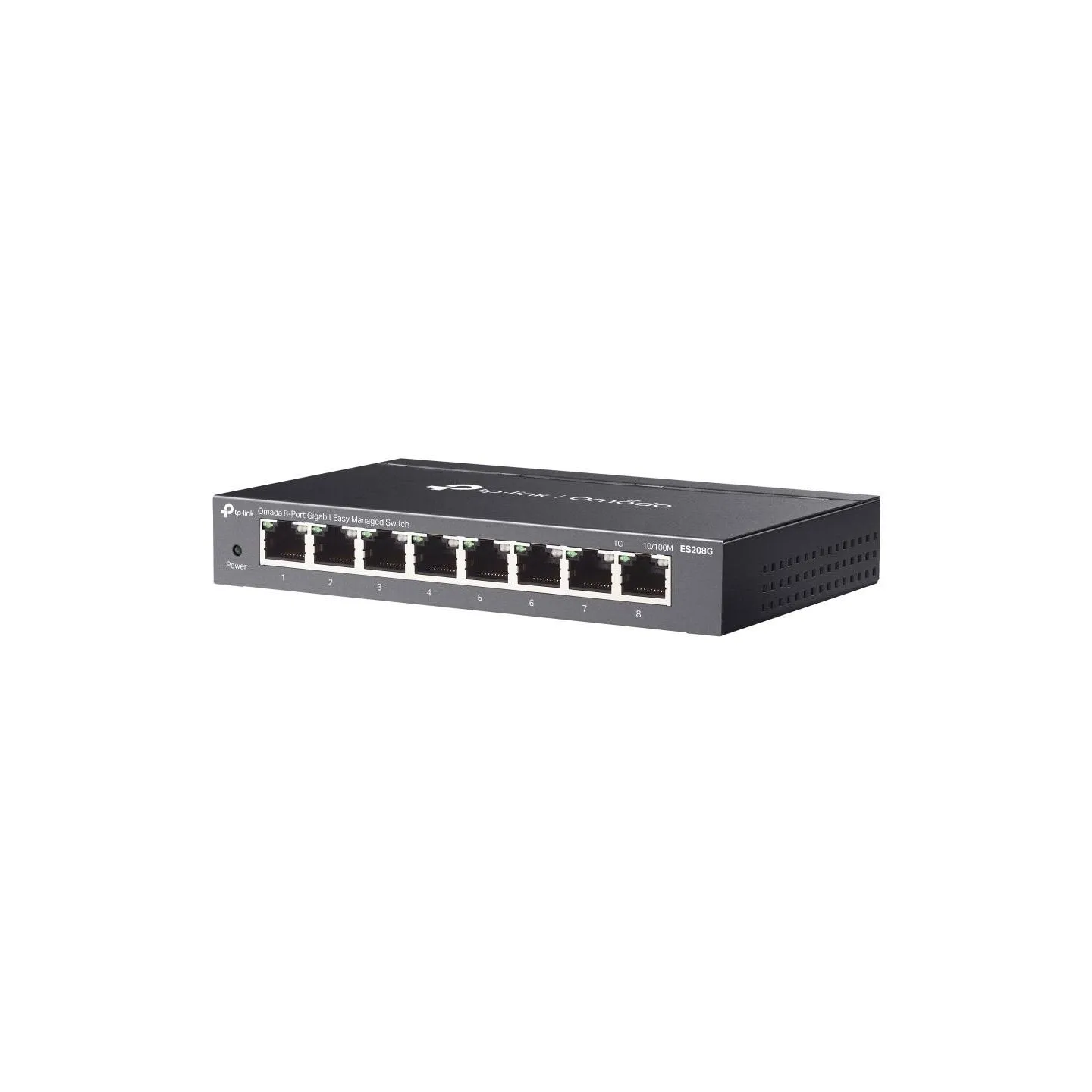

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Manufacturer Website:
https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es208g/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.13
- Unit Box Length
- 0.19
- Unit Box Width
- 0.09
- Cloud-managed
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Unified static configuration
- Yes
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 8
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Fast leave
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x
- Number of VLANs
- 32
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN/Port-based VLAN/Tagged VLAN
- VLAN support
- Yes
- Zero Touch Provisioning (ZTP)
- Yes
- Forwarding rate
- 11.9 Mpps
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Packet buffer memory
- 4 MB
- Store-and-forward
- Yes
- Switching capacity
- 16 Gbit/s
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Loop protection
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- LED indicators
- Yes
- Product colour
- Black
- Rack mounting
- No
- Stackable
- No
- Wall mountable
- Yes
- Fanless
- Yes
- Firmware upgradeable
- Yes
- Flash memory
- 64 MB
- Mean time between failures (MTBF)
- 1141726 h
- DC input voltage
- 5 V
- Input current
- 0.6 A
- Power consumption (max)
- 2.7 W
- Power source
- DC
- Power supply included
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Power over Ethernet (PoE)
- No
- Heat dissipation
- 9.09 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 100.7 mm
- Height
- 25.4 mm
- Width
- 158 mm
- User guide
- Yes
- AC adapter included
- Yes
- Package type
- Box
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Series
- Omada
- Model name
- ES208G
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.002223 cubm
- Unit Calculated Weight
- 0.654 kg
