Ubiquiti UniFi Switch USW-Pro-XG-48-PoE

Name: Ubiquiti UniFi Switch USW-Pro-XG-48-PoE
Brand: UBIQUITI
SKU: USW-PRO-XG-48-POE
Price: 2863.1 EUR
Availability: InStock

SKU USW-PRO-XG-48-POE Category Switche

€2,863.10

Tax included

Last items in stock

Share on

Ubiquiti UniFi Pro XG 48 PoE
Type Managed
Switch layer L3
Quality of Service (QoS) support Yes
48xBasic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
4xSFP28 ports quantity
Yes
Port mirroring Yes
Switching capacity 920 Gbit/s
Throughput 460 Gbit/s
Forwarding rate 684 Mpps

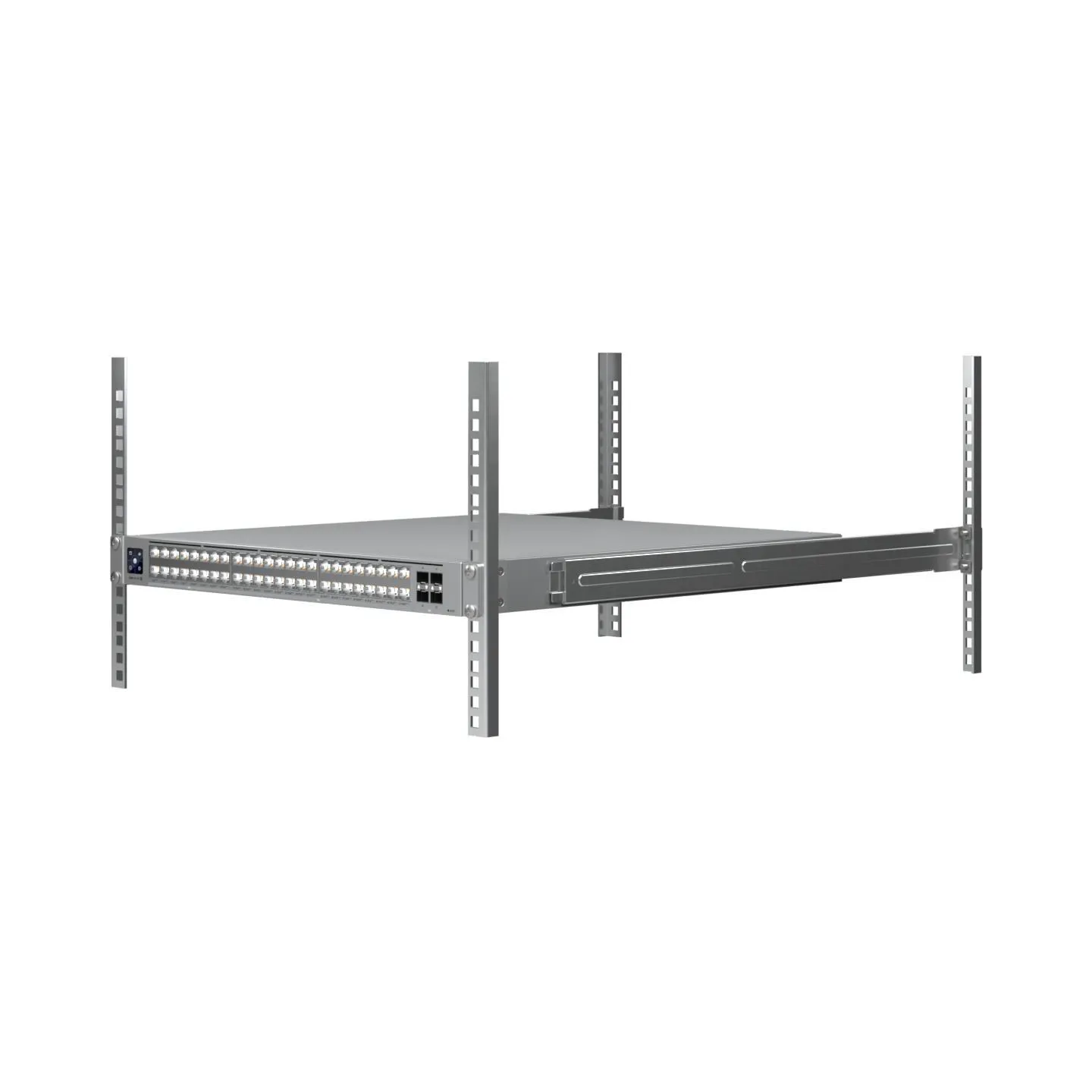

Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Power source AC/DC
Power supply included Yes
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 1080 W
Width 442 mm
Depth 480 mm
Height 44 mm
Weight 8700 g

Manufacturer Website:
https://eu.store.ui.com/eu/en/category/switching-professional-max-xg/products/usw-pro-xg-48-poe

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.25
Unit Box Length: 0.77
Unit Box Width: 0.6
Quality of Service (QoS) support: Yes
Switch layer: L3
Switch type: Managed
10G Ethernet (copper) ports quantity: 32
2.5G Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Power connector: AC/DC
SFP28 ports quantity: 4
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
IPv4 routes: 256000
Number of VLANs: 1000
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Interface-based VLAN/Voice VLAN
VLAN support: Yes
Forwarding rate: 684 Mpps
Jumbo frames support: Yes
MAC address table: 128000 entries
Packet buffer memory: 8 MB
Static route: Yes
Switching capacity: 920 Gbit/s
Throughput: 460 Gbit/s
Access Control List (ACL) IPv4 entries: 256
DHCP features: DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
IGMP snooping: Yes
Loop protection: Yes
Multicast support: Yes
Backlight display: Yes
Display type: LCM
Form factor: 1U
Housing material: SGCC
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
Stackable: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 1280 W
Power source: AC/DC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) type supported: PoE+++
Total Power over Ethernet (PoE) budget: 1080 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 40 °C
Depth: 480 mm
Height: 44 mm
Weight: 8700 g
Width: 442 mm
Cables included: Power
Rack mount kit: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
Model: USW-PRO-XG-48-POE
Model name: Ubiquiti UniFi Pro XG 48 PoE
Units per Shipping Box: 1
Unit Calculated Volume: 0.1155 cubm
Unit Calculated Weight: 14.5 kg

Category Switche Brand UBIQUITI EAN13 810177160748 In stock 1 Item
