Access 4G+ Speed
Anywhere, Anytime

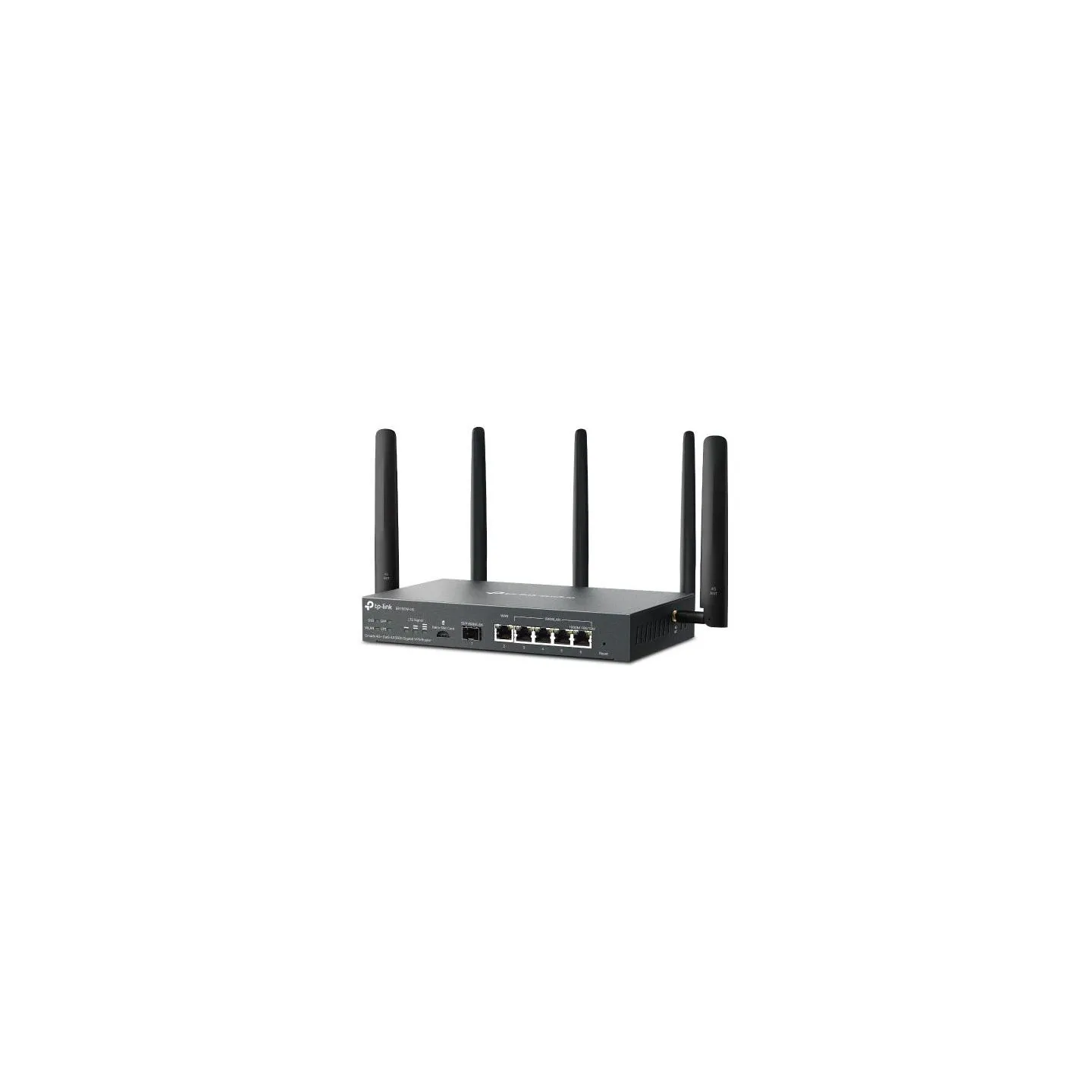

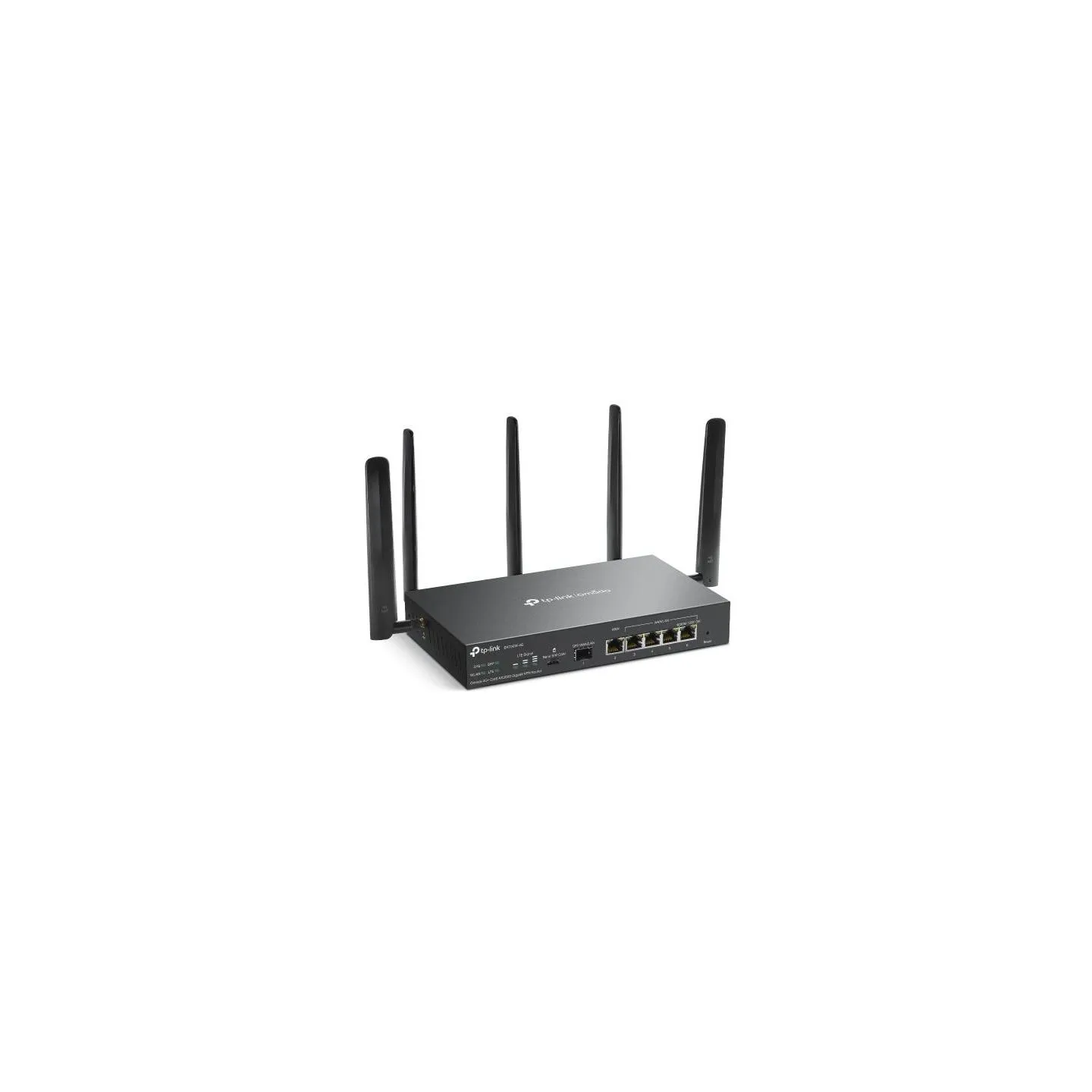

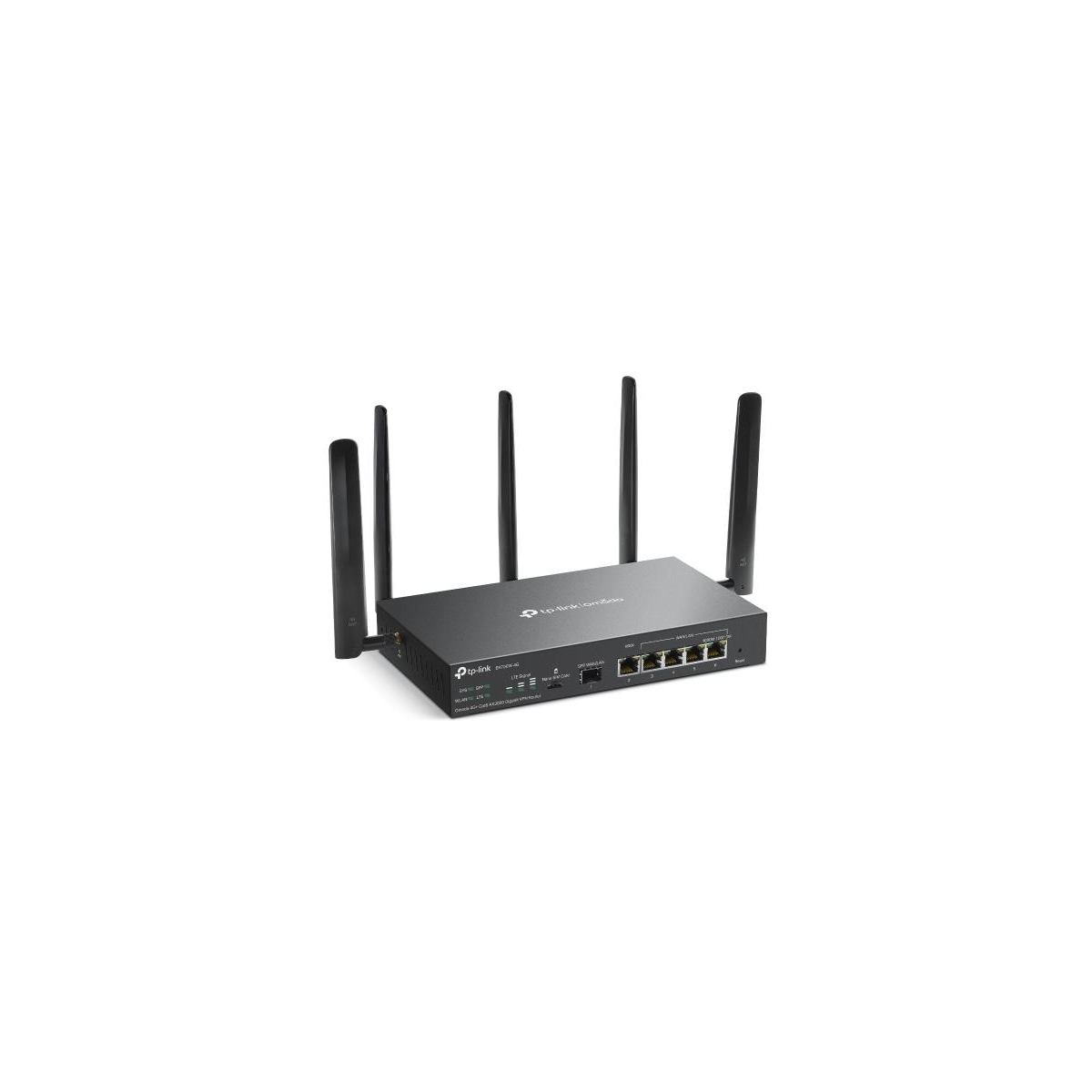

Omada 4G+ Cat6 AX3000 Gigabit VPN Router
- 4G+ Cat6 up to 300 Mbps
- 2402 Mbps + 574 Mbps*
- 6× Gigabit Ethernet Ports
- 1× Nano SIM Card Slot
- IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
- Centralized Management
- Load Balancing
- Omada App
Always-Online with AX3000 WiFi 6
- Dual Band
- HE160
- OFDMA
- 1024 QAM
- Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals
- Centralized Management: Cloud access and the Omada app for easy management
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN
Manufacturer Website:
https://www.tp-link.com/uk/business-networking/omada-router-wifi-router/er706w-4g/
- Category Code
- WRO
- CnCode
- 85176200
- Unit Box Height
- 0.08
- Unit Box Length
- 0.37
- Unit Box Width
- 0.18
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- WLAN data transfer rate (max)
- 2402 Mbit/s
- 3G/4G USB modem compatibility
- No
- DSL WAN
- No
- Ethernet WAN
- Yes
- SIM card slot
- Yes
- Dynamic DNS (DDNS)
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN interface type
- Gigabit Ethernet
- VPN Passthrough
- Yes
- 3G standards
- HSDPA/HSUPA/WCDMA
- 4G bands supported
- 1800/2100/2300/2500/2600/800/850/900 MHz
- 4G standard
- LTE-TDD & LTE-FDD
- Mobile network generation
- 4G
- SIM card type
- NanoSIM
- Ethernet LAN (RJ-45) ports
- 5
- USB port
- No
- Bandwidth control
- Yes
- MIMO
- Yes
- MU-MIMO technology
- Yes
- Reset button
- Yes
- Access Control List (ACL)
- Yes
- NAT functionality
- One-to-One NAT Multi-Net NAT Virtual Server Port Triggering┼ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
- Network address translation (NAT)
- Yes
- URL filtering
- Yes
- DHCP server
- Yes
- LED indicators
- LAN,LTE,Status,System,WAN
- Product colour
- Black
- Product type
- Desktop/pole router
- Antenna design
- External
- Antennas quantity
- 5
- Flash memory
- 128 MB
- Internal memory
- 512 MB
- Internal memory type
- DDR4
- Power source type
- AC
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 131 mm
- Height
- 35 mm
- Width
- 226 mm
- Model
- ER706W-4G
- Model name
- Omada 4G+ Cat6 AX3000 Gigabit VPN Router
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.006916 cubm
- Unit Calculated Weight
- 1.72 kg
