Tp-Link EAP720

Name: Tp-Link EAP720
Brand: TP-LINK
SKU: EAP720
Price: 113.23 EUR
Availability: InStock

SKU EAP720 Category Access points

€113.23

Tax included

Share on

Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP720 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
1× 2.5G Port: Ensures fast connectivity throughout the network.
Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.

Manufacturer Website:
https://www.omadanetworks.com/us/business-networking/omada-wifi-ceiling-mount/eap720/#highlights

Category Code: WAP
CnCode: 85176200
Unit Box Height: 0.063
Unit Box Length: 0.24
Unit Box Width: 0.23
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Airtime Fairness (ATF): Yes
BeamForming: Yes
Channel bandwidth: 240 MHz
Coverage area: 140 m²
Ethernet LAN data rates: 2500 Mbit/s
Maximum data transfer rate: 4324 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4324 Mbit/s
Maximum Tx power (2.4 GHz): 25 dBmW
Maximum Tx power (5 GHz): 25 dBmW
Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11e/IEEE 802.11g/IEEE 802.11i/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3bz/IEEE 802.3x
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Spread spectrum method: OFDMA
VLAN support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Access Control List (ACL): Yes
Guest access: Yes
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Schedule access: Yes
Security algorithms: EAP-AKA/EAP-FAST/EAP-GTC/EAP-MD5/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/PEAP/PPSK/SNMP/SNMPv2/SNMPv3/SSH/SSID/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal
DHCP client: Yes
Supported network protocols: IPv4/IPv6
Access point management: Wi-Fi schedule
Cloud-managed: Yes
Firmware upgradeable: Yes
Syslog: Yes
Web-based management: Yes
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
DC voltage range: 12 V
Input current: 1.5 A
Power consumption (max): 17.83 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
LED indicators: Yes

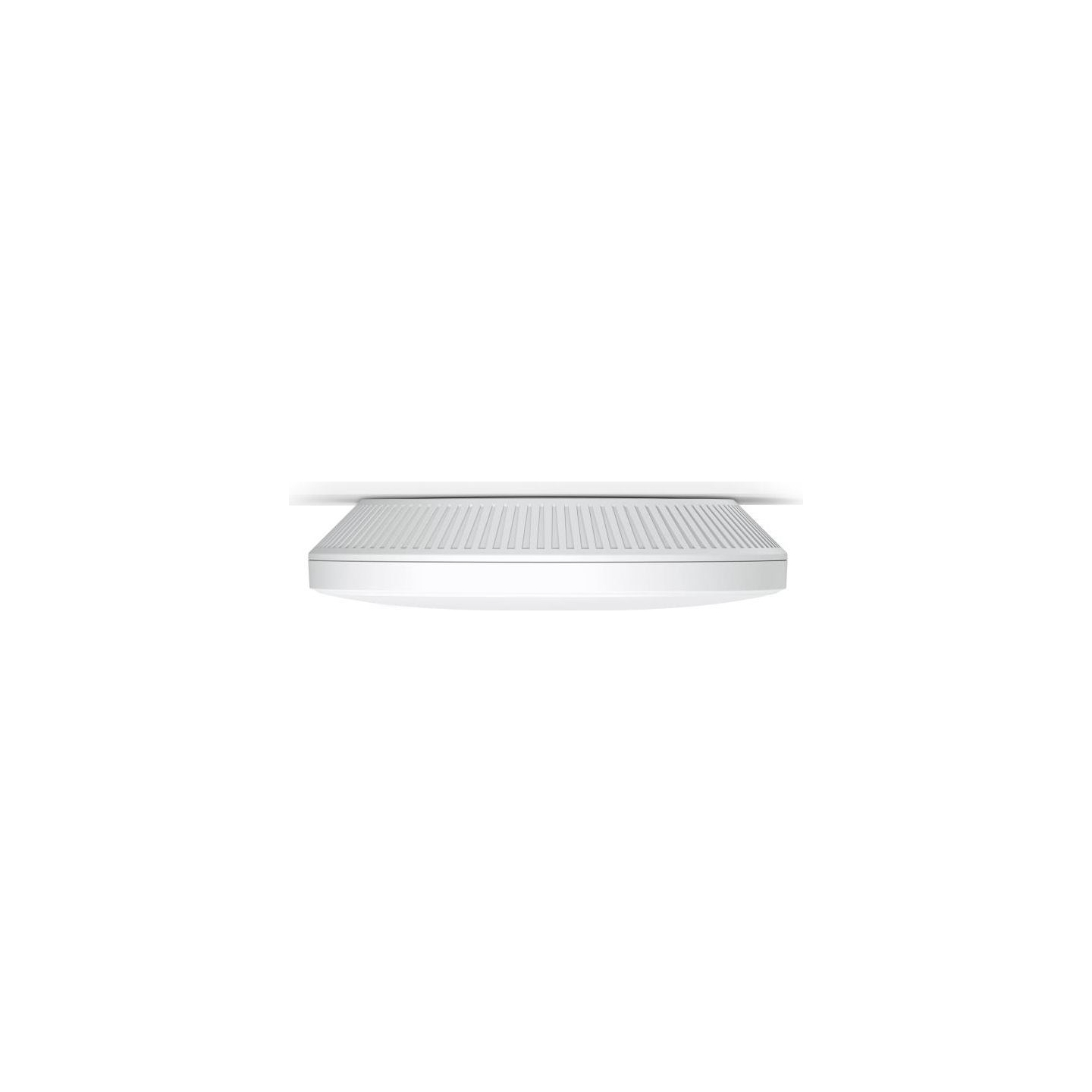

Placement: Ceiling,Wall
Product colour: White

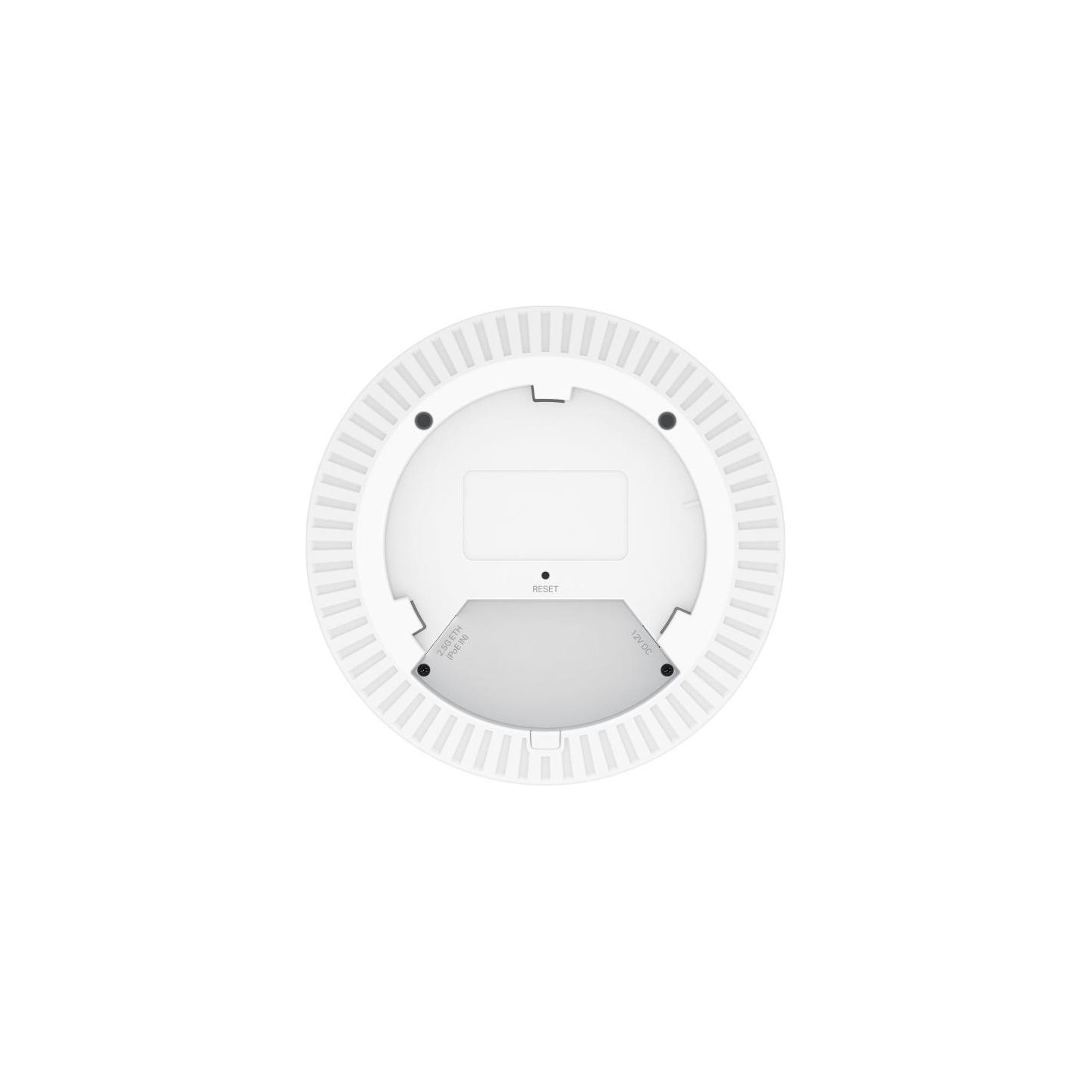

Reset button: Yes
Antenna type: Internal
Flash memory: 128 MB
Internal memory: 4096 MB
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RoHS
Depth: 160 mm
Height: 36.7 mm
Weight: 410 g
Width: 160 mm
Package depth: 228 mm
Package height: 65 mm
Package weight: 792 g
Package width: 245 mm
AC adapter included: Yes

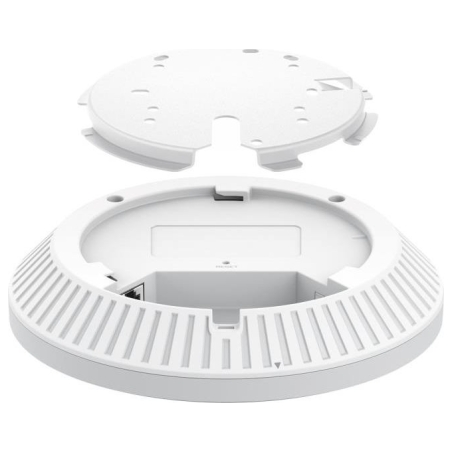

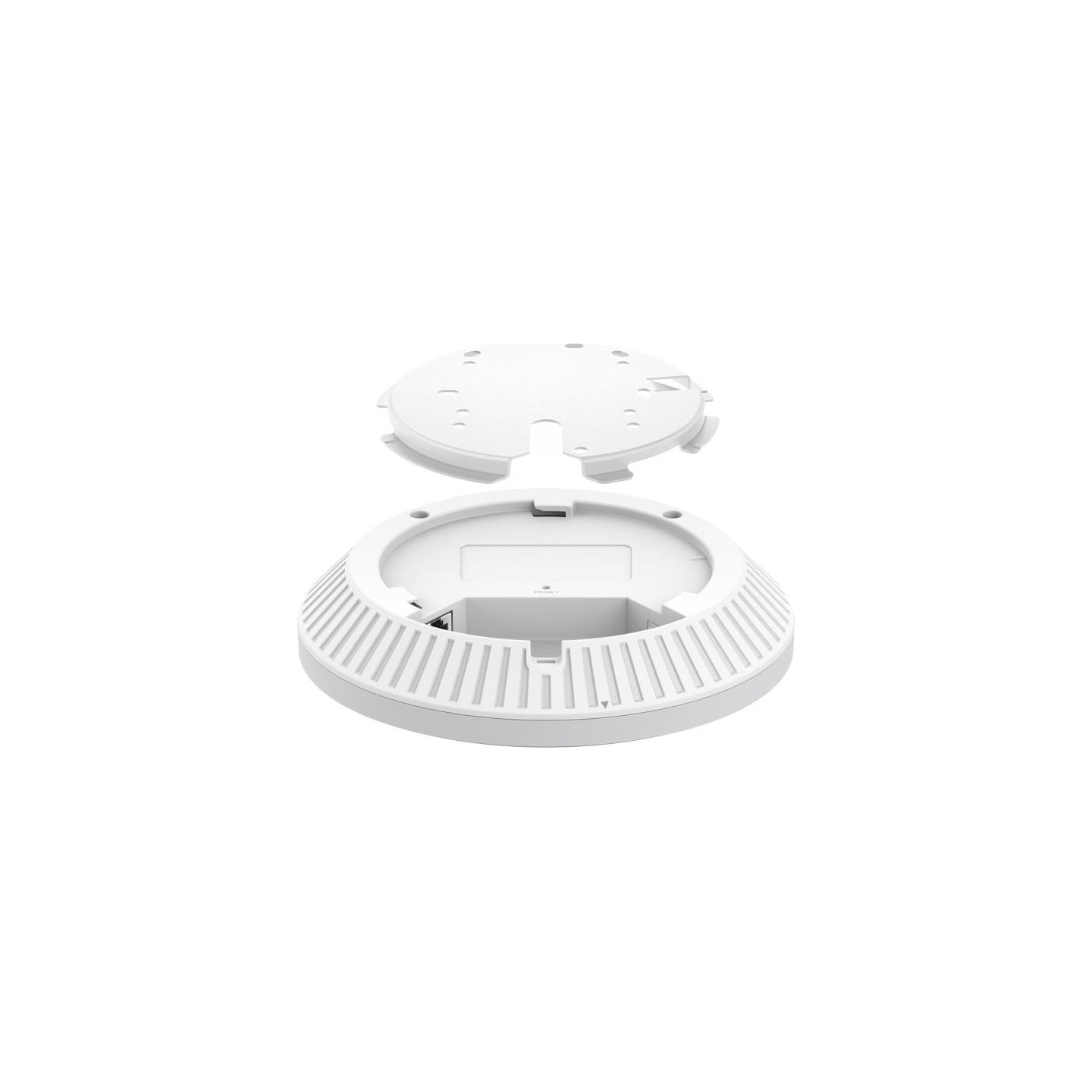

Mounting kit: Yes
Quick start guide: Yes
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): -40 - 70 °C
Model: EAP720
Model name: EAP720
Units per Shipping Box: 16
Unit Calculated Volume: 0.0043605 cubm
Unit Calculated Weight: 0.96875 kg
