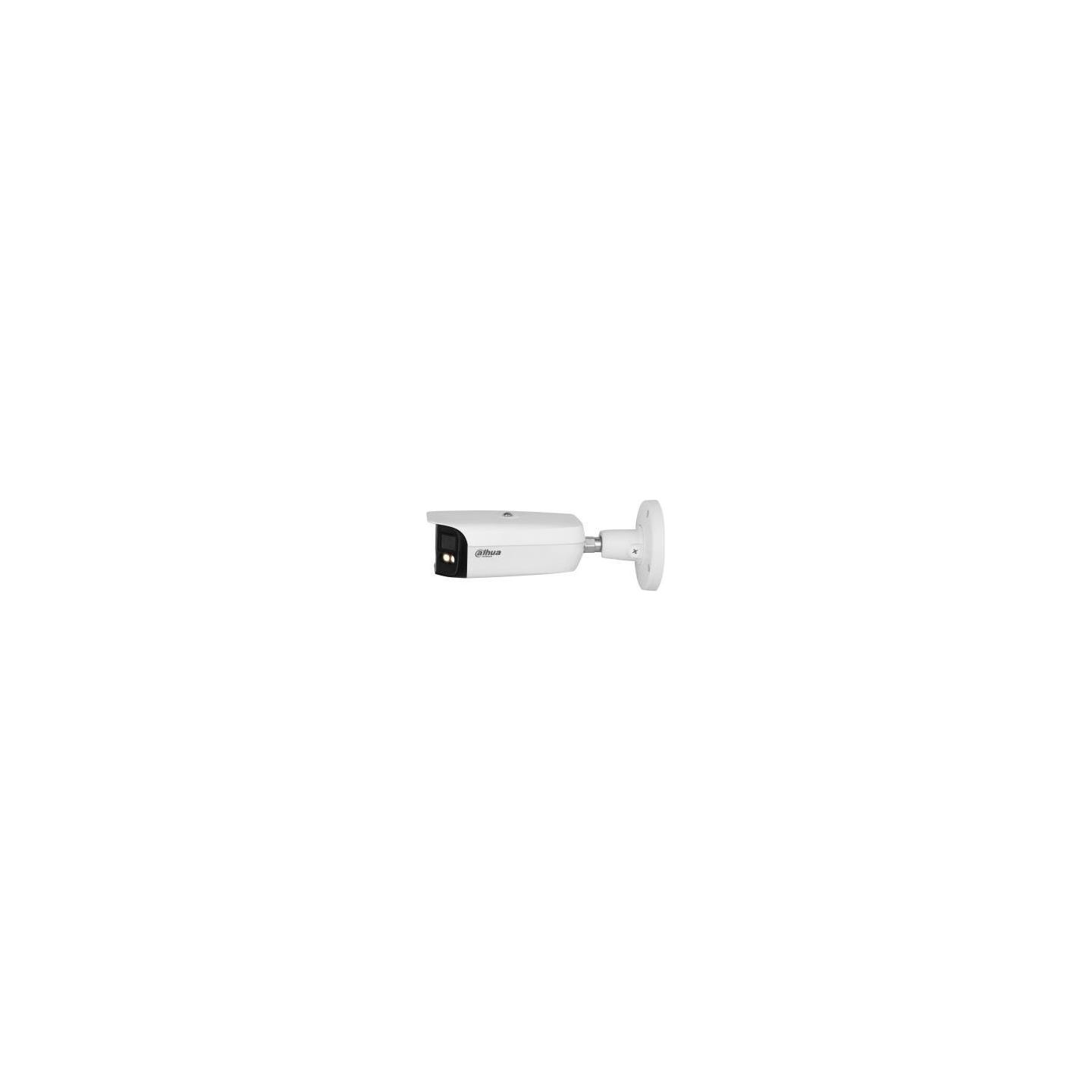

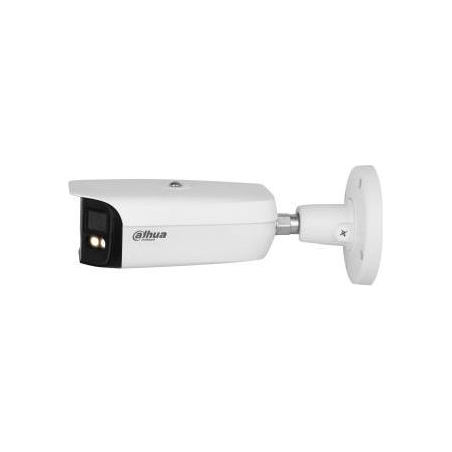

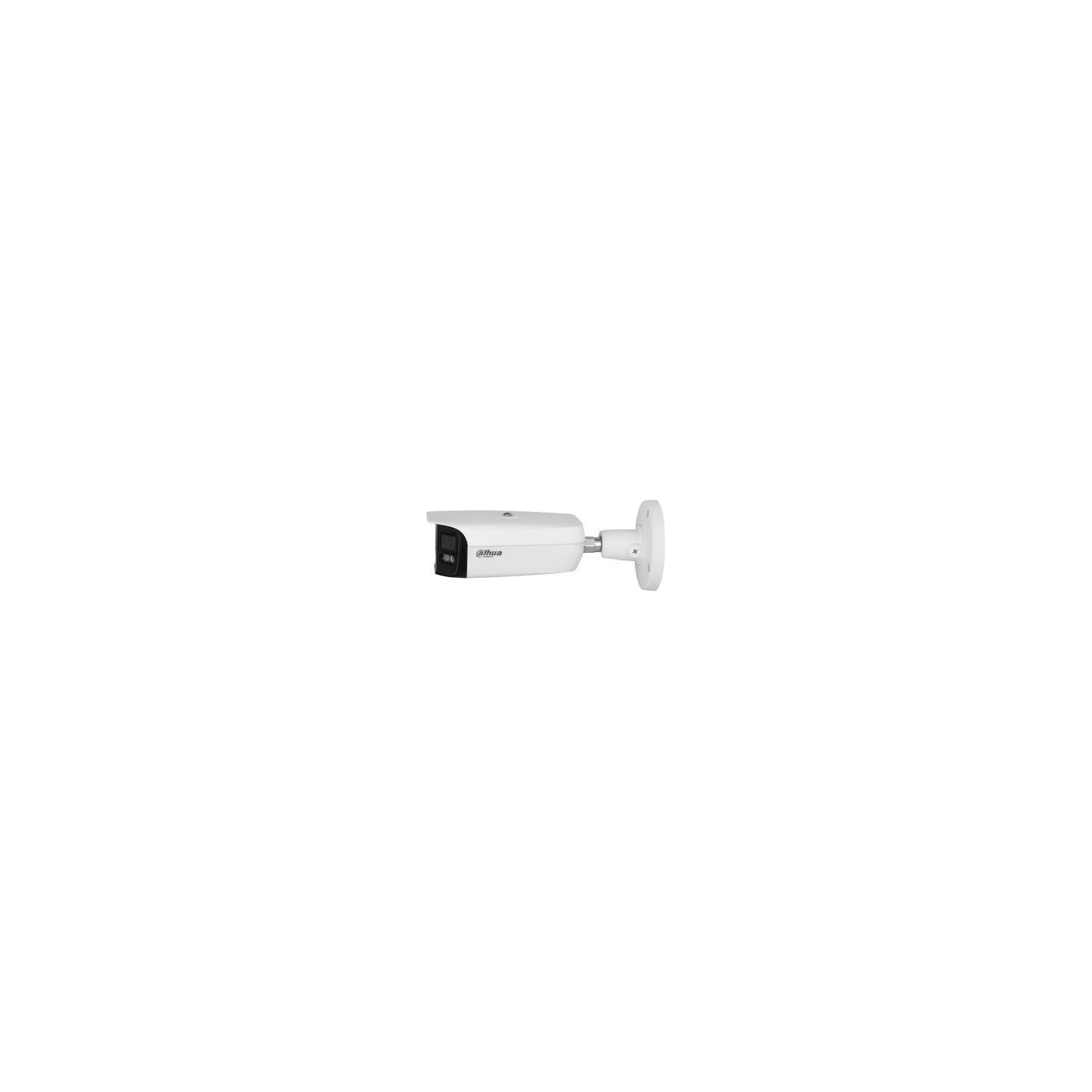

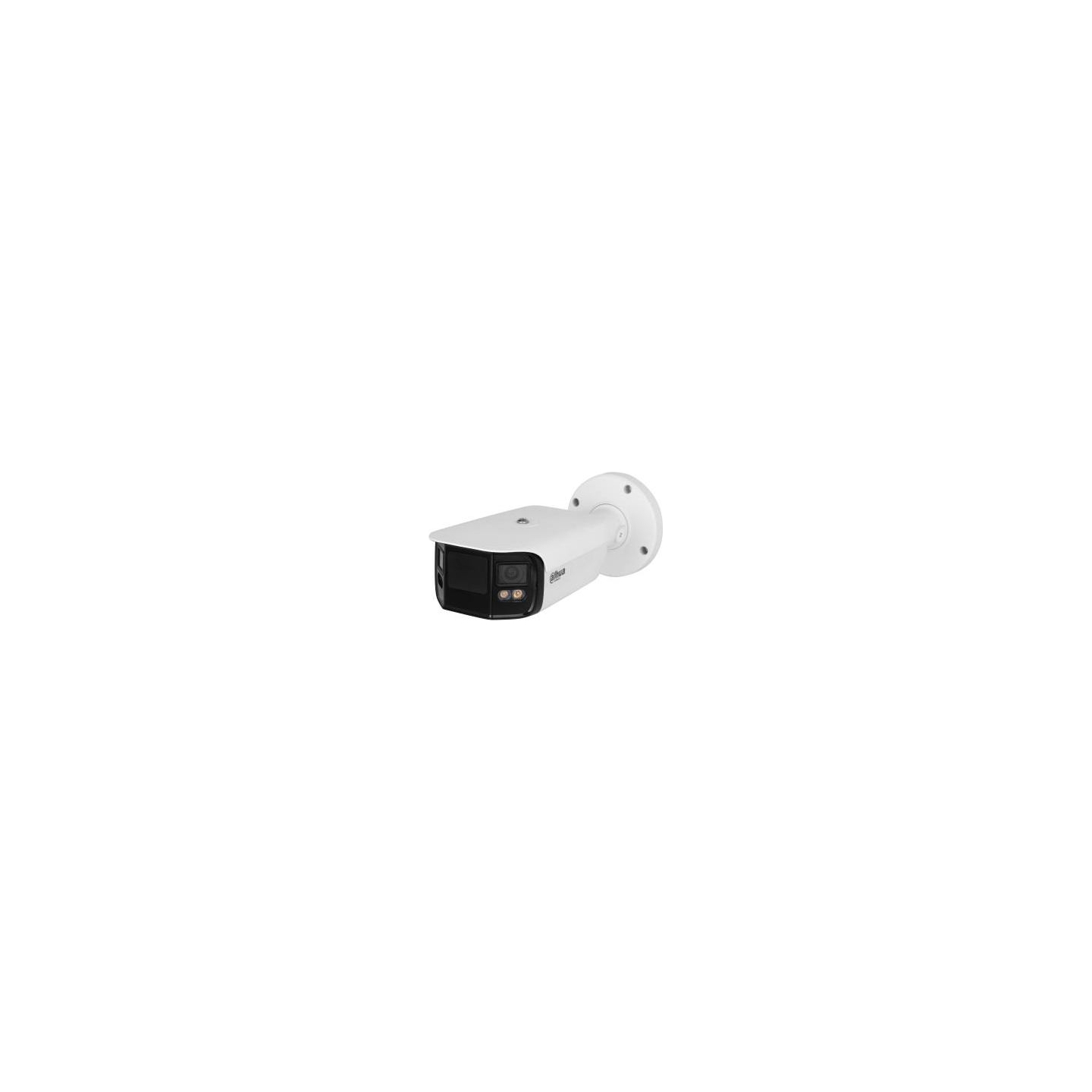

Dahua NET CAMERA 8MP IR BULLET/IPC-PFW5849-A180-E2-ASTE DAHUA
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
- Outputs 180° wide angle splicing image
- Outputs max. 8 MP (4096 × 1800)@25 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light, and the max. illumination distance is 40 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk
- 12 VDC/PoE power supply, easy for installation
- IP67 protection
- Intelligent monitoring: Intrusion, tripwire, heat map, and people counting
- EPTZ: Enlarge and track the targets of intelligent alarms
- SMD3.0
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/Full-color/IPC-PFW5849-A180-E2-ASTE
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.18
- Unit Box Length
- 0.365
- Unit Box Width
- 0.175
- Form factor
- Bullet
- Housing material
- Metal/Plastic
- International Protection (IP) code
- IP67
- Mounting type
- Wall/Pole
- Product colour
- White
- Alarm input/output
- Yes
- Built-in light
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 140 dB
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Adjustment shutter speed
- Auto/Manual
- Angle of rotation
- 360 °
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera shutter type
- Electronic
- Lens viewing angle, horizontal
- 180 °
- Lens viewing angle, vertical
- 48 °
- Minimum illumination
- 0 lx
- Number of Privacy masking areas
- 4
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 90 °
- White balance
- Auto/Manual/Natural/Outdoor/Street lamp
- Number of sensors
- 2
- Optical sensor size
- 1/1.8 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 3.6 m
- Detect distance
- 70.3 m
- Fixed focal length
- 3.6 mm
- Identify distance
- 7 m
- Maximum aperture number
- 1
- Number of lenses
- 2
- Observe distance
- 28.1 m
- Recognize distance
- 14.1 m
- Night vision
- Yes
- Night vision distance
- 40 m
- Back Light Compensation (BLC)
- Yes
- Bit rate
- H.264: 9 kbps-8192 kbps H.265: 9 kbps-8192 kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate
- 25 fps
- Gain control type
- Auto
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 4096 x 1800 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Yes
- Region of Interest (ROI) encoding
- Yes
- Supported graphics resolutions
- 1920 x 832/2880 x 1264/3840 x 1080/3840 x 1680/4096 x 1800
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264+/H.264H/H.265/H.265+
- Video formats supported
- H.264/H.264+/H.265/H.265+/M-JPEG
- Video recording
- Yes
- Video streaming
- Yes
- Audio formats supported
- G.711/G.723/G.726/PCM
- Audio input channels
- 1.0 channels
- Audio output channels
- 1.0 channels
- Built-in microphone
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Number of users
- 20 user(s)
- Quality of Service (QoS) support
- Yes
- Supported network protocols
- IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
- Wi-Fi
- No
- Built-in HDD
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Internal memory
- 1000 MB
- Maximum memory card size
- 512 GB
- ROM capacity
- 128 MB
- Alarm input channels
- 1
- Alarm output channels
- 1
- Privacy protection
- Yes
- Video motion detection
- Yes
- Management software
- Smart PSS; DSS; DMSS
- Web browser
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 10.5 W
- Power consumption (Power over Ethernet (PoE))
- 5.5 W
- Power consumption (typical)
- 4.8 W
- Power source type
- DC,PoE
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -40 - 60 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Depth
- 301.2 mm
- Height
- 120.1 mm
- Weight
- 1420 g
- Width
- 128.2 mm
- Package weight
- 1570 g
- Number of cameras
- 1
- Warranty period
- 5 year(s)
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.0115 cubm
- Unit Calculated Weight
- 1.84 kg
