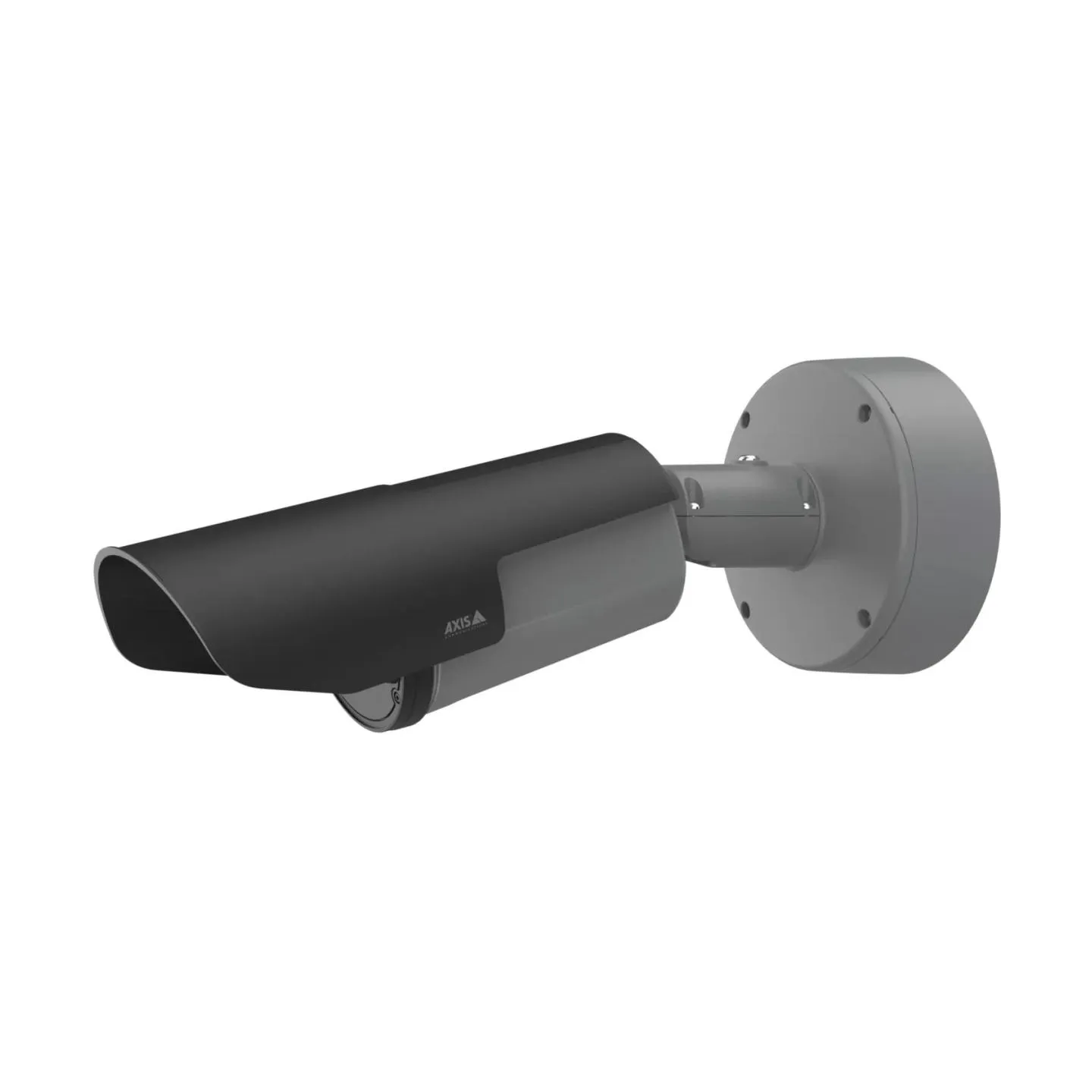

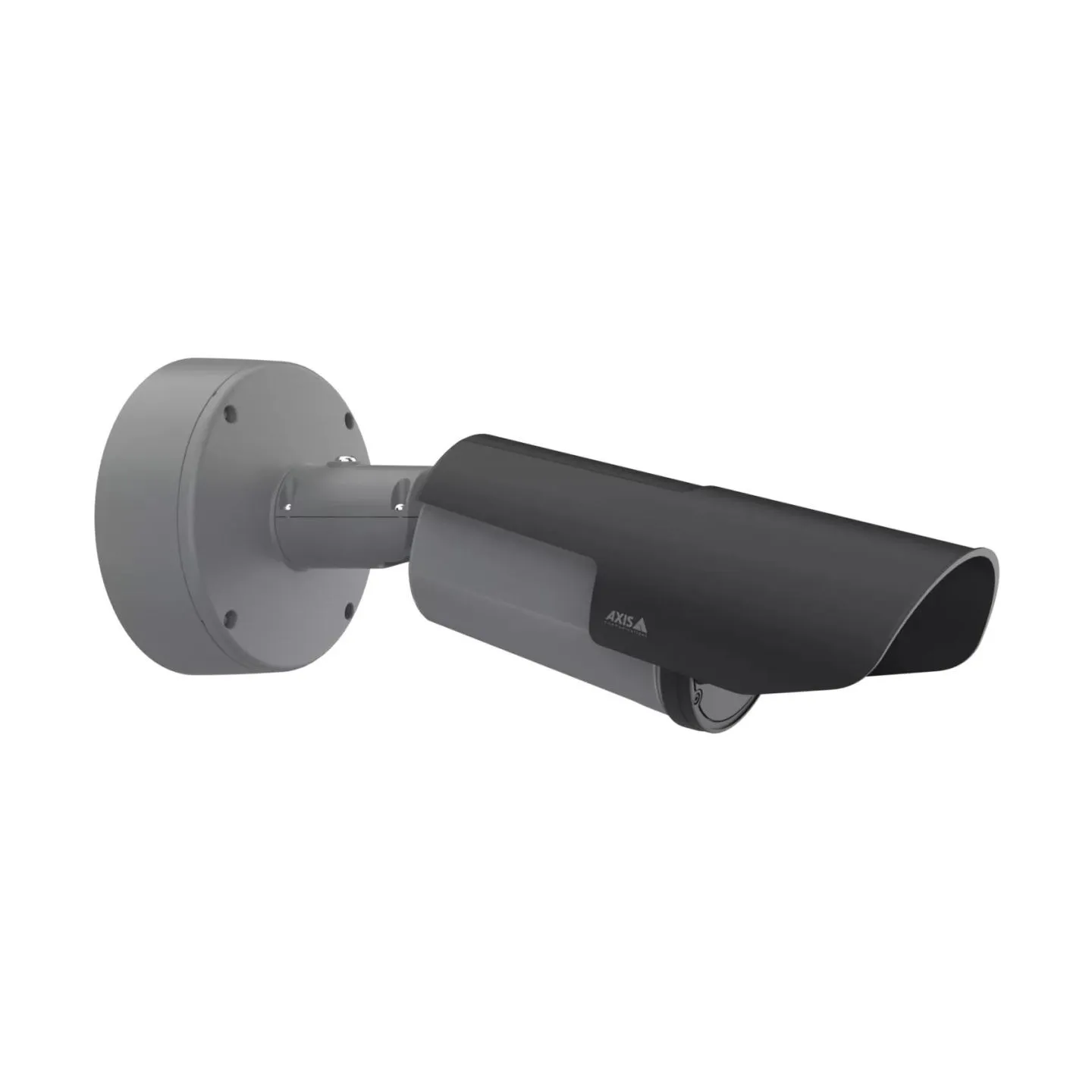

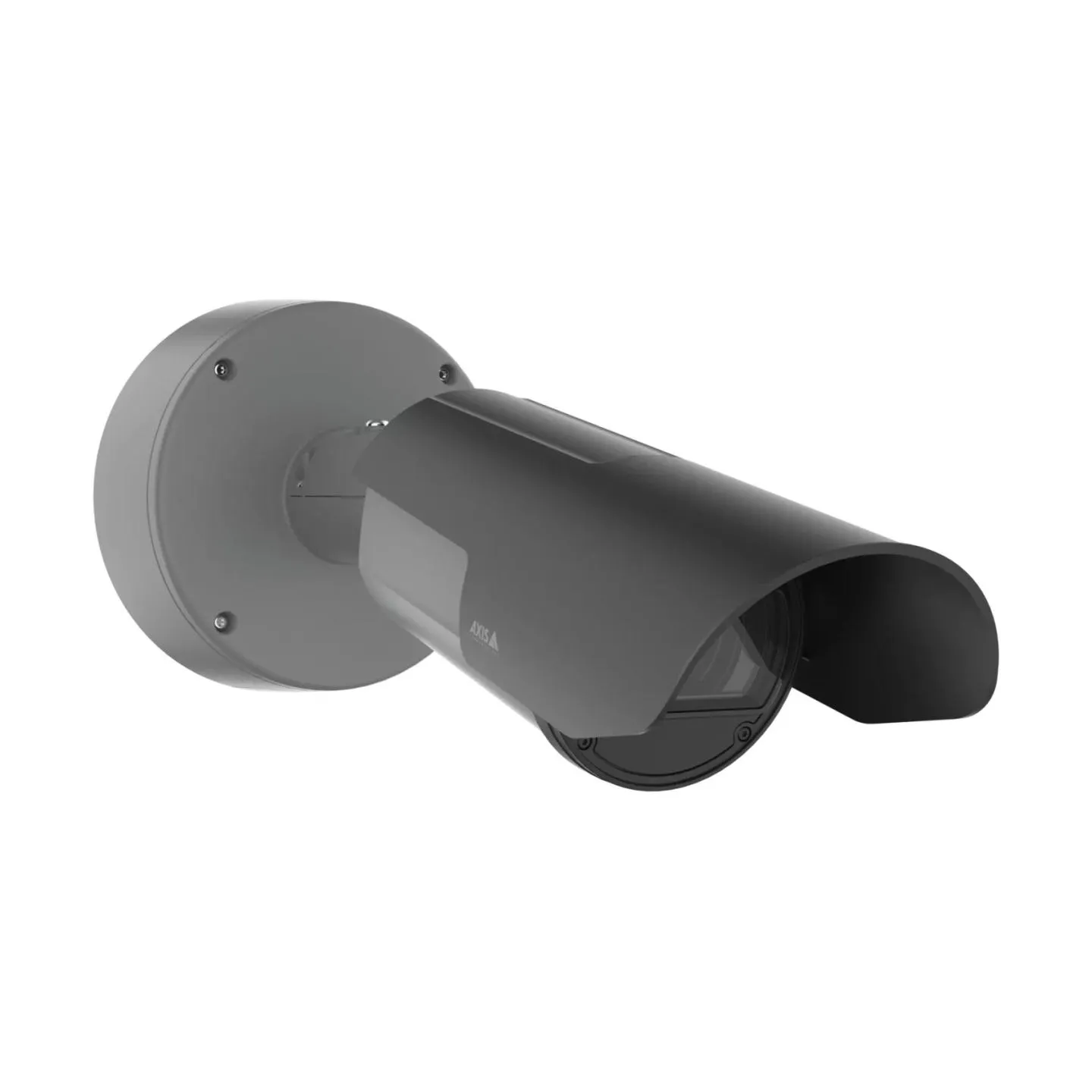

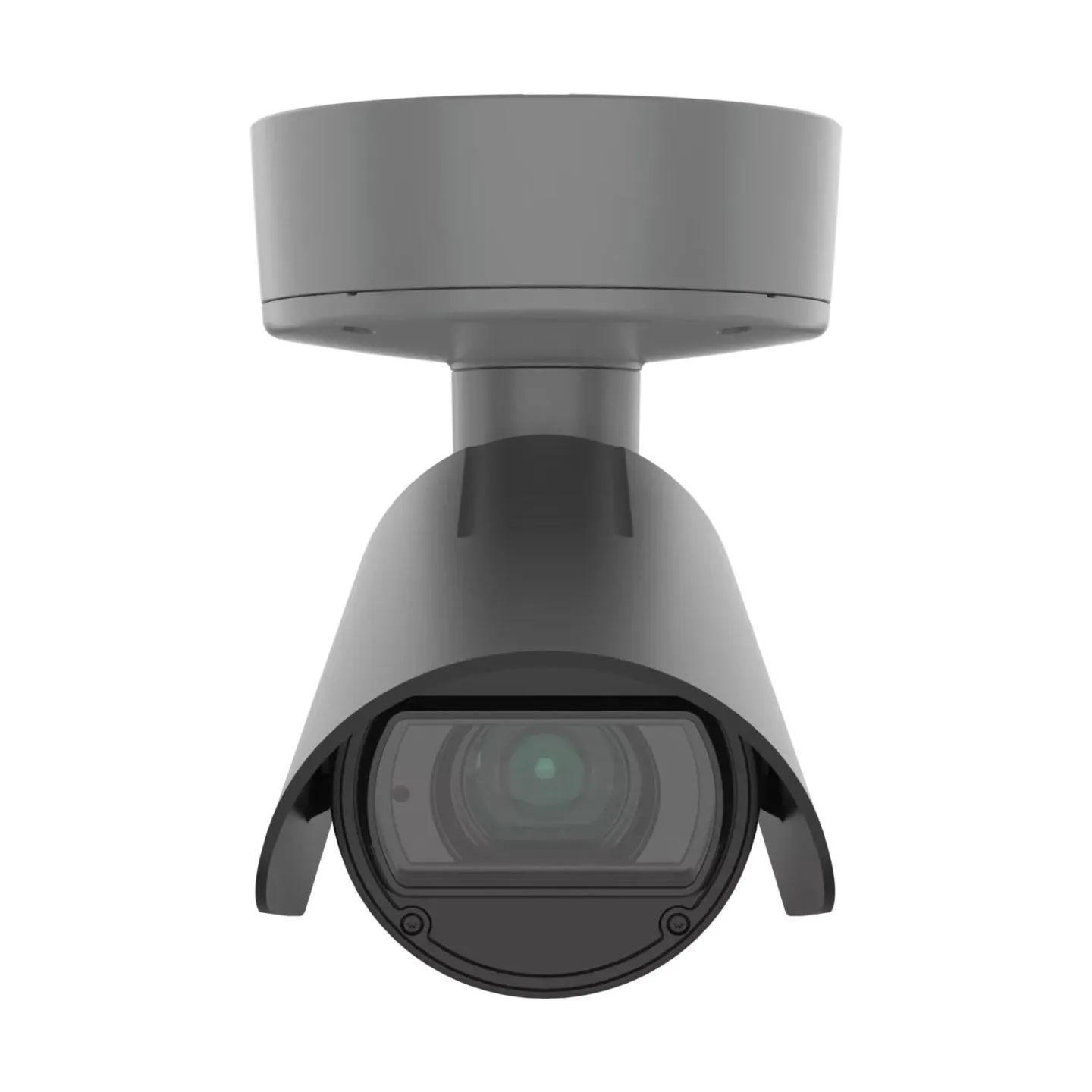

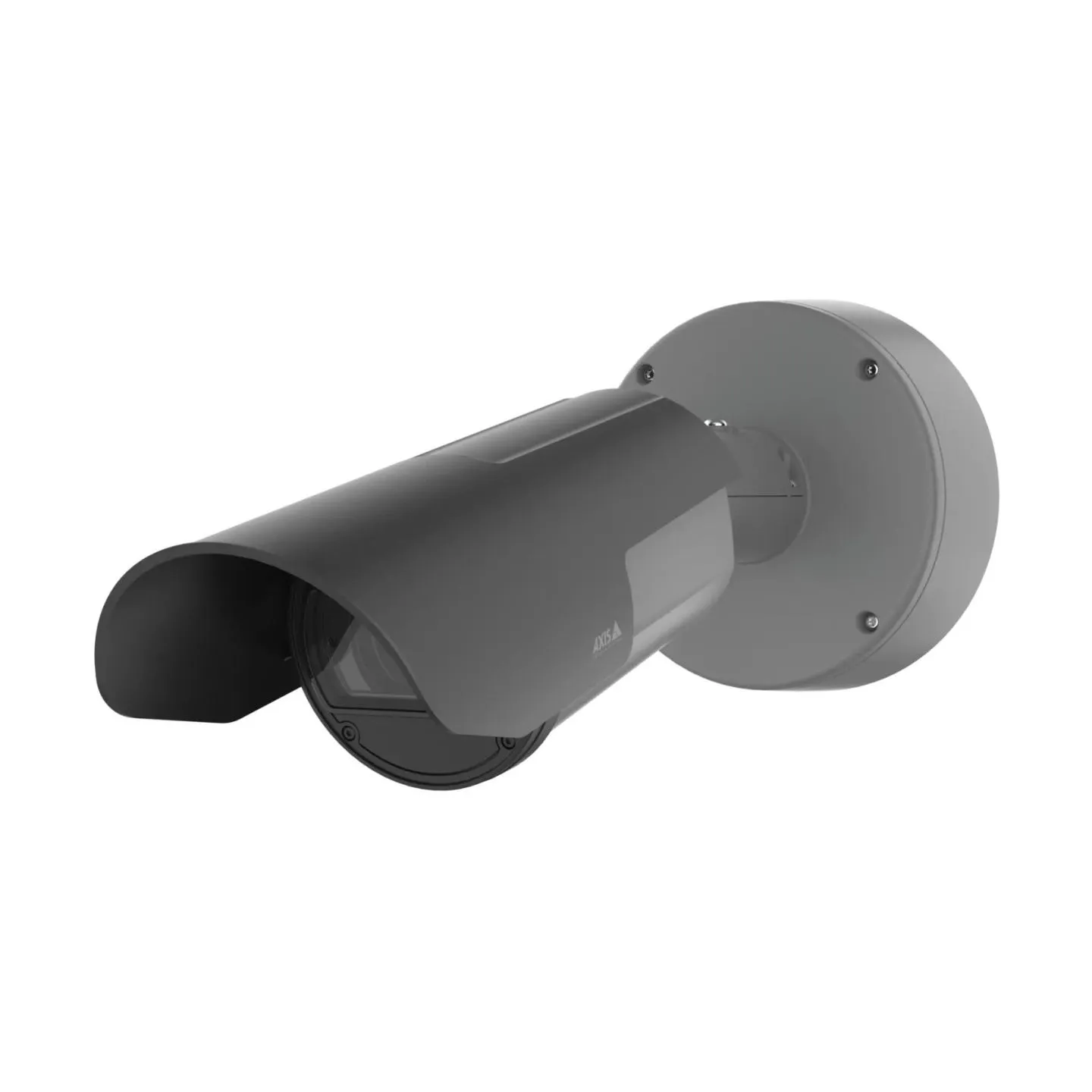

Axis NET CAMERA Q1800-LE/03107-001 AXIS

SKU 03107-001 Category IP Cameras
Price: €2,275.38
Tax included
Last items in stock
Share on

This purpose-tuned camera is ideal for traffic surveillance and smart city initiatives - enabling you to capture sharp license plate images 24/7. Made for 3rd party LPR software, it can help law enforcement agencies improve road safety and gather valuable intelligence.

Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.

Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.

Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.

  • LPR camera for 3rd party software
  • Purpose-tuned for license plate recognition
  • Capture license plates up to 250 km/h (155 mph)
  • Capture range of up to 100 m (328 ft)
  • Robust design withstands tough weather



Manufacturer Website:
https://www.axis.com/products/axis-q1800-le

Category Code
FNC
CnCode
85258900
Unit Box Height
0.23
Unit Box Length
0.445
Unit Box Width
0.2
Form factor
Bullet
Housing material
Aluminium/Glass
IK code
IK08, IK10
International Protection (IP) code
IP66
Mounting type
Wall
Product colour
Black
Protection features
Impact resistant/Vandal proof/Weather resistant
Certification
UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM
Connectivity technology
Wired
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Placement supported
Outdoor
Preset points
Yes
PTZ control
Yes
PTZ modes
Digital PTZ
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Angle of rotation
270 °
Camera pixel size
2.9 µm
Camera shutter speed
1/111000 - 2 s
Horizontal field of view (thermal module)
38 - 2.3 °
Lens viewing angle, horizontal
22 - 1.3 °
Minimum illumination
0.06 lx
Pan range
-180 - 180 °
Tilt angle range
0 - 90 °
Number of sensors
1
Optical sensor size
1/2.8 "
Sensor type
CMOS
Sensor type (panoramic camera)
CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)
55 dB
Auto focus
Yes
Closest focusing distance
1.2 m
Detect distance (tele)
1884.2 m
Detect distance (wide)
96.7 m
Focal length range
7 - 138 mm
Identify distance
1.2 m
Identify distance (tele)
188.4 m
Identify distance (wide)
9.7 m
Number of lenses
1
Observe distance (tele)
747.7 m
Observe distance (wide)
38.4 m
Recognize distance (tele)
376.8 m
Recognize distance (wide)
19.3 m
B/W night vision distance
50 m
Infra-red wavelength
850 nm
LED type
IR
Night vision
Yes
Night vision distance
100 m
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate
90 fps
Image quality adjustment
Brightness/Contrast/Saturation/Sharpness
Image stabilizer
Yes
Maximum resolution
1920 x 1080 pixels
Noise reduction
Yes
Noise reduction technology
2D noise reduction,3D noise reduction
Supported graphics resolutions
1400 x 1050 (SXGA+)/160 x 120/1920 x 1080 (HD 1080)/320 x 180
Supported video modes
1080p
Text caption overlay
Yes
Video formats supported
AVC/H.264/H.265/M-JPEG
Video streaming
Yes
Audio detection
Yes
Audio formats supported
AAC-LC/ADPCM/LPCM/OPUS/PCM
Audio system
2-way
Built-in speaker(s)
Yes
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
55 dB
Ethernet LAN
Yes
Networking standards
IEEE 802.3af/IEEE 802.3at
Streaming method
Multicast
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3 , HTTP/ 2, TLS3 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Flash memory
8192 MB
Internal memory
2048 MB
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
Active tampering alarm
Yes
Digest authentication
Yes
Intelligent Video Surveillance (IVS) system features
Human detection/Line crossing detection/Moving object/Vehicle detection
Password protection
Yes
Pixel counter
Yes
Security algorithms
HTTPS
Video motion detection
Yes
Remotely operated
Yes
Power consumption (max)
29 W
Power consumption (typical)
11 W
Power source type
PoE
Operating relative humidity (H-H)
10 - 100 %
Operating temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 65 °C
Depth
464 mm
Height
183 mm
Weight
3200 g
Width
183 mm
Compliance certificates
Electromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
Cables included
LAN (RJ-45)
Manual
Yes
Number of cameras
1
Doesn't contain
BFR/CFR
Model
03107-001
Units per Shipping Box
1
Unit Calculated Volume
0.02047 cubm
Unit Calculated Weight
4.04 kg
Category IP Cameras Brand AXIS EAN13 7331021089334 In stock 1 Item
