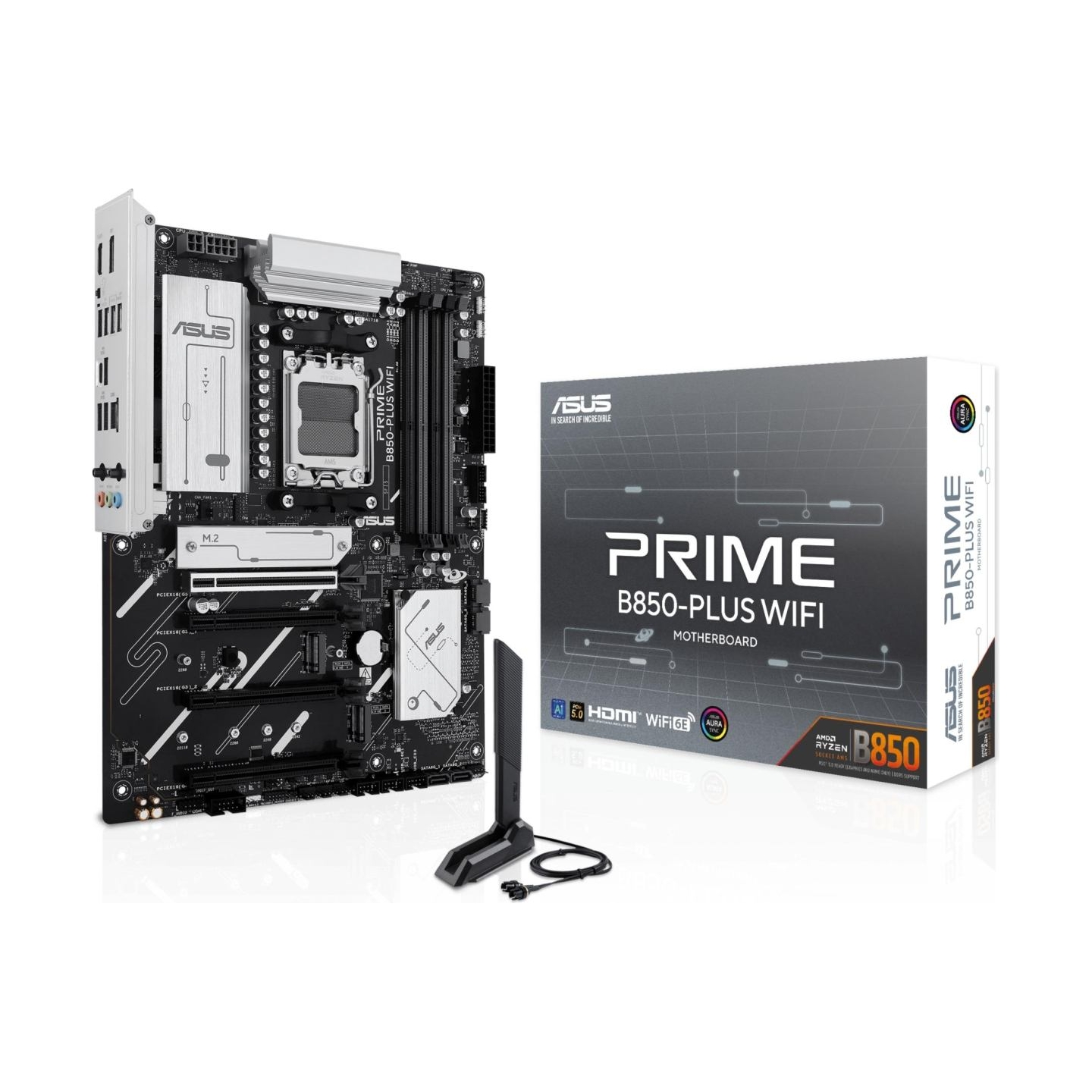

Asus Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 1
Price:
€193.78
Tax included
Share on
AMD B850
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
2xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Weight 1.05 kg
Manufacturer Website:
https://www.asus.com/motherboards-components/motherboards/prime/prime-b850-plus-wifi/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.274
- Unit Box Length
- 0.357
- Unit Box Width
- 0.068
- Audio output channels
- 7.1 channels
- Compatible operating systems
- Windows 11, Windows 10 64-bit
- Component for
- PC
- Motherboard chipset
- AMD B850
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Product colour
- Multicolour
- Windows operating systems supported
- Windows 10 x64/Windows 11
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8000 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Number of CPU fan connectors
- 1
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Thunderbolt headers
- 1
- TPM connector
- Yes
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Microphone in
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Number of M.2 (M) slots
- 3
- PCI Express x16 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Package depth
- 68 mm
- Package height
- 273 mm
- Package weight
- 1260 g
- Package width
- 353 mm
- Depth
- 244 mm
- Height
- 48 mm
- Width
- 305 mm
- Weight
- 1050 g
- Model
- PRIME B850-PLUS WIFI
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.008044 cubm
- Unit Calculated Weight
- 1.81 kg
