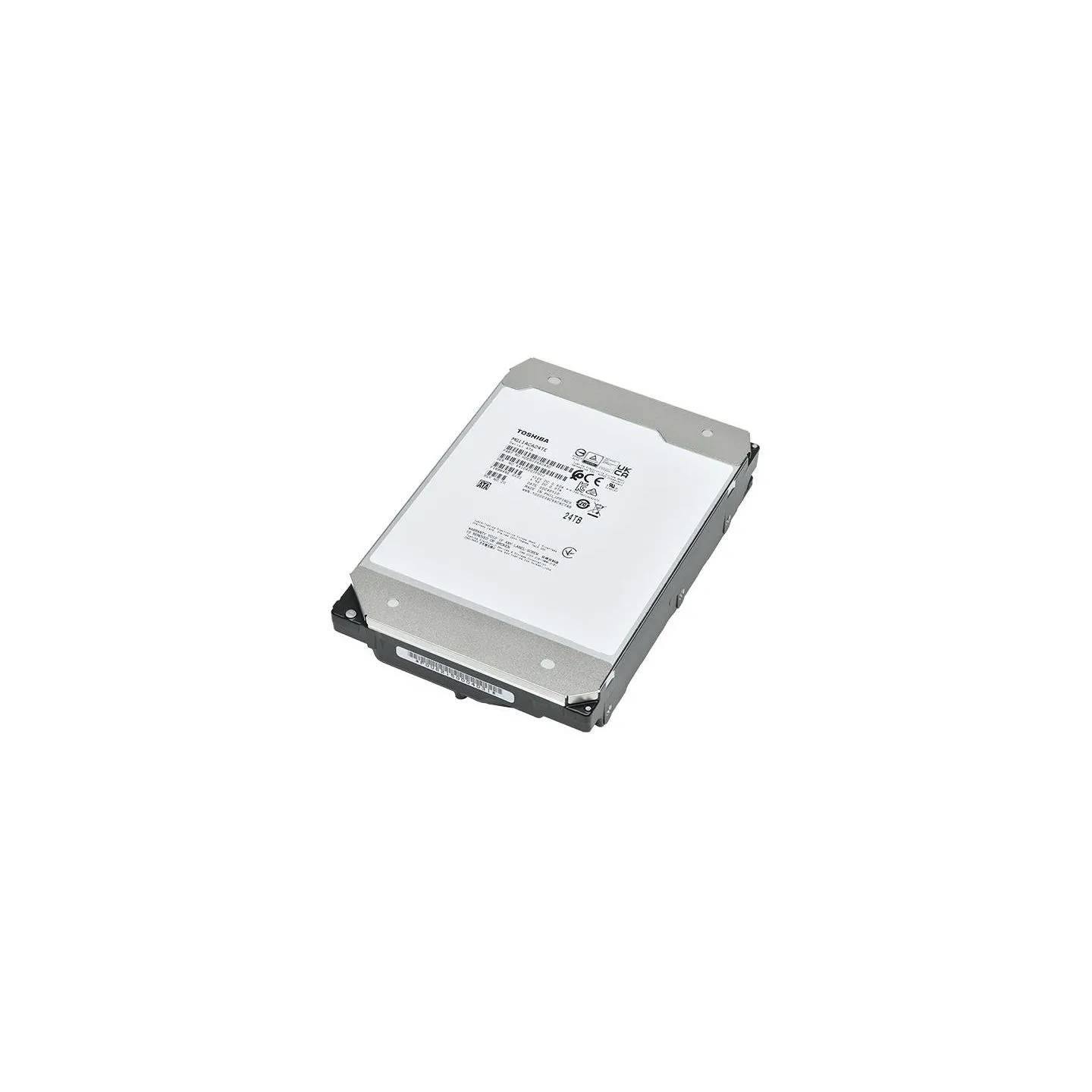

Toshiba HDD Server TOSHIBA MG11 20TB MAMR 512e, 3.5'', 1024MB, 7200RPM, SATA, SKU: HDEB038GEA51F
HDD-накопичувач Toshiba MG11ACA20TE
Built on 50 years of Toshiba’s HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology to achieve 2.4TB per disk. Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550TB with 7200 rpm, and is available in 6Gbps SATA and 12Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind. In addition to 24TB, the MG11 is available in 22TB, 20TB, 18TB, 16TB, and 14TB in both SAS and SATA interfaces with SIE and SED options.
- Conventional Magnetic Recording (CMR) for broad compatibility
- Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
- Industry-leading 10-disk helium-sealed design for superior storage density
- Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
- 550 Total TB Transferred per Year Workload Rating
- Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model
Manufacturer Website:
https://toshiba.semicon-storage.com/us/storage/product/data-center-enterprise/cloud-scale-capacity/articles/mg11-series.html
- Category Code
- HES
- CnCode
- 84717050
- Unit Box Height
- 0.04
- Unit Box Length
- 0.175
- Unit Box Width
- 0.135
- Component for
- Server/workstation
- HDD capacity
- 20000 GB
- HDD interface transfer rate
- 6 Gbit/s
- HDD size
- 3.5 "
- HDD speed
- 7200 RPM
- Interface
- Serial ATA III
- Mean time between failures (MTBF)
- 2500000 h
- Storage drive buffer size
- 1024 MB
- Type
- HDD
- Non-operating shock
- 200 G
- Non-operating vibration
- 3 G
- Operating relative humidity (H-H)
- 5 - 90 %
- Operating shock
- 50 G
- Operating temperature (T-T)
- 5 - 55 °C
- Operating vibration
- 0.75 G
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 147 mm
- Height
- 26.1 mm
- Weight
- 730 g
- Width
- 101.85 mm
- Model
- Toshiba MG11ACA20TE
- Model name
- MG11ACA20TE
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.001969 cubm
- Product Net Weight
- 0.73 kg
- Unit Calculated Weight
- 0.785 kg
