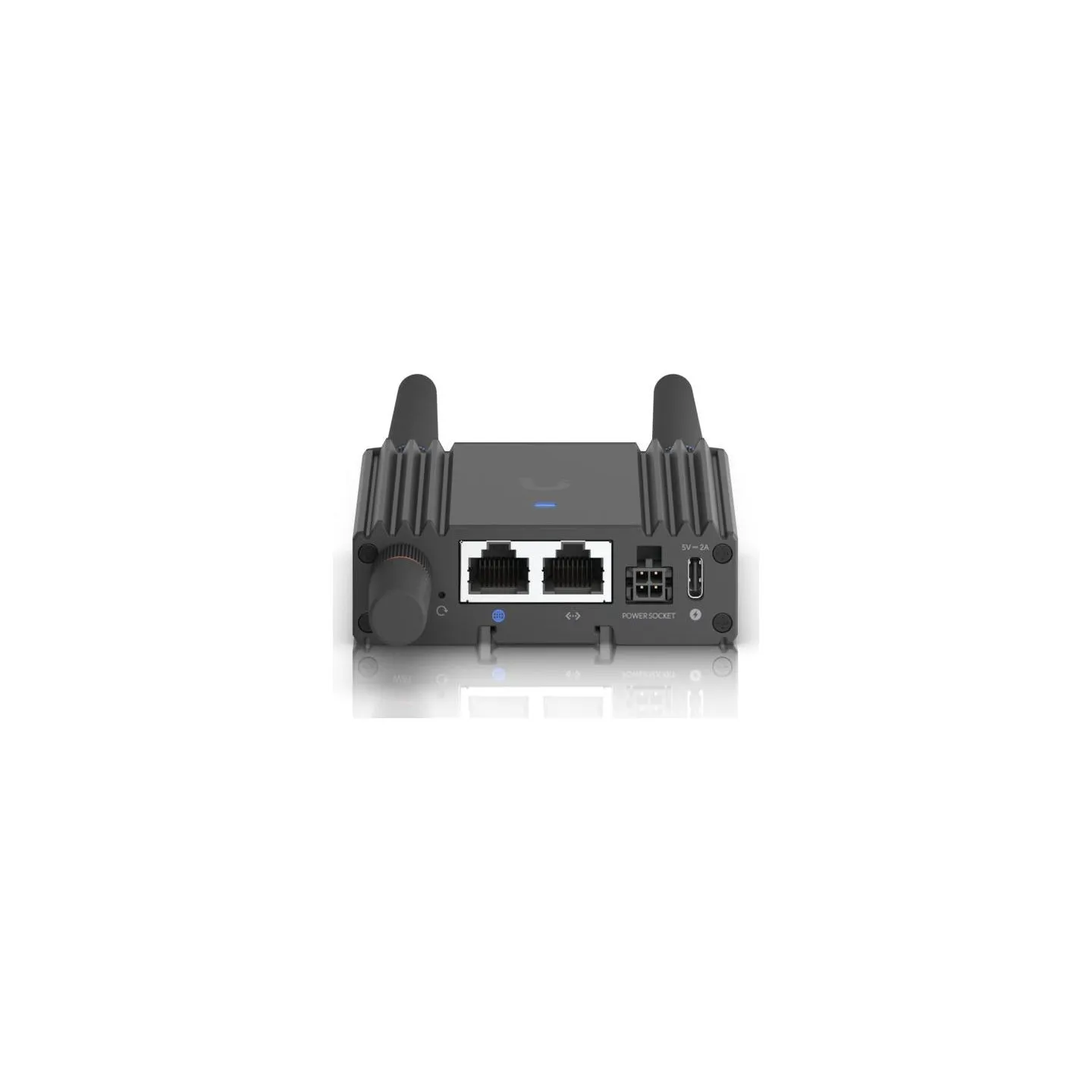

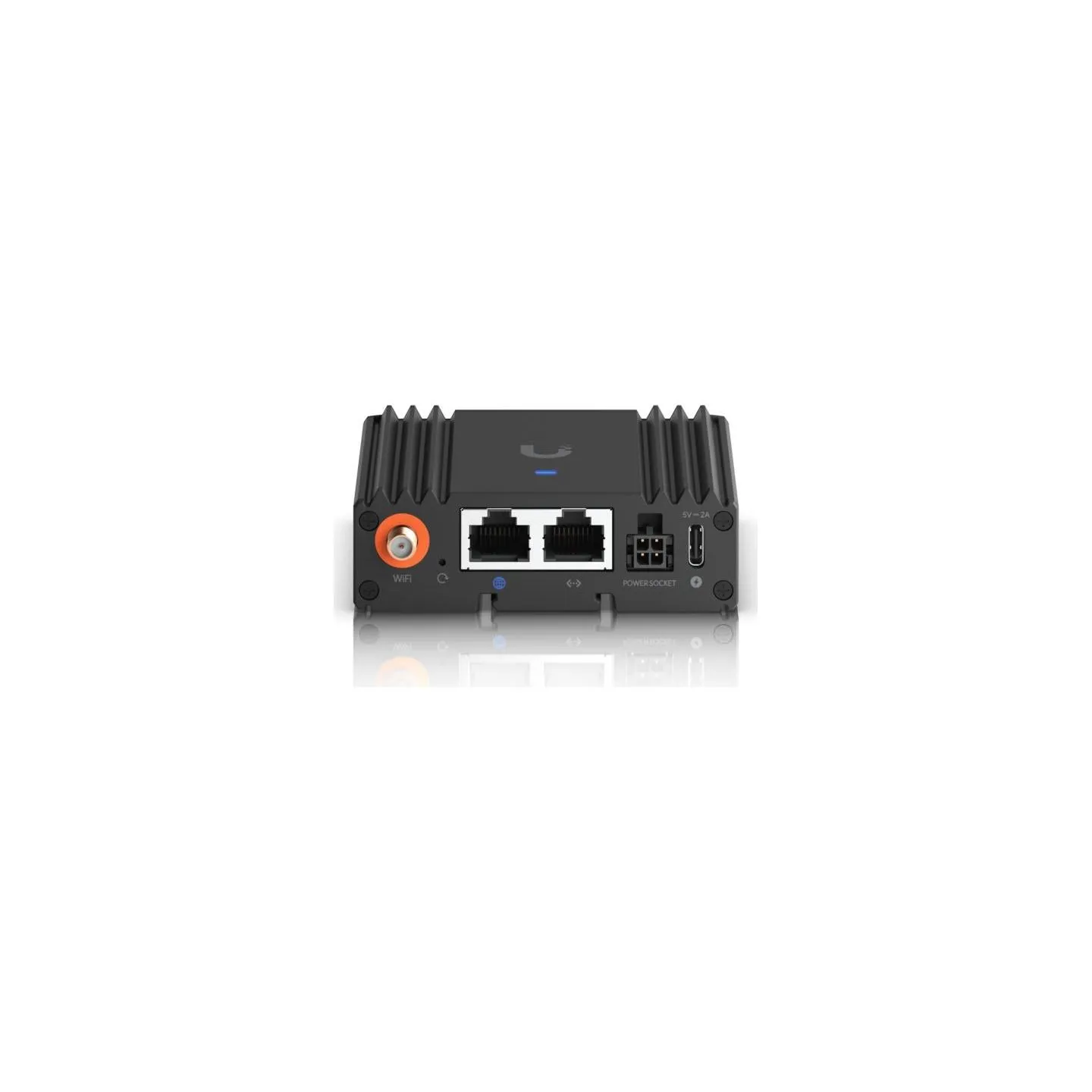

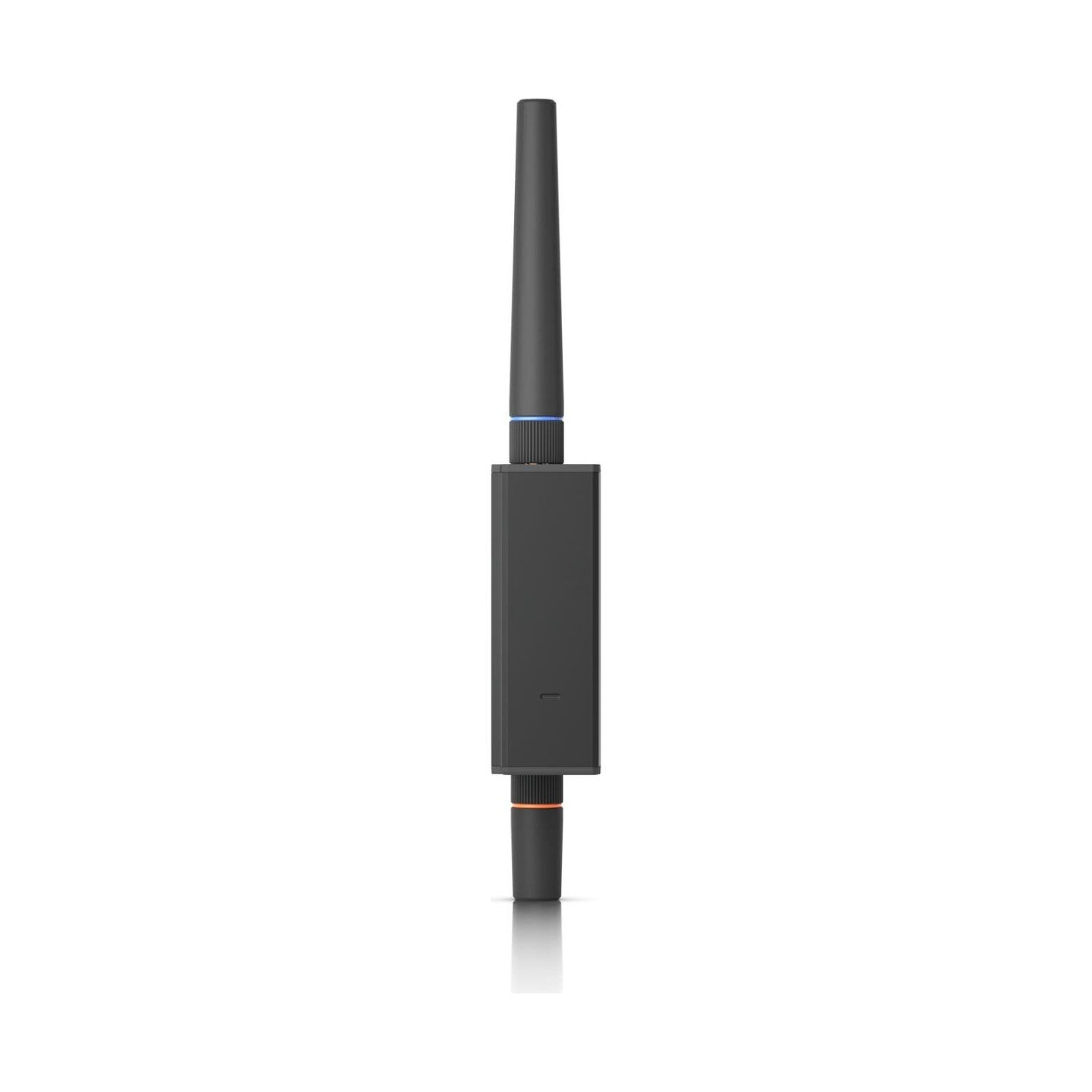

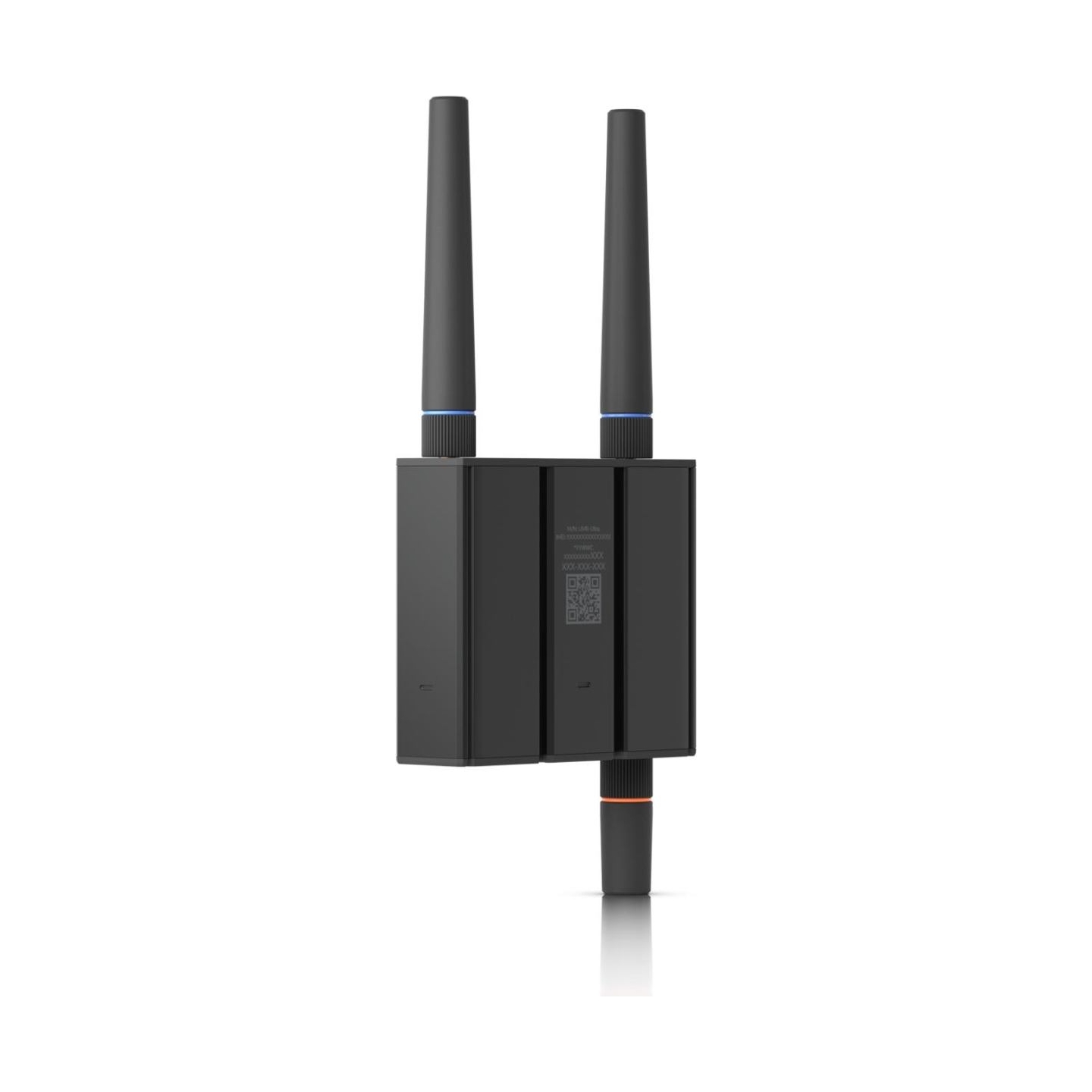

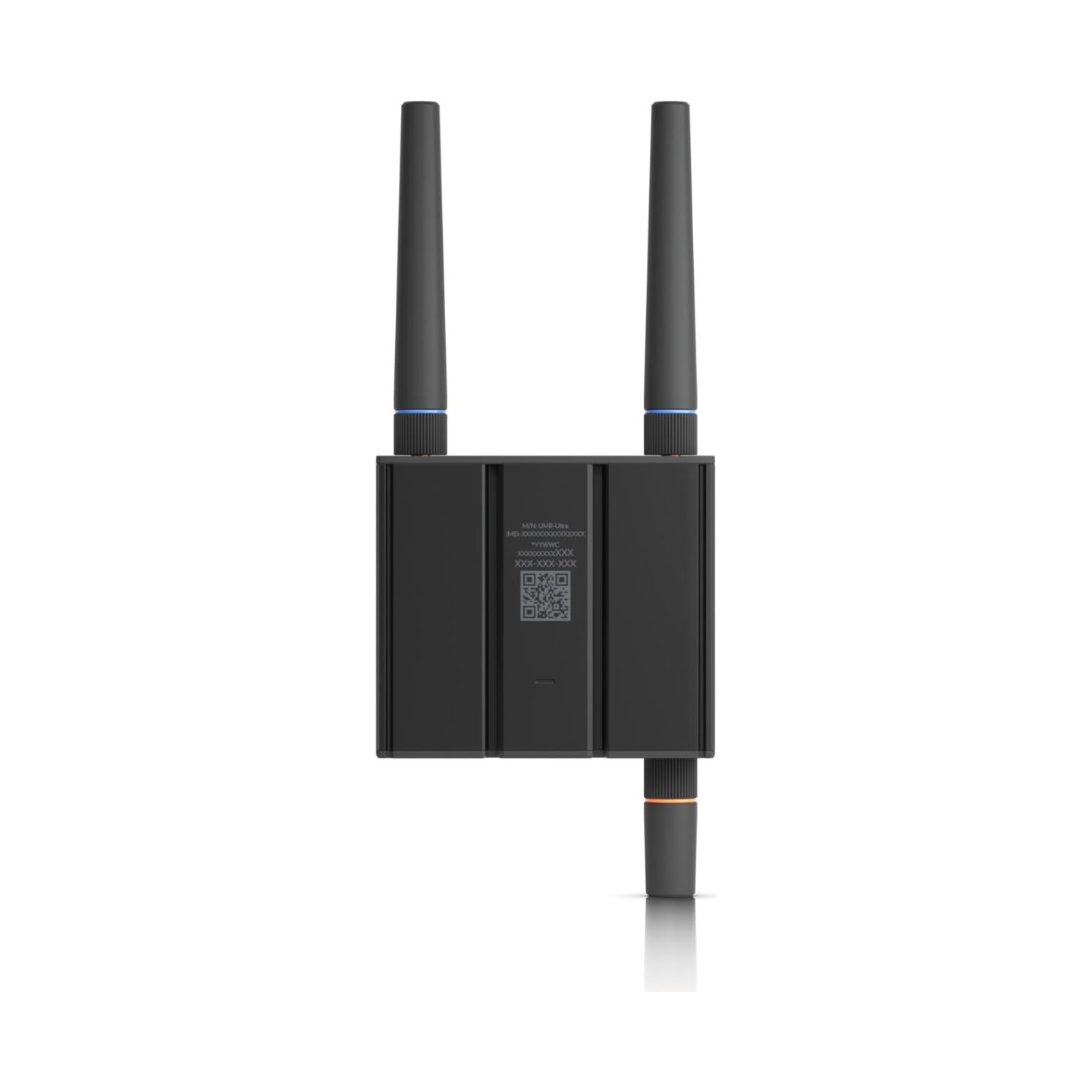

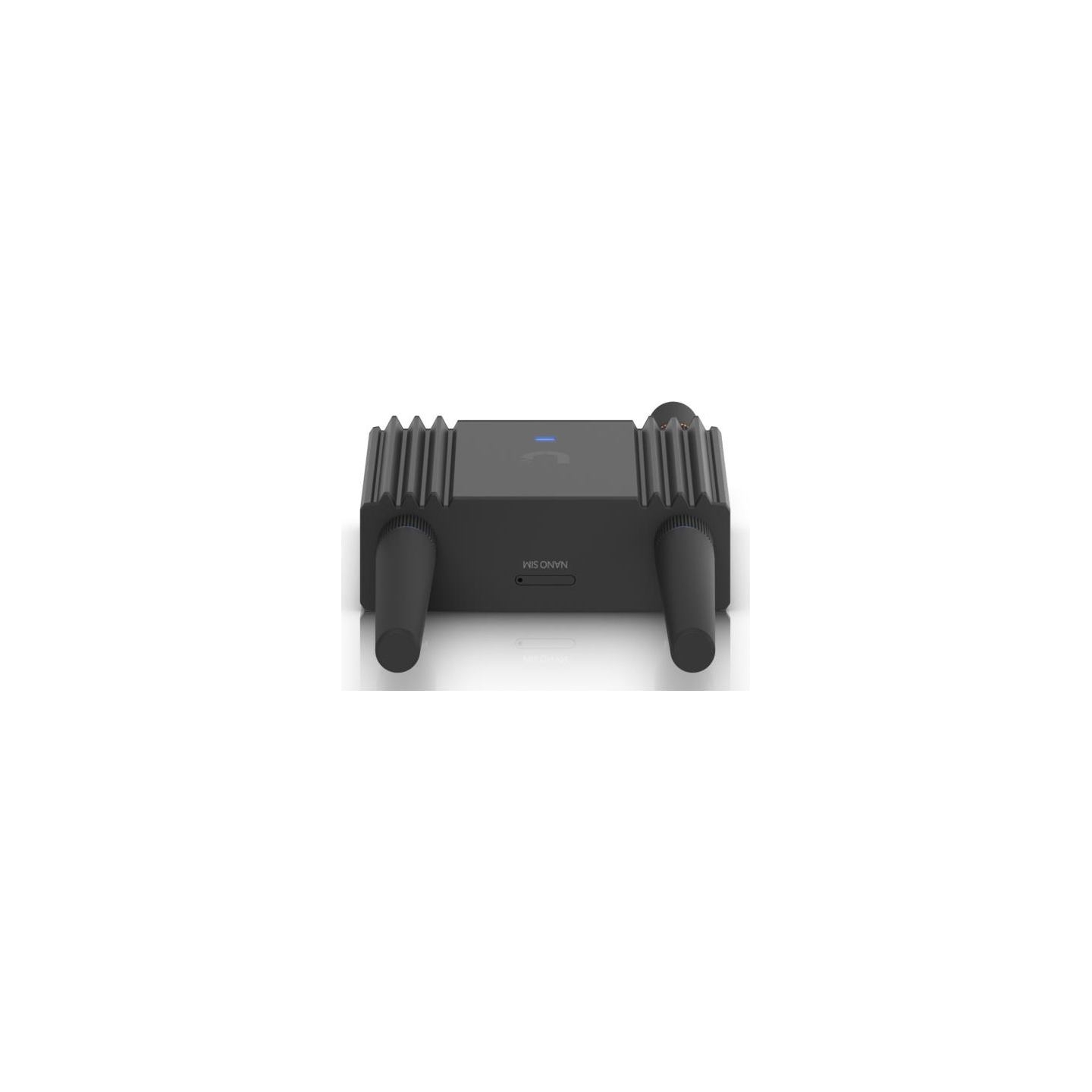

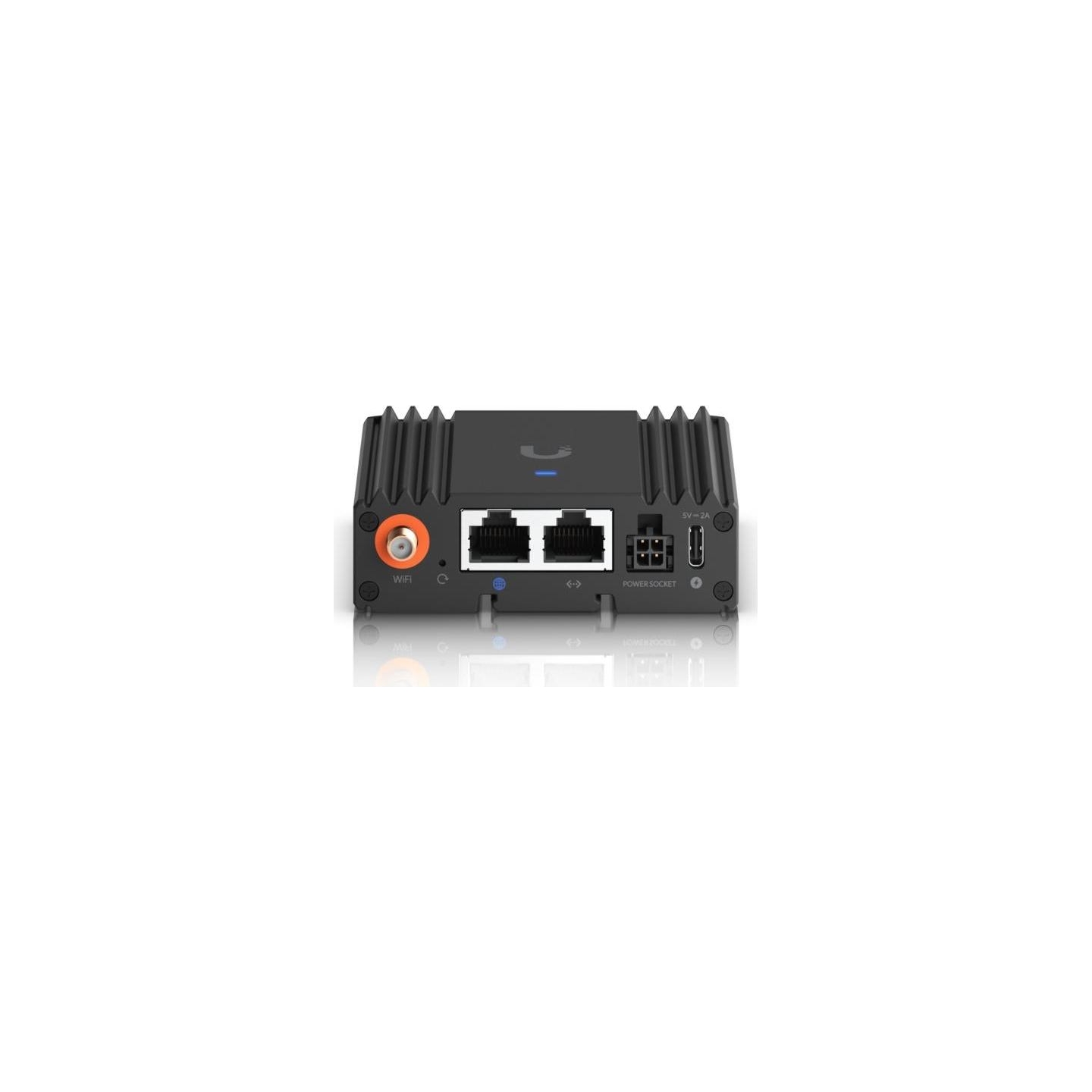

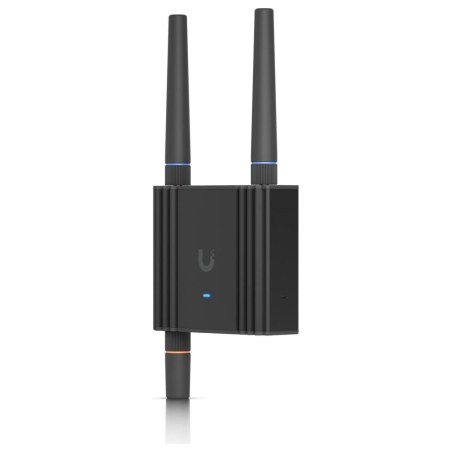

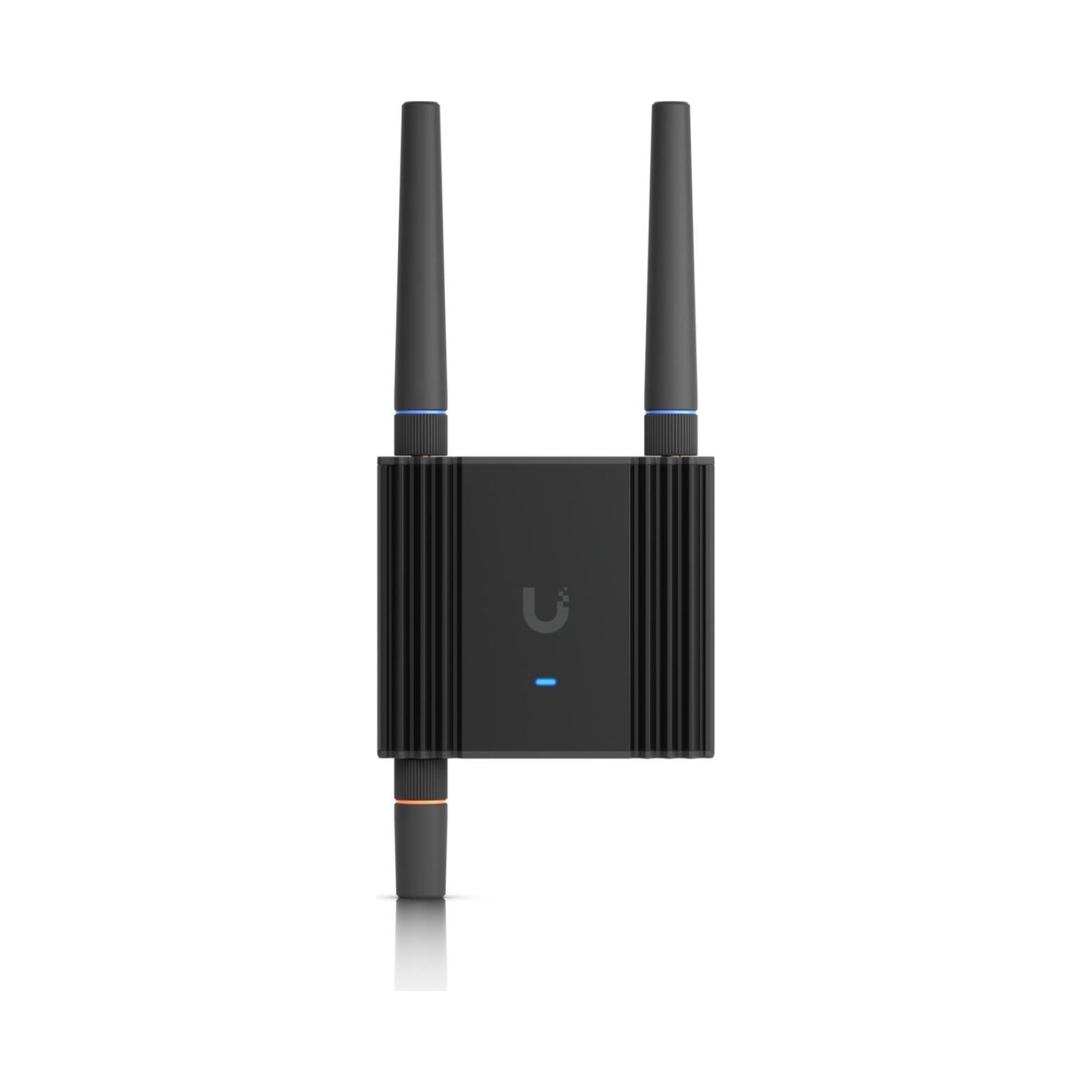

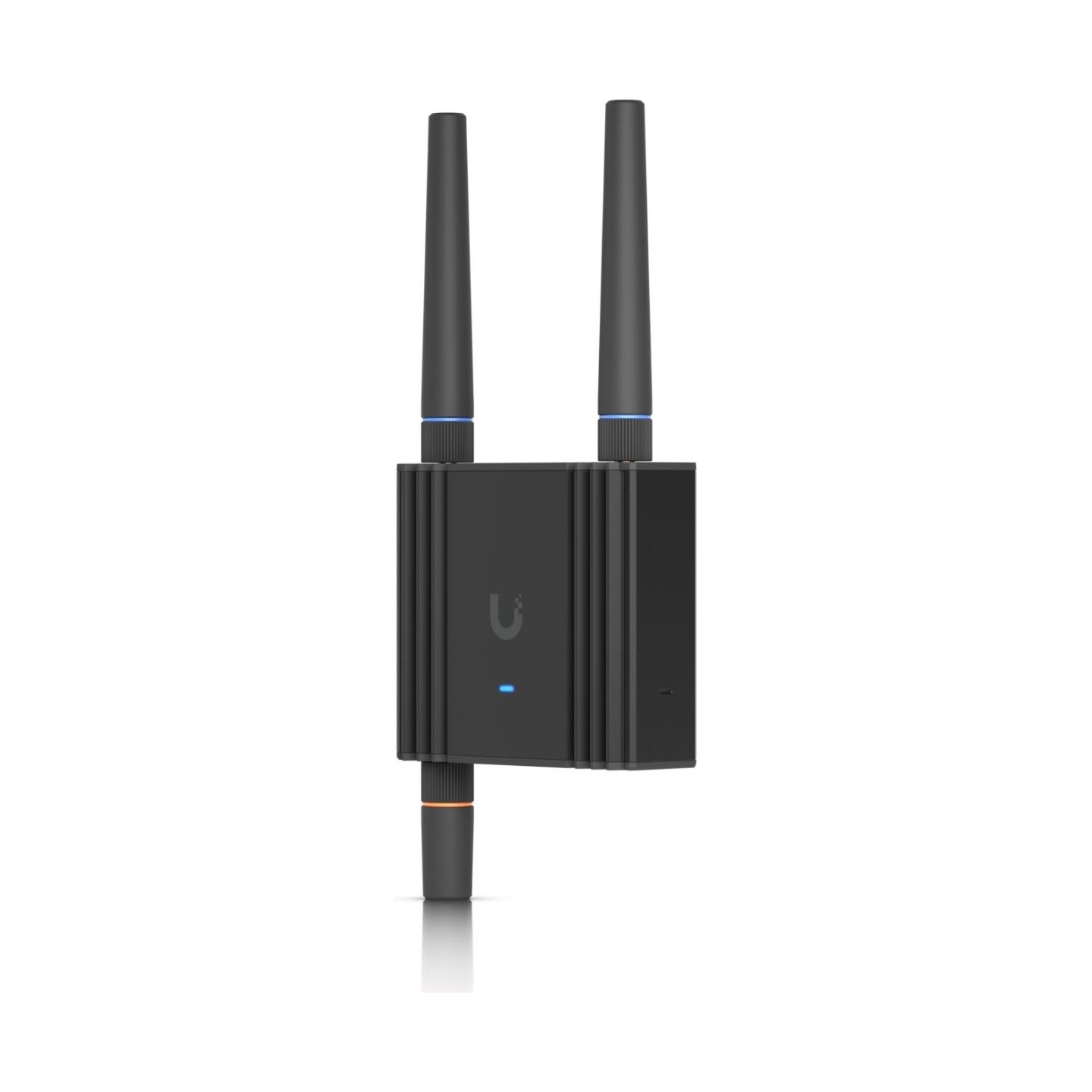

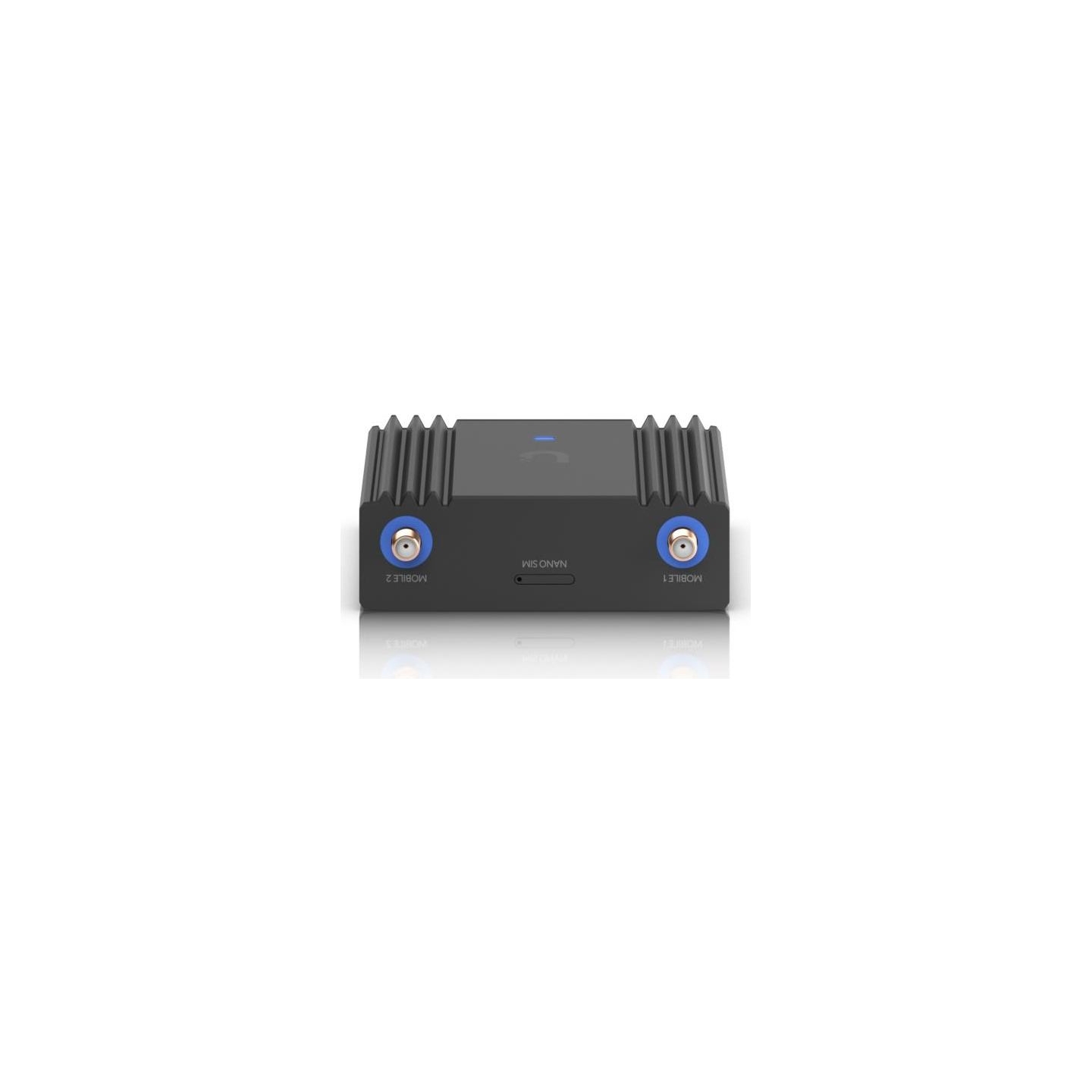

Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
- Site-to-site VPN and VPN client routing
- (2) FE RJ45 ports
- Automatic failover among LTE, wired WAN and WiFi
- Powered using USB Type-C or 4-pin DC power socket
- Wall and DIN rail mount options
- Optional Mobility Cloud Subscription
- WiFi 4 single chain 2.4 GHz radio
Manufacturer Website:
https://store.ui.com/us/en/products/umr-ultra-us
- Category Code
- CND
- CnCode
- 85176200
- Unit Box Height
- 0.22
- Unit Box Length
- 0.106
- Unit Box Width
- 0.05
- Device type
- Cellular network router
- Housing material
- Aluminium/Polycarbonate (PC)
- LED indicators
- Status
- Mounting
- DIN-rail/Wall mounting
- Product colour
- Black
- Reset button
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10/100 Mbit/s
- Ethernet LAN interface type
- Fast Ethernet
- Wi-Fi
- Yes
- Wi-Fi frequency
- 2.4 GHz
- Wi-Fi standards
- 802.11b/802.11g/Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported
- 1/11/12/150/18/2/24/36/48/5.5/54/6/6.5/9 Mbit/s
- 4G standard
- LTE
- Data network
- 4G
- Data transfer rate (LTE) (download)
- 150 Mbit/s
- Data transfer rate (LTE) (upload)
- 50 Mbit/s
- Number of SIM cards
- 1
- SIM card type
- NanoSIM
- Ethernet LAN (RJ-45) ports
- 2
- USB port
- Yes
- USB port type
- USB Type-C
- Compliance certificates
- CE/Federal Communications Commission (FCC)/GCF/Industry Canada (IC)/PTCRB
- Antenna connector type
- SMA/RP-SMA
- Antenna type
- External
- Antennas quantity
- 3
- Detachable antenna(s)
- Yes
- Input voltage
- 5 - 30 V
- Power consumption (typical)
- 5.7 W
- Power source type
- DC,USB
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -30 - 70 °C
- Depth
- 26 mm
- Height
- 193.5 mm
- Weight
- 200 g
- Width
- 82 mm
- User guide
- Yes
- Model name
- UMR-Ultra
- Units per Shipping Box
- 21
- Unit Calculated Volume
- 0.001528 cubm
- Unit Calculated Weight
- 0.438 kg
