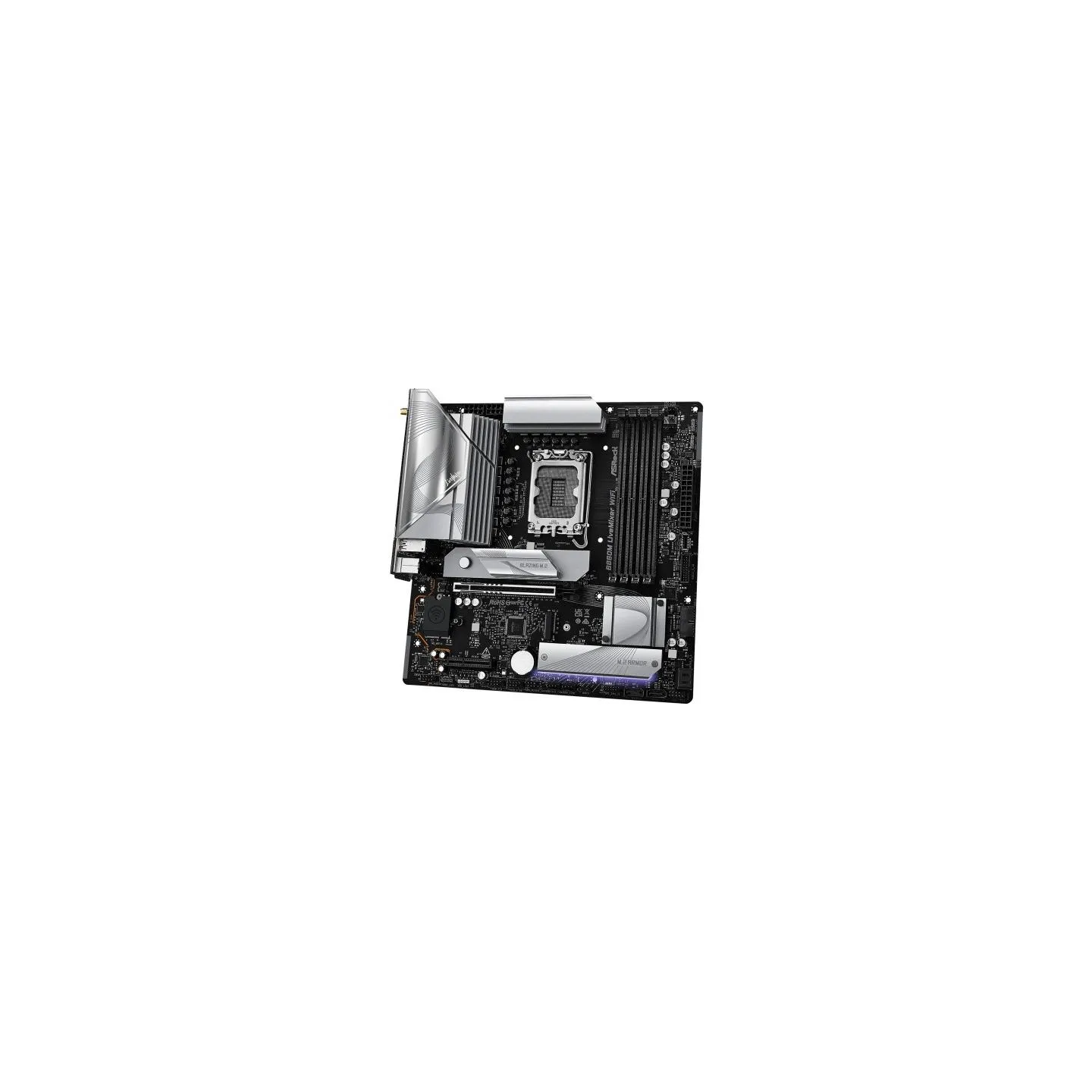

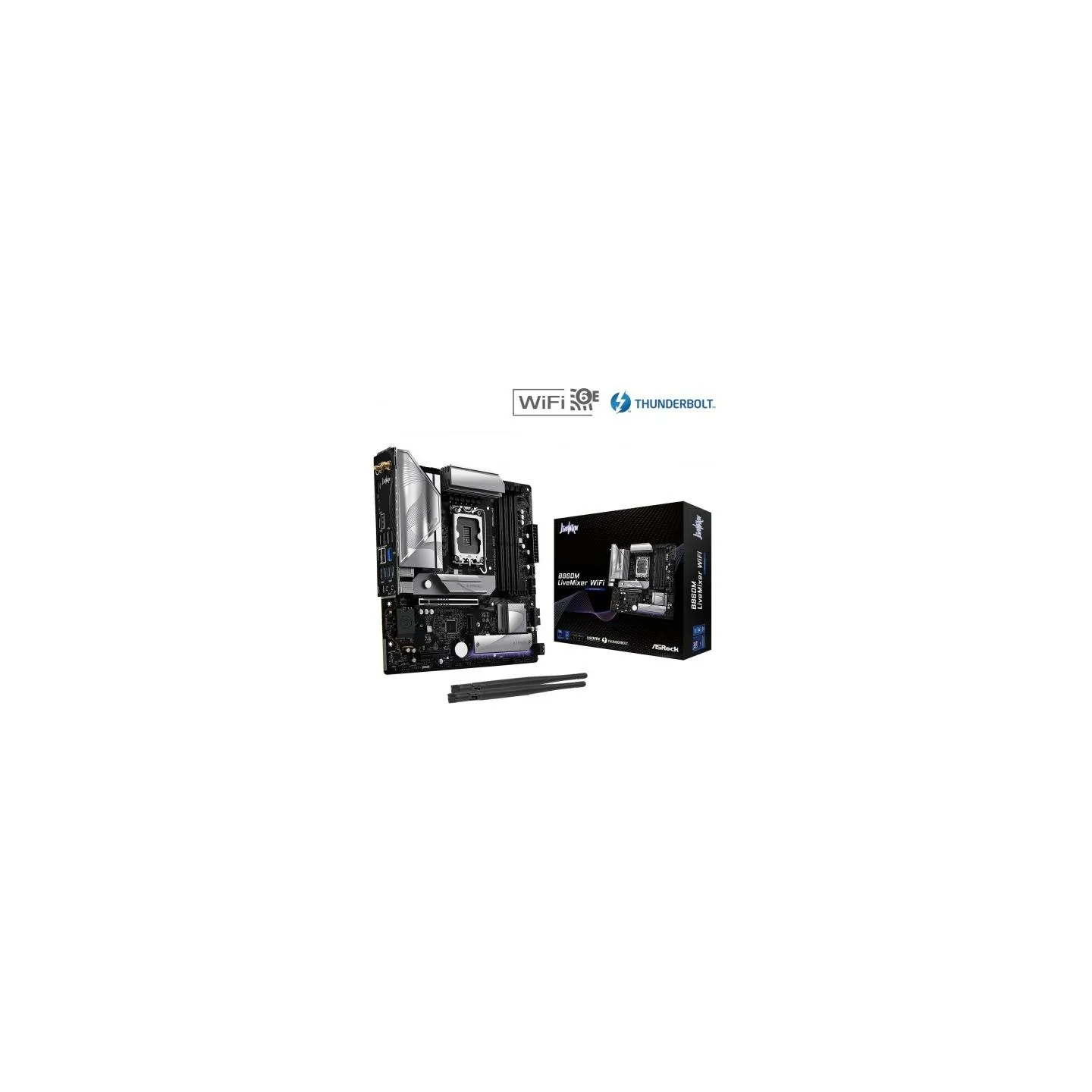

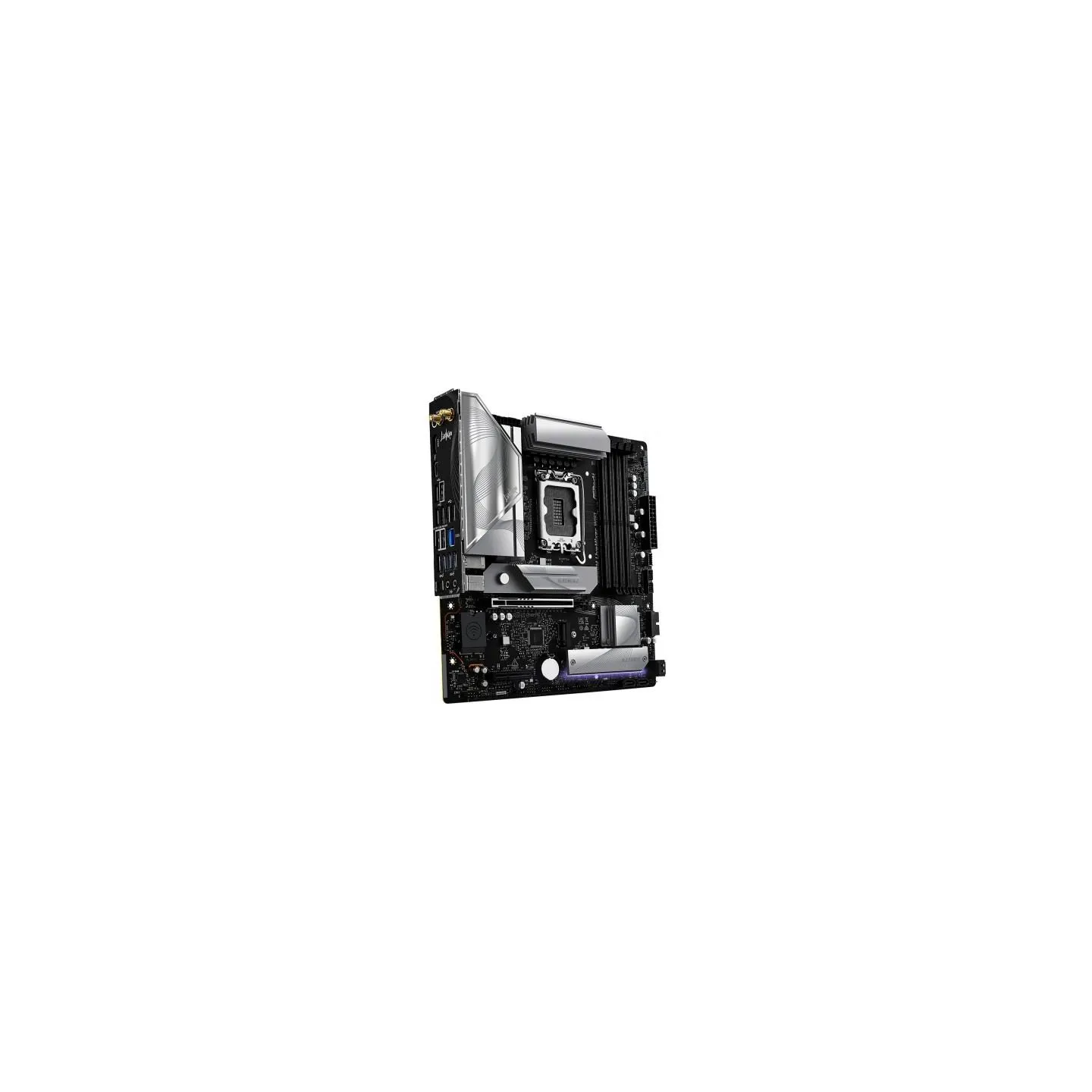

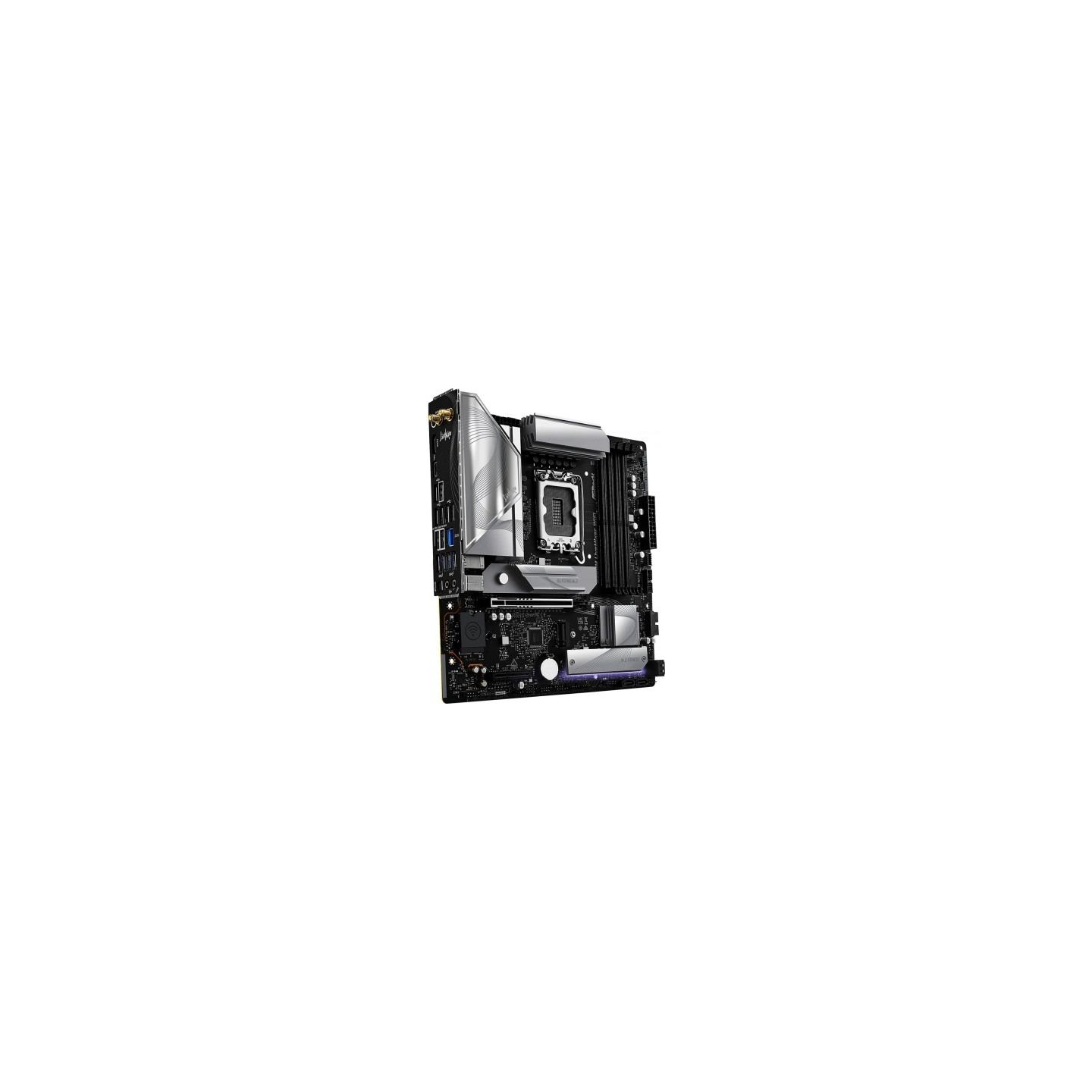

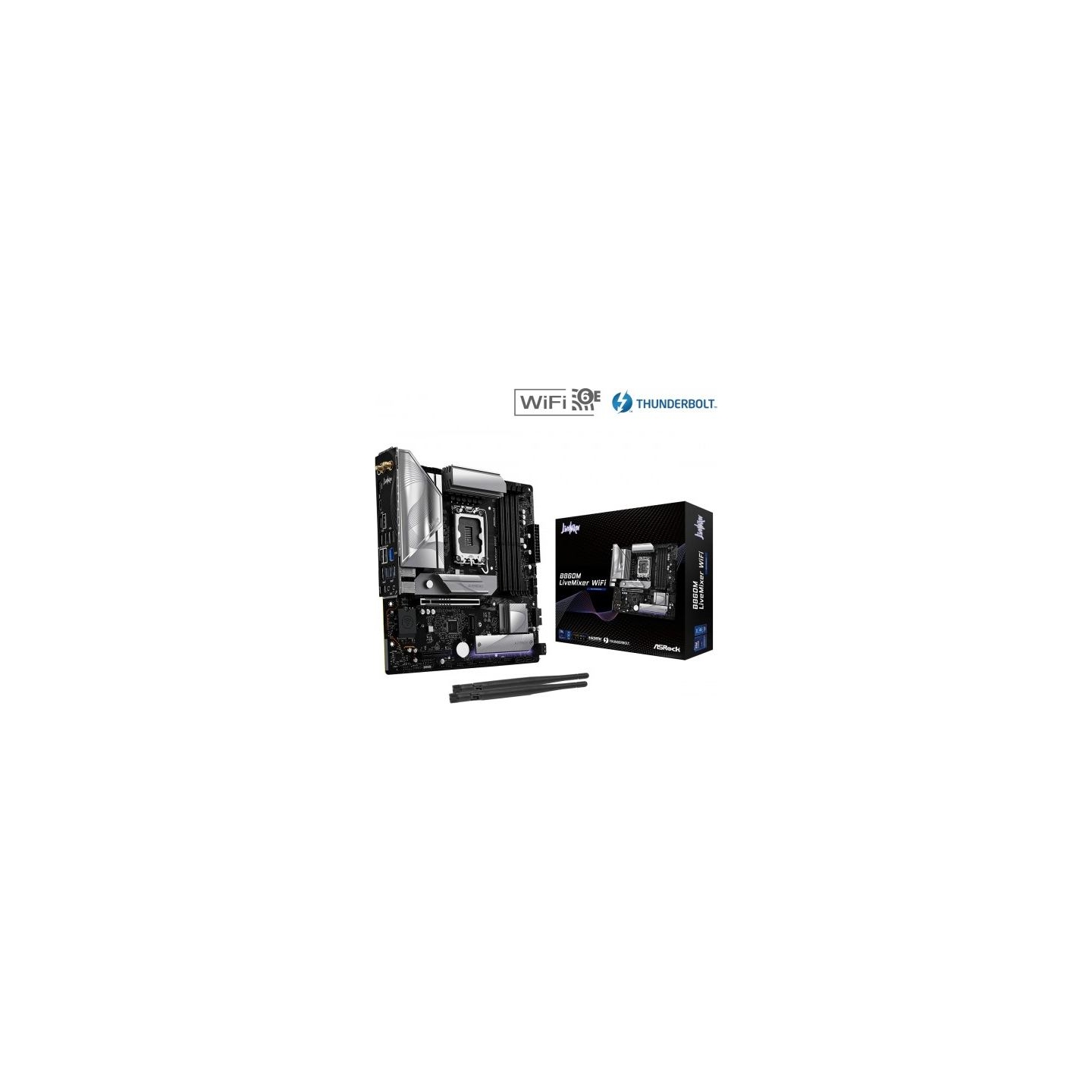

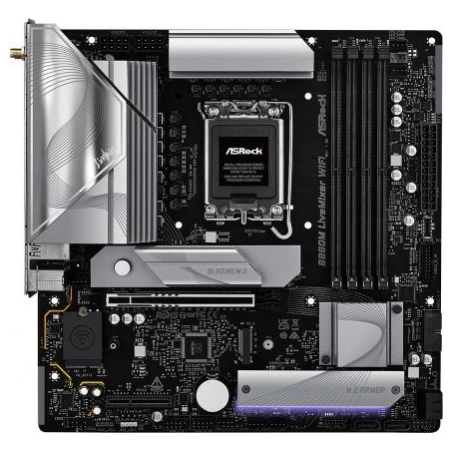

Asrock Motherboard B860M LIVEMIXER WIFI s1 851 4DDR5 mATX
Asrock Motherboard B860M LIVEMIXER WIFI s1 851 4DDR5 mATX

Asrock Motherboard B860M LIVEMIXER WIFI s1 851 4DDR5 mATX

SKU B860M LIVEMIXER WIFI Category Mainboards
Price: €177.55
Tax included
Add to Cart
Share on
SKU
KBASRIIFB860U02
Barcode
4711581490314
Model
B860M LIVEMIXER WIFI
CPU socket
LGA1851
Processor family
Intel Core Ultra
Integrated CPU
No
Chipset manufacturer
Intel
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
8666 MHz
Max memory size
256
Expansion slots
1 x PCIe 4.0 x 4
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
1 x M.2
Max. number of SATA devices
4
RAID
Yes
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/axe
USB ports at back panel
13
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
11
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
1
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x SMA
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
6 x USB 2.0
External connectors
6 x USB 3.2 Gen 1 Type-A
External connectors
1 x Thunderbolt 4
External connectors
1 x USB BIOS Flashback button
External connectors
1 x HDMI
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x TPM header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
3 x Addressable LED
Form factor
micro ATX
Supported operating systems
Windows 11
Designation
CE+WEEE
Category Mainboards Brand ASROCK EAN13 4711581490314 In stock 6 Items
