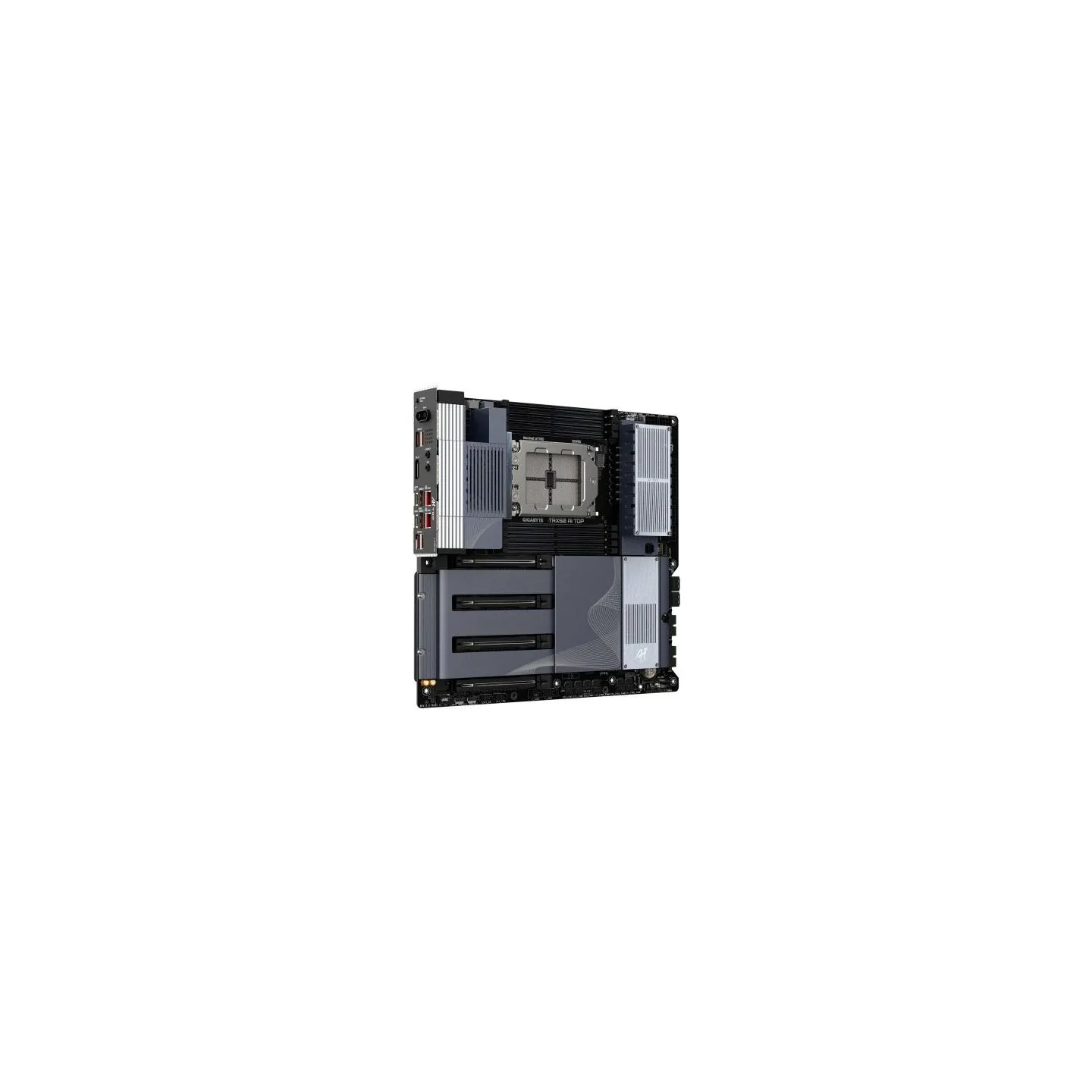

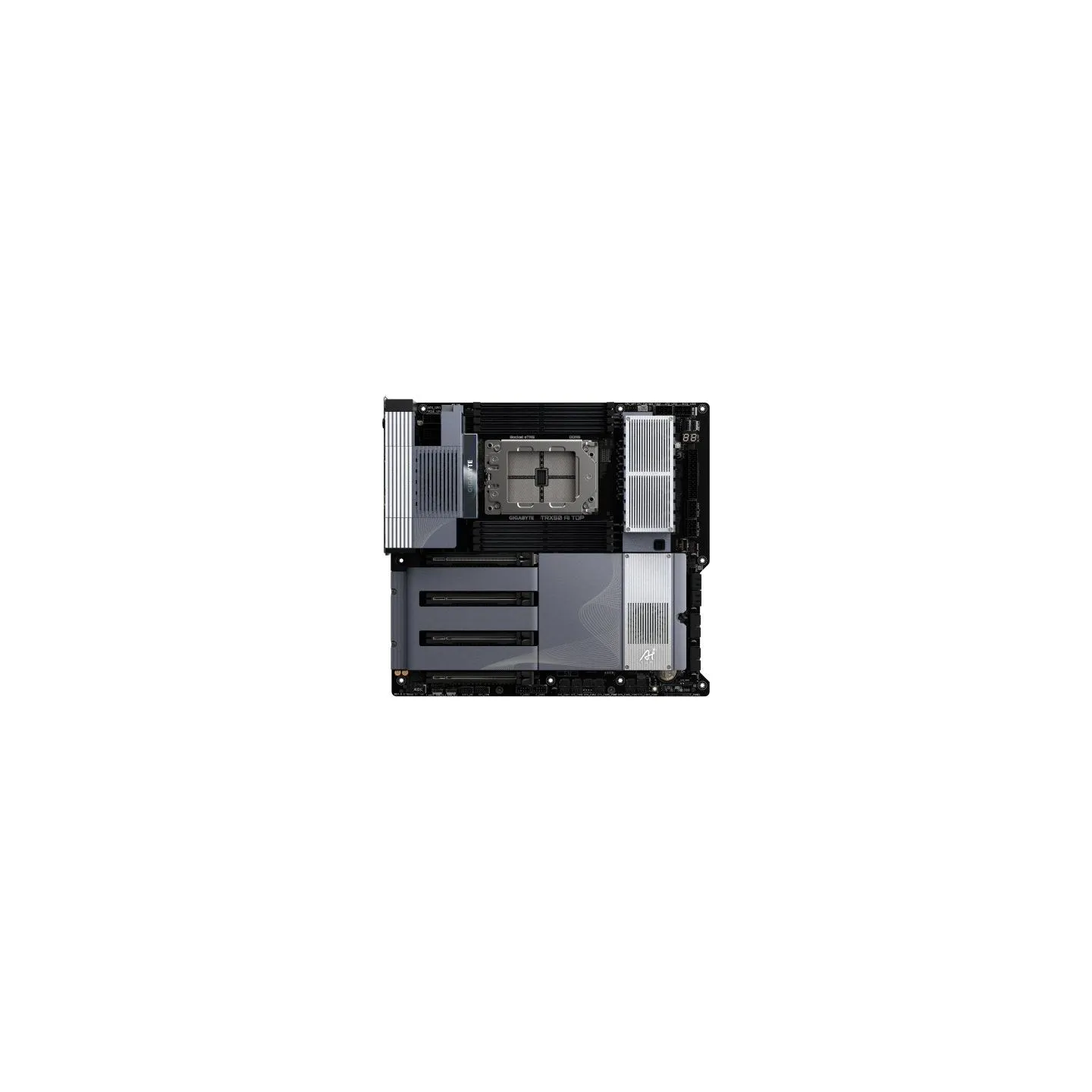

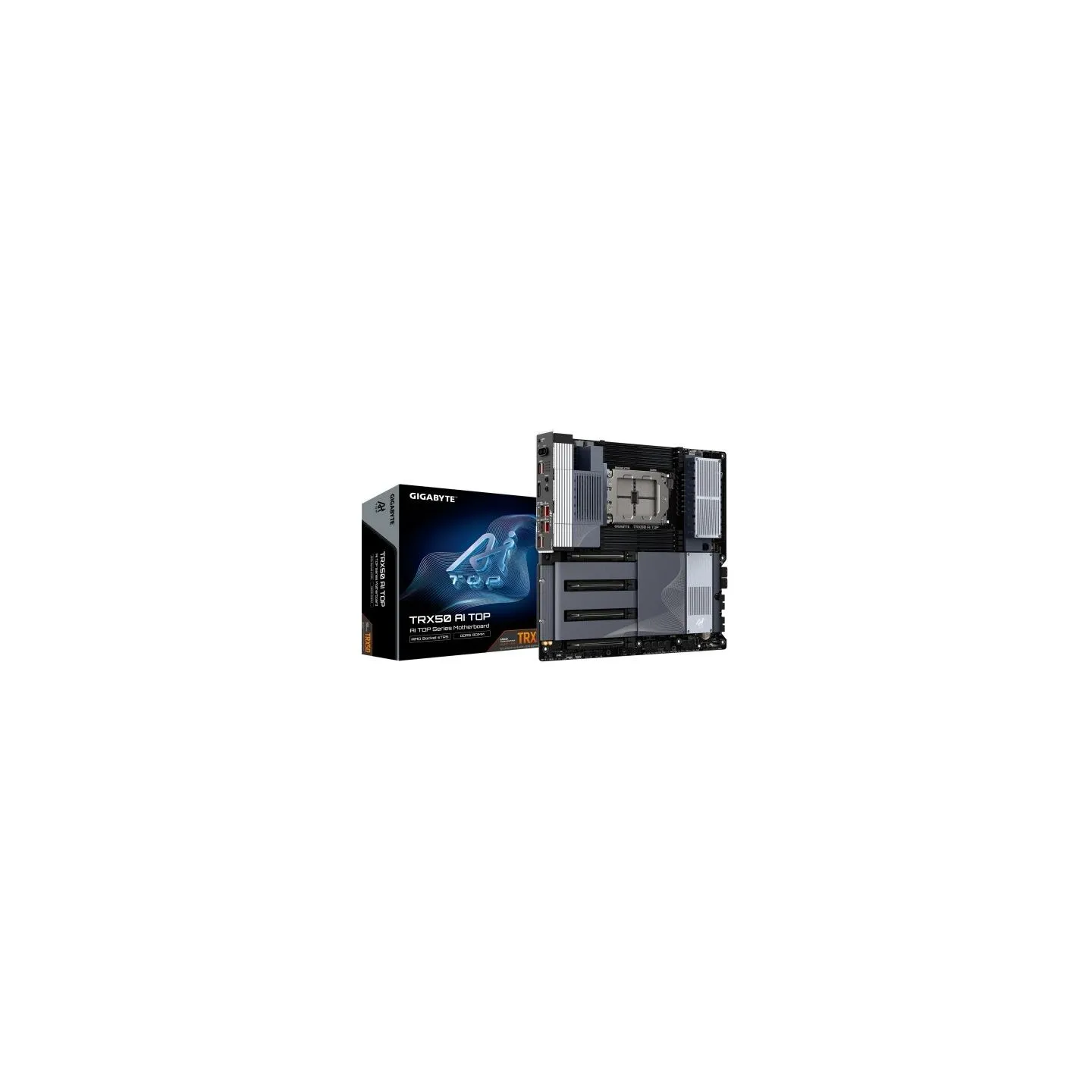

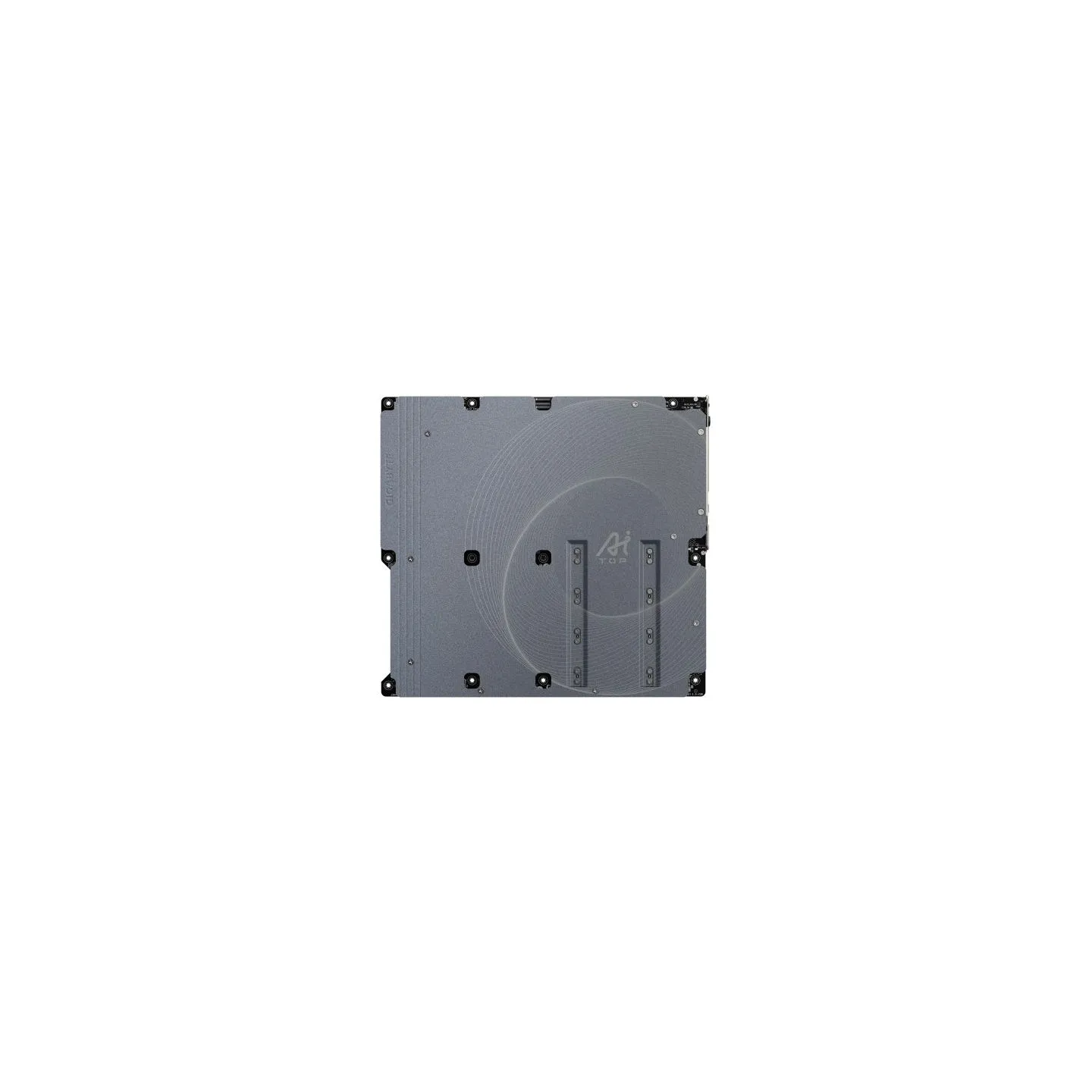

Gigabyte TRX50 AI TOP sTR5 8DDR5 DP IN/USB-C e-ATX
Gigabyte TRX50 AI TOP sTR5 8DDR5 DP IN/USB-C e-ATX

Gigabyte TRX50 AI TOP sTR5 8DDR5 DP IN/USB-C e-ATX

SKU TRX50 AI TOP 1.1 2B Category Mainboards
Price: €985.06
Tax included
Last items in stock
Add to Cart
Share on
SKU
KBGBAAT5TRX5E03
Barcode
4719331868529
Model
TRX50 AI Top
CPU socket
Socket sTR5
Processor family
AMD Ryzen Threadripper
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD TRX50
Memory type
DDR5
Number of DDR5 slots
8
Max memory size
2
Expansion slots
4 x PCIe 5.0 x16
Expansion slots
4 x PCIe 5.0 x 4
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
3 M.2 Slots (M2C_CPU / M2B_CPU / M2A_CPU) Integrated with the CPU Support SSD Socket 3, M key, 2280 form factor AMD Ryzen Threadripper PRO 9000-WX / PRO 7000-WX / 9000 series CPUs - PCIe 5.0 x4/x2 SSDs AMD Ryzen Threadripper 7000 series CPUs - PCIe 4.0 x4/x2 SSDs 1 M.2 Slot (M2D_CPU) Integrated with the CPU Supports SSD Socket 3, M key, 2280 form factor AMD Ryzen Threadripper PRO 9000-WX / PRO 7000-WX CPUs - PCIe 5.0 x4/x2 SSDs
Sound card
Realtek ALC4080 CODEC (rear panel audio) Support for DTS:X Ultra High Definition Audio 2-channel Realtek ALC897 CODEC (front panel audio)
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
USB ports at back panel
8
USB ports on motherboard
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
6
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x RJ-45
External connectors
2 x SMA
External connectors
2 x USB4 Type-C
External connectors
6 x USB 3.2 Gen 2 Type-A
External connectors
1 x DisplayPort
External connectors
1 x Line Out (front)
External connectors
1 x MIC (front)
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x Noise detection header
Onboard connectors
2 x temperature sensor
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
E-ATX
Dimensions
30.5 x 33 cm
Supported operating systems
Ubuntu
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) Software for managing LAN bandwidth
Designation
CE+WEEE
Category Mainboards Brand GIGABYTE EAN13 4719331868529 In stock 3 Items
Gigabyte TRX50 AI TOP sTR5 8DDR5 DP IN/USB-C e-ATX
