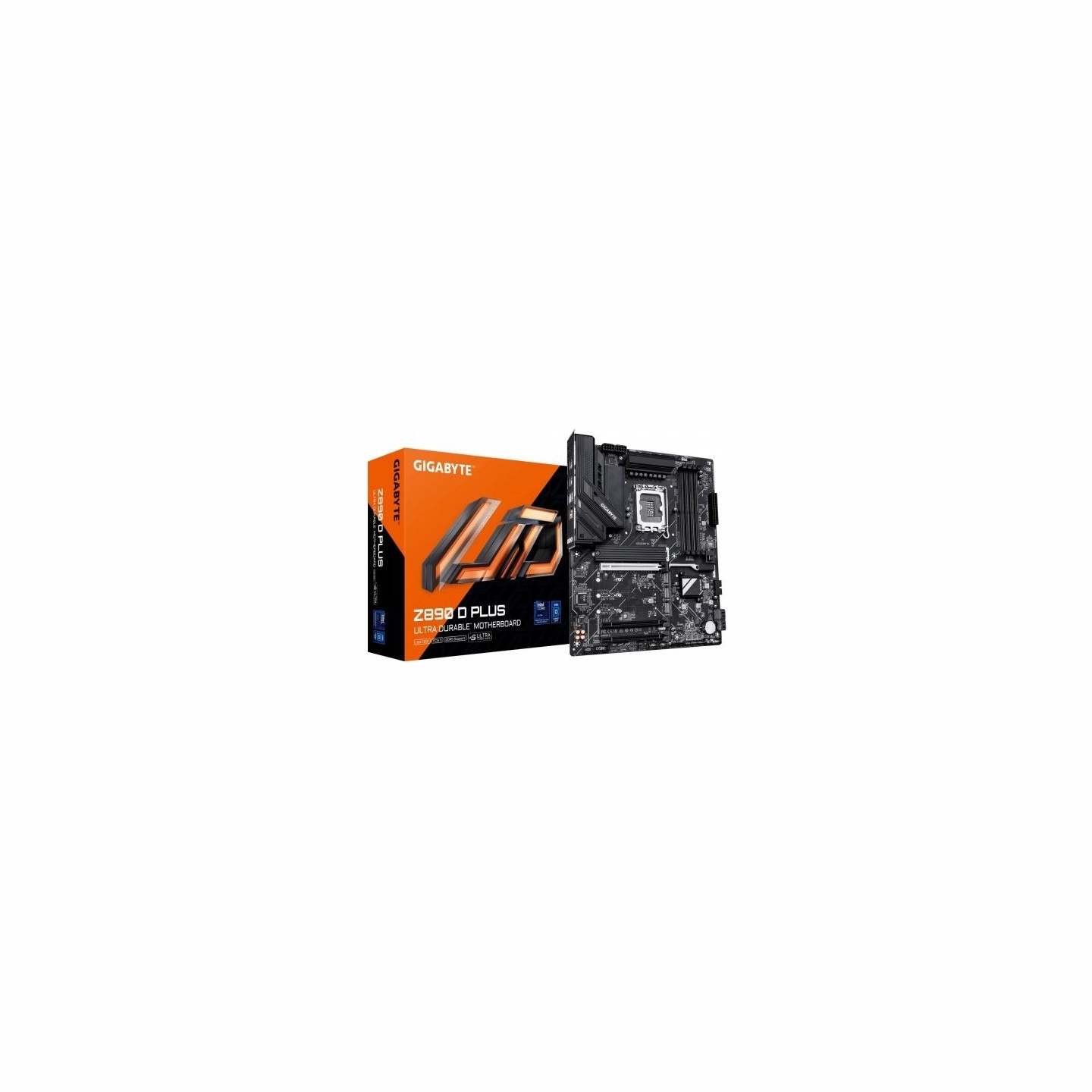

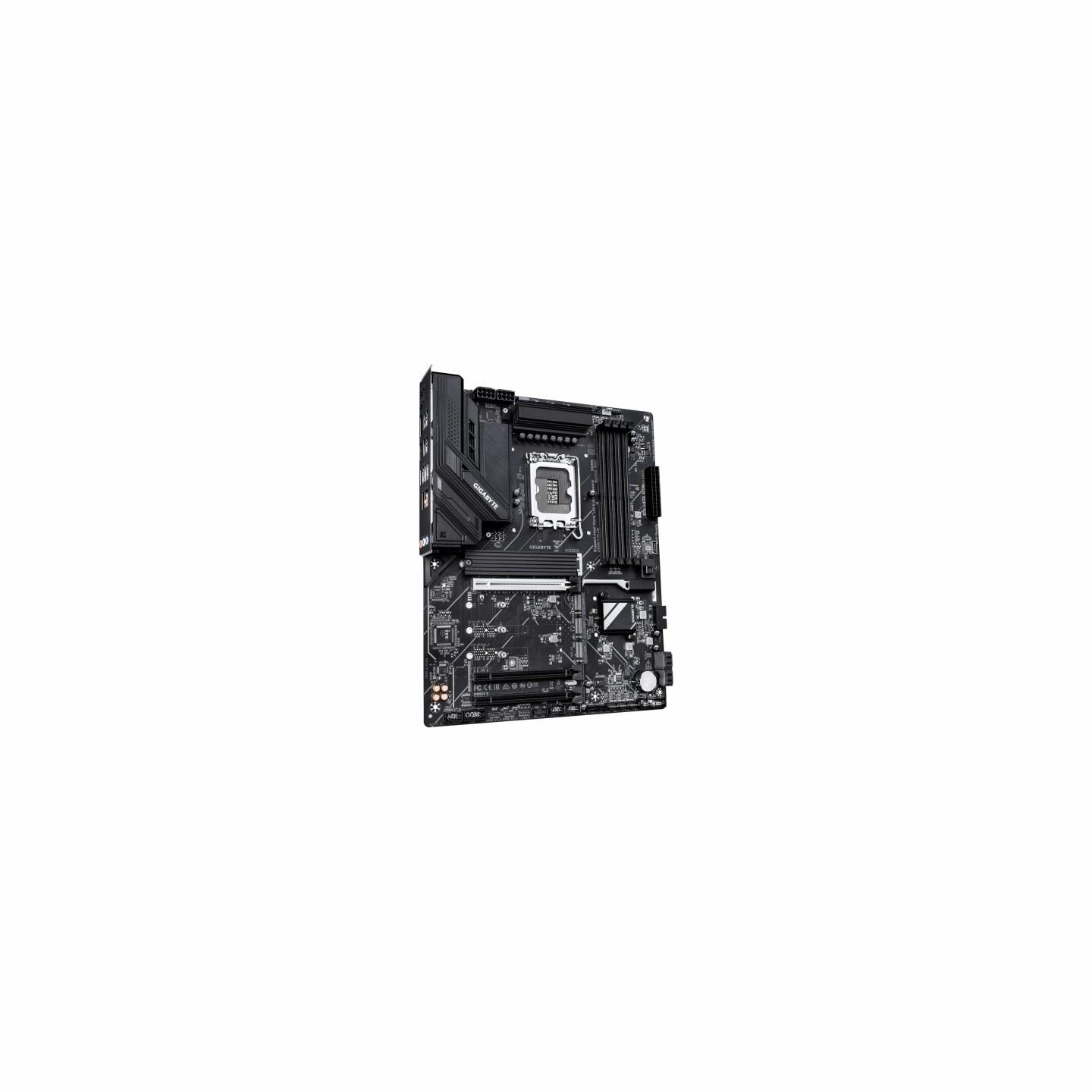

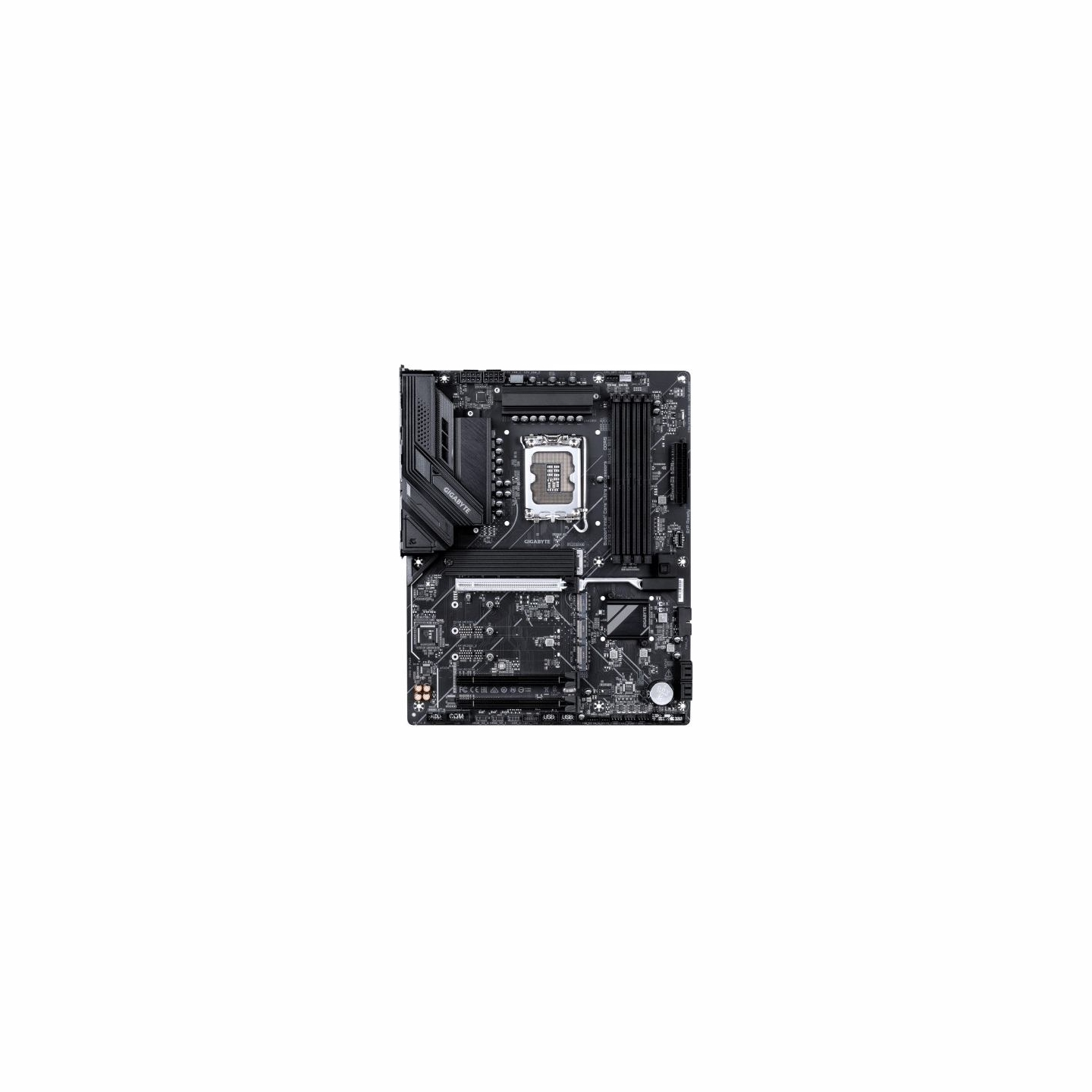

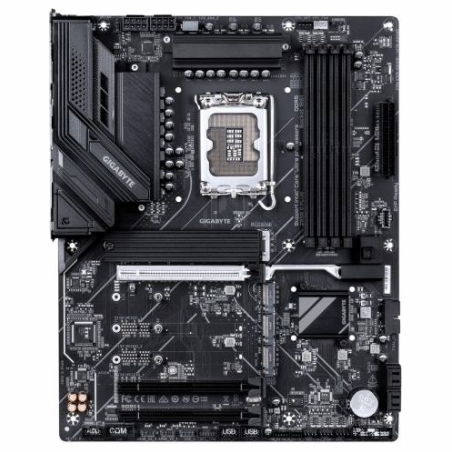

Gigabyte Motherboard Z890 D PLUS s1851 4DDR5 DP ATX
Price:
€211.25
Tax included
Share on
- SKU
- KBGBAIIFZ890A13
- Barcode
- 4719331880644
- Model
- Z890 D PLUS
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890 Express Chipset
- Number of DDR5 slots
- 4
- Memory bus frequency
- 9466 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 2 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Graphics
- Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1-channel
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- USB ports at back panel
- 10
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

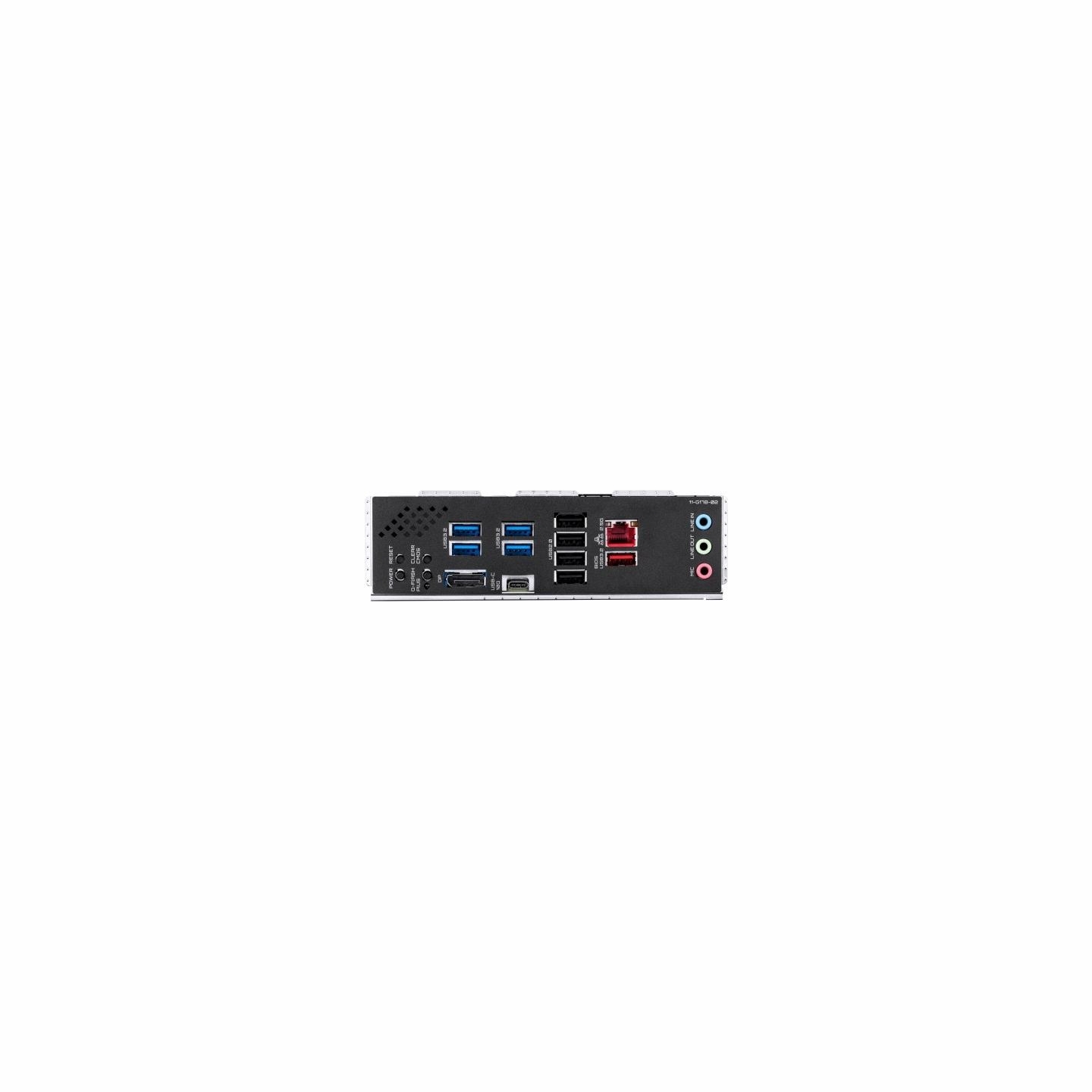

- External connectors
- 1 x MIC
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Line In
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 4 x USB 3.2 Gen 1 Type-A
- External connectors
- Reset button
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- Power button
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Line Out
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 2 x Thunderbolt
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM version)
- Designation
- CE+WEEE
