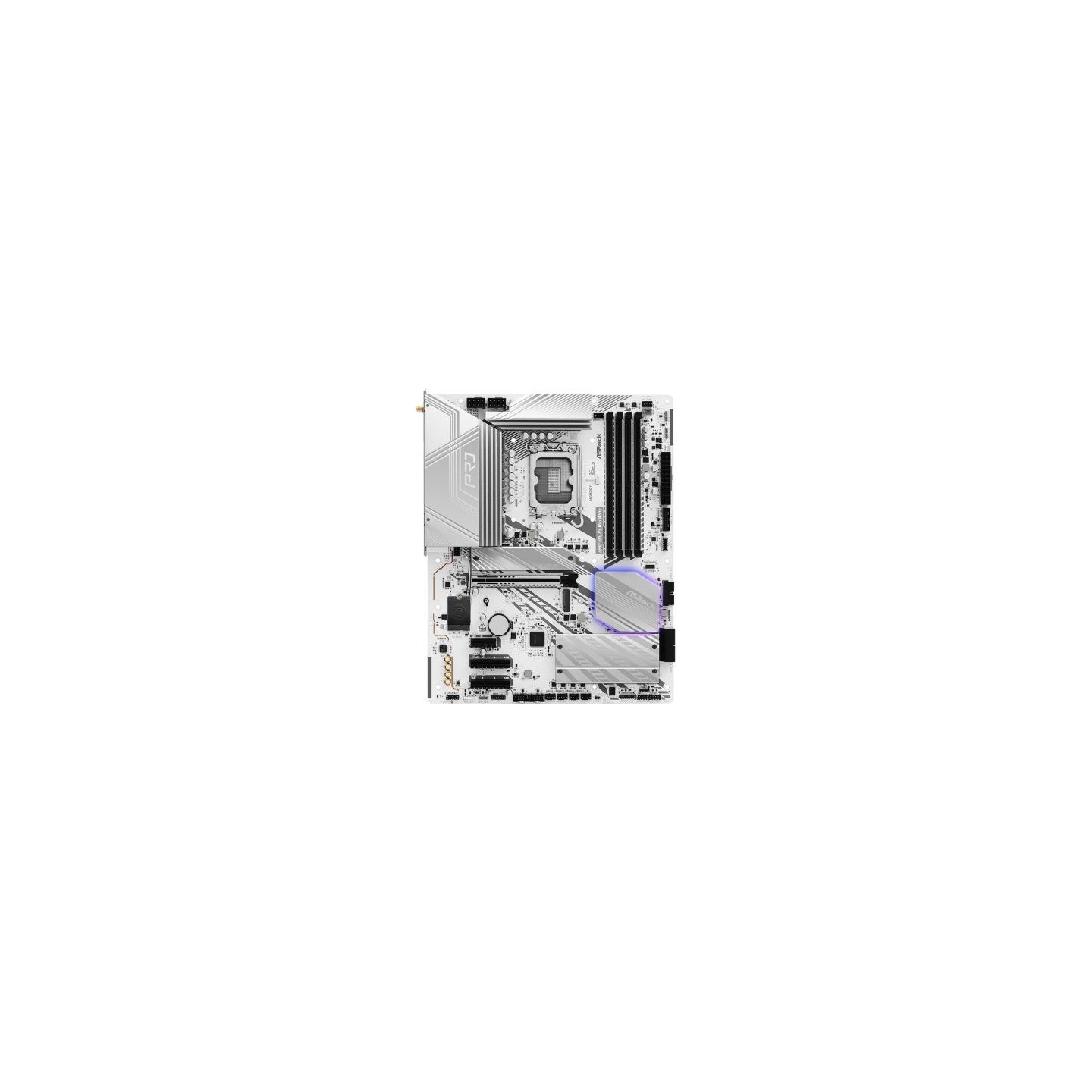

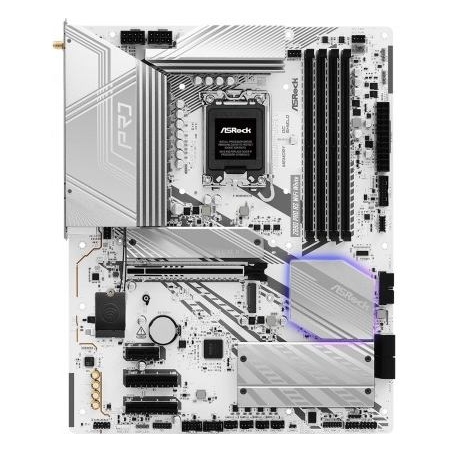

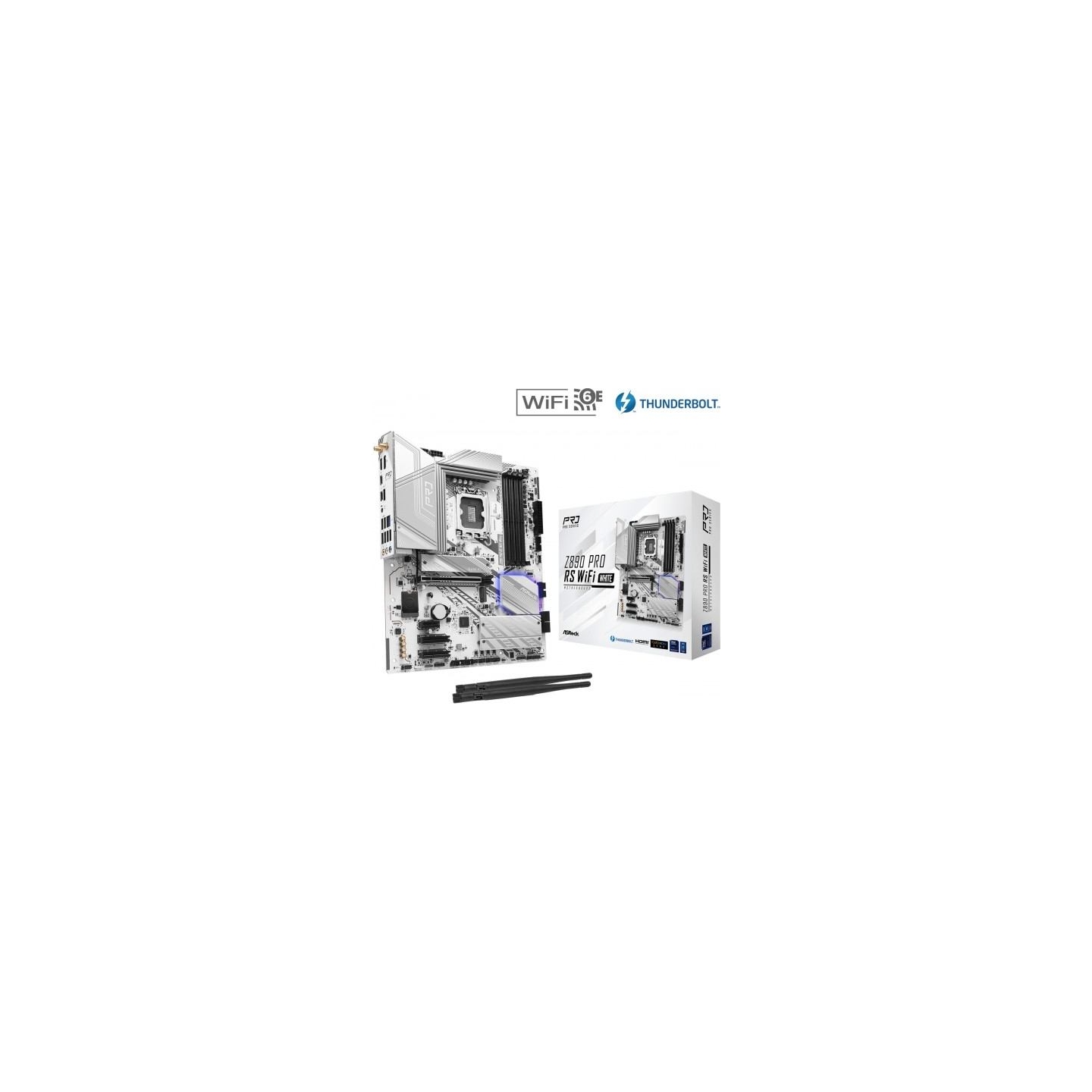

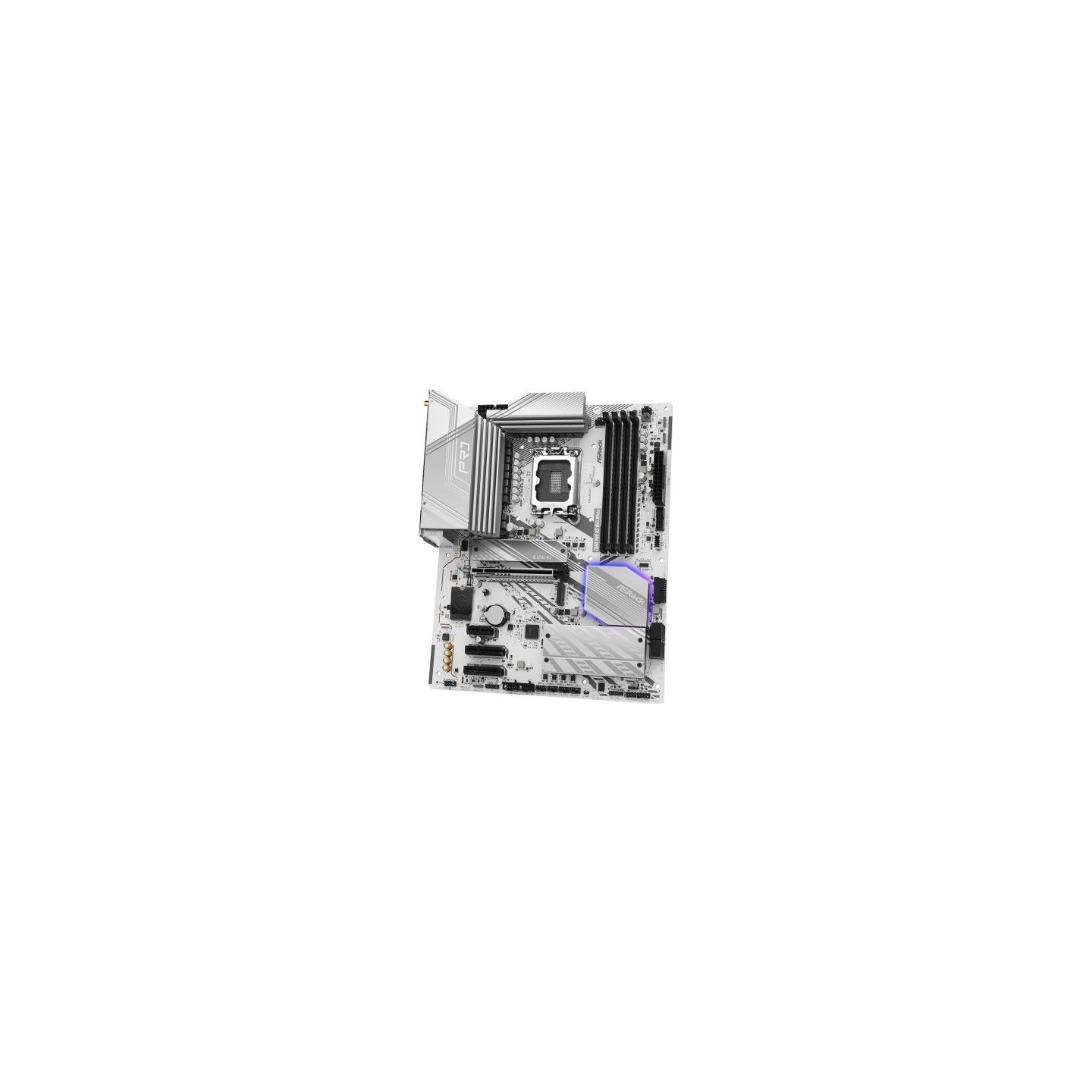

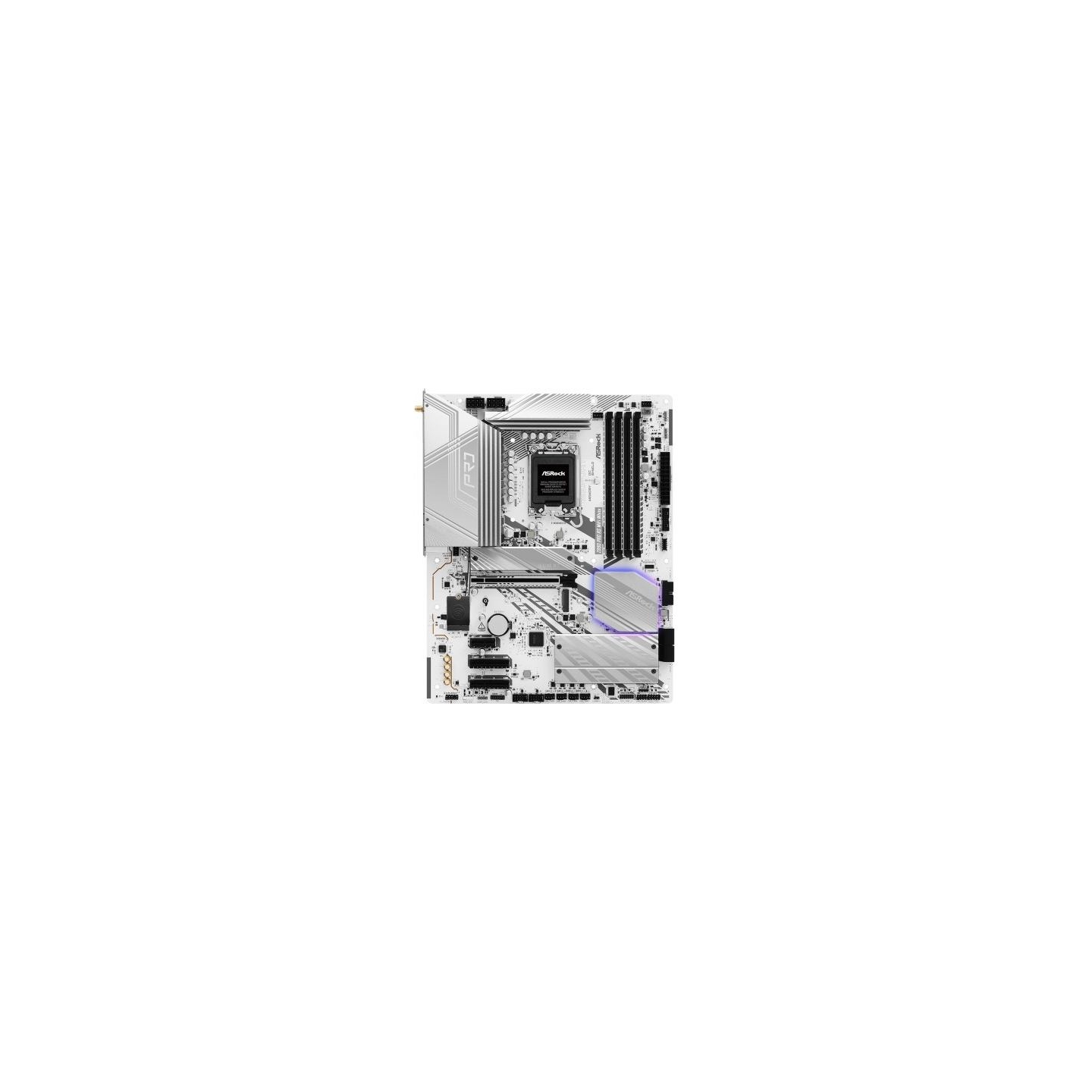

Asrock Motherboard Z890 PRO RS WIFI WHITE ATX
Asrock Motherboard Z890 PRO RS WIFI WHITE ATX

Asrock Motherboard Z890 PRO RS WIFI WHITE ATX

SKU Z890 PRO RS WIFI WHITE Category Mainboards
New
Price: €232.92
Tax included
Add to Cart
Share on
SKU
KBASRIIFZ890A08
Barcode
4710483947476
Model
Z890 PRO RS WIFI WHITE
CPU socket
LGA1851
Processor family
Intel Core Ultra
Integrated CPU
No
Chipset manufacturer
Intel
Chipset type
Intel Z890
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
5600 MHz
Memory bus frequency
4400 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
6533 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
8666 MHz
Max memory size
256
Expansion slots
1 x PCIe 4.0 x 1
Expansion slots
2 x PCIe 4.0 x 4
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
1 x M.2
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Intel Xe LPG Graphics Architecture  1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz  1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz  2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
Network interface
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
USB ports at back panel
9
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
2 x Thunderbolt 4
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x DisplayPort
External connectors
1 x Flash BIOS Button
External connectors
2 x SMA
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB C
Onboard connectors
1 x TPM header
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
5 x 4pin Chassis fan
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
3 x Addressable LED
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included
2 x SATA data cables 2 x ASRock WiFi 2.4/5/6 GHz antennas M.2 socket screw M.2 socket spacer
Supported operating systems
Windows 11
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other information
Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Designation
CE+WEEE
Category Mainboards Brand ASROCK EAN13 4710483947476 In stock 20 Items
