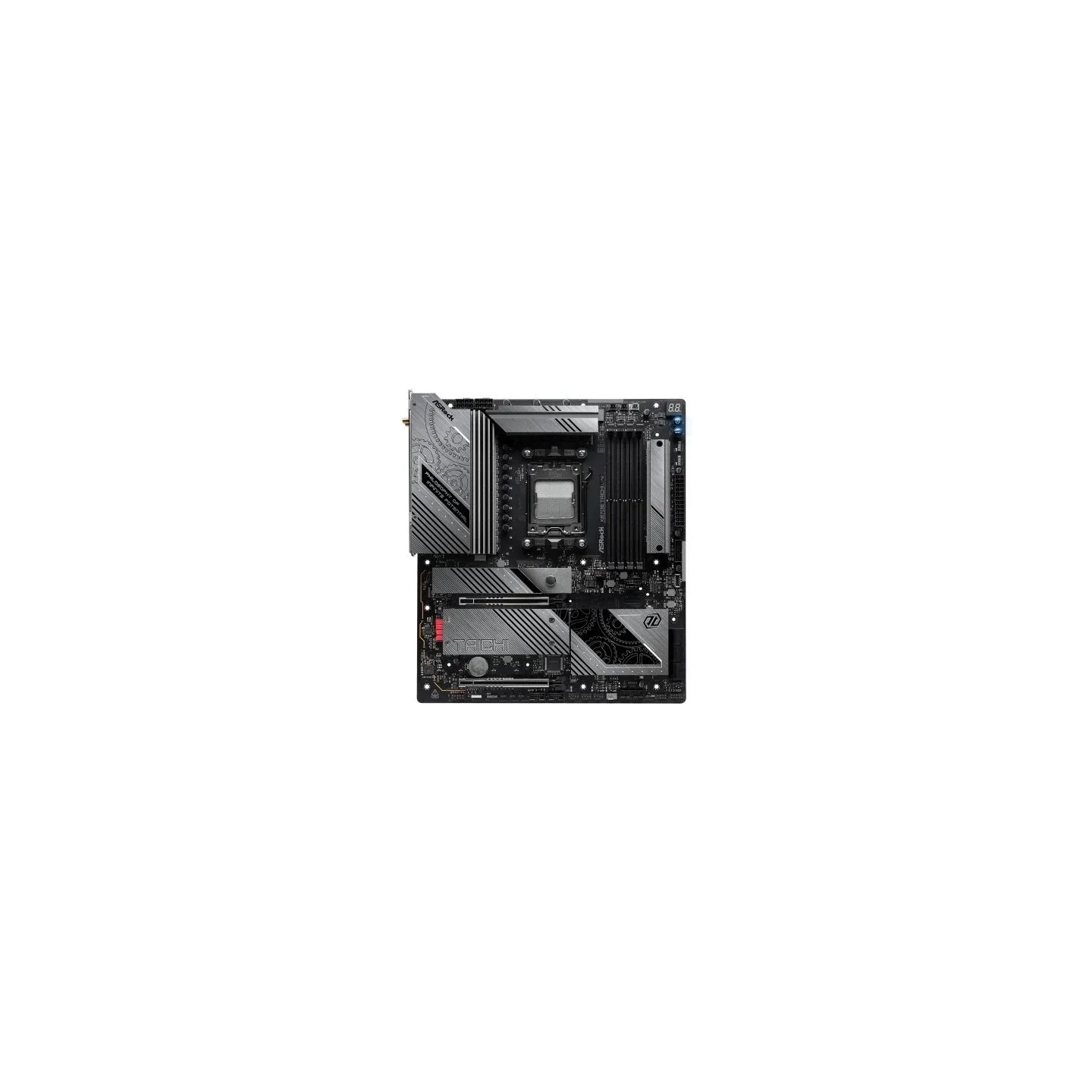

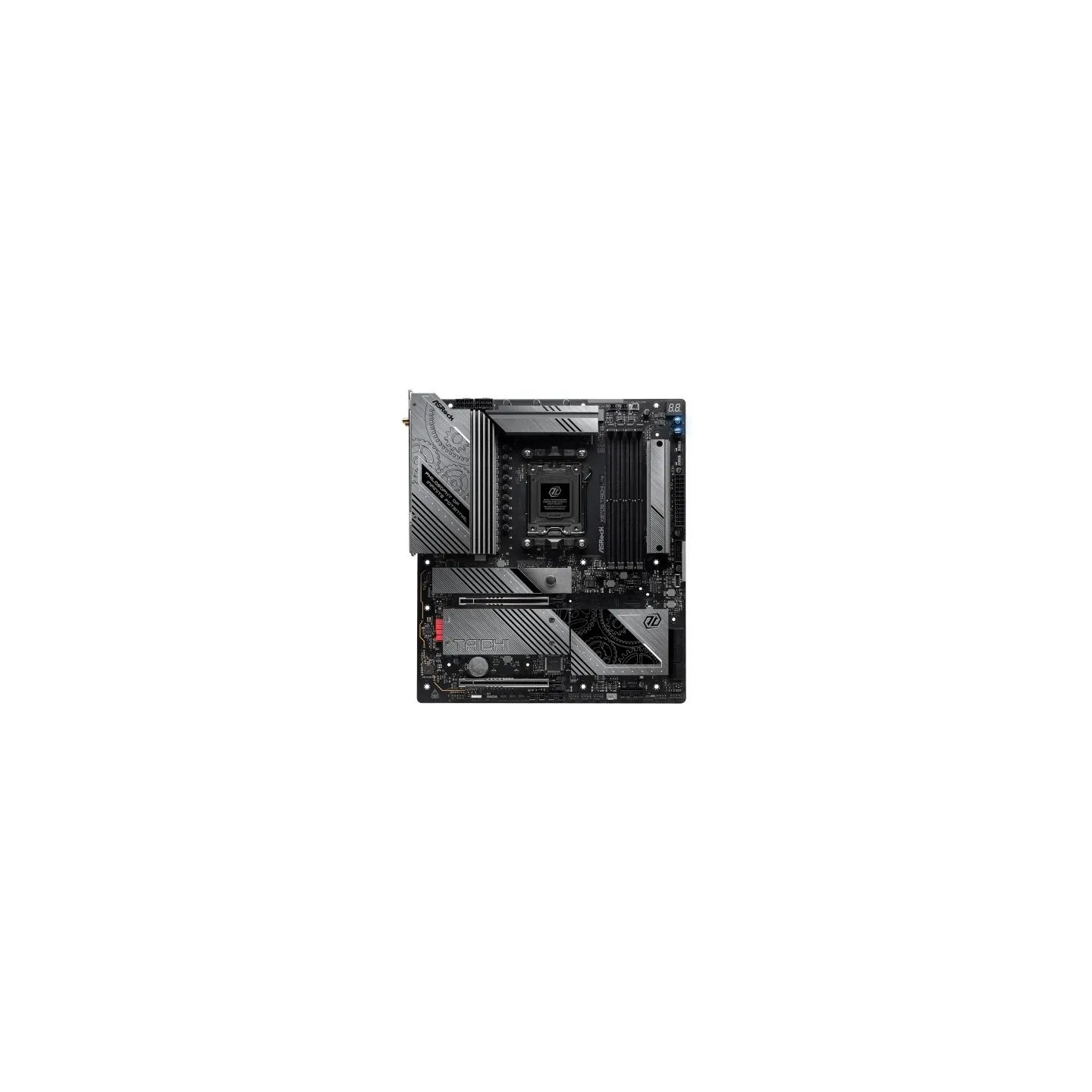

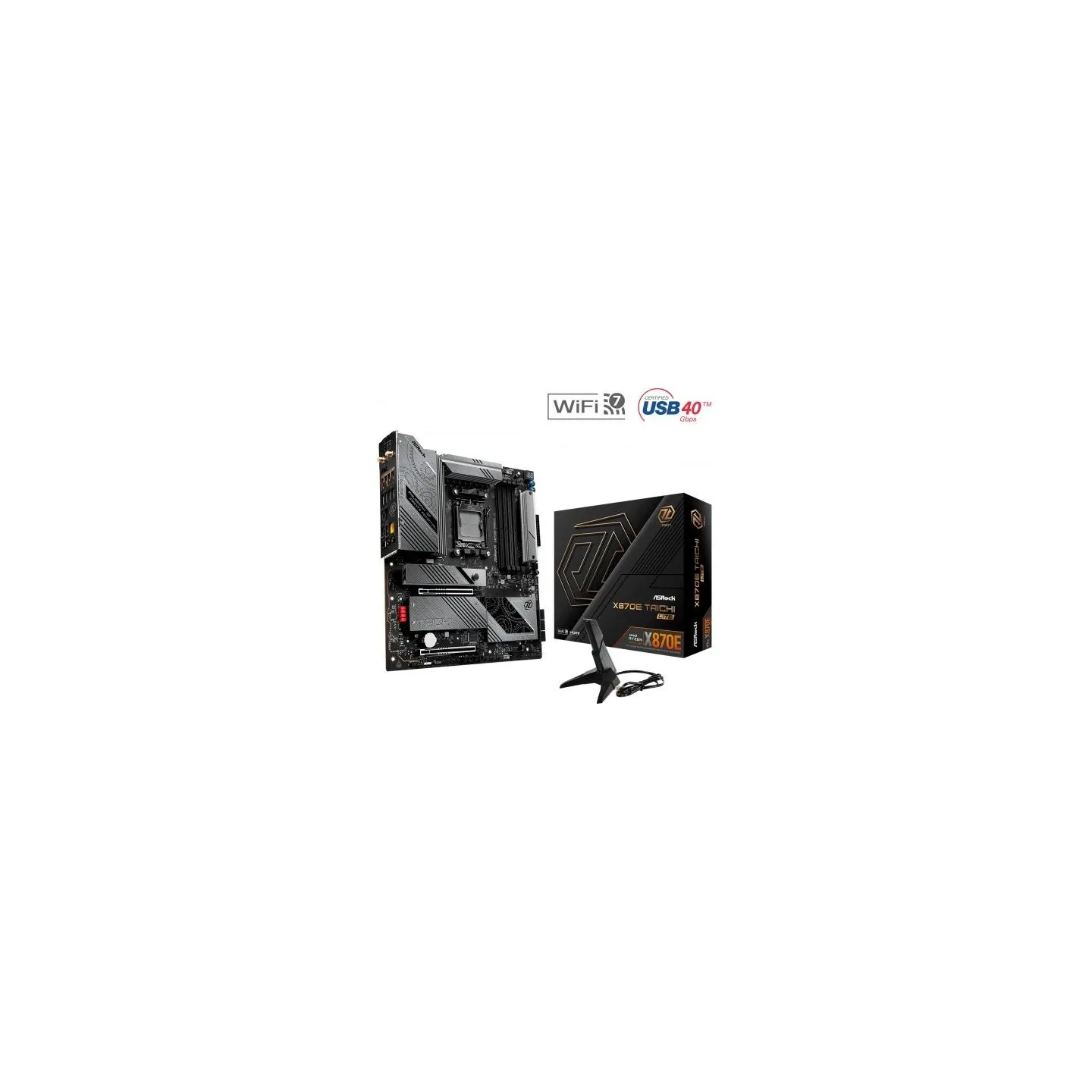

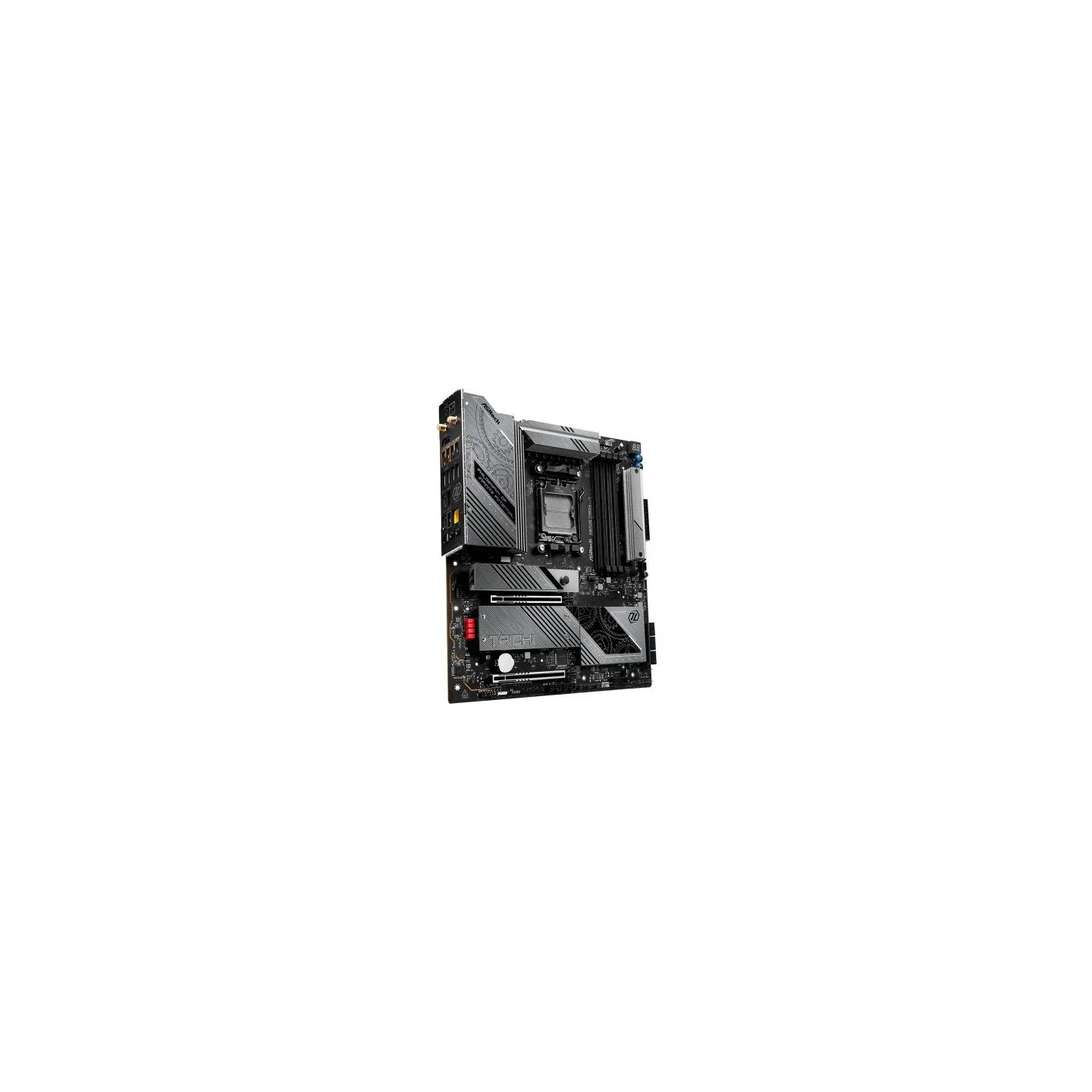

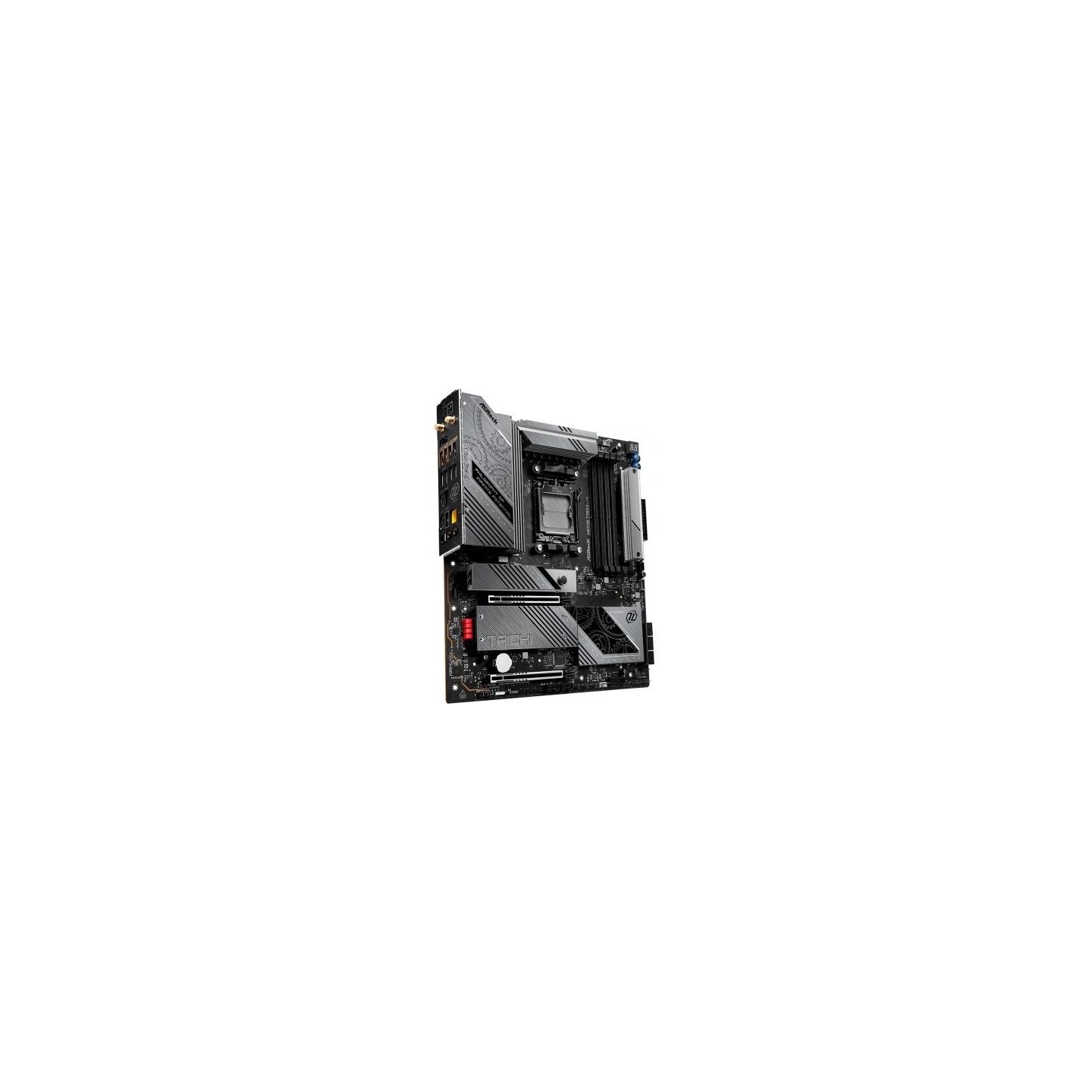

Asrock X870E TAICHI LITE AM5 4DDR5 M.2 EATX
Asrock X870E TAICHI LITE AM5 4DDR5 M.2 EATX

Asrock X870E TAICHI LITE AM5 4DDR5 M.2 EATX

SKU X870E TAICHI LITE Category Mainboards
Price: €406.25
Tax included
Last items in stock
Add to Cart
Share on
SKU
KBASRAA8X870E02
Barcode
4710483947445
Model
X870E TAICHI LITE
CPU socket
Socket AM5
Processor family
AMD Ryzen 5
Processor family
AMD Ryzen 3
Processor family
AMD Ryzen 7
Processor family
AMD Ryzen 9
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD X870E
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
8200 MHz
Max memory size
256
Expansion slots
2 x PCIe 5.0 x16
Expansion slots
1 x M.2
Max. number of SATA devices
6
RAID
Yes
Detailed data on disk/drive interfaces
CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 6 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disksM2_1 is the first priority for M.2 installation.M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Graphics
AMD RDNA Integrated Graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G, supports HDR, HDCP 2.3 and max resolution up to 4K 120Hz 2 x USB4, supports HDCP 2.3 and max resolution up to 8K 30Hz* *Only CPU built-in graphics can be displayed via USB4 ports.If you want to display on a Type-C monitor, use AM5 Ryzen 9000, 8000 and 7000 processors with built-in graphics.
Sound card
5.1 CH HD Audio with Content Protection (Realtek ALC4082 audio codec) WIMA audio capacitors (for rear outputs) ESS SABRE9219 DAC for rear audio (SNR 130 dB) Individual PCB layers for R/L audio channel Direct Drive technology on front headphone port (supports up to 600 ohm headsets) Nahimic Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Bluetooth
Network interface
5 Gigabit LAN 10/100/1000/2500/5000 Mbps Realtek RTL8126 Wireless LAN Wi-Fi 7 802.11be 2x2 module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4 GHz/5 GHz/6 GHz* frequency band Supports 160 MHz channel bandwidth with 6 GHz* frequency band 1 antenna supports 2 (transmit) x 2 (receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
6
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x USB4 Type-C
External connectors
2 x SMA
External connectors
5 x USB 3.1
External connectors
3 x USB 3.0
External connectors
1 x S/PDIF
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x RJ-45
External connectors
1 x Przycisk Clear CMOS
External connectors
2 x USB 2.0
External connectors
1 x USB BIOS Flashback button
Onboard connectors
1 x Reset button
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
1 x Debug card header
Onboard connectors
1 x Power button
Onboard connectors
1 x System panel header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
3 x Addressable LED
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
E-ATX
Dimensions
30.5 cm x 26.7 cm
Accessories included
4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other information
8 Layer PCB 2oz Copper PCB
Designation
CE+WEEE
Category Mainboards Brand ASROCK EAN13 4710483947445 In stock 3 Items
