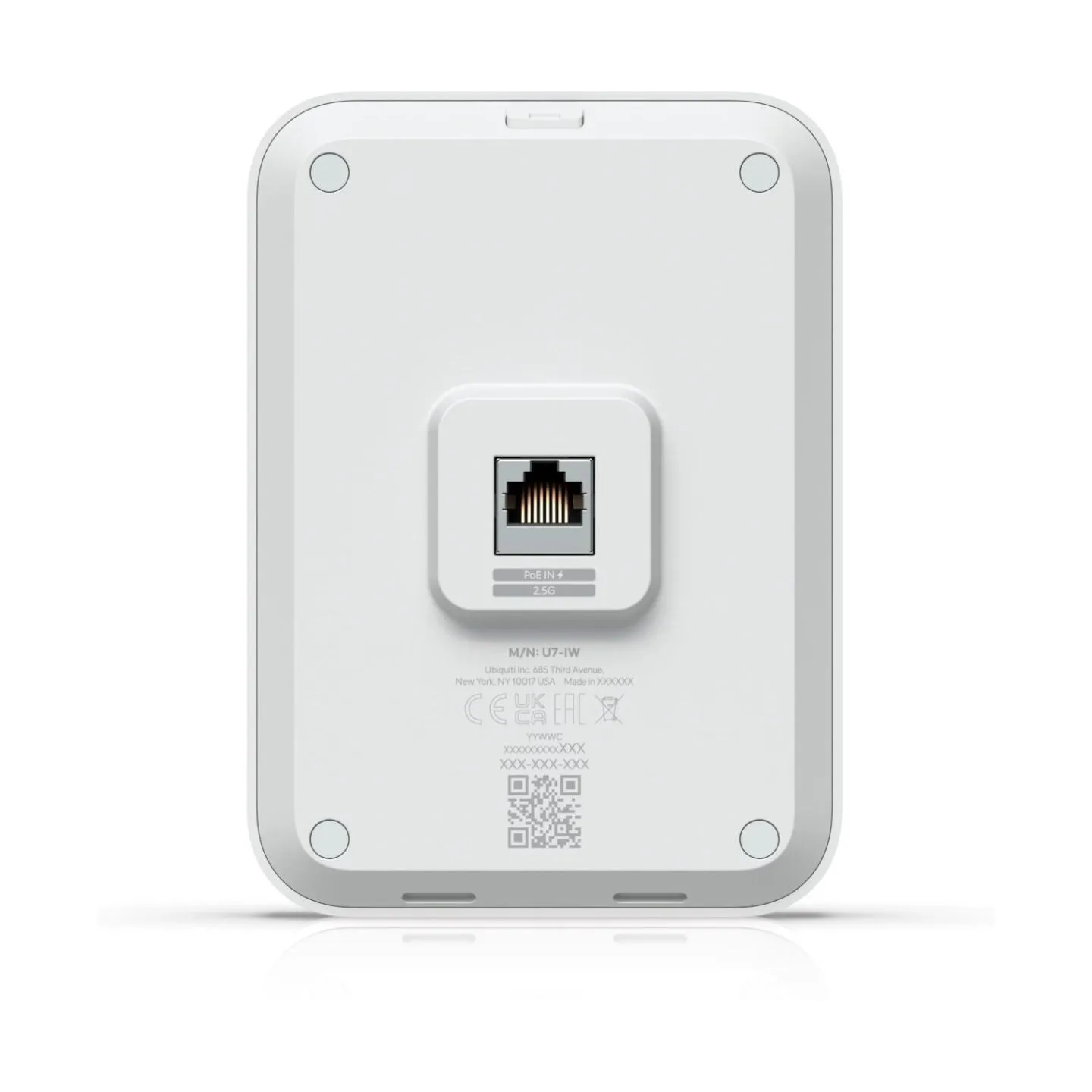

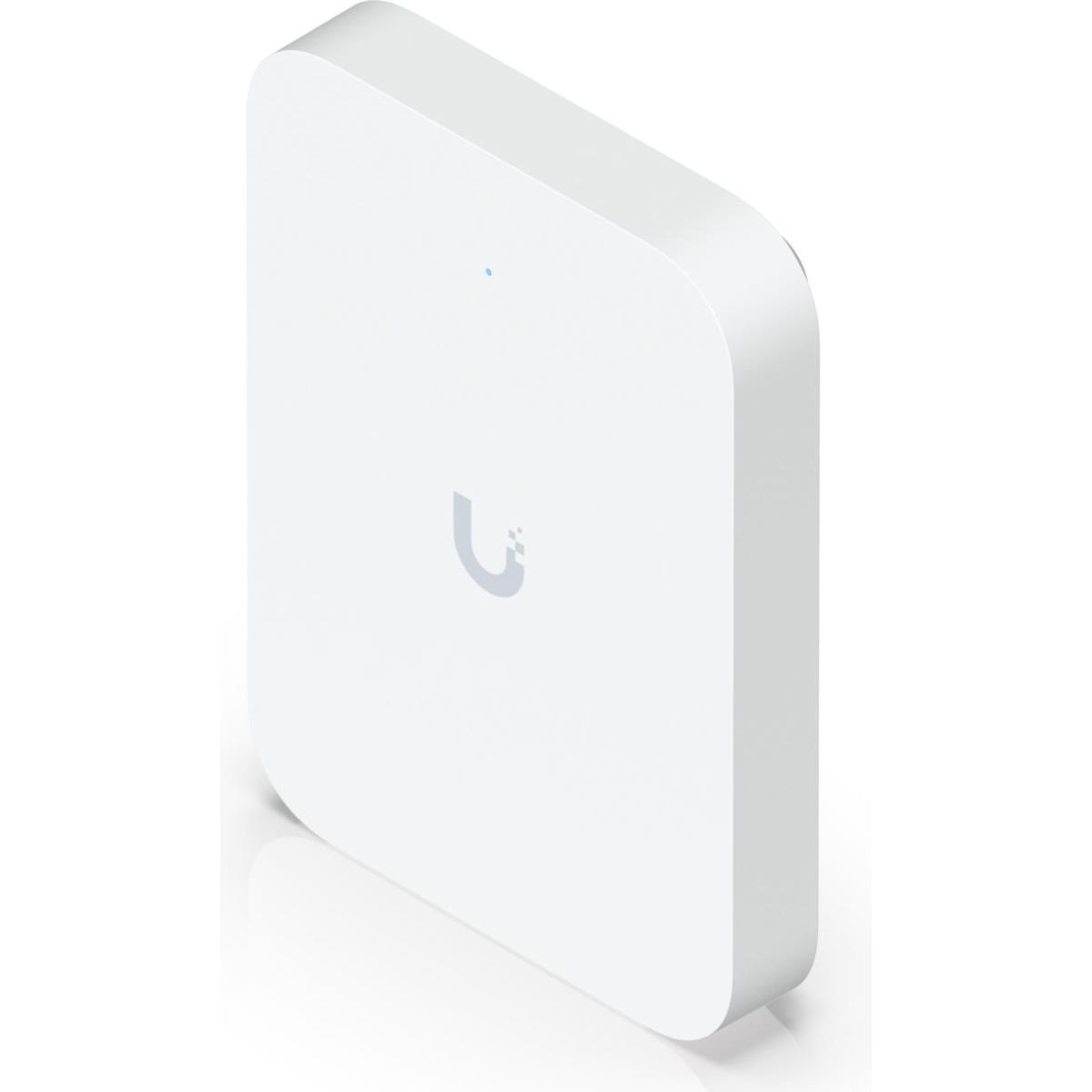

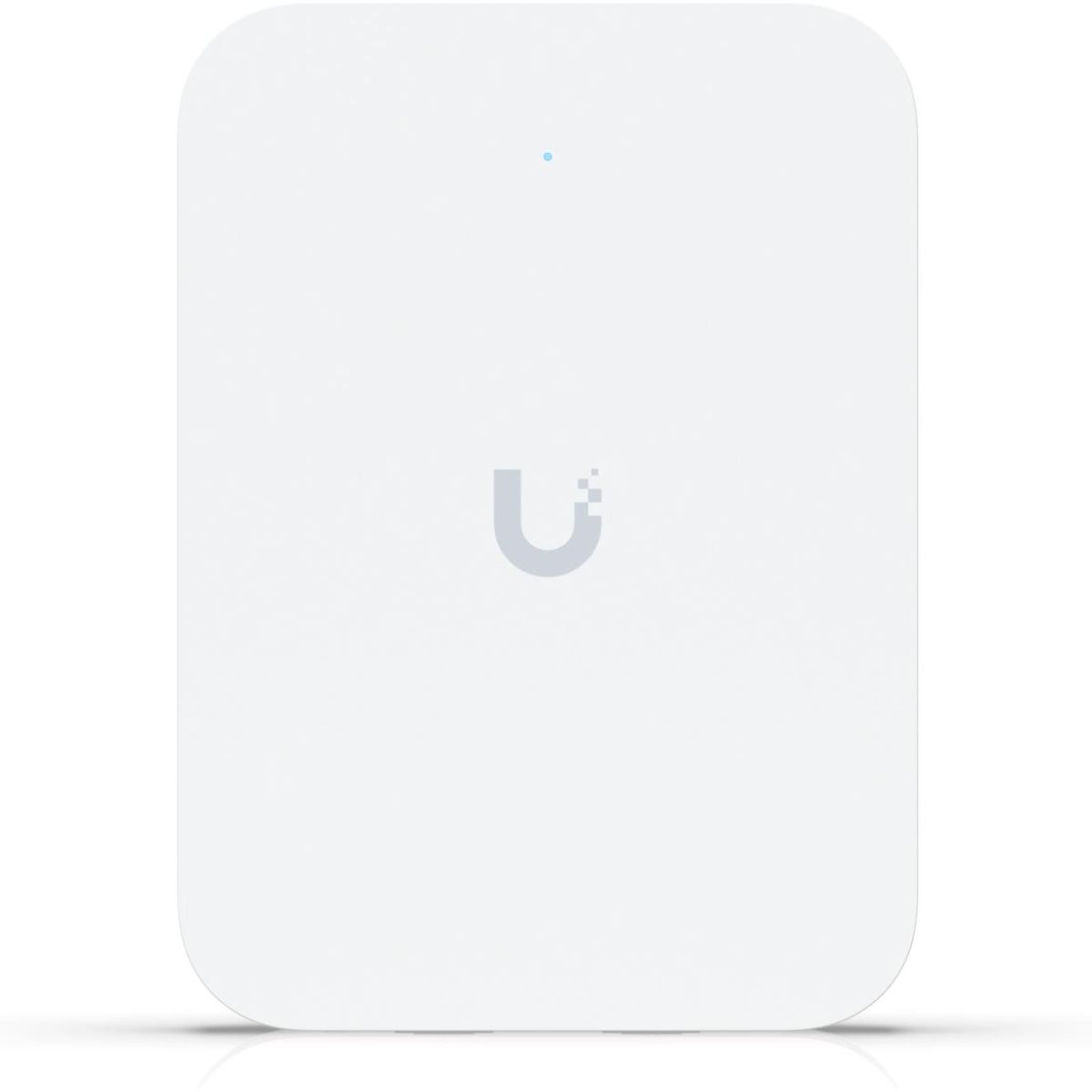

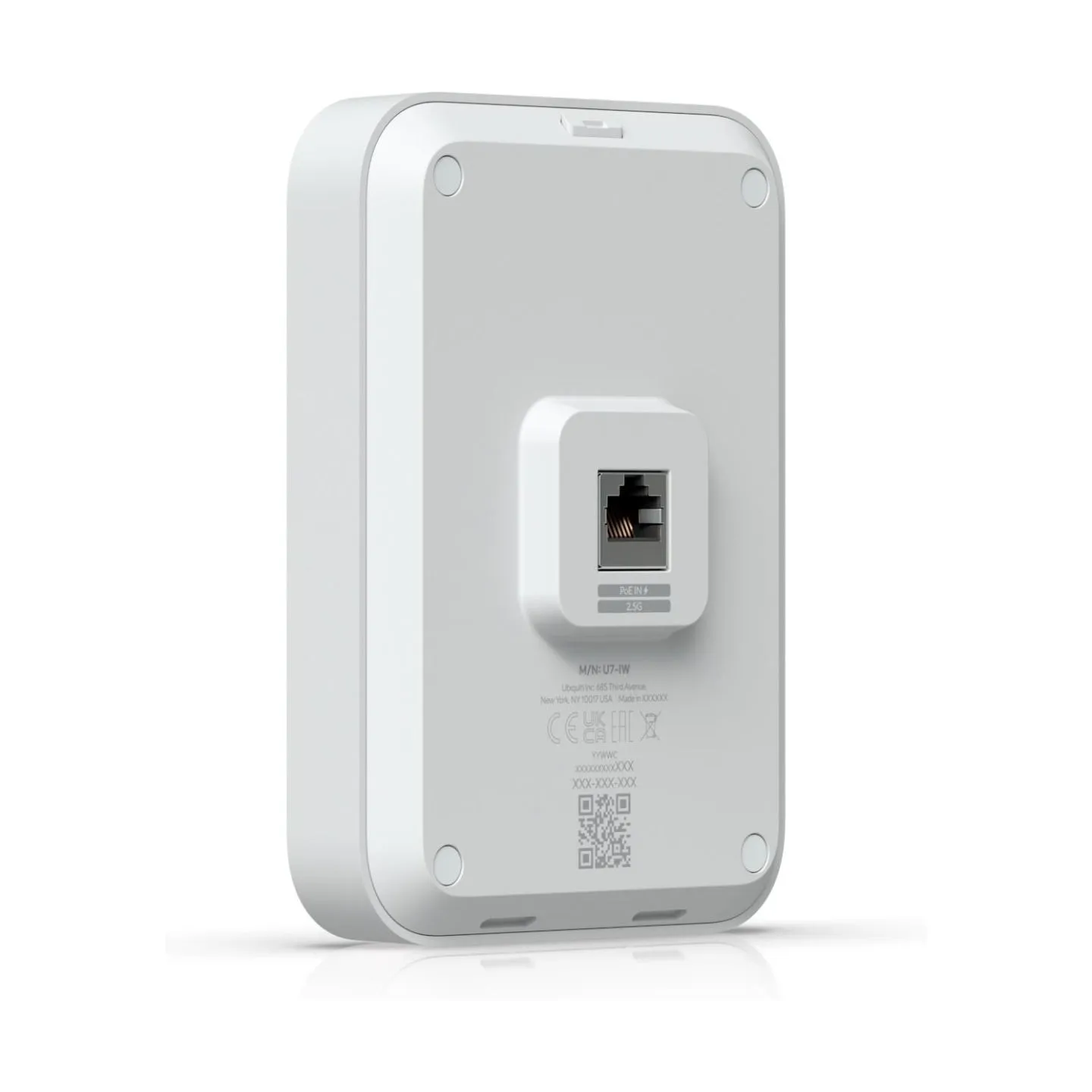

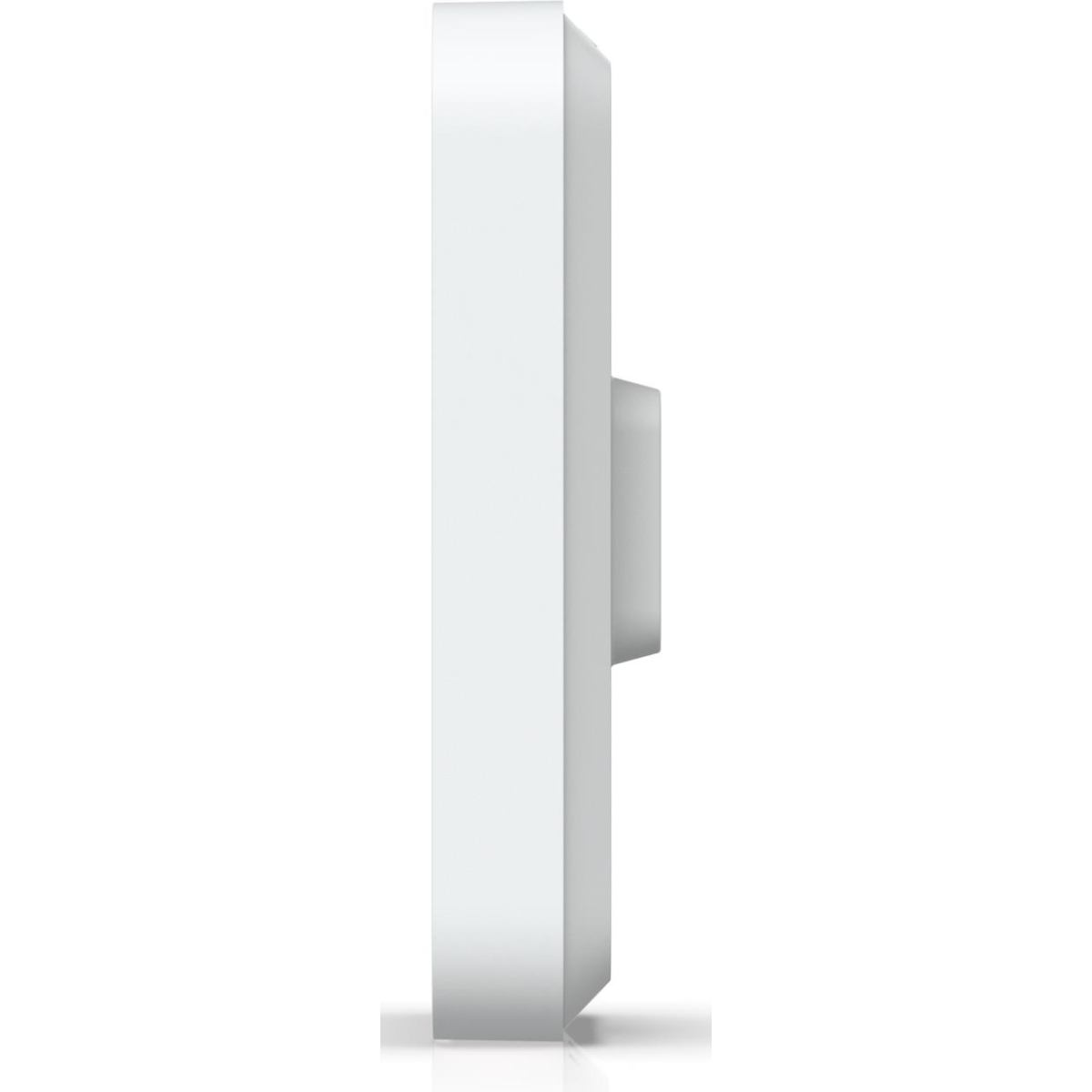

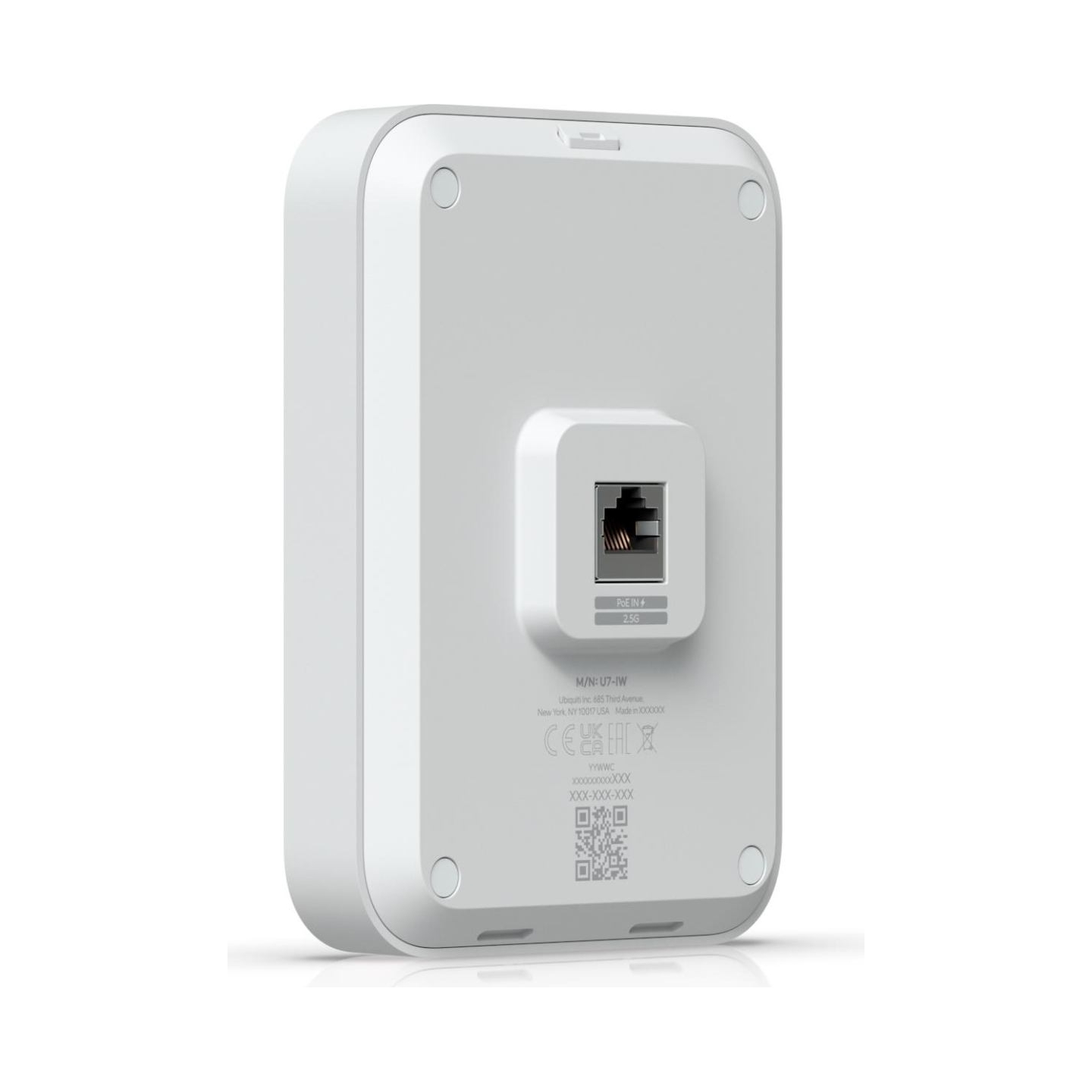

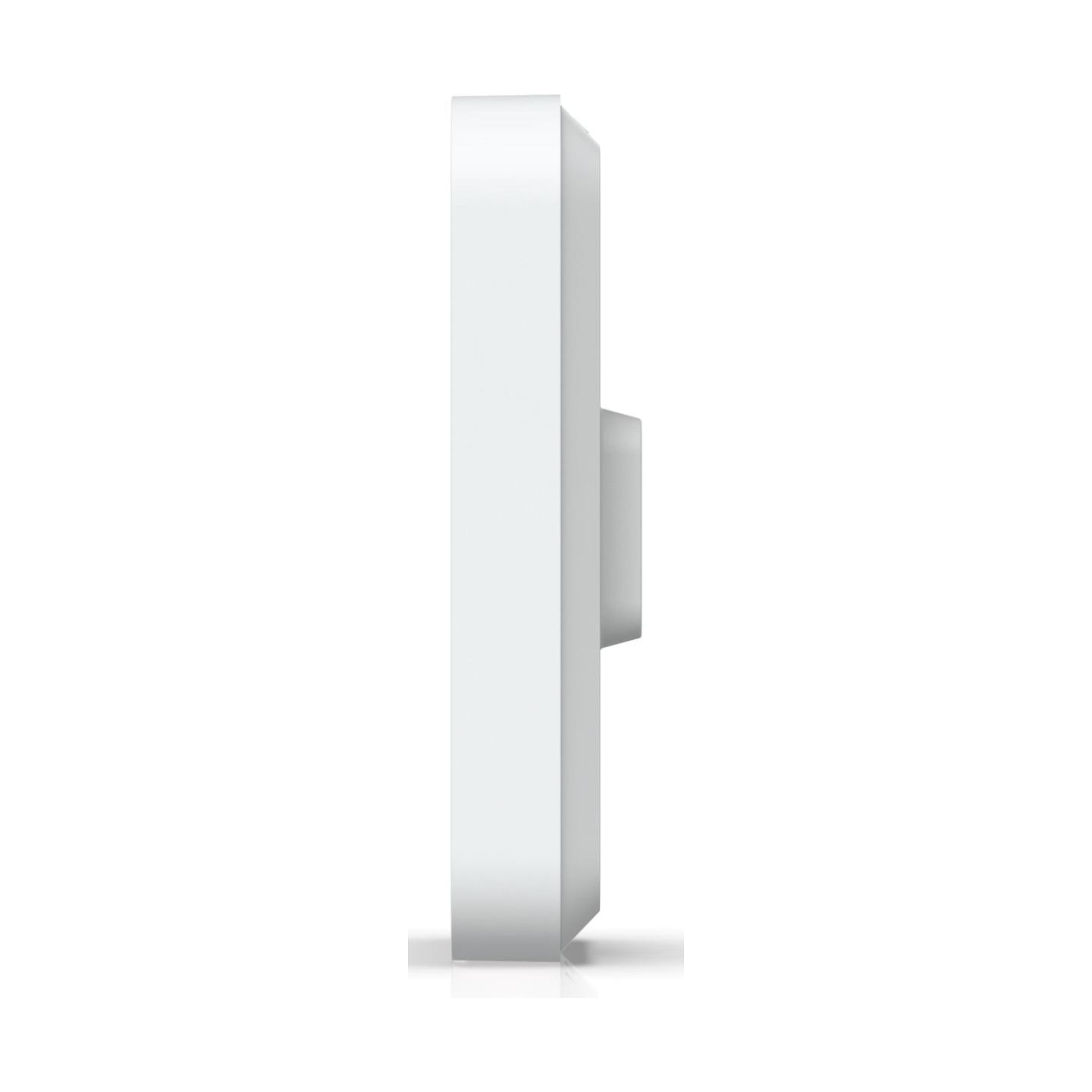

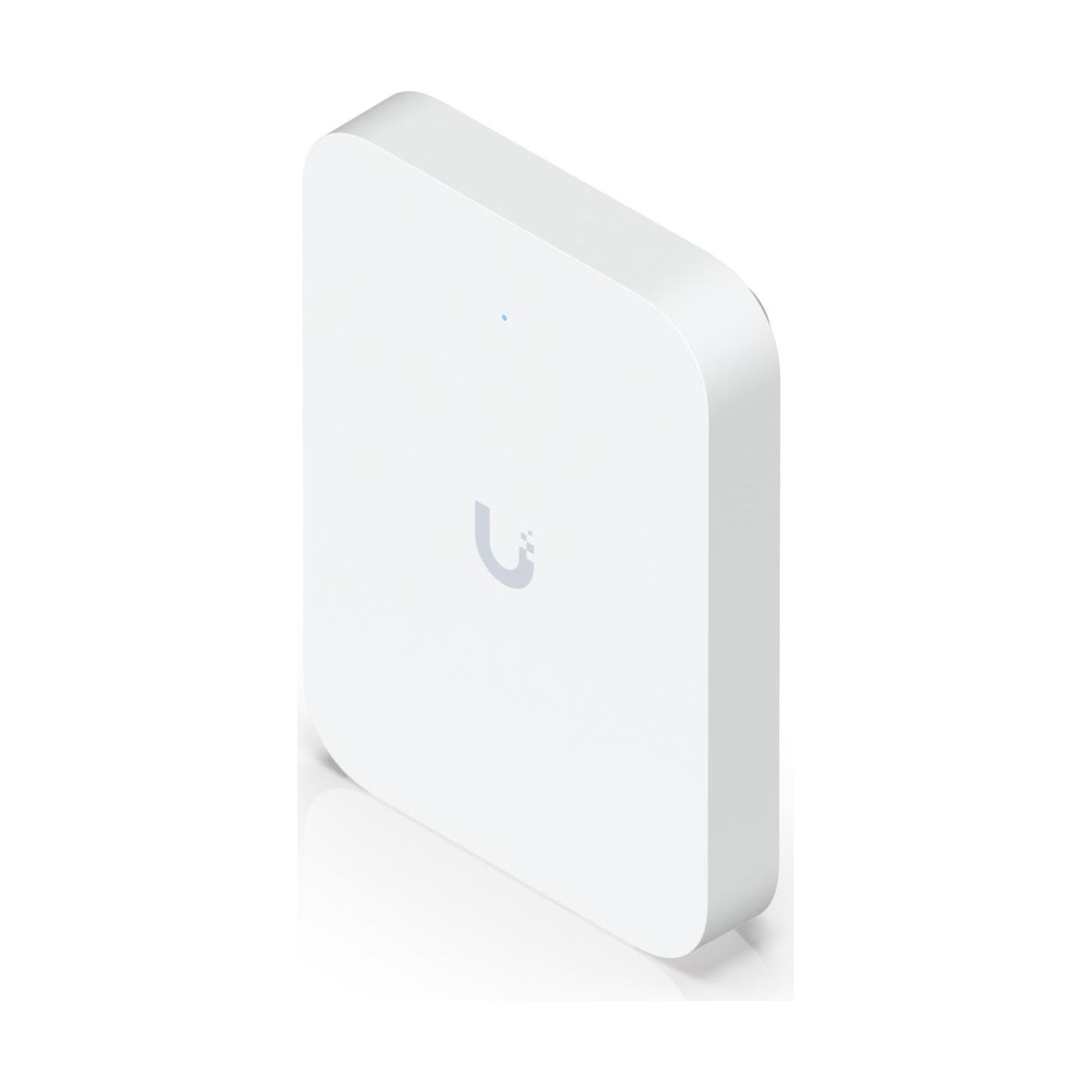

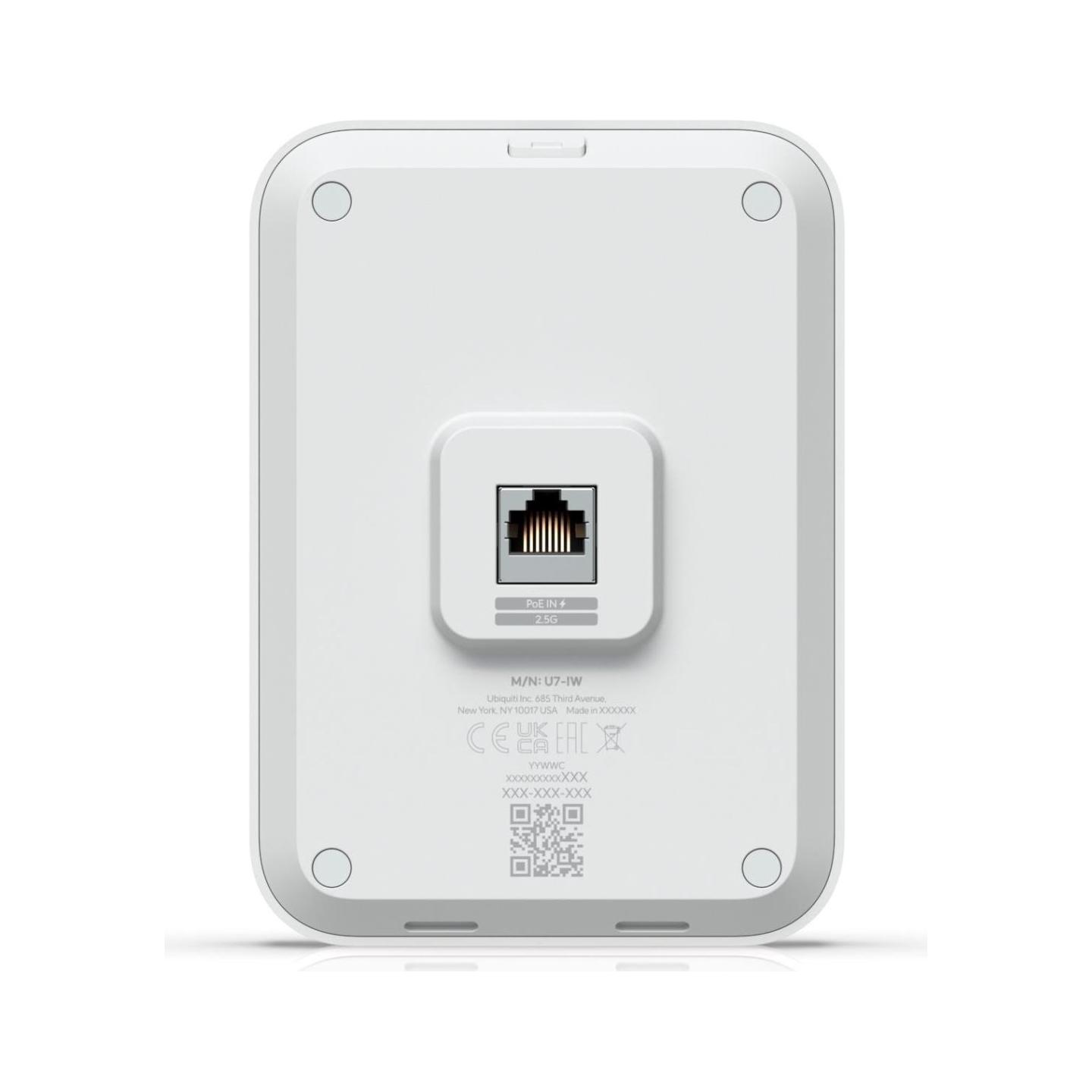

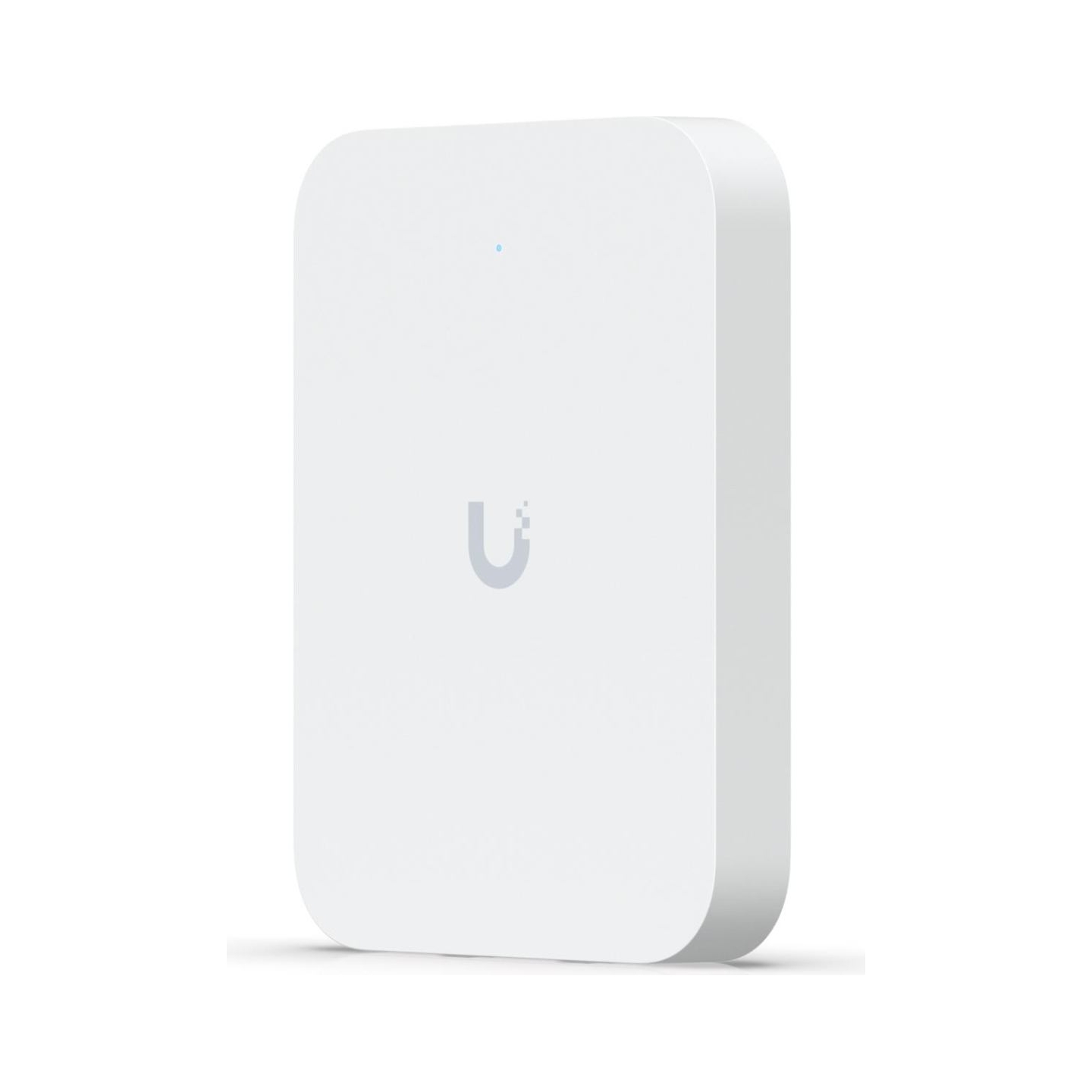

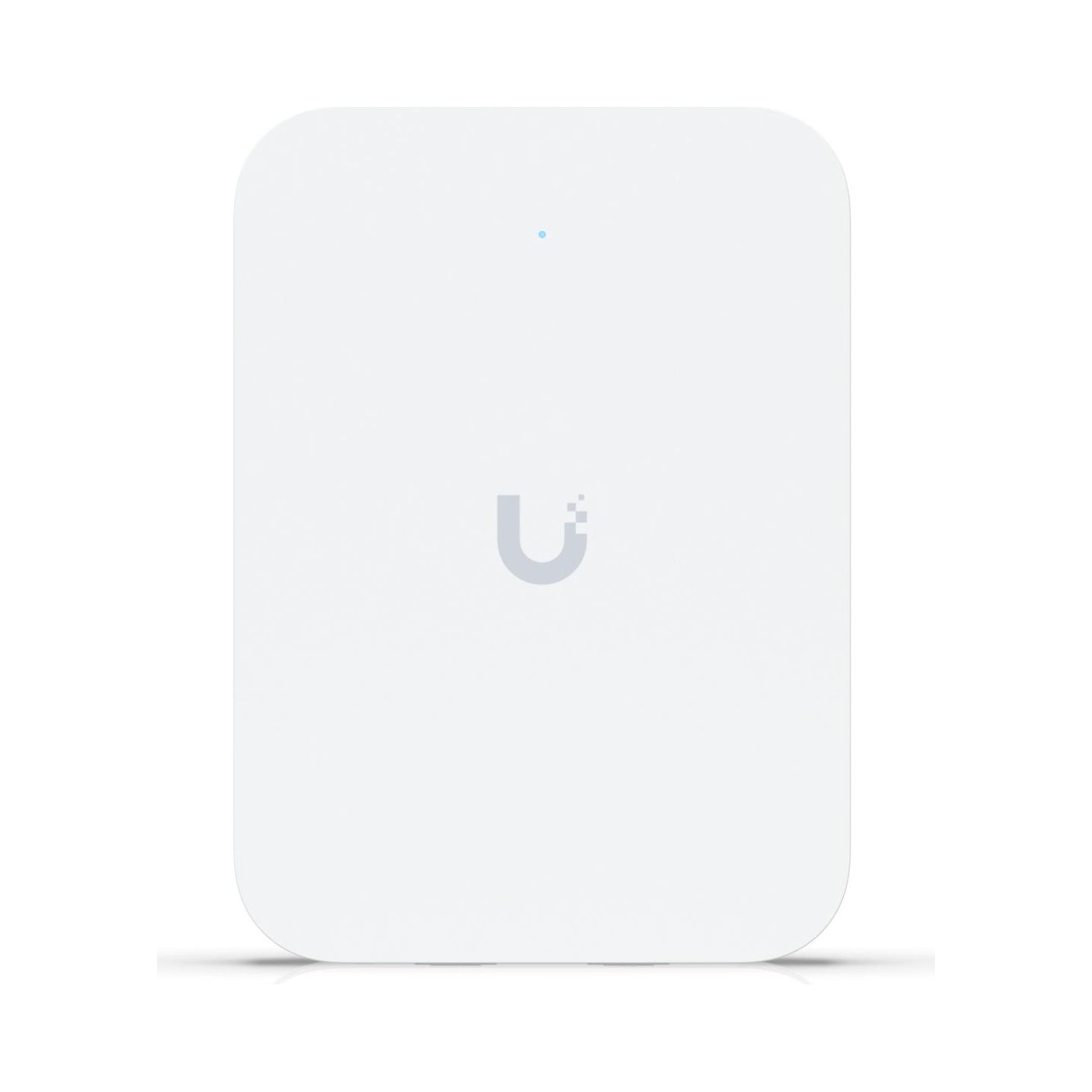

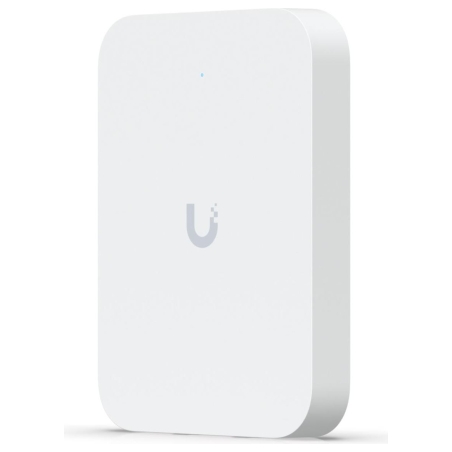

Ubiquiti U7-IW

Name: Ubiquiti U7-IW
Brand: UBIQUITI
SKU: U7-IW
Price: 170.74 EUR
Availability: InStock

SKU U7-IW Category Wireless networking

€170.74

Tax included

Last items in stock

Share on

U7 In-Wall
Frequency band 2.4 - 5 GHz
Coverage area 115 m²
Number of users 200 user(s)
Security algorithms PPSK

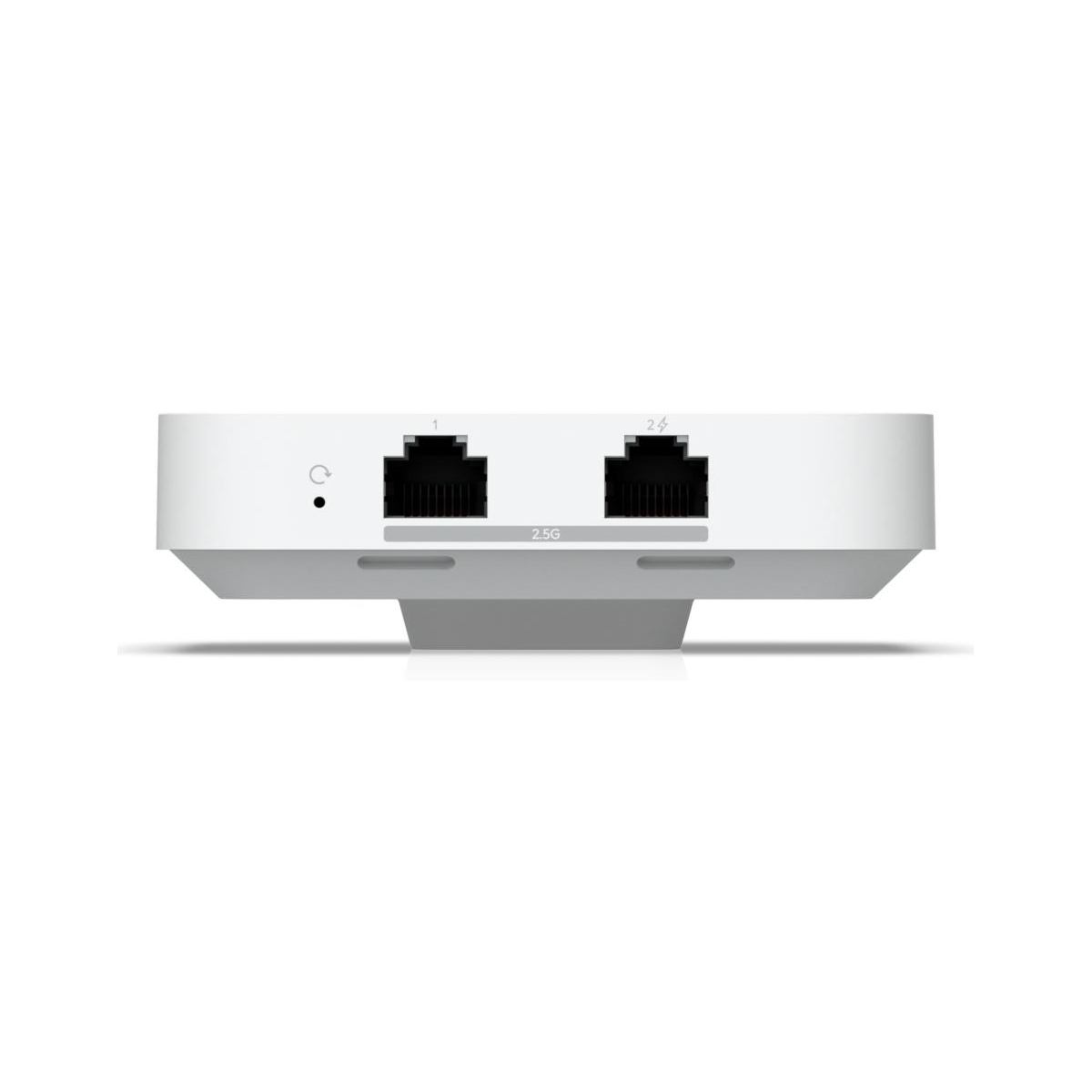

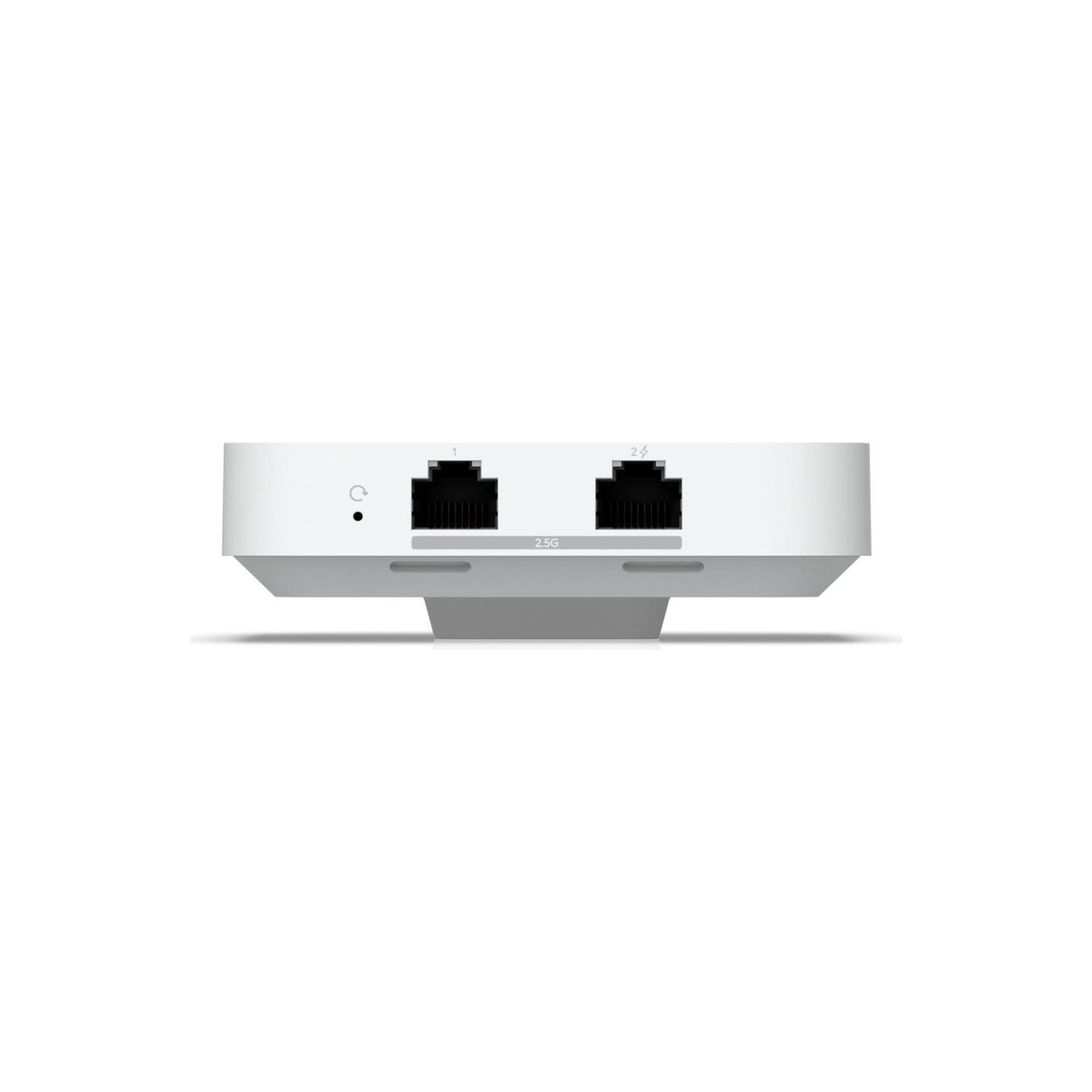

3xEthernet LAN (RJ-45) ports
Power over Ethernet (PoE) Yes
Placement Wall
Colour White
Housing material Aluminium,Polycarbonate (PC)
Antenna type Internal
Weight 400 g
Operating temperature (T-T) -30 - 40 °C

Manufacturer Website:
https://eu.store.ui.com/eu/en/category/wifi-wall/products/u7-iw

Category Code: WAP
CnCode: 85176200
Unit Box Height: 0.07
Unit Box Length: 0.2
Unit Box Width: 0.15
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Band steering: Yes
Coverage area: 115 m²
Ethernet LAN data rates: 2500 Mbit/s
Fast roaming: Yes
Fit AP mode features: Hotspot 2.0
Frequency band: 2.4 - 5 GHz
Maximum data transfer rate: 4300 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Maximum Tx power (2.4 GHz): 23 dBmW
Maximum Tx power (5 GHz): 24 dBmW
MIMO: Yes
MIMO type: Multi User MIMO
Networking standards: IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v
Number of users: 200 user(s)
Spatial streams: 4
VLAN support: Yes
Wireless meshing: Yes
Security algorithms: PPSK
Access point management: Wi-Fi schedule
Ethernet LAN (RJ-45) ports: 3
DC voltage range: 42.5 - 57 V
Power consumption (max): 13 W
Power over Ethernet (PoE): Yes
Housing material: Aluminium,Polycarbonate (PC)
LED indicators: Status
Placement: Wall
Product colour: White
Reset button: Yes
Antenna gain level (max): 8 dBi
Antenna type: Internal
Antennas quantity: 4
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Depth: 30.2 mm
Height: 137 mm
Weight: 400 g
Width: 98.7 mm

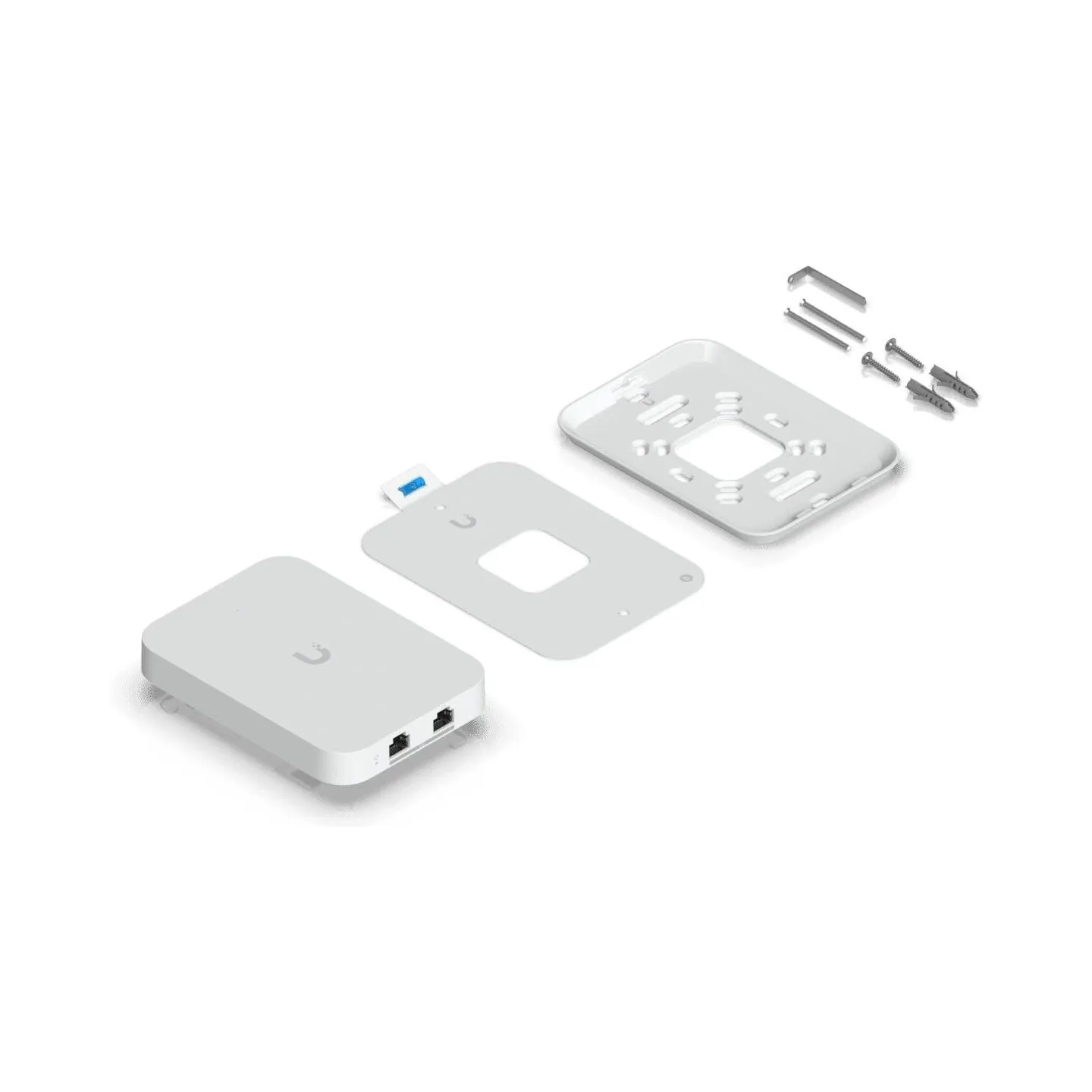

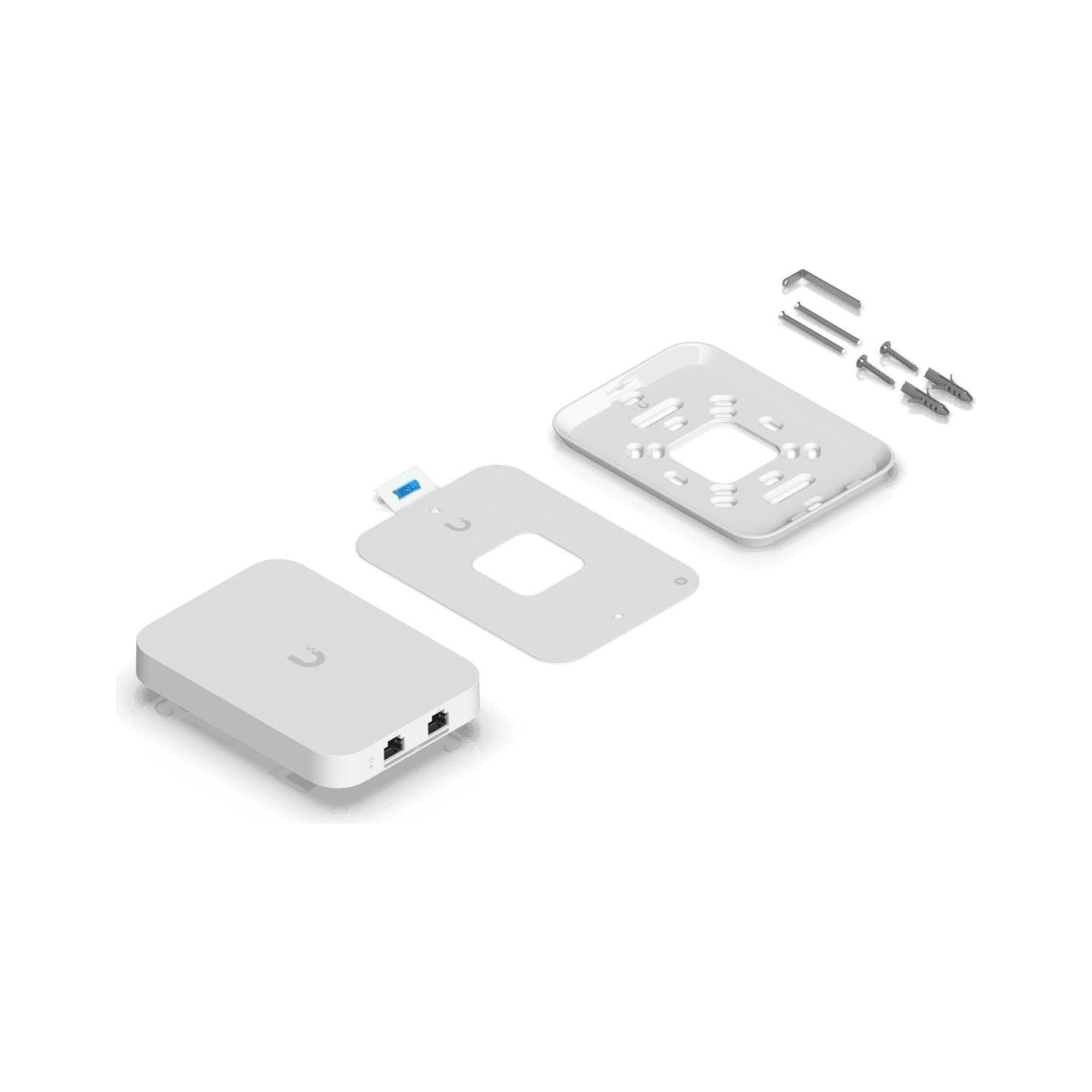

Mounting kit: Yes
Quantity per pack: 1 pc(s)
Operating relative humidity (H-H): 5 - 95 %
Operating temperature (T-T): -30 - 40 °C
Model: U7-IW
Model name: U7 In-Wall
Units per Shipping Box: 12
Unit Calculated Volume: 0.003699 cubm
Unit Calculated Weight: 0.667 kg

Category Wireless networking Brand UBIQUITI EAN13 810084698754 In stock 3 Items
