Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact size
- 100% Japanese capacitors
- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection
Manufacturer Website:
https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-rev-20#kf
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.21
- Unit Box Length
- 0.12
- Unit Box Width
- 0.255
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+12V)
- 1000 W
- Combined power (+3.3V)
- 125 W
- Combined power (+5V)
- 125 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 90 %
- Hold time
- 16 ms
- Input current
- 15 - 6.5 A
- Max output current (+12V)
- 83.3 A
- Max output current (+3.3V)
- 25 A
- Max output current (+5V)
- 25 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Total power
- 1000 W

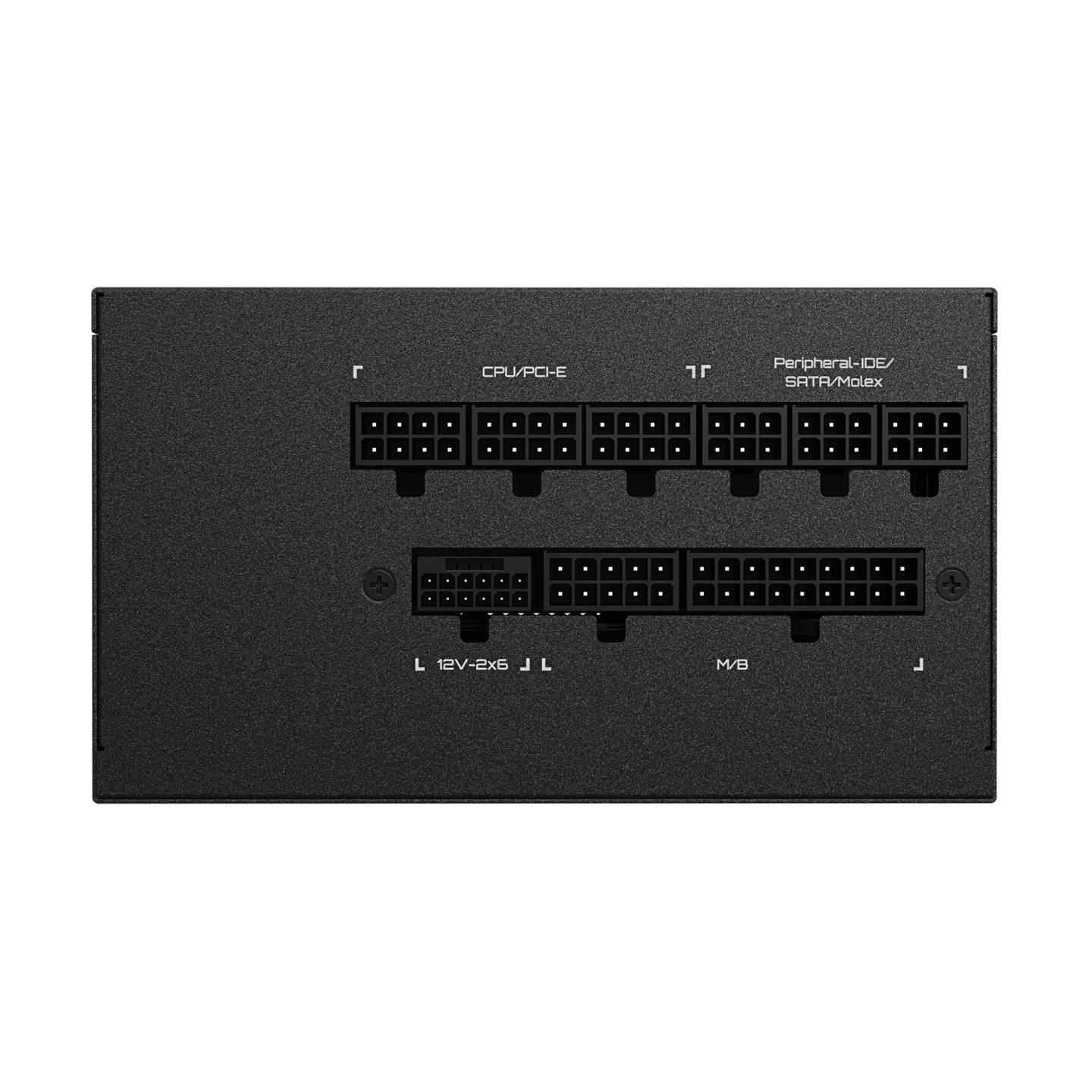

- Cabling type
- Fully-Modular
- CPU power cable length
- 600 mm
- CPU power connector (4+4 pin)
- Yes
- Floppy drive power connector
- 1
- Motherboard power cable length
- 610 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of EPS connectors
- 2
- Number of SATA power connectors
- 8
- PCI Express connector
- Yes
- PCI Express power cable length
- 700 mm
- PCI Express power connectors (16-pin)
- 1
- PCI Express power connectors (6+2 pin)
- 4
- Peripheral (Molex) power cable length
- 120/150/500 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- SATA power cable length
- 150/600 mm
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- HYB
- Mean time between failures (MTBF)
- 100000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
- Depth
- 140 mm
- Height
- 86 mm
- Weight
- 2480 g
- Width
- 150 mm
- Package depth
- 269 mm
- Package height
- 211 mm
- Package type
- Box
- Package weight
- 2640 g
- Package width
- 618 mm
- Warranty period
- 10 year(s)
- Model name
- GP-UD1000GM
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.007812 cubm
- Unit Calculated Weight
- 2.7 kg
