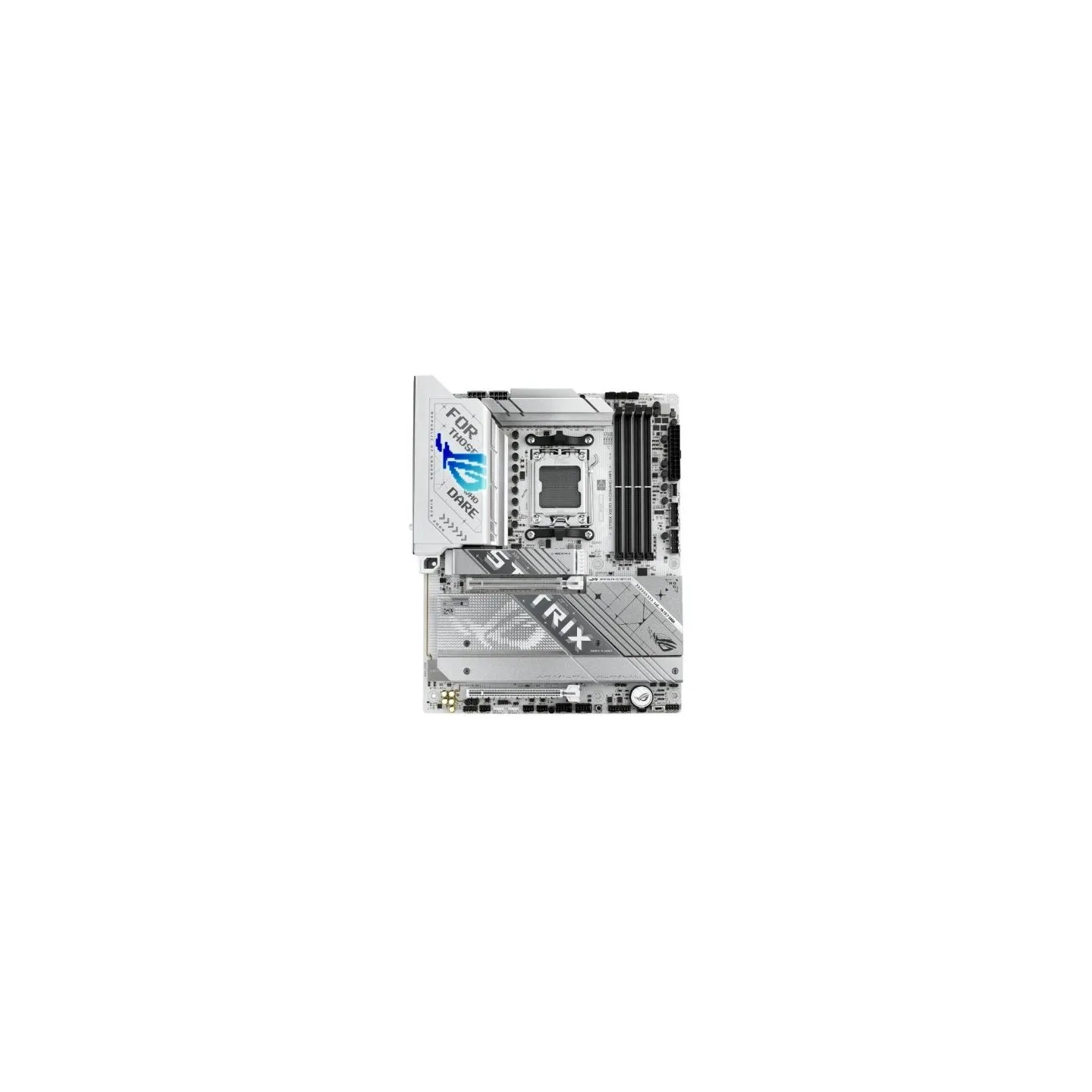

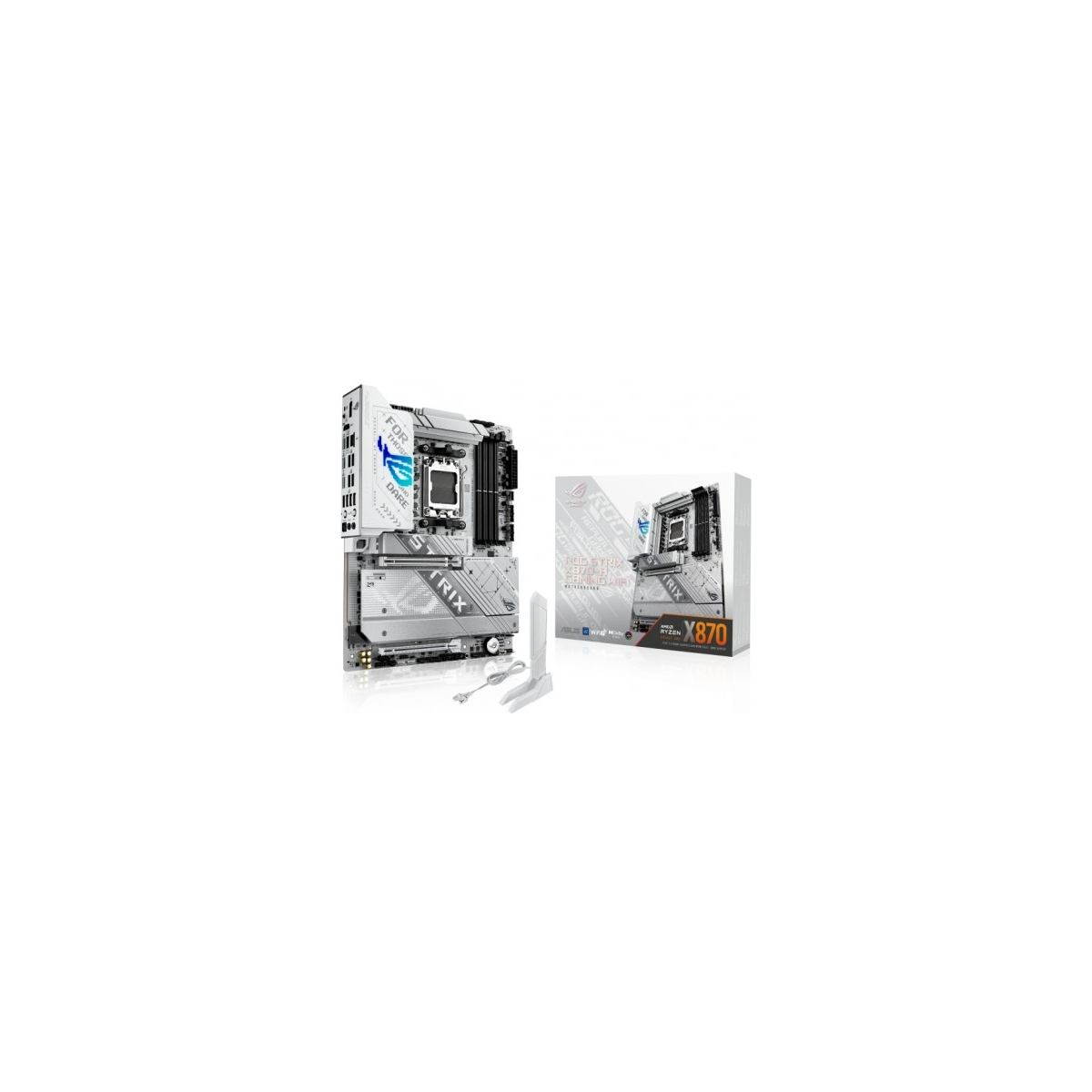

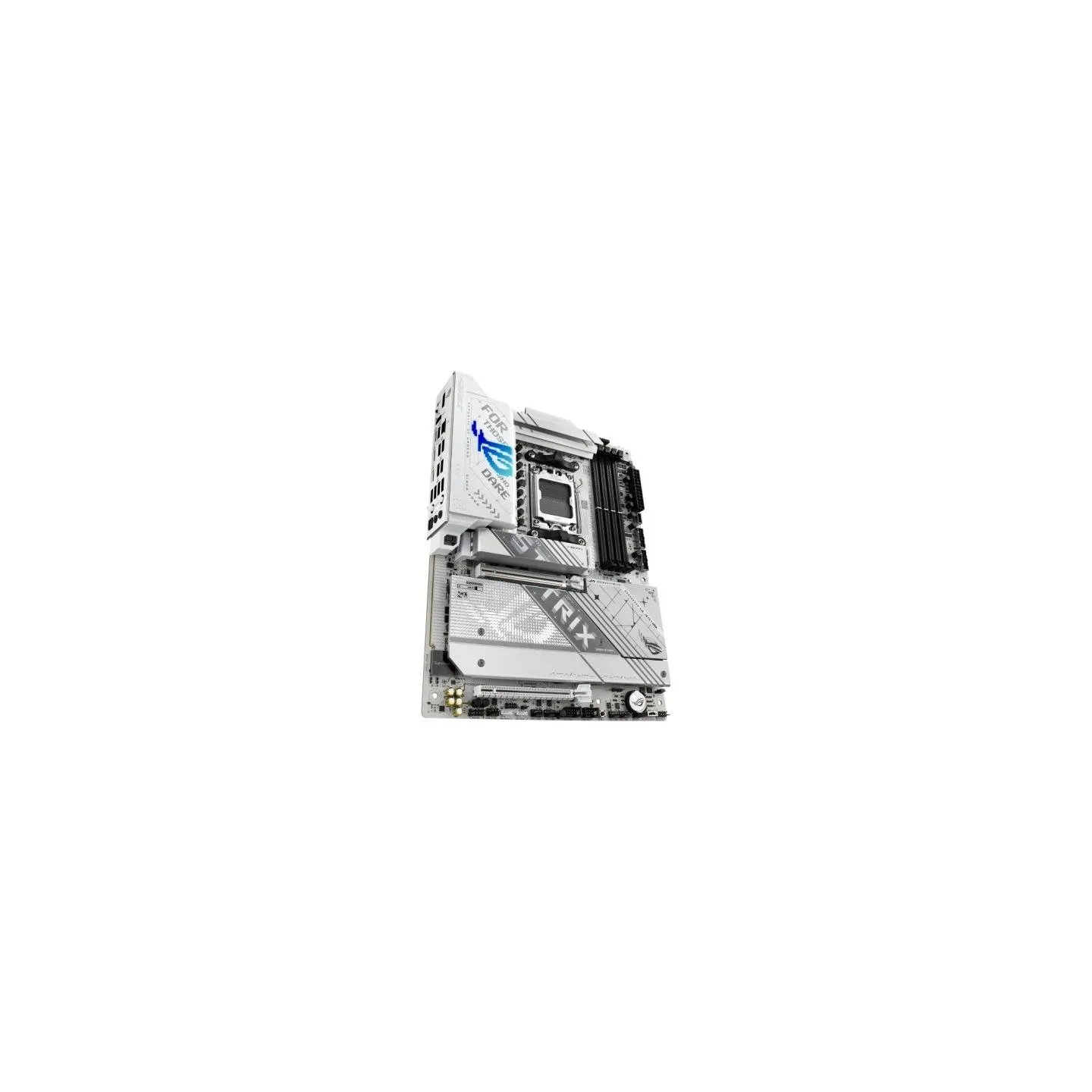

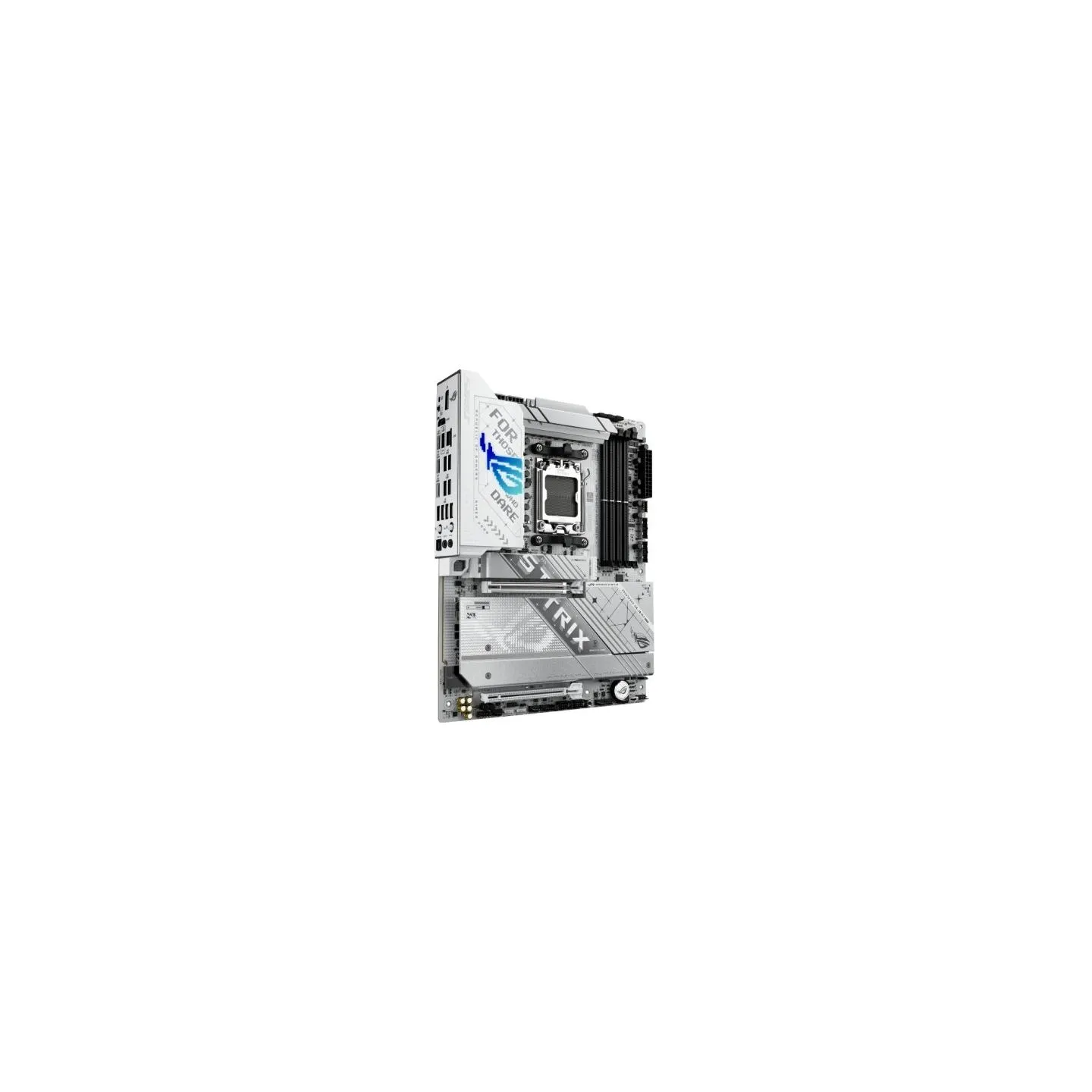

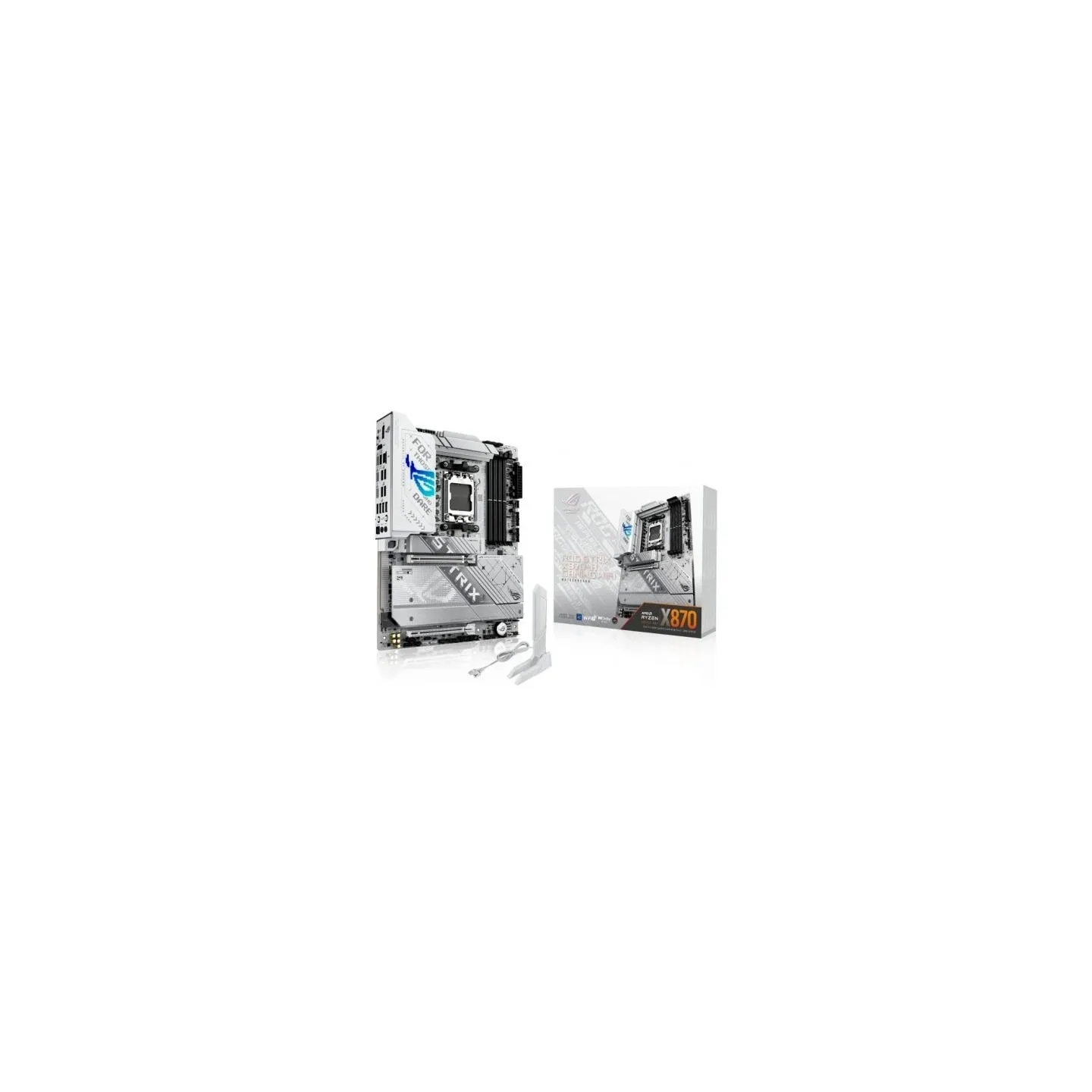

Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB
Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB

Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB

SKU ROG STRIX X870-A GAMING WIFI Category Mainboards
New
Price: €467.53
Tax included
Last items in stock
Add to Cart
Share on
SKU
KBASUAA8X870A04
Barcode
4711387737859
Model
ROG STRIX X870-A GAMING WIFI
CPU socket
Socket AM5
Processor family
AMD Ryzen 5
Processor family
AMD Ryzen 7
Processor family
AMD Ryzen 9
Processor family
AMD Ryzen 3
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD X870
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
9000 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
8000 MHz
Max memory size
192
Expansion slots
4 x M.2
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
2 x PCIe 4.0 x 16
Max. number of SATA devices
2
RAID
Yes
Detailed data on disk/drive interfaces
Supports 4 x M.2 and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors* M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors** M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (not supported)**** AMD X870 Chipset M.2_3 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)*** M.2_4 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 function is only supported by AMD Ryzen 9000 series processors. ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied by SSD, PCIEX16(G5) will only work in x8 mode. *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied by SSD, PCIEX16(G4) will be disabled. **** M.2_2 will be disabled when using AMD Ryzen 8000 series desktop processors.
Graphics
1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display output
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP  - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7*  2x2 Wi-Fi 7 (802.11be)  Supports 2.4/5/6GHz frequency band**  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.  Bluetooth v5.4
USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
7
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x USB4 Type-C
External connectors
5 x USB 3.1
External connectors
1 x HDMI
External connectors
1 x DisplayPort
External connectors
1 x Flash BIOS Button
External connectors
1 x S/PDIF
External connectors
1 x Przycisk Clear CMOS
External connectors
1 x Line Out (front)
External connectors
4 x USB 3.0
External connectors
1 x USB 3.1 Type-C
External connectors
1 x RJ-45
External connectors
1 x MIC (front)
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
4 x M.2
Onboard connectors
2 x USB 3.0 header
Onboard connectors
5 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x OC PCIe switch
Onboard connectors
1 x USB C
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
1 x 24pin ATX zasilanie
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included
2 x SATA 6Gb/s cables 1 x M.2 22110 thermal pad 1 x ASUS WiFi Q-Antenna 1 x Cable Tie Pack 1 x M.2 Q-Latch Pack 1 x M.2 Q-Slide Pack 1 x ROG Keychain 1 x ROG Strix Stickers 4 x M.2 Rubber Packs 1 x Quick Start Guide
Supported operating systems
Windows 11
Software
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmory Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)-GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyDynamic OC SwitcherFlexKey
Designation
CE+WEEE
Category Mainboards Brand ASUS EAN13 4711387737859 In stock 3 Items
