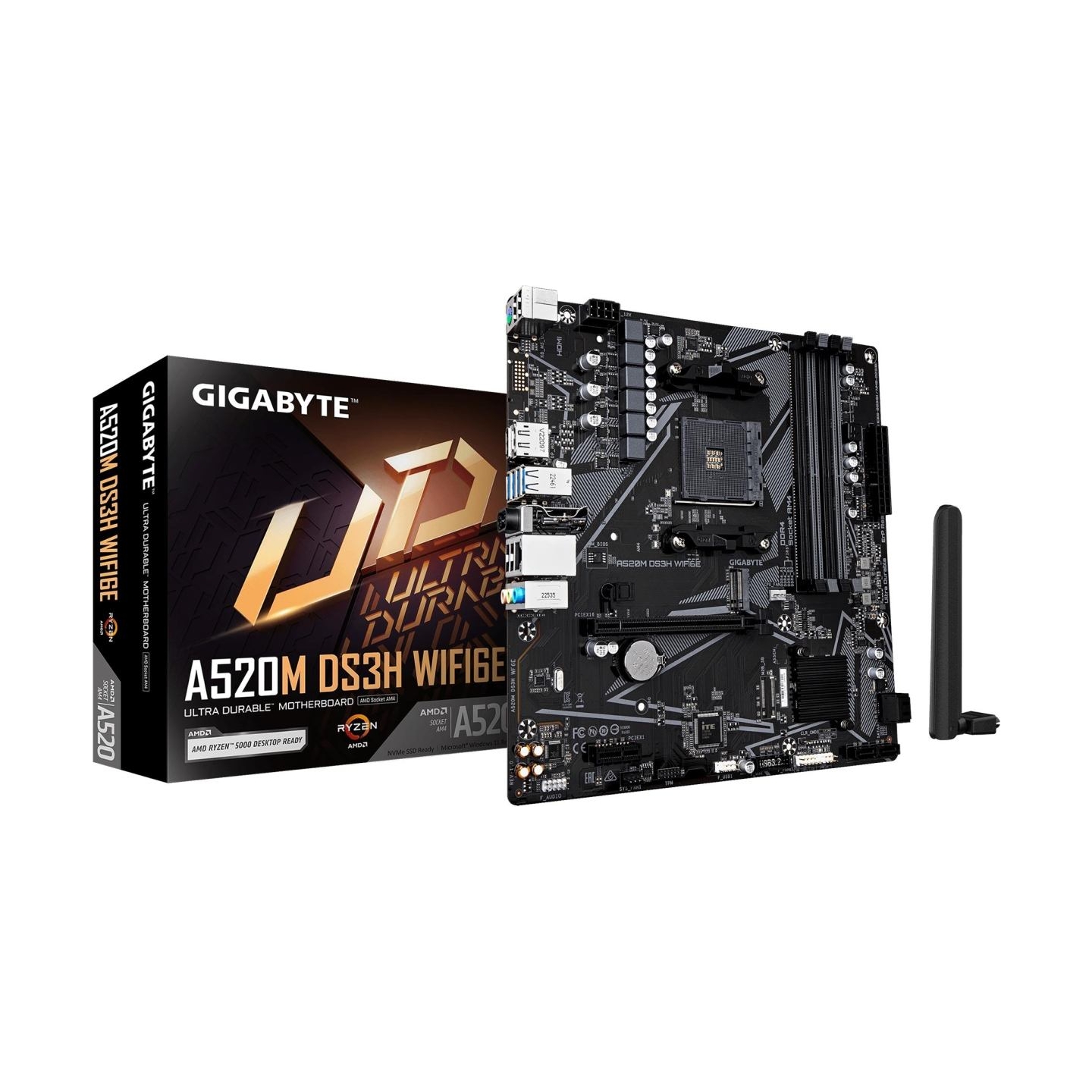

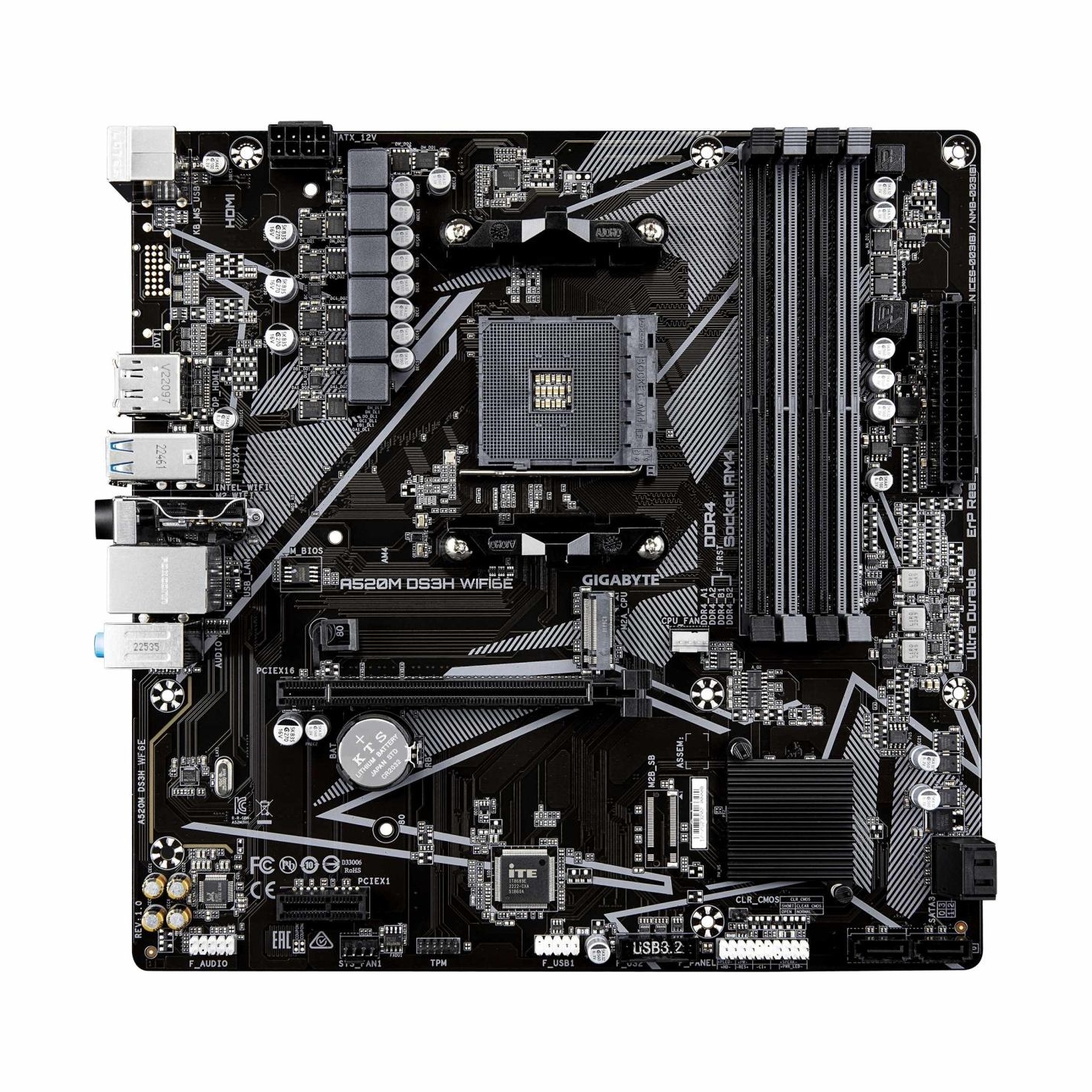

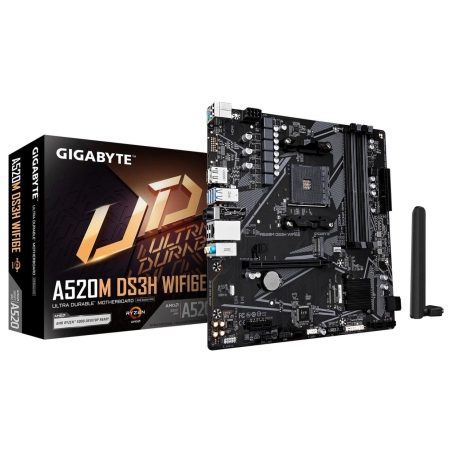

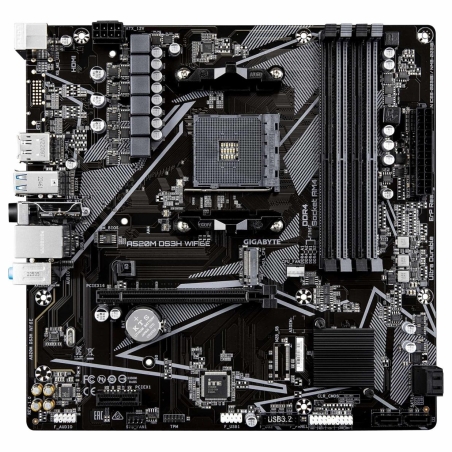

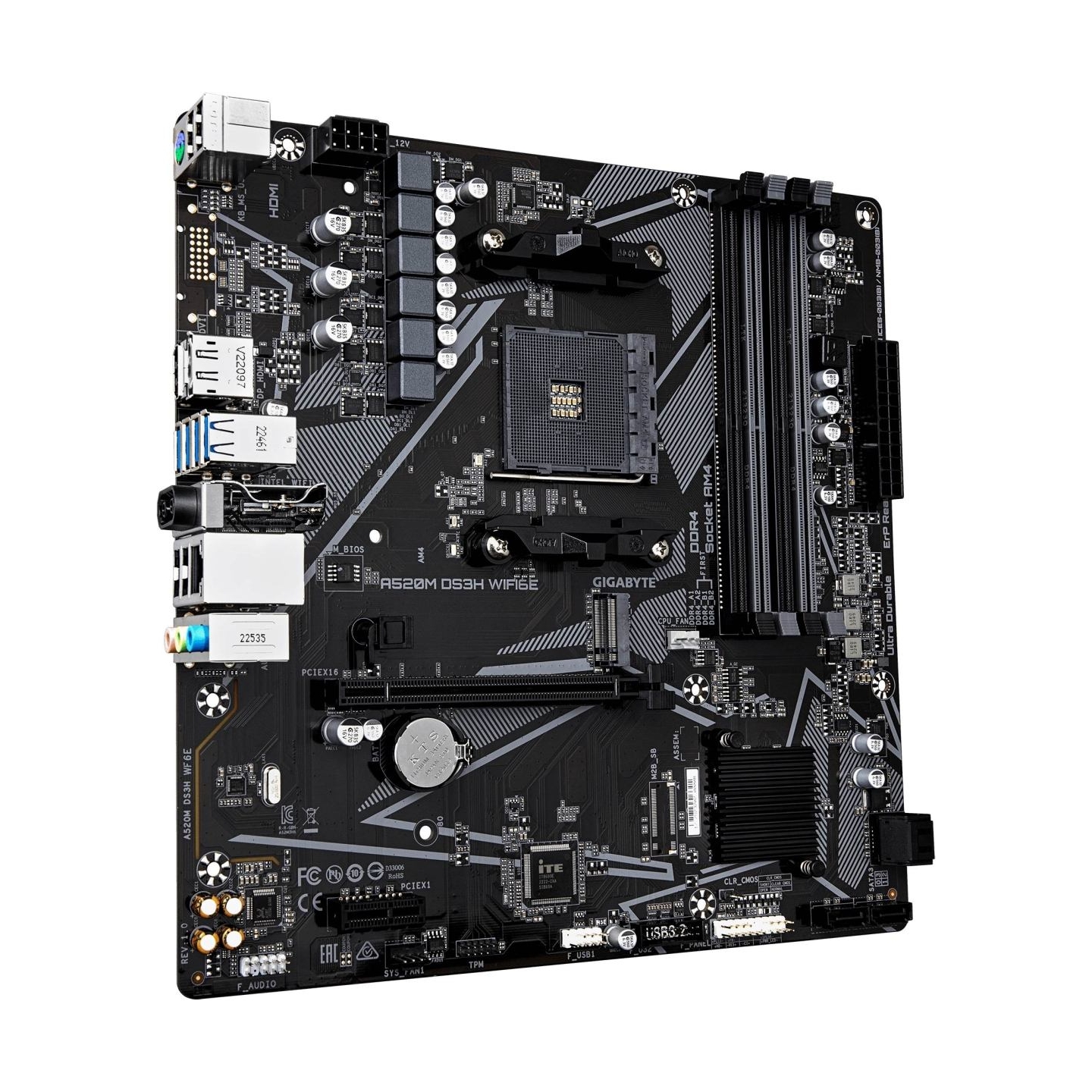

Gigabyte Motherboard A520M DS3H WF6E AM4 4DDR4 mATX

Gigabyte Motherboard A520M DS3H WF6E AM4 4DDR4 mATX

Name: Gigabyte Motherboard A520M DS3H WF6E AM4 4DDR4 mATX
Brand: GIGABYTE
SKU: A520M DS3H WF6E
Price: 76.81 EUR
Availability: InStock

SKU A520M DS3H WF6E Category Mainboards

€76.81

Tax included

Share on

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable PCIe 3.0 x16 Slot
NVMe PCIe 3.0 x4 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
Rear DisplayPort and HDMI for Multi-display Support
Anti-Sulfur Resistors Design

Manufacturer Website:
https://www.gigabyte.com/

Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.27
Unit Box Length: 0.27
Unit Box Width: 0.07
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD A520
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage
Power source type: ATX
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Maximum internal memory per slot: 32 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 4733 MHz
Supported memory clock speeds: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 5
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
HDCP version: 2.3
Maximum resolution: 5120 x 2880 pixels
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 1
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of SATA III connectors: 4
TPM connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

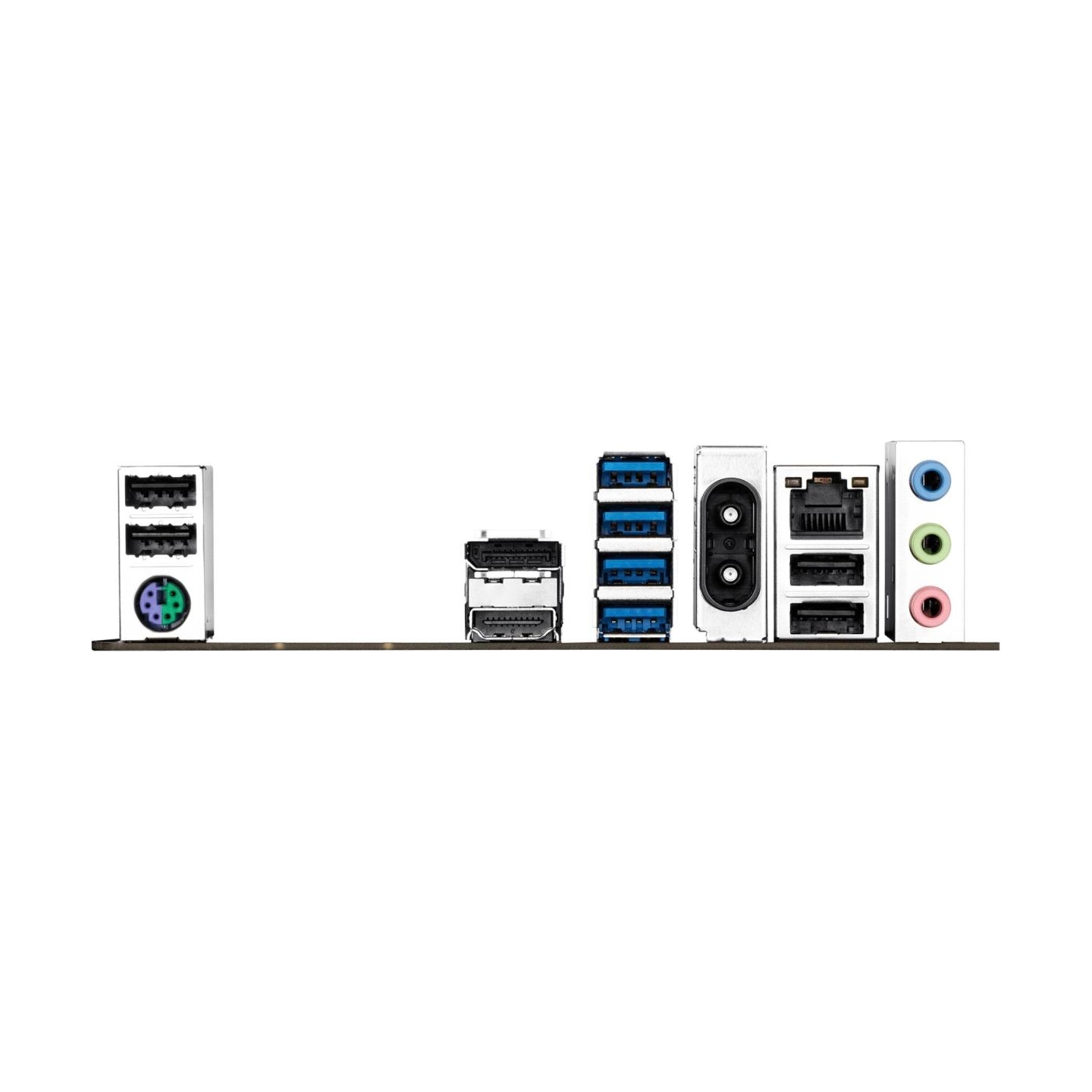

DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: Fast Ethernet/Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: MediaTek MT7902
1st M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
ACPI version: 5.0
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Country of origin: China
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Package depth: 268 mm
Package height: 68 mm
Package weight: 972 g
Package width: 270 mm
Products per shipping (inner) case: 1 pc(s)
Depth: 244 mm
Height: 35 mm
Width: 244 mm
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Drivers included: Yes
Screws included: Yes
Warranty period: 3 year(s)
Weight: 880 g
Battery: Lithium battery
Battery weight: 3 g
Product Net Weight: 0.88 kg
Shipping Box Depth: 55.5 cm
Shipping Box Height: 29.5 cm
Shipping Box Weight: 9.80000019073486 kg
Shipping Box Width: 38 cm
Unit Calculated Volume: 0.006222 cubm
Unit Calculated Weight: 0.98 kg
Units per Shipping Box: 10
