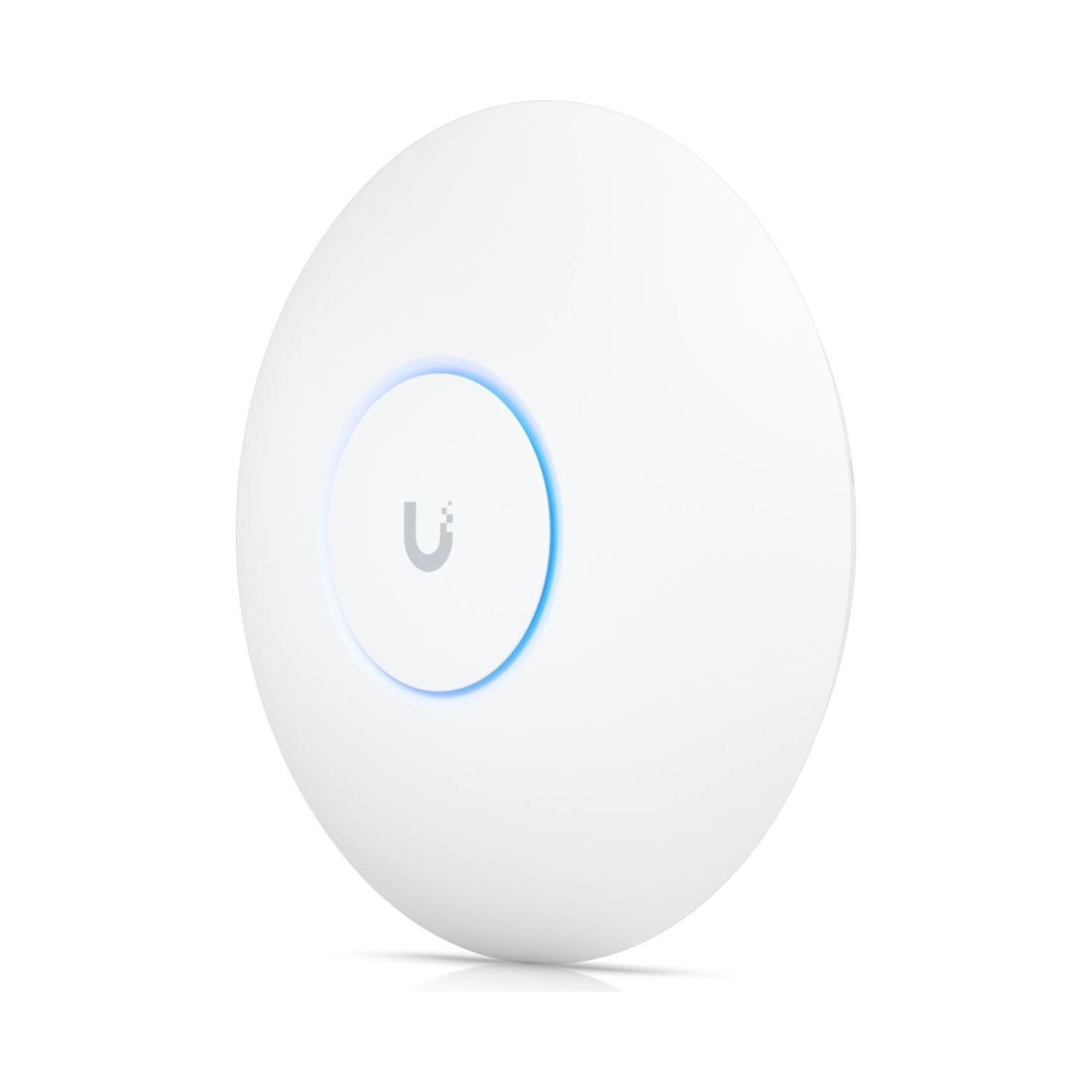

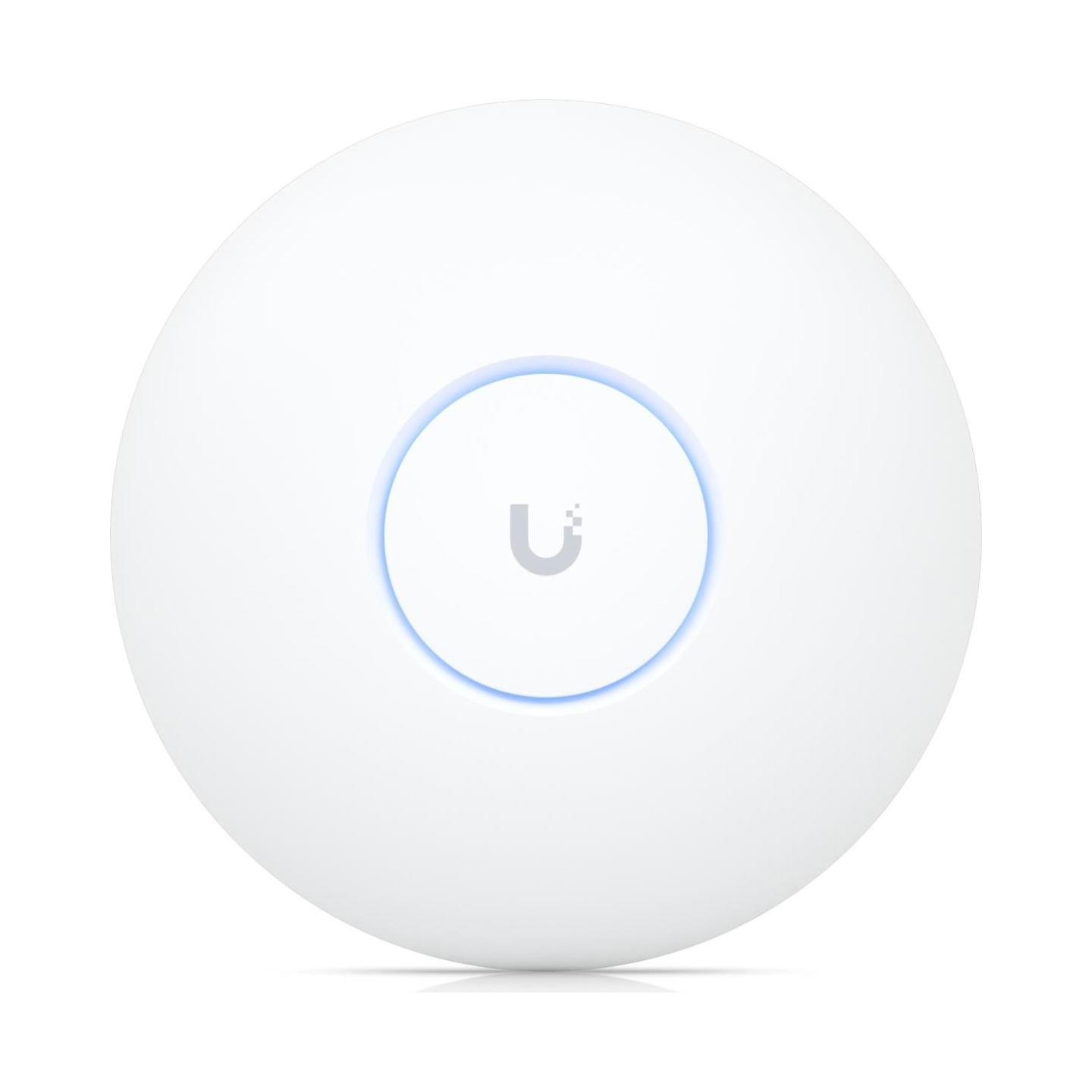

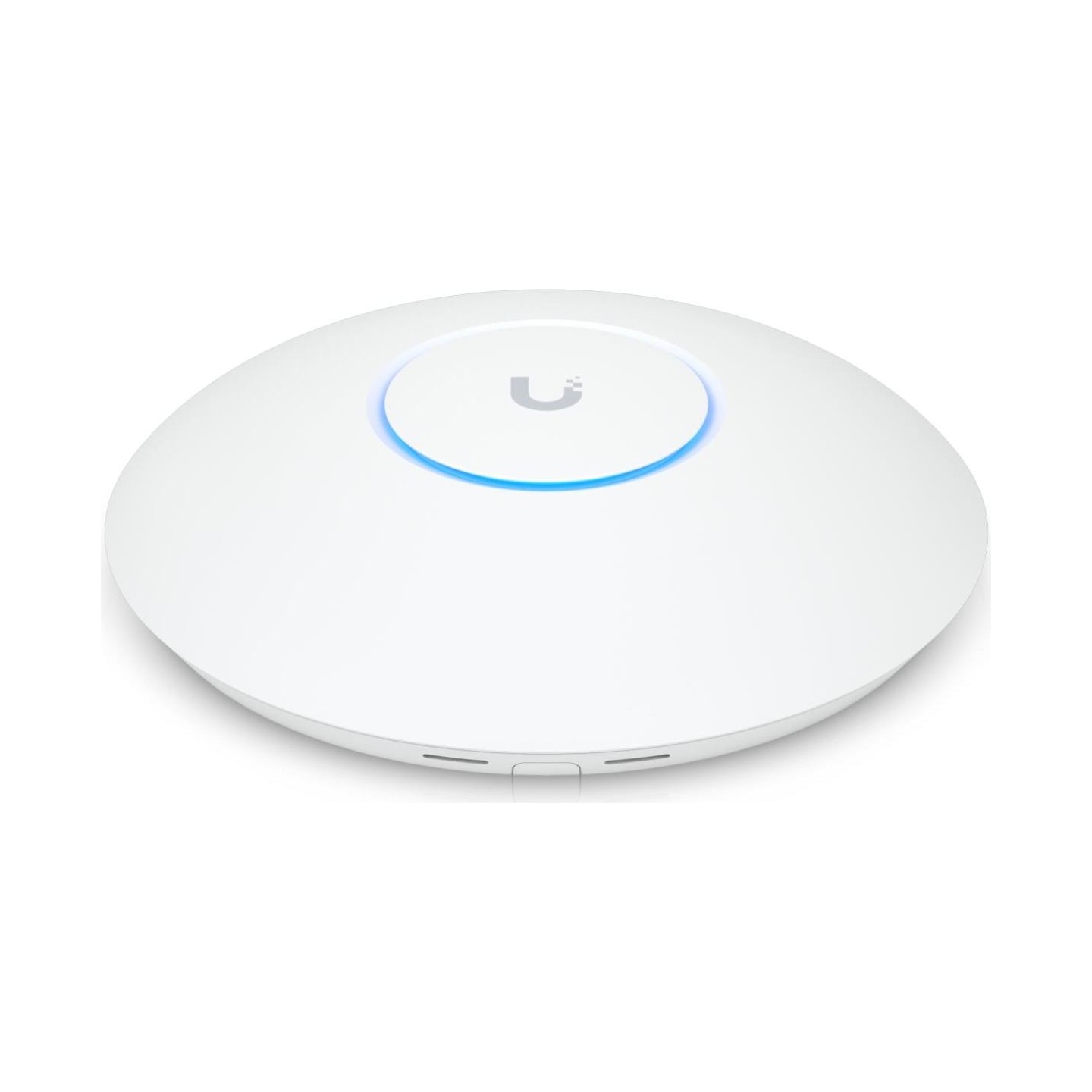

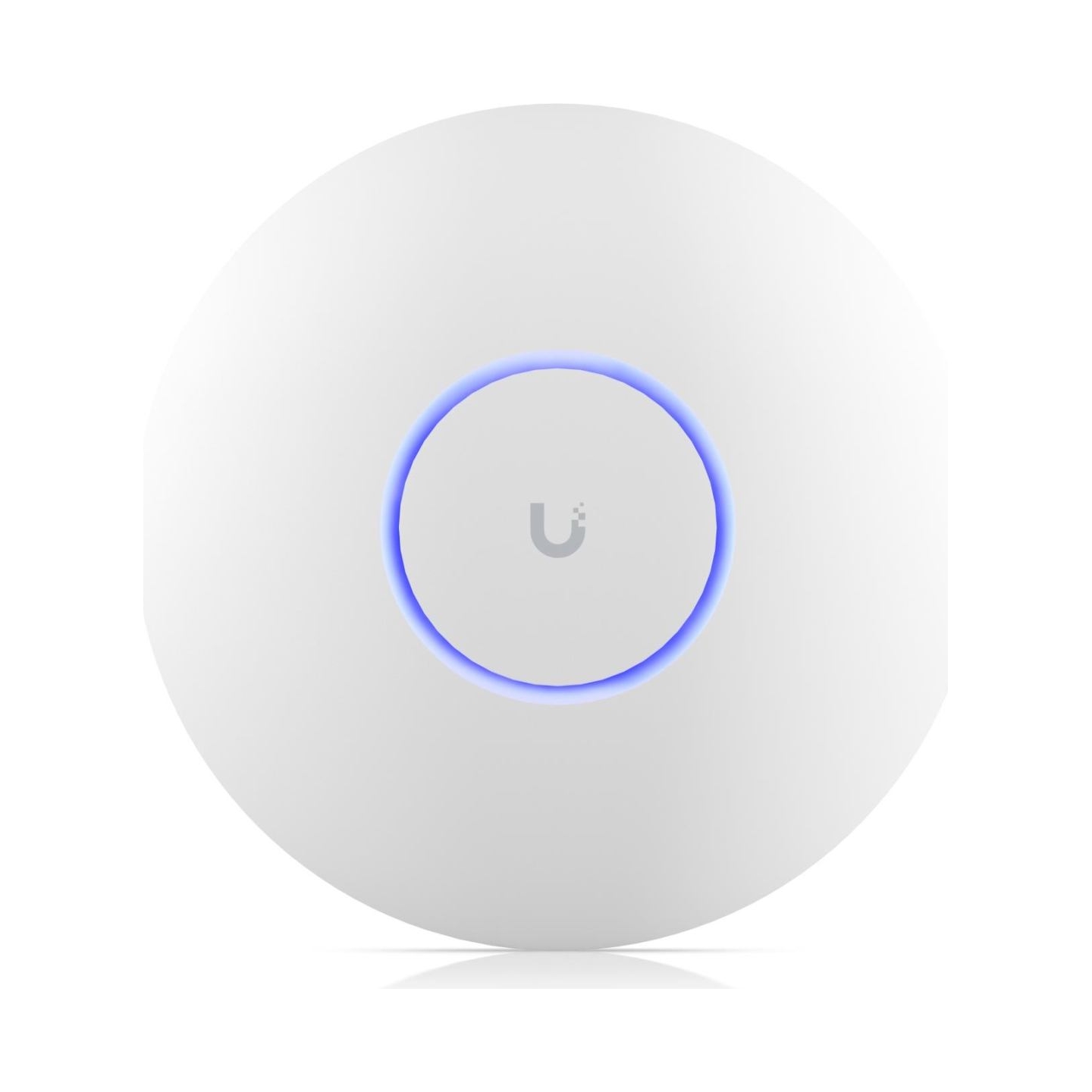

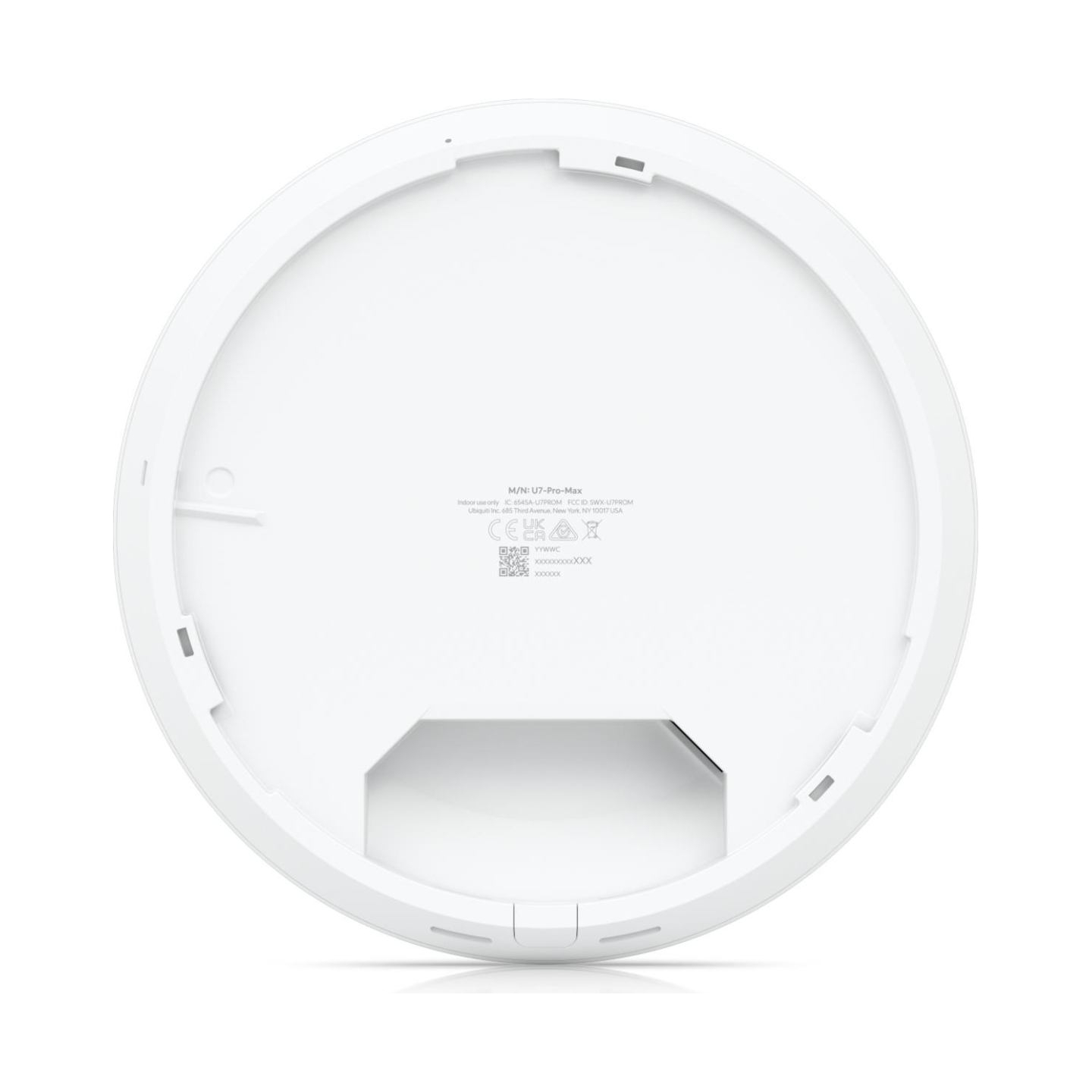

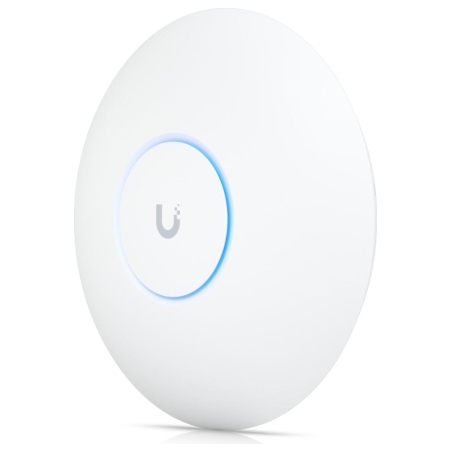

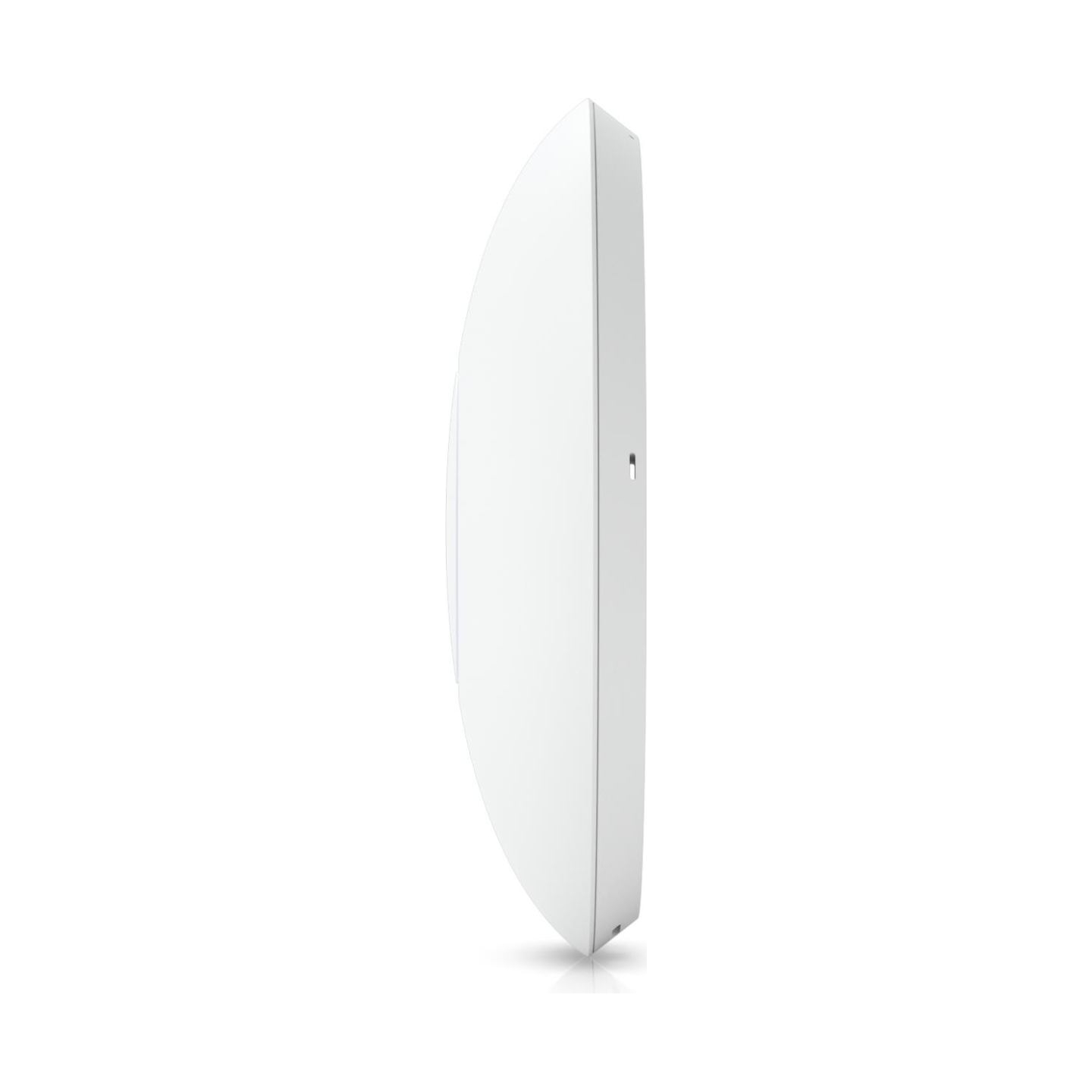

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/u7-pro-max
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.25
- Unit Box Length
- 0.245
- Unit Box Width
- 0.1
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- Frequency band
- 2.4 - 5.7 GHz
- Maximum data transfer rate
- 5700 Mbit/s
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Spatial streams
- 8
- Throughput data rate
- 5765 Mbit/s
- VLAN support
- Yes
- Security algorithms
- PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

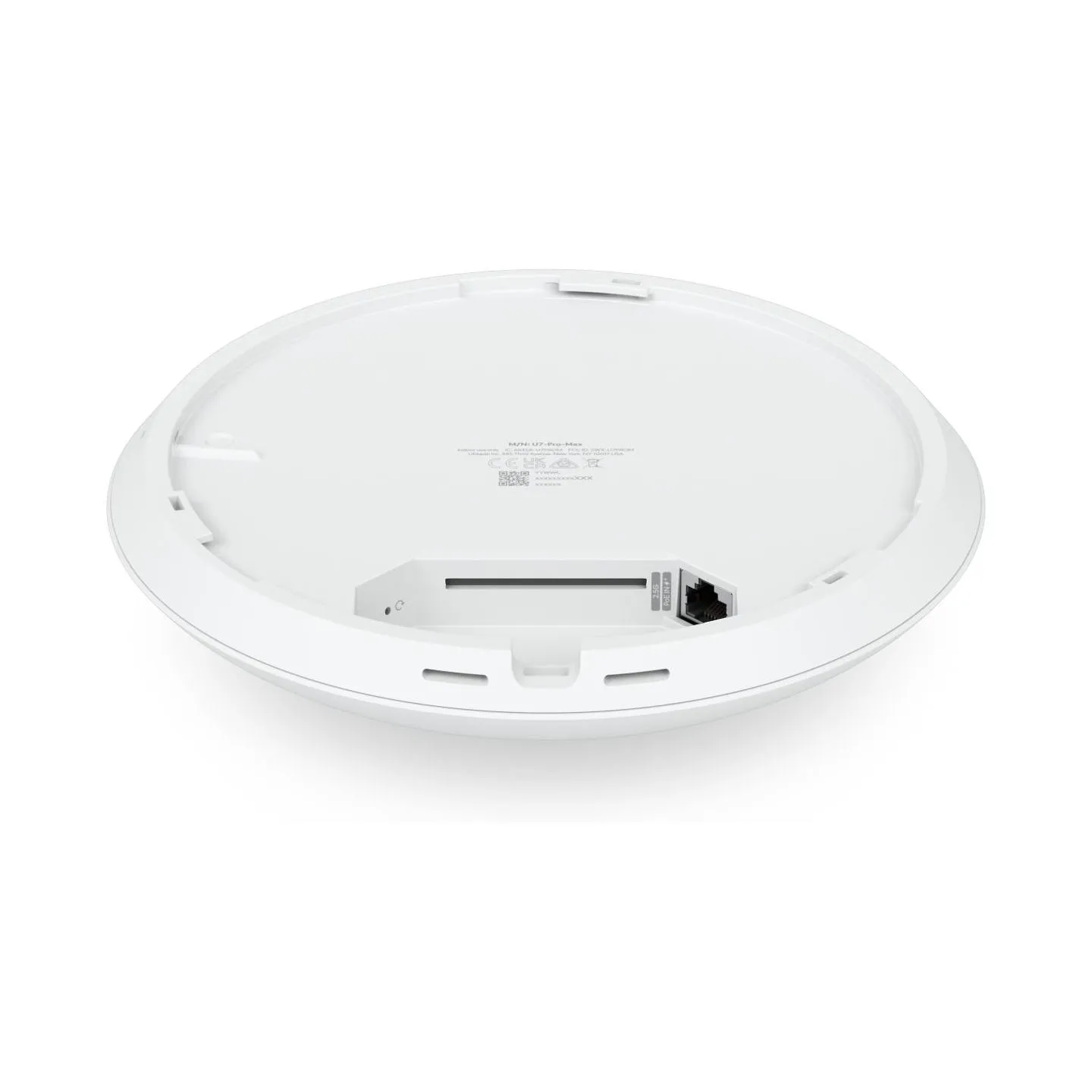

- Ethernet LAN (RJ-45) ports
- 1
- DC voltage range
- 44 - 57 V
- Power consumption (max)
- 22 W
- Power over Ethernet (PoE)
- Yes
- Housing material
- Aluminium,Polycarbonate (PC)
- LED indicators
- Yes
- Placement
- Ceiling,Wall
- Product colour
- White
- Recommended usage
- Indoor
- Reset button
- Yes
- Antenna gain level (max)
- 5.9 dBi
- Antenna type
- Internal
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Depth
- 206 mm
- Height
- 46 mm
- Weight
- 680 g
- Width
- 206 mm

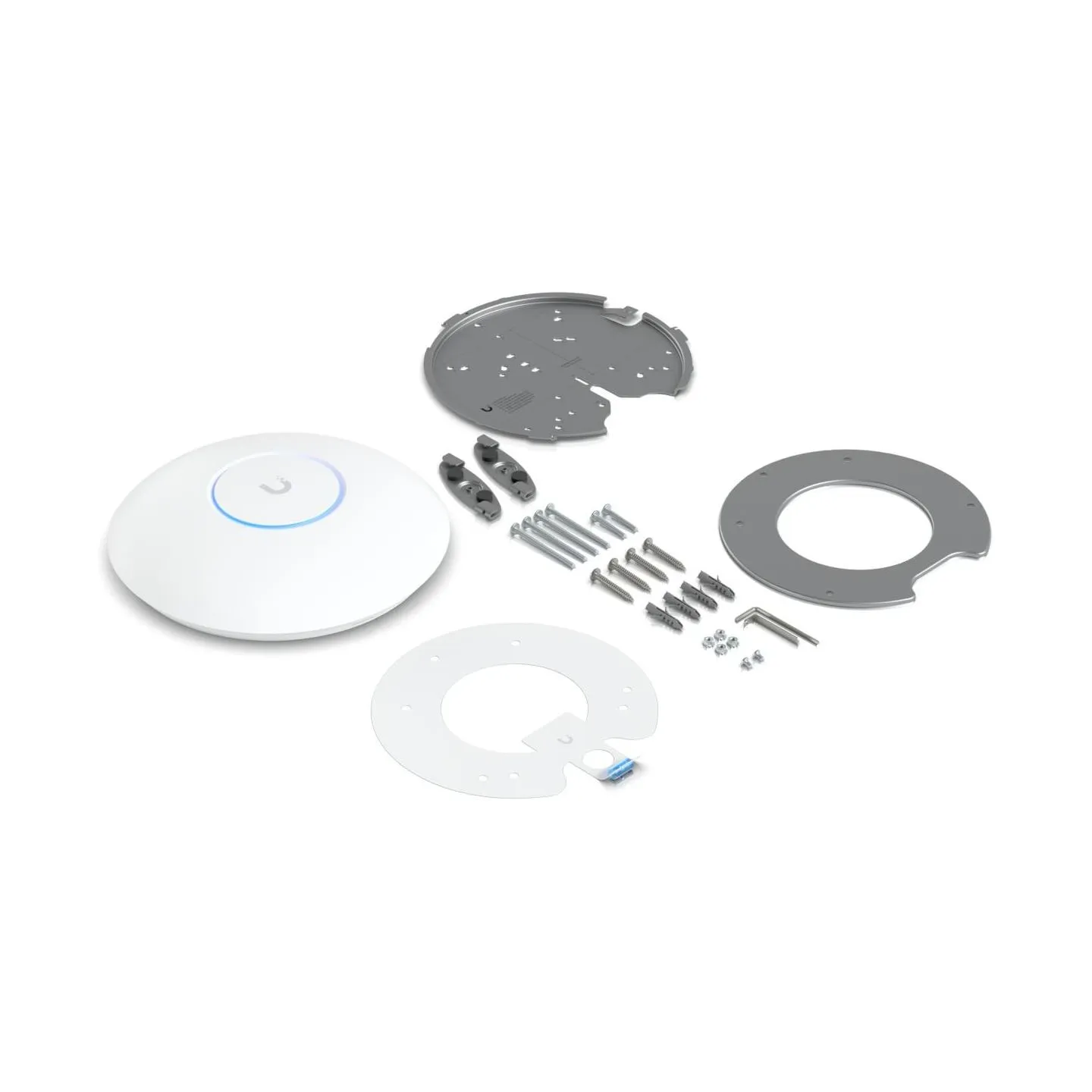

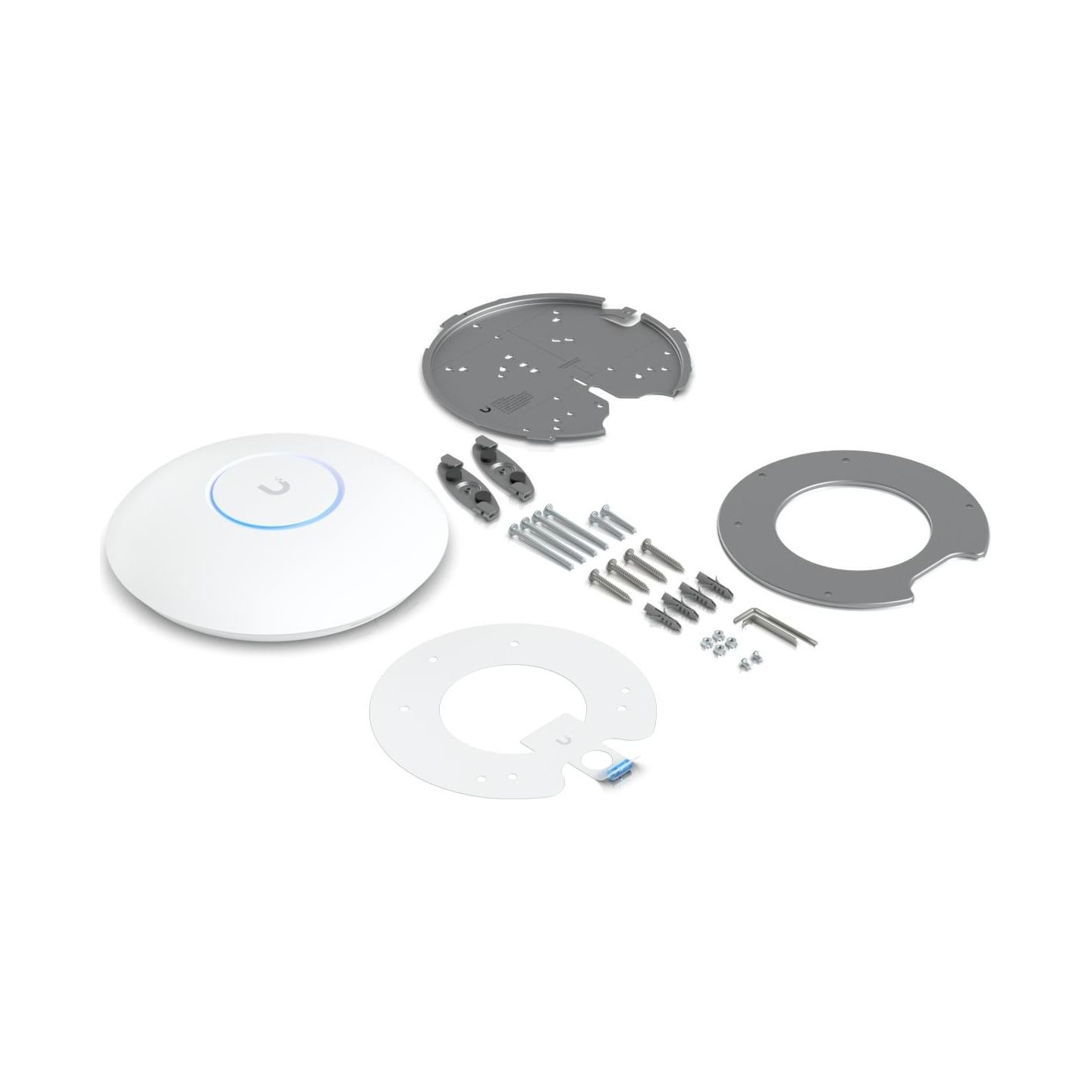

- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Sustainability compliance
- Yes
- Model
- U7 Pro Max
- Model name
- U7 Pro Max
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.01139 cubm
- Unit Calculated Weight
- 1.6 kg
