Tp-Link | 5-Port 10/100Mbps Desktop Network Switch | LS1005 | Unmanaged | Desktop | Power supply type External

SKU LS1005 Category Switche
New
Price: €5.30
Tax included
Share on

5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation

Easily Expand Your Network and Save Energy
5-Port 10/100 Mbps Desktop Switch

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

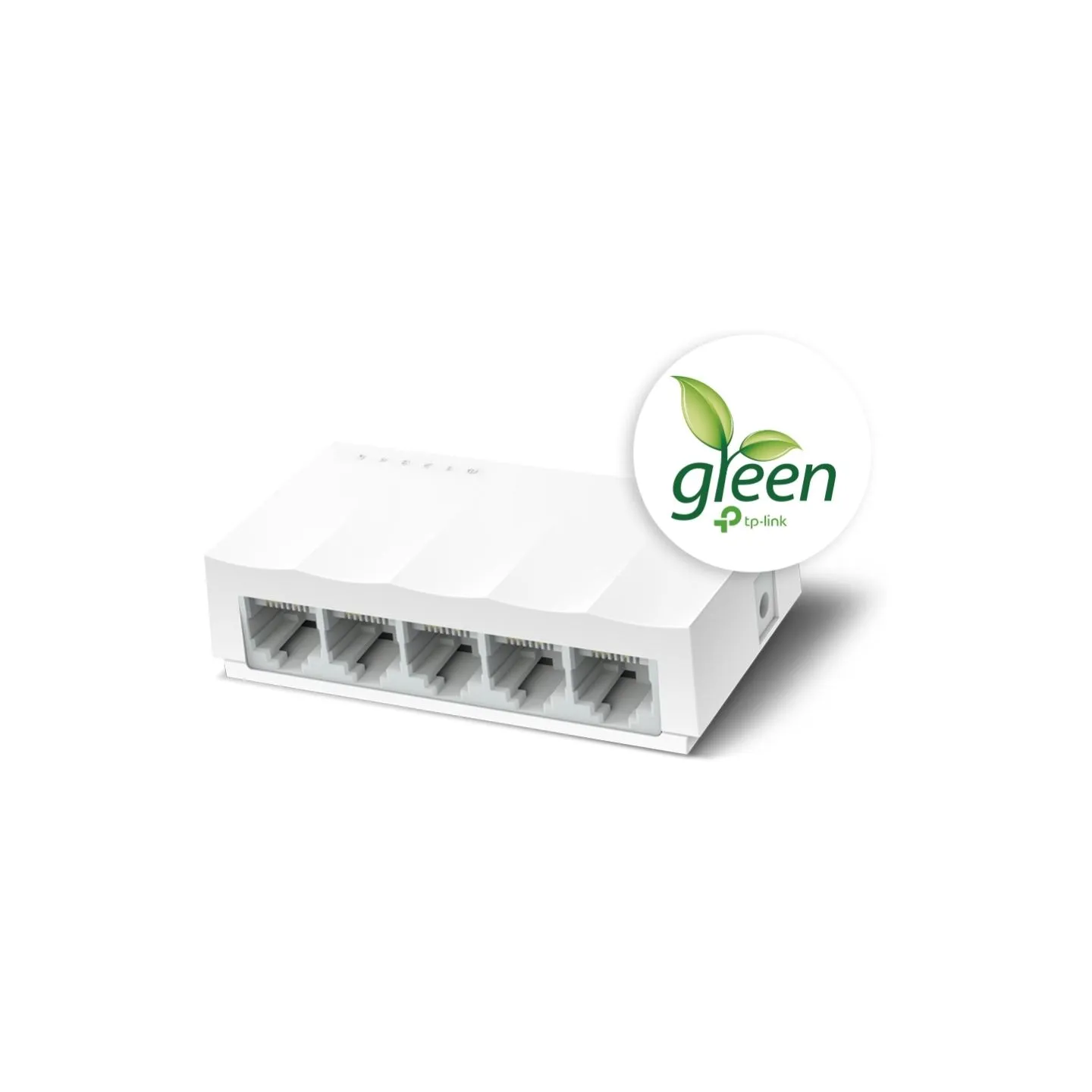

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.

Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

  • 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3X flow control provides reliable data transfer
  • Plastic casing and desktop design
  • Plug and play, no configuration required
  • Fanless design ensures quiet operation



Manufacturer Website:
https://www.tp-link.com/uk/business-networking/litewave-switch/ls1005/

Summary
TP-Link 5-Port 10/100Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Category Code
SWI
CnCode
85176200
Unit Box Height
0.085
Unit Box Length
0.095
Unit Box Width
0.095
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Flow control support
Yes
Networking standards
IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate
0.7 Mpps
Jumbo frames
2000
Jumbo frames support
Yes
MAC address table
2000 entries
Store-and-forward
Yes
Switching capacity
1 Gbit/s
Housing material
Plastic
LED indicators
Activity/Link/Power
Product colour
White
Rack mounting
No
Wall mountable
No
Input current
0.6 A
Input voltage
5 V
Power consumption (max)
1.65 W
Power source
DC
Power supply included
Yes
Power over Ethernet (PoE)
No
Heat dissipation
5.627 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 60 °C
Depth
45.7 mm
Height
22.8 mm
Width
83.6 mm
Quick start guide
Yes
Package depth
88 mm
Package height
84 mm
Package type
Box
Package weight
80 g
Package width
82 mm
Certification
CE, FCC, RoHS
Harmonized System (HS) code
85176990
Model
LS1005
Model name
LS1005
Units per Shipping Box
1
Unit Calculated Volume
0.0006885 cubm
Unit Calculated Weight
0.15 kg
Category Switche Brand TP-LINK EAN13 6935364089061 In stock 25 Items
