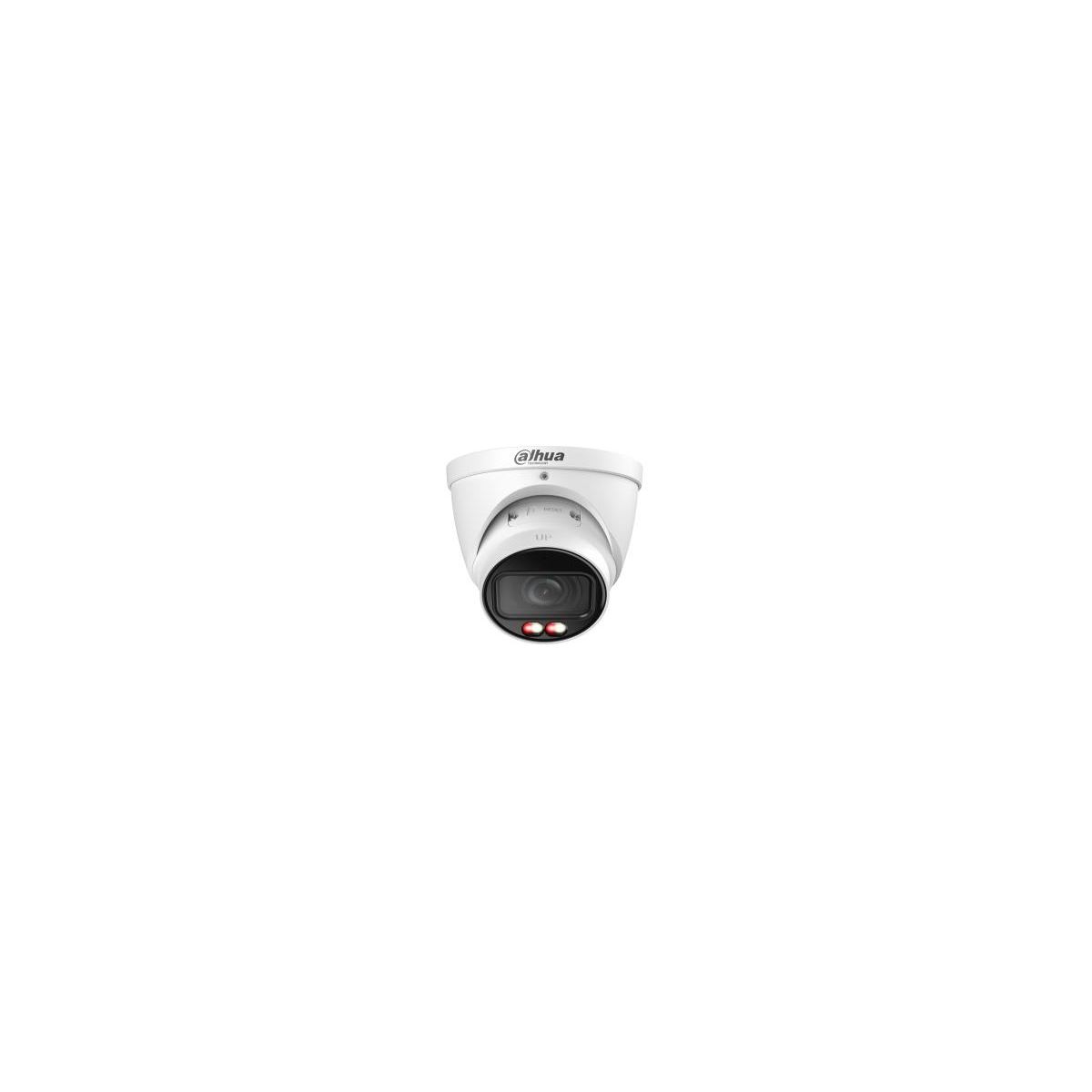

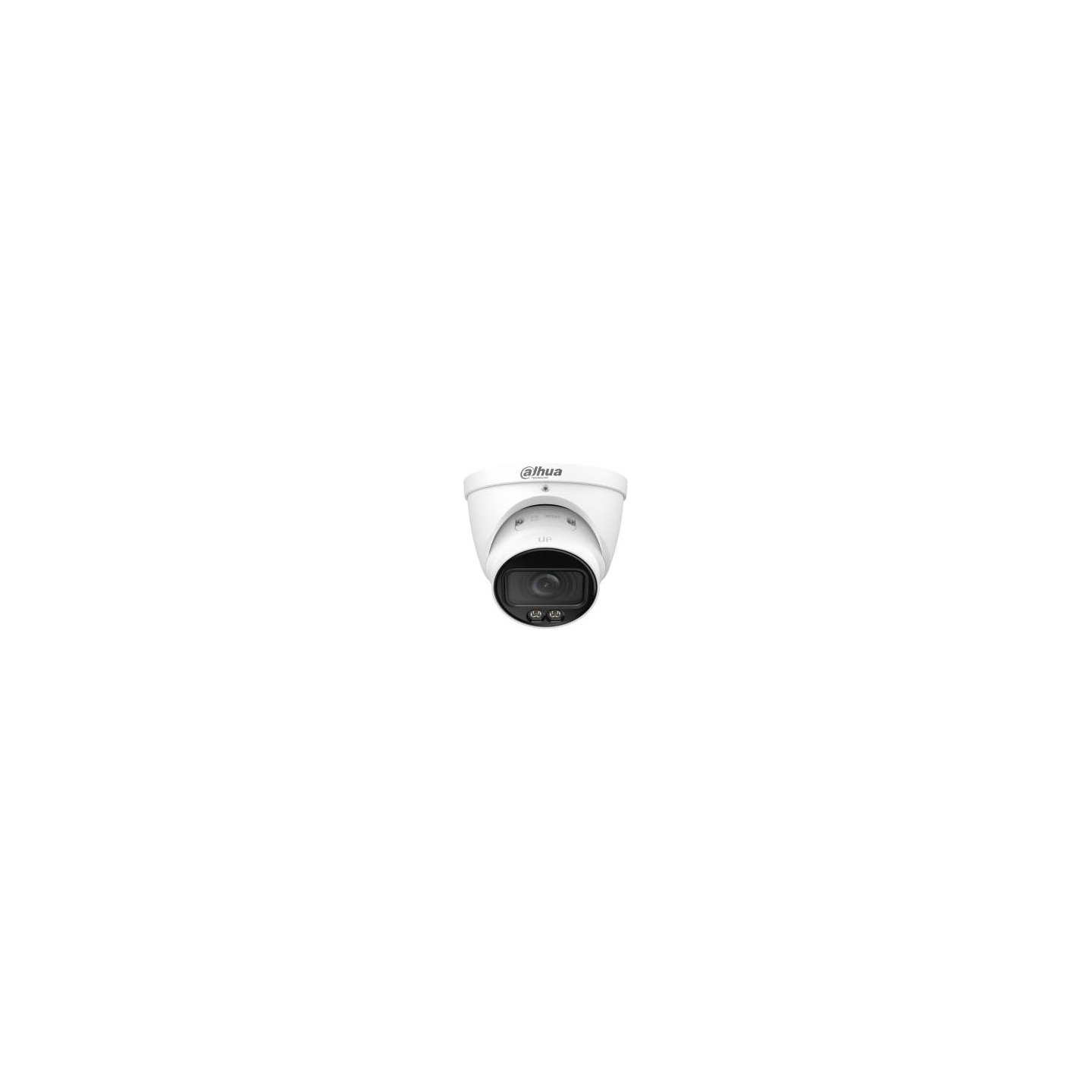

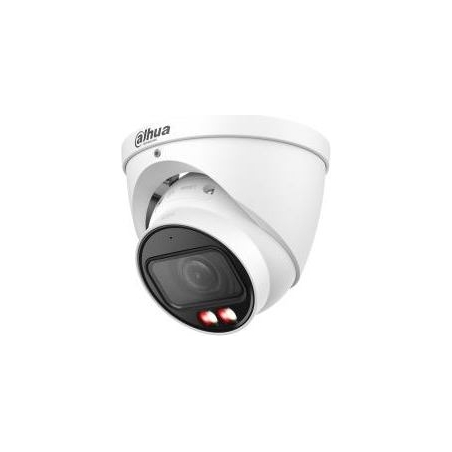

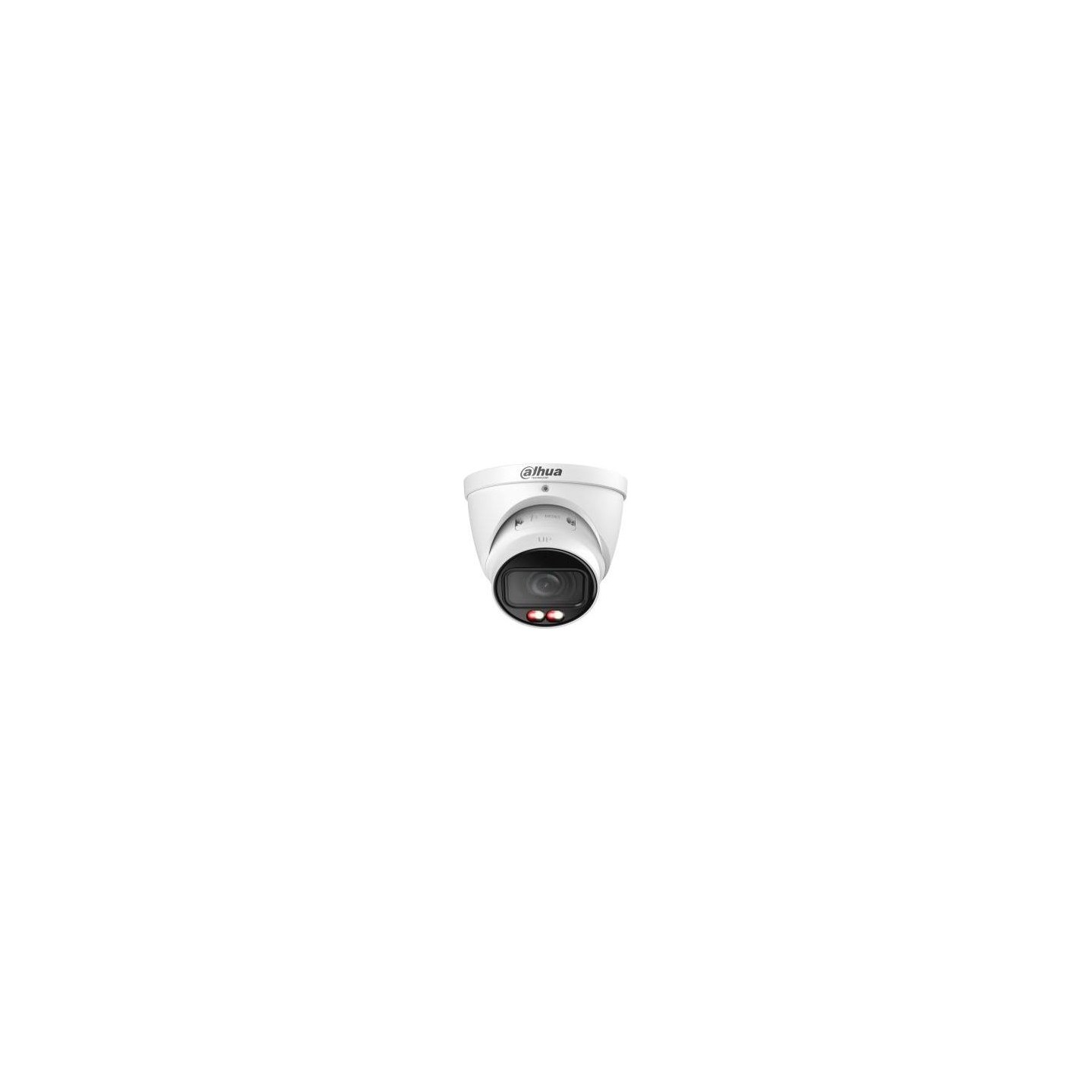

Dahua NET CAMERA 5MP EYEBALL/IPC-HDW5559T-ZE-IL-27135 DAHUA
New
Price:
€548.86
Tax included
Share on
Turret
Ceiling/Wall/Pole
White
IP code IP67
IP security camera
Wired
Placement Outdoor
People counting function Yes
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Built-in light Yes
Minimum illumination 0.0005 lx
Pan range 0 - 360 °
White balance Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size 1/2.7 "
Sensor type CMOS
Night vision Yes
Night vision distance 50 m
Total megapixels 5 MP
Frame rate 30 fps
Noise reduction Yes
Built-in microphone Yes
Ethernet LAN Yes
Card reader integrated Yes
Power source type DC
Weight 700 g
1xNumber of cameras
Manufacturer Website:
https://www.dahuasecurity.com/products/network-products/network-cameras/wizmind-5-series/smart-dual-light/5mp/ipc-hdw5559t-ze-il
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.135
- Unit Box Length
- 0.16
- Unit Box Width
- 0.16
- Form factor
- Turret
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/Wall/Pole
- Product colour
- White
- Protection features
- Dustproof/Waterproof
- Built-in light
- Yes
- Certification
- CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- People counting function
- Yes
- Placement supported
- Outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Angle of rotation
- 360 °
- Camera pan control
- Yes
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 134 - 37 °
- Lens viewing angle, horizontal
- 110 - 32 °
- Lens viewing angle, vertical
- 57 - 18 °
- Minimum illumination
- 0.0005 lx
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 78 °
- White balance
- Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 0.3 m
- Detect distance (tele)
- 202 m
- Detect distance (wide)
- 65.4 m
- Fixed focal length
- 2.8 mm
- Identify distance (tele)
- 20.2 m
- Identify distance (wide)
- 6.5 m
- Maximum aperture number
- 1.6
- Observe distance (tele)
- 80.8 m
- Observe distance (wide)
- 26.1 m
- Recognize distance (tele)
- 40.4 m
- Recognize distance (wide)
- 13.1 m
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 50 m
- Back Light Compensation (BLC)
- Yes
- Bit rate control
- Constant Bit Rate (CBR),Variable Bit Rate (VBR)
- Frame rate
- 30 fps
- Gain control type
- Auto/Manual
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2960 x 1668 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Total megapixels
- 5 MP
- Video compression formats
- H.264/H.264B/H.264H/H.265/M-JPEG
- Video recording
- Yes
- Video streaming
- Yes
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.723/G.726/PCM
- Built-in microphone
- Yes
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.1x/IEEE 802.3at
- Number of users
- 20 user(s)
- Quality of Service (QoS) support
- Yes
- Streaming method
- Multicast
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 1000 GB
- RAM capacity
- 2000 MB
- ROM capacity
- 4000 MB
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Digital watermark
- Yes
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Mirror
- Yes
- Network access storage (NAS)
- Yes
- Video motion detection
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 15.2 W
- Power consumption (Power over Ethernet (PoE))
- 15.9 W
- Power consumption (typical)
- 6.6 W
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -40 - 60 °C
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Diameter
- 122 mm
- Length
- 108.3 mm
- Weight
- 700 g
- Compliance certificates
- CE
- Package weight
- 960 g
- Manual
- Yes
- Number of cameras
- 1
- Lens type
- Varifocal
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.003456 cubm
- Unit Calculated Weight
- 0.92 kg
