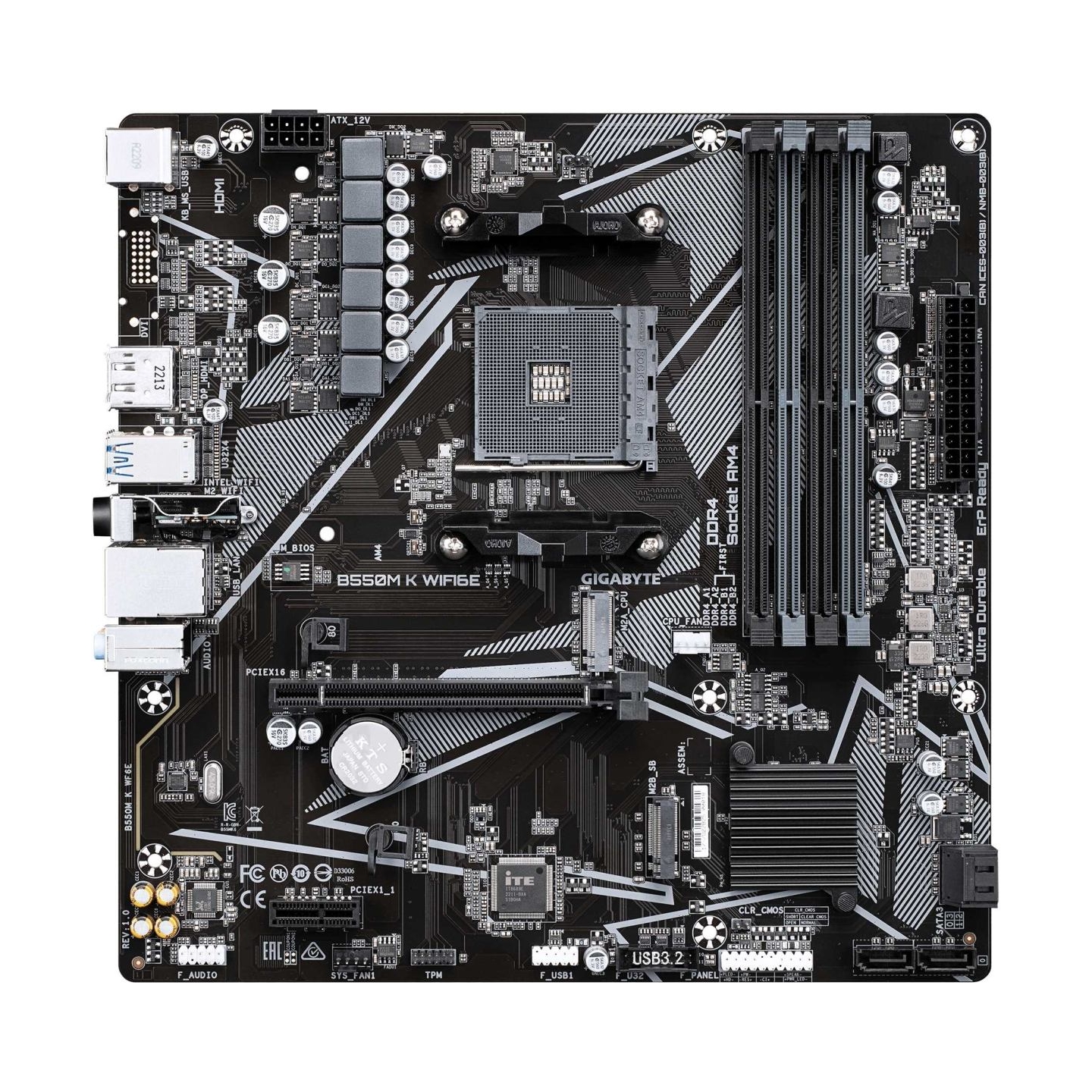

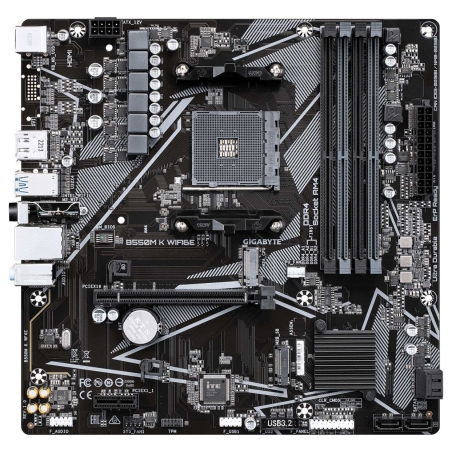

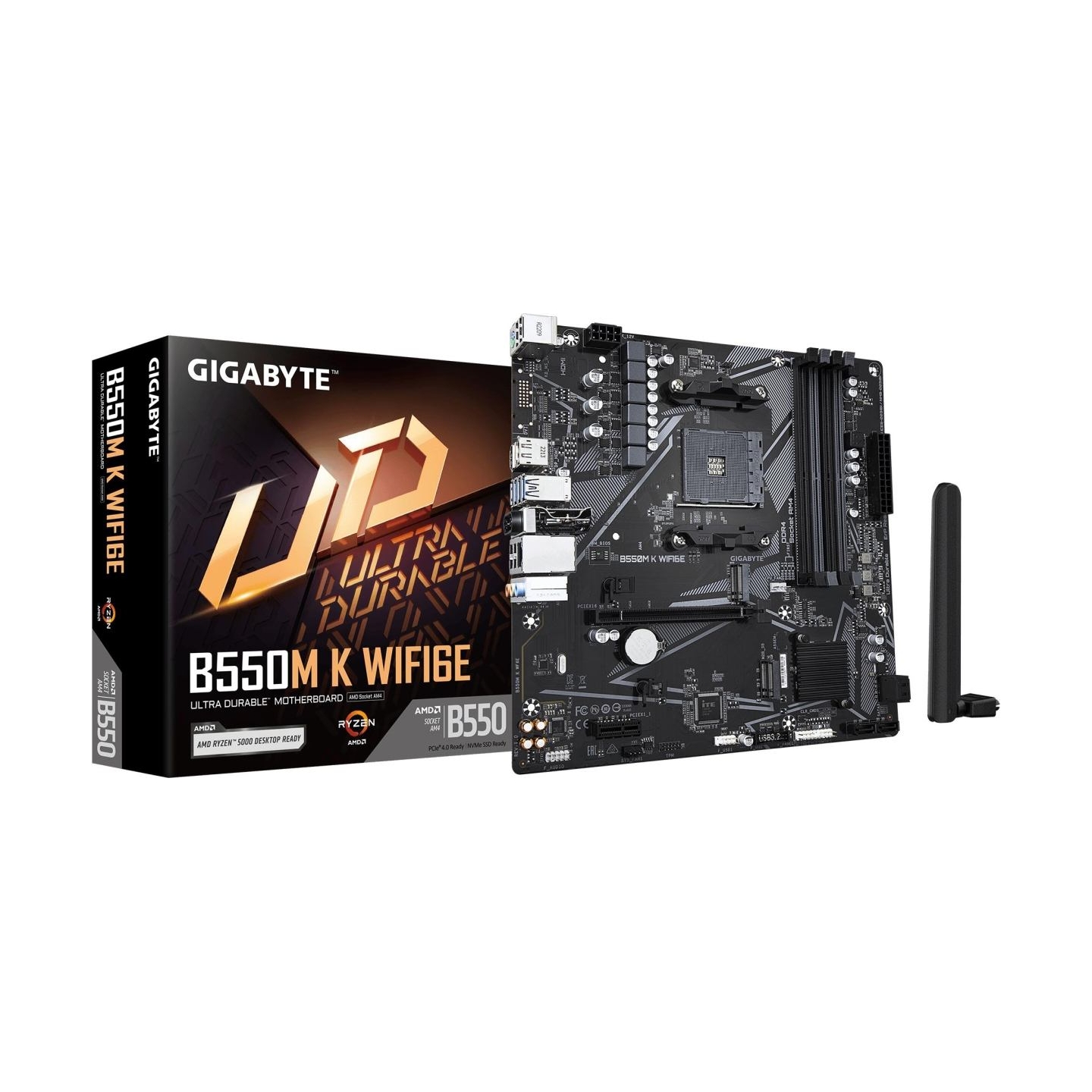

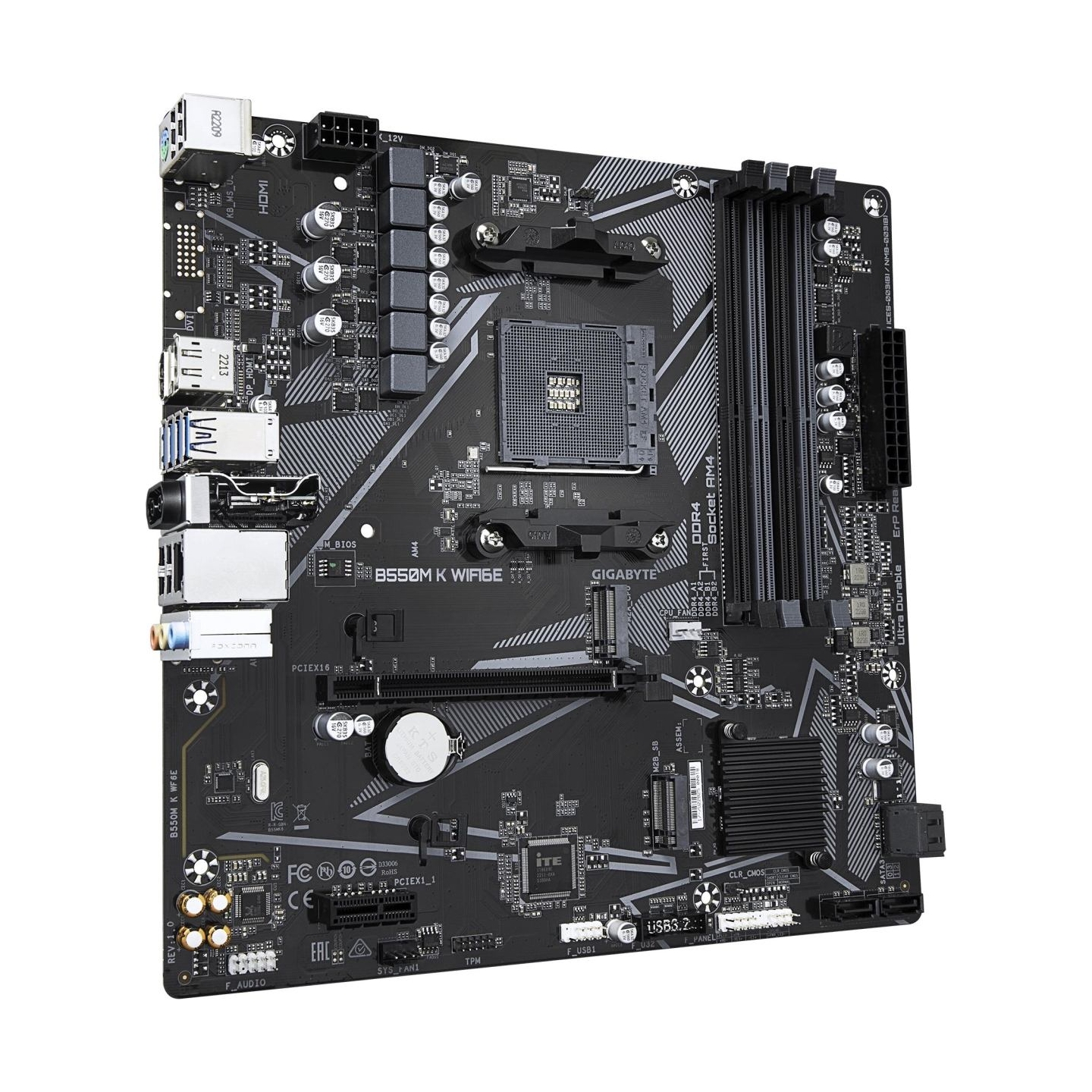

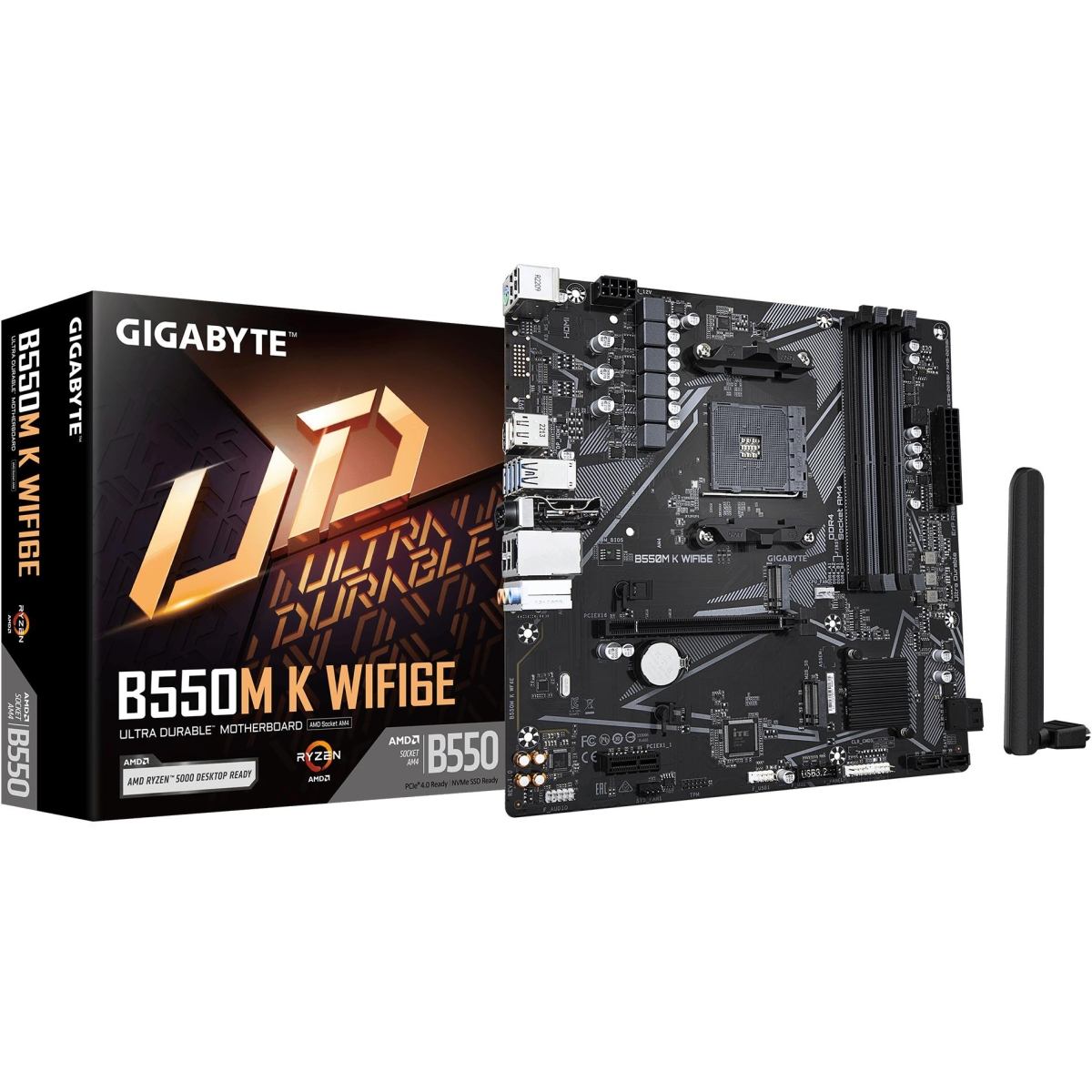

Gigabyte B550M K WIFI6E

Name: Gigabyte B550M K WIFI6E
Brand: GIGABYTE
SKU: B550M K WF6E
Price: 108.02 EUR
Availability: InStock

SKU B550M K WF6E Category Mainboards

€108.02

Tax included

Share on

GIGABYTE B550M K WIFI6E Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, WIFI 6E, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Manufacturer Website:
https://www.gigabyte.com/Motherboard/B550M-K-WIFI6E-rev-10

Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.072
Unit Box Length: 0.268
Unit Box Width: 0.275
Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Product colour: Dark brown
PC health monitoring: Fan/Temperature/Voltage
Component for: PC
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dodeca-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory clock speed (max): 4733 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2,SATA
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0/1/10
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
HDCP version: 2.3
DirectX version: 12.0
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
12V power connector: Yes
TPM connector: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
WiFi-AP antenna jack: 2
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet/Gigabit Ethernet
LAN controller: Realtek RTL8111H
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: MediaTek MT7902
Bluetooth: Yes
Bluetooth version: 5.3
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Package width: 270 mm
Number of battery cells: 1
Package depth: 268 mm
Package height: 68 mm
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Package weight: 1016 g
Battery type: CR2032
Width: 244 mm
Depth: 244 mm
Height: 35 mm
Antenna included: Yes
Batteries included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)
Weight: 940 g
Warranty period: 3 year(s)
Unit Calculated Weight: 0.923 kg
Battery weight: 3 g
Battery: Lithium battery
Product Net Weight: 0.94 kg
Unit Calculated Volume: 0.005306 cubm
Units per Shipping Box: 1
Shipping Box Weight: 0.922999978065491 kg
Unit Width: 27.5 cm
Shipping Box Height: 7.19999980926514 cm
Unit Depth: 26.8 cm
Shipping Box Depth: 26.7999992370605 cm
Unit Height: 7.2 cm
Shipping Box Width: 27.5 cm
Bullet Points: <ul> <li>Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors</li> <li>Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs</li> <li>Ultra Durable PCIe 4.0 Ready x16 Slot</li> <li>Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors</li> <li>High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality</li> <li>Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax</li> <li>WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation</li> <li>Rear DisplayPort and HDMI for Multi-display Support</li> <li>Anti-Sulfur Resistors Design</li> </ul>
Name: MB AMD B550 SAM4 MATX/B550M K WF6E GIGABYTE
Model: GIGABYTE B550M K WIFI6E
