5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

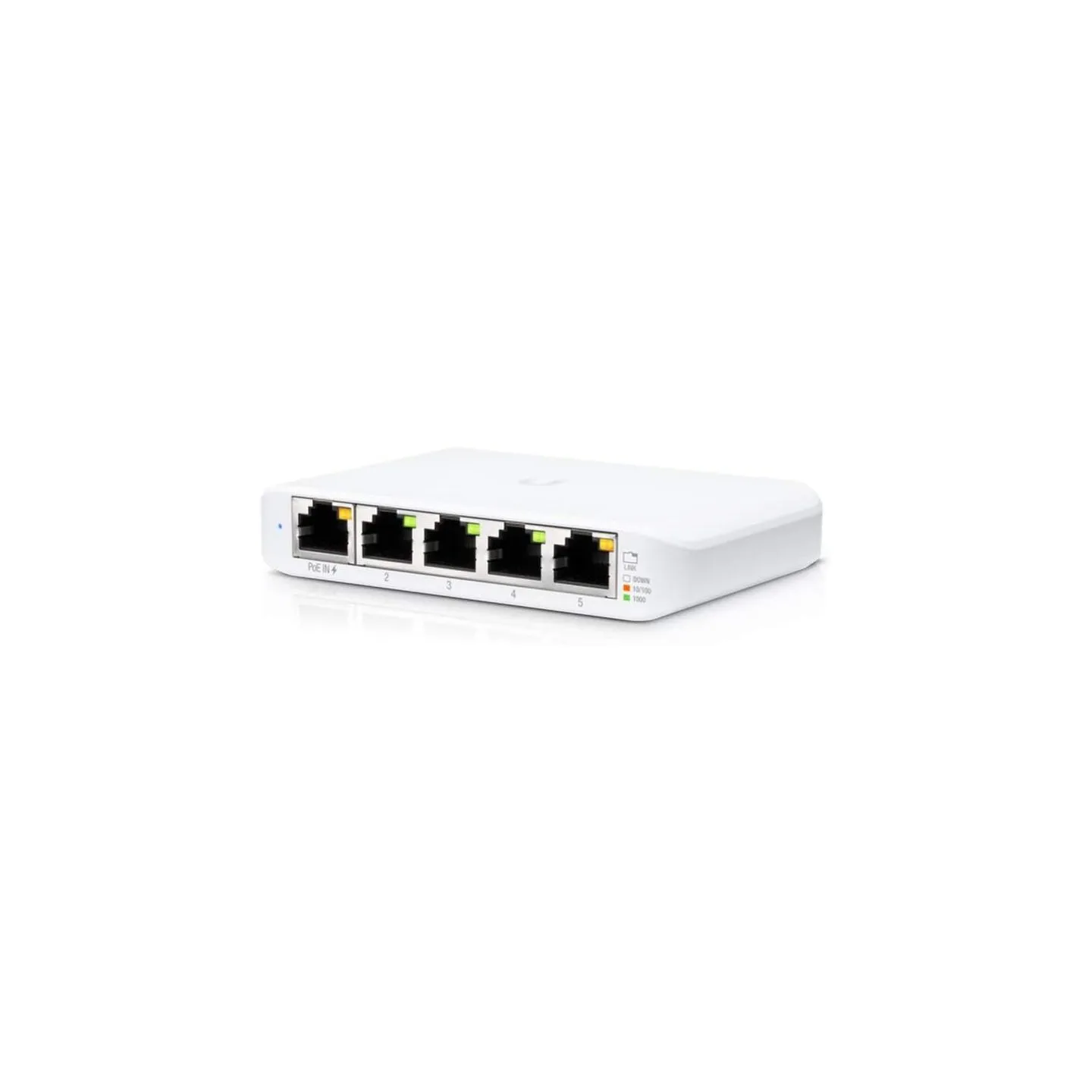

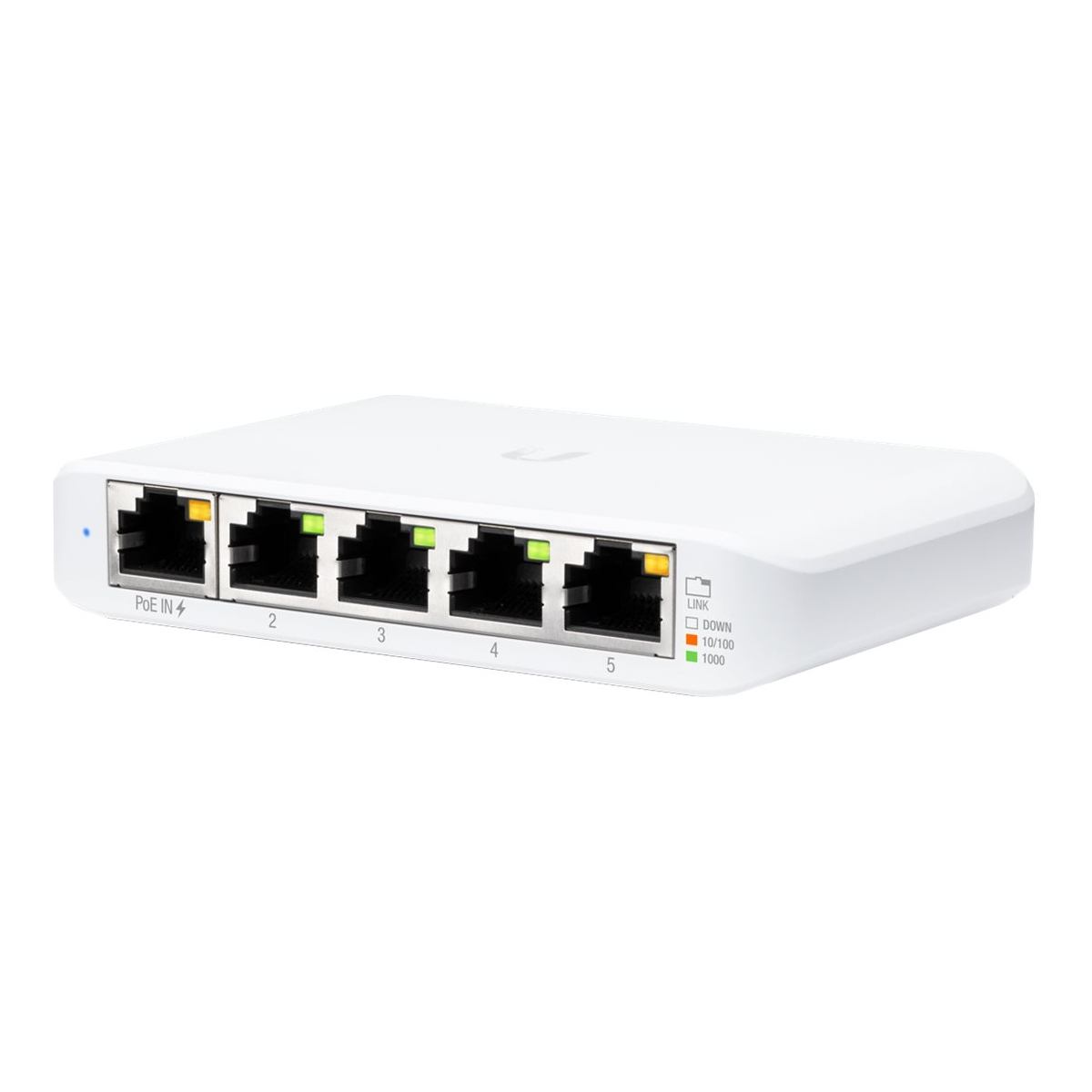

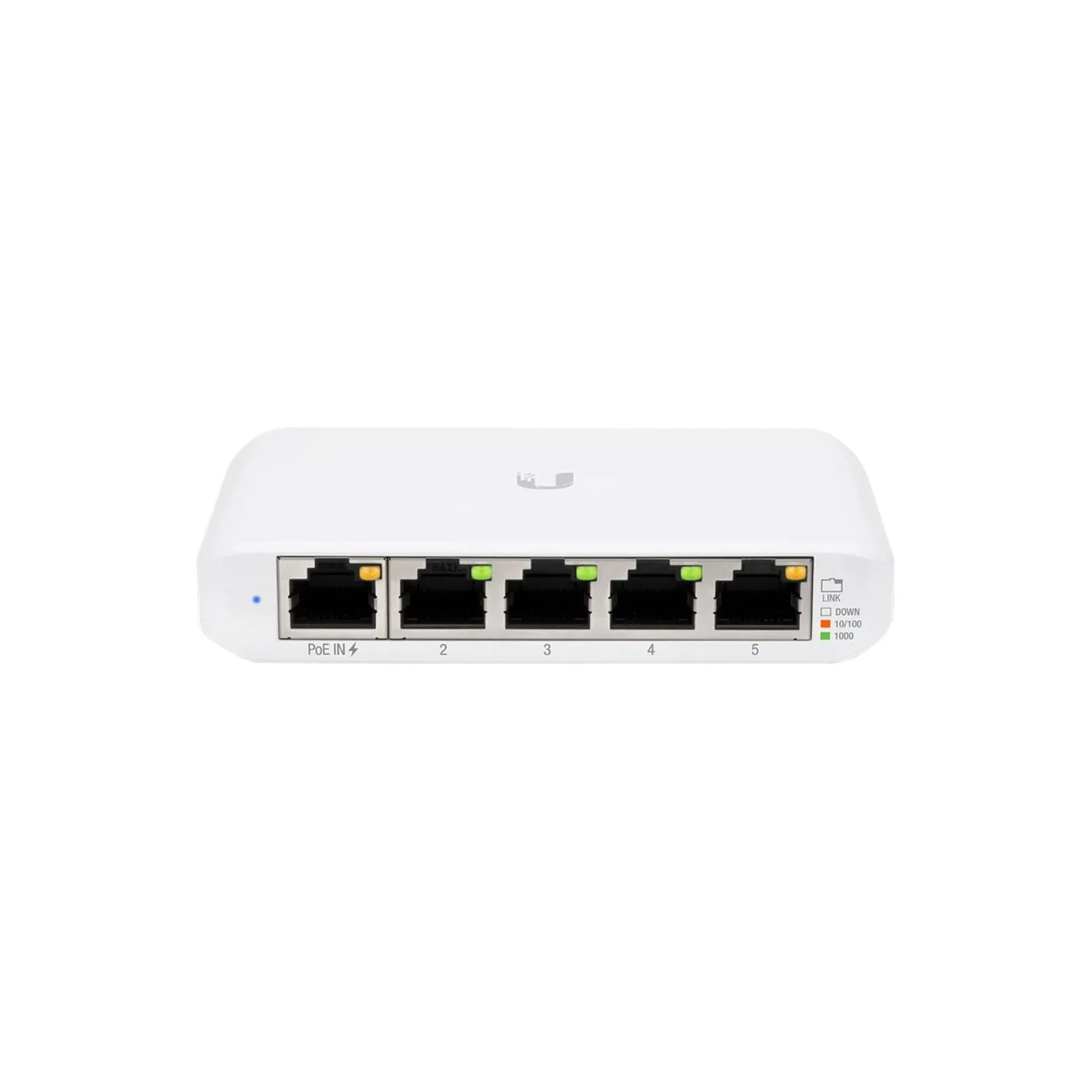

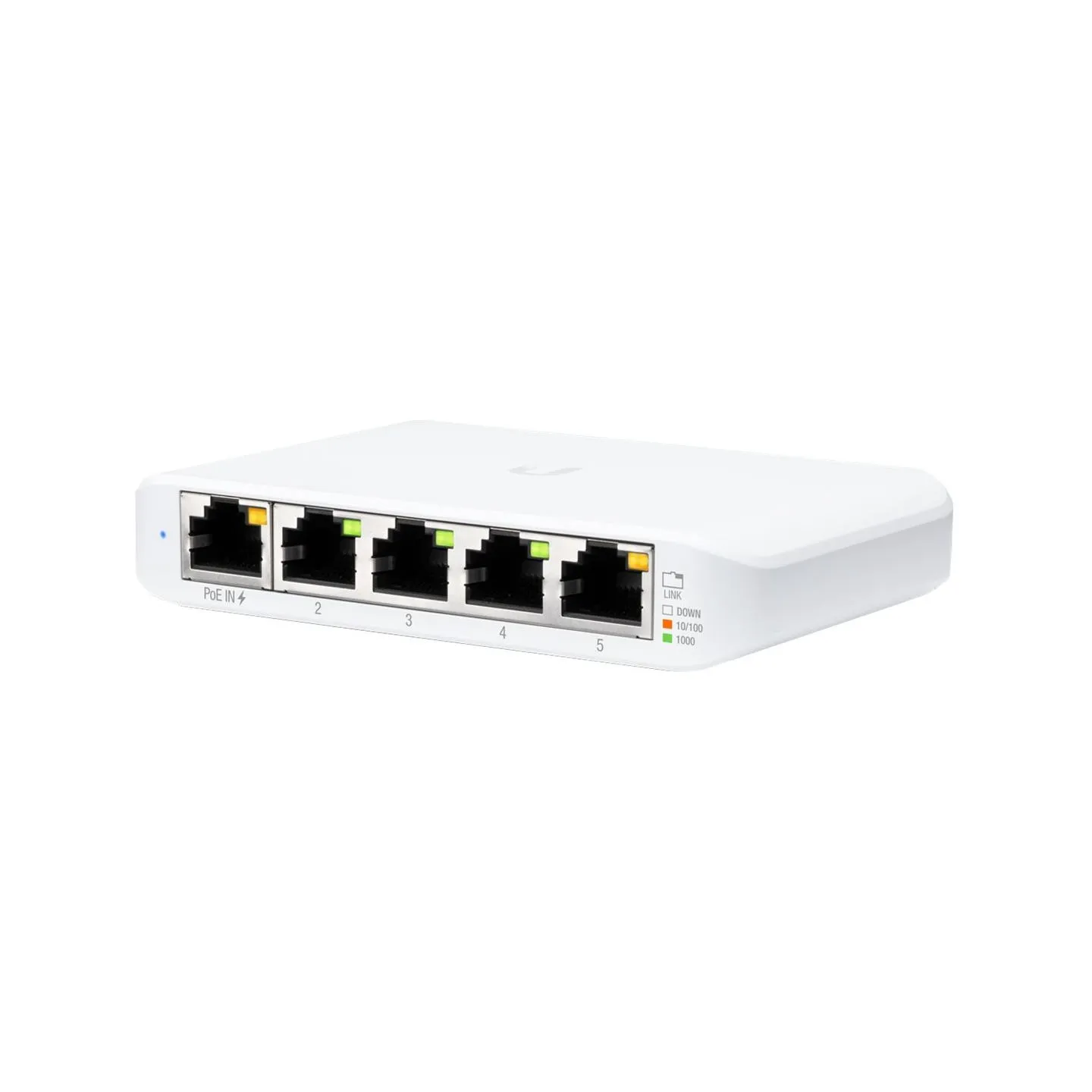

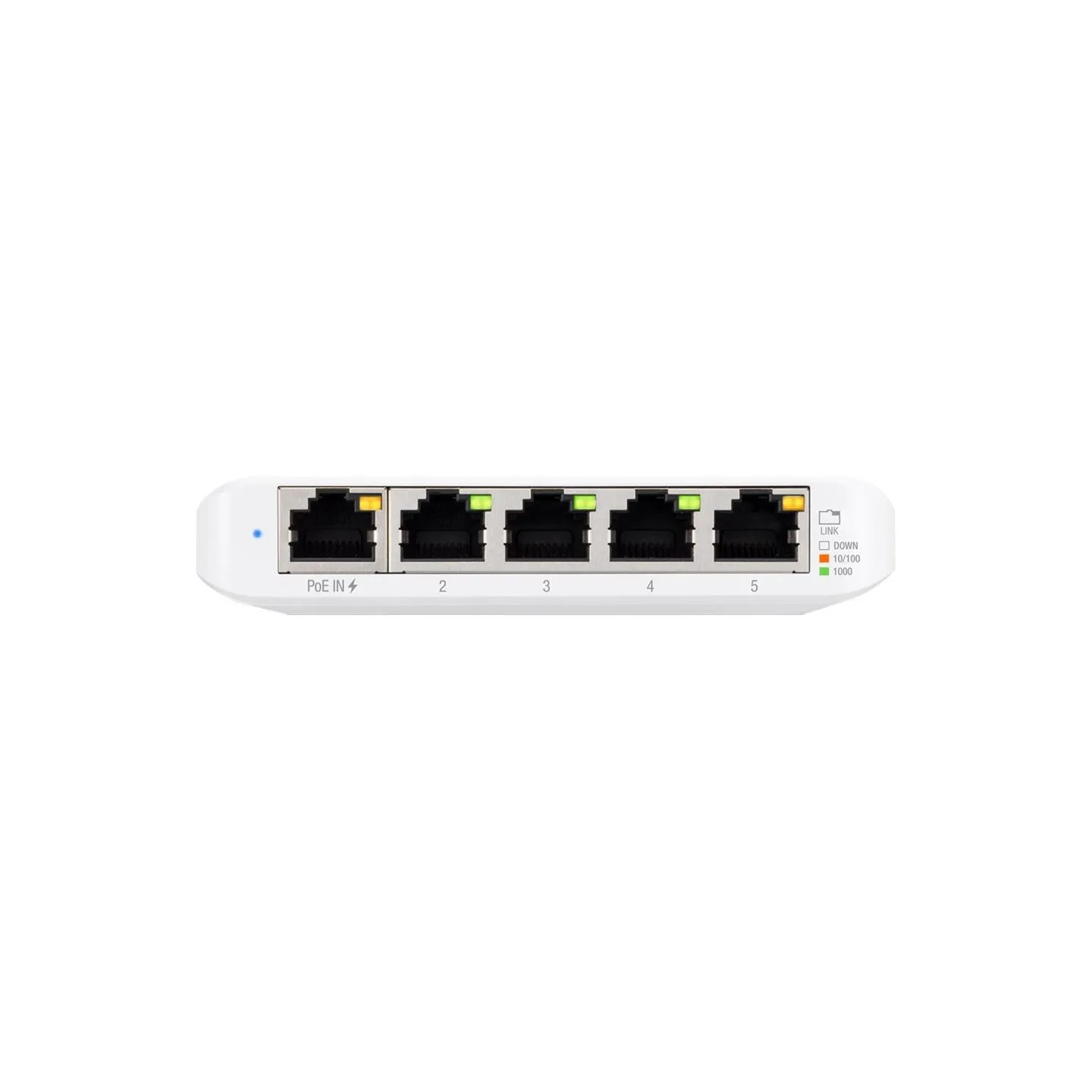

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Manufacturer Website:
https://eu.store.ui.com/products/usw-flex-mini?_pos=1&_sid=96db740f8&_ss=r
- Summary
- Ubiquiti UniFi USW Flex Mini. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE)
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.115
- Unit Box Length
- 0.185
- Unit Box Width
- 0.05
- Switch layer
- L2
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Flow control support
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Forwarding rate
- 7.44 Mpps
- Switching capacity
- 10 Gbit/s
- Throughput
- 5 Gbit/s
- LED indicators
- Activity/Link/Speed/Status
- Product colour
- White
- Power consumption (max)
- 2.5 W
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 1
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Depth
- 70.15 mm
- Height
- 21.17 mm
- Weight
- 150 g
- Width
- 107.16 mm
- Certification
- CE, FCC, IC
- Harmonized System (HS) code
- 85176990
- Model name
- USW-Flex-Mini
- Units per Shipping Box
- 30
- Unit Calculated Volume
- 0.001318 cubm
- Unit Calculated Weight
- 0.267 kg
