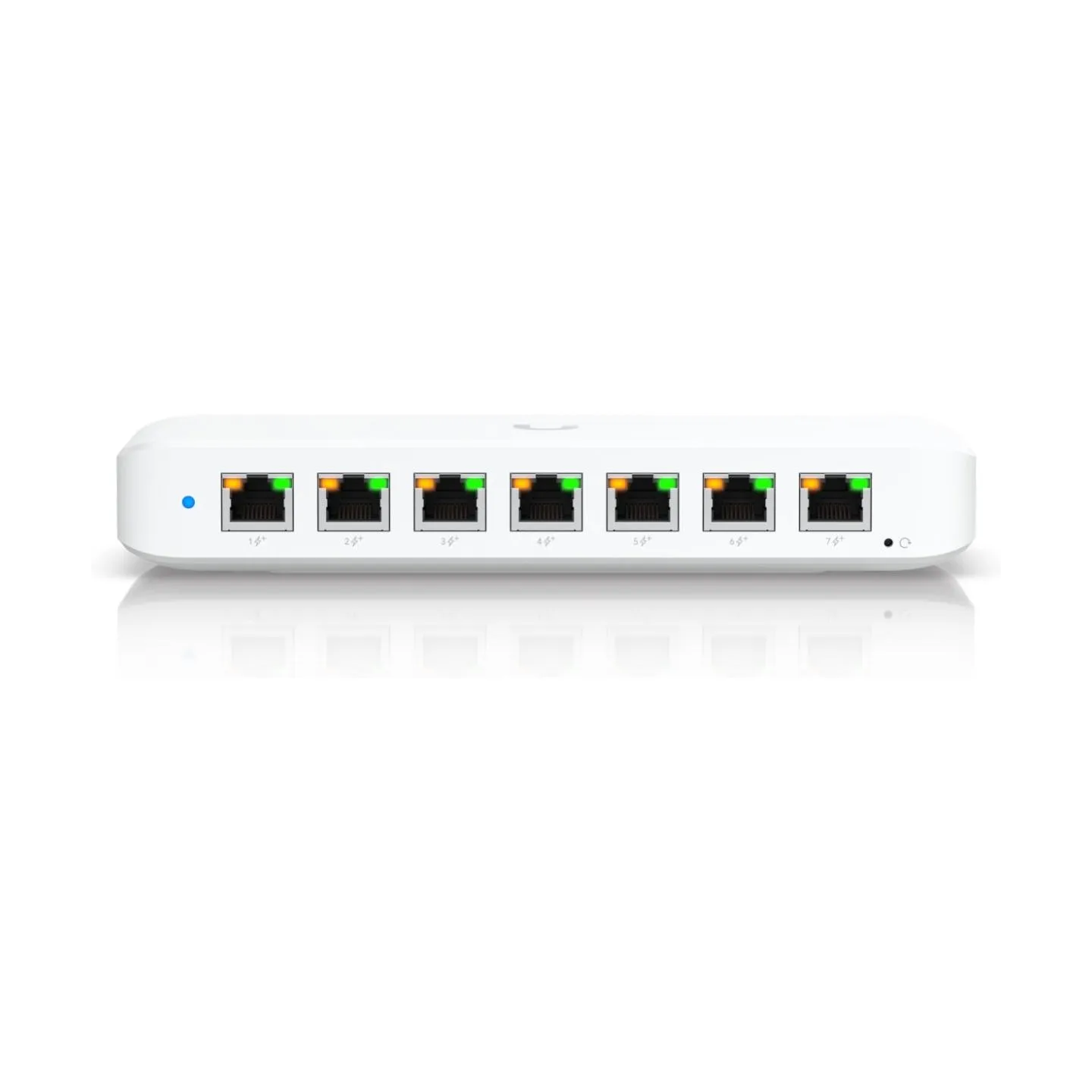

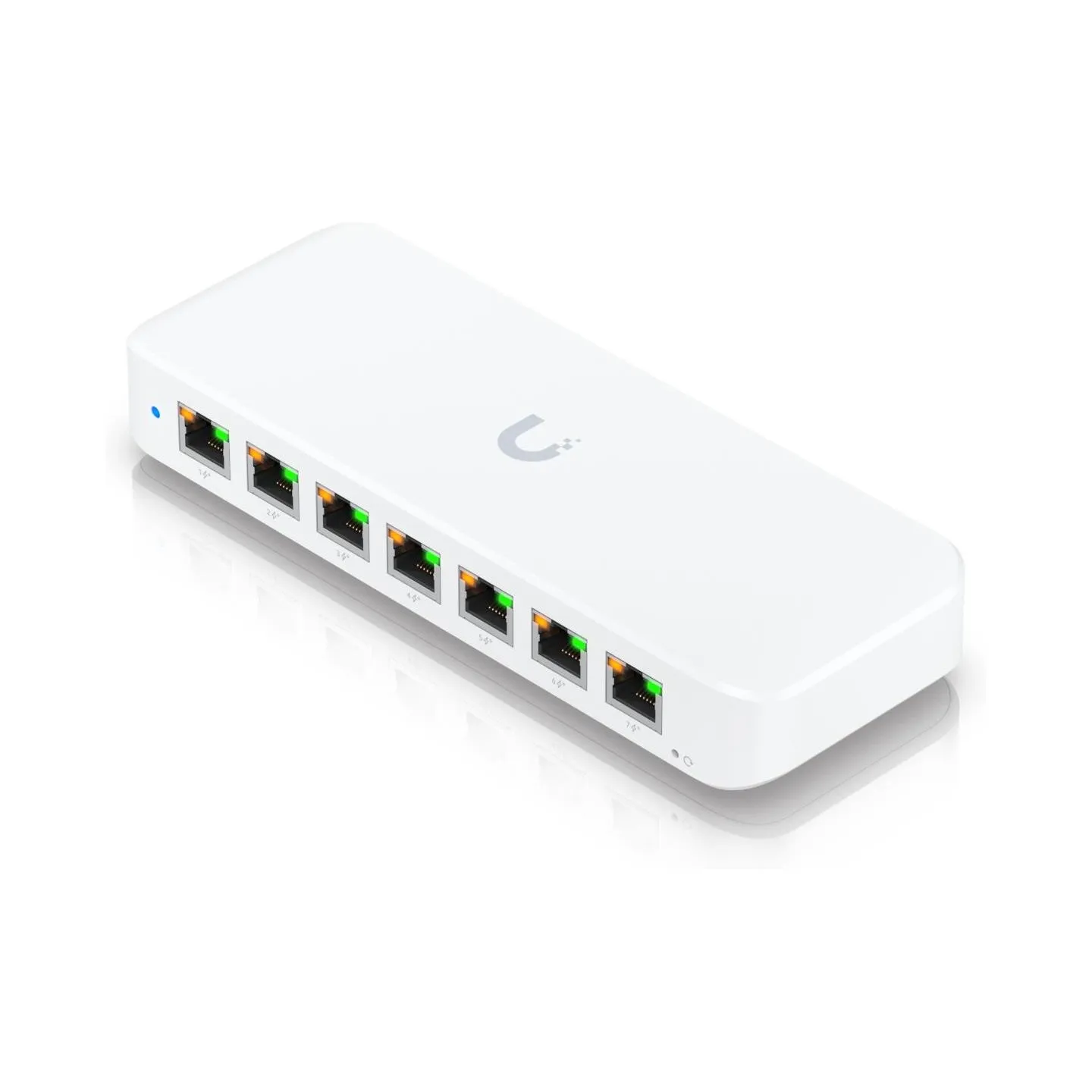

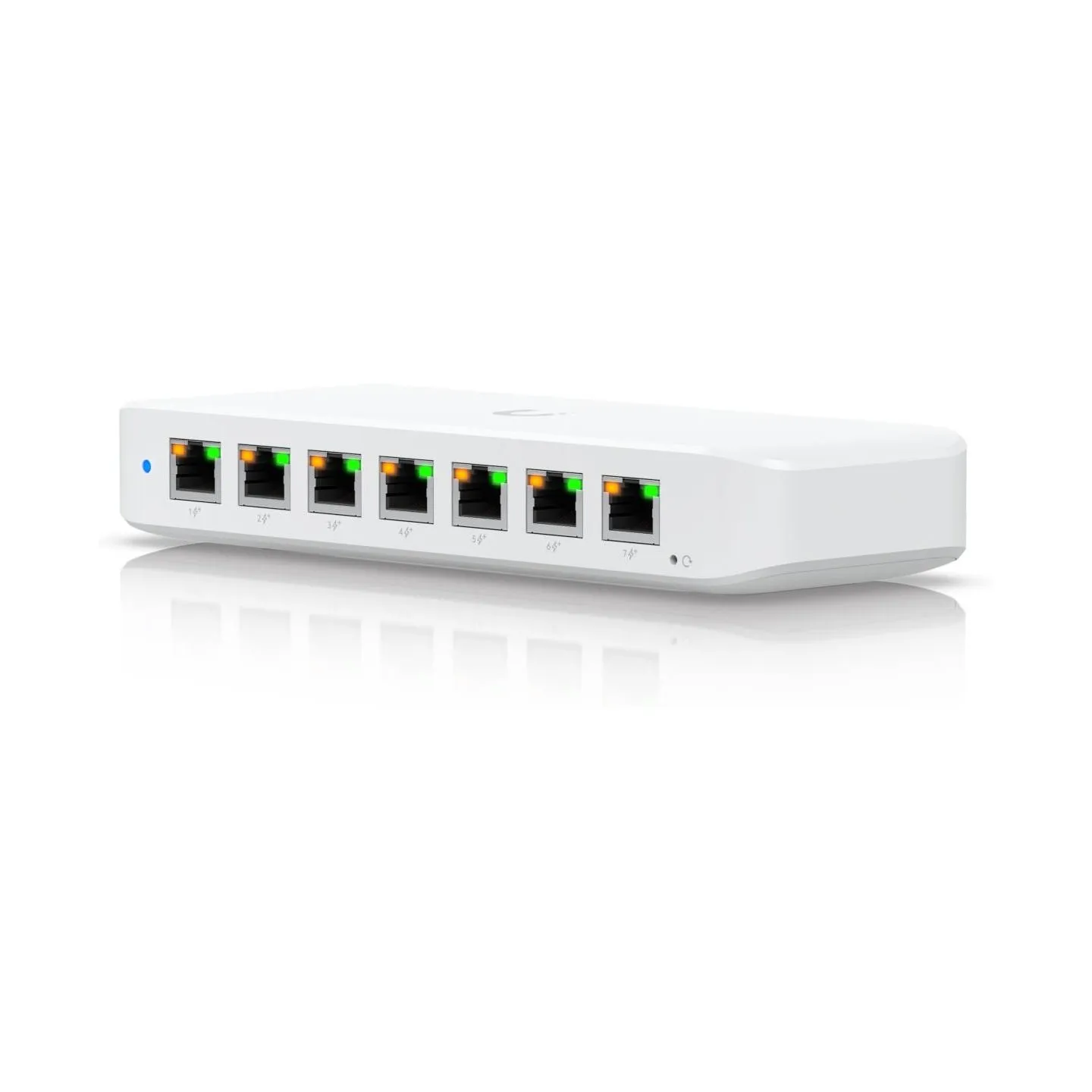

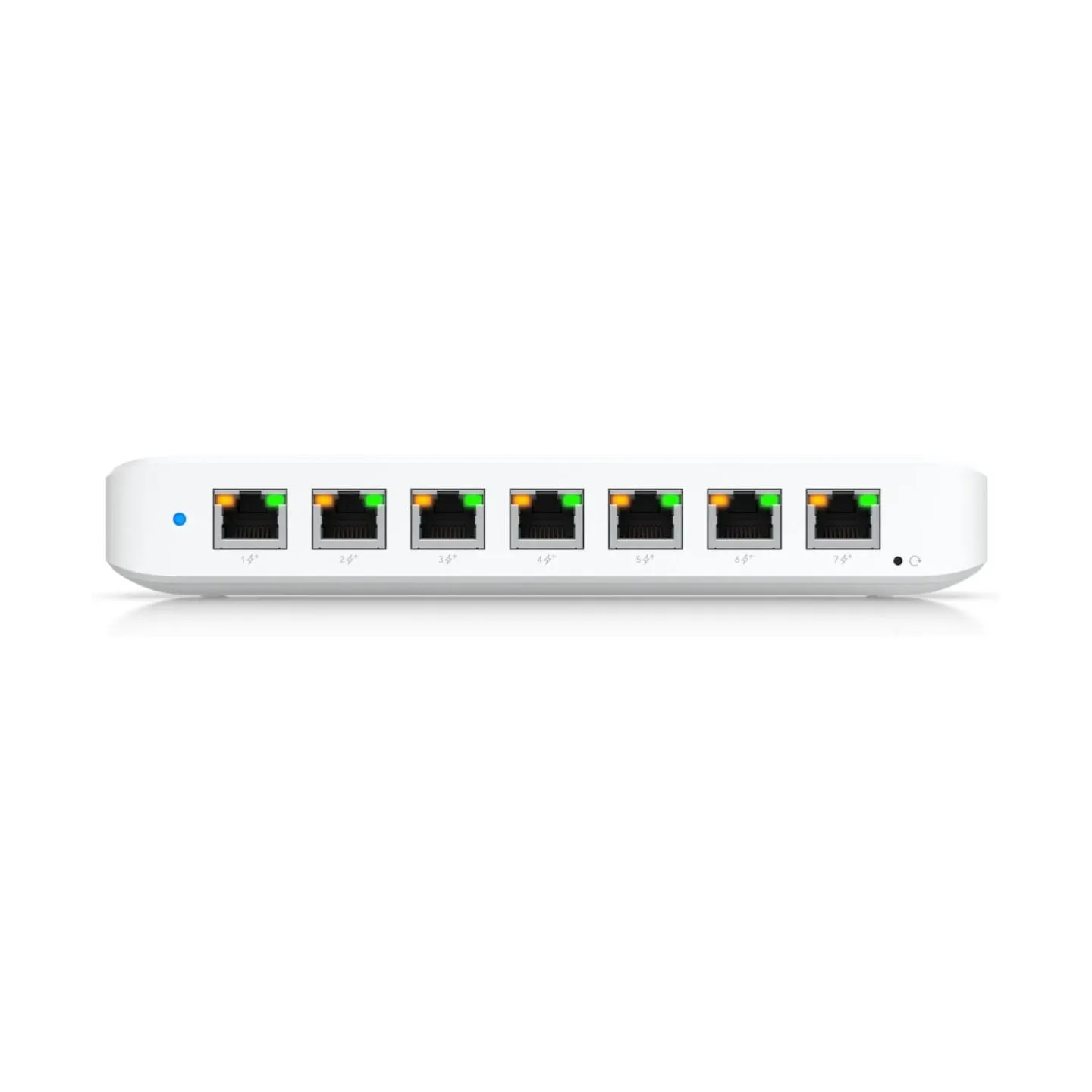

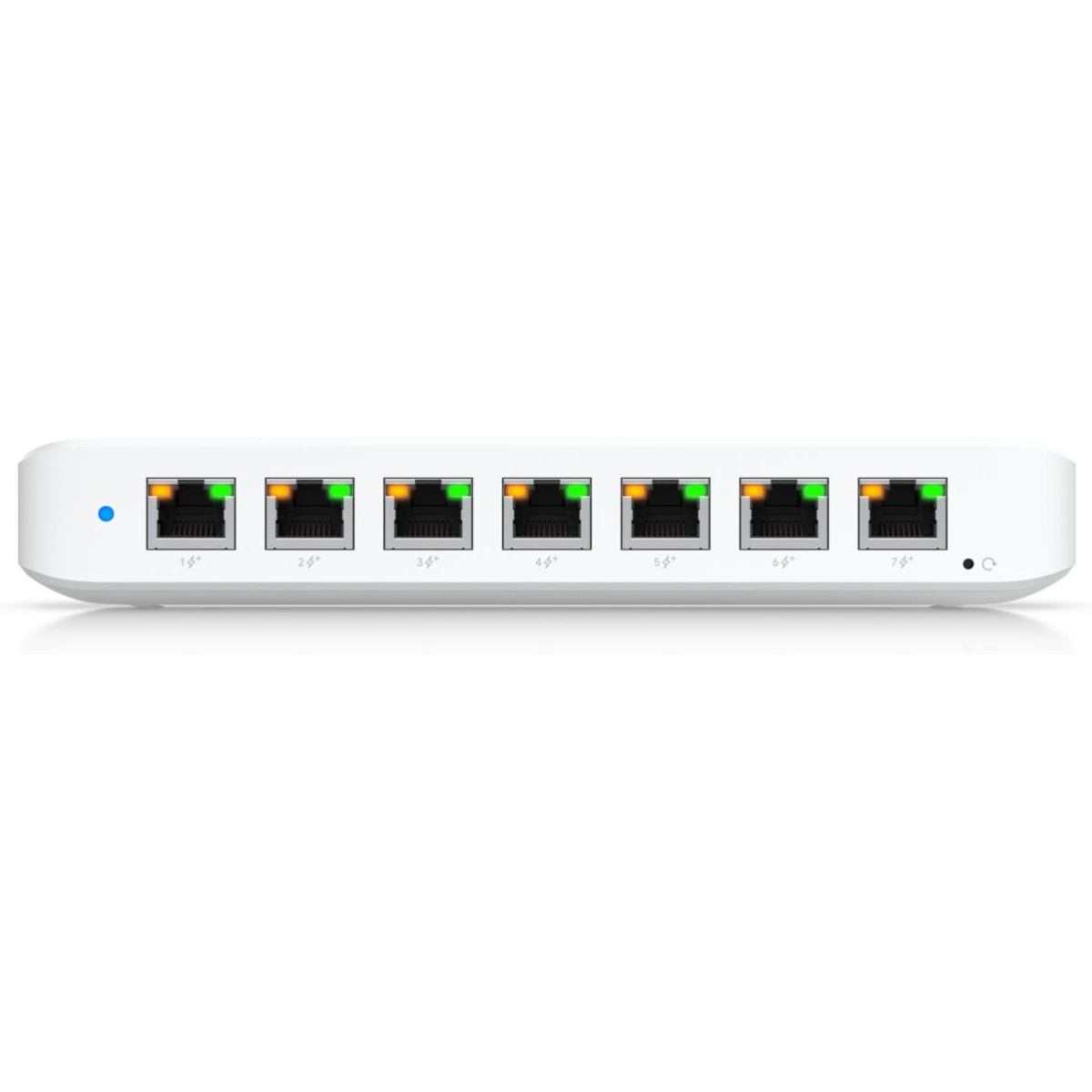

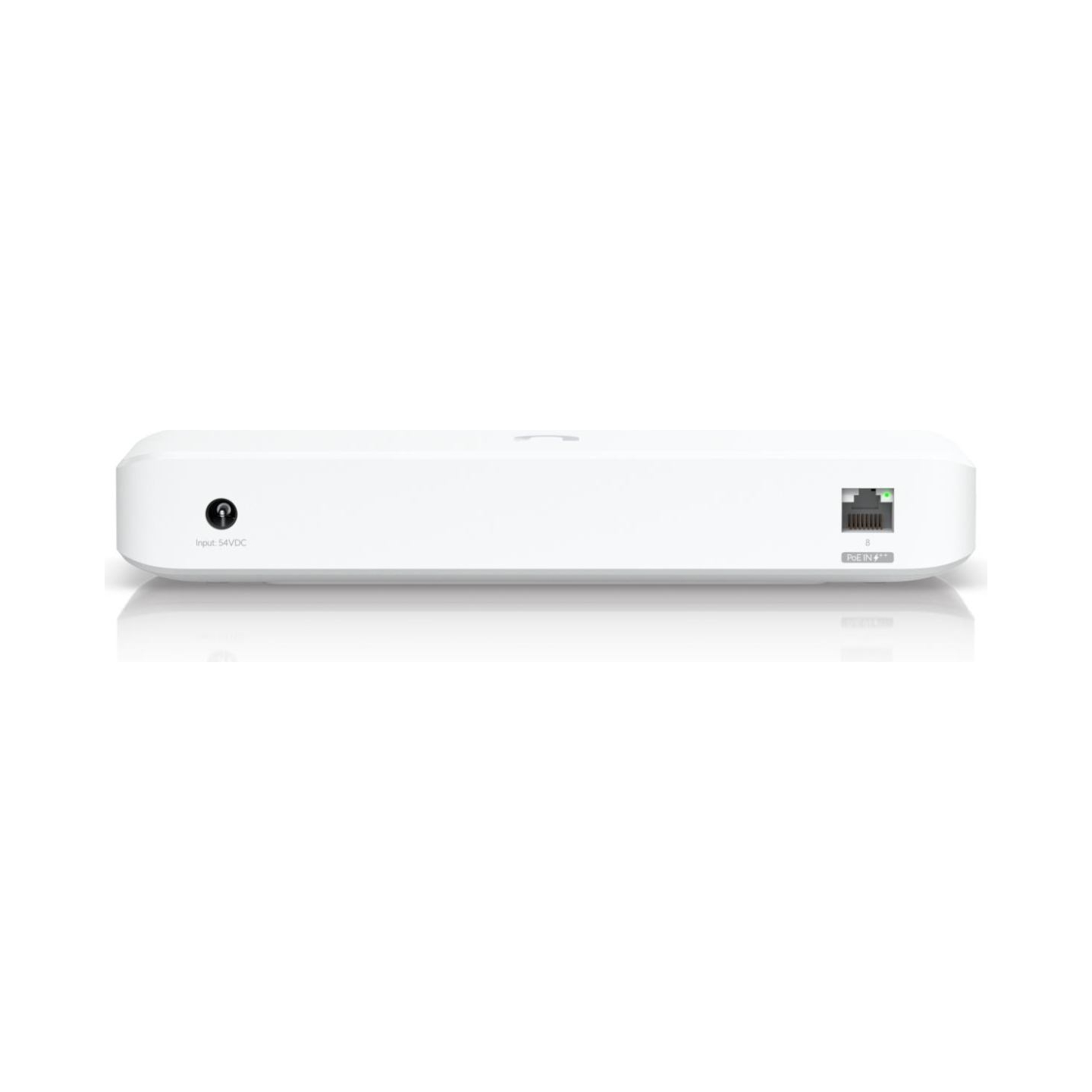

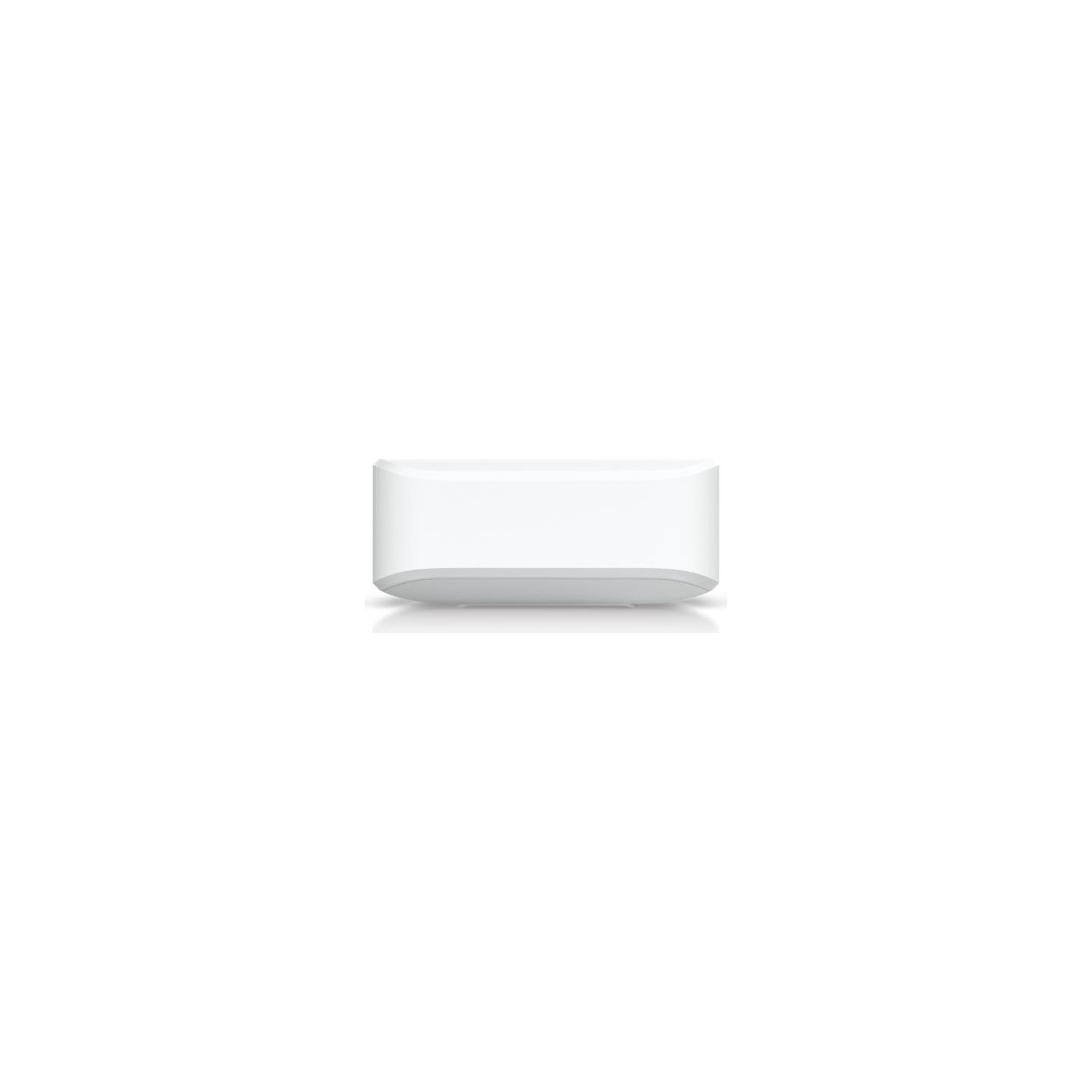

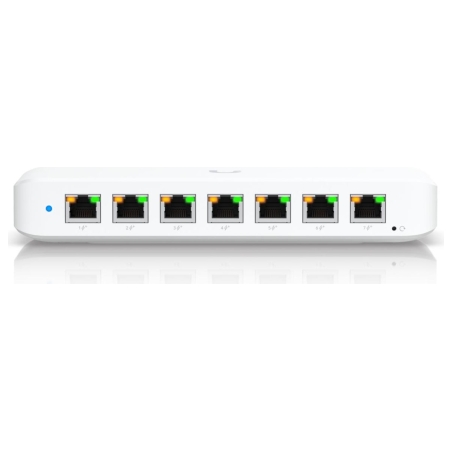

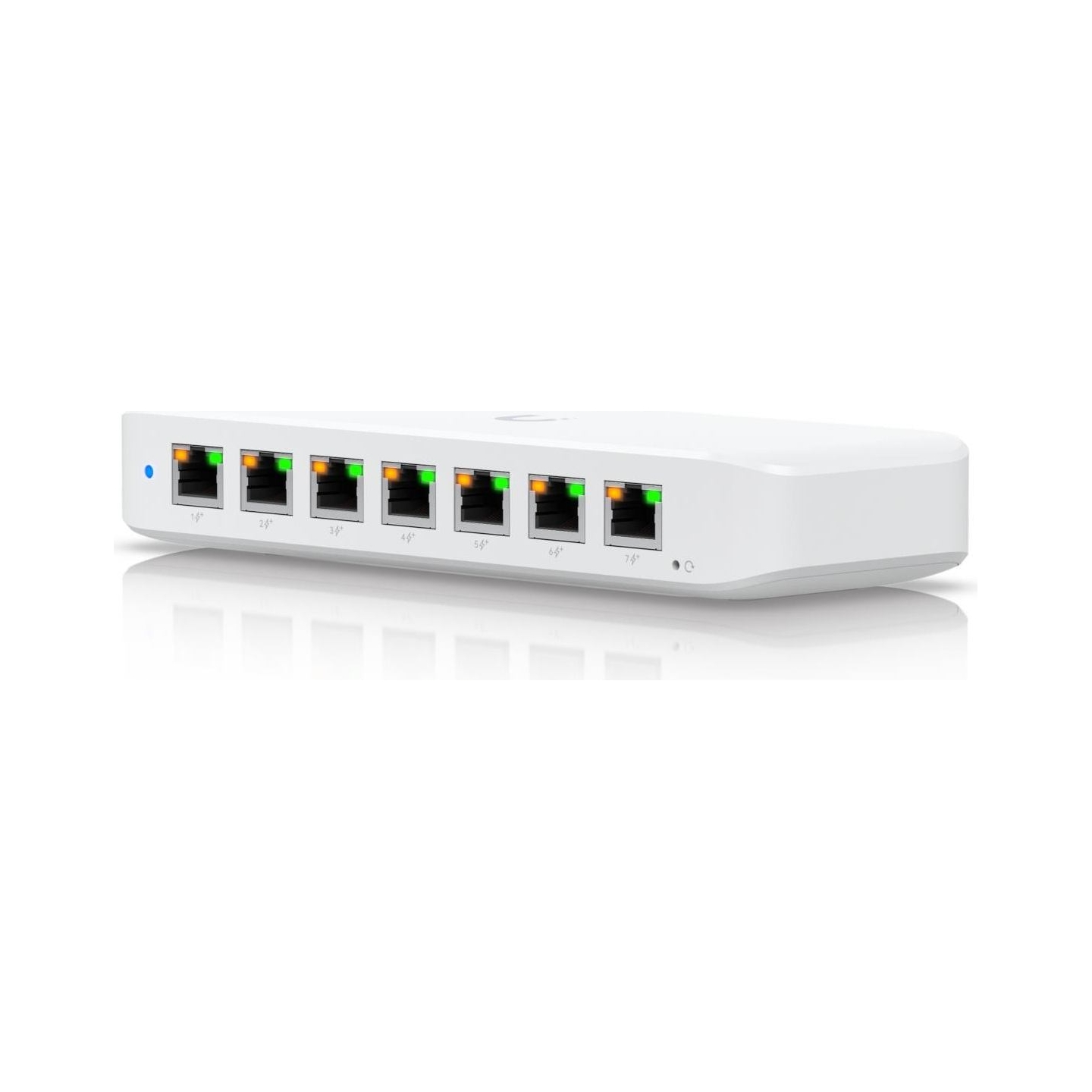

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 52W PoE availability with the included AC power adapter
Manufacturer Website:
https://store.ui.com/us/en/collections/unifi-switching-utility-poe/products/usw-ultra-60w
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.25
- Unit Box Length
- 0.11
- Unit Box Width
- 0.14
- Switch layer
- L2
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)

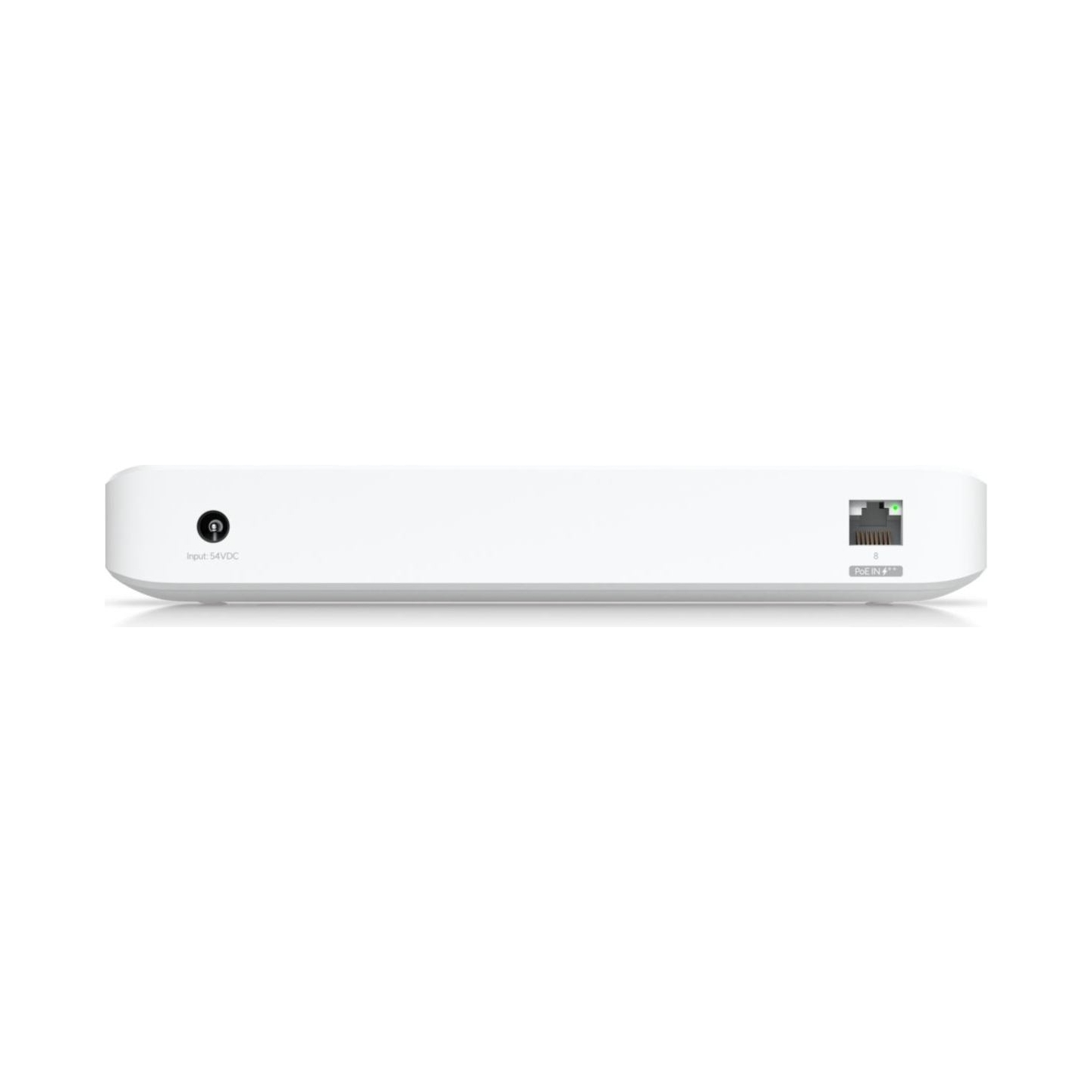

- Power connector
- DC-in jack
- 10G support
- No
- Broadcast storm control
- Yes
- Flow control support
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
- Jumbo frames support
- Yes
- Switching capacity
- 16 Gbit/s
- Throughput
- 8 Gbit/s
- Multicast support
- Yes
- Housing material
- Polycarbonate (PC)
- LED indicators
- Activity/Link/PoE/Status
- Product colour
- White
- Rack mounting
- No
- Reset button
- Yes
- Wall mountable
- Yes
- DC input voltage
- 44 - 57 V
- Input current
- 1.1 A
- Number of power supply units
- 1
- Power consumption (max)
- 9 W
- Power source
- DC/PoE
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 7
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 1
- Power over Ethernet plus (PoE+) ports quantity
- 7
- Total Power over Ethernet (PoE) budget
- 42 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -20 - 45 °C
- Depth
- 76 mm
- Height
- 33 mm
- Weight
- 320 g
- Width
- 203 mm

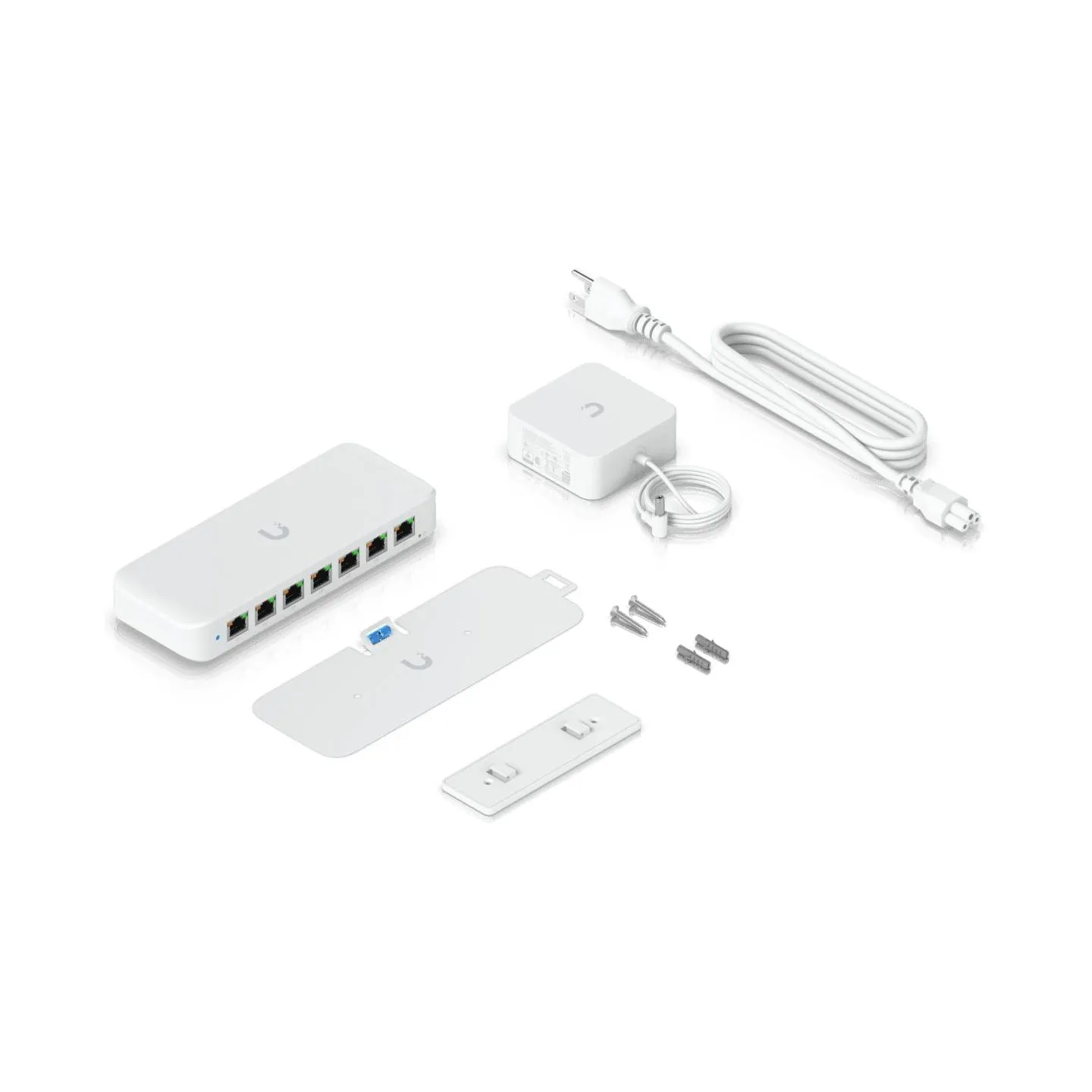

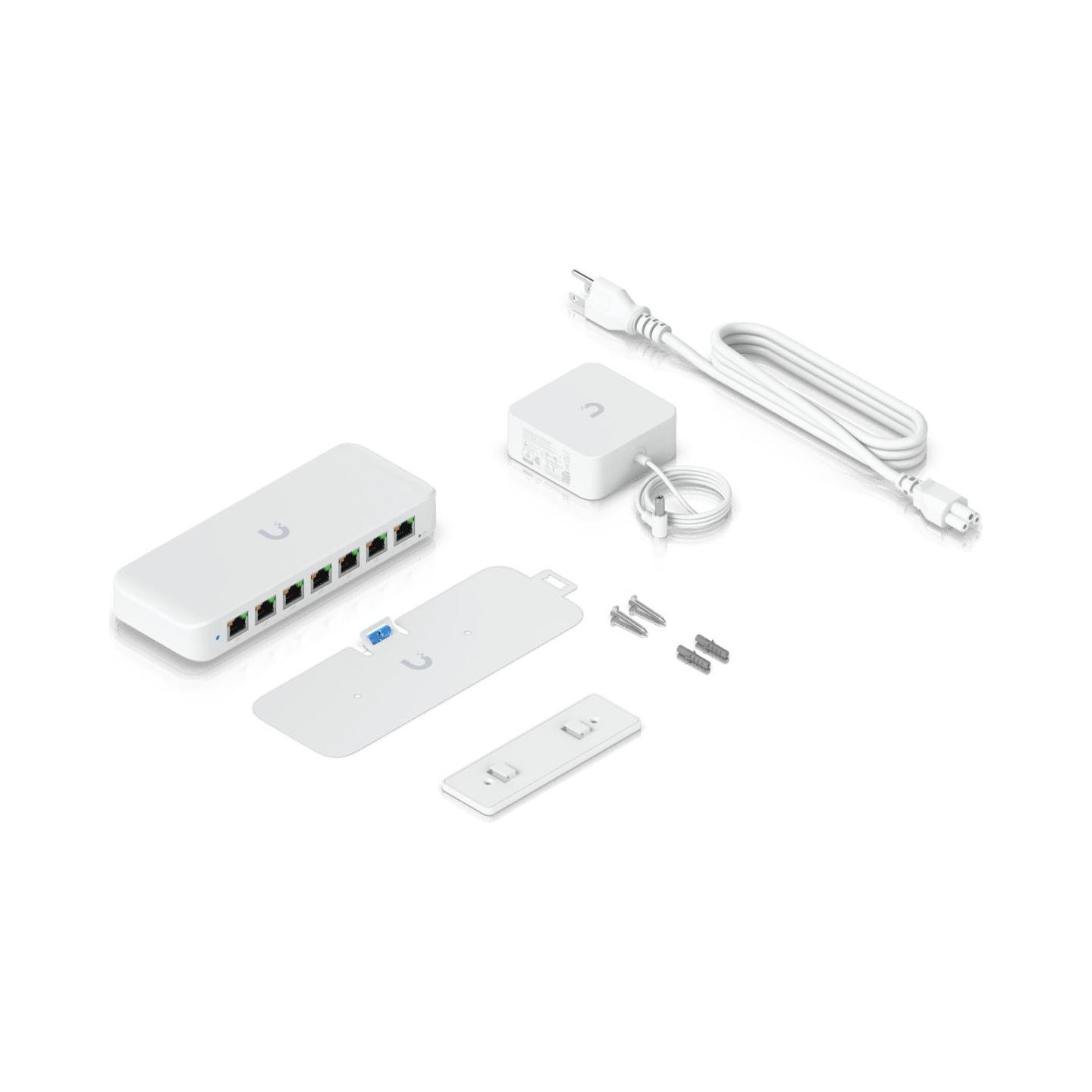

- Cables included
- Power
- Manual
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Model
- UBIQUITI Ultra 60W
- Series
- Ultra
- Model name
- Ultra 60W
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.004703 cubm
- Unit Calculated Weight
- 1.1 kg
