Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 1.5 Gbps routing with IDS/IPS

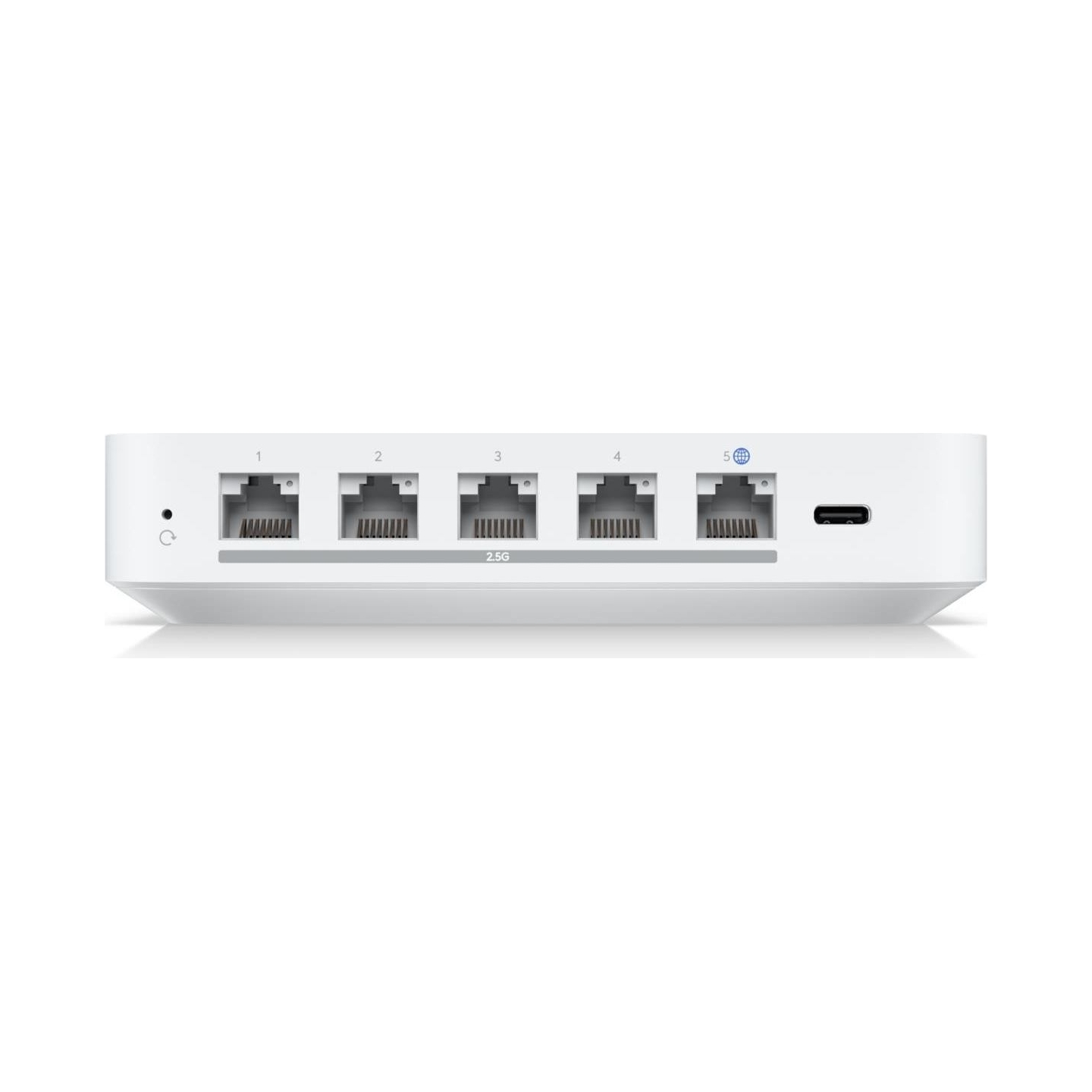

- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN

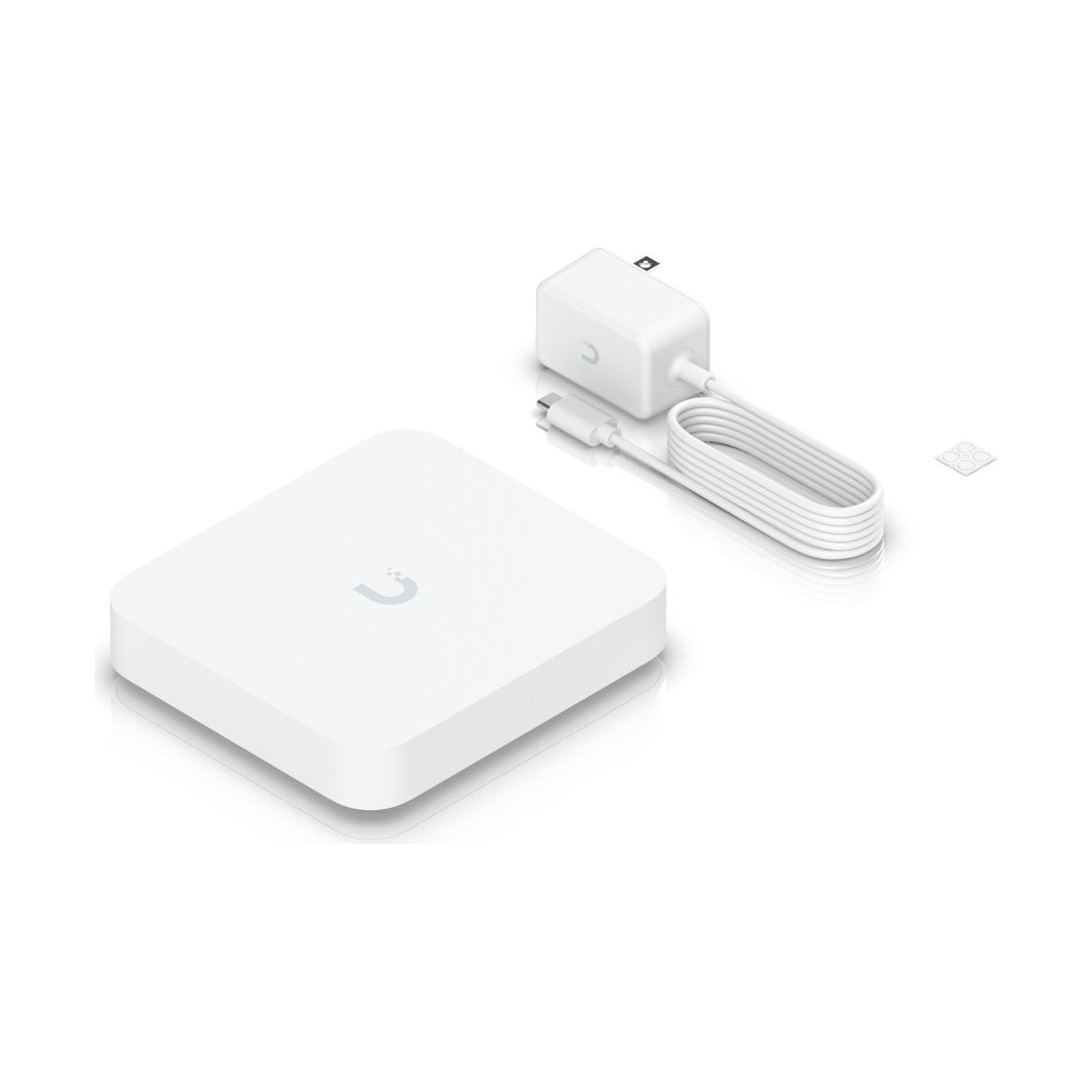

- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/uxg-max
- Category Code
- GWC
- CnCode
- 85176200
- Unit Box Height
- 0.08
- Unit Box Length
- 0.175
- Unit Box Width
- 0.16
- Enclosure material
- Polycarbonate (PC)
- LED indicators
- Activity/LAN/Link
- Product colour
- White
- Plug and Play
- Yes
- Built-in processor
- Yes
- Control display unit
- No
- Internal memory
- 2000 MB
- Internal memory type
- DDR4
- Number of processors installed
- 1
- Processor frequency
- 1500 MHz
- Processor manufacturer
- ARM
- Processor model
- Cortex-A53
- DHCP server
- Yes
- Bluetooth
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- Firewall security
- Yes
- Security algorithms
- IPSec
- VLAN support
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- WAN connection
- Ethernet (RJ-45)
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
- Input voltage
- 100 - 240 V
- Power consumption (max)
- 9.6 W
- Depth
- 127.6 mm
- Height
- 30 mm
- Weight
- 520 g
- Width
- 141.8 mm
- AC adapter included
- Yes
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -10 - 40 °C
- Sustainability compliance
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Model
- Gateway Max
- Product model code
- UXG-MAX
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.00383 cubm
- Product Net Weight
- 0.52 kg
- Unit Calculated Weight
- 0.94 kg
