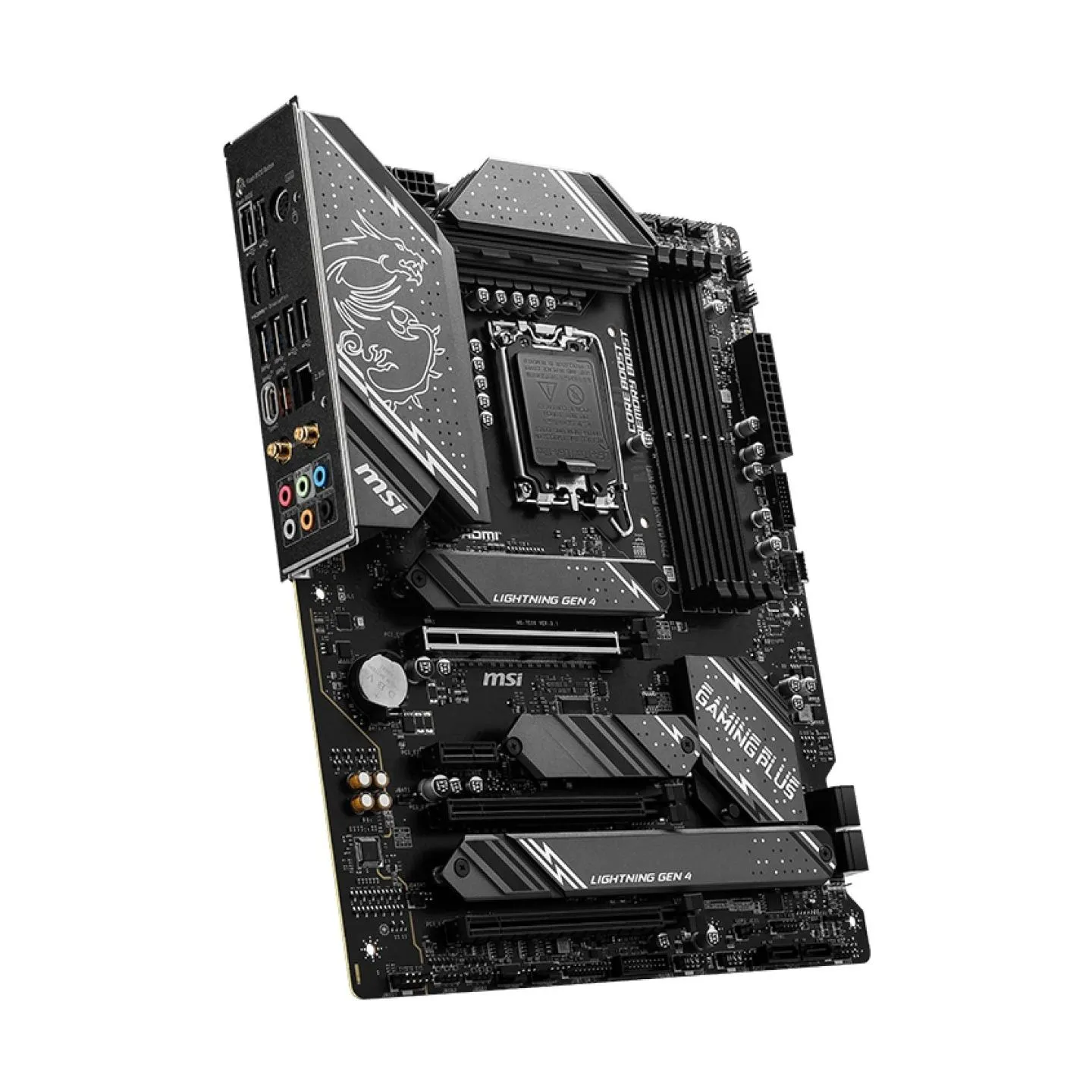

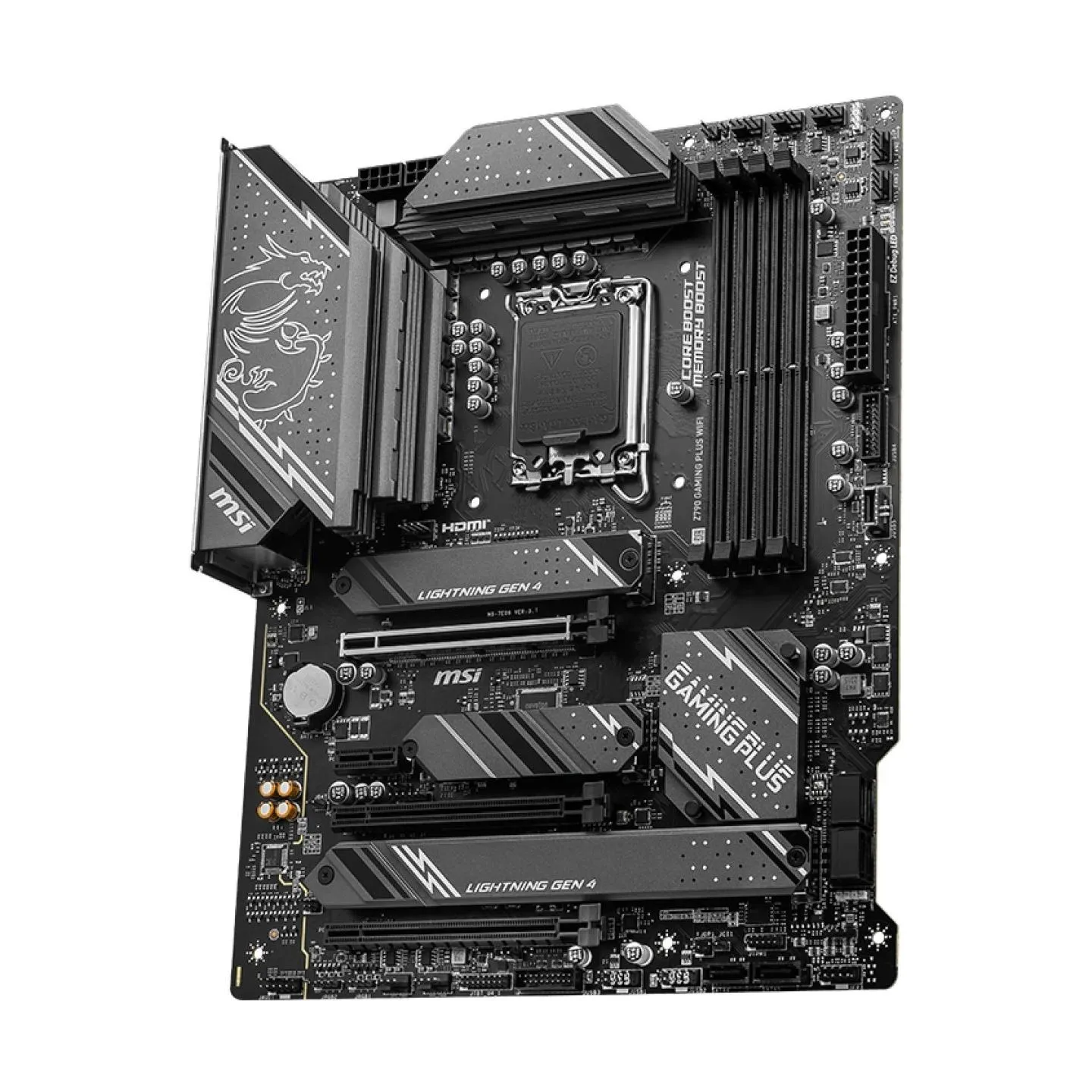

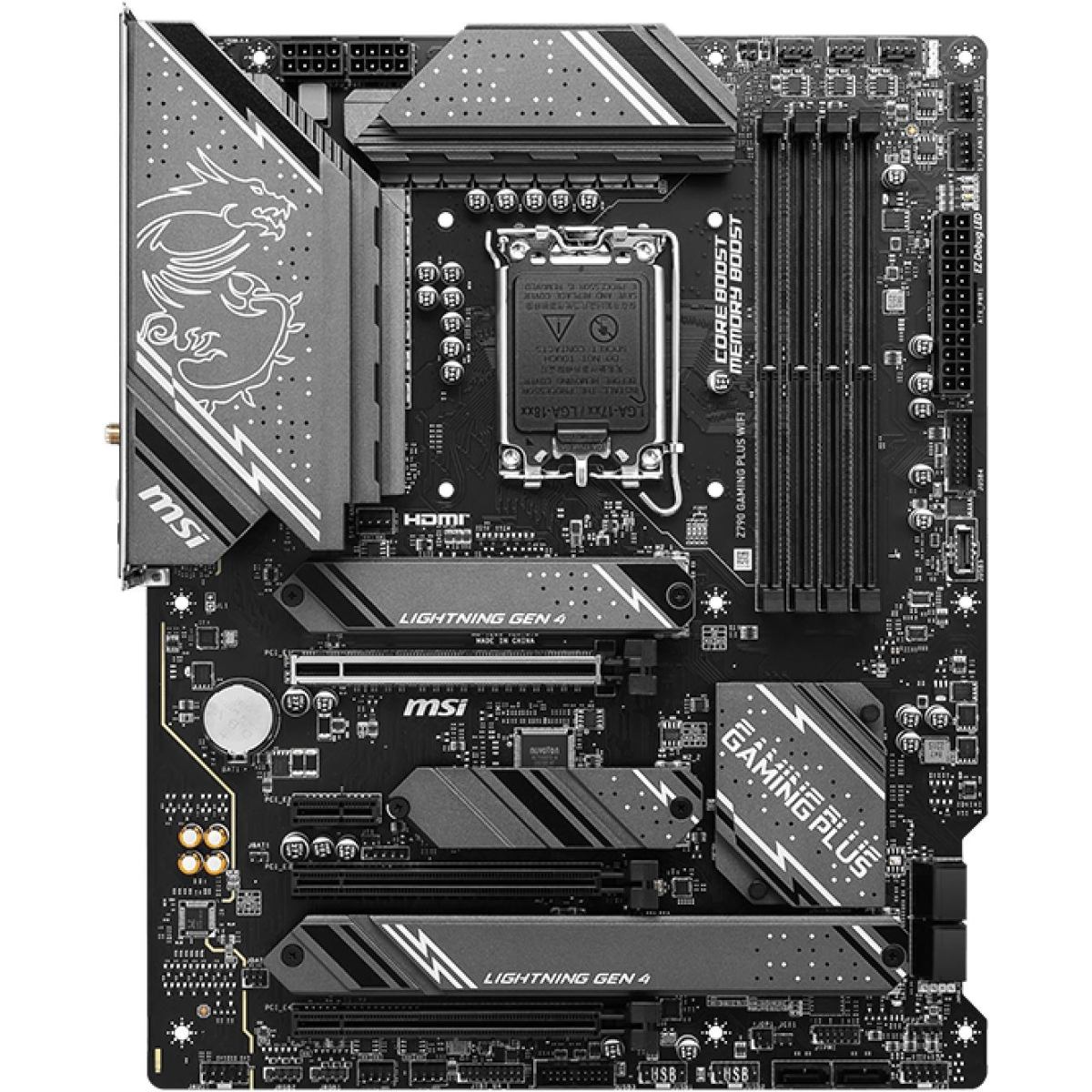

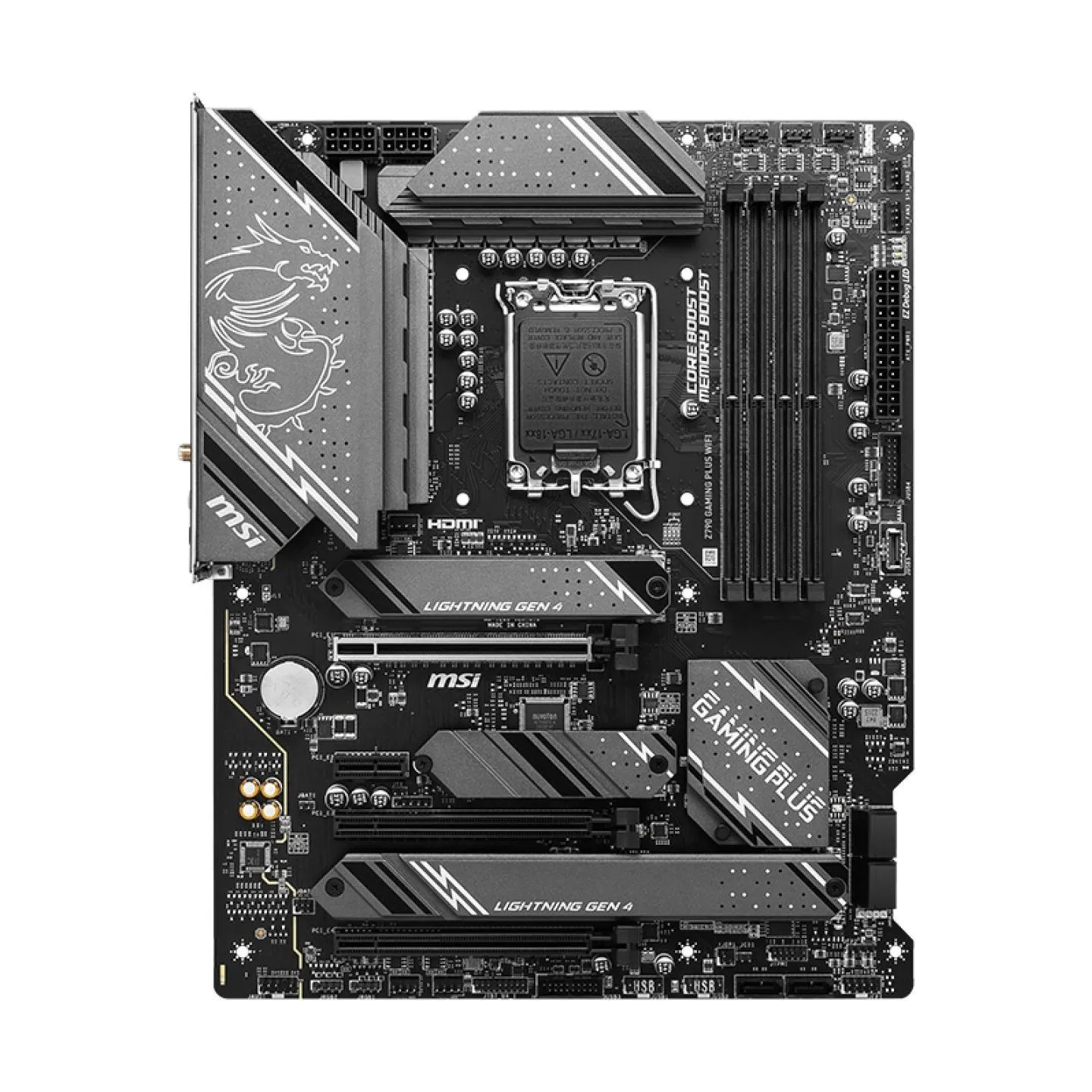

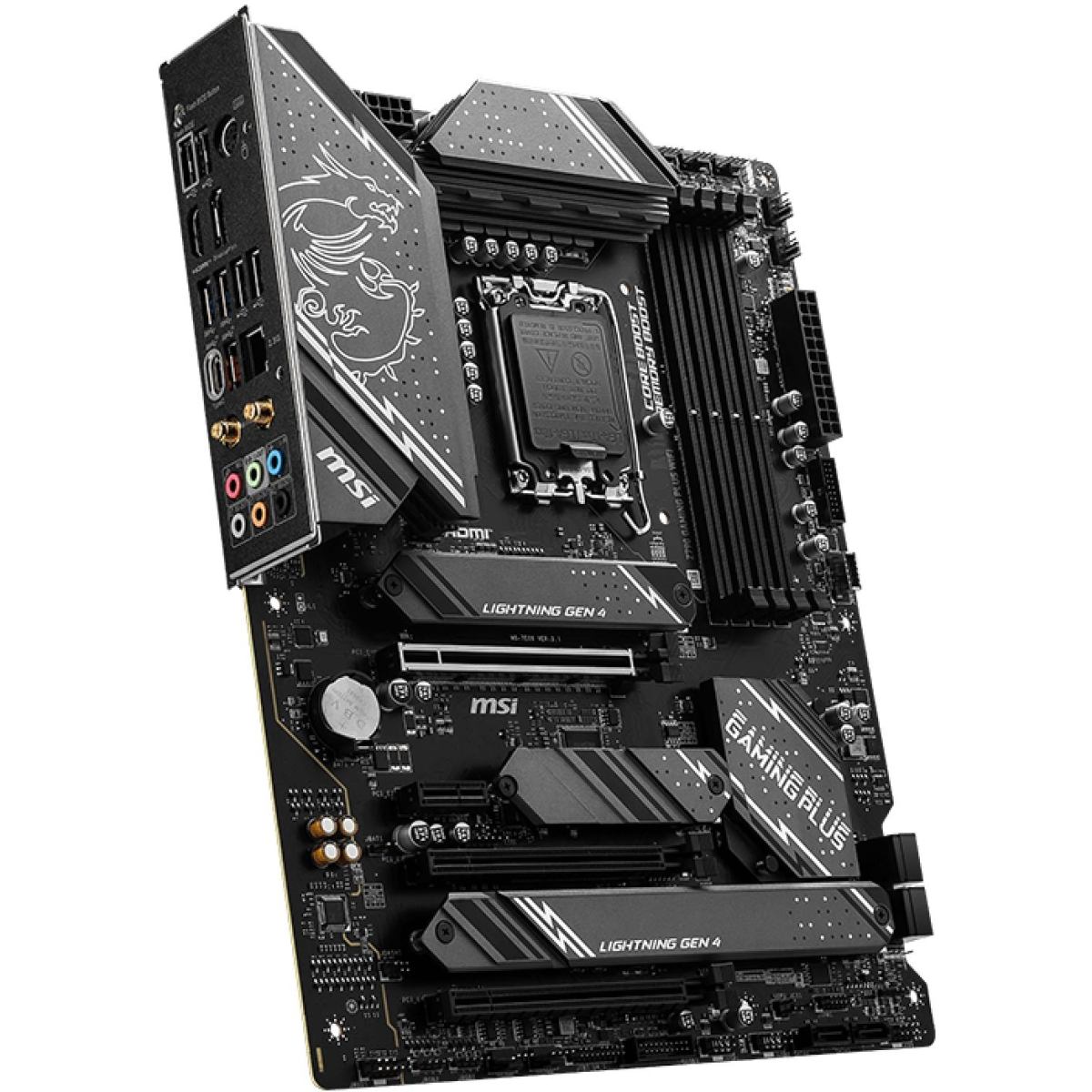

MSI Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPor

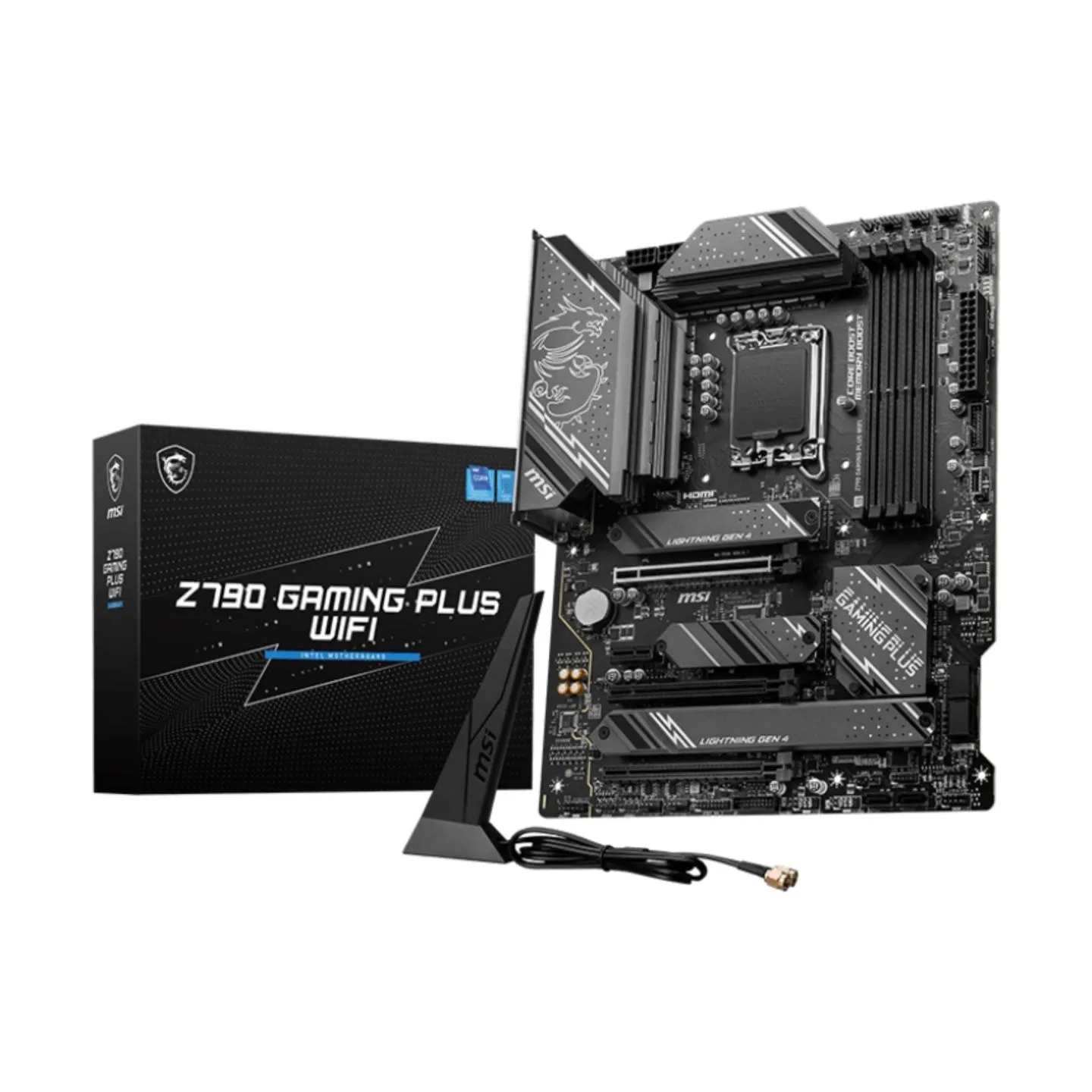

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Manufacturer Website:
https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.345
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel Z790
- Motherboard chipset family
- Intel
- Motherboard form factor
- ATX
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 192 GB
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 7200 MHz
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
- Supported memory types
- DDR5-SDRAM
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,PCI Express
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- No
- Parallel processing technology support
- Not supported
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 6
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1

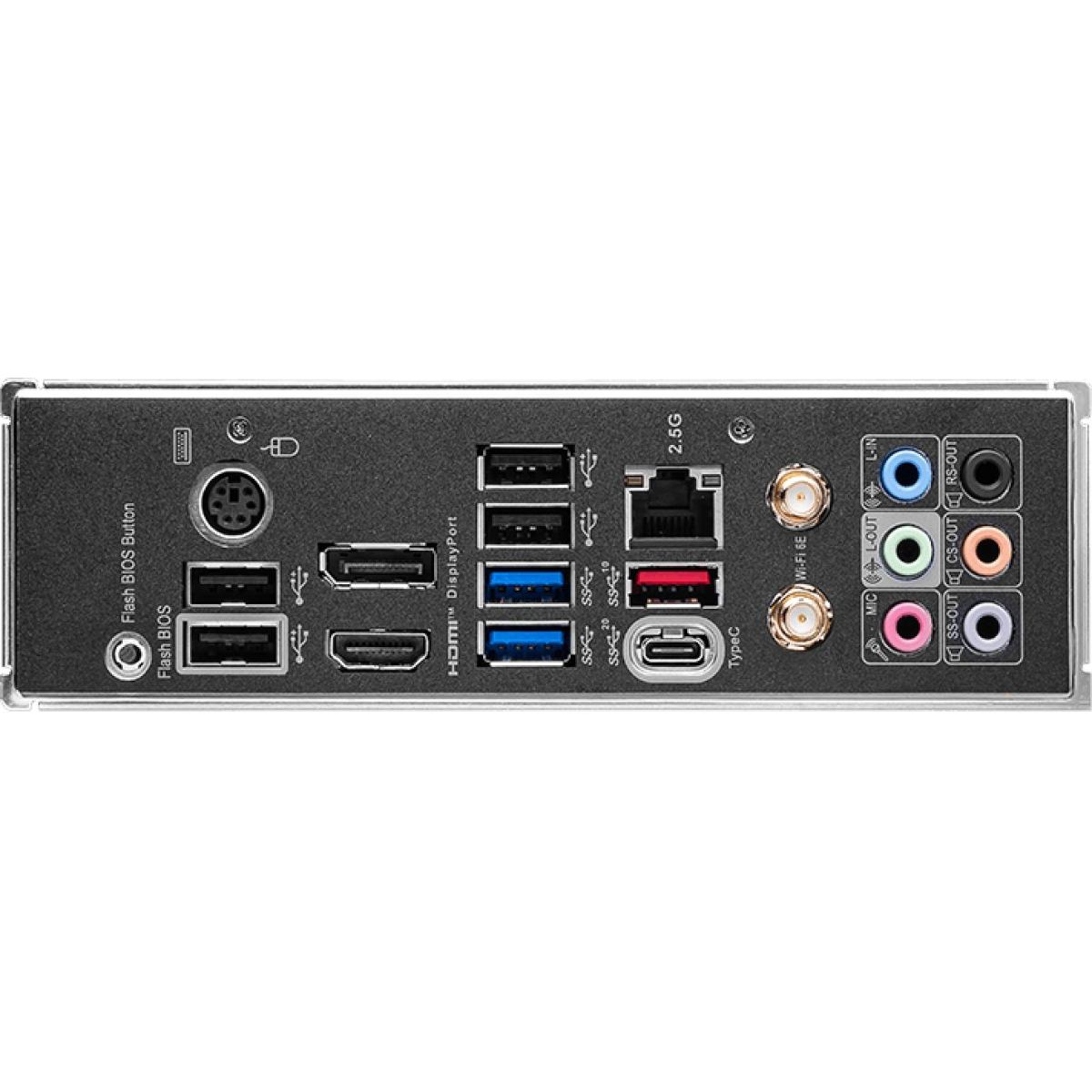

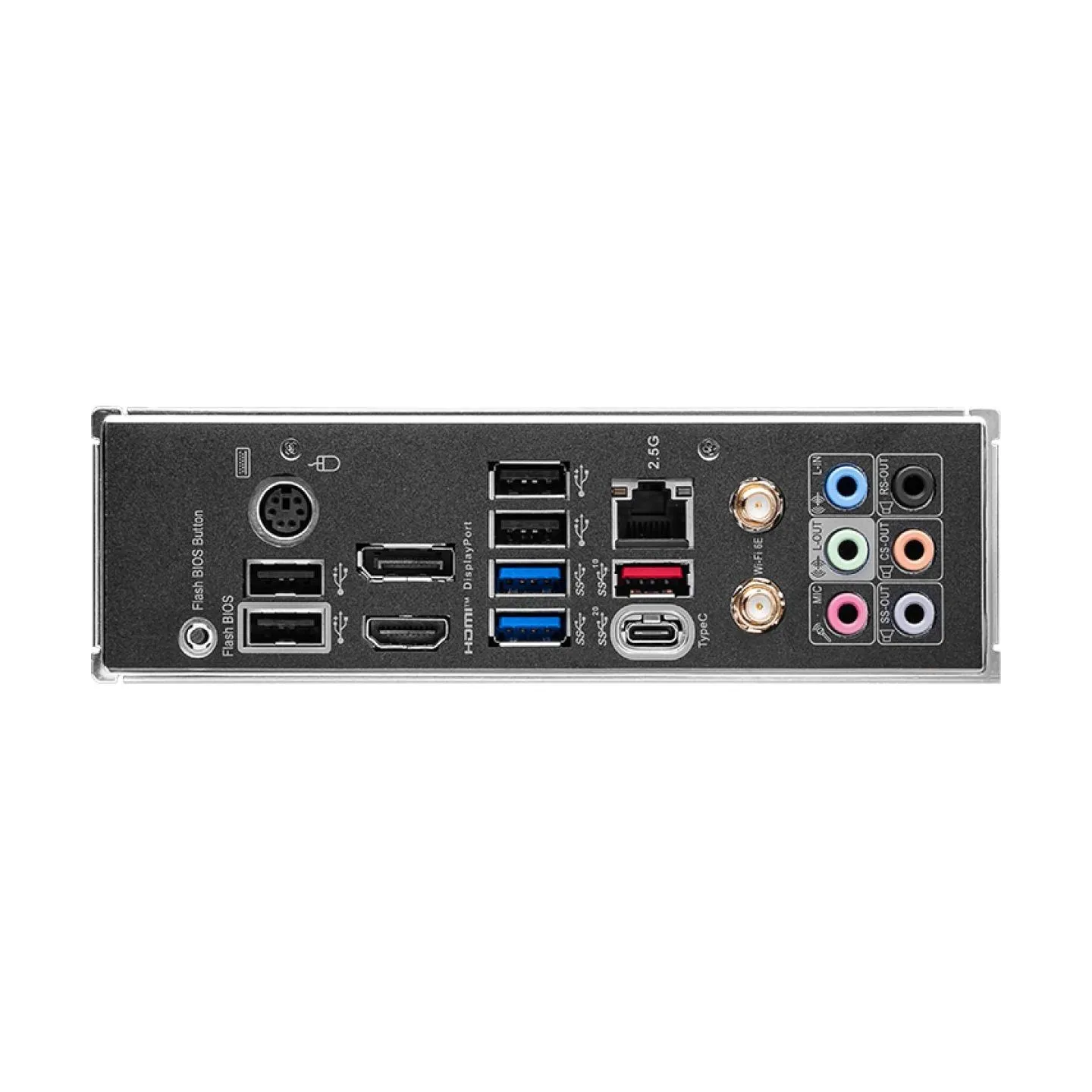

- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
- Number of M.2 (M) slots
- 4
- PCI slots
- 4
- Depth
- 304.8 mm
- Width
- 243.84 mm
- Cables included
- SATA
- Model
- Z790 GAMING PLUS WIFI
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.008014 cubm
- Unit Calculated Weight
- 1.95 kg
