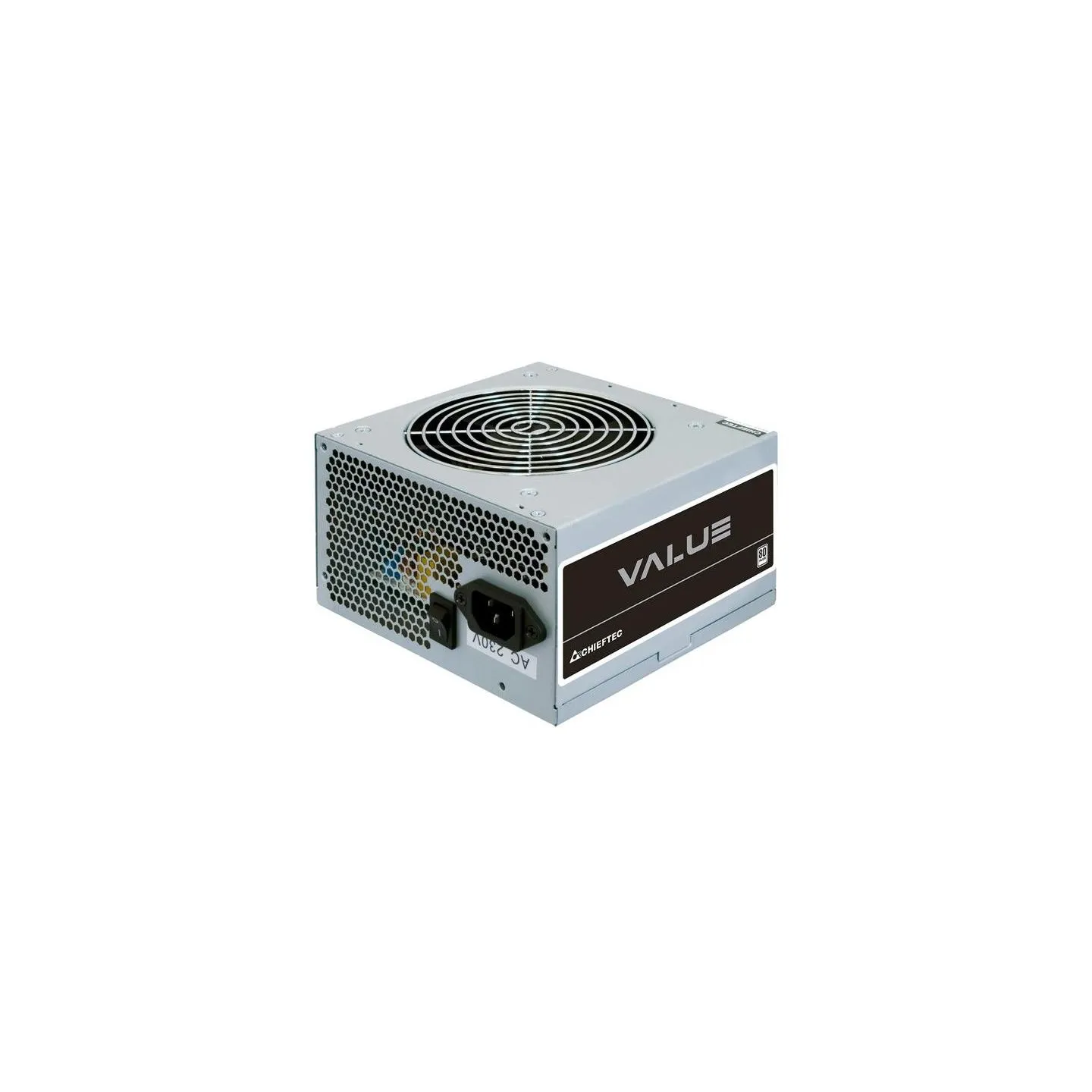

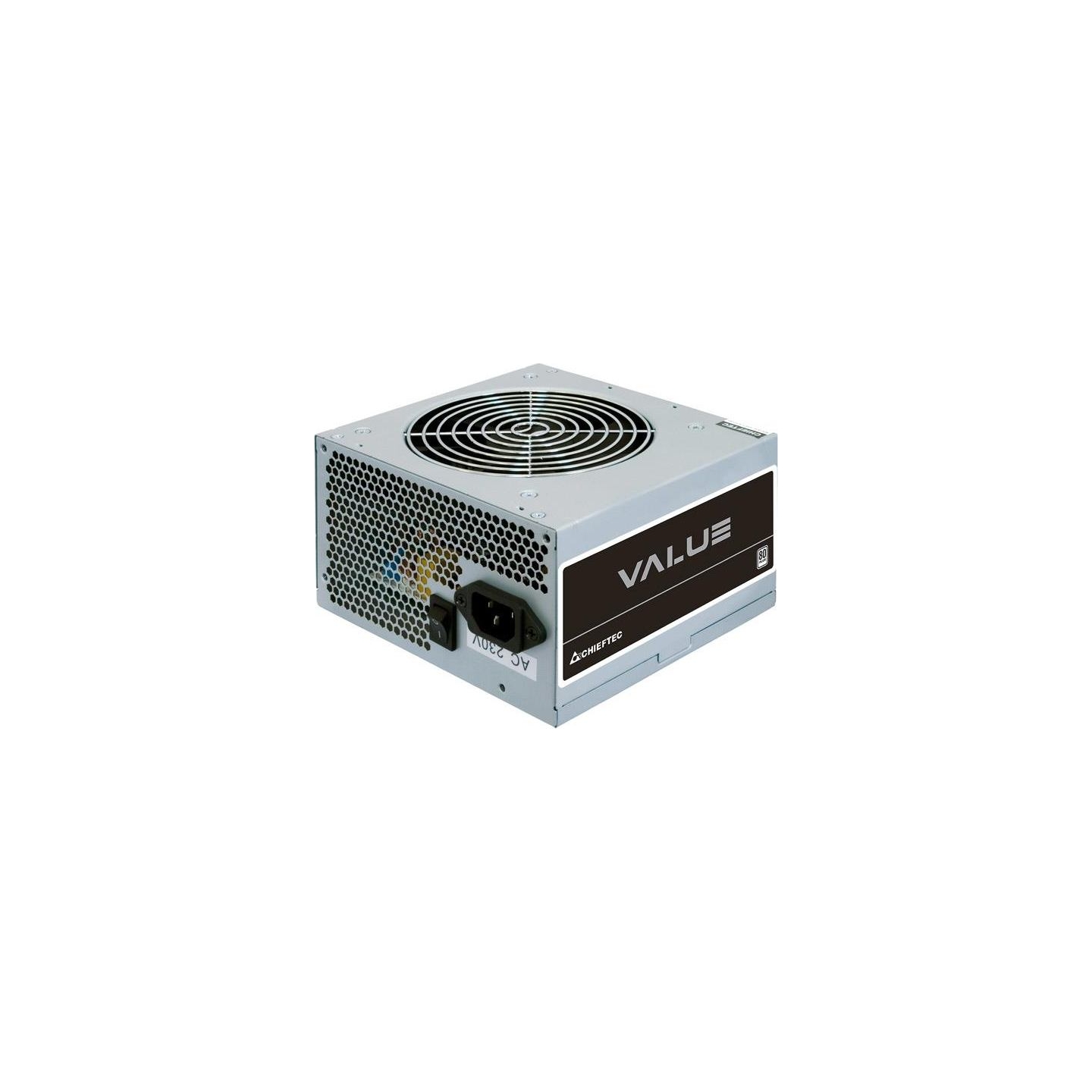

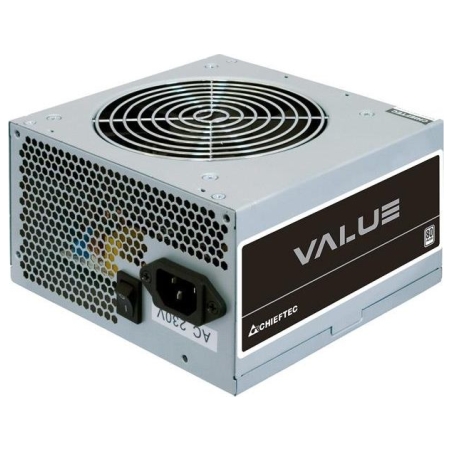

The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
Manufacturer Website:
https://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
- Summary
- Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.15
- Unit Box Length
- 0.22
- Unit Box Width
- 0.09
- AC input frequency
- 50 Hz
- AC input voltage
- 230 V
- Combined power (+3.3V)
- 130 W
- Combined power (+5V)
- 130 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 80 %
- Input current
- 4 A
- Max output current (+12V1)
- 24 A
- Max output current (+12V2)
- 21 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 19 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overload/Short circuit/Under voltage
- Total power
- 500 W
- Cabling type
- Non-Modular
- EPS power connector (8-pin)
- No
- Floppy disk drive connector
- Yes
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 3
- PCI Express power connectors (6+2 pin)
- 1
- Peripheral (Molex) power connectors (4-pin)
- 2
- 80 PLUS certification
- 80 PLUS
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Silver
- Certification
- CE, CB, TÜV, EAC
- Compliance certificates
- RoHS
- Depth
- 140 mm
- Height
- 87 mm
- Width
- 150 mm
- Harmonized System (HS) code
- 84733020
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00297 cubm
- Unit Calculated Weight
- 1.23 kg
