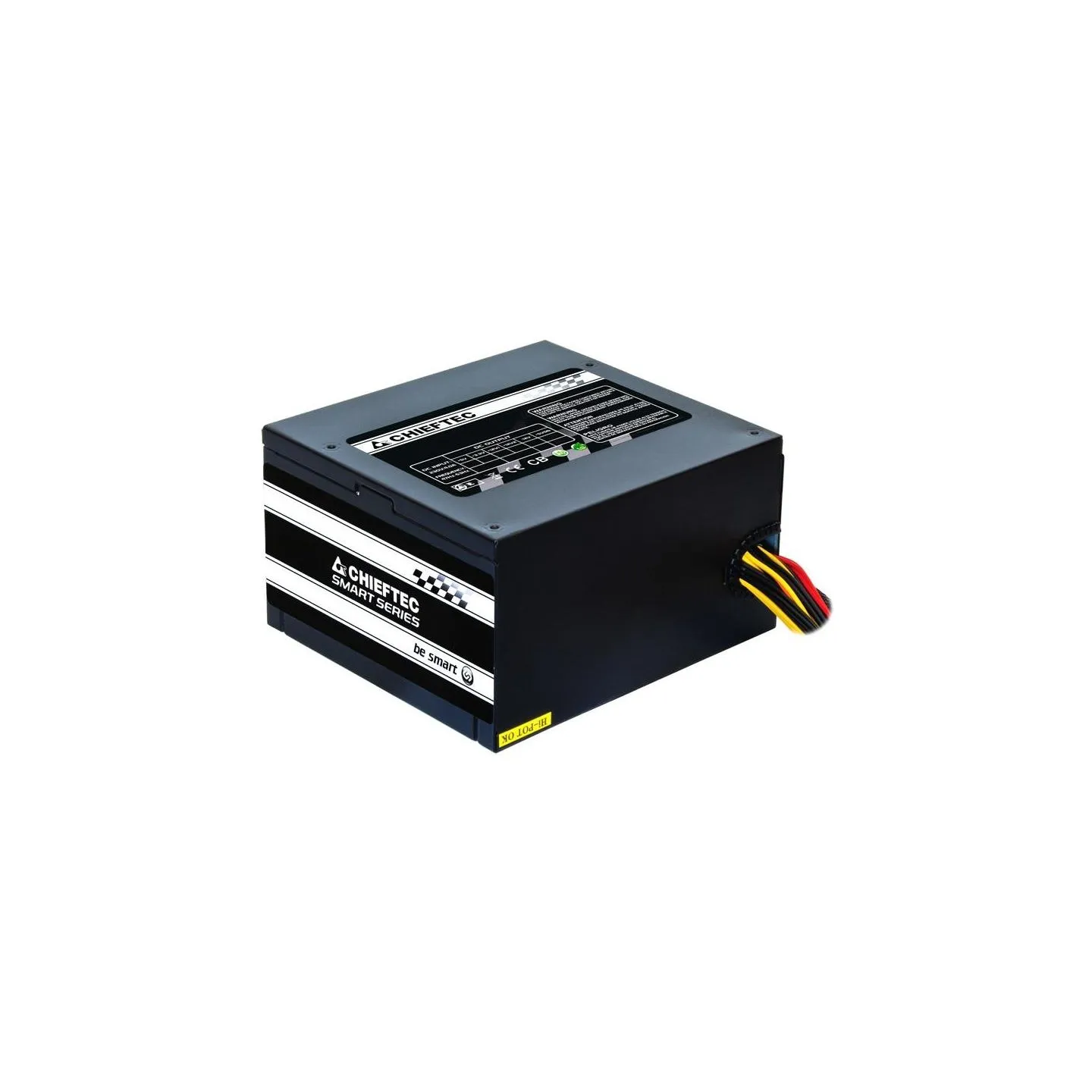

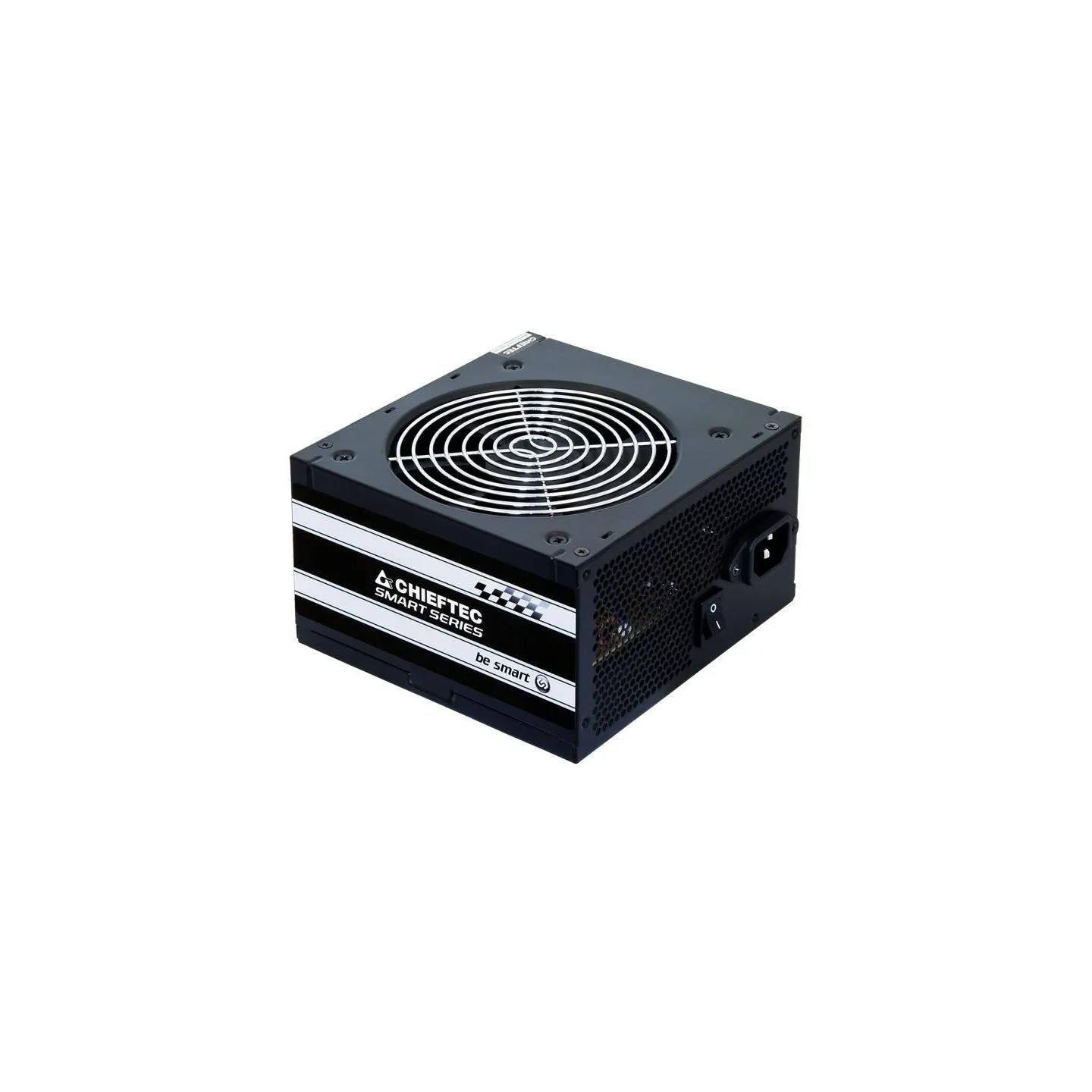

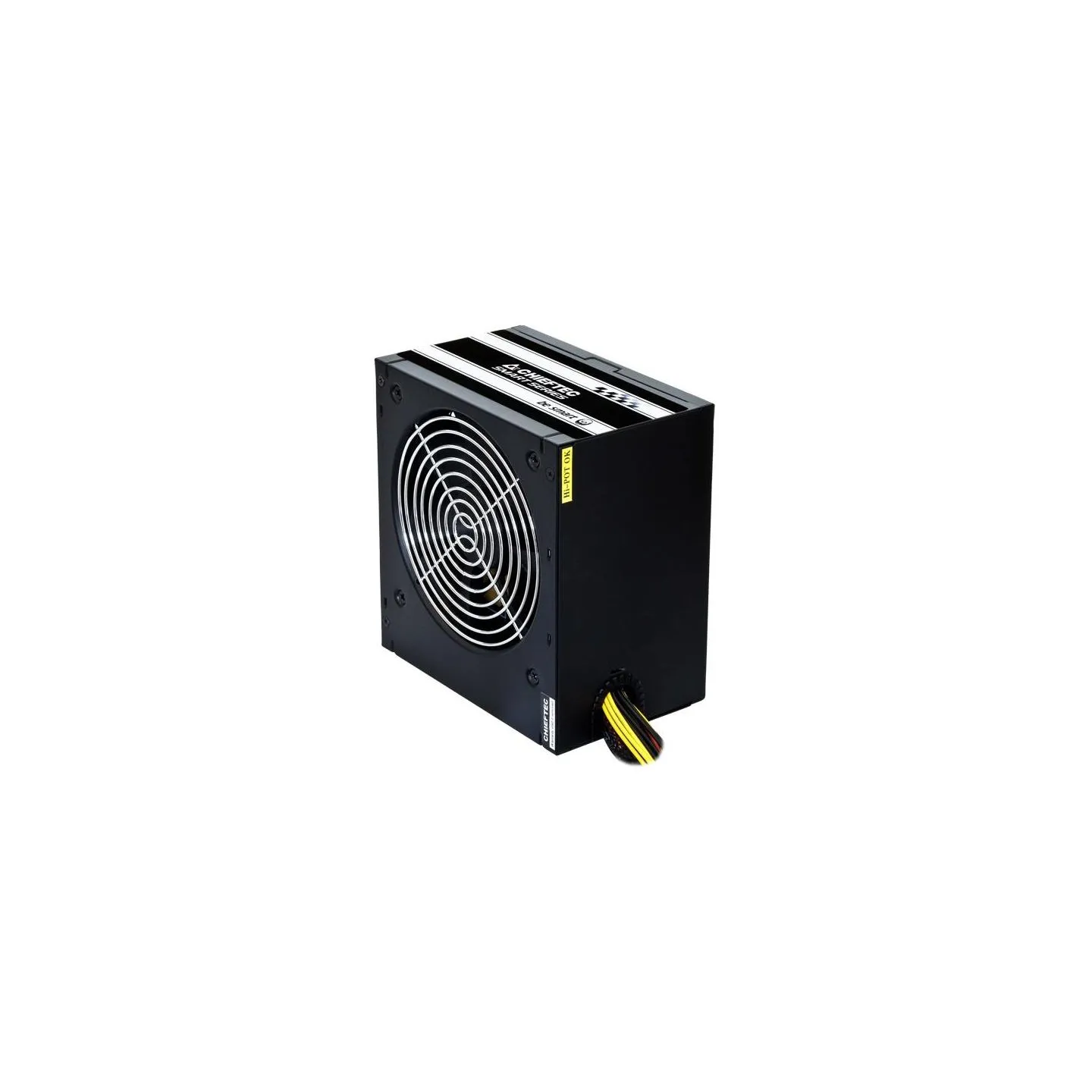

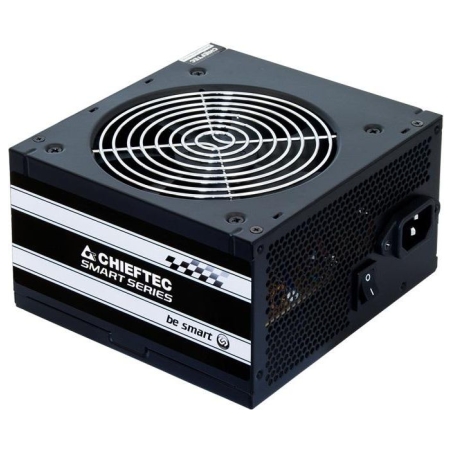

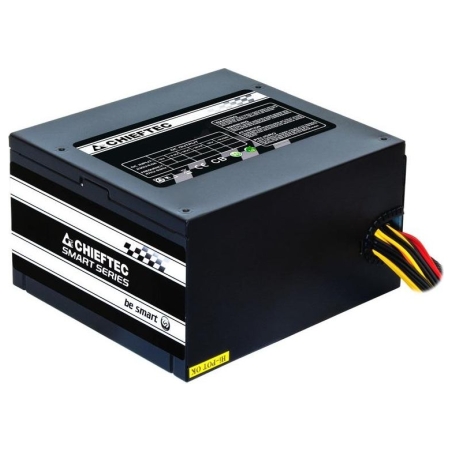

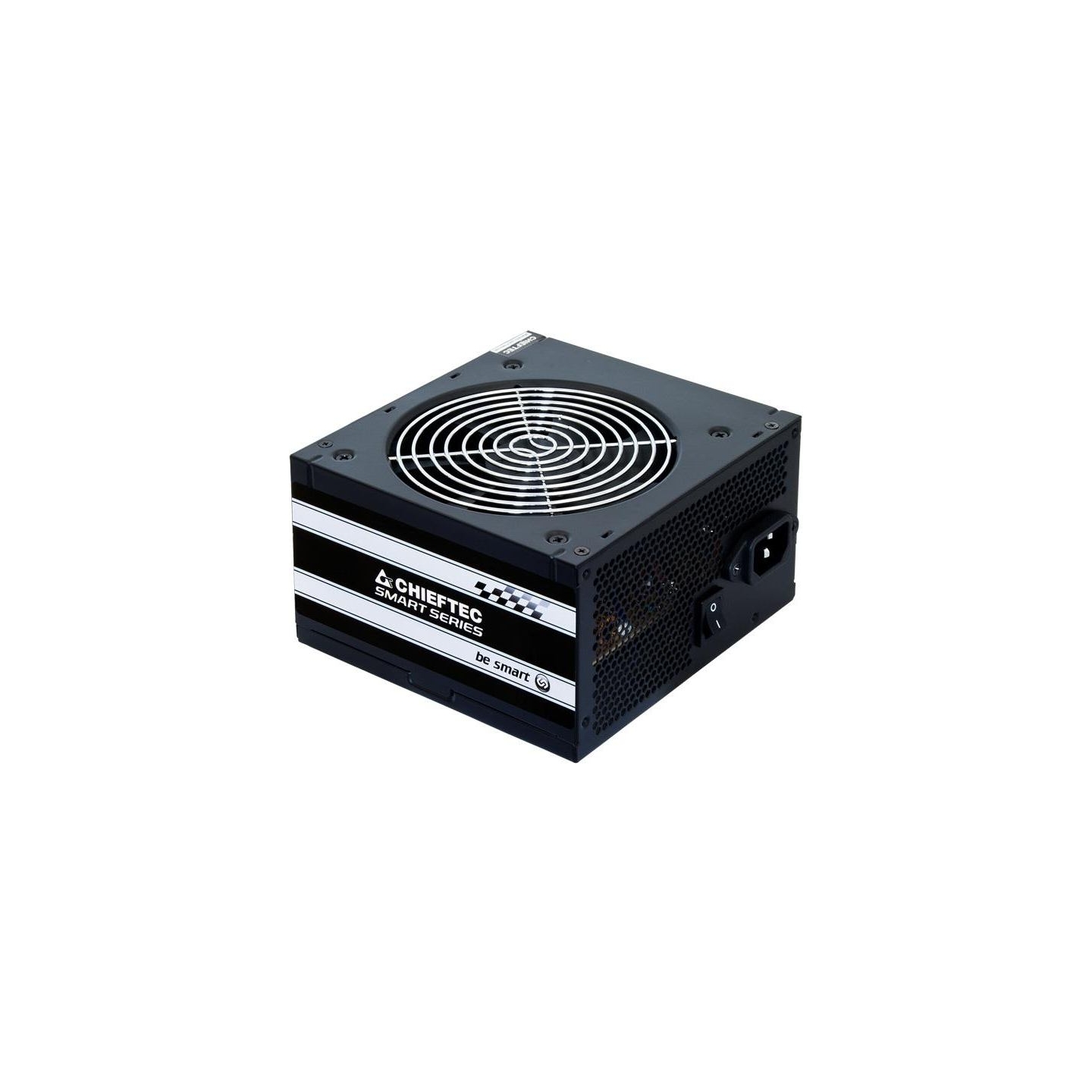

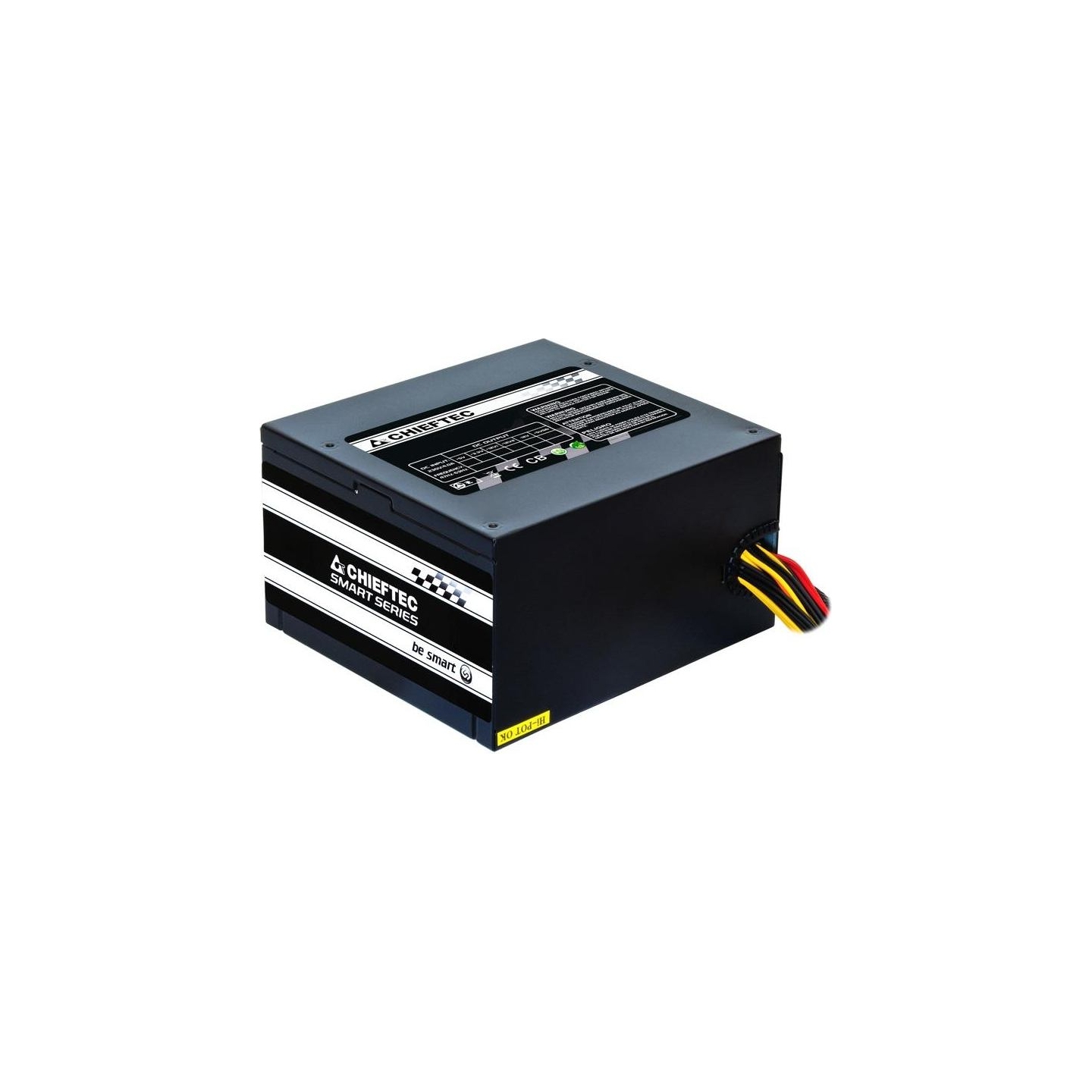

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Manufacturer Website:
https://www.chieftec.eu/products-detail/178/SMART_SERIES/238/GPS-400A8
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.095
- Unit Box Length
- 0.235
- Unit Box Width
- 0.17
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 230 V
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Input current
- 4 A
- Max output current (+12V1)
- 18 A
- Max output current (+12V2)
- 17 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 18 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overload/Short circuit/Under voltage
- Total power
- 400 W
- Cabling type
- Non-Modular
- CPU P4 connector (4-pin)
- 1
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 3
- PCI Express power connectors (6+2 pin)
- 1
- Peripheral (Molex) power connectors (4-pin)
- 2
- 80 PLUS certification
- No
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
- Fan diameter
- 120 mm
- Product colour
- Black
- Compliance certificates
- RoHS
- Depth
- 140 mm
- Height
- 87 mm
- Width
- 150 mm
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.005105 cubm
- Unit Calculated Weight
- 1.63 kg
