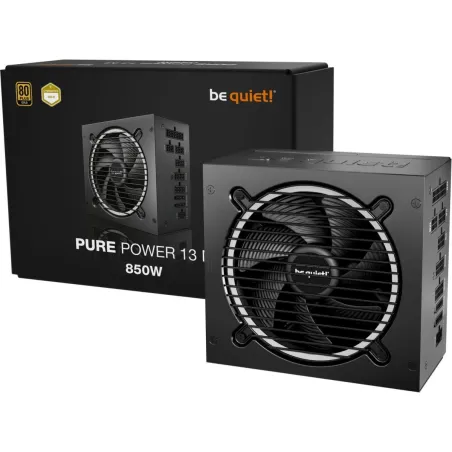

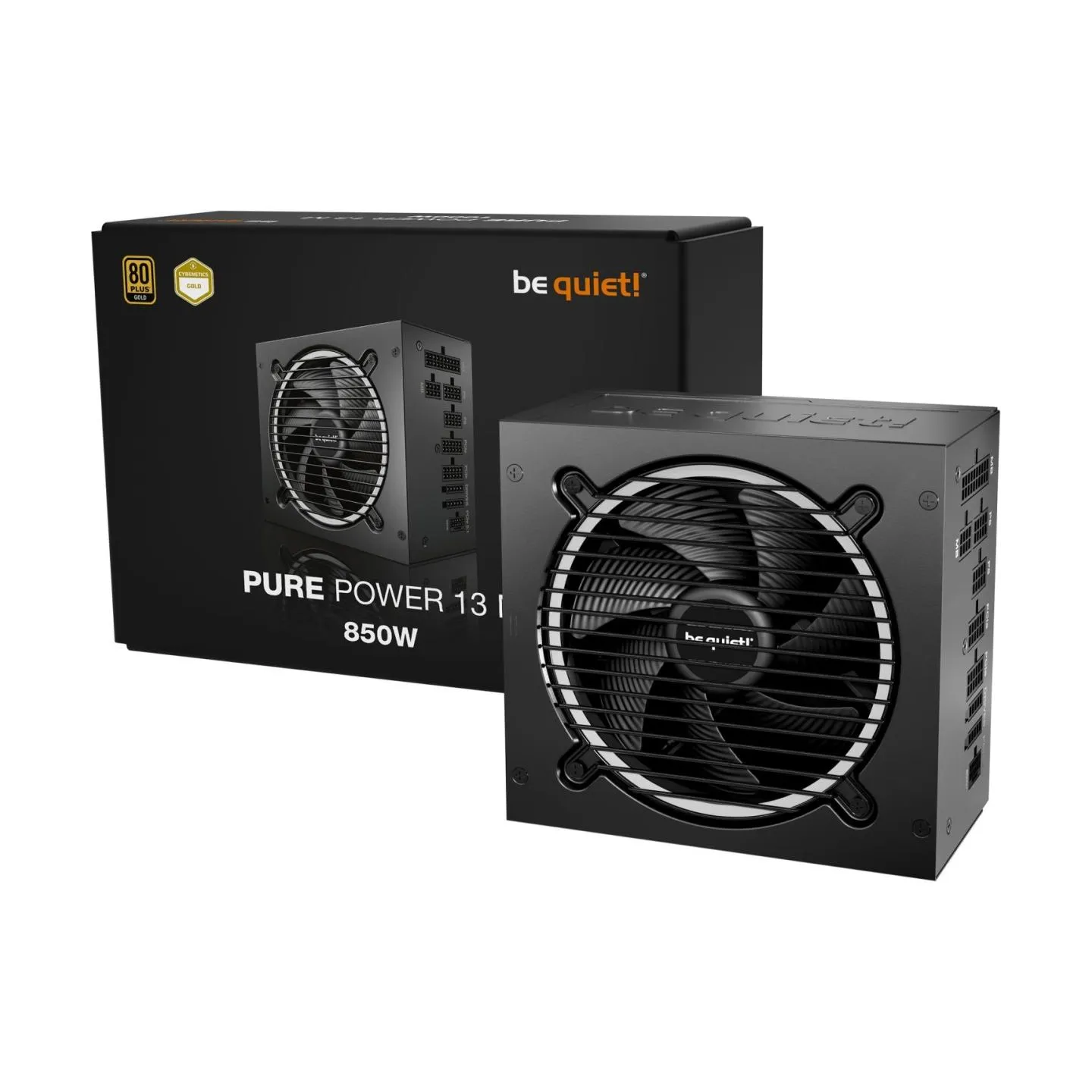

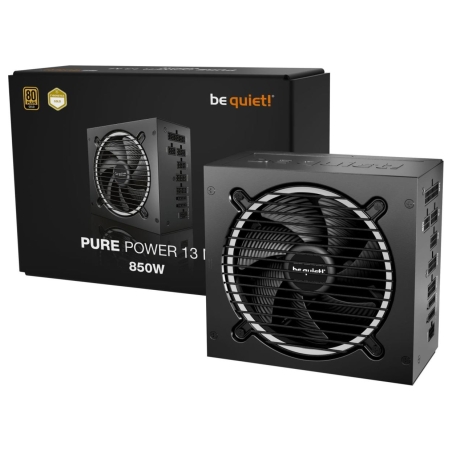

Name: Be Quiet Power Supply Pure Power 13 M 850W ATX 3.1 80+ GOLD
Brand: BE QUIET
SKU: BP027EU
Price: 154.25 EUR
Availability: InStock

SKU BP027EU Category Power Supplies

€154.25

Tax included

Share on

Exceptional quiet, superior features
Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 850W offers the best combination of features with outstanding compatibility.

80 PLUS® Gold efficiency (up to 94.4%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Exceptionally silent semi-passive 120mm be quiet! fan
Semi-passive construction for quiet and energy-saving operation
LLC technology for advanced stability and voltage regulation
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Full suite of safety features
Meets latest requirements for modern standby

Manufacturer Website:
https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter

Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.2
Unit Box Length: 0.29
Unit Box Width: 0.1
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Combined power (+12V): 850 W
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Combined power (-12V): 3.6 W
Efficiency: 92.8 %
Hold time: 25.09 ms
Max output current (+12V1): 70.9 A
Max output current (+3.3V): 22 A
Max output current (+5V): 22 A
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Number of +12V rail(s): 1
Peak power: 900 W
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power: 850 W

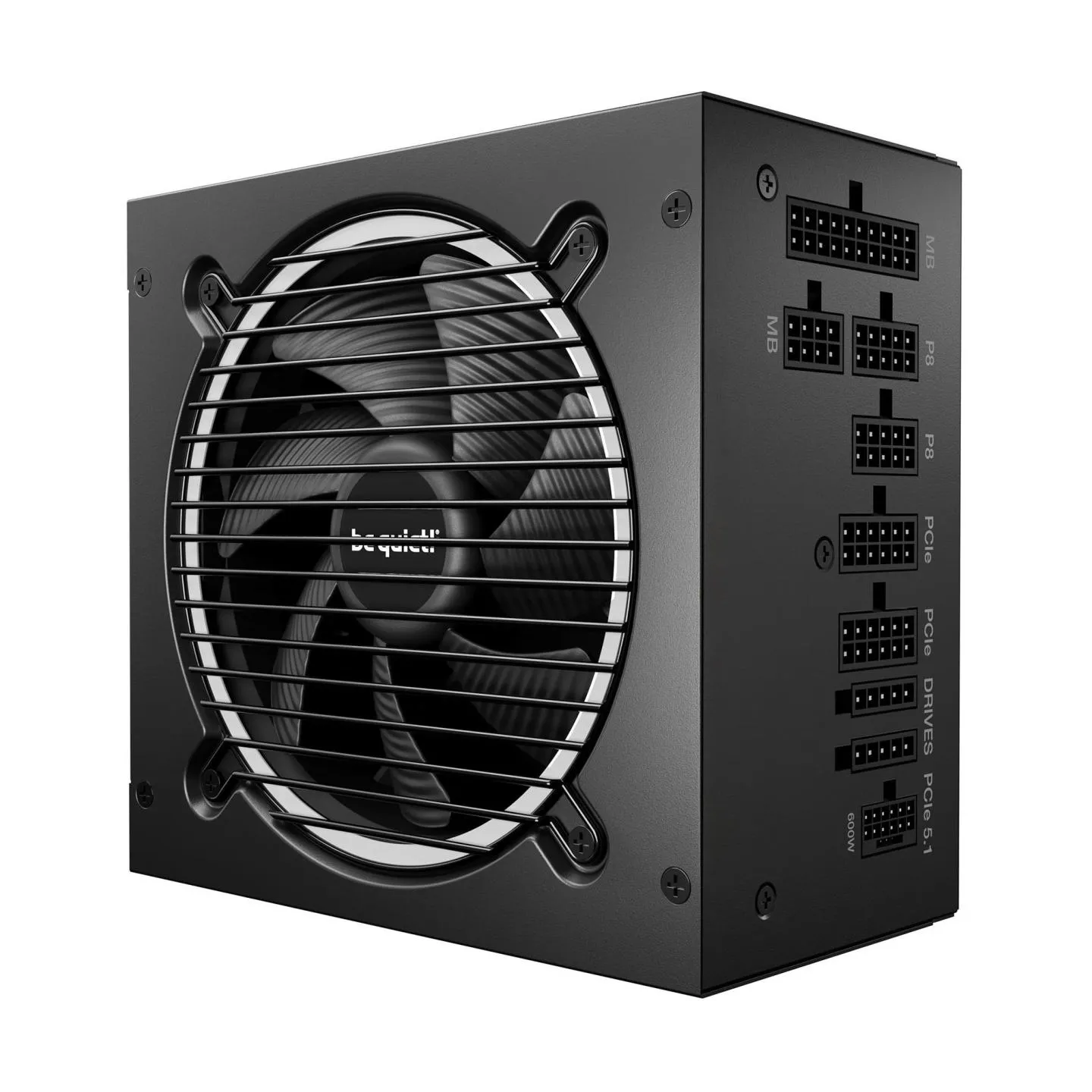

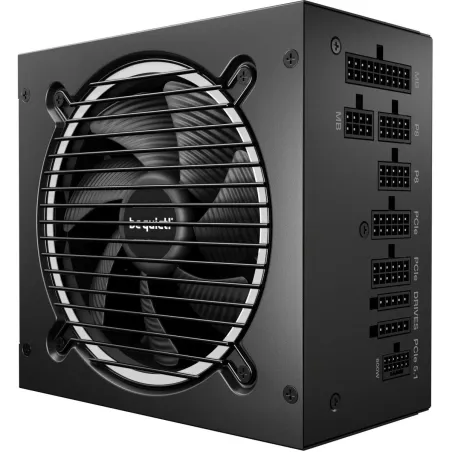

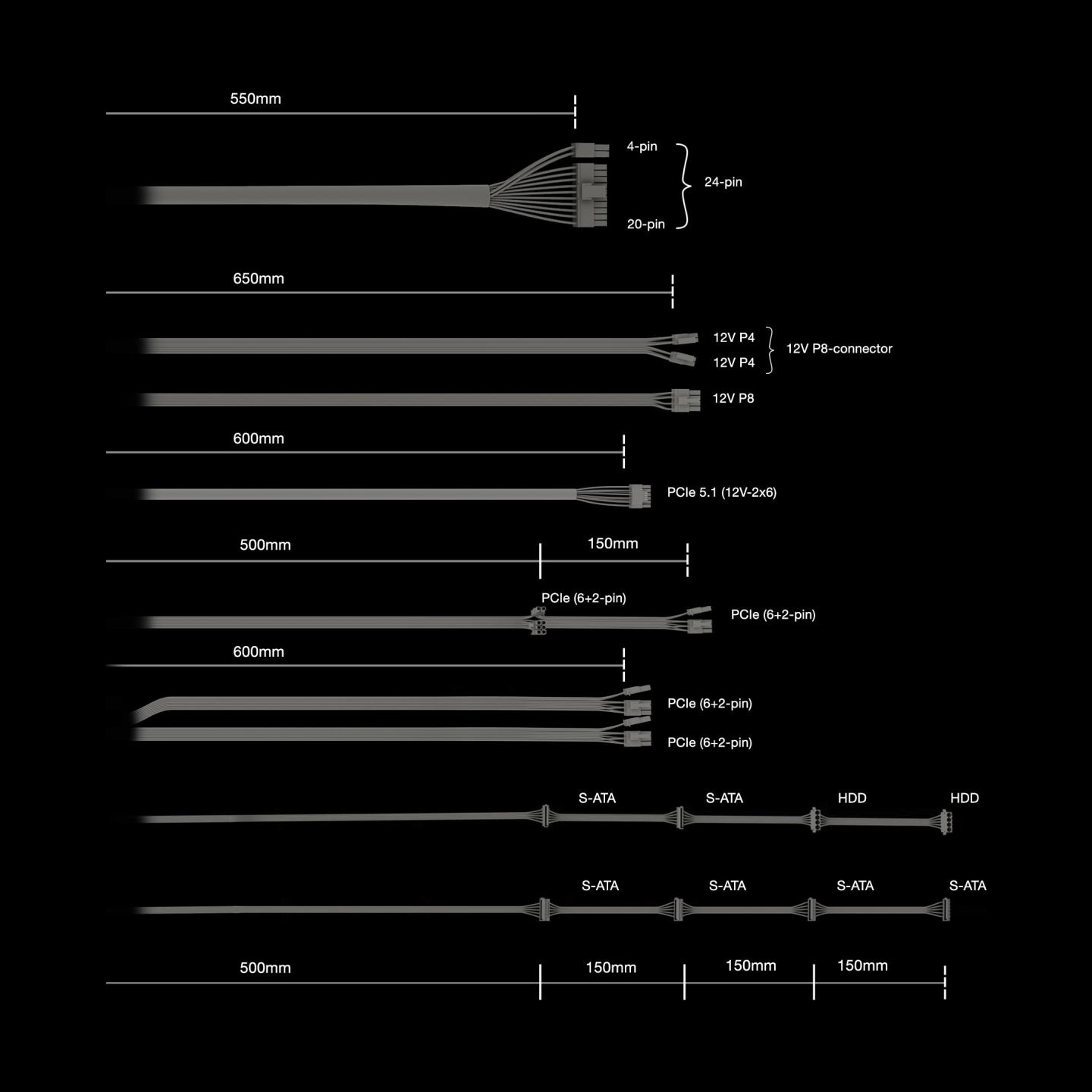

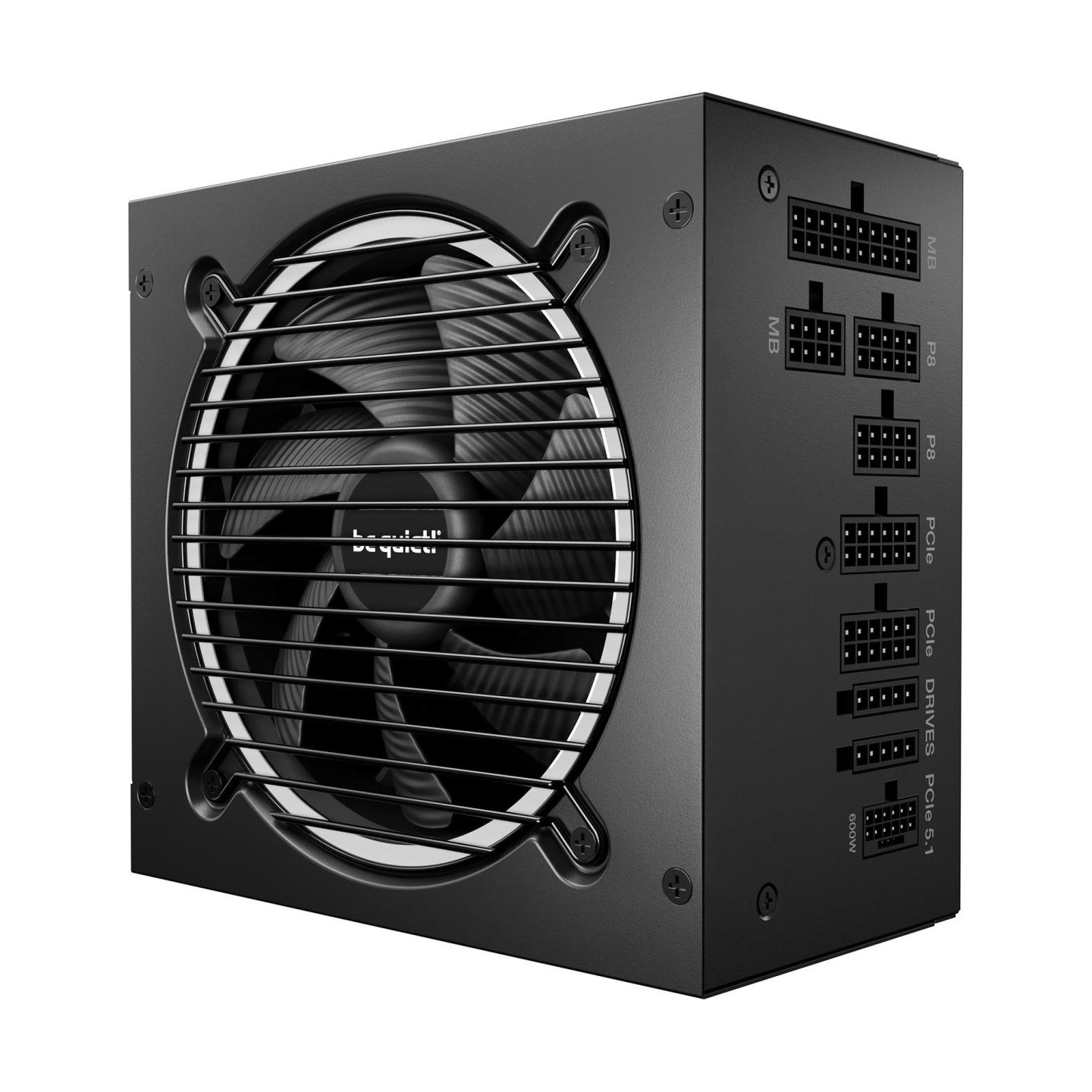

Cabling type: Fully-Modular
CPU P4 connector (4-pin): 2

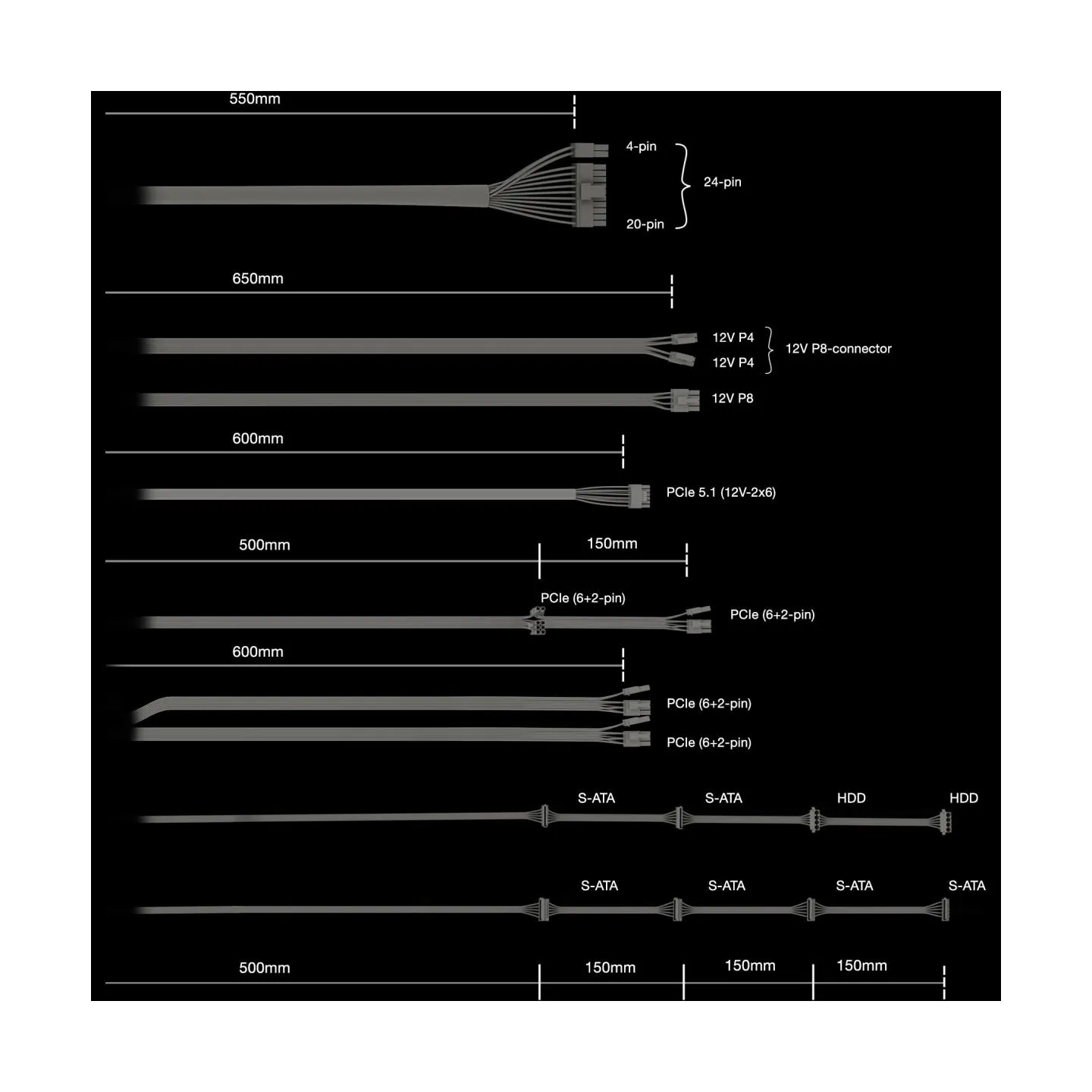

CPU power cable length: 650 mm
CPU power connector (4+4 pin): Yes
EPS power connector (8-pin): Yes
Motherboard power cable length: 550 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express power connectors (12-pin): 1
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power cable length: 800/950 mm
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 500/650/800/950 mm
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: Rifle
EPS version: 2.92
Mean time between failures (MTBF): 100000 h

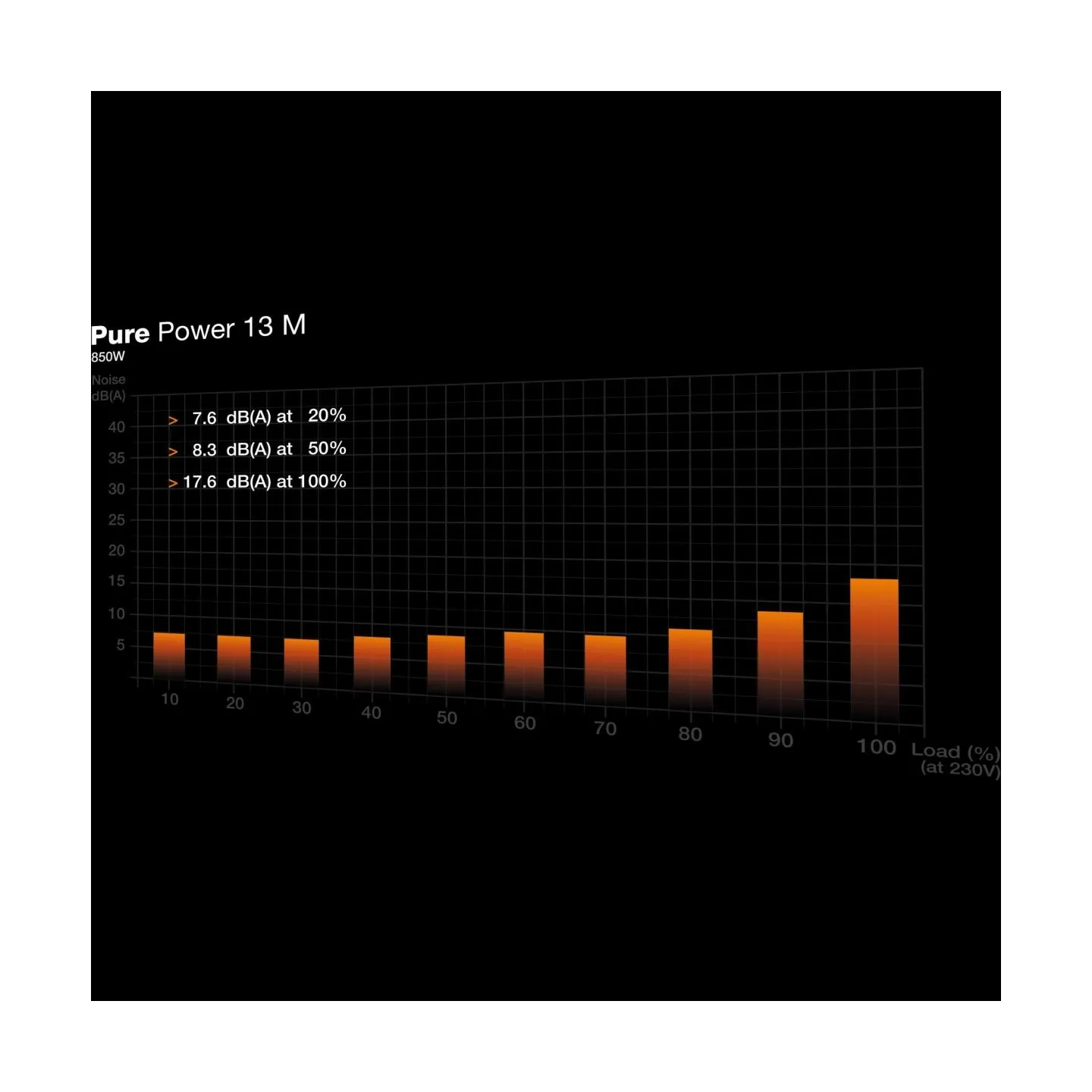

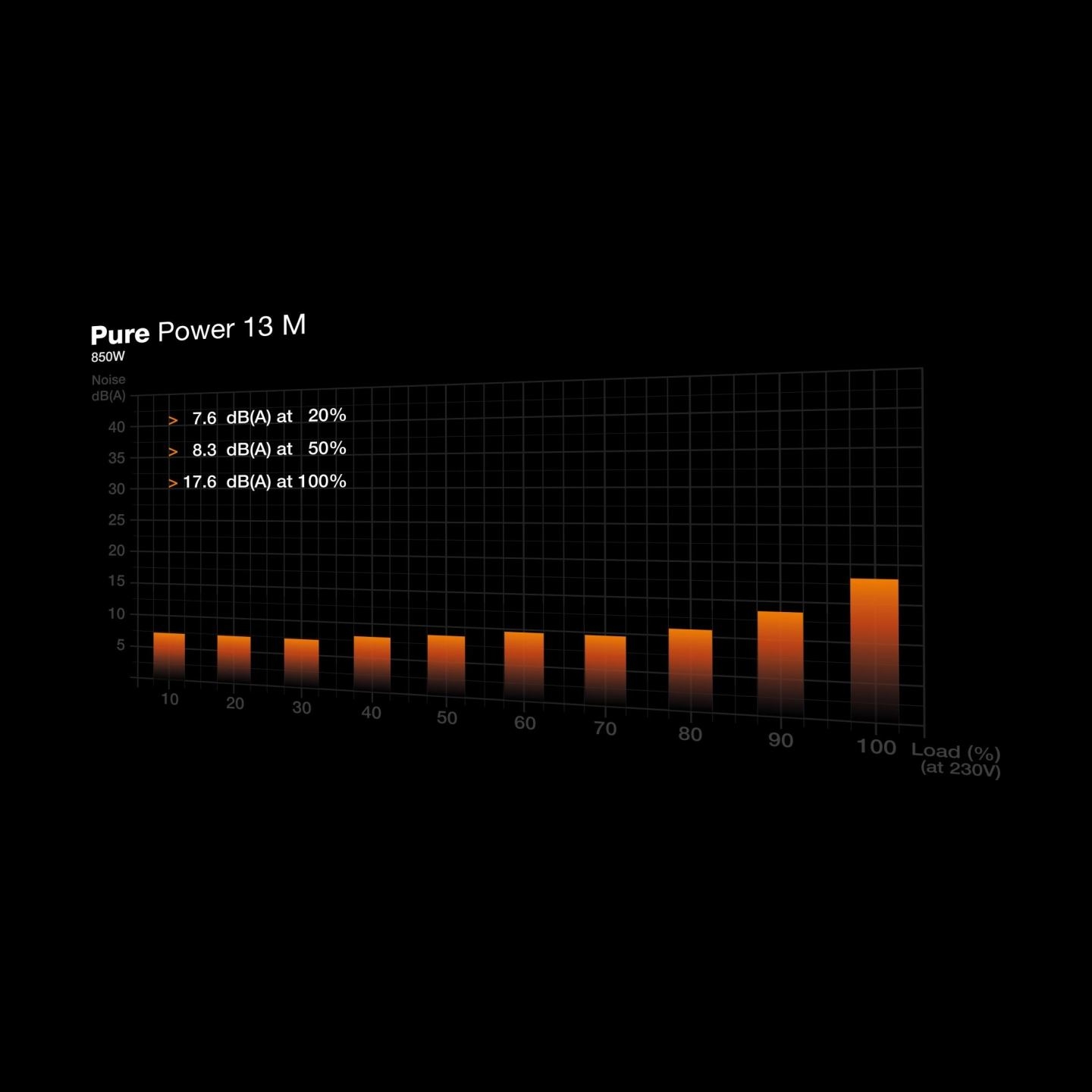

Noise level: 30.2 dB
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 120 mm
Fan speed: 0 - 2000 RPM
Number of fans: 1 fan(s)

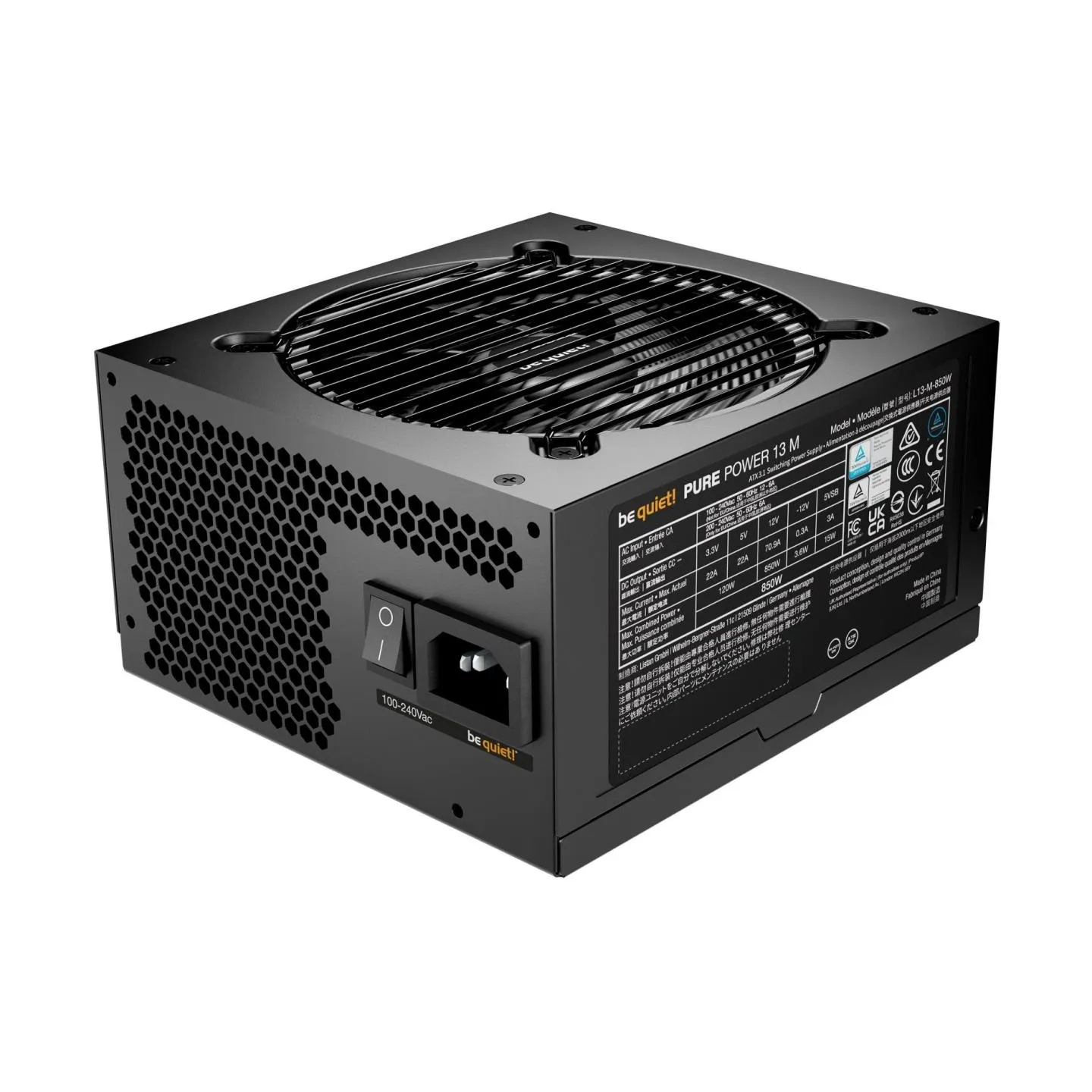

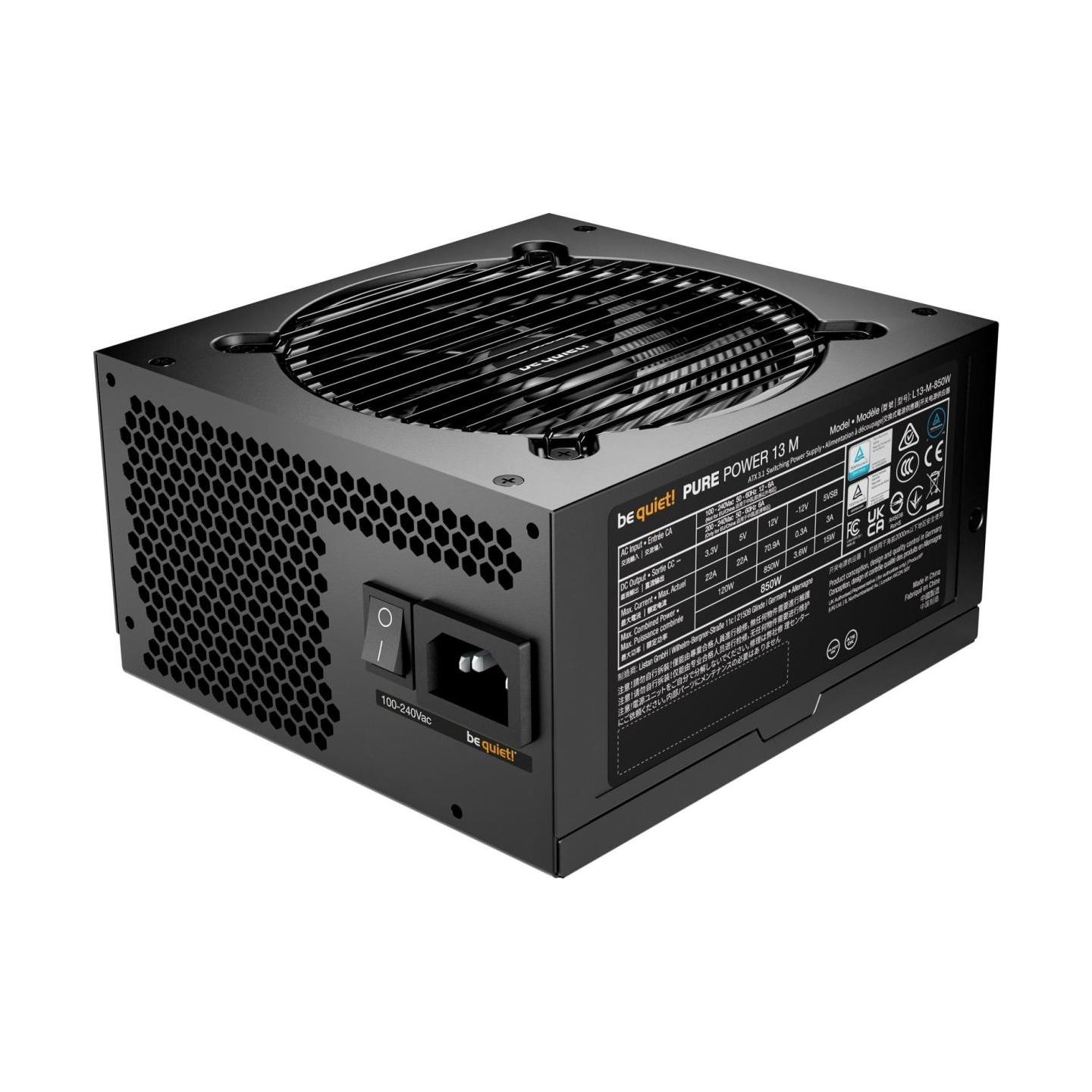

On/off switch: Yes
Product colour: Black
Operating temperature (T-T): 0 - 40 °C

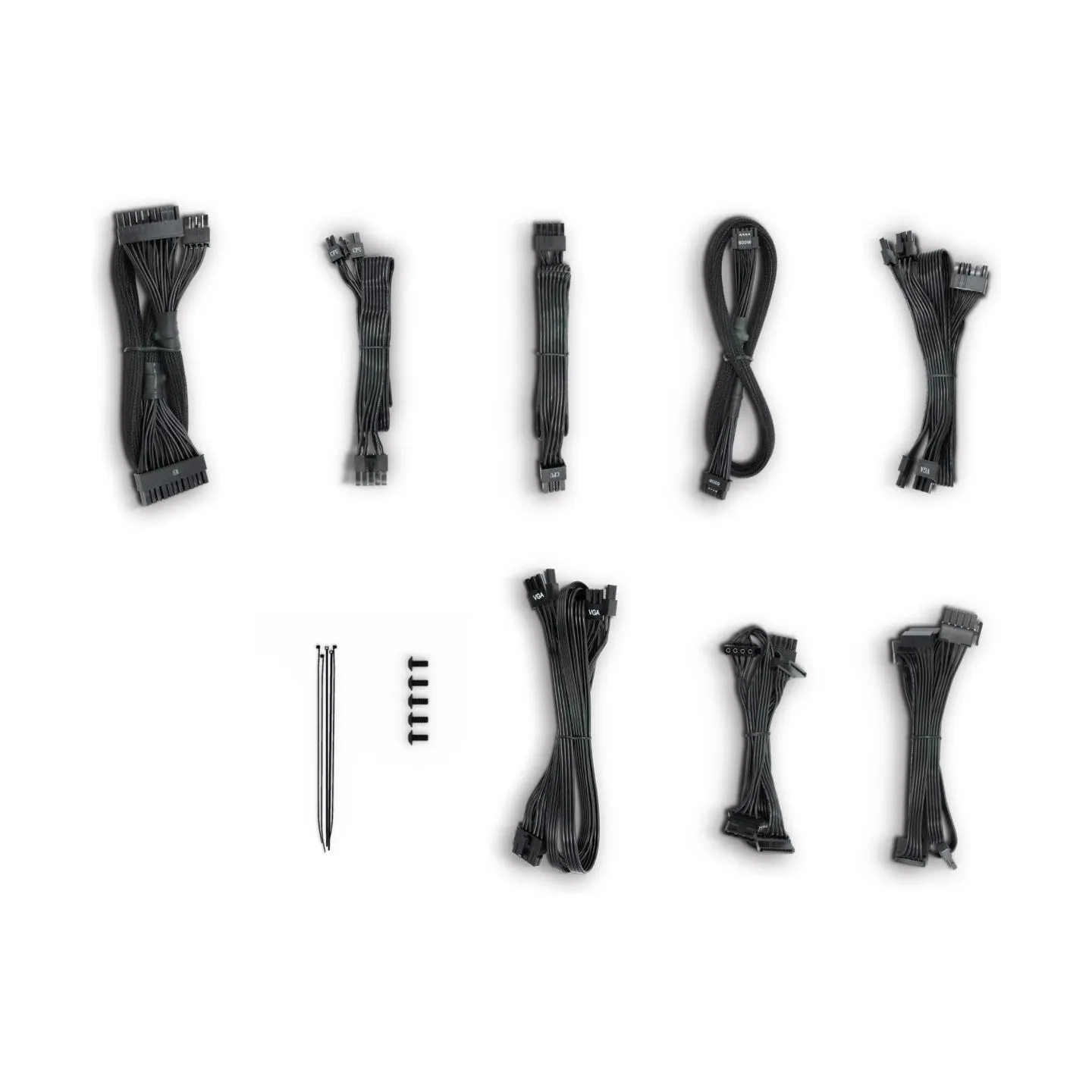

Cables included: AC,CPU,PCIe,Peripheral (Molex),SATA
Compliance certificates: BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE
Depth: 160 mm
Height: 86 mm
Weight: 2620 g
Width: 150 mm
Package depth: 320 mm
Package height: 133 mm
Package weight: 3400 g
Package width: 210 mm
Sustainability certificates: ENERGY STAR/ErP
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 22700 g
Shipping (inner) case height: 233 mm
Shipping (inner) case length: 580 mm
Shipping (inner) case width: 325 mm
Cable ties included: Yes
Screws included: Yes
Model name: Pure Power 13
Units per Shipping Box: 6
Unit Calculated Volume: 0.008432 cubm
Unit Calculated Weight: 3.29 kg
