Gigabyte GP-UD1600PM PG5 1600W AI TOP

Name: Gigabyte GP-UD1600PM PG5 1600W AI TOP
Brand: GIGABYTE
SKU: GP-UD1600PM PG5
Price: 362.91 EUR
Availability: InStock

SKU GP-UD1600PM PG5 Category Power Supplies

New

€362.91

Tax included

Last items in stock

Share on

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
ATX 3.1 and PCIe Gen 5.0 ready
Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Platinum certified
Fully modular design
Powerful single +12V rail

Manufacturer Website:
https://www.gigabyte.com/

Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.25
Unit Box Length: 0.6
Unit Box Width: 0.11
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Combined power (+12V): 1600 W
Combined power (+3.3V): 150 W
Combined power (+5V): 150 W
Combined power (+5Vsb): 17.5 W
Combined power (-12V): 9.6 W
Efficiency: 92 %
Hold time: 16 ms
Input current: 15 - 7.5 A
Max output current (+12V): 133.3 A
Max output current (+3.3V): 30 A
Max output current (+5V): 30 A
Max output current (+5Vsb): 3.5 A
Max output current (-12V): 0.8 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power: 1600 W

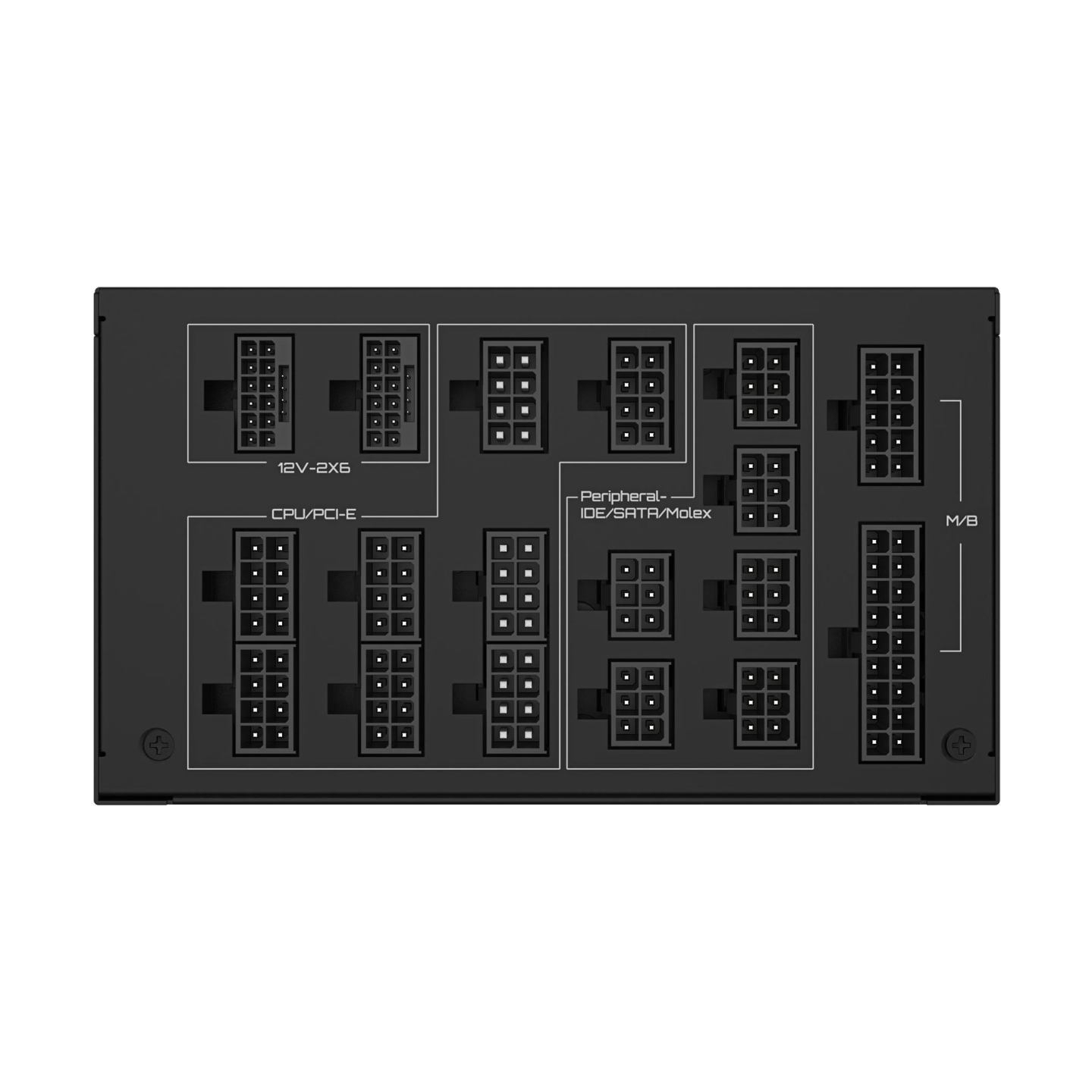

ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
EPS power connector (4+4 pin): Yes
Motherboard power cable length: 610 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 16
PCI Express connector: Yes
PCI Express power connectors (6+2 pin): 8
Peripheral (Molex) power connectors (4-pin): 6
SATA power cable length: 150/650 mm
80 PLUS certification: 80 PLUS Platinum
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 120 mm
Fan location: Top
Number of fans: 1 fan(s)
On/off switch: Yes
Product colour: Black
Depth: 190 mm
Height: 86 mm
Weight: 5300 g
Width: 150 mm
Package depth: 219 mm
Package height: 145 mm
Package type: Box
Package weight: 5575 g
Package width: 410 mm
Warranty period: 10 year(s)
Model name: GP-UD1600PM PG5
Units per Shipping Box: 4
Unit Calculated Volume: 0.0165 cubm
Unit Calculated Weight: 5.99 kg

Category Power Supplies Brand GIGABYTE EAN13 4719331555047 In stock 2 Items
