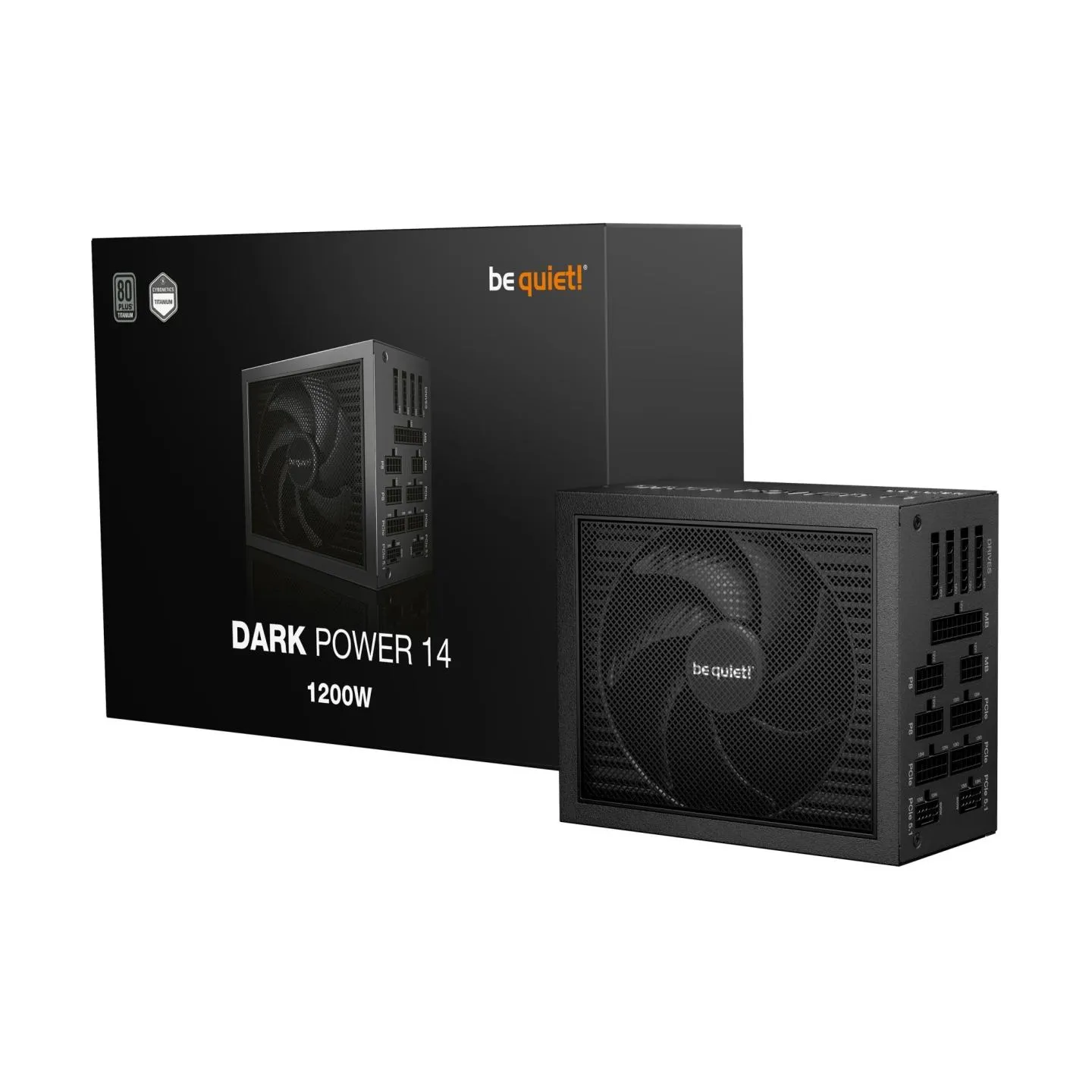

Be Quiet Dark Power 14 1200W 80+ Titanium

Be Quiet Dark Power 14 1200W 80+ Titanium

Name: Be Quiet Dark Power 14 1200W 80+ Titanium
Brand: BE QUIET
SKU: BP021EU
Price: 295.1 EUR
Availability: InStock

SKU BP021EU Category Power Supplies

€295.10

Tax included

Share on

No compromise silence and performance
Dark Power 14 1200W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.42 %)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector

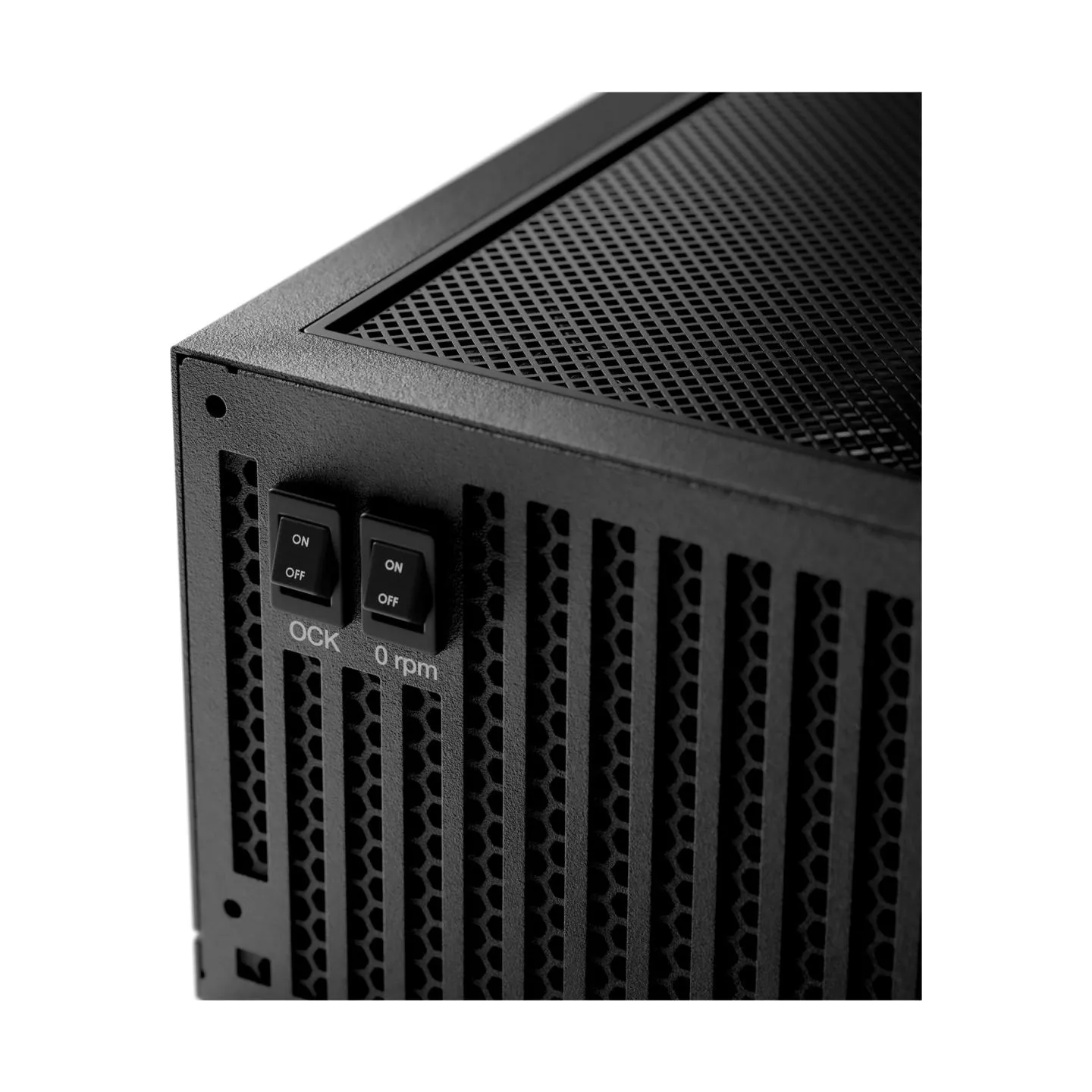

Active and semi-passive cooling can be selected with the push of a button

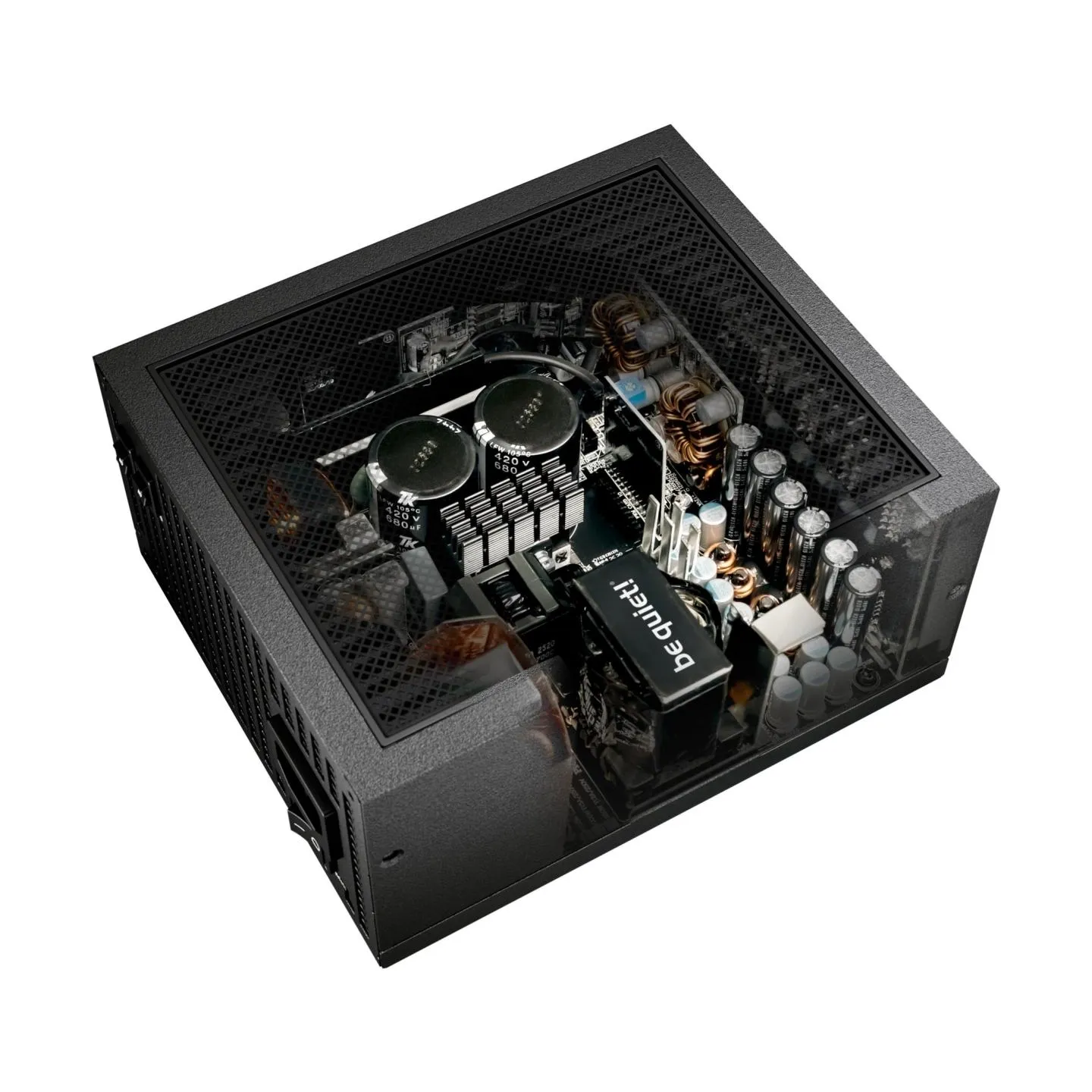

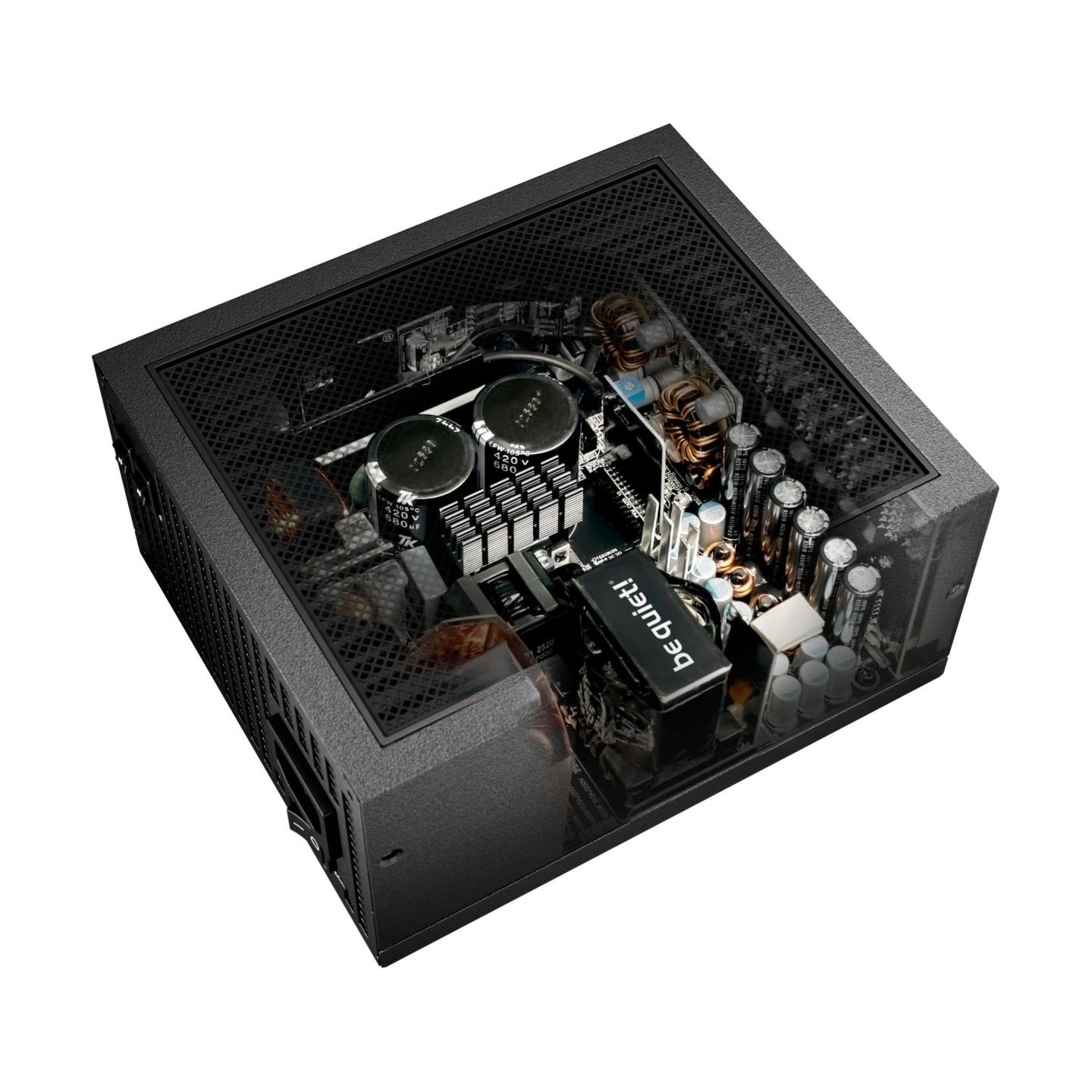

Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components

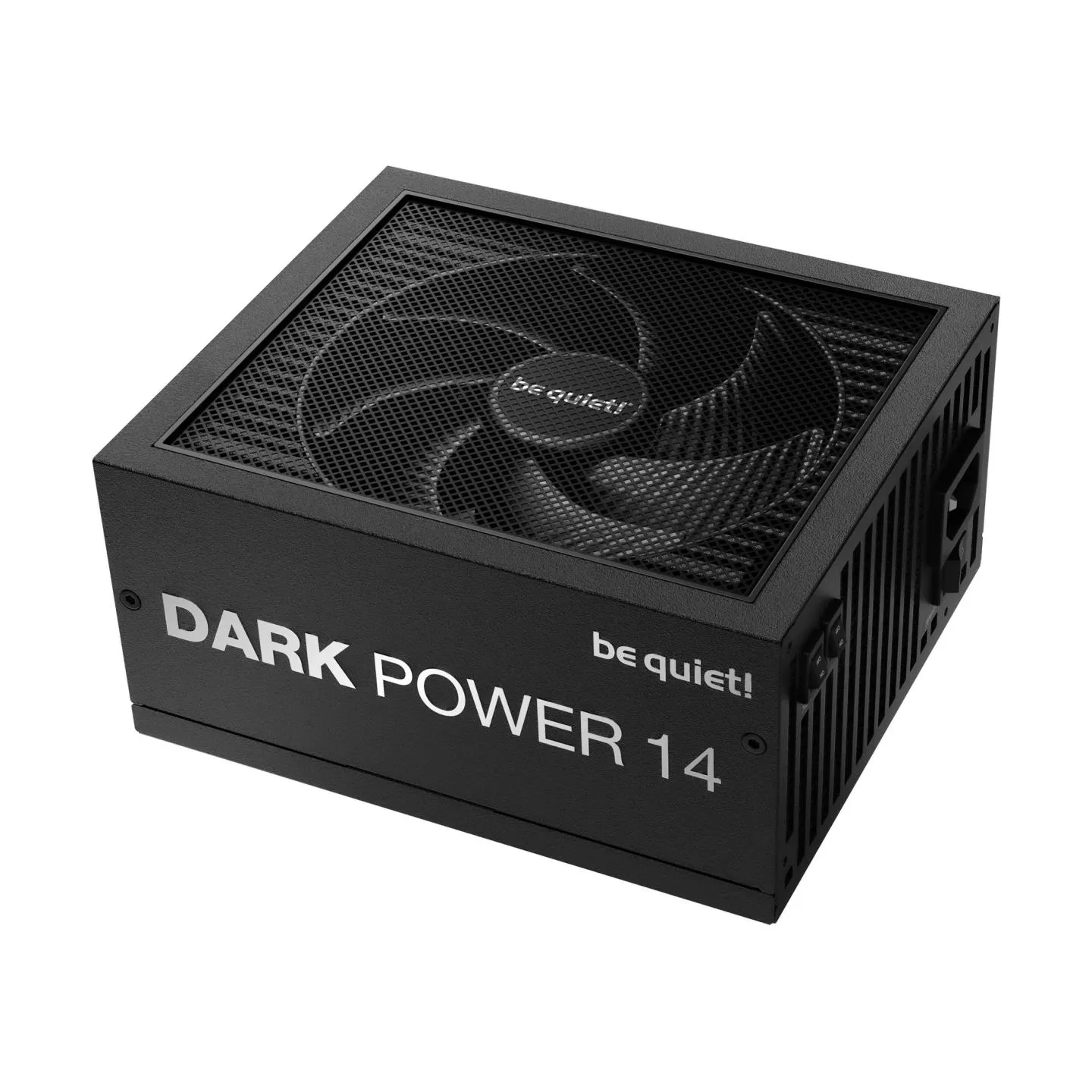

Silent Wings fan for virtually inaudible operation
Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
Button to switch between single and multi-rail operation

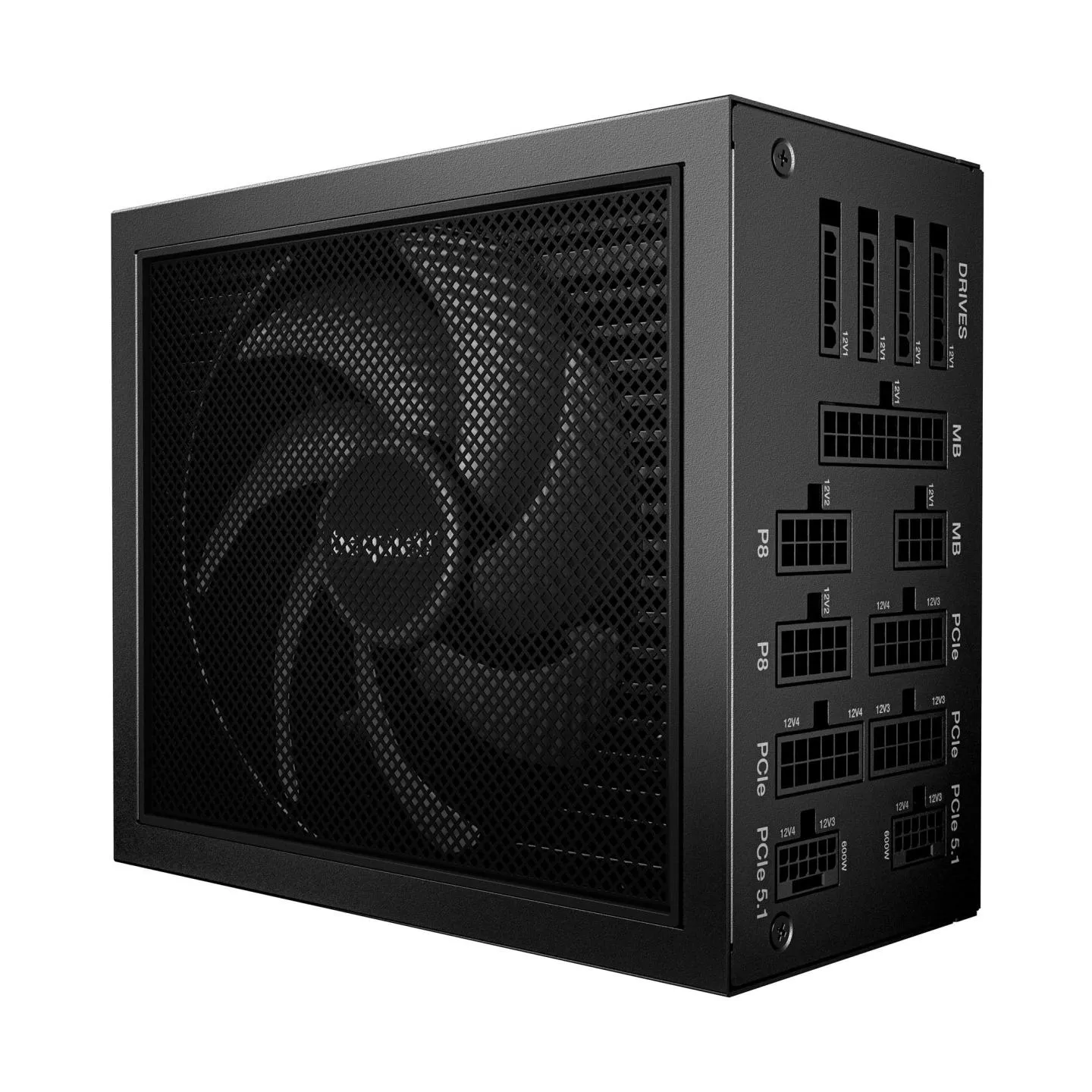

Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities

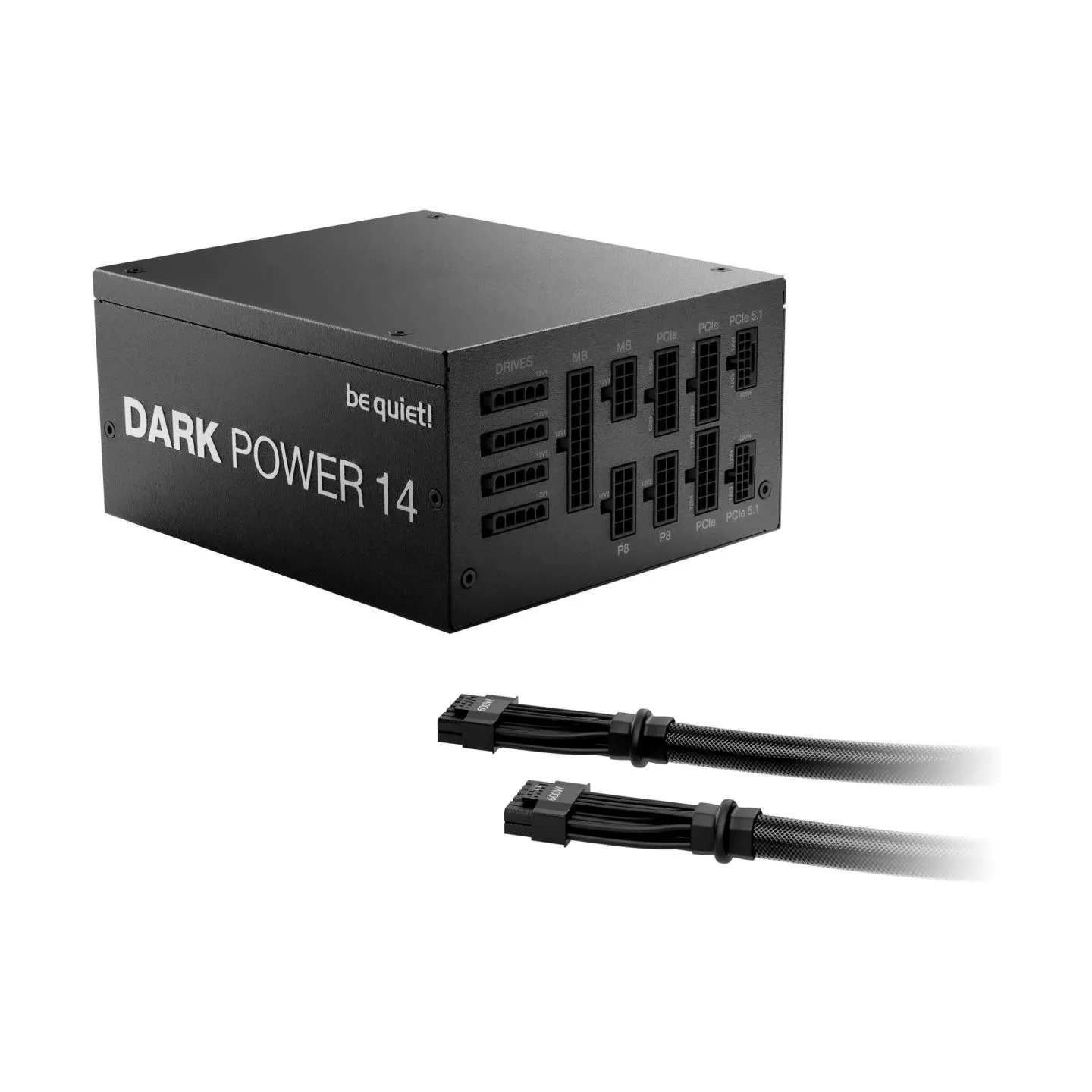

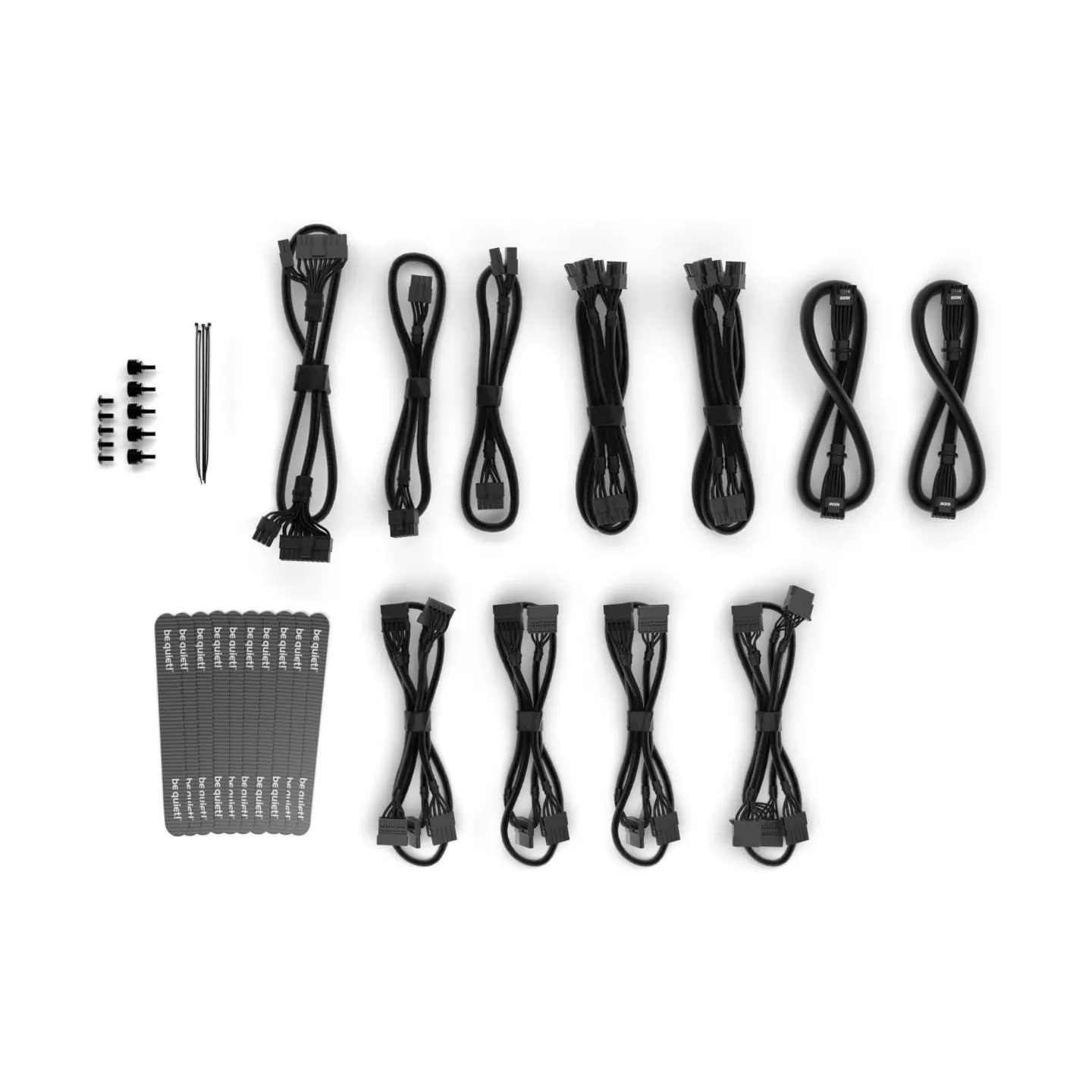

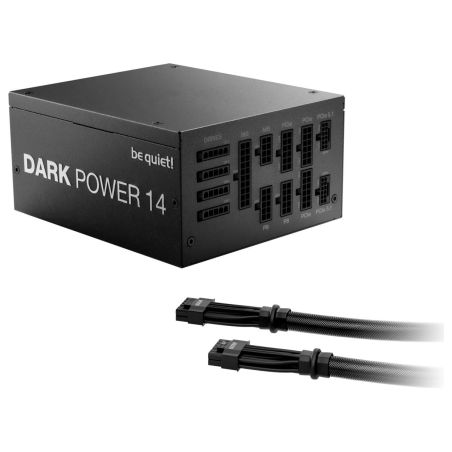

Modular cable management for maximum convenience
Product conception, design and quality control in Germany

Manufacturer Website:
https://www.bequiet.com/en/download/products

Category Code: PSU
CnCode: 85044095
Unit Box Height: 0.127
Unit Box Length: 0.354
Unit Box Width: 0.232
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Combined power (+12V): 1200 W
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Efficiency: 93.1 %
Hold time: 19.5 ms
Max output current (+12V1): 33 A
Max output current (+12V2): 33 A
Max output current (+12V3): 45 A
Max output current (+12V4): 45 A
Max output current (+3.3V): 25 A
Max output current (+5V): 24 A
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.5 A
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Number of +12V rail(s): 4
Peak power: 1300 W
Power factor: 0.98
Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power: 1200 W
ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
CPU power cable length: 700 mm
CPU power connector (4+4 pin): Yes
EPS power connector (4+4 pin): Yes
EPS power connector (8-pin): Yes
Motherboard power cable length: 600 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power cables: 4
Number of SATA power connectors: 13
PCI Express connector: Yes
PCI Express power cable length: 600 mm
PCI Express power connectors (12-pin): 2
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power cable length: 1050/900 mm
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 1050/600/750/900 mm
80 PLUS certification: 80 PLUS Titanium
ATX version: 3.1
Bearing technology: FDB
EPS version: 2.92
Mean time between failures (MTBF): 100000 h
Noise level: 21.1 dB
Power supply unit (PSU) form factor: ATX
Purpose: PC
Cooling type: Active
Fan diameter: 135 mm
Fan speed: 0 - 2100 RPM
Number of fans: 1 fan(s)
On/off fan switch: Yes
On/off switch: Yes
Product colour: Black
Operating temperature (T-T): 0 - 40 °C
Compliance certificates: CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE
Depth: 175 mm
Height: 86 mm
Weight: 2300 g
Width: 150 mm
Manual: Yes
Manual languages: English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
Package depth: 126 mm
Package height: 355 mm
Package weight: 3700 g
Package width: 230 mm
Sustainability certificates: ENERGY STAR/ErP/Triman
Products per shipping (inner) case: 4 pc(s)
Shipping (inner) case height: 260 mm
Shipping (inner) case length: 528 mm
Shipping (inner) case net weight: 20140 g
Shipping (inner) case width: 368 mm
Cable ties included: Yes
Screws included: Yes
Units per Shipping Box: 4
Unit Calculated Volume: 0.01318 cubm
Unit Calculated Weight: 4.99 kg
