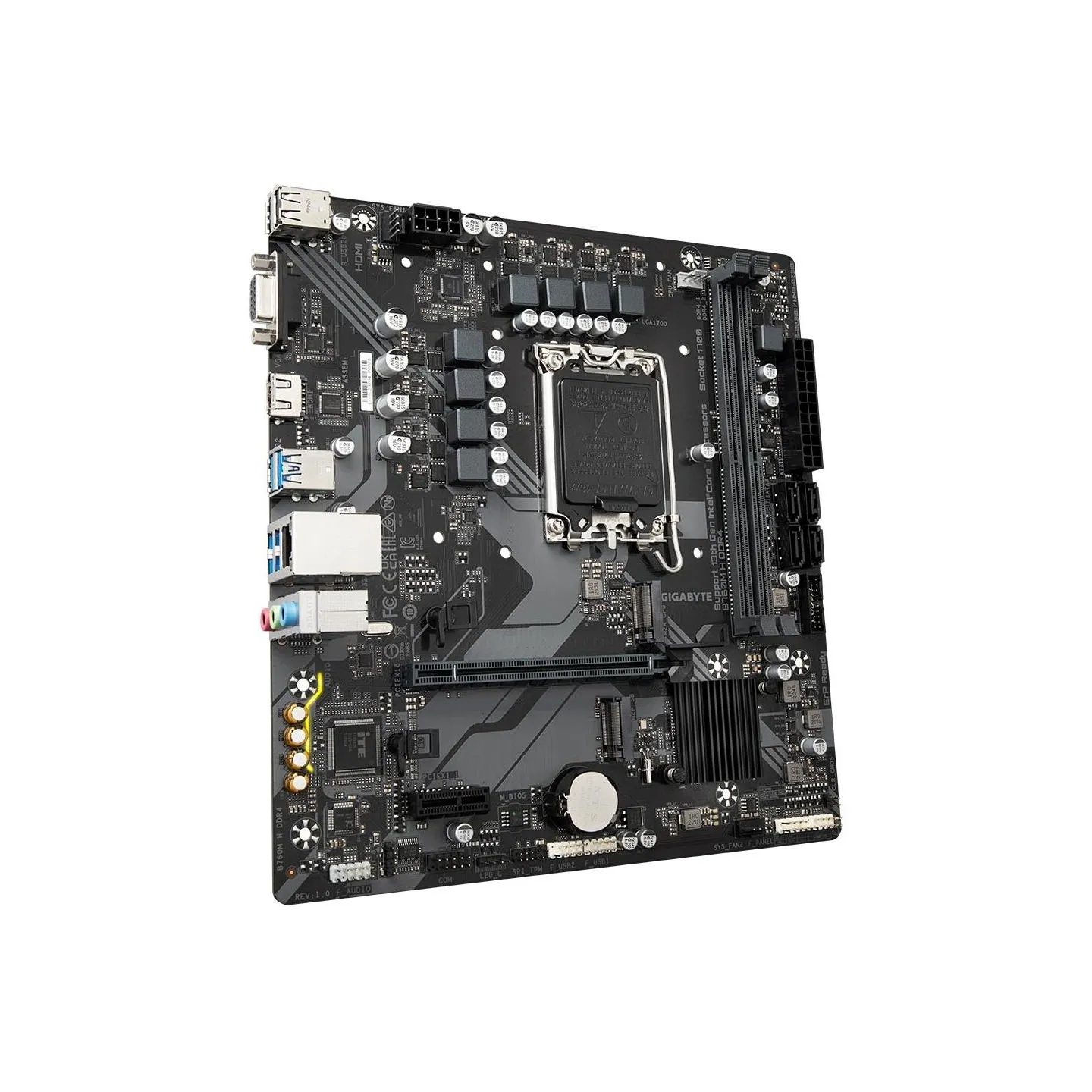

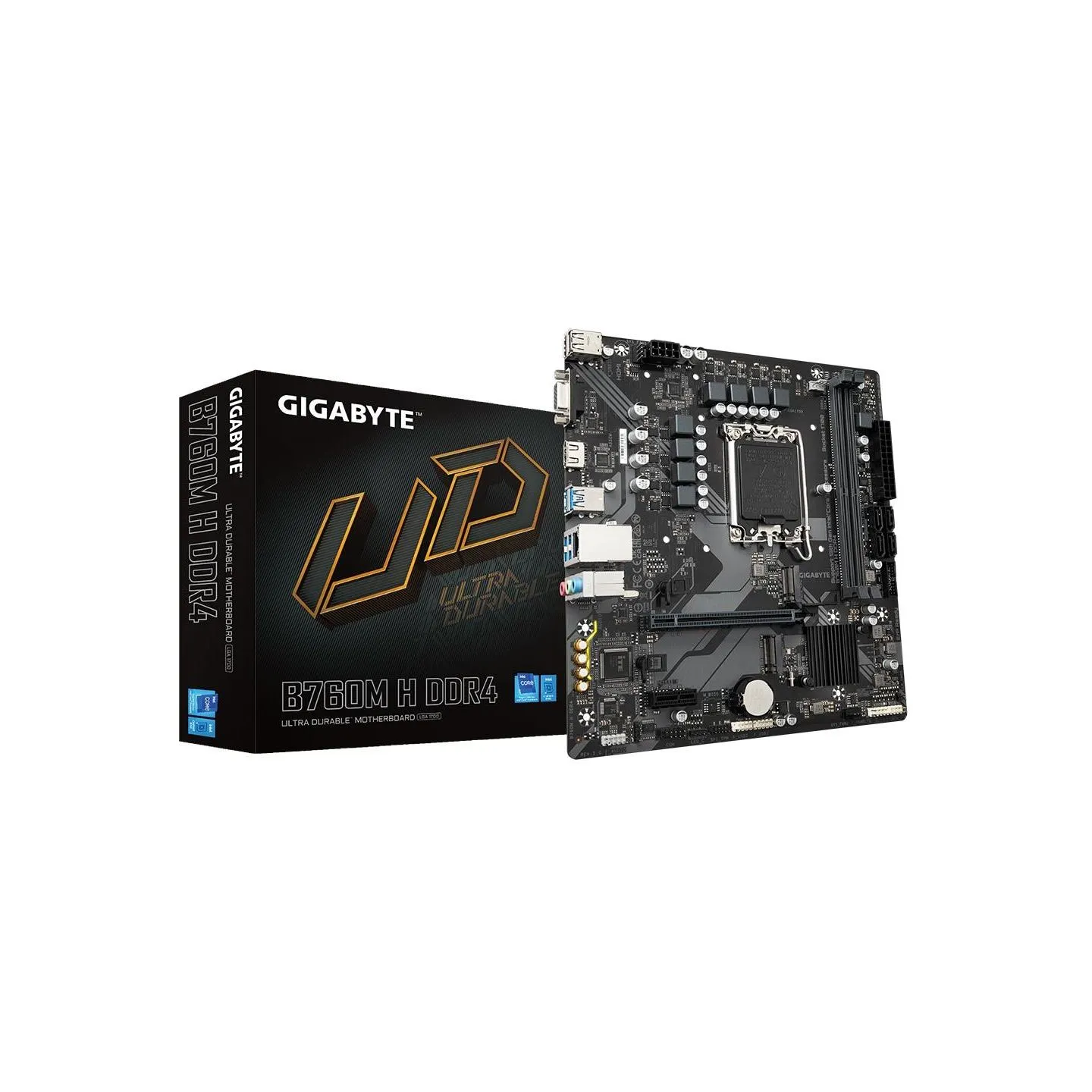

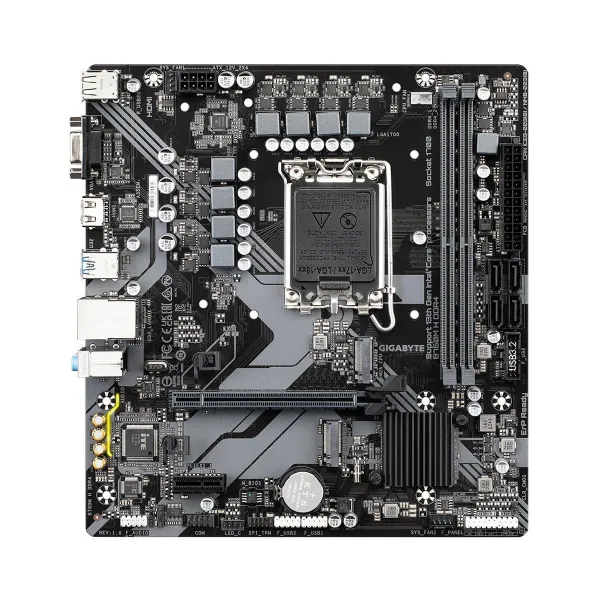

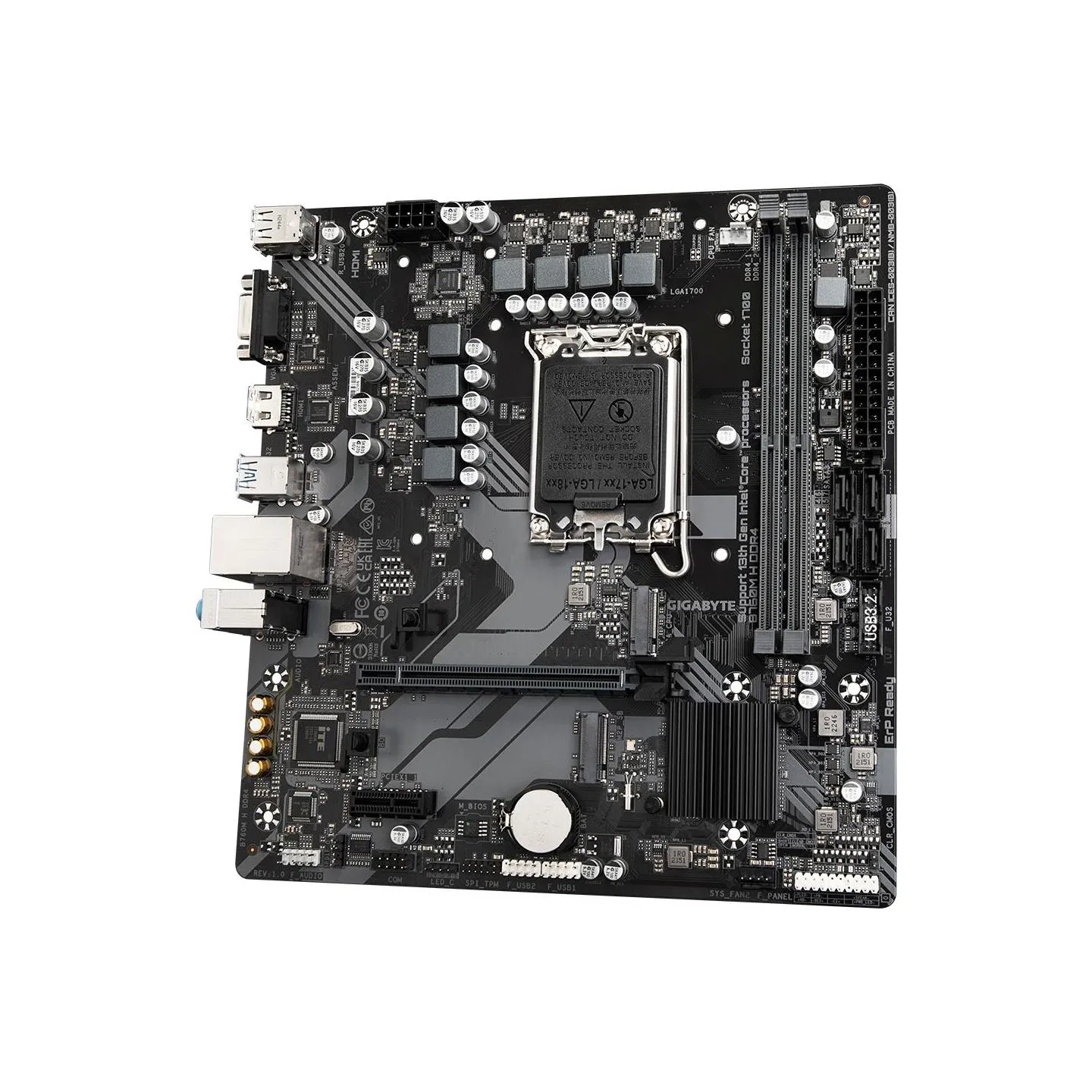

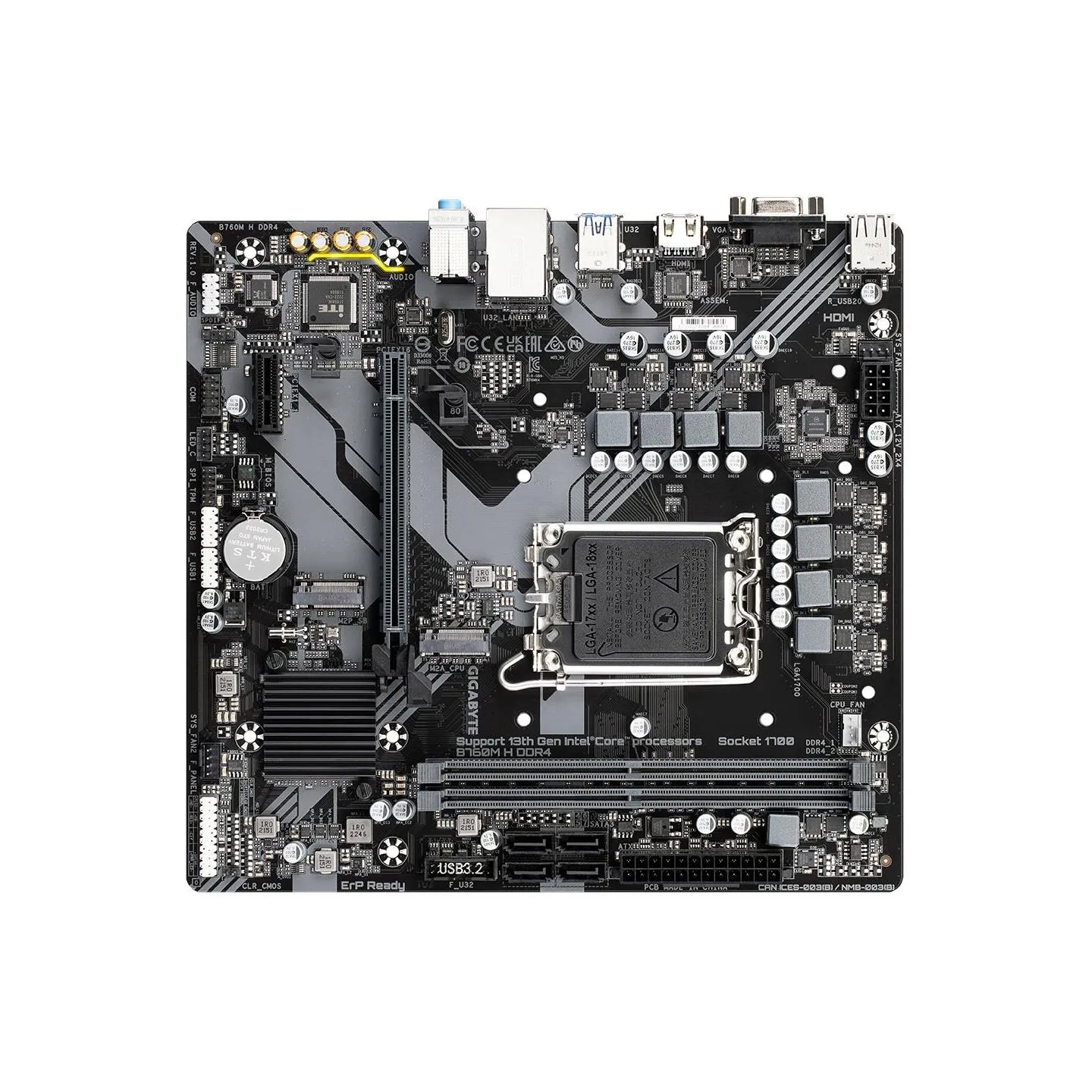

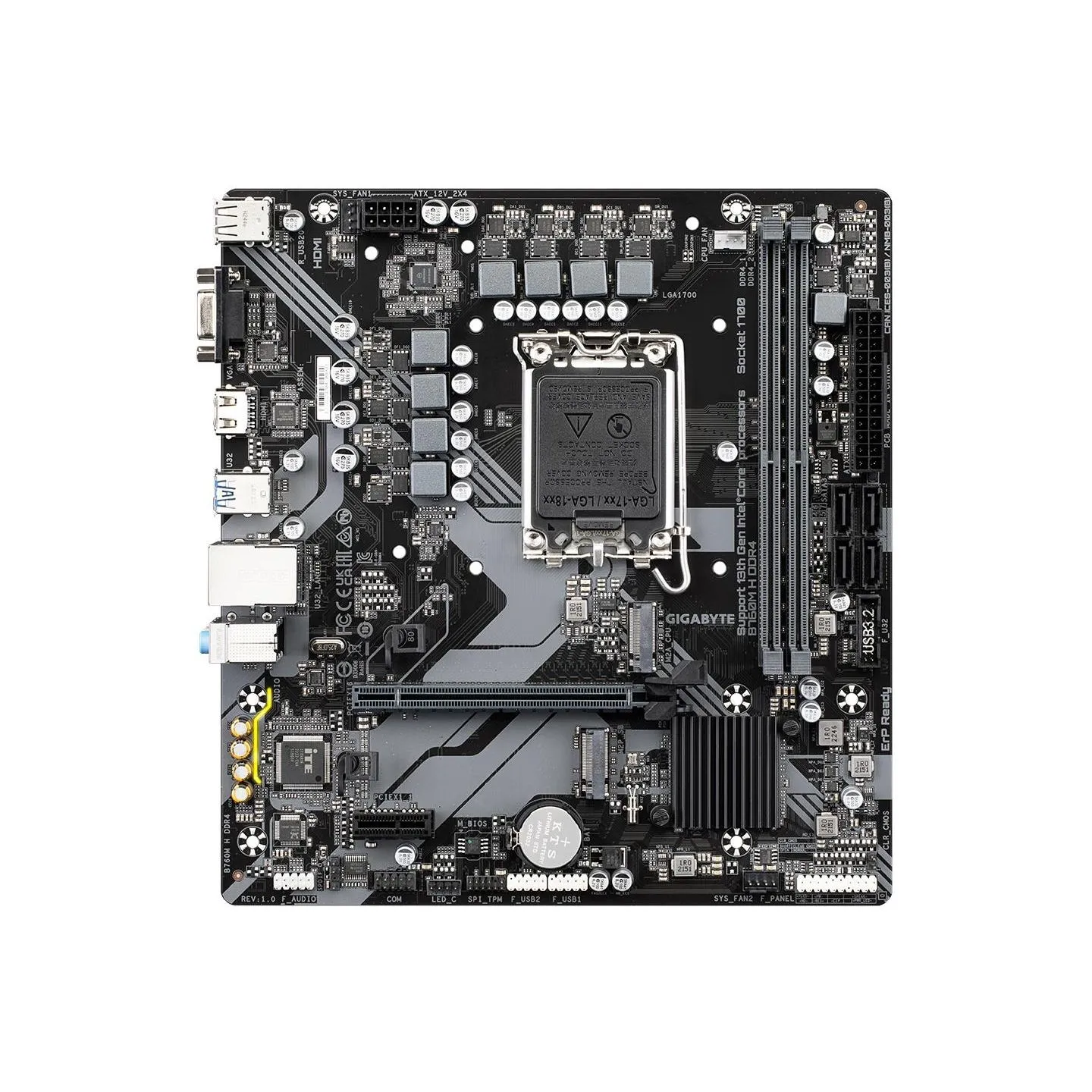

Gigabyte Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4
Price:
€103.40
Tax included
Share on
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2DIMMs XMP Memory Module Support
- Next Generation Storage：2PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN

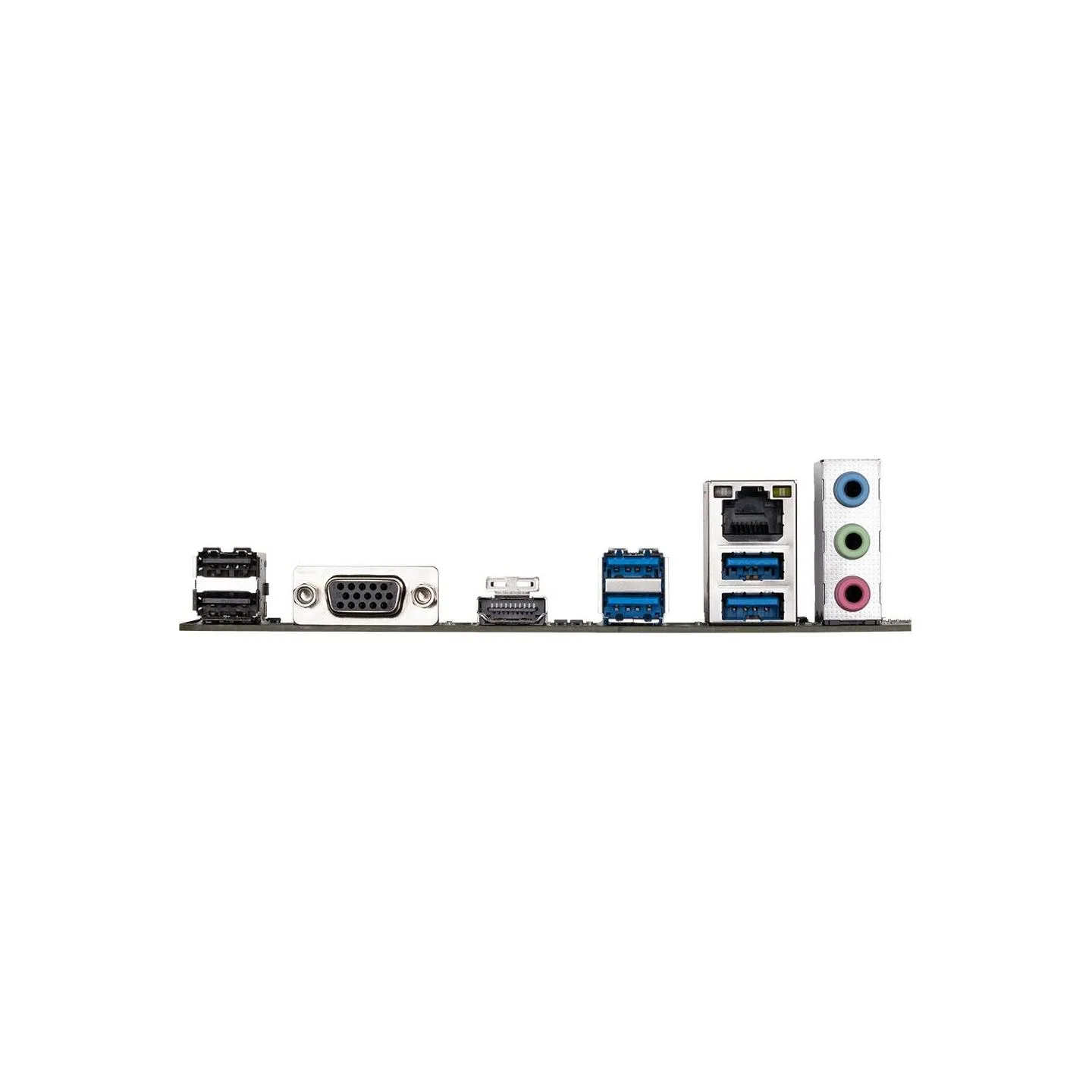

- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Manufacturer Website:
https://www.gigabyte.com
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- Intel B760 Express
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- Power source type
- ATX
- Product colour
- Brown
- Windows operating systems supported
- Windows 10/Windows 11
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Maximum internal memory supported by processor
- 64 GB
- Maximum number of SMP processors
- 1
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory clock speed (max)
- 3200 MHz
- Supported memory clock speeds
- 2133/2400/2666/2933/3000/3200 MHz
- Supported memory module capacities
- 12GB/16GB/1GB/2GB/32GB/4GB/8GB
- Supported memory types
- DDR4-SDRAM
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- DirectX version
- 12.1
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- Serial port headers
- 1
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- VGA (D-Sub) ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 265 mm
- Package height
- 54 mm
- Package weight
- 825 g
- Package width
- 265 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 215 mm
- Height
- 35 mm
- Width
- 230 mm
- Batteries included
- Yes
- Warranty period
- 3 year(s)
- Model
- B760M H DDR4 (rev. 1.0)
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004506 cubm
- Unit Calculated Weight
- 0.832 kg
