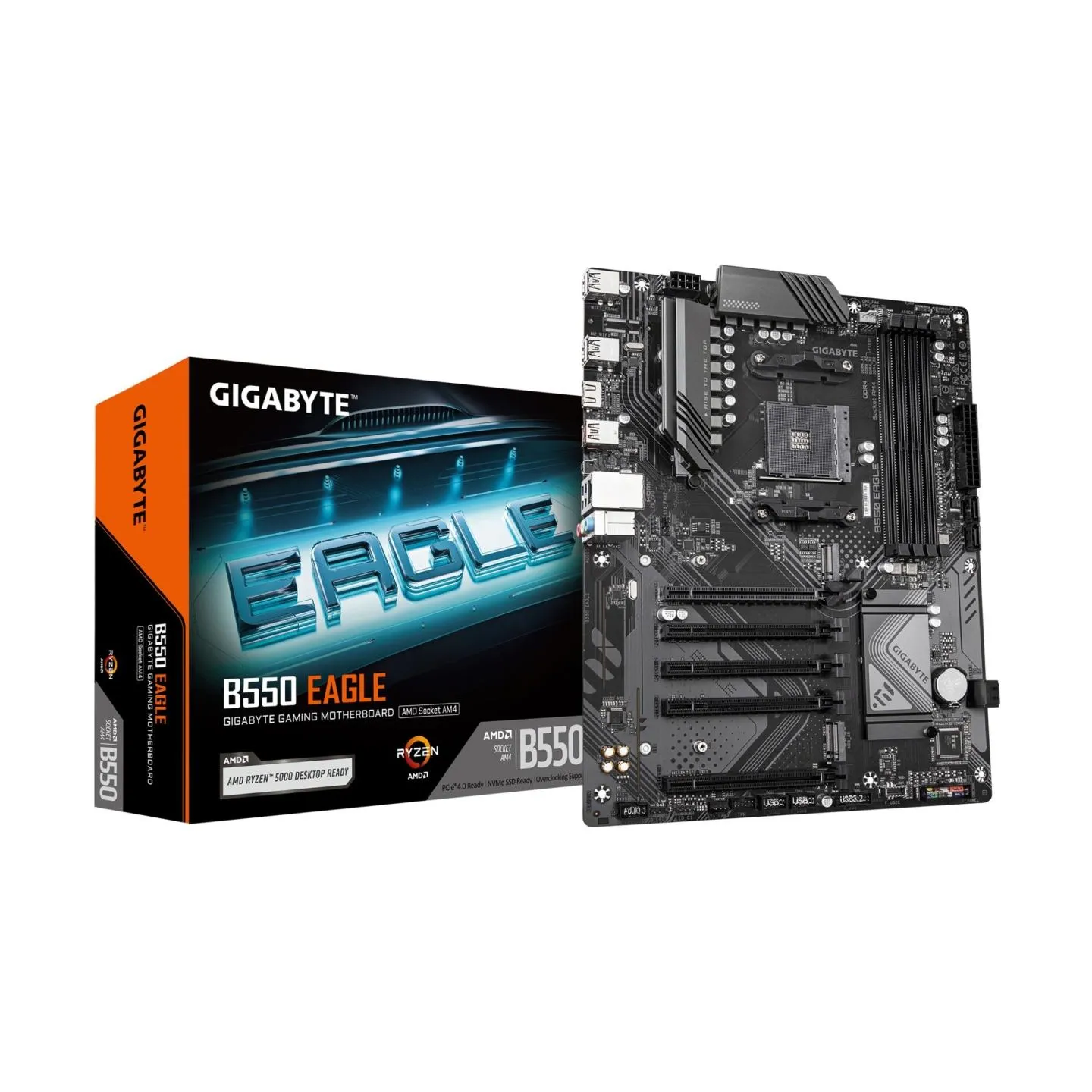

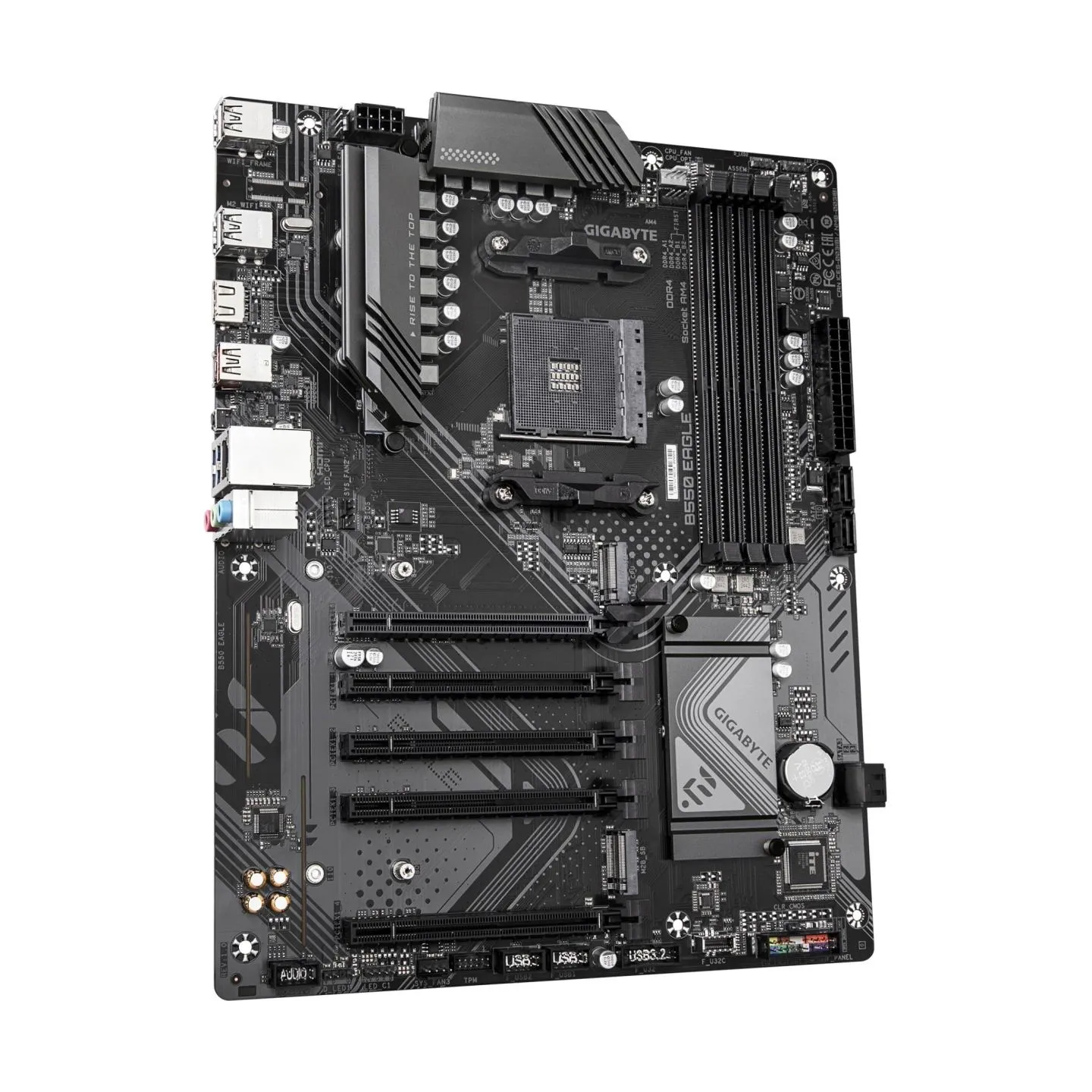

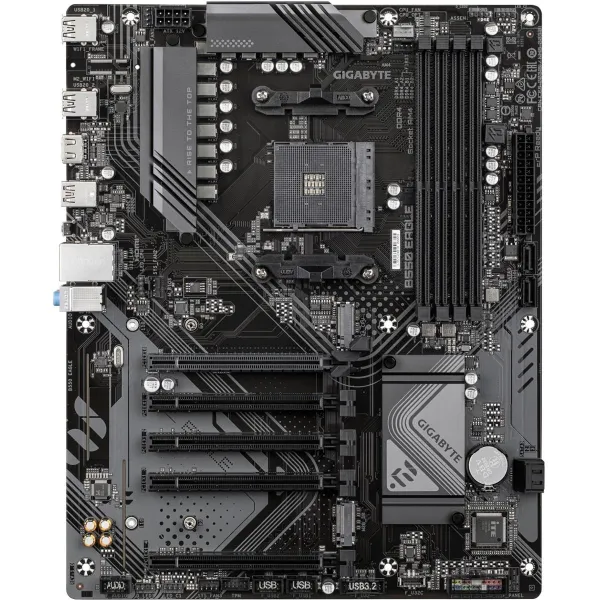

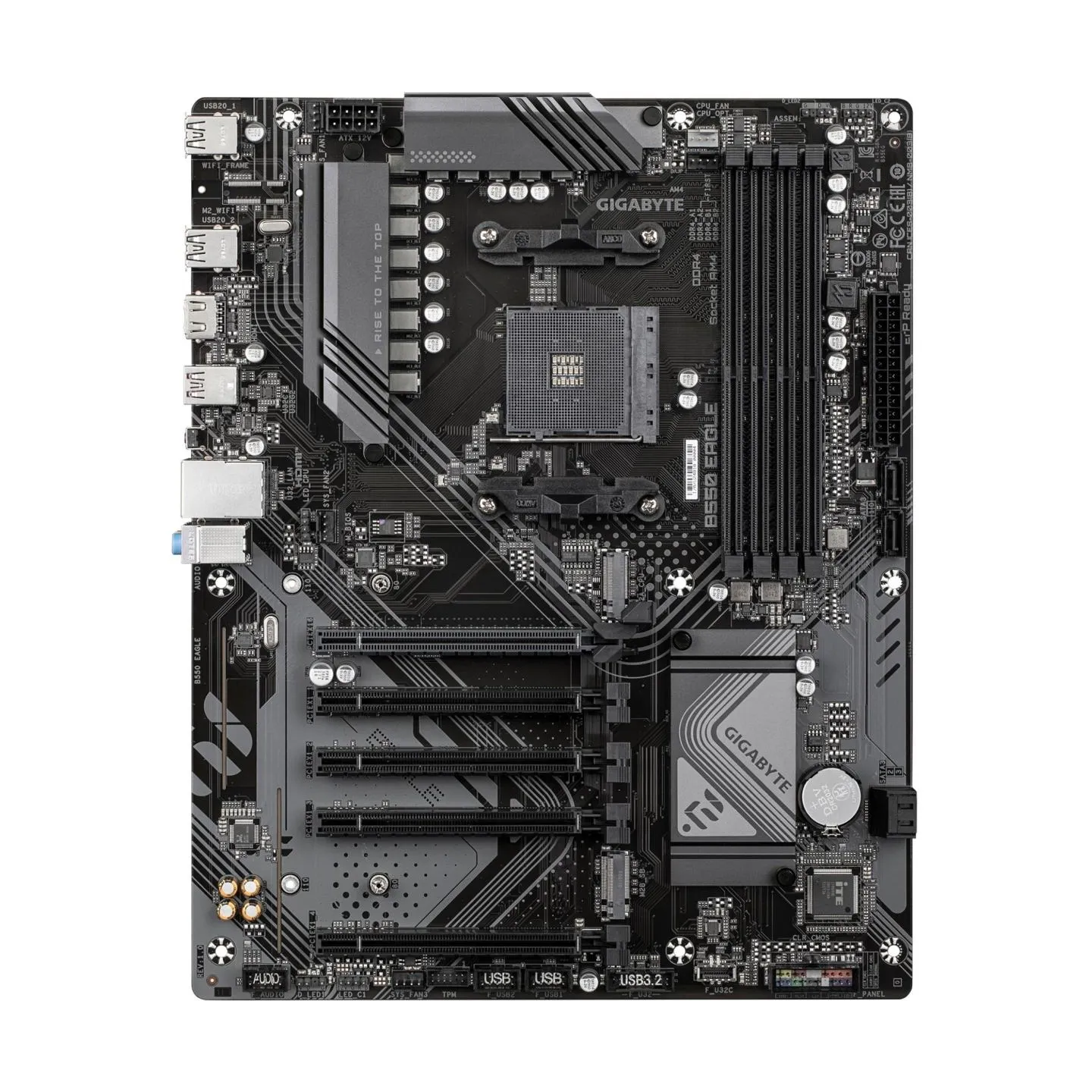

Gigabyte Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI
Price:
€115.27
Tax included
Share on
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3+1 phases VRM solution
- Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch: PCIe slots with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal: VRM Thermal Armor Advanced
- Fast Networking: GbE LAN

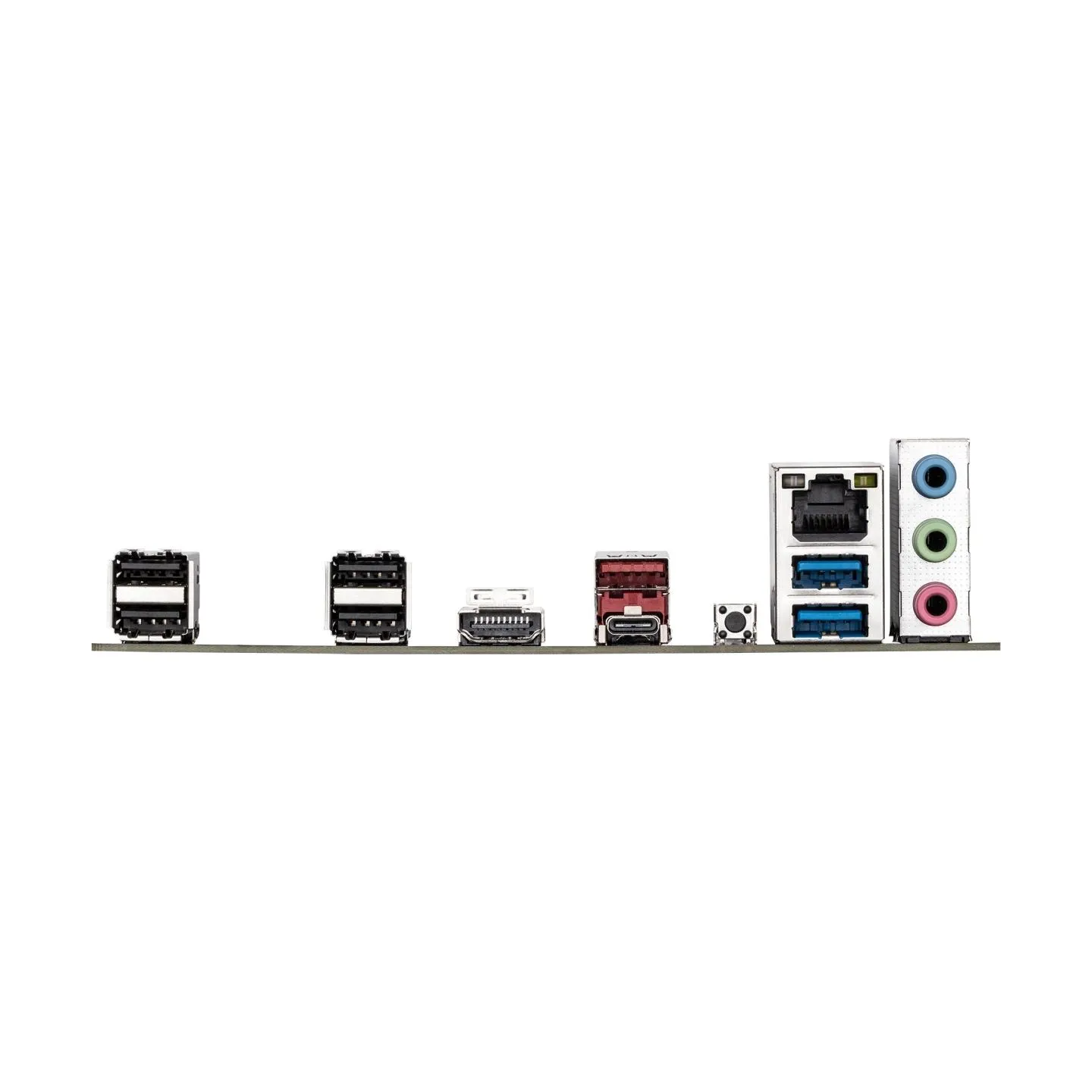

- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.08
- Unit Box Length
- 0.335
- Unit Box Width
- 0.275
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- AMD B550
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- Dark brown
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Supported processor sockets
- Socket AM4
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Maximum internal memory per slot
- 32 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 3200 MHz
- Supported memory clock speeds
- 2133/2400/2667/2933/3200 MHz
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,PCI Express 4.0,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 5
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 1
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wi-Fi
- No
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 3.0
- 2nd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 3.x) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 1482.5 g
- Package width
- 335 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 1250 g
- Model
- B550 EAGLE
- Units per Shipping Box
- 8
- Unit Calculated Volume
- 0.01011 cubm
- Unit Calculated Weight
- 1.47 kg
