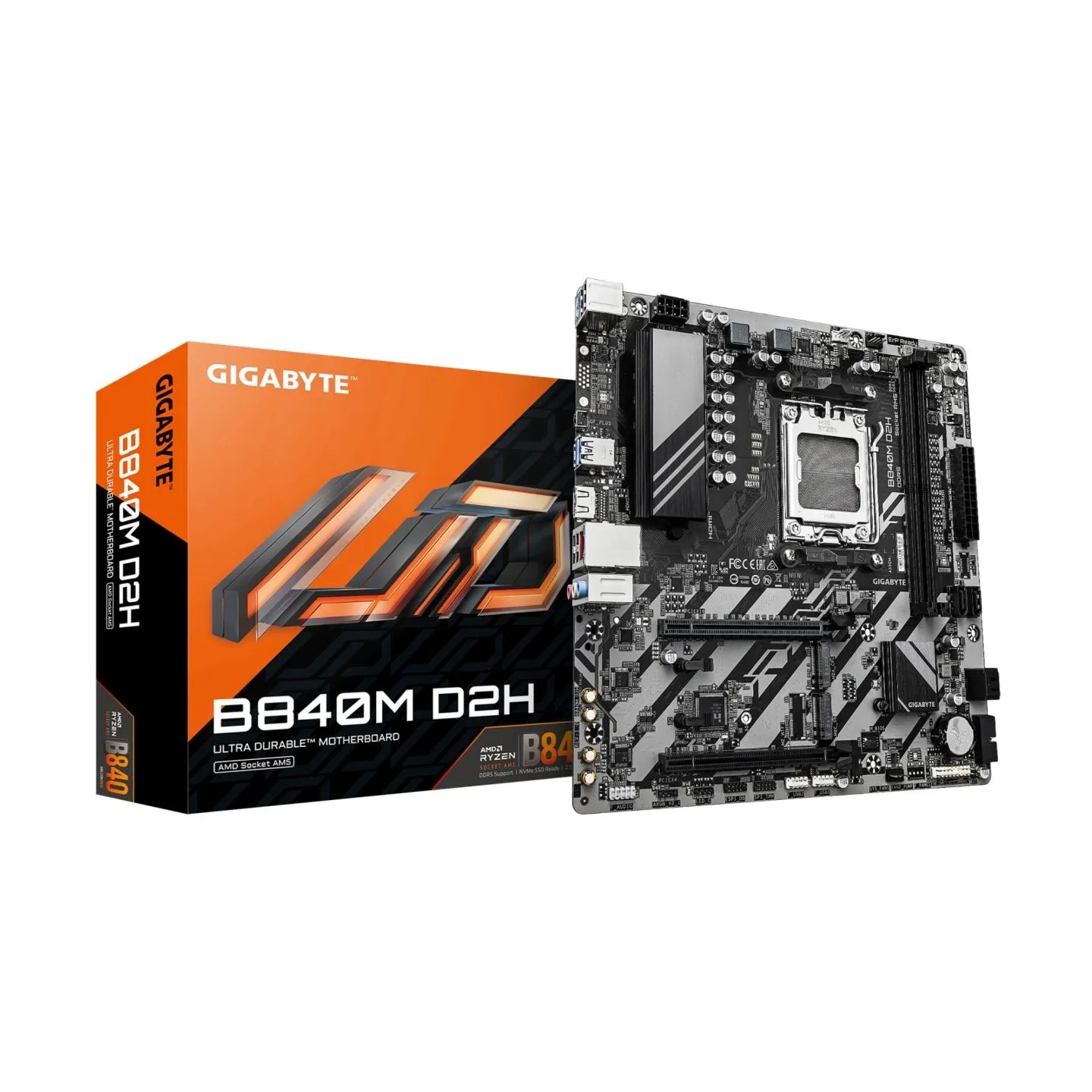

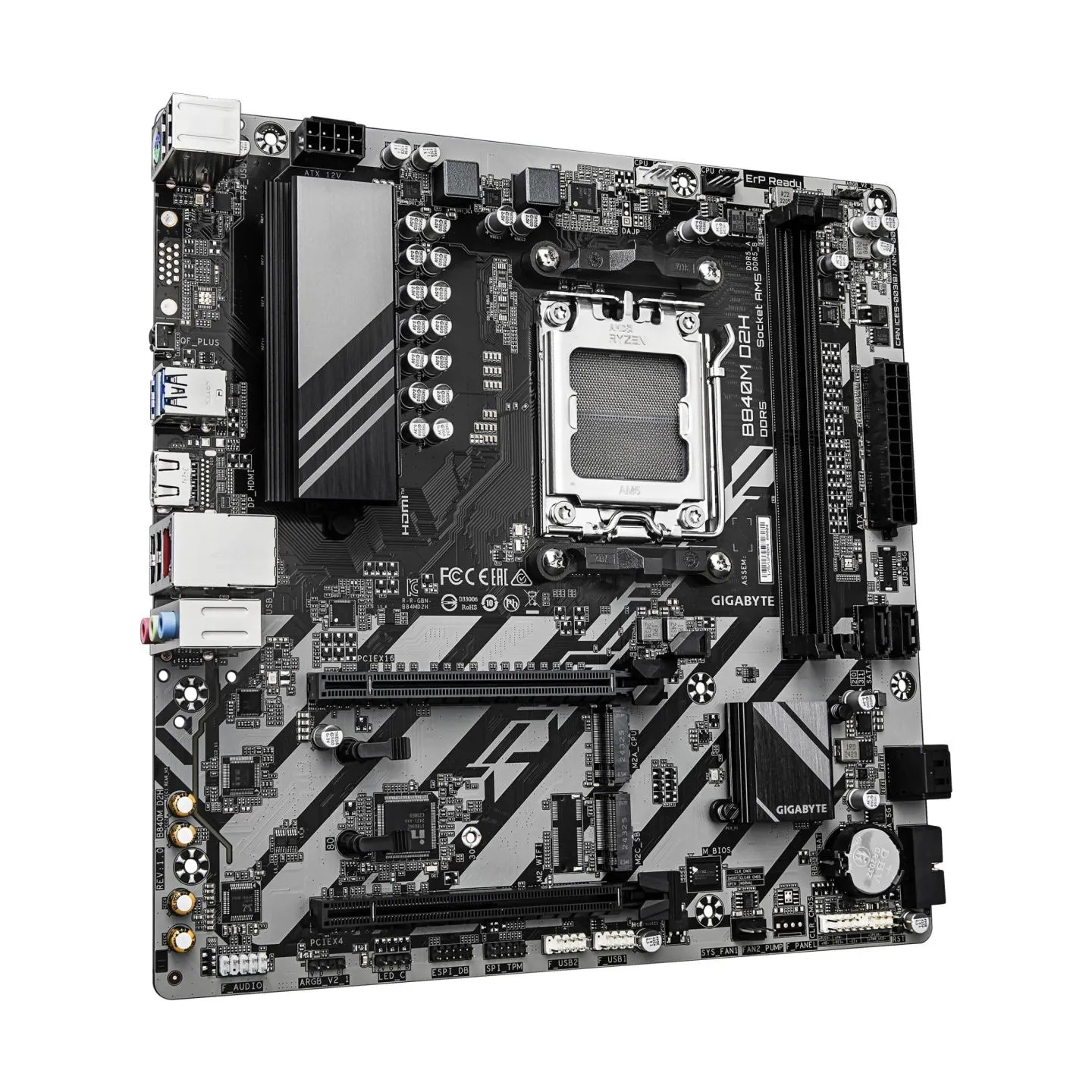

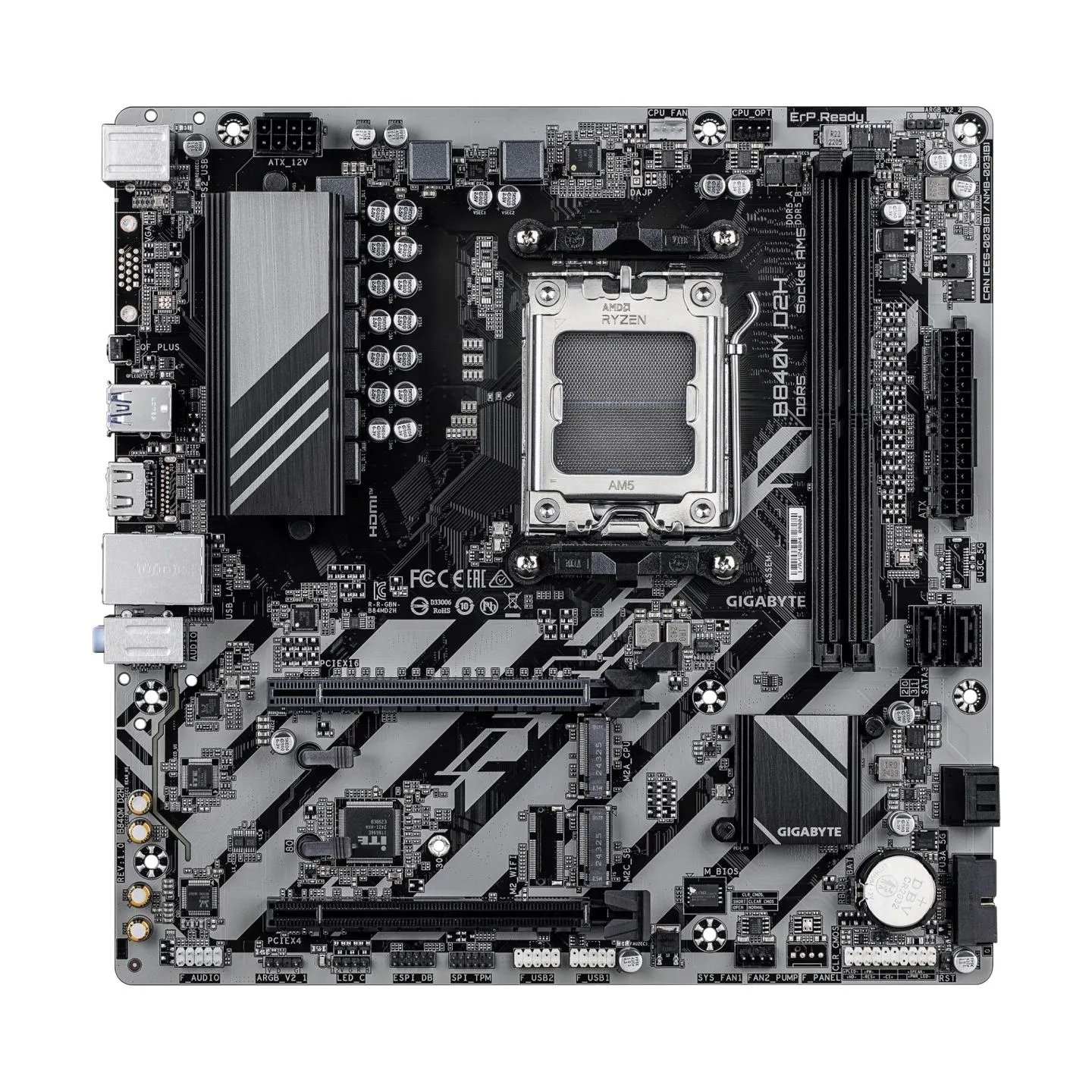

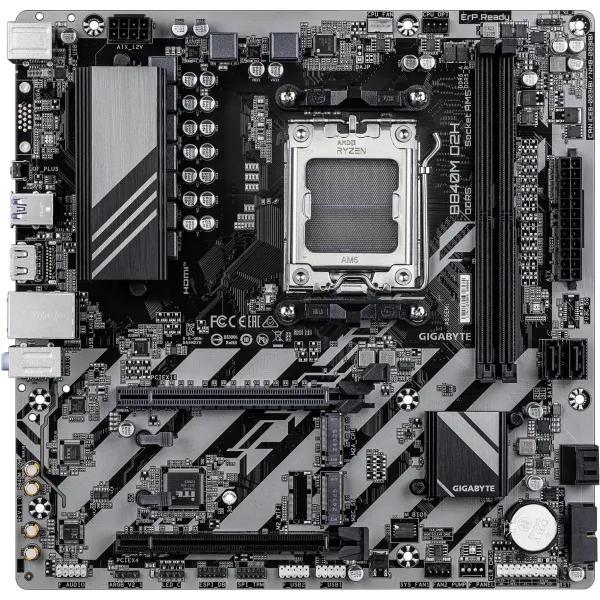

Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2
Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

Gigabyte Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

SKU B840M D2H 1.2 Category Mainboards
Price: €118.69
Tax included
Add to Cart
Share on

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • X3D Turbo Mode to unleash new era gaming performance
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital 5+2+2 phases VRM solution
  • Dual Channel DDR5 : 2*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
  • Fast Networking : 2.5GbE LAN



Manufacturer Website:
https://www.gigabyte.com/

Category Code
MBA
CnCode
84733020
Unit Box Height
0.06
Unit Box Length
0.26
Unit Box Width
0.27
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Cooling type
Passive
Motherboard chipset
AMD B840
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
PC health monitoring
Fan/Temperature/Voltage/Water cooling
Power source type
ATX
Product colour
Dark brown
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
ECC сompatibility
Non-ECC
Maximum internal memory
128 GB
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
2
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 4.0,SATA III
Supported storage drive types
HDD & SSD
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
3
Number of SATA III connectors
4
Number of water pump connectors
1
RGB LED pin header
Yes
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

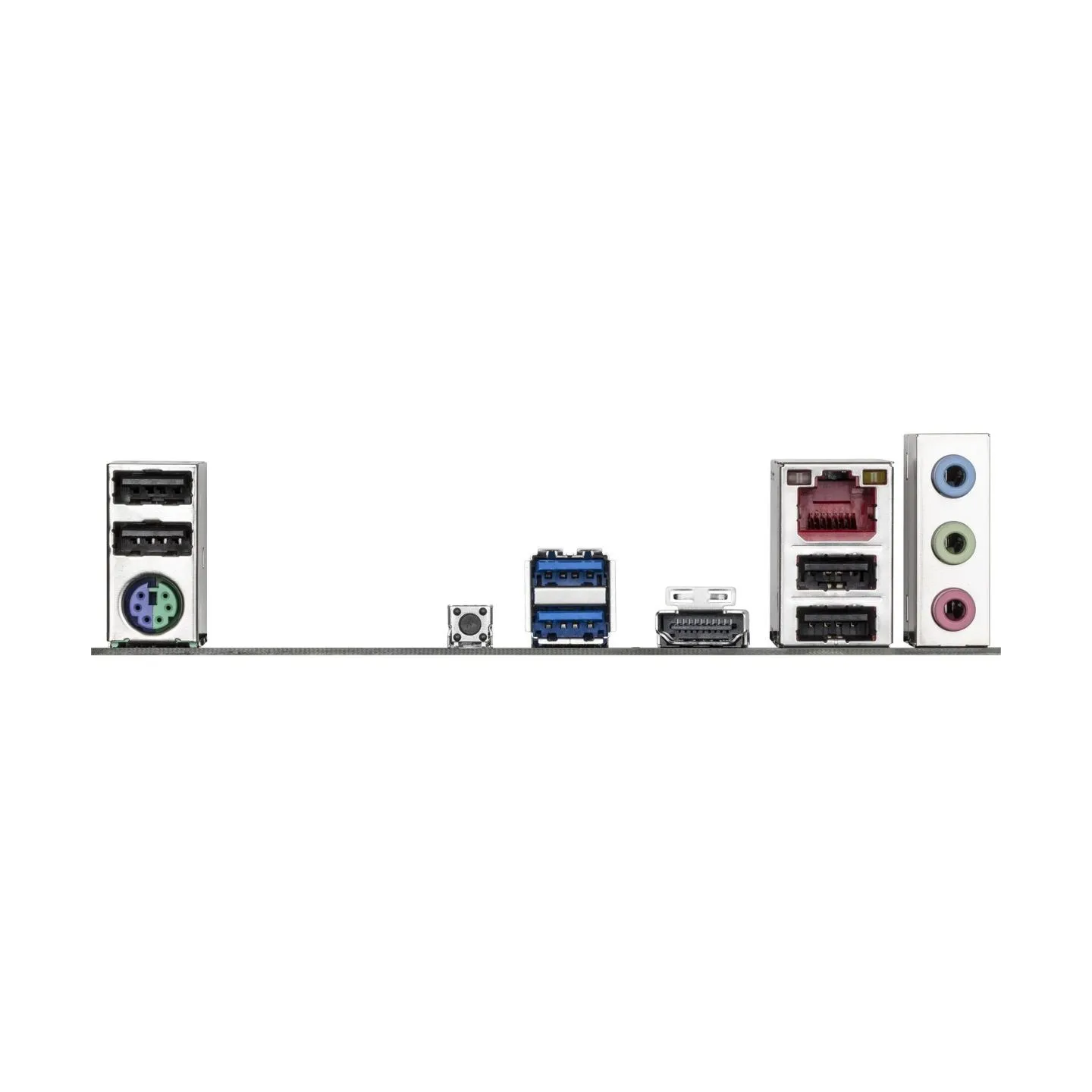

Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8125
Wi-Fi
No
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Package depth
265 mm
Package height
54 mm
Package weight
1026.4 g
Package width
265 mm
Products per shipping (inner) case
1 pc(s)
Depth
244 mm
Height
35 mm
Width
244 mm
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included
Yes
Warranty period
3 year(s)
Weight
940 g
Units per Shipping Box
10
Unit Calculated Volume
0.004669 cubm
Unit Calculated Weight
1.04 kg
Category Mainboards Brand GIGABYTE EAN13 4719331868116 In stock 9 Items
