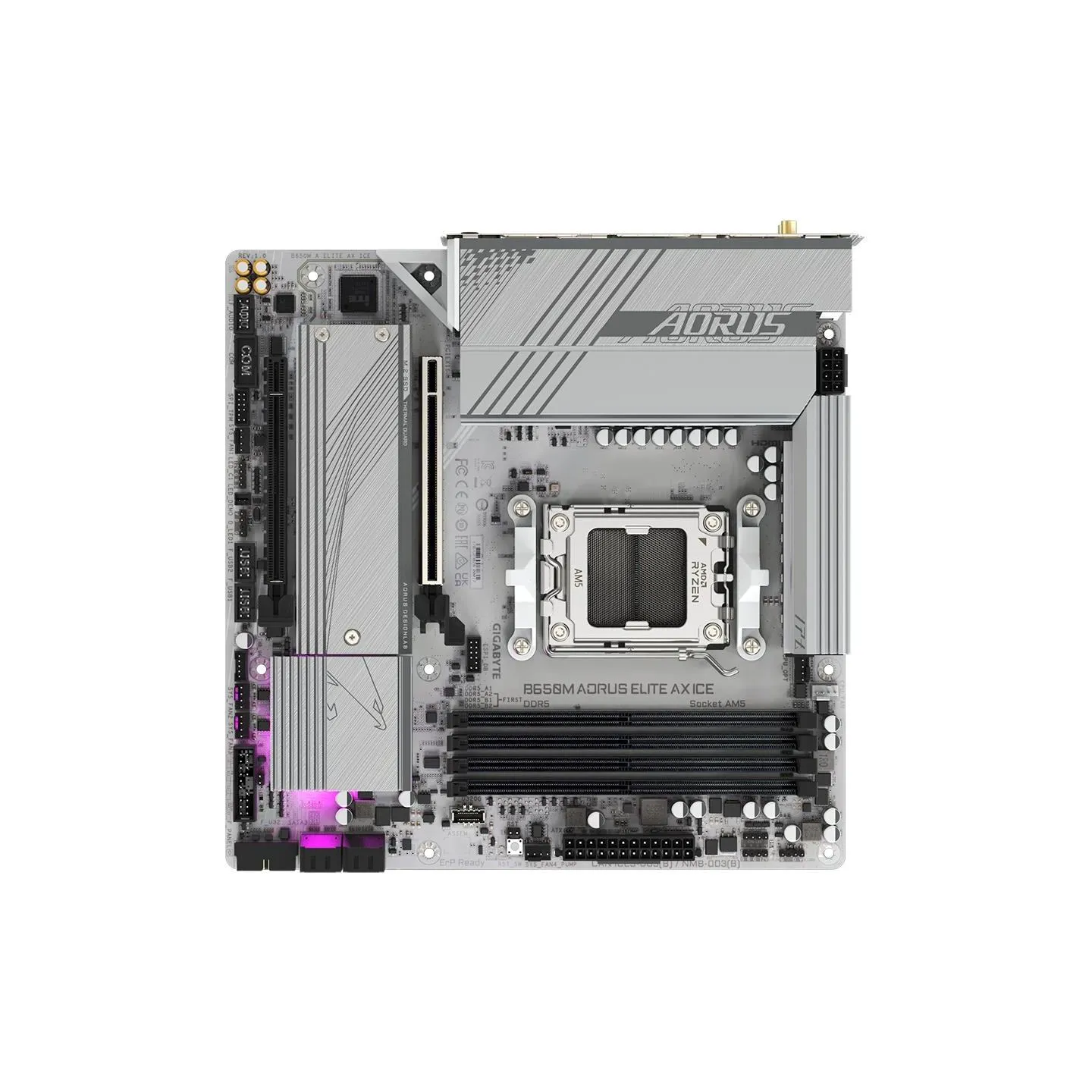

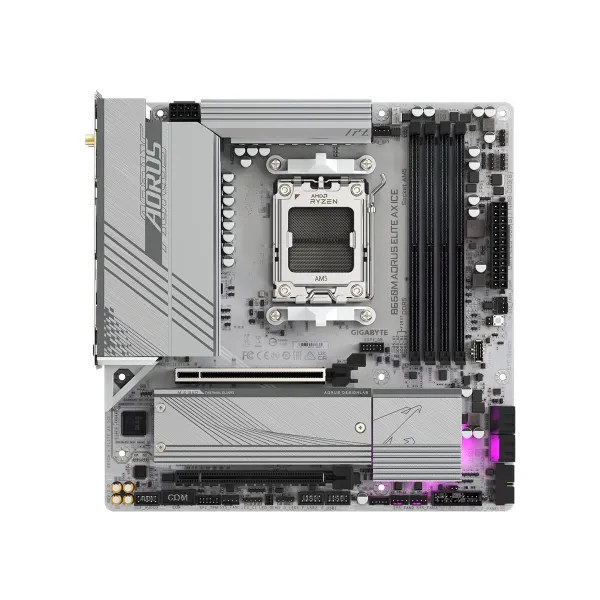

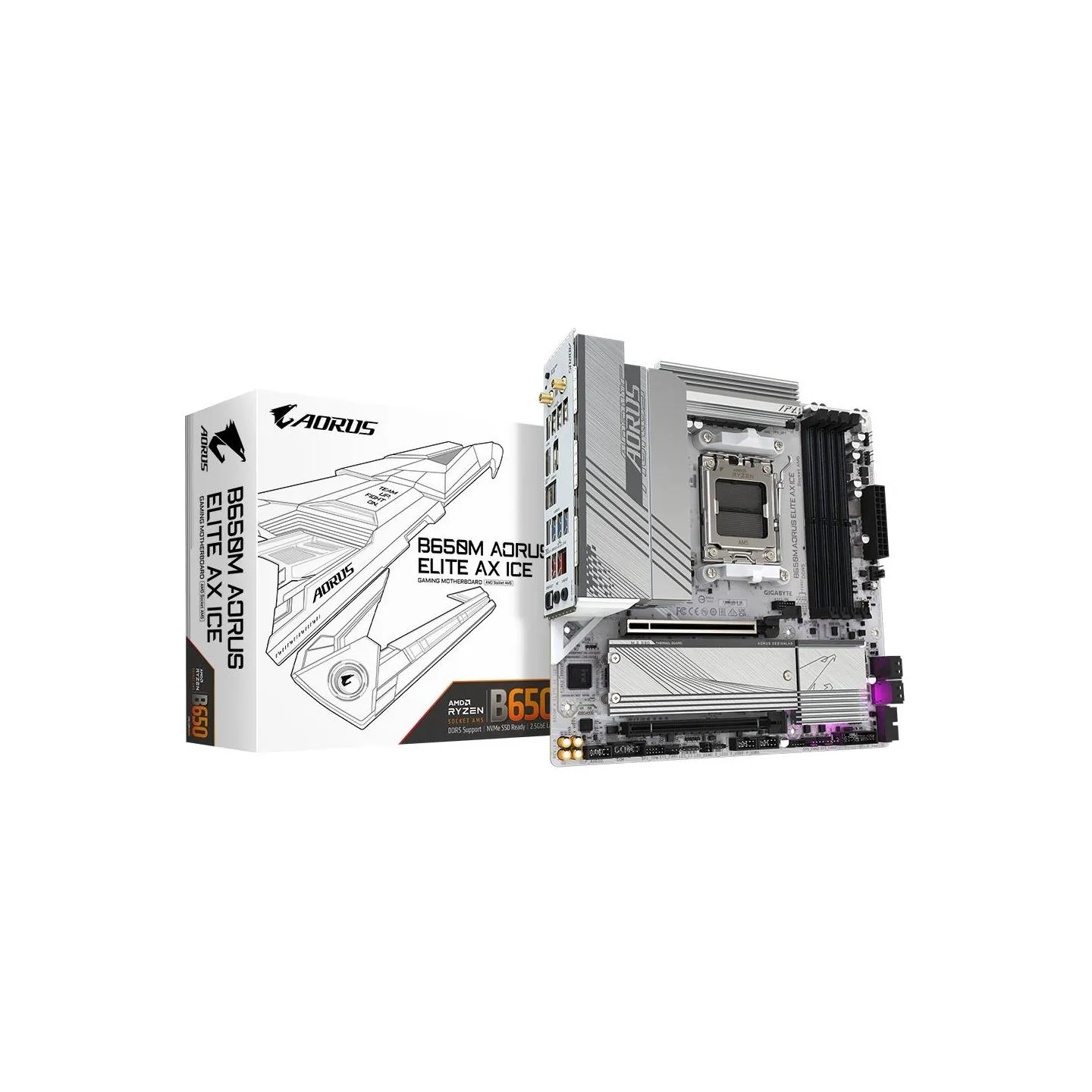

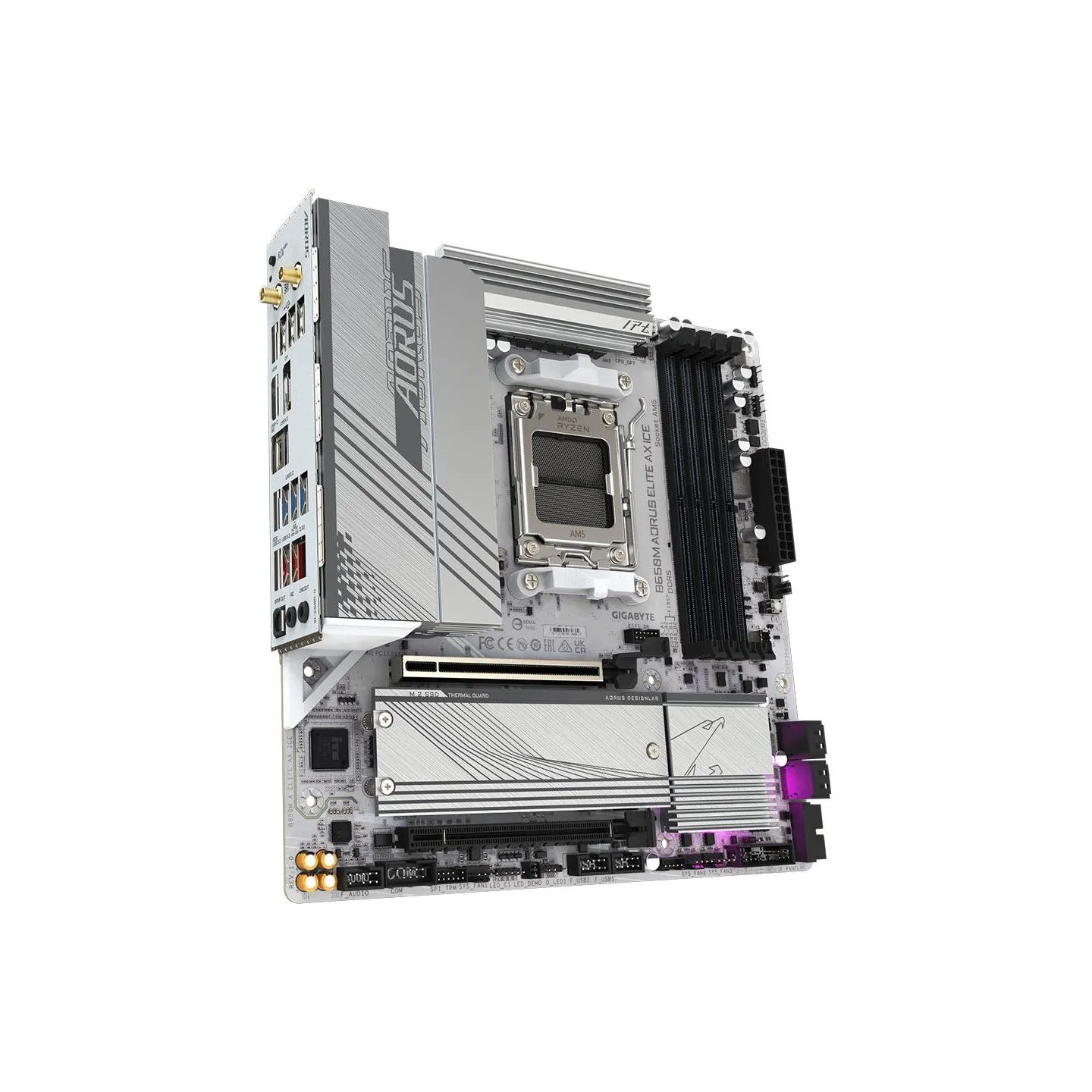

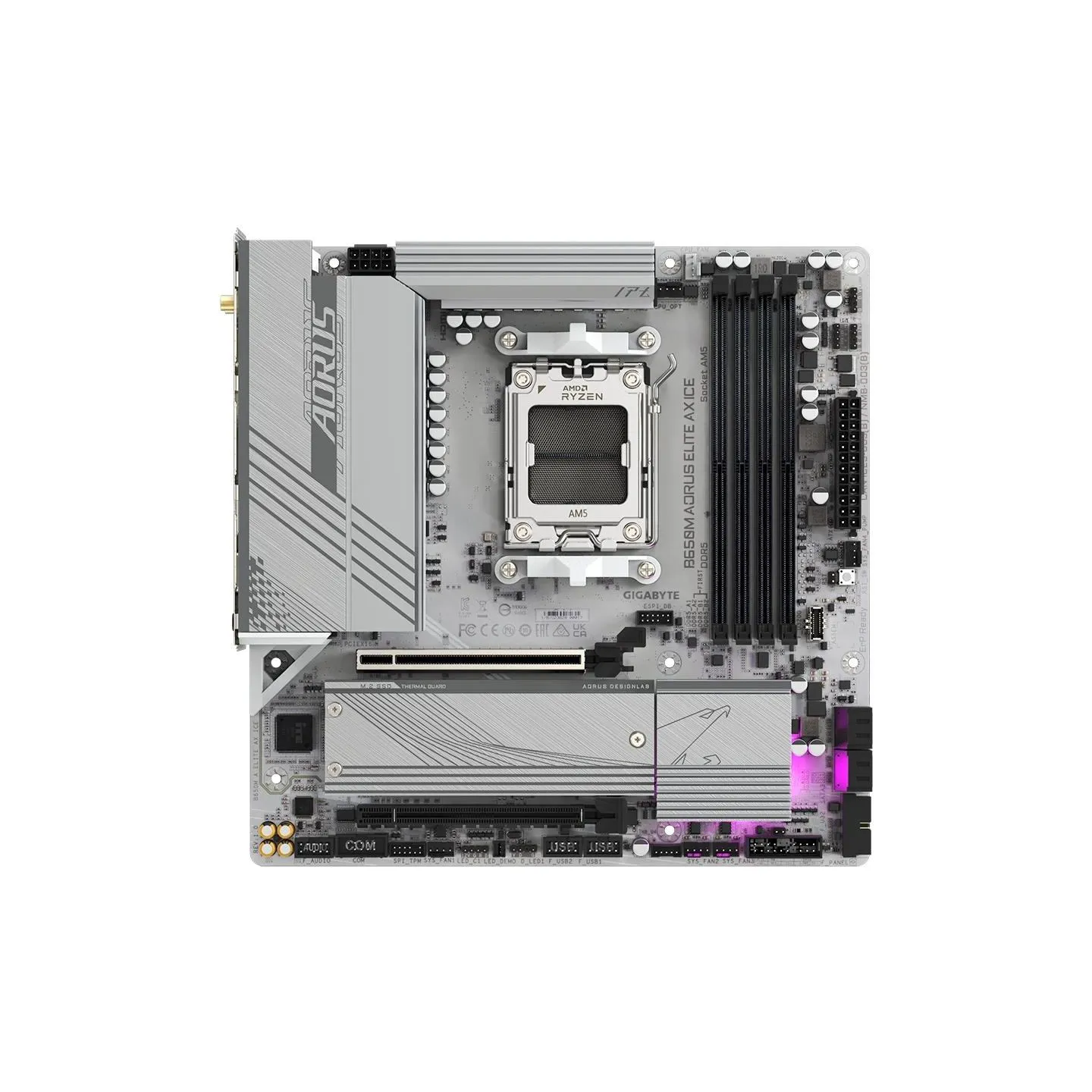

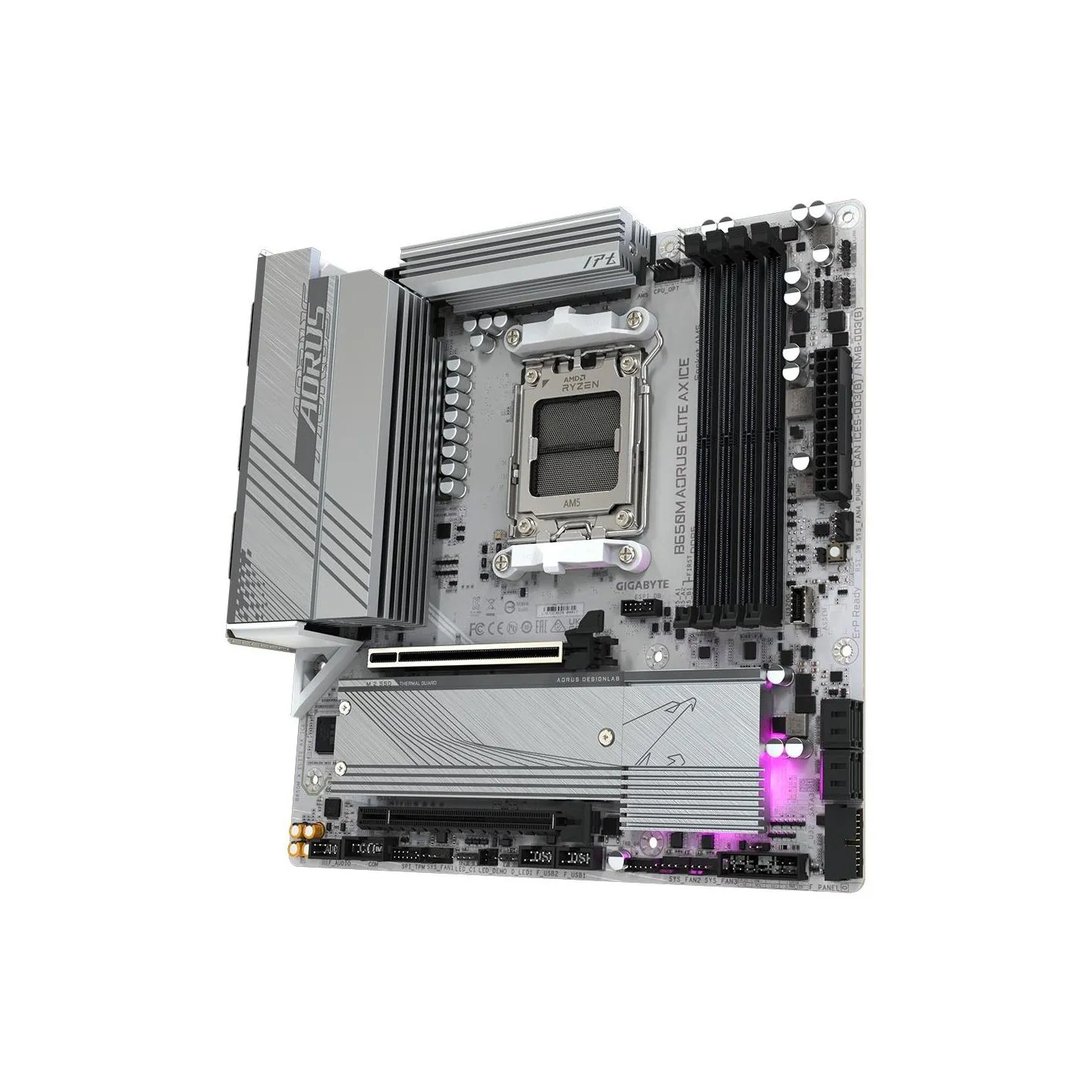

Gigabyte Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MAELITEAXICE1.1
Price:
€216.77
Tax included
Last items in stock
Share on
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
- Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E

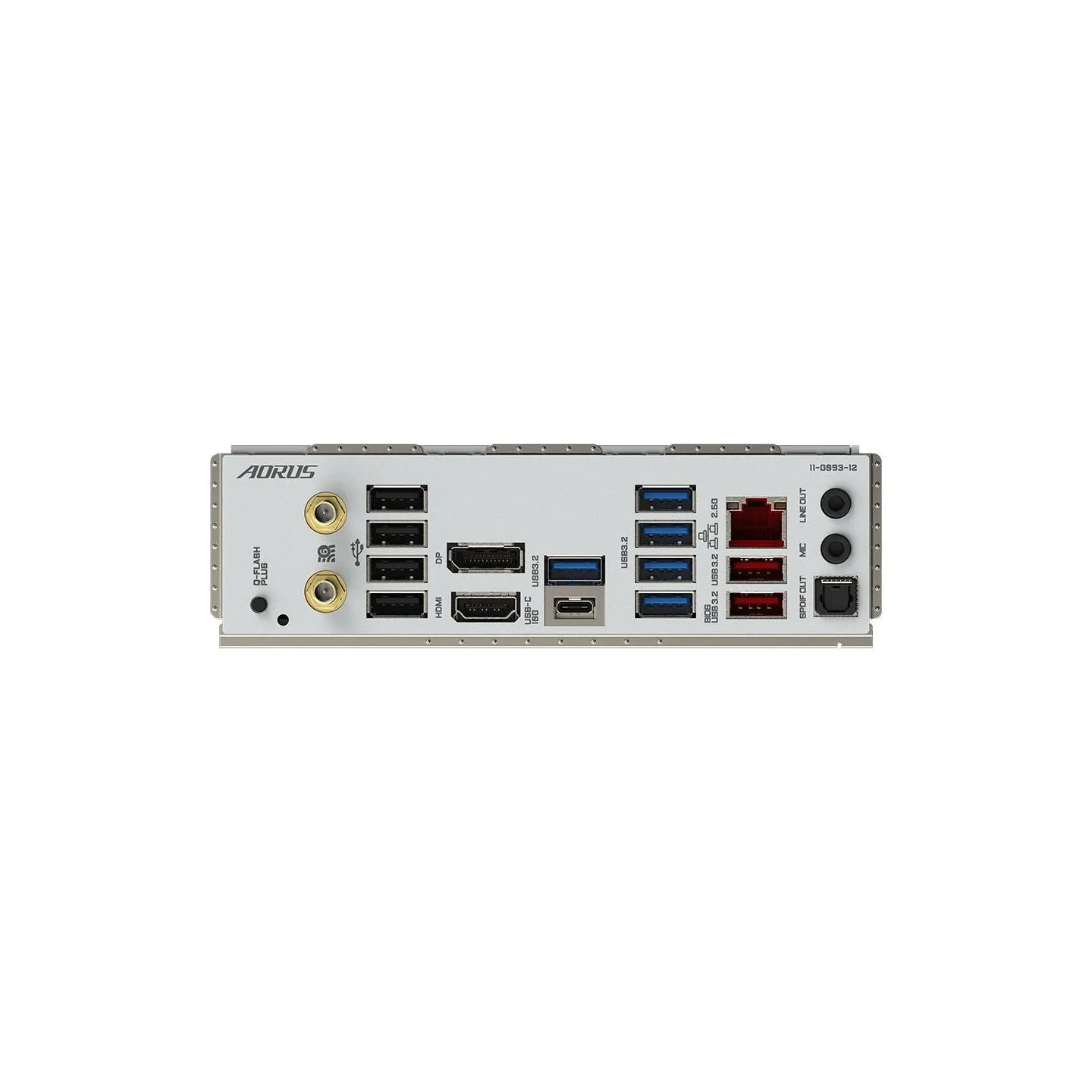

- Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.275
- Unit Box Width
- 0.27
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- White
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8000 MHz
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- DirectX version
- 12.0
- Discrete graphics support
- Yes
- HDCP
- Yes
- Maximum resolution
- 4096 x 2304 pixels
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of CPU fan connectors
- 2
- Number of RGB LED pin headers
- 5
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 2
- RGB LED pin header
- Yes
- Serial port headers
- 1
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Digital audio optical out
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- S/PDIF out port
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- WLAN controller model
- Realtek RTL8852CE
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 25110
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 2
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Country of origin
- China
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 268 mm
- Package height
- 68 mm
- Package weight
- 1892 g
- Package width
- 270 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Model
- B650M AORUS ELITE AX ICE 1.1
- Units per Shipping Box
- 8
- Unit Calculated Volume
- 0.007192 cubm
- Unit Calculated Weight
- 1.9 kg
